Product Type	Pedestal Fan with Dual Blades
Brand	Thomson
Model	THVEL470K
Power Supply	220-240 V ~ 50 Hz
Power Consumption	28 W (max), 20.12 W (average)
Isolation Class	Class II
Maximum Airflow	57.23 m³/min
Sound Power Level	63.7 dB(A)
Maximum Air Speed	2.82 m/s
Number of Speeds	24 (Normal and Natural modes), 3 (Sleep mode)
Operating Modes	Normal, Natural, Sleep
Timer	Yes, from 1 to 18 hours
Oscillation	Yes, left-right
Remote Control	Yes, with AAA 1.5 V batteries (not included)
Control Panel	On/Standby, Mode, Timer, Oscillation buttons, speed dial
Cleaning and Maintenance	Unplug before cleaning; use a damp sponge with mild soap; do not allow water to enter the motor
Standby Power Consumption	0.47 W
Seasonal Electricity Consumption	6.96 kWh/year
Assembly	Base, tube, body, rear grille, blades, front grille; tools provided
Safety	Do not insert objects into the grille; do not use near a window; do not leave unattended; do not disassemble grilles once assembled
Warranty	Does not cover normal wear, misuse, unauthorized repairs
Manufacturer Contact	Schneider Consumer Group, 12 rue Jules Ferry, 93110 Rosny-sous-Bois, France

Frequently Asked Questions - THVEL470K THOMSON

How to assemble the THVEL470K fan?

Insert the tube into the base and secure with the nut. Loosen the clamping screw to extend the upper tube to the desired height, then retighten. Loosen the lock nut on the motor body, insert the motor body into the tube and tighten. Remove the nut and shaft protection, align the rear grille and tighten the nut clockwise. Insert the blades and tighten the reverse thread nut. Finally, clip the front grille onto the rear grille and tighten the ring screw.

How to use the remote control?

The remote control requires two AAA 1.5 V batteries (not included). Insert them respecting polarity. Use the buttons to turn on/off, select mode, set timer, oscillation, and speed. Standard range.

How to set the timer?

Press the Timer button on the panel or remote control to set automatic shut-off from 1 to 18 hours. The timer indicator and number of hours are displayed.

What are the available ventilation modes?

Three modes: Normal (constant speed), Natural (simulates natural wind with variations), and Sleep (progressively reduced speed for night, from 1 to 3).

How to clean the fan?

Unplug the appliance before any cleaning. Use a damp sponge with mild soapy water. Wipe with a soft cloth. Ensure no water enters the motor. Reconnect only when perfectly dry.

What to do if the fan does not turn on?

Check that the appliance is plugged into a working 230 V outlet. Check that the power cord is not damaged. If the problem persists, contact customer service.

The remote control does not work, what to do?

Check that the batteries are inserted correctly and not depleted. Replace them with new AAA batteries of the same type. Ensure there is no obstacle between the remote and the receiver.

The fan makes an abnormal noise, what to do?

Check that the appliance is on a stable surface and all parts are correctly assembled. Ensure nothing obstructs the blades. If the noise persists, stop using and contact customer service.

Can I use the fan near a window?

No, it is not recommended to use it near a window as rain could enter and cause electric shock. Always place it indoors on a flat, stable surface.

What are the important safety instructions?

Never insert objects into the grille. Do not leave the appliance unattended. Do not use with a damaged cord. Unplug before cleaning. Do not disassemble grilles after assembly. Use only indoors.

USER MANUAL THVEL470K THOMSON

C E I MPORANT: Carefully read this instruction manual before switching on and keep it safe.

WARNING!!!

If the power cord is damaged, it must be replaced by the manufacturer, its service or similarly qualified persons in order to avoid a hazard.

The plug socket power cable must be removed before cleaning the unit or undertake maintenance operations.

WARNING

The product must be installed in accordance with the national wiring rules.

This unit is intended for household and domestic use only.

1. Well assemble the product before use.

2. Before connecting the appliance, check that:

3. The supply voltage is the same as the nameplate,

4. The power supply socket is suitable to the device,

5. The cable plug is adapted to the socket. The product is intended only for a socket with a main voltage of 230 volts (50 Hz).

6. Never insert fingers, pencils or other objects through the grid when the appliance is running.

7. Make sure the appliance is placed on a

stable surface when in use.

1. Do not use your appliance near a window. The rain could cause an electrical shock.
2. Never leave the appliance running unattended.
3. For security reasons, you MUST always remove the plug from the outlet when not in use, before cleaning or before maintenance.
4. Do not use chemicals or detergents for cleaning, it could easily damage or deform your appliance.
5. Do not pull the cord to unplug from the socket.
6. Do not use the unit with a damaged cord or plug.
7. Never attempt to disassemble or repair the device yourself. In the case of repairs by someone not competent, the warranty is void.
8. Unplug the product when you move it.
9. Never run the product in the presence or within reach of unsupervised children.
10. The unit and the grid should not be removed for maintenance or cleaning.
11. The devices are not intended to be operated by means of an external timer or a separate remote-control system.
12. This appliance can be used by children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

1. This product complies with the requirements of Directives 2014/35/EU (repealing Directive 73/23/EEC amended by Directive 93/68/EEC) and 2014/30/EU (repealing Directive 89/336/EEC).
2. WARNING!!! If the power cable is damaged, it must be replaced by the manufacturer, its after sales service or similar qualified persons in order to avoid a hazard.
3. Make sure the fan is disconnected from the socket before removing the grid.
4. The plug must be disconnected before cleaning the appliance or undertaking maintenance operations.
5. Once the device is assembled, it is forbidden to remove the grilles.
6. This appliance is intended to be used indoor & household.

7. Regarding the correct assembly of the device, refer to page 5 of the corresponding instructions.

8. For cleaning and maintenance instruction, refer to page 8 of the corresponding section

9. User instructions should be provided with the device so that it can be used safely.

ASSEMBLY

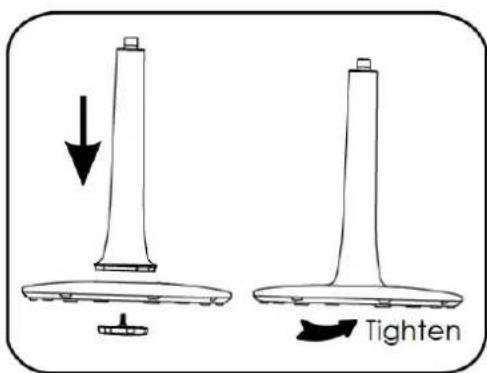

1. Insert the tube into the hole on the base, then use nut fix it tightly

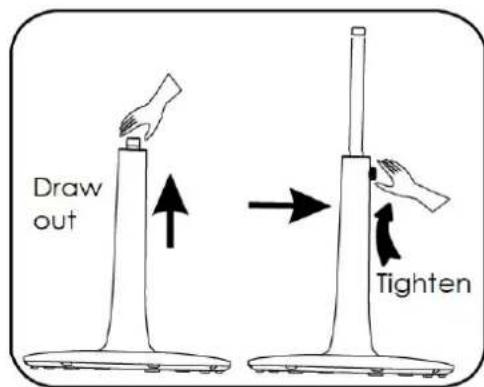

1. Loose the locknut for lifting and draw out the lift tube to a certain height, and then fasten the locknut back tightly

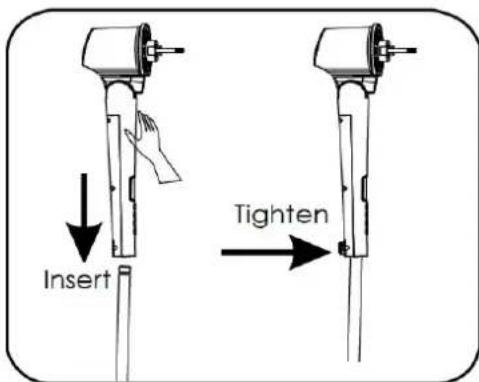

1. Loose the locknut on the fan body, insert the body to lifting tube and tighten the nut

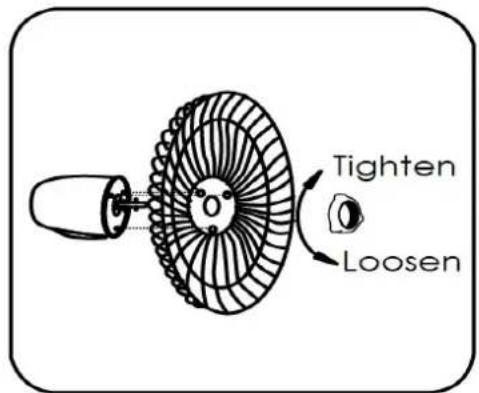

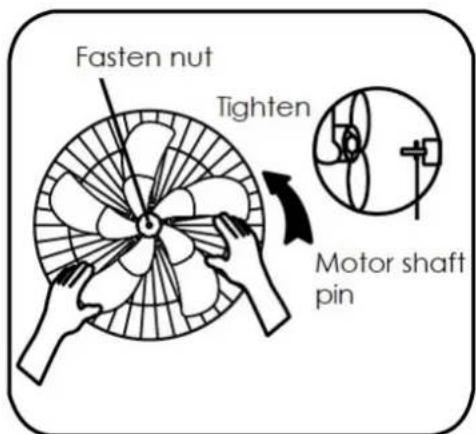

1. Take off the nut and motor shaft protection part, align the back cover into fan head and tighten the nut clockwise

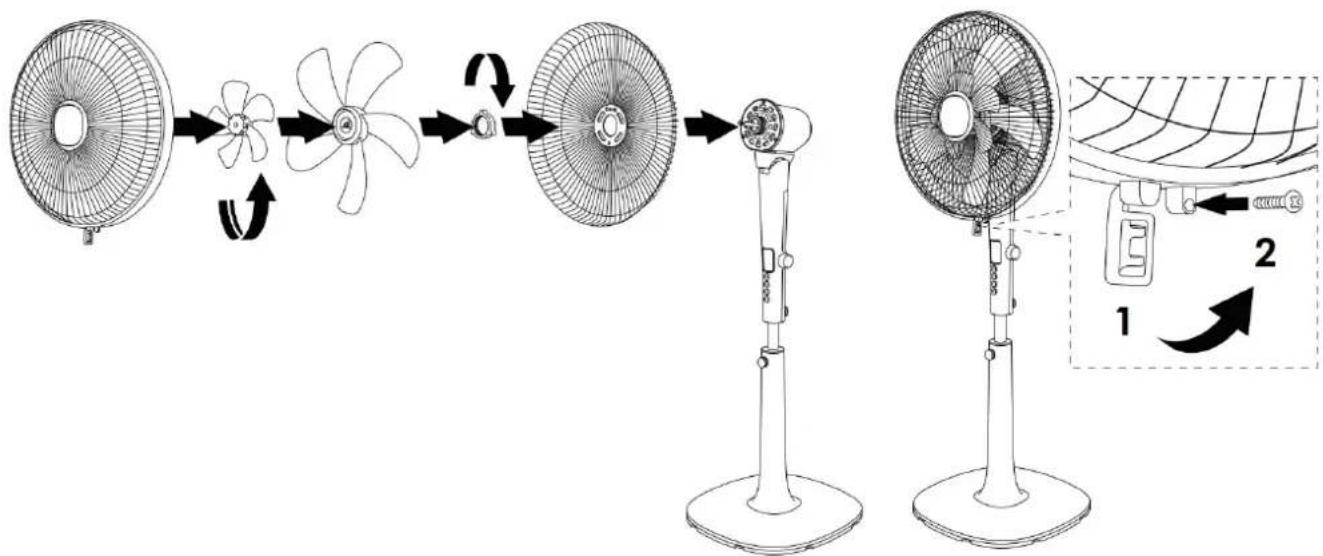

1. Insert the large and small blade and tighten the nut anti-clockwise

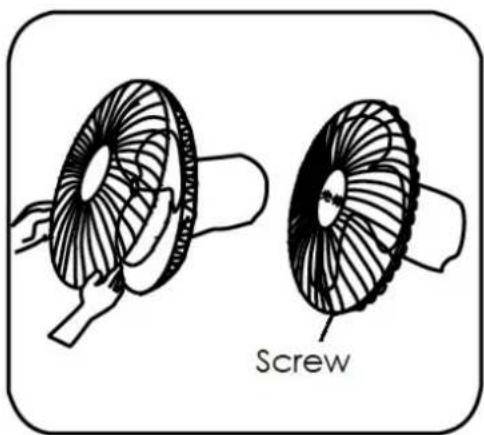

1. Cover the front grill and tighten with screws on it

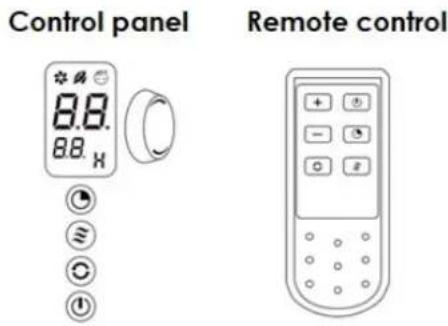

OPERATING INSTRUCTIONS

Before using the fan, make sure that it is on a flat and stable surface.

-Press the button to start and turn off the fan, the default mode setting is normal and the default speed setting is 18.

-Press the button to choose your desired mode as per the following sequence. The mode pilot lamp will be on during the fan operating.

Mode normal

Mode natural

Mode sleep

-Set the timer by pressing the button to select a desired time before the fan stop automatically after this period, the range is from 1 to 18 hours. The pilot light corresponding to the selected timing level will be illuminated.

-Press the button for oscillation, the pilot light will be on.

• Rotate the control knob beside the control panel or press the buttons + / - of the remote control to change the fan speed from 1-24 in Normal & Natural mode, and fan speed from 1-3 in Sleep mode. Rotate the knob clockwise to increase the speed, and rotate the knob anti-clockwise to decrease the speed.

Remote control

Requires 2 AAA batteries, 1.5 volts, not included. Used batteries should be disposed of safely. Drop in collection bins (please ask your dealer) to protect the environment. Replace the battery only with a battery of the same type, respect the polarities when inserting them.

CLEANING AND MAINTENANCE

Warning : Always unplug the appliance before cleaning.

1. Always disconnect the appliance from the mains by switching it off and removing the plug from the power outlet before cleaning.
2. To clean the outer surface of the appliance, use a lightly damp cloth. Then, dry it thoroughly with a soft, dry cloth before using again.
3. Do not allow water to penetrate the motor during cleaning.
4. Do not reconnect the unit until it is completely dry.

TECHNICAL SPECIFICATIONS

Model n° THVEL470K
Power supply 220-240V~50Hz
Power 28 W

Description Symbol Value Unit
Maximum fan flow rate F 57.23 m			3/min
Fan power input P 20.12 W
Service value	SV	2.84 (m	3/min)/W
Standby power consumption	PSB	0.47	W
Seasonal electricity consumption	Q	6.96	kWh/a
Fan sound power level	LwA	63.7 dB(A)
Maximum air velocity	c	2.82	meters/sec
Measurement standard for service value	IEC 60879:1986 (corr.1992)
Contact details for obtaining more information	SCHNEIDER CONSUMER GROUP12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE

The European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the

materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects;
(3) any incident, abuse, misuse, alteration, disassembly or Unauthorized repair;
(4) improper maintenance, improper use concerning the product or connection to an incorrect voltage;
(5) any use of accessories not supplied or not approved by the manufacturer. The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.
