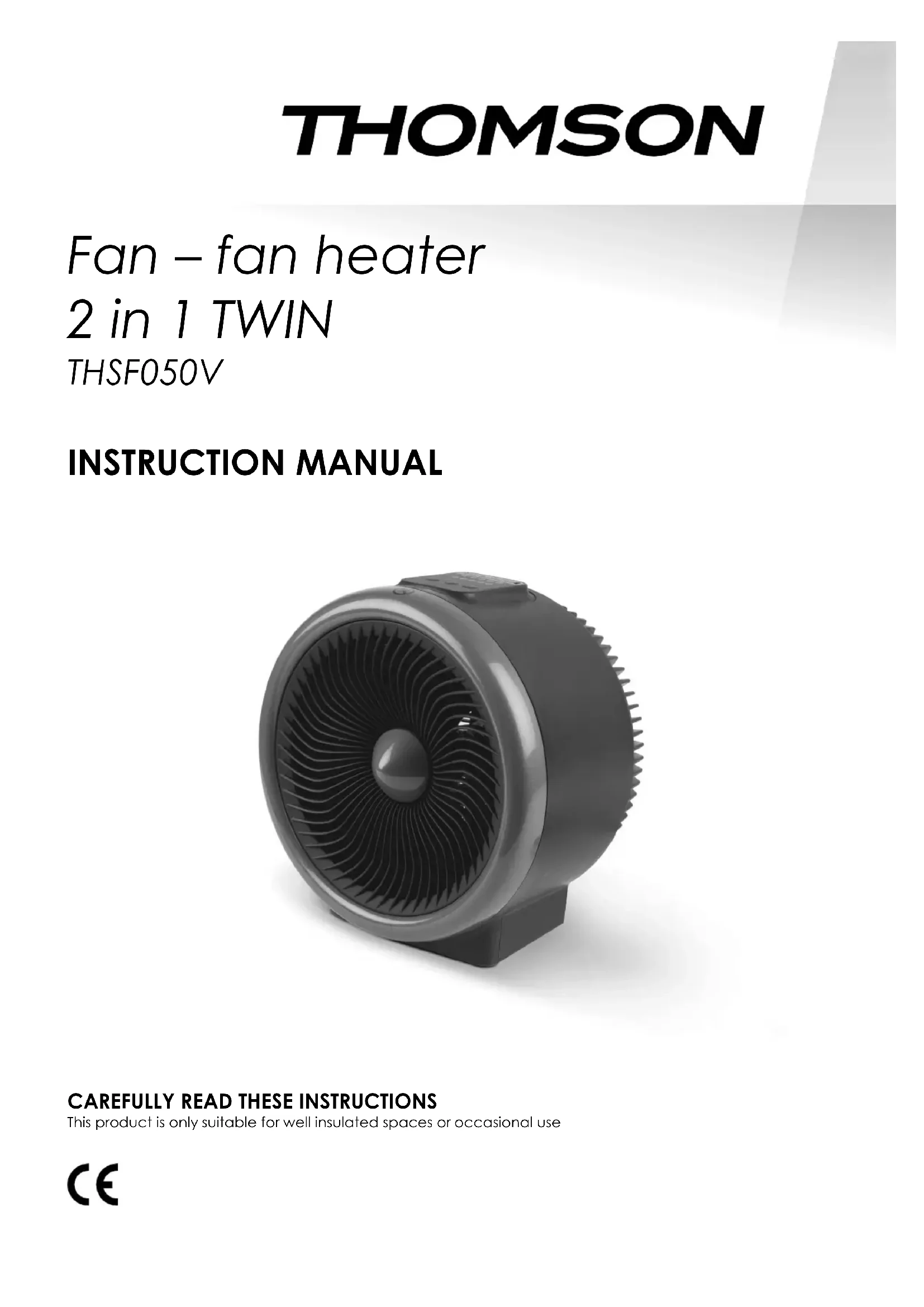

USER MANUAL THSF050V THOMSON

Black electric fan with visible blades and mounting base (no text or symbols)

LIRE ATTENTIVEMENT LES INSTRUCTIONS

Black electric fan with visible blades and mounting base (no text or symbols)

CAREFULLY READ THESE INSTRUCTIONS

This product is only suitable for well insulated spaces or occasional use

Safety recommendations:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children, except their age are over 8 years old and with supervision.
3. Children under 3 years must be kept away unless constantly monitored.
4. Children aged between 3 and 8 years must only turn on or off the unit provided it has placed or installed in its normal operating position expected and were trained and supervised in instructions for using the machine safely and understand the potential hazards.
5. Children aged between 3 and 8 years must not connect, adjust or clean the heater or perform user maintenance.
6. WARNING - Some parts of this product may become hot and cause burns. Particular attention must pay in presence of children and vulnerable people.

7. Read the instructions before using the appliance for the first time.

8. The appliance must be installed following national regulations for use.

9. It is necessary to be vigilant and supervise the appliance while children are close by.

10. This appliance is only designed for domestic and indoor use. Do not use outdoors. Use the fan heater only as indicated in the instructions. Any other use not in accordance with manufacturer's instructions may result in property damage or personal injury.

11. Use this appliance in a well aerated and ventilated room. Do not cover the appliance or air flow.

12. Do not leave this appliance unsupervised while it is on. When not being used, always ensure that the product is securely in the 'Off' position and unplugged from the socket.

13. Great care must be taken when being used by or in the presence of children of older persons.

14. If the power cable is damaged, it must be replaced by the manufacturer, their after-sales service or a similarly qualified person to avoid any hazards.

15. Do not place the cable under a carpet or any heavy object, and do not cover.

16. To avoid accidents, keep away from areas where people may trip. Do not place on unstable surfaces.

17. To avoid any risk of fire or electric shock, it is essential that the appliance not be exposed to rain or moisture, and not be opened. The appliance contains electric parts that may electrocute or burn you.

18. Do not place this appliance close to flammable fabrics, surfaces or liquids in order to avoid any risk of fire. Keep it well away from any source at risk of causing hazards and maintain it at a safe distance (whether this is the front, rear or sides). Do not use this appliance in locations such as garages, warehouses etc. where dangerous or flammable products are stored (paint, fuel, alcohol etc.).

19. This product is hot when it is on. To avoid any injuries or burns, do not touch it directly and use gloves or other means.

20. Do not use this heating appliance close to a bath, shower or swimming pool.

21. Check that the voltage corresponds to that of the power supply (230v mains socket) To avoid any risk of electric shock, plug the appliance in with the pins fitted correctly into the socket.

22. In the event that you need an extension cable, ensure that it is suitable for the appliance's power level.

23. If objects or liquids penetrate the inside of the appliance, unplug it and have it check by qualified persons.

24. While the appliance remains plugged into the socket (wall socket) it is not disconnected from the power supply, even if it is switched off. The appliance must be completely unplugged before cleaning, services, maintenance or even moving from one place to another.

25. The appliance must not be placed just underneath an electric socket.
26. WARNING: To avoid overheating, do not cover the fan heater.
27. This symbol means that you must not cover the appliance.
28. It is advisable that you supervise children to ensure they do not play with the appliance.
29. Appliances are not designed to be used in conjunction with a separate timer or with a control system used at distance.
30. Do not put any item in the area next to the heater.

Warning: Plug in the appliance correctly and do not leave within reach of children without supervision.

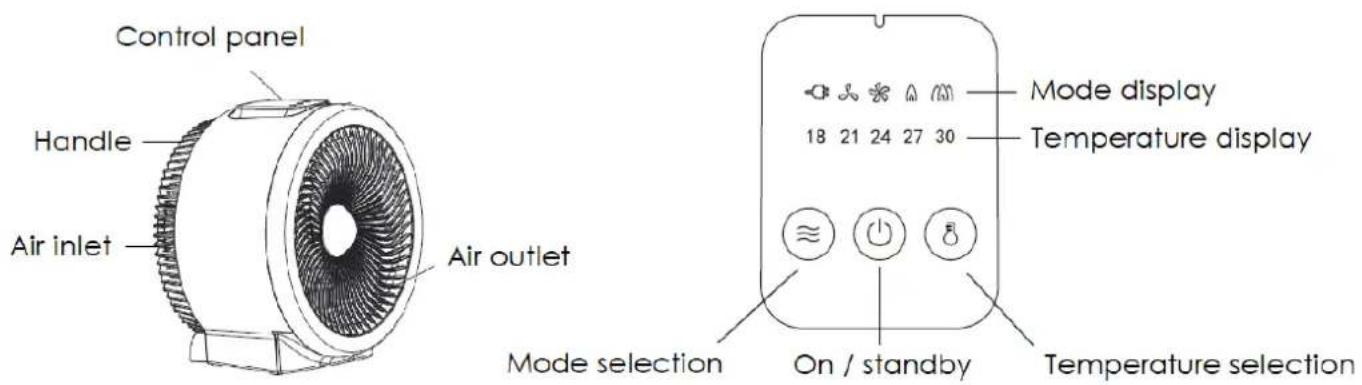

DESCRIPTION:

Control panel Handle Air inlet Air outlet Mode selection On / standby Mode display 18 21 24 27 30 Temperature display Temperature selection

Model N° :	THSF050V	Mode heater	Power
Item :	Ventilateur - Chauffage soufflant 2 en 1 TWIN	Heater low power	1200 W
Voltage :	220-240V~ 50Hz	Heater high power	2000 W

CLASS II

This product conforms to the requirements set by directives 2014/35/EC (repealing directive 73/23/EEC amended by directive 93/68/EEC) and 2014/30/EC (repealing directive 89/336/EEC)

USING THE HEATER:

Do not use this heater in a bathroom

1. Before using this appliance, ensure that it is placed on a flat, stable surface. This appliance is equipped with an anti-tripping switch that switches the appliance off in the event that it tips over and is not placed on a stable surface.

2. Check that the voltage corresponds to that of the power supply (230v mains socket) Once the appliance is plugged in, a bip sounds and indicator lights on.

This unit has 2 operating modes, fan heater and fan (cold air)

When the device is switched on, it starts automatically in heating mode.

Press the button On/ Standby ⏻ to switch on the heater on high power 🎨. The heater works on the high power.

Press the button mode ≈ to select successively the desired mode : Fan low speed→ Fan high speed→ Heater low power→ Heater high power.

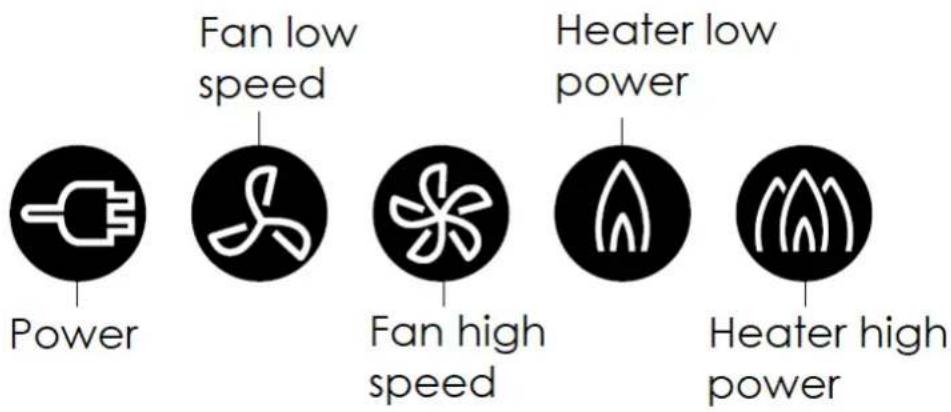

Fan low speed Power Fan high speed Heater low power Heater high power

USE IN HEATING MODE

In low power heating mode ⚠️, the heater operates at 1200W power.

In high power heating mode , the heater operates at 2000W power.

In heating mode, press the temperature button ⏻ to select the desired temperature.

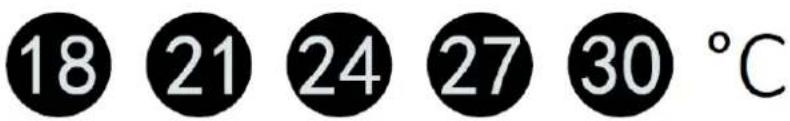

18 21 24 27 30 °C

USE IN FAN MODE

In slow speed ventilation mode, the unit operates without heating and the airflow is low.

In fast speed ventilation mode ⚙, the unit operates without heating and the airflow is high.

To put the product in standby mode, turn off the unit, press the On / Standby button

The appliance will continue to operate automatically in cold fan speed mode (without heating power) for 15 seconds to cool the appliance before stopping completely.

The heater includes a protection device protecting against overheating. If the fan heater overheats, a temperature limiting system inside the appliance will automatically cut off the power supply to reduce the risk of fire. Turn off the appliance unplug the appliance from the power outlet, and allow it to cool for at least 10 minutes. Then reconnect the plug to the power outlet and turn on the power again.

PRECAUTIONS FOR USE AND MAINTENANCE:

1. Always unplug the appliance and keep it away from any socket before cleaning.
   To clean the outer surface of the appliance, use a lightly damp cloth. Then, dry it thoroughly with a soft, dry cloth before using again.
   Do not use any cleaning or chemical products of any kind. Do not let water enter the openings on the heater.
2. When the appliance is not being used for prolonged periods, ensure that it is fully unplugged from the socket and store in its packaging for simple storage and later use.

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they

contain and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects;
(3) any incident, abuse, misuse, alteration, disassembly or Unauthorized repair;
(4) improper maintenance, improper use concerning the product or connection to an incorrect voltage;
(5) any use of accessories not supplied or not approved by the manufacturer.

The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

Information requirements for electric local space heaters

Model identifier: THSF050V
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	2,0	kW		manual heat charge control, with integrated thermostat	no
Minimum heat output(indicative)	P_min 1,2 kW				manual heat charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output	Pmax,c	2,0	kW		electronic heat charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption					fan assisted heat output	no
At nominal heat output	eI_max 1	919 kW			Type of heat output/room temperature control (select one)
At minimum heat output	eI_min 1	156 kW			single stage heat output and no room temperature control	no
In standby mode e	SB 0,298 kW				Two or more manual stages, no room temperature control	yes
					with mechanic thermostat room temperature control	no
					with electronic room temperature control	yes
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	no
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	no
Contact details	SCHNEIDER CONSUMER GROUP12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE

KEEP THESE INSTRUCTIONS

Imported by SCHNEIDER CONSUMER GROUP, 12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE THOMSON is a trademark of Technicolor SA used under license by SCHNEIDER CONSUMER GROUP.
