THPUR050E - Air Conditioning THOMSON - Free user manual and instructions

Product type	Air purifier
Brand	Thomson
Model	THPUR050E
Category	Air conditioning
Power supply	220-240 V~, 50-60 Hz
Power	30 W
Protection class	II
Fan speeds	4 (Sleep, Low, Medium, High)
Timer	1 to 8 hours
Child lock	Yes, activate by pressing for 3 seconds
Essential oil diffuser	Yes, 2 integrated sponges
Filter replacement indicator	Yes, after 2000 hours
Circular LED light	Yes, indicates speed
Filter type	Replaceable filter (pre-filter)
Usage	Indoor, household
Maintenance	Vacuum air inlets, clean with damp cloth
Safety	Minimum distance of 50 cm from walls, do not cover
Warranty	Limited, does not cover wear parts
Spare parts	Replacement filter, diffuser sponges
Included accessories	Diffuser sponges (2), manual
Control type	Buttons on control panel
Filter reset function	Yes, dedicated button

Frequently Asked Questions - THPUR050E THOMSON

How to install the filter for the first time?

Turn the device over, turn the cover to the left, remove the filter, remove the plastic bag, put the filter back, close and turn the cover to the right.

How to use the essential oil diffuser?

Two diffuser sponges are located inside the cover. Apply a few drops of essential oils to the sponges to diffuse a fragrance.

How to set the timer?

Press the timer button several times to set the automatic shut-off between 1 and 8 hours. Press again to cancel the timer.

How to activate the child lock?

Press the child lock button for 3 seconds to activate or deactivate. The indicator flashes when the function is active.

When should the filter be replaced?

The usage counter indicates replacement after 2000 hours. The indicator flashes and a sound is heard. Replace the filter then reset the counter.

How to reset the filter counter after replacement?

After replacing the filter, press the filter and LED light button for 3 seconds. The indicator stops flashing and the sound stops.

What to do if the device does not work?

Check that the air inlet is not blocked and that the plastic bag of the filter has been removed. Plug the device in correctly.

How to clean the device?

Turn off and unplug the device. Use a vacuum for the air inlets and a damp cloth for the exterior. Never use chemical products.

What are the important safety precautions?

Do not use near gas or flammable liquids. Maintain a distance of at least 50 cm from walls. Do not expose to water. Unplug when changing the filter.

The device emits a strange sound, what to do?

This may indicate that the filter needs replacement. Check the filter replacement indicator. Replace the filter and reset the counter if necessary.

USER MANUAL THPUR050E THOMSON

White THOMSON smart air purifier with perforated grille and circular vent (no text or symbols on body)

C ~ = ≡ lock power document 1h 2h 4h 8h

Line drawings of a filter unit and its internal structure, showing top-down and side-up views (no text or symbols)

Diagram of a circular mechanical component with internal concentric rings and directional arrows, no text or symbols present.

White THOMSON smart air purifier with perforated grille and circular vent (no text or symbols on body)

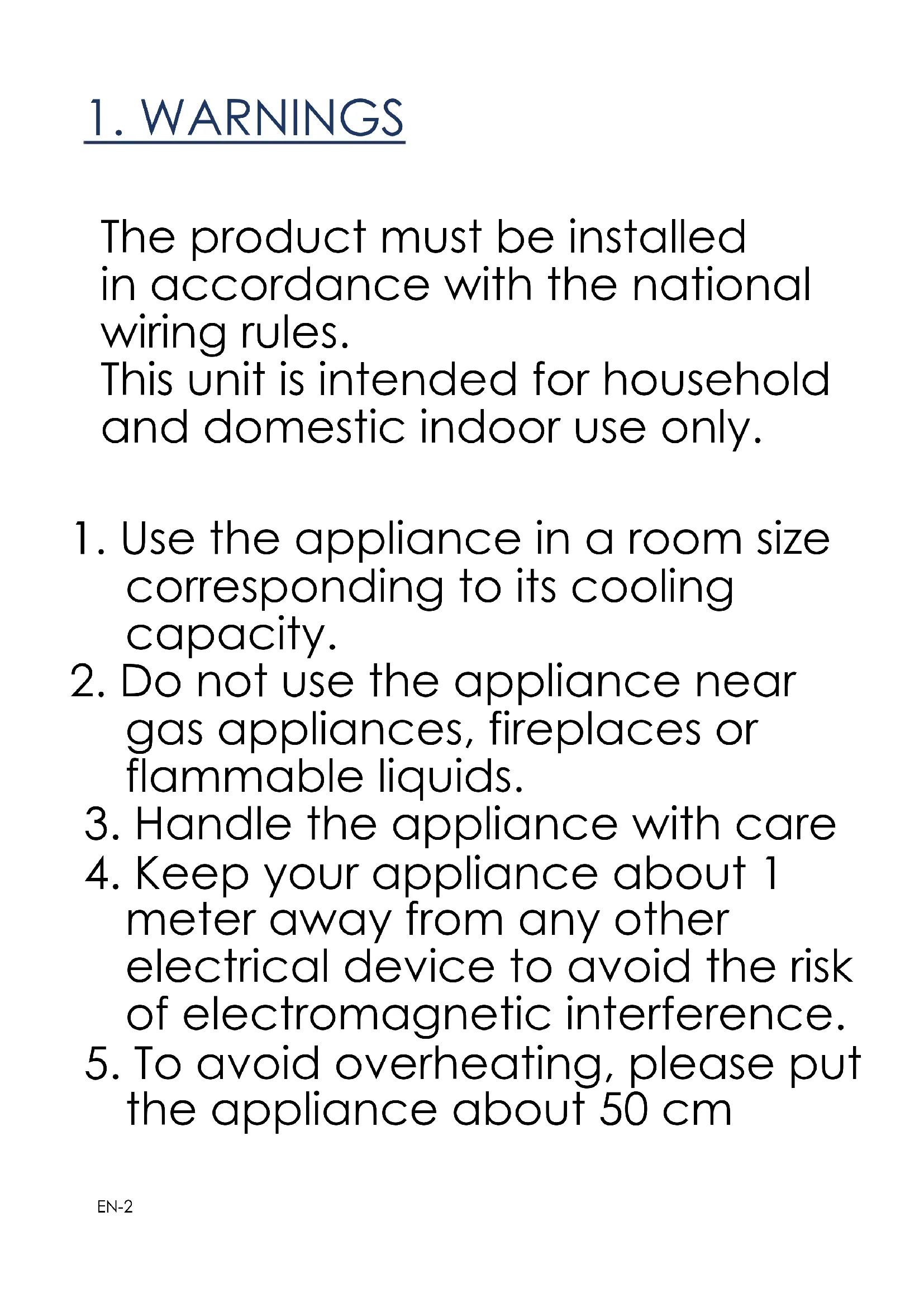

The product must be installed in accordance with the national wiring rules.

This unit is intended for household and domestic indoor use only.

1. Use the appliance in a room size corresponding to its cooling capacity.
2. Do not use the appliance near gas appliances, fireplaces or flammable liquids.
3. Handle the appliance with care
4. Keep your appliance about 1 meter away from any other electrical device to avoid the risk of electromagnetic interference.
5. To avoid overheating, please put the appliance about 50 cm

away from a wall and do not cover it.

1. Do not expose to direct or indirect heat sources.
2. Do not use this appliance in wet area, and not to have contact with water.
3. Do not submit the unit to strong shocks or vibrations.
4. The plug must be easily accessible when the device is connected.
5. Before connecting the appliance, check that:

- The supply voltage is the same as the nameplate,

- The power supply socket is suitable to the device,

- The cable plug is adapted to the socket

The product is intended only for a socket with a main voltage of 220-240 volts (50/60 Hz).

1. Always remove the plug from the socket when not in use.
2. Do not use the unit with a damaged cord or plug
3. The appliance should be unplugged when filling and cleaning

4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

5. Never insert fingers, pencils or other objects through the grid when the appliance is running.

6. This product complies with the requirements of directives 2014/35/EU (repealing Directive 73/23/EEC amended by Directive 93/68/EEC) and 2014/30/EU(repealing Directive 89/336/EEC)
7. Never run the product in the presence or within reach of unsupervised children.
8. If the power cord is damaged, it must be replaced by the manufacturer, its service or similarly qualified persons in order to avoid a hazard.
9. User instructions should be provided with the device so that it can be used safely.
10. Use the appliance on a flat surface.

21. For cleaning and maintenance instruction, refer to the corresponding section.

2. OPERATING CHARACTERISTICS

Important :

-Before using for the first time, remove the plastic bag from the filter.
- Never obstruct the air inlets and outlets.
- Never use the appliance without the filter.
-Use on a stable, horizontal and flat surface.

2.1 DESCRIPTION

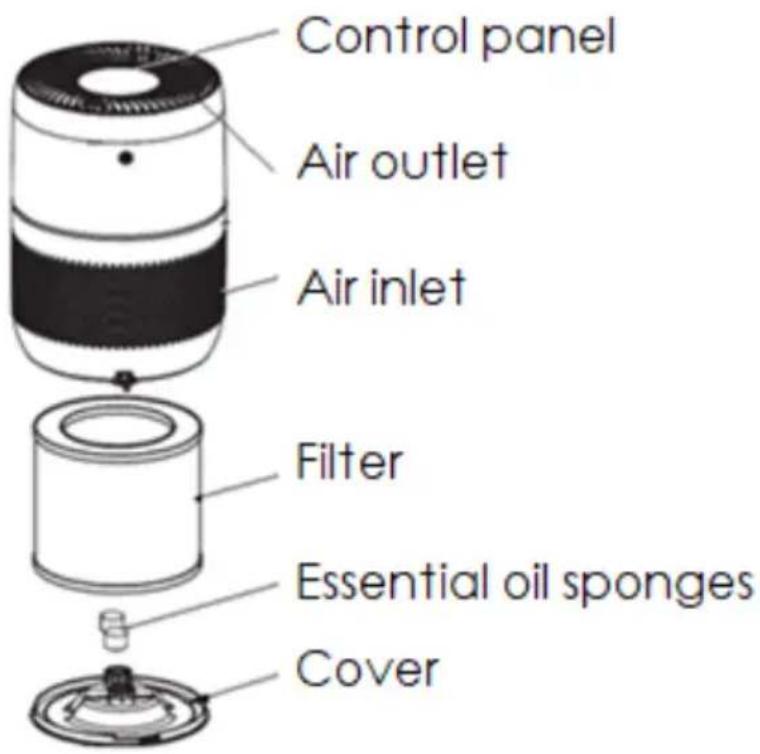

Control panel Air outlet Air inlet Filter Essential oil sponges Cover

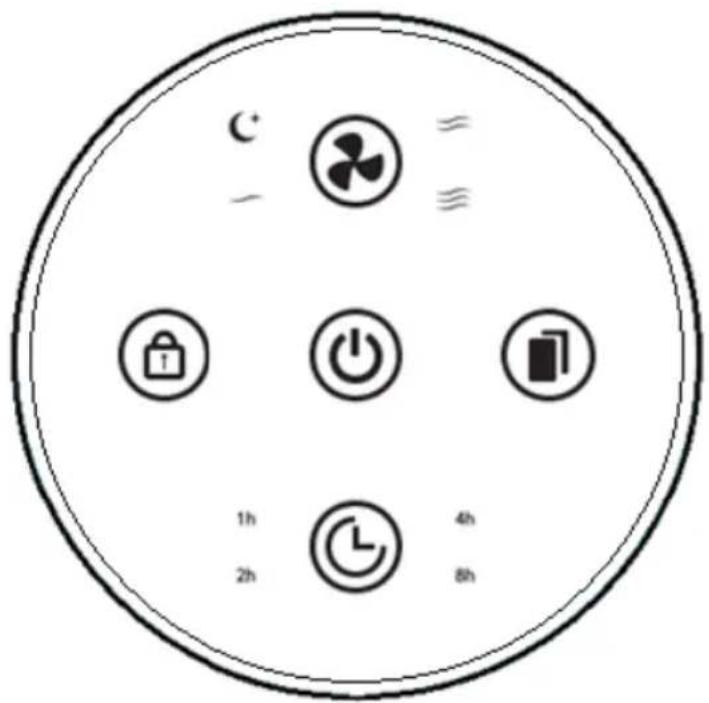

Control panel

1h 2h 4h 8h

	On/Off
	Ventilation speed control :Sleep Slow →Medium → Fast
	Child lock
	Reset filter usage countand control LED circular light
	Timer 1 to 8 hours

2.2 OPERATION

-Before using for the first time, remove the plastic bag from the filter.

1. Filter installation

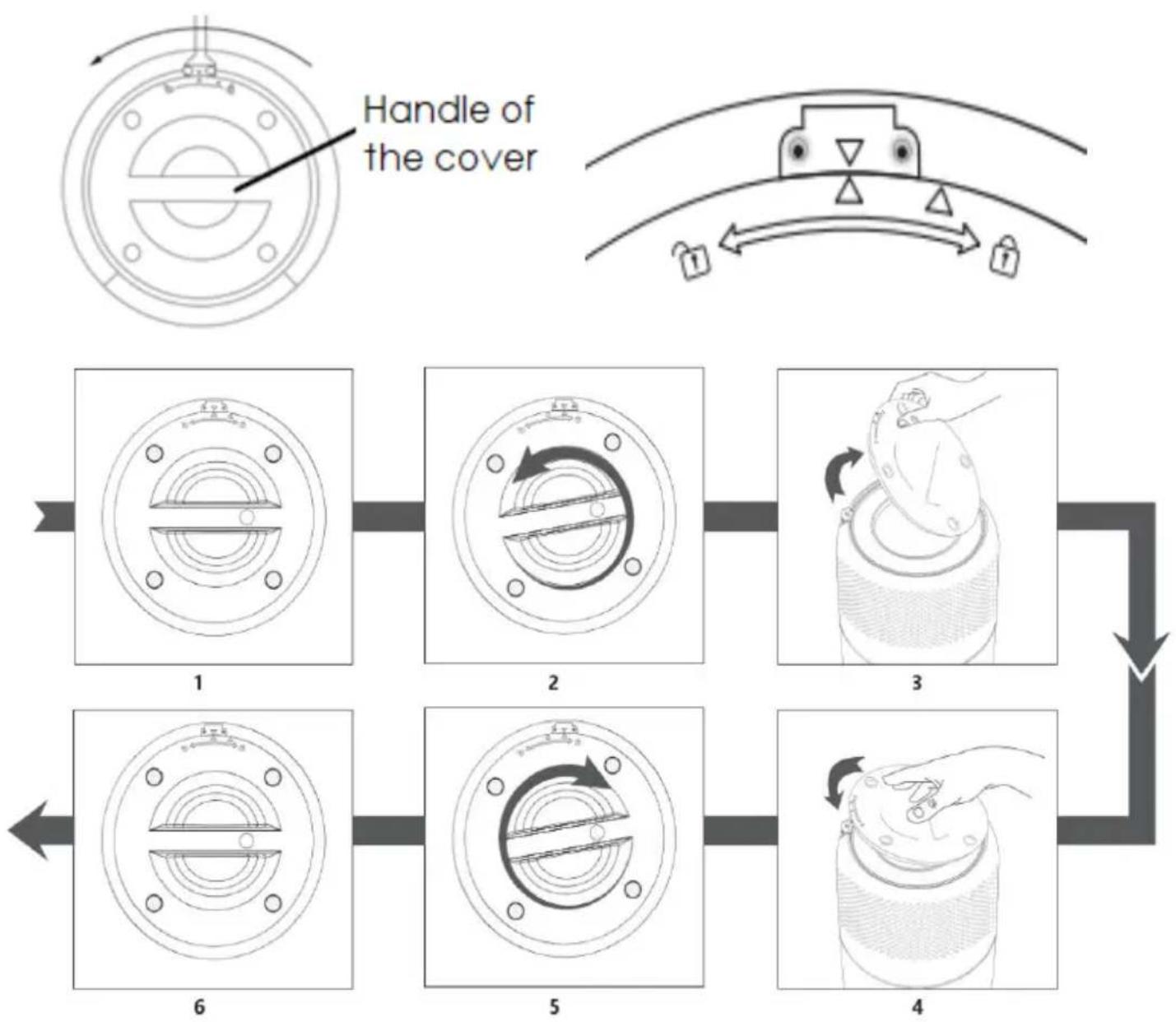

Turn the air purifier upside down, grasp the handle of the cover (below the diagram) and turn the cover in the direction of the unlocked lock to the left.


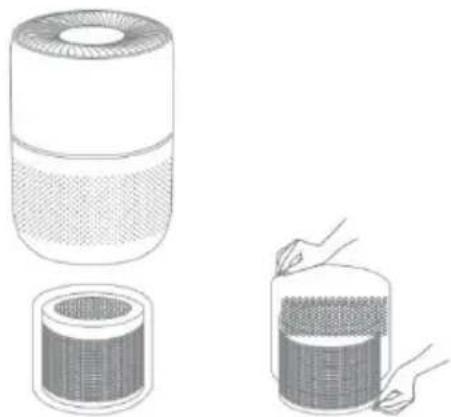

Then take out the filter, remove the plastic bag, and put the filter back into the compartment,

Illustration of a hair filter device with three views: top view, middle view, and bottom view (no text or symbols)

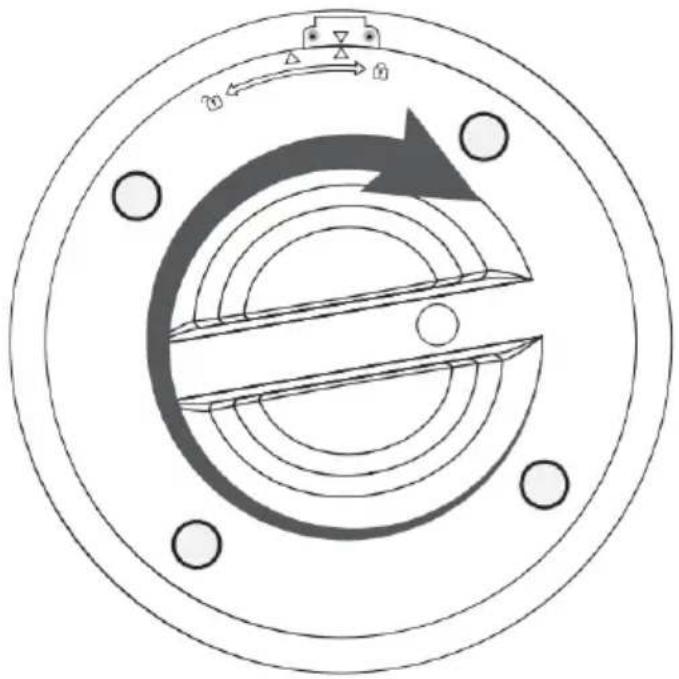

then close with the cover and turn the handle in the

direction of the locked lock to the right. Turn the appliance back to the upright position.

Diagram of a circular mechanical component with concentric rings and directional arrows, no text or symbols present.

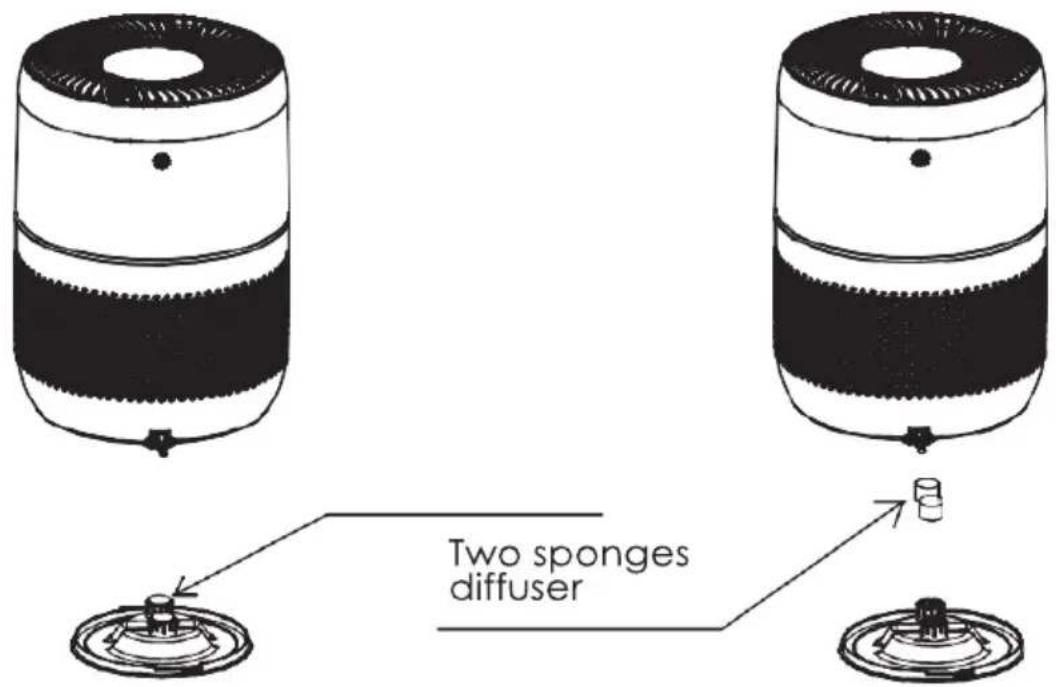

1. Essential oil sponges

Two sponges diffuser

2 sponges diffuser of essential oils are inside the product at the back of the cover.

Applying a few drops of essential oils on the sponges allows the diffusion of a perfume.

3. Operation

Plug-in the unit, a slight beep sounds.

Press the On/Off button to switch on. By default, the fan speed is medium

Sleep/speed button

Allows to select the silent speed suitable for sleep (reduced brightness of the control panel) and the 3 other speeds:

$$ \text{Slow} \rightarrow \text{Medium} \Rightarrow \text{Fast} $$

Child lock button

Press the button for three seconds to activate/deactivate the child safety function.

The indicator will flash indicating that the childproof lock function is activated.

Press and hold for three seconds, the indicator will stop flashing, meaning that the child lock function is deactivated.

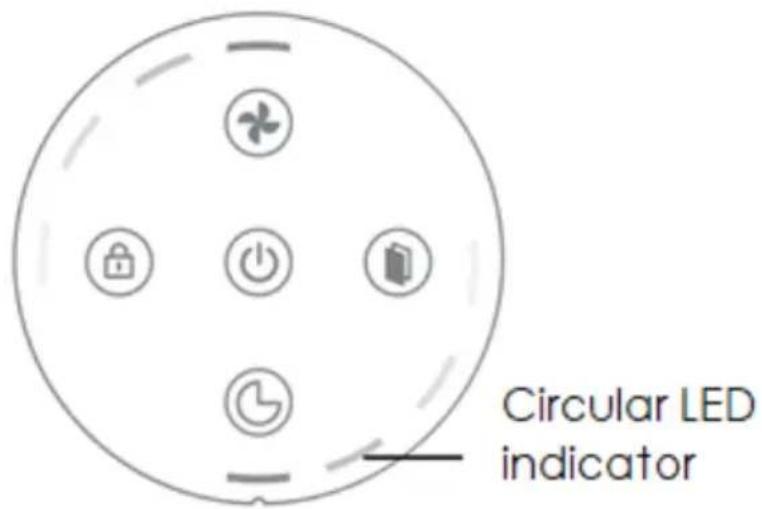

Filter button and circular LED light

When the air purifier is switched on, a counter records the number of hours of use.

When the 2000 hours of use are reached, the filter replacement indicator will flash and a sound will be heard. After replacing the filter, press the button for 3 seconds to reset the filter counter. The indicator will light up continuously, stops flashing, and the sound will stop.

The button also turns on or off the circular LED indicator (which indicates the fan speed) 1 LED means slow speed. 2 LED means medium speed, 3 LED means fast speed.

Circular LED indicator

Timer button

Press repeatedly to set the timer to automatically turn off the unit between 1h and 8h. Press again to cancel the timer.

The selected time is indicated by the corresponding indicator(s).

3. CLEANING AND MAINTENANCE

1. Before cleaning the appliance, switch it off and unplug it from the mains before cleaning.

2. Do not use chemicals or detergents for cleaning that could easily damage or deform your appliance.

Use a vacuum cleaner to remove dust from air inlet holes.

Take the filter out of the compartment and remove the dust around the pre-filter.

Clean the unit with a slightly damp cloth and allow it to dry.

Never use the unit without the filter.

4. TECHNICAL SPECIFICATIONS

Model	THPUR050E
Tension	220-240V~
Frequency	50-60Hz
Power	30W
Class II

5. PROBLEMS AND SOLUTIONS

Problems	Possible reasons	Solutions
Ventilation does not work.	The inlet or outlet of the unit has been blocked. The plastic packaging is not removed.	Remove obstructions around the appliance.Remove the plastic wrapping from the filter.
The performance is poor or the purification capacity is not the best.	The space around the unit is not suitable. The filters are not replaced.	Remove other objects or replace with a new filter.
The machine emits a sound.	Filter is not replaced, filter indicator flashes.	Replace with a new filter, press for 3 seconds to reset the counter.

The European directive 2012/19/CE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects;
(3) any incident, abuse, misuse, alteration, disassembly or Unauthorized repair;
(4) improper maintenance, improper use concerning the product or connection to an incorrect voltage;
(5) any use of accessories not supplied or not approved by the manufacturer.

The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

IMPORTED BY SCHNEIDER CONSUMER GROUP

12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE

THOMSON is a trademark of TECHNICOLOR S.A used under license by
