USER MANUAL THRAF470E THOMSON

Please read these instructions carefully before using this appliance.

Please keep these instructions for future reference.

This product conforms to the requirements of directives 2014/35/UE

(repealing directive 73/23/CEE amended by directive 93/68/CEE)

and 2014/30/UE (repealing directive 89/336/CEE).

1. WARNINGS

The product must be installed in accordance with the national wiring rules. This unit is intended for household and domestic indoor use only.

1. Use the appliance in a room size corresponding to its cooling capacity.
2. Do not use the appliance near gas appliances, fireplaces or flammable liquids.
3. Handle the appliance with care
4. Keep your appliance about 1 meter away from any other electrical device to avoid the risk of electromagnetic interference.
5. To avoid overheating, please put the appliance about 50~cm away from a wall and do not cover it.
6. Do not expose to direct or indirect heat sources.
7. Do not use this appliance in wet area, and not to have contact with water.
8. Do not submit the unit to strong shocks or vibrations.
9. The plug must be easily accessible when the device is connected.

10. Before connecting the appliance, check that:

11. The supply voltage is the same as the nameplate,

12. The power supply socket is suitable to the device,

13. The cable plug is adapted to the socket. The product is intended only for a socket with a main voltage of 230 volts (50 Hz).

14. Always remove the plug from the socket when not in use.

15. Do not use the unit with a damaged cord or plug
16. The appliance should be unplugged when filling and cleaning
17. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

18. Never insert fingers, pencils or other objects through the grid when the appliance is running.

19. This product complies with the requirements of directives 2014/35/EU (repealing Directive 73/23/EEC amended by Directive 93/68/EEC) and 2014/30/EU(repealing Directive 89/336/EEC)

20. Never run the product in the presence or within reach of unsupervised children.
21. If the power cord is damaged, it must be replaced by the manufacturer, its service or similarly qualified persons in order to avoid a hazard.
22. User instructions should be provided with the device so that it can be used safely.
23. For cleaning and maintenance instruction, refer to the corresponding section.
24. The unit must always be plugged into a grounded outlet. If the supply current is not connected to the earth, you absolutely can not connect the device.

2. OPERATING CHARACTERISTICS

IMPORTANT

• Always make sure there is water in the tank when your air cooler is running in COOL mode.
• Do not move the appliance when it is filled with water. Empty before moving.
• Use the air cooler on a stable, flat and level surface.
• Never use the air cooler without the filters

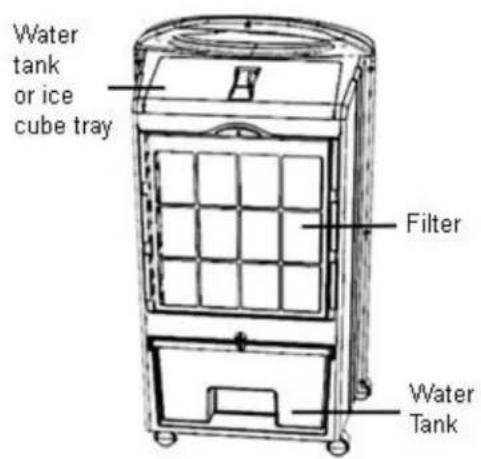

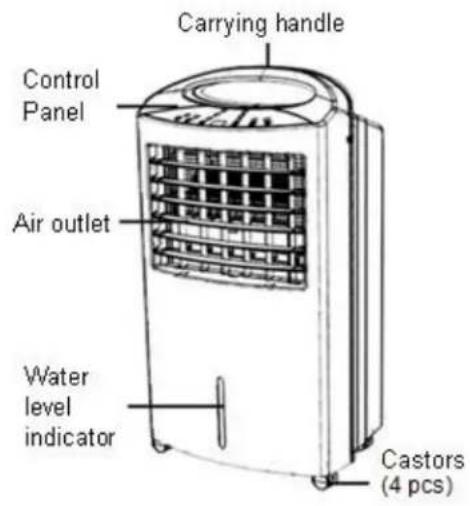

2.1 DESCRIPTION

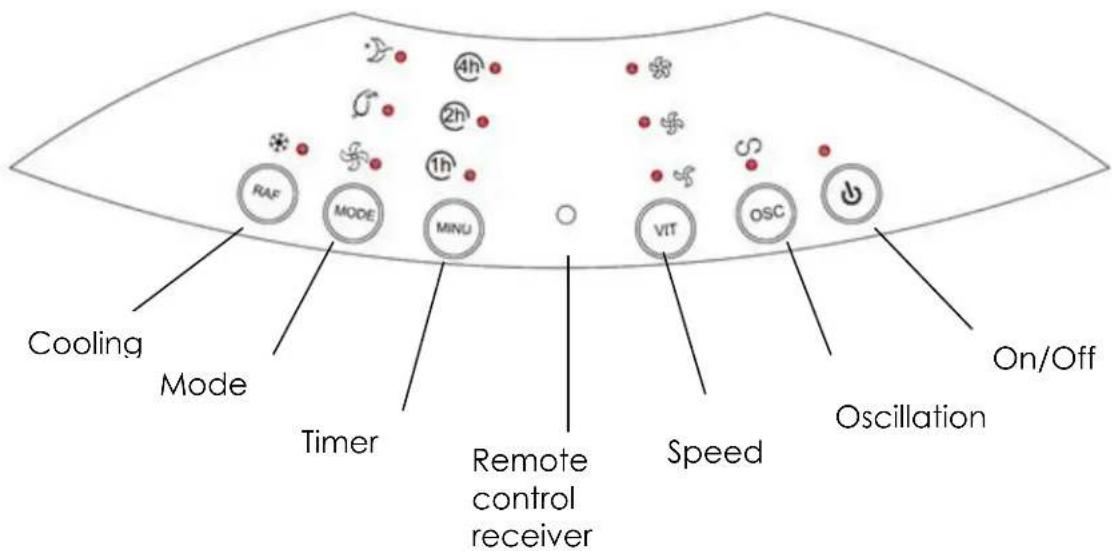

Control panel

2.2 OPERATION

The appliance must be switched off before water filling

1. Remove the water tank.
2. If required, place the frozen ice boxes or ice cubes in the water tank to increase cooling effect.
3. Fill water tank with cold tap water, taking care to not exceed the maximum line marked on the water tank, and not below the minimum level.

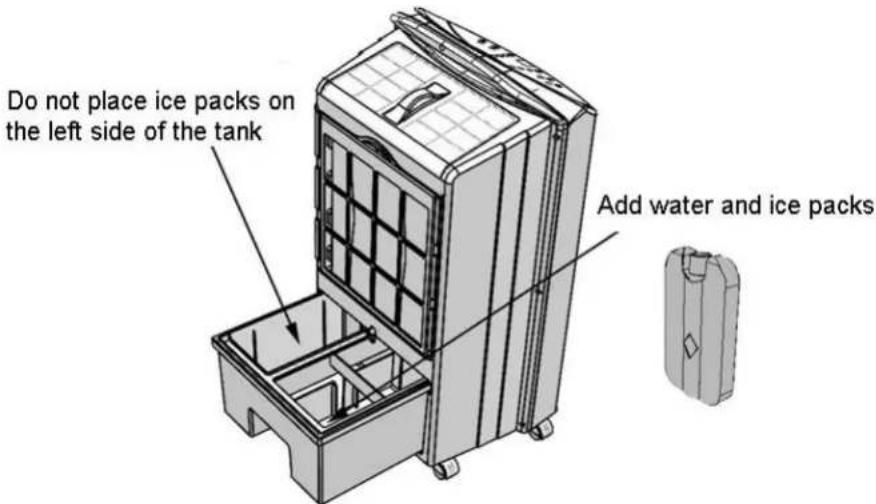

Using Ice Packs

Put the ice pack in the freezer until the liquid inside becomes the ice, then put the ice pack in the water of the tank. During the cooling function, the air will be cooler.

WARNING:

1. Replace the water tank making sure it fits in place.

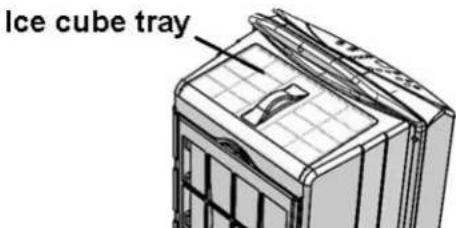

It is possible to fill the upper tray with ice cubes

1. Press on the button on.

to turn the appliance

1. The fan will run at high speed in the normal mode.

1. Repeatedly press to select the desired fan speed (fast/ medium/ low). The corresponding speed indicator light will be illuminated.
2. Press MODE to select the mode Normal, natural or sleep. The corresponding indicator light will be illuminated to show mode you have chosen.

In NORMAL mode

The ventilation speed is to be selected according to your choice, LOW / MEDIUM / FAST

In BRISE mode

The device changes rhythm randomly to give you the feeling of a natural breeze. In this mode the selectable fan speed is slow / medium / fast.

Slow speed: automatic alternation between slow speed and stop.

Medium speed: Automatic alternation between medium and slow speed.

Fast speed: automatic alternation between fast, medium, slow.

In NIGHT mode

In this mode the selectable fan speed is slow / medium / fast.

Slow speed: automatic alternation between slow speed and stop.

Medium speed: automatic alternation between average speed and slow speed for 30min, then between slow speed and stop.

Fast speed: automatic alternation between fast, medium and slow speed for 30min, then automatic alternation between average speed and slow speed for 30min, then automatic alternation between slow speed and stop.

1. Press OSC to make the fan oscillate. To stop press the button again.

2. Press RAF

activate the evaporation cooling.

the water pump inside the appliance begins to function to moisten the filter honeycomb structure and refresh the air..

Note: after usage, switch off the appliance and unplug it from the mains socket.

Please wait for 2 minutes to allow water in the appliance to flow into the water tank then remove the water tank.

1. Timer: Repeatedly press MINU to set the appliance turn off automatically within a desired period from 1 to 7 hours.

2. The period set will be displayed by the corresponding illuminated indicator light(s).

-With each press of MINU, the period will increase by 1 hour.

Warning: When the water tank is empty, sounds a beep. Please add water to avoid damaging the pump of unit.

Remote control

It works with 2 batteries AAA, 1.5V (not included) respect the polarity when inserting. Used batteries must be safely disposed. Place them in collection bins provided (please ask your dealer) to protect the environment.

Replace the battery only with a battery of the same type.

3. CLEANING AND MAINTENANCE

1. Always disconnect the appliance from the mains by switching it off and removing the plug from the power outlet before cleaning.
2. Do not use solvents, acidic detergents, petrol or alcohol etc. to clean the plastic components, as these could be deformed or damaged.

Cleaned with a damp cloth and allow to dry.

If you do not use the product for a long period, please empty the water tank.

Dust filter:

To improve the effectiveness of the cooler, we recommend that you clean the dust filter periodically.

Unscrew the locking screw on the filter and remove the dust filter by sliding it upwards.

Honeycomb structure filter

The honeycomb structure filter is designed for a period of use for several years.

You can take it out of its compartment and rinse it.

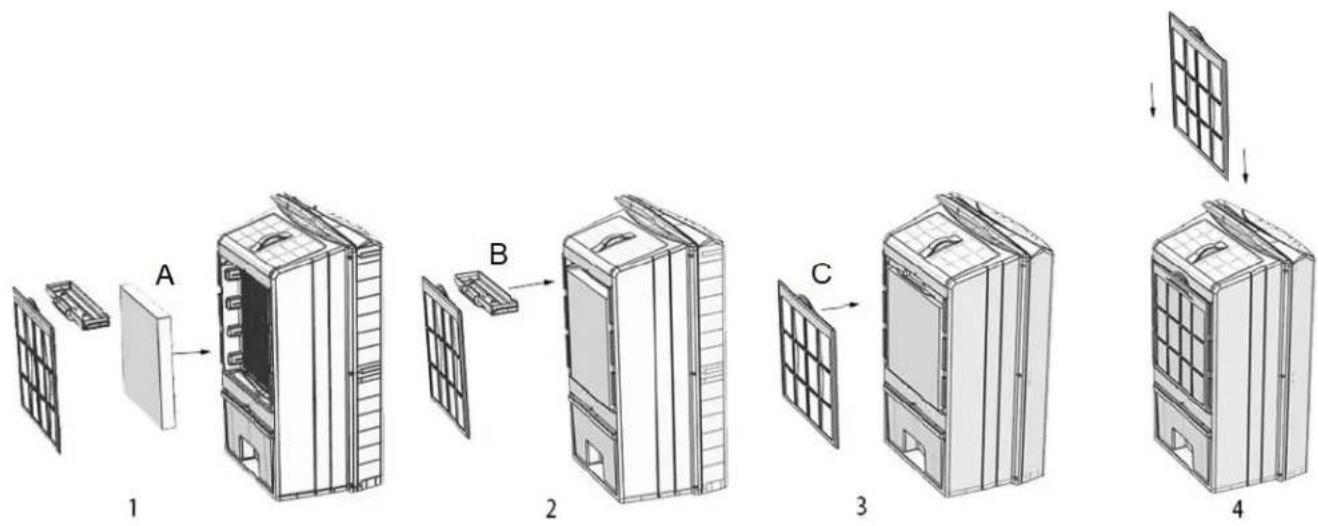

Place filter A in the air cooler, then funnel B on top of filter A, slide the dust filter C on the back of the cooler, then screw the locking screw.

Regularly clean the water tank.

WARNING: If you do not use the product for several days, please empty the water tank.

Never use the air cooler without the filters

Descale

1. Remove the water tank
2. Clean the water tank by filling the tank with 2 liters of water and 30ml of vinegar. Leave the solution for 20 minutes.
   3.Drain the water from the tank.
3. Clean the entire interior surface with a soft brush. Wet a rag with undiluted white vinegar and wipe the inner base in contact with water to remove scale.
4. Rinse with warm, clean water to remove scale and white vinegar.

4. TECHNICAL SPECIFICATIONS

Model	THRAF470E
Tension	220-240V~
Frequency	50Hz
Power	60W
Timer	7h
Water tank capacity	9L
Class I

Description	Symbol	Value	Unit
Maximum fan flow rate	F	3,29	m³/min
Fan power input	P	43,8	W
Service value	SV	0,08	(m³/min)/W
Standby power consumption	PSB	0,09	W
Off power consumption	POFF	-	W
Fan sound power level	LWA	60,92	dB(A)
Maximum air velocity	C	-	meters/sec
Seasonal electricity consumption	Q	14,12	kWh/a
Measurement standard for service value	EN ISO 5801: 2008
Contact details for obtaining more information	Schneider consumer group, 12 rue Jules Ferry, 931 10 Rosny sous bois, France

Never attempt to disassemble or repair the unit yourself. In the case of not competent repair, the guarantee is void.

The European directive 2012/19/CE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials

they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects;
(3) any incident, abuse, misuse, alteration, disassembly or Unauthorized repair;
(4) improper maintenance, improper use concerning the product or connection to an incorrect voltage;
(5) any use of accessories not supplied or not approved by the manufacturer.

The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

IMPORTED BY SCHNEIDER CONSUMER GROUP

12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE

THOMSON is a trademark of TECHNICOLOR S.A used under license by SCHNEIDER CONSUMER GROUP
