Product type	Pneumatic stapler
Model	DWMIIIFS
Brand	DeWalt
Dimensions	Length: 438 mm, Height: 292 mm, Width: 80 mm
Weight	5.1 kg
Power supply	Compressed air, operating pressure: 4.9 to 6.3 kg/cm² (4.8 to 6.2 bars)
Fastener type	Staples width 13 mm, wire 15.5 gauge, length 50 mm (DWCS1500 or BCS1500 series)
Main functions	Stapling for raw or prefinished hardwood flooring; rapid nailing of large areas
Maintenance	Frequent lubrication with pneumatic tool lubricant (Mobil Velocite No.10); regular cleaning of debris; draining water from air system
Safety	ANSI eye protection required; disconnect air supply before adjustment, maintenance, clearing jams, or transport; do not use oxygen or combustible gases
Spare parts and repairability	DEWALT spare parts only; special key BC1009 for piston disassembly; O-ring and seals available
Warranty	7-year limited lifetime warranty; 1-year free service; 90-day money-back guarantee
Included accessories	Wooden mallet (ref. 9R199607)

Frequently Asked Questions - DWMIIIFS DEWALT

How to load staples into the DWMIIIFS stapler?

Open the cover, insert a strip of staples, then push the cover forward until the trigger axis locks. Make sure to use only staples recommended by DeWalt.

What air pressure is recommended for the DWMIIIFS?

The recommended operating pressure is 4.9 to 6.3 kg/cm² (4.8 to 6.2 bars). Never exceed 200 lb/in² (14 kg/cm²) to avoid explosion risk.

Do I need to use specific staples?

Yes, use exclusively DeWalt DWCS1500 or BCS1500 series staples, with a width of 13 mm, a wire of 15.5 gauge, and a length of 50 mm.

How to maintain the tool for a long lifespan?

Lubricate regularly with a pneumatic tool lubricant (Mobil Velocite No.10). Clean debris from the magazine and mandrel. Drain water from the compressed air system and use a filter.

What to do in case of air leak?

Check the assembly screws and tighten them. If the leak persists, inspect the O-rings and replace them if cut or cracked. Consult the troubleshooting guide in the manual.

Can I use the tool with a standard compressor?

Yes, provided the compressor supplies a regulated pressure between 4.9 and 6.3 bars and sufficient air volume. Use a pressure regulator and a filter to ensure clean, dry air.

How to clear a jammed fastener?

First disconnect the air supply. Open the magazine and remove the jammed staples. If the fastener is stuck in the nose, disassemble the driving nose and mandrel to clean them. Consult the manual for detailed steps.

What safety precautions are essential?

Always wear safety glasses with side shields compliant with ANSI standard. Never point the tool at yourself or others. Disconnect the air supply during any maintenance or when the tool is not in use.

Can I use the tool on prefinished wood?

Yes, but first test on a scrap to verify the tool does not damage the finish. Be especially careful with prefinished coatings.

Where to find spare parts?

Use exclusively DeWalt spare parts. Contact your DeWalt representative or visit www.dewalt.com. The special key BC1009 is required to disassemble the piston.

USER MANUAL DWMIIIFS DEWALT

Safety Instructions 3

Operation. 5

Maintenance 7

Trouble Shooting Guide 10

Francais 12

Espanol 24

WARNING: BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD STUDY THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE. IF YOU HAVE ANY QUESTIONS, CONTACT YOUR DEWALT REPRESENTATIVE OR DISTRIBUTOR.

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

Introduction

DEWALT tools are precision-built tools, designed for precise, high volume nailing. These tools will deliver efficient, dependable service when used correctly and with care. As with any fine power tool, for best performance the manufacturer's instructions must be followed. Please study this manual before operating the tool and understand the safety warnings and cautions. The instructions on installation, operation and maintenance should be read carefully, and the manual kept for reference. NOTE: Additional safety measures may be required because of your particular application of the tool. Contact your DEWALT representative or distributor with any questions concerning the tool and its use. DEWALT Industrial Tool Co., 701 East Joppa Road, Towson, MD 21286, call 1-800-4-DEWALT (1-800-433-9258) or visit our website www.dewalt.com.

NOTE: DEWALT tools have been engineered to provide excellent customer satisfaction and are designed to achieve maximum performance when used with fasteners engineered to the same exacting standards. DEWALT cannot assume responsibility for product performance if our tools are used with fasteners or accessories not meeting the specific requirements established for fasteners, staples and accessories.

INTENDED USE

This DWMIIIFS Flooring Tool is intended for use by construction professionals for installing unfinished hardwood flooring.

Precautions Regarding Use of this Tool to Install Prefinished Flooring

It may also be used to install prefinished wood flooring materials, however precautions must be taken to assure that the finish will not be damaged by the tool. Before using the tool on prefinished material, test a sample section to assure that the tool and installation technique does not leave marks on the finish. This procedure must be followed for every installation due to variations in flooring materials and condition of the tool.

Do not discharge fasteners into open air, concrete, stone, or any other material too hard for the fastener to penetrate. Use of this tool by inexperienced operators must be supervised.

WARNING: Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. Some examples of these chemicals are lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically treated lumber.

Your risk from exposure varies, depending on how often you do this type of work. To reduce your exposure to these chemicals, work in a well-ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles."

SAFETY INSTRUCTIONS

WARNING: EYE PROTECTION which conforms to ANSI specifications and provides protection against flying particles both from the FRONT and SIDE should ALWAYS be worn by the operator and others in the work area when connecting to air supply, loading, operating or servicing this tool. Eye protection is required to guard against flying fasteners and debris, which could cause severe eye injury.

The employer and/or user must ensure that proper eye protection is worn. Eye protection equipment must conform to the requirements of the American National Standards Institute, ANSI CAN/CSA Z94.3 and provide both frontal and side protection. NOTE: Non-side shielded spectacles and face shields alone do not provide adequate protection.

CAUTION: Additional Safety Protection will be required in some environments. For example, the working area may include exposure to noise level which can lead to hearing damage. The employer and user must ensure that any necessary hearing protection is provided and used by the operator and others in the work area. Some environments will require the use of head protection equipment. When required, the employer and user must ensure that head protection conforming to ANSI CAN/CSA Z89.1 is used.

Safety Instructions - Air Supply and Connections

WARNING: Do not use oxygen, combustible gases, or bottled gases as a power source for this tool as tool may explode, possibly causing injury.

WARNING: Do not use supply sources which can potentially exceed 200 p.s.i.g. (14kg / cm^2) as tool may burst, possibly causing injury.

WARNING: The connector on the tool must not hold pressure when air supply is disconnected. If a wrong fitting is used, the tool can remain charged with air after disconnecting and thus will be able to drive a fastener even after the air line is disconnected possibly causing injury.

WARNING: Always disconnect air supply: 1.) Before making adjustments; 2.) When servicing the tool; 3.) When clearing a jam; 4.) When tool is not in use; 5.) When moving to a different work area, as accidental actuation may occur, possibly causing injury.

Safety Instructions - Loading Tool

WARNING: When loading tool: 1.) Never place a hand or any part of body in fastener discharge area of tool; 2.) Never point tool at anyone; possibly causing injury.

Safety Instructions - Operation

WARNING: Always handle the tool with care: 1.) Never engage in horseplay; 2.) Keep others a safe distance from the tool while tool is in operation as accidental actuation may occur, possibly causing injury.
WARNING: Keep hands and body away from the discharge area of the tool. A contact arm tool may bounce from the recoil of driving a fastener and an unwanted second fastener may be driven possibly causing injury.
WARNING: Check operation of the contact arm mechanism frequently. Do not use the tool if the arm is not working correctly as accidental driving of a fastener may result. Do not interfere with the proper operation of the contact arm mechanism.
WARNING: Do not drive fasteners on top of other fasteners or with the tool at an overly steep angle as this may cause deflection of fasteners which could cause injury.
WARNING: Do not drive fasteners close to the edge of the work piece as the wood may split, allowing the fastener to be deflected possibly causing injury.
WARNING: This nailer produces SPARKS during operation. NEVER use the nailer near flammable substances, gases or vapors including lacquer, paint, benzine, thinner, gasoline, adhesives, mastics, glues or any other material that is -- or the vapors, fumes or byproducts of which are -- flammable, combustible or explosive. Using the nailer in any such environment could cause an EXPLOSION resulting in personal injury or death to user and bystanders.

Safety Instructions - Maintaining the Tool

WARNING: When working on air tools note the warnings in this manual and use extra care when evaluating problem tools.

TOOL SPECIFICATIONS

All dimensions in inches unless otherwise specified

MODEL LENGTH	HEIGHT	WIDTH	WEIGHT
DWMIIIFS	17-1/4" (438 mm)	11-1/2" (292 mm)	3-1/8" (80 mm)	11.2 lbs (5.1 kg)

FASTENER SPECIFICATIONS

MODEL FASTENER CROWN	WIDTH	GAUGE FASTENER RANGE
DWMIIIFS	DWCS1500 or BCS1500	1/2" (13 mm) 15-1/2 Ga. 2" (50 mm)

Tool Air Fitting

This tool uses a 3/8" N.P.T. male plug. The inside diameter should be .275" (7 mm) or larger. The fitting must be capable of discharging tool air pressure when disconnected from the air supply.

Operating Pressure

70 to 90 p.s.i.g. (4.9 to 6.3kg / cm^2 ). Select the operating pressure within this range for best fastener performance. DO NOT EXCEED THIS RECOMMENDED OPERATING PRESSURE.

Air Consumption

The DWMIIIFS requires 4.2 cubic feet per minute (221 liters per minute) of free air to operate at the rate of 60 fasteners per minute, at 80 p.s.i. (5.6kg / cm^2) . Take the actual rate at which the tool will be run to determine the amount of air required. For instance, if your fastener usage averages 30 fasteners per minute, you need 50% of the tool's c.f.m. of free air which is required to operate the tool at 60 fasteners per minute.

OPERATION

Air Supply and Connections

WARNING: Do not use oxygen, combustible gases, or bottled gases as a power source for this tool as tool may explode, possibly causing injury.

FITTINGS

Install a male plug on the tool which is free flowing and which will release air pressure from the tool when disconnected from the supply source.

HOSES

Air hoses should have a minimum of 150 p.s.i. (10.6kg / cm^2) working pressure rating or 150 percent of the maximum pressure that could be produced in the air system. The supply hose should contain a fitting that will provide "quick disconnecting" from the male plug on the tool.

SUPPLY SOURCE

Use only clean regulated compressed air as a power source for this tool. NEVER USE OXYGEN, COMBUSTIBLE GASES, OR BOTTLED GASES, AS A POWER SOURCE FOR THIS TOOL AS TOOL MAY EXPLODE.

REGULATOR

A pressure regulator with an operating pressure of 0 - 125 p.s.i. (0 - 8.79 kg/cm²) is required to control the operat iing pressure for safe operation of this tool. Do not connect this tool to air pressure which can potentially exceed 200 p.s.i. (14 kg/cm²) as tool may fracture or burst, possibly causing injury.

OPERATING PRESSURE

Do not exceed recommended maximum operating pressure as tool wear will be greatly increased. The air supply must be capable of maintaining the operating pressure at the tool. Pressure drops in the air supply can reduce the tool's driving power. Refer to Tool Specifications for setting the correct operating pressure for the tool.

FILTER

Dirt and water in the air supply are major causes of wear in pneumatic tools. A filter will help to get the best performance and minimum wear from the tool. The filter must have adequate flow capacity for the specific installation. The filter has to be kept clean to be effective in providing clean compressed air to the tool. Consult the manufacturer's instructions on proper maintenance of your filter. A dirty and clogged filter will cause a pressure drop which will reduce the tool's performance.

Lubrication

Frequent, but not excessive, lubrication is required for best performance. Use Air Tool Lubricant, Mobil Velocite #10, or equivalent. Do not use detergent oil or additives as these lubricants will cause accelerated wear to the seals and bumpers in the tool, resulting in poor tool performance and frequent tool maintenance. Only a few drops of oil at a time is necessary. Too much oil will only collect inside the tool and will be noticeable in the exhaust cycle.

COLD WEATHER OPERATION:

For cold weather operation, near and below freezing, the moisture in the air line may freeze and prevent tool operation. We recommend the use of winter formula air tool lubricant or permanent antifreeze (ethylene glycol) as a cold weather lubricant.

NOTICE: Do not store tools in a cold weather environment to prevent frost or ice formation on the tools operating valves and mechanisms that could cause tool failure.

NOTICE: Some commercial air line drying liquids are harmful to "O"-rings and seals - do not use these low temperature air dryers without checking compatibility.

Loading The DWMIIIFS

WARNING: EYE PROTECTION which conforms to ANSI specifications and provides protection against flying particles both from the FRONT and SIDE should ALWAYS be worn by the operator and others in the work area when connecting to air supply, loading, operating or servicing this tool. Eye protection is required to guard against flying fasteners and debris, which could cause severe eye injury.

The employer and/or user must ensure that proper eye protection is worn. Eye protection equipment must conform to the requirements of the American National Standards Institute, ANSI CAN/CSA Z89.1 and provide both frontal and side protection. Non-side shielded spectacles and face shields alone do not provide adequate protection.

WARNING: TO PREVENT ACCIDENTAL INJURIES:

• Never place a hand or any other part of the body in nail discharge area of tool while the air supply is connected.
• Never point the tool at anyone else.
• Never engage in horseplay.
• Never actuate the tool unless nose is directed at the work.
  Always handle the tool with care.
• Do not actuate the tool while loading.

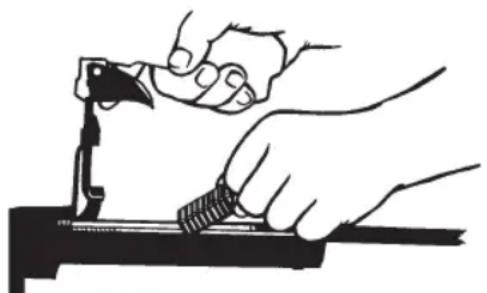

STAPLE LOADING

Pull cover open. Insert stick of staples. Push cover forward until the detent pin snaps into place, locking the cover. The tool is now ready to operate.

NOTE: Use only staples recommended for use in the DWMIIIFS stapler or staples which meet the DEWALT specifications.

BEFORE HANDLING OR OPERATING THIS TOOL

WARNING:

I. READ AND UNDERSTAND THE WARNINGS CONTAINED IN THIS MANUAL.
II. REFER TO "TOOL SPECIFICATIONS" IN THIS MANUAL TO IDENTIFY THE OPERATING SYSTEM ON YOUR TOOL.

IN ADDITION TO THE OTHER WARNINGS CONTAINED IN THIS MANUAL OBSERVE THE FOLLOWING FOR SAFE OPERATION

WARNING:

• Use the DEWALT pneumatic tool only for the purpose for which it was designed.
• Never use this tool in a manner that could cause a fastener to be directed toward the user or others in the work area.
• Do not use the tool as a hammer.
• Always carry the tool by the handle. Never carry the tool by the air hose.
• Do not alter or modify this tool from the original design or function without approval from DEWALT.
• Always be aware that misuse and improper handling of this tool can cause injury to yourself and others.
• Before using the tool, verify that the actuator is in the non-actuated position. With the tool disconnected from the air supply, depress the actuator and confirm it returns to the non-actuated position.
• Never leave a tool unattended with the air hose attached.
• Do not operate this tool if it does not contain a legible WARNING LABEL.
• Do not continue to use a tool that leaks air or does not function properly. Notify your nearest DEWALT representative if your tool continues to experience functional problems.

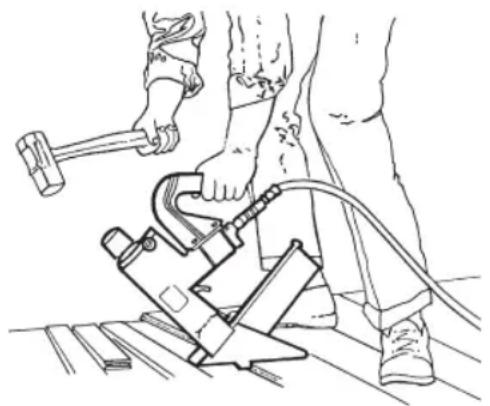

Using the Tool

1. Position the tool on the tongued edge of the flooring strip aligning the driver guide against the front of the flooring strip.
2. Hold the handle firmly and strike the rubber cap sharply with the rubber end of the mallet. The tool will then drive the staple. DO NOT USE THE METAL END OF THE Mallet TO STRIKE THE RUBBER CAP, use the rubber end only.

MAINTENANCE

MAINTAINING THE PNEUMATIC TOOL

WARNING: Disconnect air line from tool and remove fasteners from magazine before making adjustments or repairs.

WARNING: When working on air tools, note the warnings in this manual and use extra care evaluating problem tools.

CAUTION: Pusher spring (constant force spring). Caution must be used when working with the spring assembly. The spring is wrapped around, but not attached to, a roller. If the spring is extended beyond its length, the end will come off the roller and the spring will roll up with a snap, with a chance of pinching your hand. Also the edges of the spring are very thin and could cut. Care must also be taken to insure no permanent kinks are put in the spring as this will reduce the springs force.

REplacement PARTS

Use only DEWALT replacement parts.

ASSEMBLY PROCEDURE FOR SEALS

When repairing a tool, make sure the internal parts are clean and lubricated. Use Parker "O"-LUBE or equivalent on all "O"-rings. Coat each "O"-ring with "O"-LUBE before assembling. Use a small amount of oil on all moving surfaces and pivots. After reassembly add a few drops of DEWALT Air Tool Lubricant through the air line fitting before testing.

AIR SUPPLY-PRESSURE AND VOLUME

Air volume is as important as air pressure. The air volume supplied to the tool may be inadequate because of undersize fittings and hoses, or from the effects of dirt and water in the system. Restricted air flow will prevent the tool from receiving an adequate volume of air, even though the pressure reading is high. The results will be slow operation, misfeeds or reduced driving power. Before evaluating tool problems for these symptoms, trace the air supply from the tool to the supply source for restrictive connectors, swivel fittings, low points containing water and anything else that would prevent full volume flow of air to the tool.

Maintaining The DWMIII Series Tools

TO REPLACE PISTON

A. Insert the flats on the lower end of the driver piston stem carefully into the end of piston and plunger wrench, BC1009.
B. Using another special wrench, BC1009, or another wrench of the proper size, unscrew the plunger from the upper end of the stem. After this is done, it will be possible to lift the poppet off the stem.
C. Place the special wrench, BC1009, down over the piston stem onto the driver piston, locking the piston ears in the slots in the wrench. Unscrew the piston from the stem.

TO REPLACE DRIVER

A. It is not necessary to disassemble the piston-poppet-driver assembly to replace the driver. Pull the poppet up on the driver piston stem as far as it will go.
B. Insert special wrench, BC1009, over the driver piston, locking the piston ears in the slots in the wrench. Unscrew the piston from threaded portion of the stem.
C. To remove the driver blade from the piston stem, push the driver blade pin out of the stem. This will release the blade.
D. Insert new driver blade into the slot in the end of the driver piston stem and assemble the driver blade pin. Test the side play in the driver blade by grasping the driver piston stem in one hand and the blade in the other and moving the blade sideways in alignment with the slot in the stem. There should be a small amount of side play in the blade. This is necessary to take care of any slight misalignment between the blade and guide in the nose. If there is no side play, the blade should

be removed and the top (pin end) just barely dressed off with a stone. It is not necessary to do more than smooth off the top to get the necessary side play. Do not grind. Reinsert the blade and pin in the stem and test for side play once more. Repeat as necessary to get this small amount of side play. Carefully examine the large threaded portion of the piston stem. A nylon lock can be seen imbedded in a recessed hole in the stem. It is very important that this nylon lock can be replaced when its locking efficiency has been reduced through several disassemblies of the piston. It is necessary to use the sharp point of a knife, or some such instrument, to remove this nylon lock. Insert a new one by setting it into the recessed hole in the stem, and tapping it gently until firmly seated. Reverse these instructions to reassemble.

E. Assemble plunger flush with end of piston stem.

Accessories

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DEWALT recommended accessories should be used with this product.

Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact DEWALT Industrial Tool Co., 701 East Joppa Road, Baltimore, MD 21286, call 1-800-4-DEWALT (1-800-433-9258) or visit our website: www.dewalt.com.

Accessories Available

9R199607 Mallet, wooden

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
  FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.

Register online at www.dewalt.com/register.

Seven Year Limited Warranty

DEWALT will repair, without charge, any defects due to faulty materials or workmanship for seven years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.dewalt.com or call 1-800-4-DEWALT (1-800-433-9258). This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

In addition to the warranty, DEWALT tools are covered by our:

1 YEAR FREE SERVICE

DEWALT will maintain the tool and replace worn parts caused by normal use, for free, any time during the first year after purchase. Nailer wear items, such as o-rings and driver blades, are not covered.

90 DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your DEWALT Power Tool, Laser, or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund - no questions asked.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-4-DEWALT (1-800-433-9258) for a free replacement.

ADWNTIN/ADTEENCAIAVETTISSEMENT Read and understand tool labels and manual. Failure to follow warnings could result in death or serious injury. Operators and others in work area must wear ANS 247.5 safety glasses with side shield. Keep fingers away from trigger when not driving fasteners to avoid accidental firing. Choose of triggering method is important. Check manual for trigger options. Never point tool at yourself or others in work area. Never use oxygen or either bottled gasps. Explosion may occur. Discount an air when cleaning jam, servicing or when toilet is not use. Do not exceed 100 pig. Las y como campos les estigates y el manal de la hernanitoma. Si no se aplicaran los adverticnos potas resuer a la mece o leiones gales. Los operantes y eatras personales en el area de traje de bsar a qulag de ANS 247.3 con protecnia laterale. Matinga les dieas alajades del gilla caundo no celca segnado para arlar e diaparo occidental. Es importante la elec tion del molite de dispar. Consulta el manal para varles especites de gilla. Nue aplica la hernanitoma achaed o utale enperas personales en el area de tnaura. Nue su oxigenia o nro gues enbutealat. Pade producru un expansion. Descnentare o aim al eliminar abstruciton, alrealizar lares en service o cuianda la hernanitoma ao este une. No suppear las 100 pig. Ure y comprense les estigates fupragur on feste ai quie en manal. La non respect des averstions espeque provequeur le doos ou des bleccres groves, I'operaer et les autres persones ovoient dans la nane de travail davel potier des lacunes de secuiti rasaies en ANS 247.3 de protecssors laterale. Tainr les daigs dlgrles de la giacheite loupes you n'effecet pas de cleavage afin d'exerir an tlr accidentel. Le choice de la mehade de dischienment est importante.Consider the manal por contraindles les optiones de dclechement. Nno jaimais pinter le follant sur ses-moi ou s-aux autres persones dans la nane de travail.No jai ons enlern d'oxygane ou d'aux qaut ne boiteil. Une explciation neque de s predisir.Decnneacherl'altamontation en air riers de delachages, d'esthertins ou brueq le follant et instiline.No paes ocderk 7logmcl (100 pig).

TROUBLESHOOTING GUIDE

PROBLEM CAUSE CORRECTION
Frame/nose leaks air Loose nose screws Tighten and recheck
O-ring or Gasket is cut or Replace O-ring or gasket cracked
Bumper cracked/worn Replace bumper
Frame/cap leaks air Damaged gasket or seal Replace gasket or seal
Cracked/worn head valve Replace bumper
Loose cap screws Tighten and recheck
Failure to cycle Air supply restriction Check air supply
	equipment
Tool dry, lack of lubrication Use Air Tool Lubricant
Worn head valve O-rings Replace O-rings
Broken cylinder cap spring Replace cylinder cap spring
Head valve stuck in cap Disassemble/Check/Lubricate

PROBLEM CAUSE CORRECTION
Lack of power; slow to cycle	Tool dry, lacks lubrication Use Air Tool Lubricant
	Broken cylinder cap spring Replace cap spring
	O-rings/seals cut or cracked Replace O-rings/seals
	Exhaust blocked Check bumper, head valve spring, muffler
	Dirt/tar build up on driver Disassemble nose/driver to clean
	Cylinder sleeve not seated correctly on bottom bumper	Disassemble to correct
	Head valve dry Disassemble/lubricate
	Air pressure too low Check air supply equipment
Skipping fasteners; intermittent feed	Worn bumper Replace bumper
	Tar/dirt in driver channel Disassemble and clean nose and driver
	Air restriction/inadequate air flow through quick disconnect socket and plug	Replace quick disconnect fittings
	Worn piston O-ring Replace O-ring, check driver
	Tool dry, lacks lubrication Use Air Tool Lubricant
	Damaged pusher spring Replace spring
	Low air pressure Check air supply system to tool
	Loose magazine nose screws	Tighten all screws
	Fasteners too short for tool	Use only recommended fasteners
	Bent fasteners	Discontinue using these fasteners
	Wrong size fasteners	Use only recommended fasteners
	Leaking head cap gasket	Tighten screws/replace gasket
	Broken/chipped driver	Replace driver (check piston O-ring)
	Dry/dirty magazine	Clean/lubricate use Air Tool Lubricant
	Worn magazine	Replace magazine
Fasteners jam in tool	Driver channel worn	Replace nose/check door
	Wrong size fasteners	Use only recommended fasteners
	Bent fasteners	Discontinue using these fasteners
	Loose magazine/nose screws	Tighten all screws
	Broken/chipped driver	Replace driver

Table des matieres

SOURCE D'ALIMENTATION

POUR REMPLACER LE PISTON

PROBLEM CAUSE SOLUTION

Congratulations on your new purchase of another premium DEWALT product. For questions regarding assembly, operation, parts, or performance please contact us by calling toll free:

DEWALT Industrial Tool Co., 701 East Joppa Road, Towson, MD 21286 (JAN16) Part No. 9R211800 DWMIIFS Copyright © 2015 DEWALT The following are trademarks for one or more DEWALT power tools: the yellow and black color scheme; the "D" shaped air intake grill; the array of pyramids on the hand-grip; the kit box configuration; and the array of lozenge-shaped humps on the surface of the tool.
