USER MANUAL WINGDANTE BEHRINGER

WING-DANTE Quick Start Guide Terminals marked with this symbol carry electrical current of sucient magnitude to constitute risk of electric shock. Use only high-quality professional speaker cables with ¼" TS or twist-locking plugs pre-installed. Allother installation or modication should be performed only by qualiedpersonnel. This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure - voltage that may be sucient to constitute a risk ofshock. This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read themanual. Caution To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside. Refer servicing to qualiedpersonnel. Caution To reduce the risk of re or electric shock, do not expose this appliance to rain and moisture. Theapparatus shall not be exposed to dripping or splashing liquids and no objects lled with liquids, such as vases, shall be placed on the apparatus. Caution These service instructions are for use by qualied service personnel only. Toreduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairshave to be performed by qualied servicepersonnel.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation

openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources

such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of

the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. Ifthe provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being

walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Use only attachments/accessories

specied by themanufacturer.

the cart, stand, tripod, bracket, or table specied by the manufacturer, orsold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during

lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service

personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has beendropped.

15. The apparatus shall be connected to

a MAINS socket outlet with a protective earthing connection.

16. Where the MAINS plug or an

appliance coupler is used as the Important Safety Instructions4 WING-DANTE Quick Start Guide disconnect device, the disconnect device shall remain readily operable.

17. Correct disposal of this

product: This symbol indicates that this product must not be disposed of with household waste, according to the WEEE Directive (2012/19/EU) and your national law. This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the ecient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city oce, or your household waste collection service.

18. Do not install in a conned space,

such as a book case or similar unit.

19. Do not place naked ame sources,

such as lighted candles, on the apparatus.

20. Please keep the environmental

aspects of battery disposal in mind. Batteries must be disposed-of at a battery collection point.

BESCHRÄNKTE GARANTIE

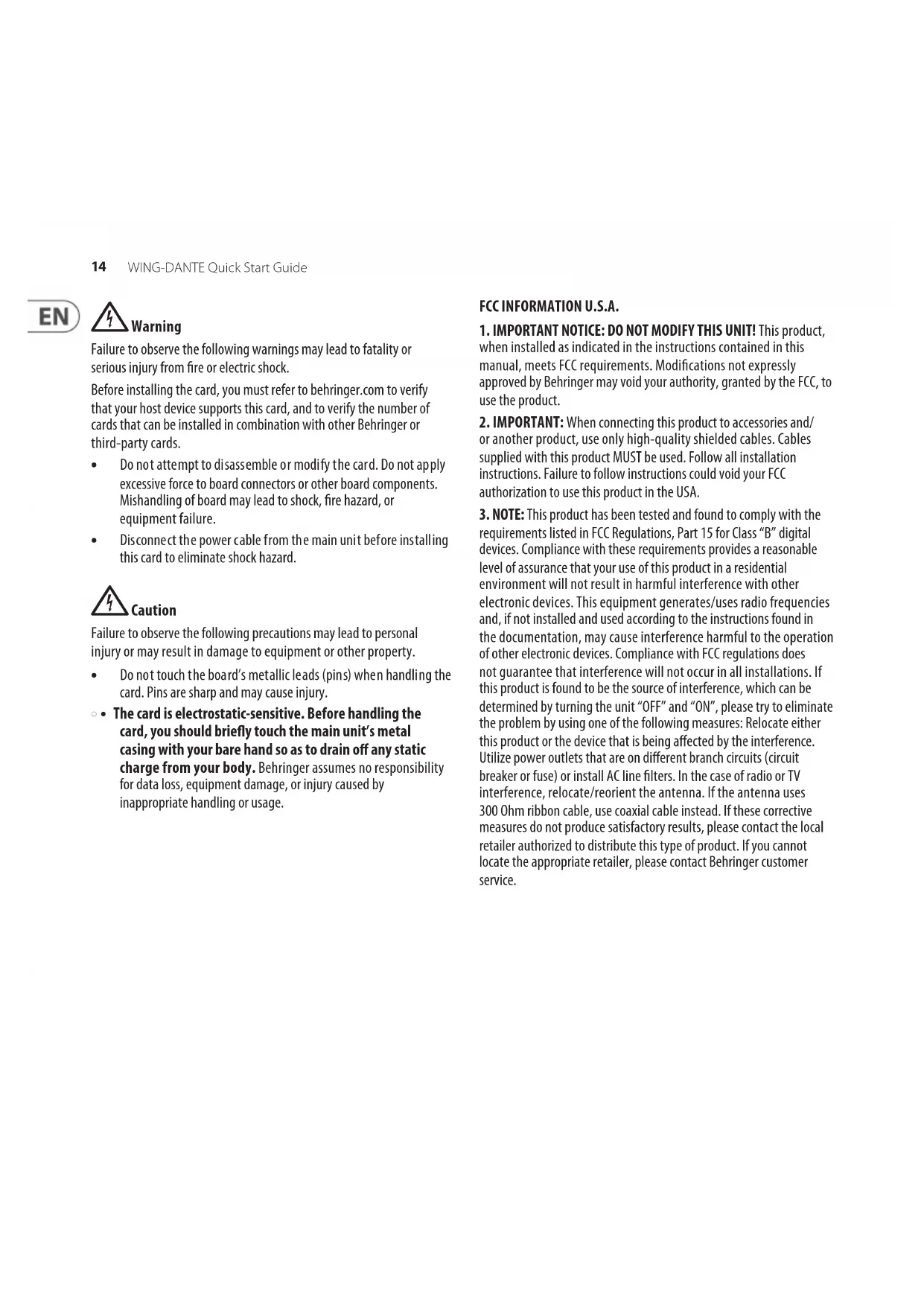

• Warning Failure to observe the following warnings may lead to fatality or serious injury from re or electric shock. Before installing the card, you must refer to behringer.com to verify that your host device supports this card, and to verify the number of cards that can be installed in combination with other Behringer or third-party cards.

• • Do not attempt to disassemble or modify the card. Do not apply excessive force to board connectors or other board components. Mishandling of board may lead to shock, re hazard, or equipment failure.

• • Disconnect the power cable from the main unit before installing this card to eliminate shock hazard.

• Caution Failure to observe the following precautions may lead to personal injury or may result in damage to equipment or other property.

• • Do not touch the board’s metallic leads (pins) when handling the card. Pins are sharp and may cause injury.

• • The card is electrostatic-sensitive. Before handling the card, you should briey touch the main unit’s metal casing with your bare hand so as to drain o any static charge from your body. Behringer assumes no responsibility for data loss, equipment damage, or injury caused by inappropriate handling or usage. FCC INFORMATION U.S.A.

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT! This product,

when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modications not expressly approved by Behringer may void your authority, granted by the FCC, to use the product.

2. IMPORTANT: When connecting this product to accessories and/

or another product, use only high-quality shielded cables. Cables supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3. NOTE: This product has been tested and found to comply with the

requirements listed in FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the documentation, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures: Relocate either this product or the device that is being aected by the interference. Utilize power outlets that are on dierent branch circuits (circuit breaker or fuse) or install AC line lters. In the case of radio or TV interference, relocate/reorient the antenna. If the antenna uses 300 Ohm ribbon cable, use coaxial cable instead. If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you cannot locate the appropriate retailer, please contact Behringer customer service.15 WING-DANTE Quick Start Guide

Dante is a high-performance digital media protocol designed to deliver audio over a standard Ethernet IP network. The WING-DANTE card allows the WING console to share up to 64 x 64 channels of audio with any network of Dante-enabled devices via single or redundant Ethernet connection. Using existing wired network infrastructure at 100 Mbit/s or 1 Gbit/s, the Dante protocol oers very stable, low- latency transmission for a variety of professional applications unifying multi-channel audio distribution across multiple locations or device families.

Before you install the WING-DANTE card in the expansion slot of the WING console, you must check behringer.com to verify whether the console rmware supports that card. Minimum required WING rmware for WING-DANTE is version 1.08. We recommend that you periodically check your console’s product page for console rmware updates. Caution – before installing the WING-DANTE card into the console, you must make sure that the console’s power switch is turned o. Malfunctions or electrical shock may occur otherwise.

1. Make sure that the mixer’s power is turned o.

2. Loosen the 2 screws left and right that fasten the slot, then

remove the slot cover or currently-installed card and keep it in a safe place.

3. Before removing the WING-DANTE card from its protective bag,

we recommend touching the grounded metal chassis of the console to prevent electrostatic discharges aecting the sensitive electronic components. It is generally a good idea to hold the card either by the face plate or by the two small handles, but never touching the components on the circuit board directly.

4. Align both edges of the card with the guide rails inside the

slot and carefully insert the card into the slot. It should slide in without any considerable resistance. Push the card all the way into the slot to ensure that the contacts of the card are correctly inserted into the connector inside. The screw holes should be naturally aligned.

5. Fasten the card using the included screws, or with those

that originally held the previous card in place. Damage or malfunctions may occur if the card is not fastened.

6. If a card was initially removed, place it in the protective bag that

the WING-DANTE card was packed in, and repackage for safe storage.

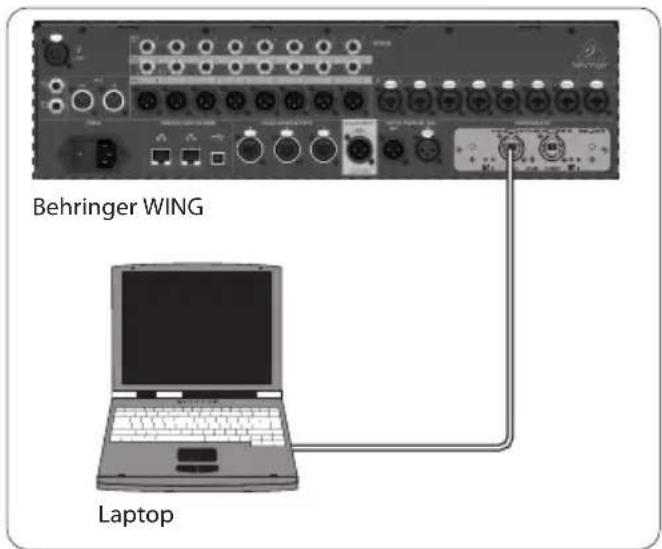

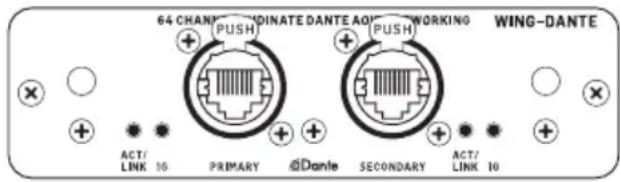

For details on the PC hardware and software requirements, please refer to the Minimum System Requirements posted on audinate.com. (Dante Virtual Soundcard drivers optionally available at audinate.com)

• • 2x small handles (St) for removing the expansion card from the slot

• • 2x outer screws for xing the card in the slot (M3 x 6 size)

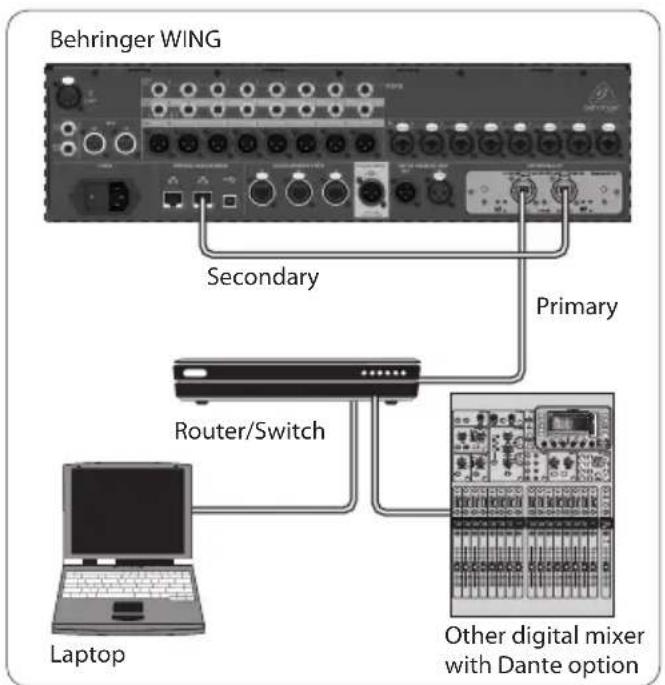

Dante network WING network router

PC and other Dante-enabled audio devices, e.g. generic digital console with Dante card

for advice on suitable network routers for use with Dante networks visit audinate.com Here the PC performs 3 tasks concurrently: a) run Dante Controller app for signal routing b) run Dante Virtual Soundcard (DVS) for recording/playback of all audio channels of both mixers c) run applications for editing or control of the mixer by patching the Secondary connector to the mixer’s networking port

for recording/playback up to 64 x 64 channels

for advice on using and licensing Dante Virtual Soundcard visit audinate.com Behringer WING Laptop Behringer WING Router/Switch Primary Secondary Laptop Other digital mixer with Dante option17 WING-DANTE Quick Start Guide

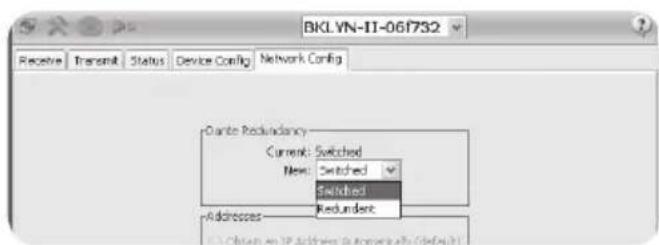

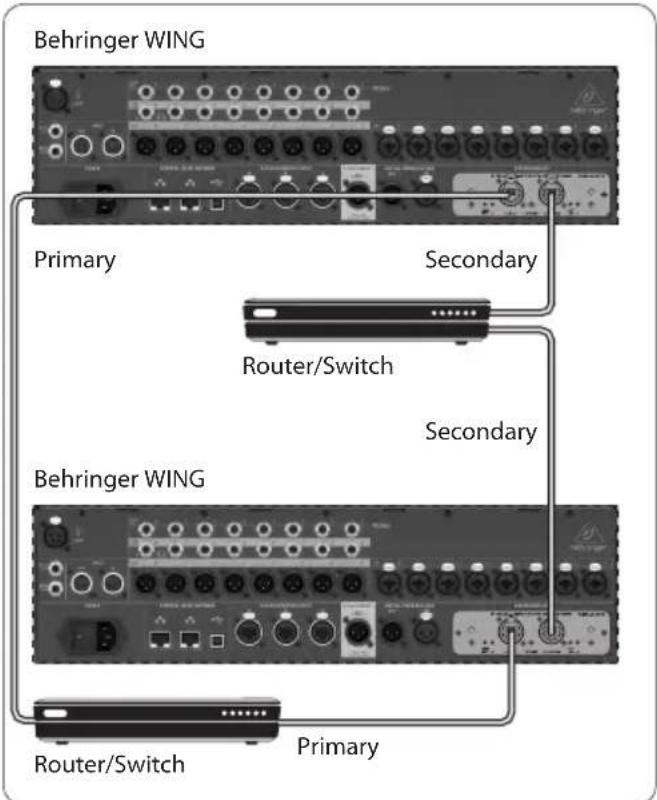

5.3 WING-DANTE redundant network

infrastructure WING two separate routers with independent wiring Second WING, X32 or other Dante-enabled device Behringer WING Secondary Secondary Primary Primary Behringer WING Router/Switch Router/Switch WING with DANTE redundant network infrastructure Select Wing-Dante card in Dante Controller, open the device Network Cong tab, change from 'Switched' to 'Redundant'18 WING-DANTE Quick Start Guide

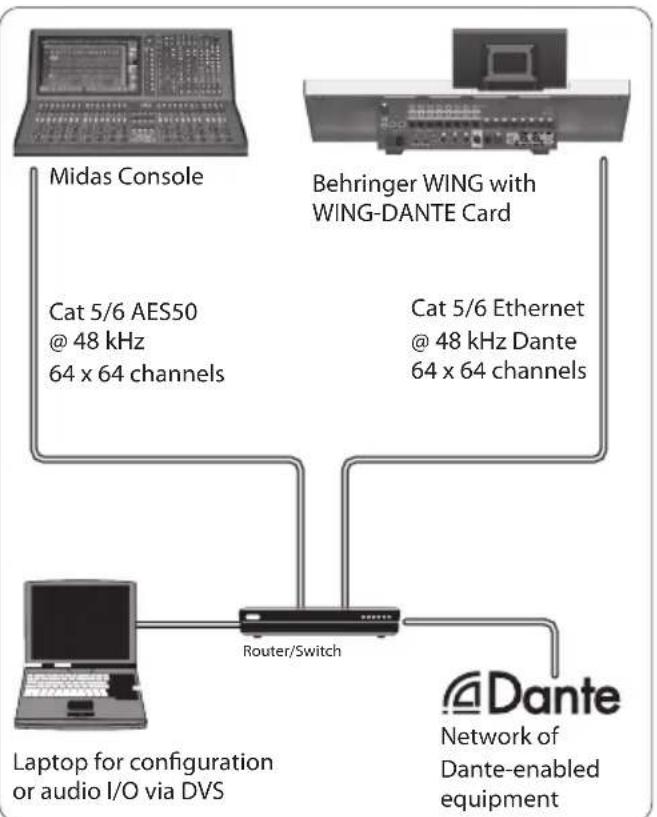

5.4 WING-DANTE connection to Midas

HD96-24 with Dante option

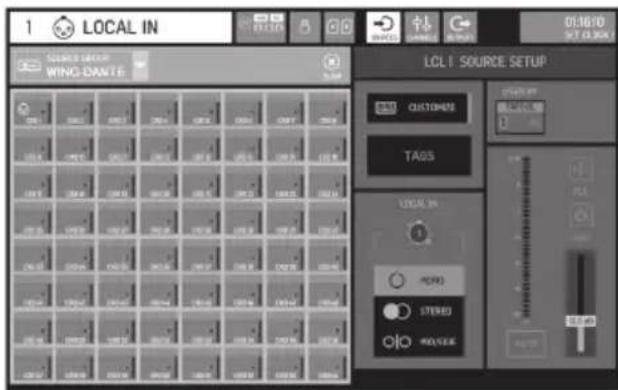

Press the ROUTING button next to the WING main display screen to access the general Routing screen. Press the Input Group menu and select WING-DANTE from the list. All 64 channels can be congured here, including name, scribble strip details and tags. Icons at the top of the Routing screen select either Inputs or Outputs. The routing within these screens is done from a console perspective, so selecting Outputs routes signals to the Dante network. Be sure to press the unlock icon to edit the output routing. Changing the screen to Inputs allows returning signals from the Dante network to be routed to input channels or directly to physical outputs. Please refer to audinate.com for a comprehensive set of documentation, FAQ and forum advices on conguring the Dante Controller and Dante Virtual Soundcard applications.

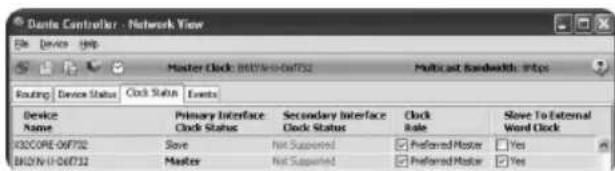

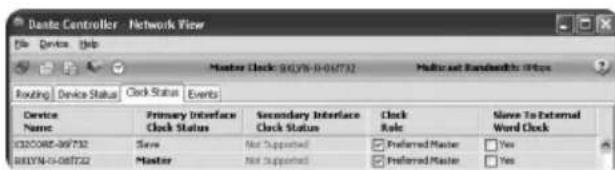

All of the card settings can be adjusted from the Dante Controller application, including clock synchronization. A master word clock source must be selected for the network, and users can choose between the WING’s internal clock or the WING-DANTE clock. Cat 5/6 AES50 @ 48 kHz 64 x 64 channels Cat 5/6 Ethernet @ 48 kHz Dante 64 x 64 channels Midas Console Router/Switch Laptop for conguration or audio I/O via DVS Network of Dante-enabled equipment Behringer WING with WING-DANTE Card19 WING-DANTE Quick Start Guide Card set to Master In this example, ‘Preferred Master’ is selected, but ‘Slave to External Word Clock’ remains unchecked. WING internal clock set to Master In this example, both ‘Preferred Master’ and ‘Slave to External Word Clock’ are checked. Note that in either clock setup, the WING-DANTE card might be displayed in the Dante Controller app as the specic chip name (ex: BKLYN-II-06f732). A new name can be assigned in the controller’s Device View window.

7. Audinate Software Tools

Dante Controller The Dante Controller is a software application provided by Audinate which allows users to congure and route audio around Dante networks. It is available for PCs running Windows and Apple Macs running OSX 10.5. Dante Controller must be installed on one or more PC/Mac computers on the Dante network in order to change any signal routing or clocking in the network. Dante Controller is not required, when everything is pre-congured, for running audio between Dante devices over the network. Dante Virtual Soundcard The Dante Virtual Soundcard is a software application that turns your PC or Mac into a Dante-enabled device, allowing Dante audio trac to be transmitted and received using the standard Ethernet port. No additional hardware is required. On Windows, the Dante Virtual Soundcard uses Steinberg’s ASIO audio interface, and can be used with any audio application that supports ASIO or WDM. On Mac OSX, the Dante Virtual Soundcard uses the standard Core Audio interface, and can be used by almost any standard audio application. Visit audinate.com for further advice on downloading and licensing these applications.20 WING-DANTE Quick Start Guide

7. Applications Audinate

HD96-24 mit Dante-Option Behringer WING Secondary Secondary Primary Primary Behringer WING Router/Switch Router/Switch Cat 5/6 AES50 @ 48 kHz 64 x 64 channels Cat 5/6 Ethernet @ 48 kHz Dante 64 x 64 channels Midas Console Router/Switch Laptop for conguration or audio I/O via DVS Network of Dante-enabled equipment Behringer WING with WING-DANTE Card33 WING-DANTE Quick Start Guide

HD96-24 com opção Dante Behringer WING Secondary Secondary Primary Primary Behringer WING Router/Switch Router/Switch Cat 5/6 AES50 @ 48 kHz 64 x 64 channels Cat 5/6 Ethernet @ 48 kHz Dante 64 x 64 channels Midas Console Router/Switch Laptop for conguration or audio I/O via DVS Network of Dante-enabled equipment Behringer WING with WING-DANTE Card38 WING-DANTE Quick Start Guide

HD96-24 con opzione Dante Behringer WING Secondary Secondary Primary Primary Behringer WING Router/Switch Router/Switch Cat 5/6 AES50 @ 48 kHz 64 x 64 channels Cat 5/6 Ethernet @ 48 kHz Dante 64 x 64 channels Midas Console Router/Switch Laptop for conguration or audio I/O via DVS Network of Dante-enabled equipment Behringer WING with WING-DANTE Card43 WING-DANTE Quick Start Guide

Responsible Party Name: Music Tribe Commercial NV Inc. Address: 901 Grier Drive Las Vegas, NV 89118 USA Phone Number: +1 747 237 5033 WING-DANTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• • Reorient or relocate the receiving antenna.

• • Increase the separation between the equipment and receiver.

• • Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Important information: Changes or modications to the equipment not expressly approved by Music Tribe can void the user’s authority to use the equipment. WING-DANTE46 WING-DANTE Quick Start Guide47 WING-DANTE Quick Start GuideWe Hear You
