USER MANUAL RW414765 GAGGENAU

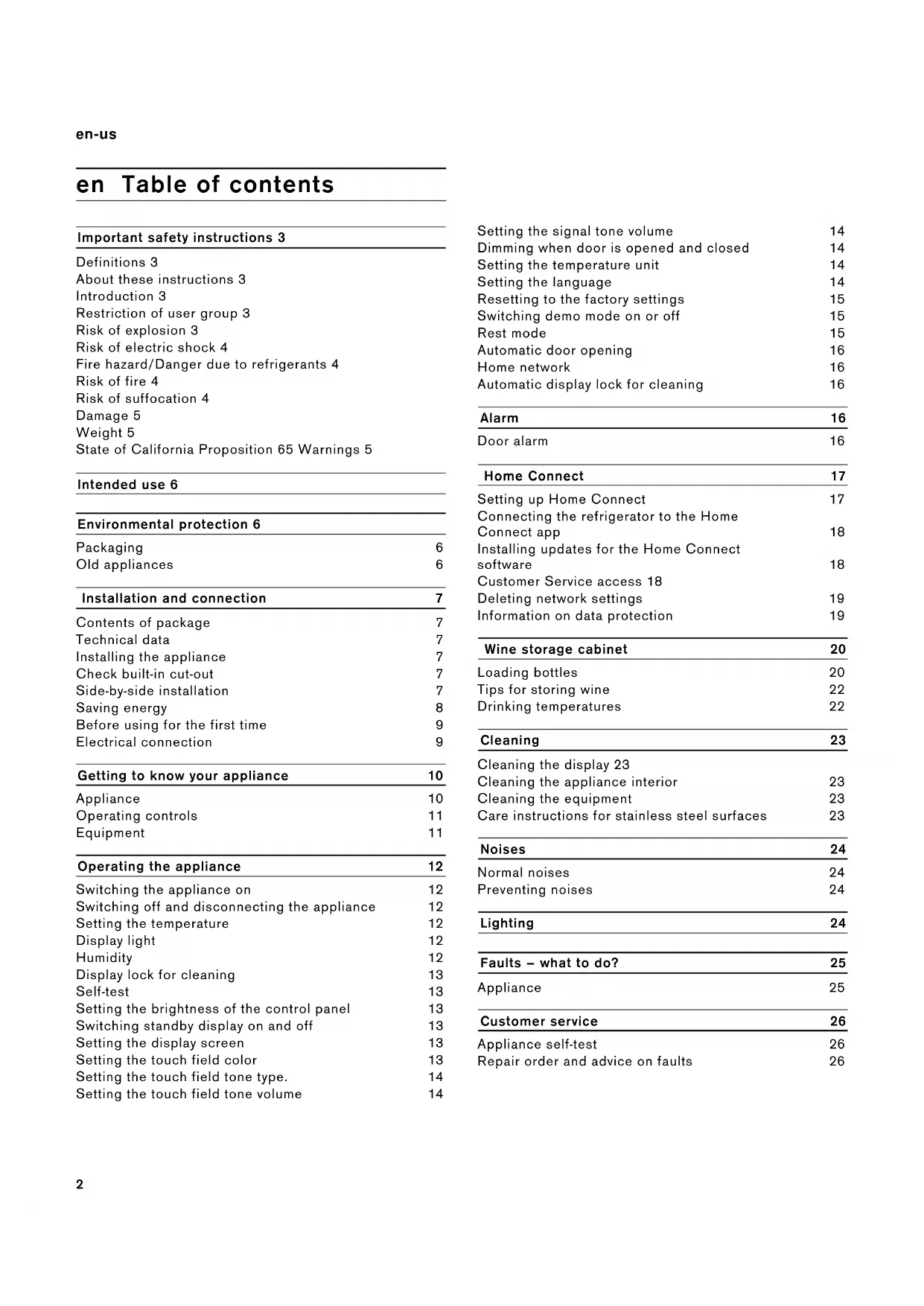

Important safety instructions 3 Definitions 3 About these instructions 3 Introduction 3 Restriction of user group 3 Risk of explosion 3 Risk of electric shock 4 Fire hazard/Danger due to refrigerants 4 Risk of fire 4 Risk of suffocation 4 Damage 5 Weight 5 State of California Proposition 65 Warnings 5

Environmental protection 6 Packaging 6 Old appliances 6

Installation and connection 7 Contents of package 7 Technical data 7 Installing the appliance 7 Check built-in cut-out 7 Side-by-side installation 7 Saving energy 8 Before using for the first time 9 Electrical connection 9

Getting to know your appliance 10 Appliance 10 Operating controls 11 Equipment 11

Operating the appliance 12 Switching the appliance on 12 Switching off and disconnecting the appliance 12 Setting the temperature 12 Display light 12 Humidity 12 Display lock for cleaning 13 Self-test 13 Setting the brightness of the control panel 13 Switching standby display on and off 13 Setting the display screen 13 Setting the touch field color 13 Setting the touch field tone type. 14 Setting the touch field tone volume 14 Setting the signal tone volume 14 Dimming when door is opened and closed 14 Setting the temperature unit 14 Setting the language 14 Resetting to the factory settings 15 Switching demo mode on or off 15 Rest mode 15 Automatic door opening 16 Home network 16 Automatic display lock for cleaning 16

Home Connect 17 Setting up Home Connect 17 Connecting the refrigerator to the Home Connect app 18 Installing updates for the Home Connect software 18 Customer Service access 18 Deleting network settings 19 Information on data protection 19

Wine storage cabinet 20 Loading bottles 20 Tips for storing wine 22 Drinking temperatures 22

Cleaning 23 Cleaning the display 23 Cleaning the appliance interior 23 Cleaning the equipment 23 Care instructions for stainless steel surfaces 23

Noises 24 Normal noises 24 Preventing noises 24

Faults – what to do? 25 Appliance 25

Customer service 26 Appliance self-test 26 Repair order and advice on faults 263 9 Important safety instructions READ INSTRUCTIONS - DO NOT DISCARD!

Important safety instructions Import ant safety instructionsREAD INSTRUCTIONS - DO NOT DISCARD! Definitions 9 WARNING Non-observance of this warning could result in death or serious injuries. 9 CAUTION Non-observance of this warning could result in slight or moderately serious injuries. NOTICE Non-observance of this information could damage the appliance. Note: This indicates important information and/or tips. About these instructions ▯ Read and follow the operating and installation instructions. They contain important information on how to install, use and maintain the appliance. ▯ Retain all documents for subsequent use or for the next owner. Introduction ▯ This appliance complies with the relevant safety regulations for electrical appliances. ▯ The refrigeration circuit has been checked for leaks. Restriction of user group ▯ Avoid placing children and vulnerable persons at risk. ▯ This appliance may be used by children and persons who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. ▯ Children should be supervised to ensure that they do not play with the appliance. Risk of explosion ▯ If the appliance's ventilation openings are sealed, a leak in the refrigeration circuit may result in a flammable mixture of gas and air. Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction. ▯ Never use electric devices inside the appliance (e.g. heaters or electric ice makers). ▯ Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance.9 Important safety instructions READ INSTRUCTIONS - DO NOT DISCARD!

Risk of electric shock Improper installations or repairs may put the user at considerable risk. ▯ When installing the appliance, make sure that the power cord does not get jammed or is not damaged. ▯ If the power cord is damaged, immediately disconnect appliance from the power supply. ▯ Do not use multiple outlets, extension leads or adapters. ▯ Before servicing or modifying the appliance, pull out the power plug or switch off the fuse. Before cleaning, switch off the appliance with the main On/Off switch. Fittings can be safely adjusted while the appliance is switched on. ▯ Never cut through or remove the power cord's third conductor (grounding conductor). ▯ Never clean the appliance with a steam cleaner. The steam may penetrate electrical parts and cause a short circuit. ▯ The appliance, cable and accessories should only be repaired or replaced by the manufacturer, customer services, or a similarly qualified person. ▯ Only use original parts supplied by the manufacturer. These parts come with a guarantee from the manufacturer that they satisfy the safety requirements. Fire hazard/Danger due to refrigerants The tubes of the refrigeration circuit contain a small quantity of an environmentally friendly but flammable refrigerant (R600a). If the refrigerant escapes, it may injure your eyes or ignite. ▯ Do not damage the tubes. If the tubes are damaged: ▯ Keep open flames and ignition sources away from the appliance. ▯ Ventilate the room.▯ Switch off the appliance and unplug the power cord. ▯ Please contact customer service. Risk of fire Portable multi-outlet power strips and portable power supplies may overheat, causing a fire. ▯ Never leave portable multi-outlet power strips or portable power supplies behind the appliance. Risk of suffocation ▯ If the appliance features a door lock: keep the key out of the reach of children. ▯ Keep children away from the packaging and its parts.5 9 Important safety instructions READ INSTRUCTIONS - DO NOT DISCARD! Damage To avoid damage: ▯ Do not stand or lean on the base, runners or doors. ▯ Keep plastic parts and door seals free of oil and grease. ▯ Pull the power plug – not the power cord. Weight The appliance is very heavy. The appliance should always be transported and set up by at least 2 people. ~ "Installing the appliance" on page 7 State of California Proposition 65 Warnings This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:6 en-us Intended use

Intended use Intended use Use this appliance ▯ only for storing wine.▯ only in the home and in the home environment.▯ only according to these operating instructions. This appliance is intended for use at an elevation of no more than 2000 meters above sea level.

Environmental protection Environmental protection Packaging All materials are environmentally safe and recyclable: ▯ Dispose of packaging in an environmentally responsible manner. ▯ Please ask your dealer or inquire at your local authority about current means of disposal. Old appliances Valuable raw materials can be reclaimed by recycling old appliances. 9 WARNING Children may become locked in the appliance and suffocate! Before disposing of your old appliance: ▯ Remove the door.▯ Leave shelves and bins in the appliance to prevent children from climbing in. ▯ Keep children away from the discarded appliance. 9 CAUTION Refrigerant and harmful gases may escape. Do not damage the tubes of the refrigeration circuit and insulation.

1. Pull out the power plug.2. Cut through the power cord.3. Have the appliance disposed of properly.7

Installation and connection en-us

Installation and connection Installation and connection Contents of package After unpacking all parts, check for any damage during transport. If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service. ~ "Customer service" on page 26 The delivery consists of the following parts: ▯ Built-in appliance ▯ Equipment (depending on model) ▯ Installation material ▯ Instruction manual ▯ Installation instructions ▯ Customer service booklet ▯ Warranty enclosure ▯ Information on the energy consumption and noises Technical data Refrigerant, cubic capacity and further technical specifications can be found on the rating plate. ~ "Getting to know your appliance" on page 10 Installing the appliance Installation location The weight of the appliance may be up to 500 kg depending on the model. The base must be sufficiently stable and should not give. If necessary, reinforce the floor. Check built-in cut-out The cut-out must fulfill these criteria: ▯ Anti-tilt bracket must be fitted ▯ Cut-out depth min. 24” (610 mm), for flush installation 25” (635 mm) ▯ rectangular ▯ stable – the side panels and the top must be min. 5/8" (16 mm) thick and securely attached to the floor or wall ▯ Depth of shortest side panels min. 4” (100 mm) Side-by-side installation Observe the specifications in the installation instructions for a side-by-side installation. If a partition wall is required between the appliances it must be at least 5/8" (16 mm) wide.8 en-us Installation and connection Saving energy If you follow the instructions below, your appliance will use less power. Note: The arrangement of the equipment does not affect the energy consumption of the appliance.

Installing the appliance Keep the appliance out of direct sunlight. The appliance needs to cool less frequently at low ambient temperatures and therefore consumes less power. Install the appliance as far away as possible from heat- ing elements, cooker and other heat sources: At least 1¼” (3 cm) from electric or gas cookers. At least 11¾" (30 cm) from oil or solid-fuel cookers. Select an installation location at a room temperature of approx. 68 °F (20 °C). Do not cover or block the ventilation openings. The appliance needs to cool less frequently if the warm air can escape and therefore consumes less power. Ventilate the room daily. Using the appliance Open the appliance door only briefly. The air in the appliance does not warm up so intensely. The appliance needs to cool less frequently and there- fore consumes less power. Transport cooled wine in a cool bag and place in the appliance quickly. Always leave a space between the bottles and the back panel. The air can circulate, and the temperature will remain constant. The appliance needs to cool less frequently and therefore consumes less power. Do not cover or block the ventilation openings. The appliance consumes less power if the warm air can escape freely. Vacuum the ventilation openings once a year.9 Installation and connection en-us Before using for the first time

1. Remove information material, adhesive tape and

2. Clean the appliance.

~ "Cleaning" on page 23 Electrical connection 9 CAUTION Do not connect the appliance to electronic energy saver plugs. Note: You can connect the appliance to mains-controlled and sine-controlled inverters. Mains-controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications. Isolated applications, e.g. on ships or in mountain lodges, are not directly connected to the national grid.

1. After installing the appliance, wait at least 1 hour

before connecting it to prevent damaging the compressor.

2. Check that the outlet was installed according to the

regulations and complies with the requirements. Requirements for outlets Maximum simultaneous load

3. Connect the appliance to an outlet near the appliance.

The outlet must also be freely accessible following installation of the appliance. If free access is impossible, an all-pole isolating switch must be integrated into the permanent electrical installation according to the installation regulations. 9 WARNING Risk of electric shock! Never use multiple outlets, extension cords or adapters. The appliance must be grounded correctly. Never cut through or remove the power cord's third conductor (grounding conductor). Risk of electric shock! If the power cord is too short, never use multiple outlets or extension cords. Instead, please contact customer service. Outlet with 110 V ... 120 V Protective conductor 60 Hz Fuse 10 A ... 16 A Appliance 6 A10 en-us Getting to know your appliance

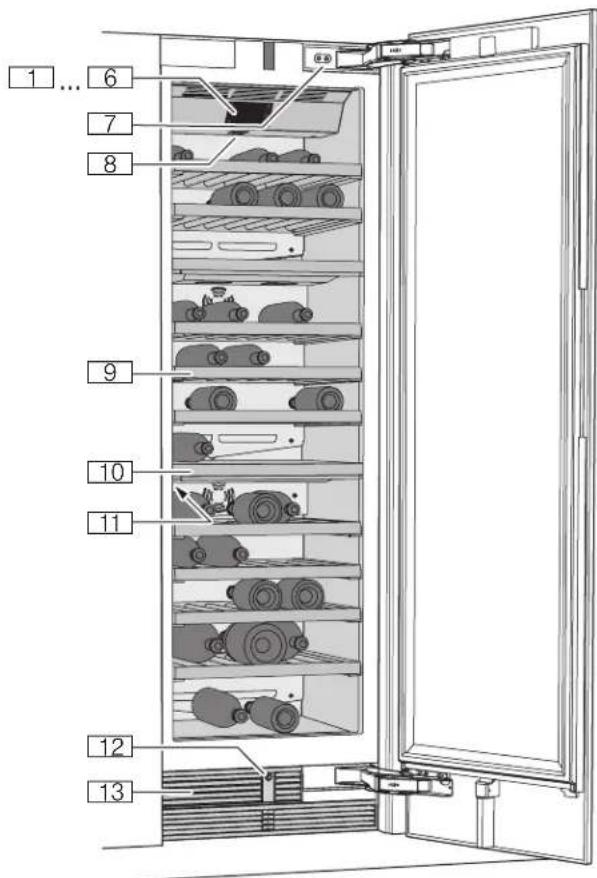

Getting to know your appliance Getting to know your appliance Appliance

• Not all models. (...P Operating controls X Door damper ` Main On/Off switch h Shelf )" Partition )* Rating plate )2 Automatic door opening ): Ventilation opening

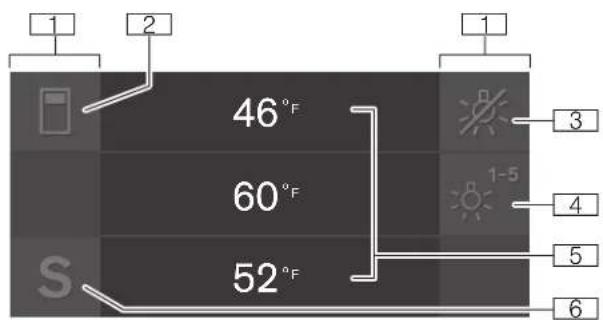

):11 Getting to know your appliance en-us Operating controls Main menu Press à button to open the main menu. In the main menu you can find: ▯ Basic settings▯ Display lock for cleaning▯ Self-test▯ Rest mode (when active) ~ "Operating the appliance" on page 12 Basic settings menu To access the Basic settings menu:

In the Basic settings menu you will find the following sub- menus and setting options: ▯ Brightness▯ Standby screen▯ Display screen▯ Touch field color▯ Touch field tone type▯ Touch field tone volume▯ Signal tone volume▯ Dimming when door is opened and closed▯ Temperature unit▯ Language▯ Factory settings▯ Demo mode▯ Rest mode▯ Automatic door opening▯ Home network▯ Automatic display lock for cleaning ~ "Operating the appliance" on page 12 Equipment Shelf You can pull out the shelves to reach the wine bottles more easily. Note: The shelves separating the climate zones are not movable. Additional shelf You can install additional shelves to store more wine bottles or to provide better support to the bottles on the fixed shelves. ( Touch fields There are sensors under the touch fields. Touching the symbol calls up the respective function. 0 ¡ button Opens the menu for changing the temperature and humidity. 8 o button Switches the display light off. @ n button Opens the menu for switching between the different light scenarios. H Wine storage cabinet temperature display Indicates the set temperature in °F/ °C.Depending on the appliance model in question, 2 or 3 cabinets are displayed. P à button Opens main menu.

Operating the appliance Operating the appliance Switching the appliance on

1. Press the main On/Off switch.

The appliance starts cooling and the light is switched on when the door is open.

2. Set the required temperature.

~ "Setting the temperature" on page 12 Operating tips ▯ When the appliance has been switched on, it may take several hours until the set temperatures have been reached. ▯ The front sides of the housing are partly heated slightly. This prevents condensation in the area of the door seal. Switching off and disconnecting the appliance Switching off the appliance ▯ Press the main On/Off switch. The appliance is no longer cooling. Disconnecting the appliance If you do not use the appliance for a prolonged period:

1. Pull out mains plug or switch off fuse.

The appliance is no longer cooling.

2. Clean the appliance.

3. Leave appliance open.

Setting the temperature Recommended temperature Wine storage compartment

1. Use ¡ button to select the required compartment.

2. Repeatedly press A/@ button until the display

indicates the required temperature.

3. The appliance stores the setting and automatically

returns to the main screen after a few seconds. Display light You can use the preprogrammed light modes to illuminate your wine bottles when the door is closed. The individual climatic zones have different illumination levels. Using the display light

The setting is saved. Switching display light off ▯ To switch the display light off, press o button. Note: This also hides the n button for opening the Display light menu.Press the button again to unhide the n button. Humidity If bottles with natural corks are stored for longer than 4 weeks, the natural corks may shrink if the humidity is too low. To prevent this from happening, store old wine bottles in such a way that the cork is kept wet and increase the humidity. Switching humidity on and off:

The ^ symbol appears in the display. To switch off, press [ button. The [ symbol appears in the display.

3. The appliance stores the setting and automatically

returns to the main screen after a few seconds. Wine storage cabinet: 11 °C/52 °F13 Operating the appliance en-us Display lock for cleaning You can use this function to switch off the touch function of the controls for 10 seconds. During this time you can clean the display. ~ "Cleaning the display" on page 23

The cleaning display appears, and the countdown starts. Self-test This function can be used to start fault analysis on your appliance. ~ "Appliance self-test" on page 26 Setting the brightness of the control panel

4. Press % button to open the menu item Brightness.

5. Press B C buttons to set the required brightness.

The setting is saved.

7. Press ' button to exit the menu.

Switching standby display on and off If you switch on the standby screen, you can select what is displayed on the control panel when the door is closed.

is switched on or off.

8. When the standby screen has been switched on, you

can use B C buttons to select whether the logo or the temperature is displayed with the functions switched on.

The setting is saved.

10. Press ' button to exit the menu.

Setting the display screen You can choose between the settings Reduced and Standard. With the setting Reduced only the temperature and active special functions are displayed on the control panel after a short period without operation. If the touch fields are touched, all keys will be visible again. With the setting Standard all keys always remain visible.

6. Press B C buttons to move to the required setting.

The setting is saved.

8. Press ' button to exit the menu.

Setting the touch field color

6. Press B C buttons to move to the required setting.

The setting is saved.

8. Press ' button to exit the menu.14

en-us Operating the appliance Setting the touch field tone type. You can change or switch off the sound of the tones generated when pressing keys.

6. Press B C buttons to select the required setting.

The setting is saved.

8. Press ' button to exit the menu.

Setting the touch field tone volume You can adjust the volume level of the sounds generated when pressing keys.

6. Press B C buttons to select the required setting.

The setting is saved.

8. Press ' button to exit the menu.

Setting the signal tone volume You can adjust the volume level of the signal tones generated e.g. with alarms.

4. Press C button to move to the menu item Signal tone

6. Press B C buttons to select the required setting.

The setting is saved.

8. Press ' button to exit the menu.

Dimming when door is opened and closed If dimming is switched on, the light will slowly become brighter when the door is opened, and then slowly darker when it is closed. Switching dimming on or off when opening and closing the door

4. Press C button to move to the menu item Dimming

when door is opened and closed.

Off.Confirm by pressing ™ button. Setting the temperature unit You can choose between the unit °C and °F.

6. Press B C buttons to move to the required unit.

The unit will be changed.

8. Press ' button to exit the menu.

Setting the language

6. Press B C buttons to move to the required language.

The display restarts, and the start screen is displayed.15 Operating the appliance en-us Resetting to the factory settings

A signal tone sounds, and a message to confirm reset appears.

All settings are reset to the factory settings.

7. Press ' button to exit the menu.

Switching demo mode on or off The cooling function of the appliance is switched off. All other functions can be used. Note: Do not store any food items in demo mode as the appliance remains at room temperature.

6. Press B C buttons to select the setting On or Off.

The setting is saved.

8. Press ' button to exit the menu.

Rest mode The appliance switches off the following: ▯ Automatic door opening Note: With handle-free installation, please note that you will not be supported when opening the door during this time. To open the door in this case, reach from below under the bottom panel of the unit. ▯ Audible signals ▯ Interior light ▯ Messages on the control panel ▯ Background illumination of control panel is reduced Switching Rest mode on or off Displaying or hiding rest mode in the main menu To use rest mode, you first have to display the function in the main menu:

Not available. Confirm by pressing ™ button.

2. Press / button to open the view Rest mode duration.

3. Press A/@ buttons to change the duration.

4. Press I button to start.

The appliance switches all listed functions off. Switching rest mode off ▯ After the selected time elapses, the appliance switches over to normal operation. ▯ To end rest mode before expiry of the selected time, press & button.16 en-us Alarm Automatic door opening The automatic door opening function supports you in opening the door. As soon as you activate this function, automatic door opening moves out and supports you in opening the door. 9 CAUTION Repeatedly closing the door too early will cause automatic door opening to wear out or fail. Do not close the door as long as automatic door opening is still moved out. If you have nevertheless closed the door, leave it closed for 5 minutes. Automatic door opening will re-adjust itself. Open the menu item Automatic door opening:

Switching on Push-to-open system In an installation situation without handles you can select the Push-to-open system. Your appliance will then open a crack if you press lightly on the door. Note: Please note that automatic door opening is disabled if Rest mode is activated.

4. Select Opening force.Here you can select the level of

force required to activate automatic door opening.

5. Select Opening duration.Here you can select how long

the door should remain open a crack before it closes again automatically. Note: If the door only remains open a crack, the appliance checks once a second whether the door is still ajar.After the selected opening duration elapses, the appliance will close the door automatically. Switching on Pull-to-open system In an installation situation with handles you can select the Pull-to-open system. Your appliance will support you in opening the door as soon as you pull on the handle.

4. Select Opening force.Here you can select the level of

force required to activate automatic door opening. Switching off automatic door opening

1. Open the menu item Automatic door opening.

Home network You can use this function to establish a connection between the refrigerator and your mobile device. ~ "Home Connect" on page 17 Automatic display lock for cleaning You can use this function to select whether the automatic clean lock is switched on automatically when the door is opened.

display lock for cleaning.

Alarm Alarm Door alarm If the appliance door is open for a long time, the door alarm (continuous audible signal) switches on. ▯ Close door. The audible warning signal is switched off.17 Home Connect en-us

Home Connect Home Connect This appliance is Wi-Fi-capable and can be controlled remotely using a mobile device. Note: Wi-Fi is a registered trade mark of the Wi-Fi Alliance. In the following cases, the appliance functions like a refrigerator without a network connection and can still be operated manually via the controls: ▯ The appliance is not connected to a home network. ▯ The availability of the Home Connect function depends on the availability of Home Connect services in your country. Home Connect services are not available in every country. You can find more information on www.home-connect.com. Note: Please observe the safety information in this instruction manual. Ensure that this is also observed if you operate the appliance via the Home Connect app and are not at home when doing so. ~ "Important safety instructions" on page 3 Follow the instructions in the Home Connect app as well. Setting up Home Connect Notes ▯ Wait at least 2 minutes after switching on the appliance before setting up Home Connect. Only then is internal appliance initialization complete. ▯ Take note of the Home Connect supplementary sheet, which is supplied with the appliance or is available for download at www.gaggenau.com together with the instructions. Enter the E-number of your appliance in the search field. You can connect your appliance to the home WLAN network (Wi-Fi) in 3 basic steps.

2. Connect your refrigerator to the home WLAN network

3. Connect the refrigerator to the Home Connect app.

Home network menu Here is how to open the Home network menu:

Note: The first time you open the menu, you will be automatically guided through initial setup. Follow the instructions on the control panel. For further information, please also see the following chapters.

The following sub-menus can be found in the Home network menu: ▯ Connection ▯ Connect to app ▯ Software update ▯ Delete network settings Setting up the connection to the home network The first time you open the menu, you will be automatically guided through initial setup. Follow the instructions on the control panel.

1. Install the Home Connect app on your mobile device.

2. Open the Home network menu on your refrigerator.

3. Open the app on your mobile device.

4. Log in or register with the app if access is not yet

5. Check the router of your home network to see if a

WPS function is available for automatic connection.

6. If this function is available, start automatic network

connection with ™ button. Follow the instructions on the control panel.

7. Start manual network connection if this function is not

available, if you're not sure whether the function is available, or if automatic network connection failed. The refrigerator temporarily generates its own network for connecting the mobile device.18 en-us Home Connect

8. Start manual network connection in the app of your

mobile device. As soon as the refrigerator is connected to the mobile device, a connection between the refrigerator and your home network is established. Note: If the connection cannot be established, check whether there is sufficient reception. ~ "Verifying signal strength" on page 18 Verifying signal strength The signal strength is displayed in the start window of the Home network menu.The signal strength should be at least 50 %. If the signal strength is too weak, the connection may be interrupted. Improving signal strength ▯ Place the router closer to the refrigerator. ▯ Check that screening walls do not interfere with the connection. ▯ Install a repeater to make the signal stronger. Connecting the refrigerator to the Home Connect app Use this menu to connect your refrigerator to mobile terminal devices.

1. Install the Home Connect app on your mobile terminal

device and log in or register.

2. Open the Home network menu on your refrigerator.

3. Press C button to move to the menu item Connect to

5. Confirm the prompt to display the refrigerator in the

6. Open the app and wait until the refrigerator is

displayed. Press Add to confirm the connection between the app and the refrigerator. If the refrigerator is not automatically displayed, click on Add appliance in the app and follow the instructions. As soon as your refrigerator is displayed, add it with +.

7. Follow the instructions in the app until the process is

complete. Installing updates for the Home Connect software The refrigerator checks at regular intervals whether updates are available for the Home Connect software. If an update is available, a little exclamation mark à appears on the á button. Installing the update:

The special menu Home network note opens.

2. Press ™ button to open the menu item.

A note window with the necessary steps for installing the new software appears.

3. To close the note window, press ™ button.

4. Open the Home network menu on your refrigerator.

~ "Setting up Home Connect" on page 17

Note: The % button is only visible if an update is available. The software is installed.

7. A note appears when installation is complete.

8. Press ™ button to close the note.

Customer Service access If you contact Customer Service, they can access your appliance and view its status after you have given your consent. You need to have your appliance connected to your home network for this. Further information about Customer Service access and its availability in your country is available under www.home-connect.com in the Help & Support area.

1. Contact Customer Service.

~ "Customer service" on page 26

2. Confirm the start of Customer Service access in the

app. During Customer Service access the symbol Ù appears on the control panel.

3. As soon as Customer Service has obtained the

necessary data, they end access. Note: You can interrupt remote diagnosis early by switching off Customer Service access in the Home Connect app.19 Home Connect en-us Deleting network settings If there is a problem when trying to establish a connection, or if you would like to register the appliance in a different home WLAN network (Wi-Fi), the Home Connect settings can be reset.

1. Open the Home network menu on your refrigerator.

2. Press C button to move to the menu item Delete

4. Confirm the prompt to delete the network settings.

To then reconnect the appliance to the home WLAN network (Wi-Fi), perform initial setup again. ~ "Setting up the connection to the home network" on page 17 Information on data protection The first time your Home Connect appliance is registered on a WLAN home network connected to the Internet (Wi- Fi), your appliance will transmit the following types of data to the Home Connect server (initial registration): ▯ Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module). ▯ Security certificate of the Wi-Fi communication module (to ensure a secure data connection). ▯ The current software and hardware version of your domestic appliance. ▯ Status of any previous resetting to factory settings. This initial registration prepares the Home Connect functions for use and is only required when you want to use these Home Connect functions for the first time. Note: Please note that the Home Connect functions can be utilized only in conjunction with the Home Connect app. Information on data protection can be called up in the Home Connect app.20 en-us Wine storage cabinet

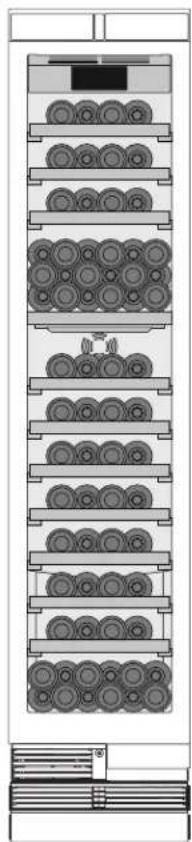

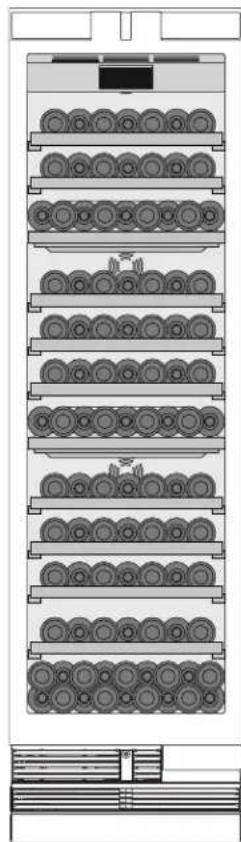

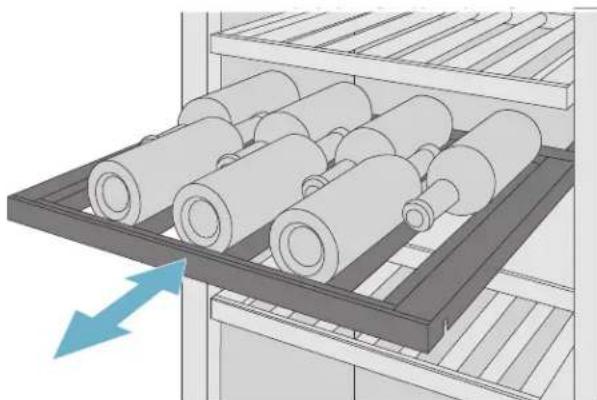

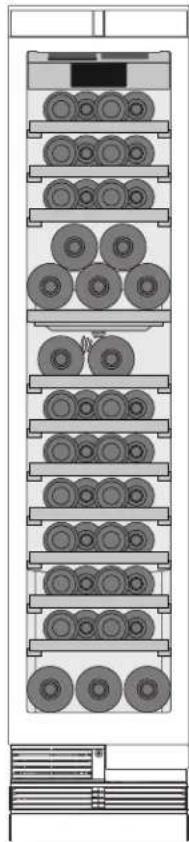

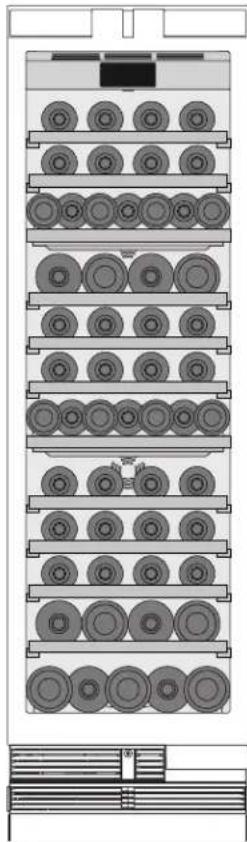

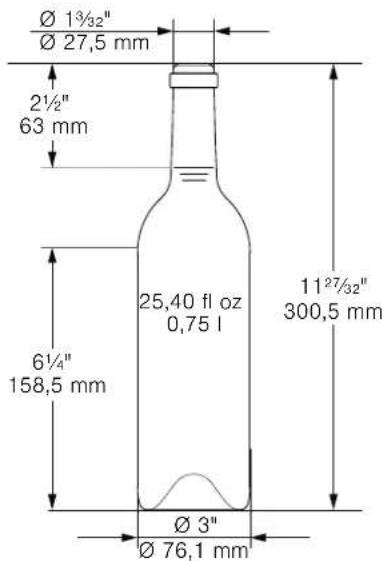

Wine storage cabinet Wine storage cabinet Loading bottles To store the maximum number of wine bottles: ▯ store the bottles as indicated ▯ check that the bottles do not exceed the specified dimensions Standard bottle size You can ideally utilize the volume of your appliance with Bordeaux bottles of this size. Storage example with standard bottles 18” appliance: 70 standard bottles 24” appliance: 99 standard bottles

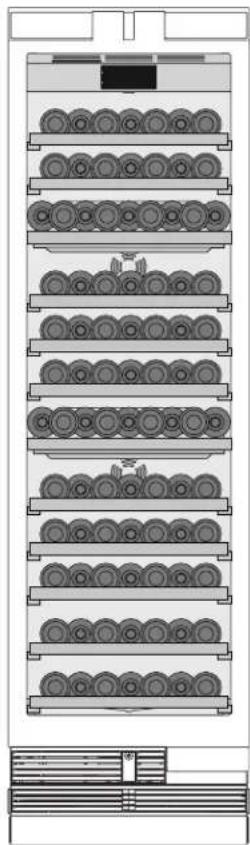

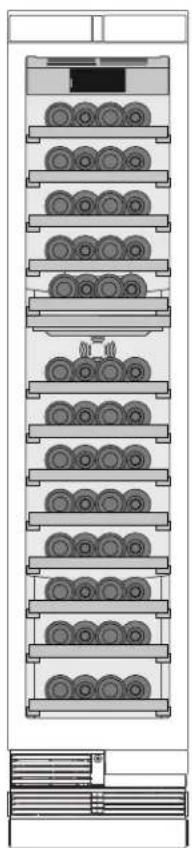

æȤ¼ȭȬ21 Wine storage cabinet en-us Loading with additional shelves You can change the storage options of your appliance by installing additional shelves. 18” appliance: 52 standard bottles 24” appliance: 88 standard bottles Storage example for different bottle sizes22 en-us Wine storage cabinet Tips for storing wine ▯ Unpack wine bottles – do not store in crates or cartons in the wine storage compartment. ▯ If bottles with natural corks are stored for longer than 4 weeks, the natural corks may shrink if the humidity is too low. To prevent this from happening, store old wine bottles in such a way that the cork is kept wet and increase the humidity. ~ "Humidity" on page 12 ▯ The open bottle shelves allow continuous air circulation. As a result, excess humidity is quickly removed. ▯ Before the wine is enjoyed, it should be slowly warmed up (chambré): take e.g. rosé wine out of the appliance approx. 2–5 hours before drinking, and red wine 4–5 hours before drinking. This will ensure that the wine is at the correct drinking temperature. White wine, on the other hand, should be placed on the table just before drinking. Sparkling wine and champagne should be chilled in the refrigerator for a short while before drinking. ▯ Remember that wine should always be cooled slightly lower than the ideal serving temperature, as its temperature increases as soon as it is poured into a glass. Drinking temperatures The correct serving temperature is crucial for the taste and therefore your enjoyment of the wine. We recommend the following drinking temperatures for serving the wine: Type of wine Drinking tempera- ture Full-bodied red Bordeaux 65 °F (18 °C) Côtes du Rhône red, Barolo 64 °F (17 °C) Full-bodied red Burgundy, red Bordeaux 61 °F (16 °C) Port 59 °F (15 °C) Young red Burgundy 57 °F (14 °C) Young red wines 54 °F (12 °C) Young Beaujolais, all white wines with little residual sugar 52 °F (11 °C) Old white wines, full-bodied Chardonnay 50 °F (10 °C) Sherry 49 °F (9 °C) Young white wines, from late vintage onward 46 °F (8 °C) White wines, Loire, Entre-deux- Mers 45 °F (7 °C)23 Cleaning en-us

Cleaning Cleaning 9 CAUTION Avoid damaging the appliance and the equipment. ▯ Do not use abrasive, chloride-based or acidic cleaning agents or solvents. ▯ Do not use scouring or abrasive sponges. The metallic surfaces may corrode. ▯ Never clean the shelves or bins in the dishwasher. The parts may become deformed. Cleaning the display The change in temperature and humidity can cause the controls to steam up. Switch the clean lock on before cleaning. ~ "Display lock for cleaning" on page 13 Use a clean micro-fiber cloth for cleaning. Cleaning the appliance interior Proceed as follows:

1. Press main On/Off switch.2. Take out bottles and store in a cool location if

3. Clean the appliance with a soft cloth, lukewarm water

and a little pH-neutral washing-up liquid. 9 CAUTION The rinsing water must not run into the light or through the drainage hole into the evaporation area.

4. Wipe door seal with clear water and dry thoroughly

5. Switch appliance back on and put in bottles.

Cleaning the equipment To clean, take the removable parts out of the appliance. ~ "Equipment" on page 11 Care instructions for stainless steel surfaces When taking care of and cleaning stainless steel surfaces, use only cleaning agents suitable for stainless steel and a stainless steel cleaning cloth. You can purchase a suitable stainless steel cleaning cloth from customer service. To prevent visible scratches, clean the stainless steel surface in the direction of the structure.24 en-us Noises

Noises Noises Normal noises Droning: A motor is running, e.g. refrigerating unit, ventilator. Bubbling, buzzing or gurgling: Refrigerant is flowing through the tubes. Clicking: Motor, switches or solenoid valves are switching on or off. Preventing noises Appliance is not level: Align appliance using a water level. Adjust the height of the feet.If the feet have already been moved right out, but the appliance is still not level, place e.g. a thin wooden plate underneath. Bins, shelves or storage compartments wobble or stick: Check the removable equipment and re-insert if required. Bottles or containers are touching each other: Move bottles or containers away from each other.

Lighting Lighting Your appliance features a maintenance-free LED light. Only customer service or authorized technicians may repair the light.25 Faults – what to do? en-us

Faults – what to do? Faults – what to do? Before you call customer service, use this table to check whether you can rectify the fault yourself. Appliance

Temperature differs greatly from the set value. Switch off appliance for 5 minutes. ~ "Switching off and disconnecting the appliance" on page 12 If the temperature is too warm, check temperature again after a couple of hours. If the temperature is too cold, check temperature again on the following day. Displays do not light up. The power plug has not been inserted properly. Connect the power plug. The fuse has tripped. Check the fuses. The power has failed. Check whether the power is on. The refrigeration unit is switching on more frequently and for longer. The appliance was opened frequently. Do not open the appliance unnecessarily. The ventilation openings are covered up. Remove obstructions. Appliance is not cooling, display and lighting are lit. Demo mode is switched on. Switch demo mode off. ~ "Switching demo mode on or off" on page 15 The door does not open when pressed. A special mode has switched off automatic door open- ing. To open the door, reach from below underneath the bottom panel of the unit or switch off special mode. ~ "Switching Rest mode on or off" on page 15 Pull-to-open is switched on. Switch the appliance to Push-to-open. ~ "Automatic door opening" on page 16 The opening force is set too high. Select a lower setting for the opening force. ~ "Automatic door opening" on page 16 The fuse has tripped. Check the fuses. The power has failed. Check whether the power is on.26 en-us Customer service

Customer service Customer service If you are unable to rectify the fault, please contact our customer service. We will always find an appropriate solution in order to avoid unnecessary visits by engineers. The contact information for your nearest customer service can be found here or on the enclosed customer service list. When calling, please state the product number (E-Nr.) and the production number (FD), which can be found on the rating plate. ~ "Getting to know your appliance" on page 10 Trust the expertise of the manufacturer. You can therefore be sure that the repair is carried out by trained service engineers who carry original spare parts for your home appliances. Appliance self-test Your appliance features a self-test program which displays the fault your customer service can rectify.

1. Press à button to open the main menu.

2. Press C button to move to the menu item Self-test.

3. Press ™ button to start the self-test.

The self-test starts.

4. If faults are present, they will be displayed. In this

case follow the instructions.

5. The appliance restarts.

6. The message that the self-test has finished is

displayed for 10 seconds. To acknowledge the message, press ™ button. When the self-test has ended, the appliance switches over to normal operation. Repair order and advice on faults Contact information for all countries can be found on the enclosed customer service list.
