RW466365 - Wine cellar GAGGENAU - Free user manual and instructions

Product Type	Wine Cellar
Brand	Gaggenau
Model	RW466365
Dimensions (H × W × D)	1770 × 594 × 610 mm
Weight	Approx. 150 kg
Power Supply	220-240 V, 50 Hz, 10-16 A
Refrigerant	R600a (flammable, environmentally friendly)
Climate Class	SN, N, ST, T (room temp +5°C to +43°C)
Temperature Setting Range	+5°C to +20°C (recommended 11°C)
Humidity Control	Yes, adjustable higher humidity for cork preservation
Display Light Modes	Preprogrammed light scenarios for bottle illumination
Door Opening System	Automatic push-to-open or pull-to-open (adjustable force and duration)
Home Connect	Wi-Fi enabled for remote control via app
Display Lock for Cleaning	Yes, locks touch panel for 10 seconds
Self-Test Function	Built-in diagnostic test for fault analysis
Interior Lighting	Maintenance-free LED
Shelving	Pull-out shelves; additional shelves available
Noise Level	Normal operational sounds (droning, bubbling, clicking)
Installation Type	Built-in (cut-out depth min 610 mm, flush 635 mm)
Safety Features	Door alarm, child lock (key), anti-tilt bracket
Certification	CE, WEEE, RoHS compliant

Frequently Asked Questions - RW466365 GAGGENAU

What is the recommended temperature for storing wine in this appliance?

The recommended temperature for the wine storage compartment is 11°C. You can adjust it between +5°C and +20°C using the controls.

How do I increase humidity to prevent corks from drying out?

Select the desired compartment using the ☐ button, then press the △ button to switch on higher humidity. The △ symbol appears in the display. This is recommended for bottles with natural corks stored longer than 4 weeks.

Can I connect this wine cellar to my smartphone?

Yes, the appliance is Wi-Fi capable and can be controlled via the Home Connect app. Follow the initial setup in the basic settings menu to connect to your home network.

How do I clean the control panel safely?

Use the Display lock for cleaning function to disable touch sensitivity for 10 seconds. Then wipe the display with a clean microfibre cloth. Do not use abrasive cleaners.

What should I do if the door does not open when pressed?

Check if Rest mode is active, which disables automatic door opening. If so, reach under the bottom panel to open the door. Also ensure the door opening system is set to Push-to-open and the opening force is appropriate.

How do I perform a self-test to diagnose faults?

Open the main menu by pressing the S button, navigate to Self-test using the > button, and press √ to start. The appliance will check for errors and display any faults.

What is the correct way to store wine bottles in this cellar?

Store bottles unpacked, leaving space between them and the back wall for air circulation. For long-term storage of corked bottles, increase humidity. Follow the loading diagram in the manual for maximum capacity.

Why is my appliance making unusual noises?

Normal noises include droning (motor), bubbling (refrigerant), and clicking (switches). To prevent abnormal noises, ensure the appliance is level, shelves are secure, and bottles do not touch each other.

How do I reset the appliance to factory settings?

Go to Main menu > Basic settings > Factory settings, press _ to select, then confirm with √. All settings will be reset to defaults.

What safety precautions should I take regarding the refrigerant?

The appliance uses refrigerant R600a which is flammable. Never damage the refrigeration tubes. Keep the appliance away from open flames and ventilate the room if a leak is suspected. Only qualified personnel should service the appliance.

USER MANUAL RW466365 GAGGENAU

Wine storage compartment

en Table of contents

Safety instructions 3

About these instructions 3

Risk of explosion 3

Risk of electric shock 3

Fire hazard/Danger due to refrigerants 3

Fire hazard 4

Avoiding placing children and vulnerable

people at risk 4

Damage to property 4

Weight 4

Intended use 5

Green living 5

Packaging 5

Old appliances 5

Installation and connection 6

Scope of supply 6

Technical specifications 6

Installing the appliance 6

Built-in cut-out 6

Side-by-side installation 6

Tips for saving energy 7

Before using the appliance for the first time 8

Electrical connection 8

Getting to know your appliance 9

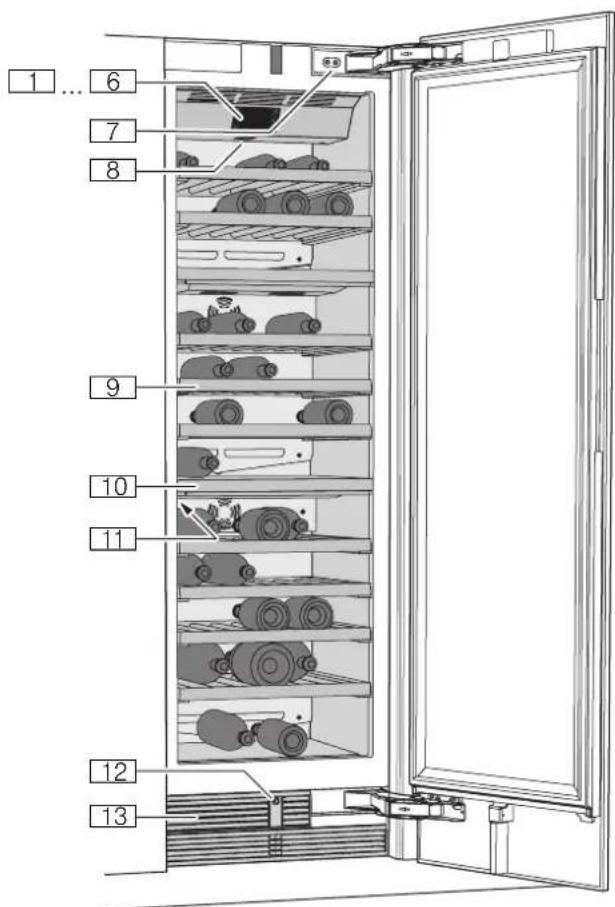

Appliance 9

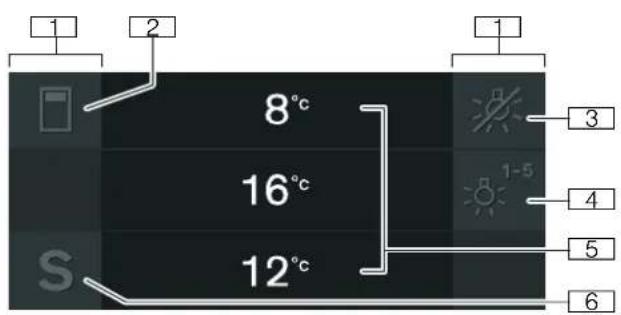

Controls 10

Features 10

Operating the appliance 11

Switching on the appliance 11

Switching off and disconnecting the appliance 11

Setting the temperature 11

Display light 11

Humidity 11

Display lock for cleaning 12

Self-test 12

Setting the brightness of the control panel 12

Switching standby screen on and off 12

Setting up the display screen 12

Setting the touch field colour 12

Setting the touch field tone type 13

Setting the touch field tone volume 13

Setting the signal tone volume 13

Dimming when door is opened and closed 13

Setting the temperature unit 13

Setting the language 13

Resetting to factory settings 14

Switching demo mode on or off 14

Rest mode 14

Automatic door opening 15

Home network 15

Automatic display lock for cleaning 15

Alarm 15

Door alarm 15

Home Connect 16

Setting up Home Connect 16

Connecting the refrigerator to the Home

Connect app 17

Installing updates for the Home Connect

software 17

Customer Service access 17

Delete network settings 17

Information on data protection 18

Declaration of Conformity 18

Wine storage compartment 19

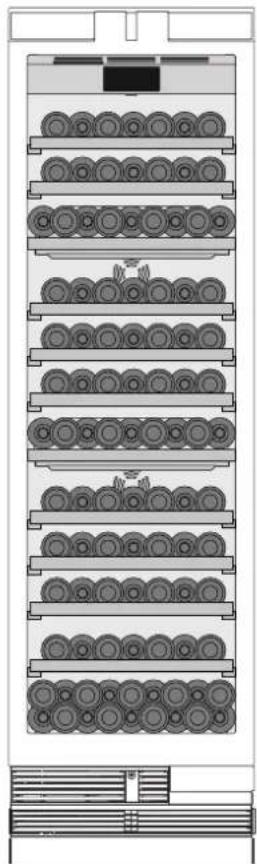

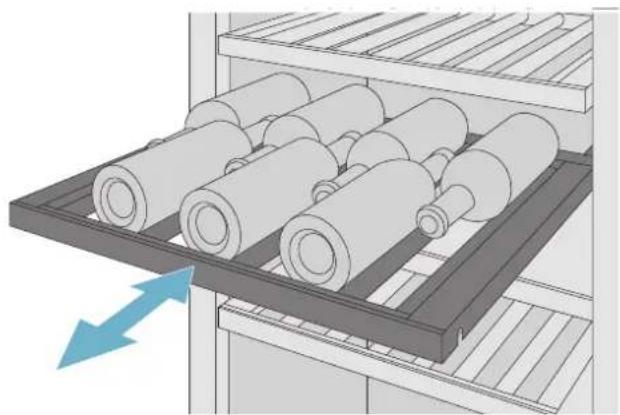

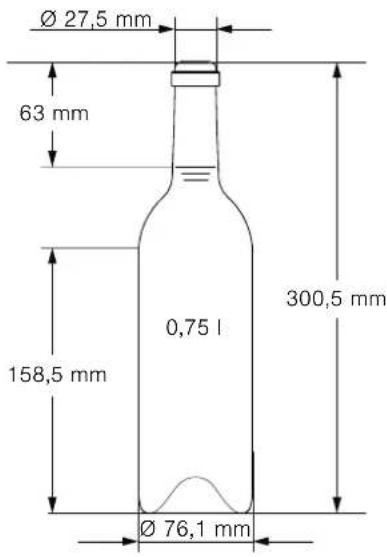

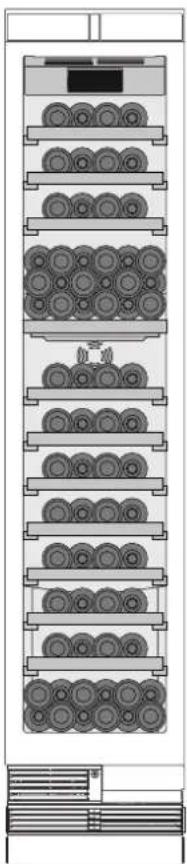

Loading bottles 19

Tips for storing wine 19

Drinking temperatures 19

Cleaning 20

Cleaning the display 20

Cleaning the appliance interior 20

Cleaning the equipment 20

Care instructions for stainless steel surfaces 20

Noises 21

Normal noises 21

Preventing noises 21

Lighting 21

What to do in the event of a fault 22

Appliance 22

Customer Service, product / production number and technical data 23

Appliance self-test 23

Obtaining advice and ordering repairs if a fault occurs 23

⚠️ Safety instructions

This appliance complies with the relevant safety regulations for electrical appliances and is fitted with noise suppression.

The refrigeration circuit has been checked for leaks.

About these instructions

• Read and follow the instructions for installation and use. They contain important information on how to install, use and maintain the appliance.
• The manufacturer is not liable if you disregard the notifications and warnings in the operating and installation instructions.
• Retain all documents for subsequent use or for the next owner.

Risk of explosion

• Never use electric devices inside the appliance (e.g. heaters or electric ice makers).
• Do not store products which contain flammable propellant (e.g. spray cans) or explosive substances in the appliance.

Risk of electric shock

Improper installations and repairs may put the user at considerable risk.

• When installing the appliance, ensure that the mains cable is not trapped or damaged.
• If the mains cable is damaged: immediately disconnect the appliance from the electricity supply.
• Do not use multi-outlet power strips, extension leads or adapters.
• Have the appliance repaired by the manufacturer, Customer Service or a similarly qualified person only.
• Use original parts supplied by the manufacturer only.
  The manufacturer guarantees that these parts satisfy the safety requirements.

Fire hazard/Danger due to refrigerants

The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a). It does not damage the ozone layer and does not contribute to the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite.

- Do not damage the tubes.

If the tubes are damaged:

• Keep naked flames and ignition sources away from the appliance.
• Ventilate the room.
• Switch off the appliance and pull out the mains plug.
• Please contact Customer Service.

Fire hazard

Portable multi-outlet power strips or power supplies may overheat, causing a fire. Never leave portable multi-outlet power strips or portable power supplies behind the appliance.

Avoiding placing children and vulnerable people at risk

At risk here are:

Children,
- People with limited physical, mental or sensory abilities,
- People who have inadequate knowledge concerning safe operation of the appliance.

Measures:

• Ensure that children and vulnerable people have understood the hazards.
• A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance.
• Only children aged 8 years and above may use the appliance.
• Supervise children who are cleaning and maintaining the appliance.
• Never allow children to play with the appliance.

Risk of suffocation

• If the appliance features a lock: keep the key out of the reach of children.
• Keep children away from the packaging and its parts.

Damage to property

To prevent damage to property:

• Do not stand or support yourself on the base, runners or doors.
• Keep plastic parts and door seals free of oil and grease.
• Pull on the mains plug – not the power cord.

Weight

The appliance is very heavy. The appliance should always be transported and set up by at least 2 persons.

→ "Installation and connection" on page 6

Intended use

Use this appliance

• only for storing wine.
- Only in the home and in the home environment.
- Only according to this user manual.

This appliance is intended for use up to a maximum height of 2000 metres above sea level.

Green living

Packaging

All materials are environmentally safe and recyclable:

• Dispose of packaging in an environmentally friendly manner.
• Please ask your dealer or inquire at your local authority about current means of disposal.

Old appliances

Valuable raw materials can be reclaimed by recycling old appliances.

⚠ Warning – Children may become locked in the appliance and suffocate!

Leave shelves and containers in the appliance to prevent children from climbing in.
- Keep children away from the redundant appliance.

Caution!

Refrigerant and harmful gases may escape.

Do not damage the tubes of the refrigerant circuit or the insulation.

1 Pull out the mains plug.
2 Cut through the power cable.
3 Have the appliance disposed of properly.

This appliance is labelled in accordance with European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE).

This Directive provides an EU-wide framework for returning and recycling old appliances.

Installation and connection

Scope of supply

After unpacking all parts, check for any damage in transit.

If you have any complaints, contact the dealer from whom you purchased the appliance or our Customer Service.

The delivery consists of the following parts:

Built-in appliance
- Interior fittings (depending on model)
• Installation material
- User manual
• Installation instructions
- Customer service booklet
- Warranty enclosure
• Information on the energy consumption and noises

Technical specifications

Refrigerant, cubic capacity and further technical specifications can be found on the rating plate. → "Getting to know your appliance" on page 9

Installing the appliance

Installation location

The more refrigerant an appliance contains, the larger the room in which the appliance is situated must be. In rooms which are too small, leaking refrigerant can form a flammable gas-air mixture.

At least 1 m ^3 of room space is required per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance.

→ "Getting to know your appliance" on page 9

The weight of the appliance may be up to 500 kg depending on the model. The base must be sufficiently stable, and should not give. If necessary, reinforce the floor.

Permitted room temperature

The permitted room temperature depends on the climate class of the appliance.

Information on the climate class can be found on the rating plate.

→ "Getting to know your appliance" on page 9

Climate class Permitted room temperature

SN +10°C ... 32°C

N +16°C ... 32°C

ST +16°C ... 38°C

T +16°C ... 43°C

The appliance is fully functional within the permitted room temperature.

If an appliance with climate class SN is operated at colder room temperatures, the appliance will not be damaged up to a room temperature of +5^ C.

Built-in cut-out

The cut-out must fulfil these criteria:

• Anti-tilt bracket fitted
• Cut-out depth min. 610 mm, for flush installation 635 mm
• Rectangular
• Sturdy – the side panels and the top must be min. 16 mm thick and securely attached to the floor or wall
• Depth of shortened side panels: min. 100 mm

Side-by-side installation

Observe the specifications in the installation instructions for a side-by-side installation.

If a partition wall is required between the appliances, it must be at least 16 mm wide.

Tips for saving energy

If you follow the instructions below, your appliance will use less power.

Note: The arrangement of the features does not affect the energy consumption of the appliance.

Installing the appliance

Keep the appliance out of direct sunlight. The appliance needs to cool less frequently at low ambient
Install the appliance as far away as possible from heating elements, cookers and other heat sources:	temperatures and therefore consumes less power.
At least 1 14 " (3 cm) from electric or gas cookers.
At least 11 34 " (30 cm) from oil or solid-fuel cookers.
Select an installation location with a room temperature of approx. 20°C.
Do not cover or block the ventilation openings. If the warm air can escape, the appliance needs to cool less
Ventilate the room daily.	frequently and therefore consumes less power.

Using the appliance

Open the appliance door only briefly. The air in the appliance does not warm up so intensely. The transport cooled wine in a cool bag and place in the appli-ance quickly.	appliance must cool less frequently and therefore consumes less power.
Always leave a space between the bottles and the back wall. The air can circulate, and the temperature will remain con-stant. The appliance must cool less frequently and therefore consumes less power.
Do not cover or block the ventilation openings. The appliance consumes less power if the warm air can vacuum the ventilation openings once a year.	escape freely.

Before using the appliance for the first time

1 Remove information material, adhesive tape and protective film.
2 Clean the appliance.

Electrical connection

Caution!

Do not connect the appliance to electronic energy saver plugs.

Note: You can connect the appliance to mains-controlled and sine-controlled inverters.

Mains-controlled inverters are used for photovoltaic systems which are directly connected to the national grid. Sine-controlled inverters must be used for isolated applications. Isolated applications, e.g. on ships or in mountain lodges, which are not directly connected to the national grid.

1 After installing the appliance, wait at least 1 hour before connecting it to avoid damaging the compressor.
2 Connect the appliance to a correctly installed socket.

The socket must comply with the following data:

Socket with 220 V ... 240 V

Protective conductor 50 Hz

Fuse 10 A ... 16 A

Outside Europe: Check whether the indicated current type of the appliance corresponds with the values of your power supply. The appliance specifications are specified on the rating plate.

→ "Getting to know your appliance" on page 9

3 Connect the appliance to a socket near the appliance.

The socket must also be freely accessible after installation of the appliance.

⚠ Warning – Risk of electric shock!

If the length of the mains cable is insufficient, do NOT use multi-outlet power strips or extension leads. Instead, please contact Customer Service for alternative solutions.

Getting to know your appliance

Appliance

* Not all models.

(...P Controls

X Door damper

` Main switch on/off

h Shelf

)" Partition

)* Rating plate

)2 Automatic door opening

): Ventilation opening

Controls

(Touch fields

There are sensors under the touch fields. Touching the symbol calls up the respective function.

button

Opens the menu for changing the temperature and humidity.

[Non-Text]

Switches the display light off.

button

Opens the menu for switching between the different light scenarios.

H Wine storage compartment

temperature display Indicates the set temperature in °C/°F. Depending on the appliance model in question, 2 or 3 compartments are displayed.

P S button

Opens main menu.

Main menu

Press the S button to open the main menu.

In the main menu you can find:

Basic settings

• Display lock for cleaning

Self-test

Rest mode (when active)

→ "Operating the appliance" on page 11

Basic settings menu

To access the Basic settings menu:

1 Press the S button.

2 Press the < button to move to the menu item Basic settings.

3 Open menu using √ button.

In the Basic settings menu you will find the following sub-menus and setting options:

• Brightness
  Standby display
• Display screen
• Touch field colour
• Touch field tone type
• Touch field tone volume
  • Signal tone volume
  Dimming when door is opened and closed
  • Temperature unit
  Language
• Factory settings
  Demo mode
  Rest mode
  • Automatic door opening
  Home network
  • Automatic display lock for cleaning

→ "Operating the appliance" on page 11

Features

Shelf

You can pull out the shelves to reach wine bottles more easily.

Note:

The shelves separating the climate zones are not movable.

Illustration of cylindrical storage units on a rack inside a storage cabinet (no text or symbols)

Additional shelf

You can install additional shelves to store more wine bottles or to provide better support to the bottles on the fixed shelves.

Operating the appliance

Switching on the appliance

1 Press the main On/Off switch.

The appliance starts refrigerating, and the light switches on when the door is open.

2 Set the required temperature.

→ "Setting the temperature" on page 11

Operating tips

• After the appliance has been switched on, it may take several hours until the set temperatures are reached.
• The sides of the housing are heated slightly in certain areas. This prevents condensation in the area of the door seal.

Switching off and disconnecting the appliance

Switching off the appliance

- Press the main On/Off switch.

The appliance will stop refrigerating.

Shutting down the appliance

If you do not use the appliance for a prolonged period:

1 Pull out the mains plug or switch off the fuse. The appliance no longer cools.
2 Clean the appliance.
3 Leave the appliance open.

Setting the temperature

Recommended temperature

Wine storage compartment: 11 °C

Wine storage compartment

1 Use ☐ button to select the desired compartment.
2 Keep pressing -/+ button until the display indicates the desired temperature.
3 The appliance stores the setting and automatically returns to the main screen after a few seconds.

Display light

You can use the preprogrammed light modes to illuminate your wine bottles when the door is closed. The individual climate zones have different illumination levels.

Using the display light

1 Press 📄 button to open the Display light menu.
2 Select a light mode or press 漂 button to switch the display light off.
3 Press √ button.
The setting is saved.

Switching off display light

- To switch the display light off, press ✉ button.

Note:

This also hides the 📄 button for opening the Display light menu. Press the button again to unhide the 🔊 button.

Humidity

If bottles with natural corks are stored for longer than 4 weeks, the corks may shrink if the humidity is too low.

To prevent this from happening, store old wine bottles so that the cork is kept damp and increase the humidity level.

Switching humidity on and off:

1 Use ☐ button to select the desired compartment.
2 To switch on the higher humidity level, press △ button.
The △ symbol appears in the display. To switch off, press ⚡ button.
The symbol appears in the display.

3 The appliance stores the setting and automatically returns to the main screen after a few seconds.

Display lock for cleaning

You can use this function to switch off the touch function of the controls for 10 seconds. During this time you can clean the display.

→ "Cleaning the display" on page 20

1 Press S button to open the main menu.

2 Press ▶ button.

The cleaning display appears and the countdown starts.

Self-test

This function can be used to start fault analysis on your appliance.

→ "Appliance self-test" on page 23

Setting the brightness of the control panel

1 Press S button to open the main menu.
2 Press < button to move to the menu item Basic settings.
3 Press √ button.
4 Press _ button to open the menu item Brightness.
5 Press <> buttons to set the required brightness.
6 Press √ button. The setting is saved.
7 Press X button to exit the menu.

Switching standby screen on and off

If you switch on the standby screen, you can select what is displayed on the control panel when the door is closed.

1 Press the S button to open the main menu.
2 Press the < button to move to the menu item Basic settings.
3 Press the √ button.

4 Use the > button to scroll to the Standby screen menu item.
5 Press the _ button.
6 Use <> buttons to select whether the Standby screen is switched on or off.
7 Press the √ button.
8 When the Standby screen has been switched on, you can use the <> buttons to select whether the logo or the temperature is displayed with the functions switched on.
9 Press the √ button.
The setting is saved.
10 Press X button to exit the menu.

Setting up the display screen

You can choose between the settings Reduced and Standard. With the setting Reduced only the temperature and active special functions are displayed on the control panel after a short period without operation. If the touch fields are touched, all buttons will be visible again.

With the setting Standard all buttons always remain visible.

1 Press S button to open the main menu.
2 Press < button to move to the menu item Basic settings.
3 Press √ button.
4 Use > button to move to the menu item Display screen.
5 Press _ button.
6 Press <> buttons to move to the required setting.
7 Press √ button. The setting is saved.
8 Press X button to exit the menu.

Setting the touch field colour

1 Press S button to open the main menu.
2 Press < button to move to the menu item Basic settings.
3 Press √ button.
4 Press > button to move to the menu item Touch field colour.
5 Press _ button.
6 Press <> buttons to move to the required setting.
7 Press √ button. The setting is saved.
8 Press X button to exit the menu.

Setting the touch field tone type

You can change or switch off the sound of the tones generated when pressing buttons.

1 Press S button to open the main menu.
2 Press < button to move to the menu item Basic settings.
3 Press √ button to open the menu item.
4 Press > button to move to the menu item Touch field tone type.
5 Press _ button to open the menu item.
6 Press <> buttons to select the required setting.
7 Press √ button.
The setting is saved.
8 Press X button to exit the menu.

Setting the touch field tone volume

You can adjust the volume level of the sounds generated when pressing buttons.

1 Press S button to open the main menu.
2 Press < button to move to the menu item Basic settings.
3 Press √ button to open the menu item.
4 Press > button to move to the menu item Touch field tone volume.
5 Press _ button to open the menu item.
6 Press <> buttons to select the required setting.
7 Press √ button.
The setting is saved.
8 Press X button to exit the menu.

Setting the signal tone volume

You can adjust the volume level of the signal tones generated e.g. with alarms.

1 Press S button to open the main menu.
2 Press < button to move to the menu item Basic settings.
3 Press √ button to open the menu item.
4 Press > button to move to the menu item Signal tone volume.
5 Press _ button to open the menu item.
6 Press <> buttons to select the required setting.
7 Press √ button.
The setting is saved.
8 Press X button to exit the menu.

Dimming when door is opened and closed

If dimming is switched on, the light will slowly become brighter when the door is opened, and then slowly darker when it is closed.

Switching dimming on or off when opening and closing the door

1 Press S button to open the main menu.
2 Press < button to move to the menu item Basic settings.
3 Press √ button.
4 Press > button to move to the menu item Dimming when opening and closing the door.
5 Press _ button.
6 Press > button to move to the menu item On or Off. Press √ button to confirm.

Setting the temperature unit

You can choose between the unit °C and °F.

1 Press S button to open the main menu.
2 Press < button to move to the menu item Basic settings.
3 Press √ button.
4 Press < button to move to the menu item Temperature unit.
5 Press _ button.
6 Press <> buttons to move to the required unit.
7 Press √ button. The unit will be changed.
8 Press X button to exit the menu.

Setting the language

1 Press S button to open the main menu.
2 Press < button to move to the menu item Basic settings.
3 Press √ button.
4 Press < button to move to the menu item Language.
5 Press _ button.
6 Press <> buttons to move to the required language.
7 Press √ button. The display restarts, and the start screen is displayed.

Resetting to factory settings

1 Press S button to open the main menu.
2 Press < button to move to the menu item Basic settings.
3 Press √ button.
4 Press < button to move to the menu item Factory settings.
5 Press _ button.
A signal tone sounds and a message to confirm reset appears.
6 Press √ button.
All settings are reset to the factory settings.
7 Press X button to exit the menu.

Switching demo mode on or off

The cooling function of the appliance is switched off. All other functions can be used.

Note:

Do not store any food in demo mode as the appliance remains at room temperature.

1 Press S button to open the main menu.
2 Press < button to move to the menu item Basic settings.
3 Press √ button.
4 Press < button to move to the menu item Demo mode.
5 Press _ button.
6 Press <> buttons to select the setting On or Off.
7 Press √ button. The setting is saved.
8 Press X button to exit the menu.

Rest mode

The appliance switches off the following:

• Automatic door opening

Note:

With handle-free installation, please note that you will not be supported when opening the door during this time.

To open the door in this case, reach from below under the bottom panel of the unit.

Audible signals
- Interior lighting
- Messages on the control panel
● Background illumination of control panel is reduced

Switching rest mode on or off

Displaying or hiding Rest mode in the main menu

To use Rest mode, you first have to display the function in the main menu:

1 Press S button to open the main menu.
2 Press < button to move to the menu item Basic settings.
3 Press √ button.
4 Press < button to move to the menu item Rest mode. Press _ button.
5 Press > buttons to move to the menu item Available or Not available. Confirm by pressing √ button.
6 Press X button to exit the menu.

The function is displayed or hidden in the main menu.

Switching Rest mode on

1 Press S button to open the main menu.
2 Press ⏻ button to open the view Rest mode duration.
3 Use -/+ buttons to change the duration.
4 Press ▶ button to start.
The appliance switches all listed functions off.

Switching Rest mode off

• After the selected time elapses, the appliance switches to normal operation.
• To end Rest mode before expiry of the selected time, press ■ button.

Automatic door opening

The automatic door opening function supports you in opening the door.

As soon as you activate this function, automatic door opening moves out and supports you in opening the door.

Caution!

Repeatedly closing the door too early will cause automatic door opening to fail or wear out.

Do not close the door as long as automatic door opening is still moved out.

If you have nevertheless closed the door, leave it closed for 5 minutes. Automatic door opening will re-adjust itself.

Open the menu item Automatic door opening:

1 Press S button to open the main menu.
2 Use < button to move to the Basic settings menu.
3 Press √ button to open the menu.
4 Use < button to move to the menu item Automatic door opening.
5 To change the setting, press _ button.

Switching on Push-to-open system

In an installation situation without handles you can select the Push-to-open system. Your appliance will then open a crack if you press lightly on the door.

Note:

Please note that automatic door opening is disabled if Rest mode is activated.

1 Open the menu item Automatic door opening.
2 Select menu item Push-to-open system.
3 Press √ button to open the menu item.
4 Select Opening force. Here you can select the level of force required to activate automatic door opening.
5 Select Opening duration. Here you can select how long the door should remain open a crack before it closes again automatically.

Note:

If the door remains open a crack, the appliance checks once a second whether the door is still ajar. After the selected opening duration elapses, the appliance will close the door automatically.

Switching on Pull-to-open system

In an installation situation with handles you can select the Pull-to-open system. Your appliance will support you in opening the door as soon as you pull on the handle.

1 Open the menu item Automatic door opening.
2 Select menu item Pull-to-open system.
3 Press √ button to open the menu item.
4 Select Opening force. Here you can select the level of force required to activate automatic door opening.

Switching off automatic door opening

1 Open the menu item Automatic door opening.
2 Select menu item Off.

Home network

You can use this function to establish a connection between the refrigerator and your mobile device.

→ "Home Connect" on page 16

Automatic display lock for cleaning

You can use this function to select whether the clean lock is switched on automatically when the door is opened.

1 Press S button to open the main menu.
2 Press < button to move to the Basic settings menu item.
3 Press √ button.
4 Use < button to move to the Automatic display lock for cleaning menu item.
5 To change the setting, press _ button.

Alarm

Door alarm

If the appliance door is open for a longer time, the door alarm (continuous audible signal) switches on.

• Close the appliance door.
  The audible warning signal is switched off.

Home Connect

This appliance is Wi-Fi-capable and can be remotely controlled using a mobile device.

Note: Wi-Fi is a registered trademark of the Wi-Fi Alliance.

In the following cases, the appliance functions like a refrigerator without a network connection and can still be operated manually using the controls:

The appliance is not connected to a home network.
- The Home Connect service is not available in the country in which the appliance is set up. For an overview of the countries in which Home Connect is available, see www.home-connect.com.

Note: Please observe the safety instructions in this user manual. Ensure that these are also observed if you operate the appliance via the Home Connect app and are not at home when doing so.

→ "Safety instructions" on page 3

Please also follow the instructions in the Home Connect app.

Setting up Home Connect

Notes

• Wait at least 2 minutes after switching on the appliance before setting up Home Connect. Only then is the internal appliance initialisation complete.
• Observe the Home Connect supplementary sheet, which is either enclosed with the appliance or available for download with the instructions under www.gaggenau.com. Enter the E-number of your appliance in the search field.

You can connect your appliance to the home WLAN network (Wi-Fi) in 3 basic steps.

1 Install the app.
2 Connect your refrigerator to the home WLAN network (Wi-Fi).
3 Connect your refrigerator to the Home Connect app.

Home network menu

Here's how to open the Home network menu:

1 Press the S button to open the main menu.
2 Press the < button to move to the menu item Basic settings.
3 Press the √ button to open the menu item.
4 Press the < button to move to the menu item Home network.
5 Press the _ button to open the menu item.

Note: The first time you open the menu, you will be automatically guided through initial setup. Follow the instructions on the control panel. For further information, please also see the following chapters.

6 Press the <> buttons to select the required submenu.
7 Press the X button to exit the menu.

The following submenus can be found in the Home network menu:

• Connecting
• Connect to app
• Software update
• Delete network settings

Setting up the connection to the home network

The first time you open the menu, you will be automatically guided through initial setup. Follow the instructions on the control panel.

1 Install the Home Connect app on your mobile device.
2 Open the Home network menu on your refrigerator.
3 Open the app on your mobile device.
4 Log in or register with the app if access is not yet available.
5 Check the router of your home network to see if a WPS function is available for automatic connection.
6 If this function is available, start automatic network connection with √ button. Follow the instructions on the control panel.
7 Start manual network connection if this function is not available, if you're not sure whether the function is available or if automatic network connection fails. The refrigerator temporarily generates its own network for connecting the mobile device.
8 Start manual network connection in the app of your mobile device.

As soon as the refrigerator is connected to the mobile device, a connection between the refrigerator and your home network is established.

Note: If the connection cannot be established, check whether there is sufficient reception.

→ "Verify signal strength" on page 16

Verify signal strength

The signal strength is displayed in the start window of the Home network menu. The signal strength should be at least 50 %. If the signal strength is too low, the connection could be interrupted.

Improving the signal strength

• Place the router closer to the refrigerator.
• Ensure that the connection is not interfered with by screening walls.
  • Install a repeater to make the signal stronger.

Connecting the refrigerator to the Home Connect app

Use this menu to connect your refrigerator to mobile devices.

1 Install the Home Connect app on your mobile device and log in or register.
2 Open the Home network menu on your refrigerator.
3 Press > button to move to the menu item Connect to app.
4 Press _ button to open the menu item.
5 Confirm the message to display the refrigerator in the app.
6 Open the app and wait until the refrigerator is displayed. Use Add to confirm the connection between the app and the refrigerator. If the refrigerator is not displayed automatically, click on Add appliance in the app and follow the instructions. As soon as your refrigerator is displayed, add it with +.
7 Follow the instructions in the app until the process is complete.

Installing updates for the Home Connect software

The refrigerator checks at regular intervals whether updates are available for the Home Connect software.

If an update is available, a small S exclamation mark appears on the S^® button.

Installing the update:

1 Press S ^® button.
The special menu Home network note opens.
2 Press √ button to open the menu item. A note window with the necessary steps for installing the new software appears.
3 To close the note window, press √ button.
4 Open the Home network menu on your refrigerator. → "Setting up Home Connect" on page 16
5 Press > button to move to the menu item Software update.
6 Press _ button to open the menu item. Note: The _ button is only visible if an update is available. Installing new software.
7 A note appears as soon as installation is complete.
8 Press √ button to close the note.

Customer Service access

If you contact Customer Service, they can access your appliance and view its status after you have given your consent. You need to have your appliance connected to your home network in order to do this.

Further information about Customer Service access and its availability in your country is available under www.home-connect.com in the Help & Support area.

1 Contact Customer Service.

2 Confirm the start of Customer Service access in the app. During Customer Service access, the symbol 📋 appears on the control panel.

3 As soon as Customer Service has obtained the necessary data, they will end their access. Note: You can interrupt remote diagnostics early by switching off Customer Service access in the Home Connect app.

Delete network settings

If there is a problem when trying to establish a connection or if you would like to register the appliance in a different WLAN home network (Wi-Fi), the Home Connect settings can be reset.

1 Open the Home network menu on your refrigerator.
2 Press > button to move to the menu item Delete network settings.
3 Press _ button to open the menu item.
4 Confirm the message to delete the network settings.

To reconnect the appliance to the WLAN home network (Wi-Fi), perform initial setup again.

→ "Setting up the connection to the home network" on page 16

Information on data protection

The first time your Home Connect appliance is registered on a WLAN home network connected to the Internet (Wi-Fi), your appliance will transmit the following types of data to the Home Connect server (initial registration):

• Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module).
• Security certificate of the Wi-Fi communication module (to ensure a secure data connection).
• The current software and hardware version of your home appliance.
• Status of any previous resetting to factory settings.

This initial registration prepares the Home Connect functions for use and is only required when you want to use these Home Connect functions for the first time.

Note: Please note that the Home Connect functions can only be utilised with the Home Connect app. Information on data protection can be called up in the Home Connect app.

Declaration of Conformity

Gaggenau Hausgeräte GmbH hereby declares that the appliance with Home Connect functionality meets the essential requirements and other relevant provisions of Directive 2014/53/EU.

A detailed RED Declaration of Conformity can be found online at www.gaggenau.com among the additional documents on the product page for your appliance.

2.4 GHz band: 100 mW max.

5 GHz band: 100 mW max.

BE BG CZ DK DE EE IE EL

ES FR HR IT CY LV LT LU

HU MT NL AT PL PT RO SI

SK FI SE UK NO CH TR

5 GHz WLAN: for indoor use only

Wine storage compartment

Loading bottles

To store the maximum number of wine bottles:

store the bottles as indicated
- check that the bottles do not exceed the specified dimensions

Storage example with standard bottles

Diagram of a vertical rack-mounted storage unit with multiple circular components (no text or labels)

Technical diagram of a multi-tiered storage or rack system with circular components (no text or labels)

Tips for storing wine

• Unpack wine bottles – do not store in crates or cartons in the wine storage compartment.
• If bottles with natural corks are stored for longer than 4 weeks, the corks may shrink if the humidity is too low.

To prevent this from happening, store old wine bottles so that the cork is kept damp and increase the humidity level.

→ "Humidity" on page 11

• The open bottle shelves allow continuous air circulation. As a result, excess humidity is quickly removed.
  Before drinking wine, it should be warmed up slowly (chambré). Take e.g. rosé out of the appliance approx. 2–5 hours before drinking and red wine 4–5 hours beforehand. This will ensure that the wine is at the correct drinking temperature. White wine on the other hand should be served just before drinking. Sparkling wine and champagne should be chilled in the refrigerator for a short while before drinking.
  Remember that wine should always be cooled slightly lower than the ideal serving temperature as its temperature increases as soon as it is poured into a glass.

Drinking temperatures

The correct serving temperature is crucial for the taste and therefore your enjoyment of wine.

We recommend the following drinking temperatures for serving wine:

Type of wine Drinking temperature

Full-bodied red Bordeaux 18 °C

Côtes du Rhône red/Barolo 17 °C

Full-bodied red Burgundy/ 16 °C red Bordeaux

Port wine 15 °C

Young red Burgundy 14 °C

Young red wines 12 °C

Young Beaujolais/all white 11 °C wines with little residual sugar

Old white wines/Chardon- nay 10 °C

Sherry 9 °C

Young white wines, from 8 °C late vintage onward

Loire/Entre-deux-Mers 7 °C white wines

Cleaning

Caution!

To avoid damage to the appliance and fittings and to prevent affecting the taste of drinks:

• Do not use cleaning agents or solvents containing chlorine, fluorine, iodine, bromine or acids.
• Do not use cleaning agents or solvents containing sand or acids.
• Do not use scouring or abrasive sponges. Metallic surfaces may corrode.
• Never clean shelves or containers in the dishwasher. These parts may become deformed.

Cleaning the display

The change in temperature and humidity can cause the controls to steam up.

Switch the clean lock on before cleaning.

→ "Display lock for cleaning" on page 12

Use a clean microfibre cloth for cleaning.

Cleaning the appliance interior

Proceed as follows:

1 Pull out the mains plug or switch off the fuse.
2 Take out the bottles and store in a cool location if possible.
3 Clean the appliance with a soft cloth, lukewarm water and a little pH-neutral washing-up liquid.
The rinsing water must not run into the light or through the drainage hole into the evaporation area.
4 Wipe the door seal with clean water and dry thoroughly with a cloth.
5 Reconnect the appliance and put the bottles back.

Caution!

Cleaning the equipment

To clean, take the variable parts out of the appliance. → "Features" on page 10

Care instructions for stainless steel surfaces

When taking care of and cleaning stainless steel surfaces, use only cleaning agents that are suitable for stainless steel and a stainless steel cleaning cloth.

You can purchase a suitable stainless steel cleaning cloth from Customer Service.

To prevent visible scratches, clean the stainless steel surface in the direction of the grain.

Noises

Normal noises

Droning: A motor is running, e.g. refrigerating unit, fan.

Bubbling, buzzing or gurgling: Refrigerant is flowing through the tubes.

Clicking: The motor, switches or solenoid valves are switching on and off.

Preventing noises

Appliance is not level: Align appliance using a spirit level. Adjust the height of the feet. If the feet have already been moved right out, but the appliance is still not level, place e.g. a thin wooden plate underneath.

Containers, shelves or storage compartments wobble or stick: Check the removable fittings and re-insert if required.

Bottles or receptacles are touching each other: Move bottles or receptacles away from each other.

Lighting

Your appliance features a maintenance-free LED light.

Only Customer Service or authorised technicians may repair the light.

What to do in the event of a fault

Before you call Customer Service, use this table to check whether you can rectify the fault yourself.

Appliance

Temperature differs greatly from the set value.
	Switch off appliance for 5 minutes.→ "Switching off and disconnecting the appliance" on page 11If the temperature is too warm, check temperature again after a couple of hours.If the temperature is too cold, check temperature again on the following day.

Displays do not illuminate.

The mains plug has not been inserted properly. Connect mains plug.

The fuse has been tripped. Check the fuses.

The power has failed. Check whether the power is on.

The refrigeration unit is switching on more frequently and for longer.

The appliance has been opened frequently. Do not open the appliance unnecessarily.

The ventilation openings are covered up. Remove obstructions.

Appliance is not cooling, display and lighting are lit.

Demo mode is switched on. Switch Demo mode off.

→

"Switching demo mode on or off" on page 14

The door does not open when pressed.

A special mode has switched off automatic door opening. To open the door, reach from below under the bottom panel of the unit or switch off special mode.→ "Switching rest mode on or off" on page 14

Pull-to-open is switched on. Switch the appliance to Push-to-open.→ "Automatic door opening" on page 15

The opening force is set too high. Select a lower setting for the opening force.→ "Automatic door opening" on page 15

The fuse has tripped. Check the fuses.

The power has failed. Check whether the power is on.

Customer Service, product / production number and technical data

Customer Service

If you have any queries, are unable to rectify faults on the appliance yourself or if your appliance needs to be repaired, contact Customer Service.

You can solve many problems yourself by consulting the information on troubleshooting in these instructions or on our website. If this is not the case, contact Customer Service.

We will always find an appropriate solution and try to avoid unnecessary visits being made by a Customer Service technician.

With any warranty claims, we will make sure that your appliance is repaired by trained Customer Service technicians using genuine spare parts, including after the manufacturer's warranty has expired.

For safety reasons, repairs to the appliance should only be carried out by trained specialist staff. The warranty claim becomes void if repairs or interventions have been carried out by persons not authorised by us for that purpose or if our appliances have been fitted with spare, supplementary or accessory parts that were not genuine parts and then resulted in a defect.

Function-relevant genuine spare parts according to the corresponding Ecodesign Directive can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

Note: Under the terms of the manufacturer's warranty applicable to the location, the use of Customer Service is free of charge. The minimum duration of the warranty (manufacturer's warranty for private consumers) in the European Economic Area is 2 years (except for Denmark and Sweden, where it is 1 year) according to the terms of warranty applicable to the location. The terms of warranty do not affect other rights or claims held by yourself under local legislation.

Detailed information about the warranty period and terms of warranty in your country are available from Customer Service, your dealer or our website.

When contacting Customer Service, you will need the product number (E-Nr.) and the production number (FD) of your appliance.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

Product number (E-Nr.) and production number (FD) The product number (E-Nr.) and the production number (FD) can be found on the rating plate of the appliance.

Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

Technical data

Refrigerant, net volume and further technical specifications can be found on the rating plate.

More information about your model can be found online at https://www.bsh-group.com/energylabel (only applies to countries in the European Economic Area). This web address is linked to the official EU EPREL product database. At the time of printing its web address had not yet been published. Please then follow the instructions on how to search for models. The model identifier is made up of the characters before the slash in the product number (E-Nr.) on the rating plate. Alternatively, you can also find the model identifier in the first line of the EU energy label.

Appliance self-test

Your appliance features a self-test programme; this displays the fault which your Customer Service team can rectify.

1 Press S button to open the main menu.
2 Press > button to move to the Self-test menu item.
3 Press √ button to start the self-test. The self-test starts.
4 If faults are present, they will be displayed. In this case, follow the instructions.
5 The appliance restarts.
6 The message that the self-test has finished is displayed for 10 seconds. To acknowledge the message, press √ button.

When the self-test has ended, the appliance switches over to normal operation.

Obtaining advice and ordering repairs if a fault occurs

Contact information for all countries can be found on the enclosed Customer Service list.

GB 0344 892 8988 Calls charged at local or mobile rate.

IE 01450 2655 0.03 € per minute at peak. Off peak 0.0088 € per minute.

US 877 442 4436 toll-free
