USER MANUAL SKMT 1650 A1 SILVERCREST

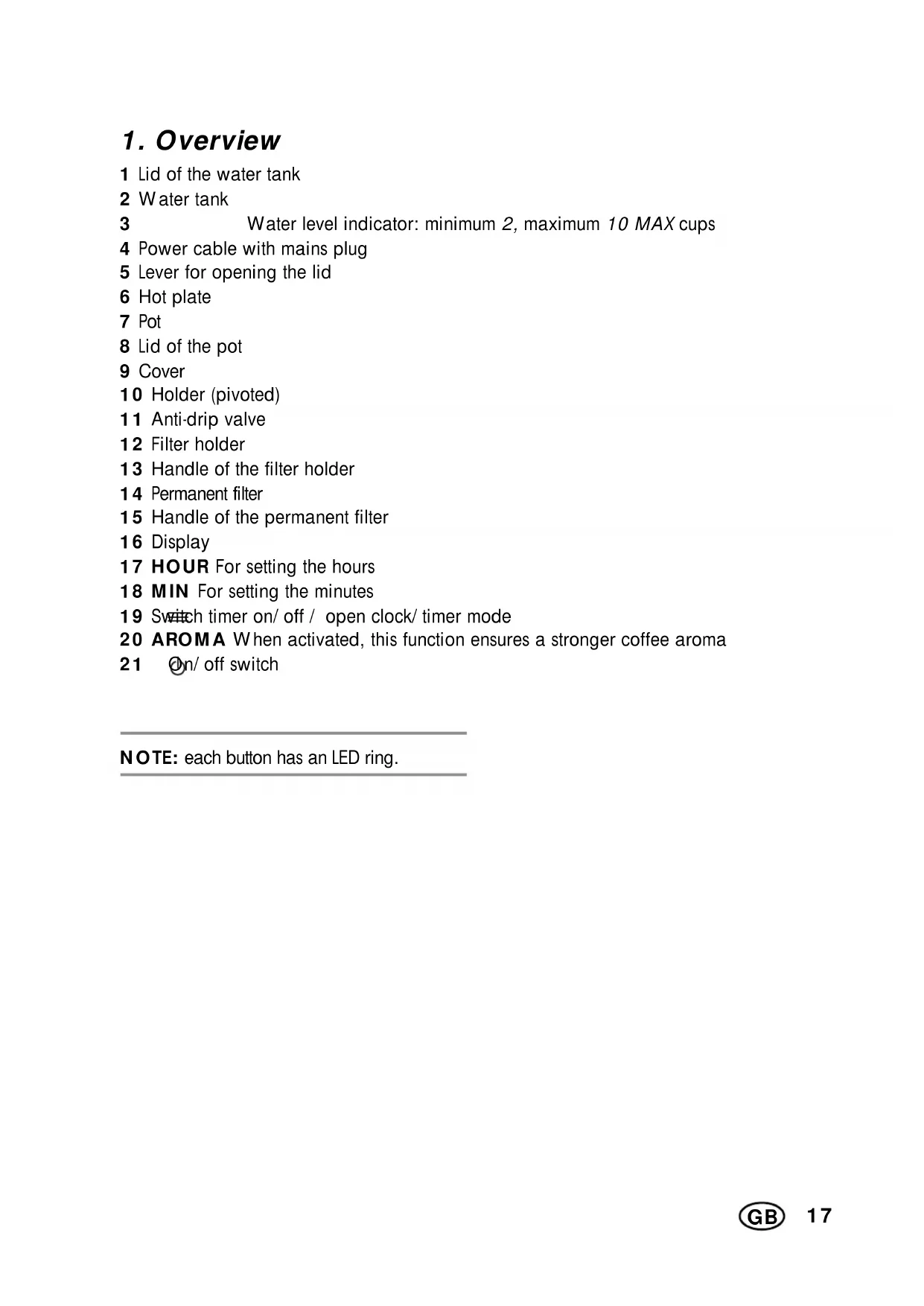

1 Lid of the water tank 2 Water tank 3 Water level indicator: minimum 2, maximum 10 MAX cups 4 Power cable with mains plug 5 Lever for opening the lid 6 Hot plate 7 Pot 8 Lid of the pot 9 Cover 10 Holder (pivoted) 11 Anti-drip valve 12 Filter holder 13 Handle of the filter holder 14 Permanent filter 15 Handle of the permanent filter 16 Display 17 HOUR For setting the hours 18 MIN For setting the minutes 19 Switch timer on/off / open clock/timer mode 20 AROMA When activated, this function ensures a stronger coffee aroma 21 On/off switch NOTE: each button has an LED ring.18

Thank you for your trust! Congratulations on the purchase of your new coffee machine with timer. For safe handling of the device and in order to get to know the entire range of features:

• Thoroughly read these user in- structions prior to initial use.

• Above all, observe the safety in- formation!

• The device should only be used as described in this copy of the user instructions.

• Keep this copy of the user in- structions for reference.

• If you pass the device on to someone else, please include this copy of the user instructions. The user instructions are a part of the product. We hope you enjoy using your new coffee machine with timer! Symbols on your device The symbol indicates that materials marked in this way will not change the taste or smell of food.

The coffee machine with timer is intended exclusively for the production of filter coffee. The device is designed for private, domestic use. The device must only be used indoors. This device must not be used for commercial purposes. Foreseeable misuse WARNING! Risk of material dam- age! ~ Never put fluids other than fresh drink- ing water into the water tank|2!

3. Safety information

Warnings If necessary, the following warnings are used in this copy of the user instructions: DANGER! High risk: failure to ob- serve this warning may result in inju- ry to life and limb. WARNING! Moderate risk: failure to ob- serve this warning may result in injury or se- rious material damage. CAUTION: low risk: failure to observe this warning may result in minor injury or mate- rial damage. NOTE: circumstances and specifics that must be observed when handling the de- vice.19

Instructions for safe operation

This device can be used by children from the age of 8 and people with restricted physical, sensory or intellectual abilities or people without adequate experience and/or understanding, if they are su- pervised or instructed on how to use this device safely and if they are aware of the resulting dangers.

Children must not play with the device.

Cleaning and user maintenance must not be performed by children unless they are older than 8 years and supervised.

Children under the age of 8 must be kept away from the device and the power cable.

This device is equally intended for use in the home and in applica- tions similar to the home, such as for example... … in kitchens for staff in shops, offices and other commercial set- tings; … on agricultural properties; … by customers in hotels, motels and other residential facilities; … in bed-and-breakfast establishments.

This device is not intended to be operated using an external timer or a separate remote control system.

Fill the device only to the maximum filling level, as boiling water may otherwise spray out.

It is always necessary to close the pivoted holder when brewing coffee, as boiling water may otherwise spray out!

The coffee machine, the power cable and the mains plug must not be immersed in water or other liquids.

If the power cable of this device should become damaged, it must be replaced by the manufacturer, the manufacturer's customer service de- partment or a similarly qualified specialist in order to avoid any haz- ards.

Please take note of the chapter on cleaning (see “Cleaning” on page 24).

Make sure that no liquid overflows onto the device plug connec- tion.

Remember that the surface of the hot plate remains hot after use.20

DANGER for children ~ Packing materials are not children's toys. Children should not be allowed to play with the plastic bags. There is a risk of suffocation. DANGER to and from pets and livestock ~ Electrical devices can represent a dan- ger to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times. DANGER! Risk of electric shock due to moisture ~ Protect the device from moisture, water drops and water splashes: failure to ob- serve this instruction may result in an electrical shock hazard. ~ If liquids get into the device, remove the mains plug immediately. Have the de- vice checked before reusing. DANGER! Risk of electric shock

Do not use the device if the device or the power cable has any visible damage, or if the device has previously been dropped.

Only connect the mains plug to a proper- ly installed and easily accessible ground- ed wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must still be easily accessible after the device is plugged in. ~ Ensure that the power cable cannot be damaged by sharp edges or hot spots. Do not wrap the power cable around the device. ~ The device is not fully disconnected from the power supply, even after it is switched off. In order to fully disconnect it, pull out the mains plug. ~ When using the device, ensure that the power cable cannot be trapped or crushed. ~ When removing the mains plug from the wall socket, always pull on the plug and never the cable. ~ Disconnect the mains plug from the wall socket … …if there is a fault, … when you are not using the coffee machine, … prior to cleaning the coffee machine, and … during thunderstorms.

In order to avoid any hazards, do not make modifications to the device. DANGER! Risk of injury through scalding ~ It is always necessary to close the pivot- ed holder when brewing coffee, as boil- ing water may otherwise spray out! ~ During the brewing process, hot steam escapes upwards through the cover. The cover becomes hot. Never touch it or put your hands or other body parts in the steam. ~ Never open the pivoted holder during the brewing process. ~ Fill the coffee machine only to the maxi- mum filling level (10 MAX), as hot wa- ter may otherwise spray out. ~ Do not bend over the coffee machine when you open the holder and the con- tents are still hot. There is a danger of being scalded by escaping steam.21

WARNING! Risk of material damage ~ The device is fitted with non-slip silicon feet. Because furniture can be coated with a wide variety of varnishes and plastics, and treated with various care products, the possibility cannot be ex- cluded that some of these substances have components that may attack and soften the silicon feet. If necessary, place a non-slip mat under the device. ~ Never put fluids other than fresh drink- ing water into the coffee machine! ~ Place the device on a stable, level sur- face. ~ Do not use any astringent or abrasive cleaning agents.

1 coffee machine 1pot|7 1filter holder|12 1 permanent filter|14 1 coffee spoon 1 copy of the user instructions

DANGER! Risk of electric shock! ~ Only connect the device to an easily ac- cessible wall socket with earthing con- tacts whose voltage corresponds to the specifications on the rating plate. The wall socket must still be easily accessi- ble after connection.

• Remove all packing materials.

• Check to ensure that all parts are pres- ent and undamaged.

• Place the device on a dry, level, non-slip surface.

6. Before using for the

Clean all parts before using for the first time (see “Cleaning” on page 24).

1. Fill the water tank|2 with clear water up

to the 8 cup marking twice and start the brewing process (see “Operation” on page 22).

2. This process should be repeated once.

3. Wait until the coffee machine has

cooled down. Then it is safe to use the device.

6.2 Setting the clock

Set the correct time so that the timer will start the coffee machine at the right time. NOTE: the time cannot be set if a brewing process has already started or if the hot plate|6 is still switched on (i.e. if the LED ring around the button|21 is lit or flash- ing).

1. Connect the mains plug|4 of the coffee

machine to a wall socket. The wall sock- et must also be easy to reach after the plug has been inserted. The display|16 will then show 00:00.

2. Press the button |19

repeatedly until CLOCK appears in the display|16.

3. Press HOUR|17 in order to set the

hours. Keep the button pressed to run through the hours quickly. Each time you press the button, the LED ring around the HOUR|17 button lights up.22

4. Press MIN|18 in order to set the min-

utes. Keep the button pressed to run through the minutes quickly. Each time you press the button, the LED ring around the MIN|18 button lights up.

5. Wait for 2 seconds without pressing a

button. The time is then saved. NOTE: the time set will be lost after a while in the event of a power failure. Then 00:00 will again be shown in the display|16. The clock has to be set again.

DANGER! Risk of injury through scalding! ~ It is always necessary to close the pivot- ed holder|10 when brewing coffee, as boiling water may otherwise spray out! ~ During the brewing process, hot steam escapes upwards through the cover|9. The cover|9 becomes hot. Never touch it or put your hands or other body parts in the steam. ~ Fill the coffee machine only to the maxi- mum filling level (10 MAX), as hot wa- ter may otherwise spray out. ~ Do not bend over the coffee machine when you open the holder|10 and the contents are still hot. There is a danger of being scalded by escaping steam. WARNING! Risk of material dam- age!

Fill in water at least up to the

marking on the water level indicator|

Otherwise the device may overheat.

Do not fill with water above the 10 MAX marking on the water level indicator|

~ Never put fluids other than fresh drink- ing water into the coffee machine.

The filter holder|12 has an anti-drip valve|11. This ensures that no coffee drips out of the filter when you remove the pot|7. In order to ensure that the anti-drip valve|11 opens during the brewing process, it is im- portant that the filter holder|12 is inserted correctly and the pot|7 with its lid |8 closed is positioned completely in the coffee ma- chine. The fitted lid|8 of the pot|7 opens the anti-drip valve|11. Other- wise the filter can overflow.

7.2 Opening and closing the

lid In order that the appliance can work correct- ly, it is important that the pot|7 is placed in the coffee machine and that the lid|8 is closed.

Always fill the water tank at least up to the marking for 2 cups (2). Do not fill with water above the10 MAX marking in the water tank.

2. Only fill fresh, cold tap water into the

water tank|2. Hot or carbonated water can result in malfunctions. Fill the water tank|2 with water up to the desired marking (maximum 10 cups: 10 MAX).

3. Close the lid|1 of the water tank|2.

4. Open the holder|10 to the left.

5. Hold the filter holder|12 by its han-

dle|13 and lower it into the holder|10 of the coffee machine. Follow these in- structions (Figure B): - Rotate the filter holder|12 so that the handle|13 can be folded to the left.23

- The two small recesses at the edge of the filter holder|12 must sit over the small ridges of the holder|10. - With a small anticlockwise rotation, you can lock the filter holder|12.

6. Fold down the handle|13 of the filter

7. Place the permanent filter|14 into the fil-

8. Place ground coffee powder into the

permanent filter|14. For medium- strength coffee, put one coffee spoon (around 7 - 8 g) of ground coffee pow- der per cup into the filter. Use ground coffee powder for filter coffee. If you grind the coffee yourself, grind it to a medium grinding degree. NOTE: you can also use a paper filter. In this case, the permanent filter|14 must not be inserted, however. Place a paper filter (size 1x4) with folded sides directly into the filter holder|12. When it is folded, the pa- per filter fits better in the filter holder|12 and the seams are prevented from tearing.

9. Close the holder|10.

10.It is very important that the pot|7 has a closed lid|8 when it is placed on the hot plate|6. 11.Press the button |21. The LED ring around the button lights up. The brew- ing process will start after a short time. 12.After the end of the brewing process, the hot plate|6 remains active for ap- prox. 40 minutes, and the LED ring around the button |21 flashes ap- prox. every 3 seconds. The hot plate|6 then switches itself off and the LED ring around the |21 button goes out. NOTE: by pressing the |21 button, you can cancel the brewing process and switch off the hot plate|6 sooner at any time.

7.5 The aroma function

This function ensures a stronger coffee aro- ma. It is particularly recommended when you are preparing only small quantities of coffee. Using this setting, the ground coffee is brewed in short intervals. NOTE: the brewing process with aroma function takes slightly longer than the normal brewing process.

• Press the AROMA|20 button before switching on to activate the function. The illuminated LED ring around the AROMA|20 button indicates that the function is active. NOTE: this function can also be used in tim- er mode with a preselected start time! To do this, press the AROMA|20 button before you set the timer.

7.6 Starting with the timer

Enter the desired time if the timer shall start the coffee machine at a certain time. NOTE: the timer cannot be set if a brewing process has already started or if the hot plate|6 is still switched on (i.e. if the LED ring around the button|21 is lit or flash- ing). The timer can be set up to 24 hours in ad- vance.

1. Connect the mains plug|4 of the coffee

machine to a wall socket.

2. Fill the coffee machine as usual with

ground coffee powder and water.

4. It is very important that the

pot|7 has a closed lid|8 when it is placed on the hot plate|6.24

5. Press the button |19 repeatedly until

TIMER appears in the display|16. NOTE: as long as TIMER can be seen in the display and the time is flashing, you can set the time for the timer.

6. Press HOUR|17 in order to set the

hours. Keep the button pressed to run through the hours quickly. Each time you press the button, the LED ring around the HOUR|17 button lights up.

7. Press MIN|18 in order to set the min-

utes. Keep the button pressed to run through the minutes quickly. Each time you press the button, the LED ring around the MIN|18 button lights up.

8. Finally, press the button . The time for

the automatic start is then saved. The cur- rent time is displayed again and the LED rings around the buttons |19 and |21 are lit. NOTE: you can stop the timer by pressing the |21 button. The LED rings around the buttons |19 and |21 go out.

DANGER! Risk of electric shock! ~ Pull out the mains plug|4 from the wall socket before cleaning the coffee ma- chine. ~ The coffee machine and the power ca- ble with mains plug|4 must not be im- mersed in water or other liquids. DANGER! Risk of injury through scalding!

The coffee machine becomes very hot during operation. Allow it to cool down before cleaning. WARNING! Risk of material dam- age! ~ Do not use any astringent or abrasive cleaning agents. NOTE: in order to start the brewing process with clear water or a descaling solution, the filling of the water tank|2 must not exceed the 8 cup marking. Otherwise the pot|7 may overflow.

Clean the device after every use, if possible.

1. Pull the mains plug|4 out of the wall

3. Only for the permanent filter|14: open

the handle|15 of the permanent filter, remove the permanent filter and rinse it out under running water.

4. Figure B: fold up the handle|13 of the

filter holder|12, rotate it a short dis- tance clockwise, and remove the filter holder.

5. Only for paper filters: dispose of the

6. Rinse out the filter holder|12 with warm

7. Rinse the pot|7 and its lid|8 with clear

water. Only in the case of stubborn resi- dues should you use a little mild deter- gent and a soft rinsing brush. Then rinse all parts thoroughly with clear water.

8. Wipe down the coffee machine and the

power cable|4 with a damp cloth when required. Dry with a dry cloth.

9. Allow all parts to dry completely before

you put them away or use the device again.25

Time intervals for descaling The intervals for descaling are dependent on the hardness of the water, and how often you use the device. Where the hardness of the water is medium or high, we recommend descaling monthly. If using tap water, you can find out the hard- ness of the water in the area where you live by inquiring at your local waterworks. After some time, the boiling process will re- sult in limescale being deposited in parts of the coffee machine (depending on the hard- ness of the water used). You should remove this at regular intervals, because otherwise the power consumption of the device will in- crease.

1. Turn off the coffee machine and allow it

to cool down completely.

2. Place the descaling agent into the water

tank|2. Use a liquid, environmentally friendly descaling agent based on citric acid, and follow the instructions of the manufacturer.

3. Fill the water tank|2 to the 8 cup mark-

5. It is very important that the pot|7

has a closed lid|8 when it is placed on the hot plate|6.

6. Press the button |21. The LED ring

around the button lights up. The brewing process will start after a short time.

7. Allow approximately half of the descaling

agent to run through the machine, and then switch off the device by pressing the button |21.

8. Leave the descaling agent to work for ap-

9. Switch the coffee machine on by pressing

the button |21 and allow the rest of the descaling agent to run through. 10.At the end of the brewing process, switch the coffee machine off by pressing the but- ton |21. 11.Empty the pot|7 and rinse it with water. 12.Fill the water tank|2 with clear water up to the 8 cup marking a further two times and start the brewing process.

DANGER for children! ~ Keep the device out of the reach of chil- dren.

1. Clean the permanent filter|14 and rinse

out the filter holder|12 and the pot|7.

2. Leave the cleaned coffee machine and the

cleaned accessories to dry before you as- semble them and put them away.

This product is subject to the provisions of European Direc- tive 2012/19/EC. The sym- bol showing a wheelie bin crossed through indicates that the product requires sep- arate refuse collection in the European Un- ion. This applies to the product and all accessories marked with this symbol. Prod- ucts identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recy- cling electric and electronic appliances. This recycling symbol marks e.g. an object or parts of the material as valuable for recy- cling. Recycling helps to re- duce the consumption of raw materials and protect the environment.26

Packaging When disposing of the packaging, make sure you comply with the environmental reg- ulations applicable in your country.

11. Trouble-shooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself. DANGER! Risk of electric shock! ~ Do not attempt to repair the device your- self under any circumstances.

specifications Symbols used Subject to technical modifications. Fault Possible causes / Actions No function

• Has the device been connected to the pow- er supply?

• Check the connection. The quality of the coffee brewed is be- coming worse.

• The coffee machine needs to be descaled. The brewing process takes longer for the same volume. The holder|10 cannot be closed.

• Is the filter holder|12 correctly inserted into the holder|10 and is the handle|13 folded down? The filter over- flows during the brewing process.

50/60 Hz Protection class: I Power rating: 1,650 W Protective earth connection With the CE marking, HOYER|Handel GmbH declares the conformity with EU guide- lines. Machine safety complies with the VDE requirements. (VDE: VER-

BAND DER ELEKTROTECHNIK

ELEKTRONIK INFORMATION- STECHNIK e.V. - Association for Electrical, Electronic & Informa- tion Technologies) This symbol reminds you to dis- pose of the packaging in an envi- ronmentally friendly manner. Recyclable materials: cardboard (except corrugated cardboard)27

HOYER Handel GmbH Dear Customer, your device is provided with a 3 year war- ranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our war- ranty presented in the following. Warranty conditions The warranty period starts with the purchase date. Please keep the original purchase re- ceipt in a safe place. This document is re- quired to verify the purchase. If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or re- placed by us – at our discretion – free of charge to you, or the purchase price will be refunded. This warranty implies that within the period of three years the defective de- vice and the purchase receipt are presented, including a brief written description of the defect and the time it occurred. If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product. Warranty period and statutory claims for defects The warranty period is not extended when the warranty has been claimed. This also ap- plies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immedi- ately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge. Warranty coverage The device was produced carefully according to strict quality guidelines and tested diligent- ly prior to delivery. The warranty applies to material or factory defects. Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, batteries, lamps or other parts manufactured from glass. This warranty expires if the product is dam- aged, not used as intended or not serviced. For the proper operation of the product, all in- structions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided. The product is only intended for private and not for commercial use. In the case of incor- rect and improper treatment, use of force and interventions not performed by our author- ised Service Centre, the warranty shall cease. Handling in case of a warranty claim In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN: 292873 and the purchase receipt as a purchase verification for all inquiries.

• The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or under- side of the device.

• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.

• Then, you are able to send a product re- ported as defective free of charge to the service address specified to you, includ- ing the purchase receipt and the infor- mation on the defect and when it occurred.28
