USER MANUAL SSMZ 300 A1 SILVERCREST

1 Lid 2 Outflow of the juice container (with drip stopper) 3 Power cable with mains plug 4 Base unit 5 Citrus press attachment 6 Cover ring 7 Drive axle 8 Juice container 9 Screen (for pulp) 10 Small juicer cone 11 Large juicer cone 12 Blade attachment 13 Beaker (small, min. 200 ml - max. 400 ml) 14 To-Go lid (2x) 15 Beaker (large, min. 200 ml - max. 600 ml) 16 Opening for drinking 17 Drinking closure22

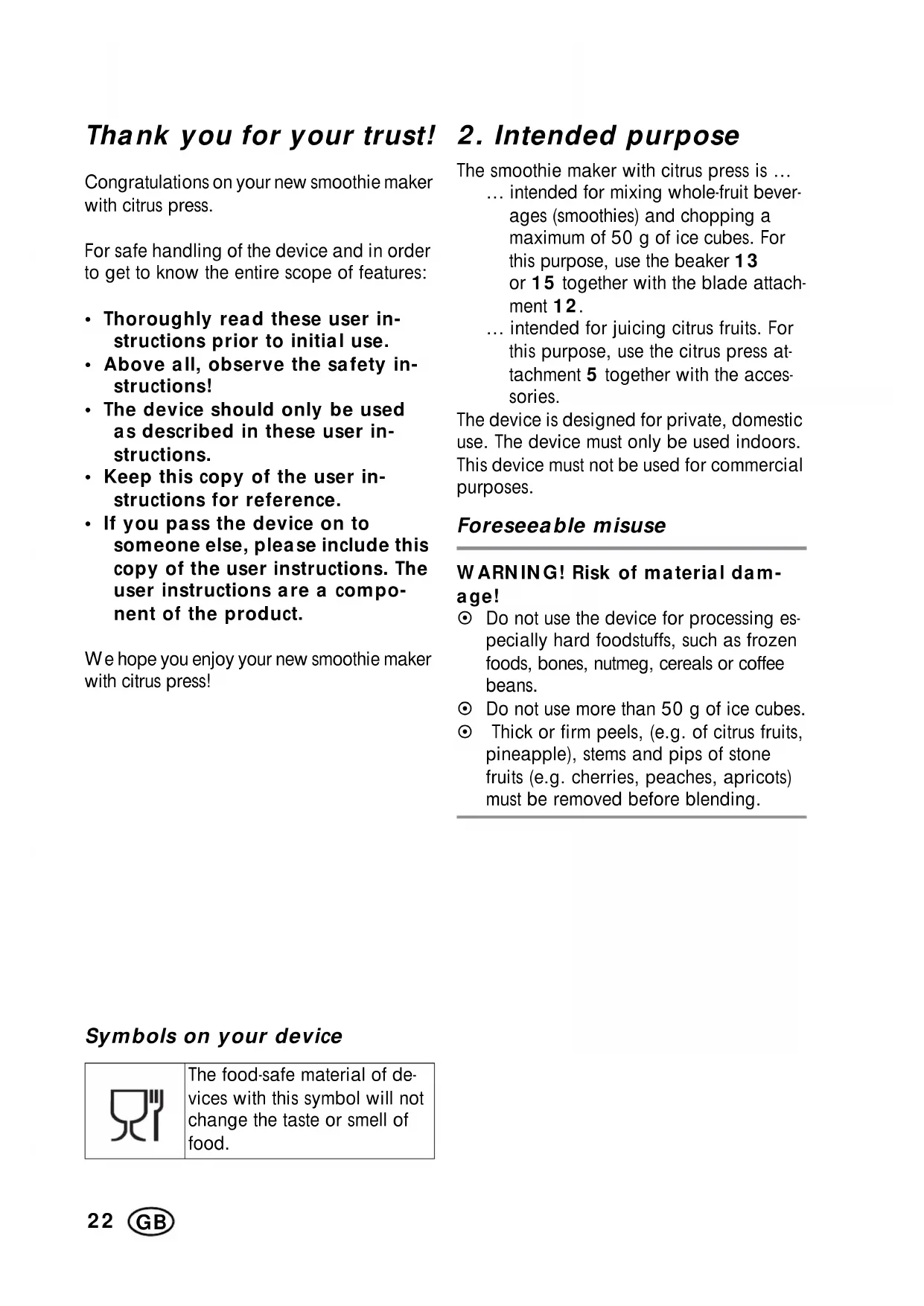

Thank you for your trust! Congratulations on your new smoothie maker with citrus press. For safe handling of the device and in order to get to know the entire scope of features:

• Thoroughly read these user in- structions prior to initial use.

• Above all, observe the safety in- structions!

• The device should only be used as described in these user in- structions.

• Keep this copy of the user in- structions for reference.

• If you pass the device on to someone else, please include this copy of the user instructions. The user instructions are a compo- nent of the product. We hope you enjoy your new smoothie maker with citrus press! Symbols on your device

The smoothie maker with citrus press is … … intended for mixing whole-fruit bever- ages (smoothies) and chopping a maximum of 50 g of ice cubes. For this purpose, use the beaker|13 or|15 together with the blade attach- ment|12. … intended for juicing citrus fruits. For this purpose, use the citrus press at- tachment|5 together with the acces- sories. The device is designed for private, domestic use. The device must only be used indoors. This device must not be used for commercial purposes. Foreseeable misuse WARNING! Risk of material dam- age!

Do not use the device for processing es- pecially hard foodstuffs, such as frozen foods, bones, nutmeg, cereals or coffee beans.

Do not use more than 50 g of ice cubes. ~ Thick or firm peels, (e.g. of citrus fruits, pineapple), stems and pips of stone fruits (e.g. cherries, peaches, apricots) must be removed before blending. The food-safe material of de- vices with this symbol will not change the taste or smell of food.23

Warnings If necessary, the following warnings will be used in these user instructions: DANGER! High risk: failure to ob- serve this warning may result in inju- ry to life and limb. WARNING! Moderate risk: failure to ob- serve this warning may result in injury or se- rious material damage. CAUTION: low risk: failure to observe this warning may result in minor injury or mate- rial damage. NOTE: circumstances and specifics that must be observed when handling the de- vice. Instructions for safe operation

This device must not be used by children.

Children must not play with the device.

The device and the power cable must be kept away from children.

This device can be used by people with restricted physical, sensory or intellectual abilities or people without adequate experience and/ or understanding if they are supervised or instructed on how to use this device safely and if they are aware of the resulting hazards.

If the mains power cable of this device should become damaged, it must be replaced by the manufacturer, the manufacturer's customer service department or a similarly qualified specialist, in order to avoid any hazards.

This device is not intended to be operated using an external timer clock or a separate remote control system.

Disconnect the mains plug from the wall socket … … when it is not supervised, … before you assemble or disassemble the device, and … before you clean the device.

Clean all parts and surfaces that will come into contact with food before using the device for the first time (see “Cleaning” on page 30).

Misuse of the device may result in injuries.

The blades of the blade attachment are very sharp. Be particularly careful not to cut yourself when opening the beakers, when remov- ing foods, and when cleaning the blade attachment. When wash- ing by hand, the water should be sufficiently clear for you to see the blades easily.

Under no circumstances should the device be operated without the beaker.24

The device is designed for a continuous operating time of … … no more than 1 minute in the smoothie maker mode, … no more than 4 minutes in the citrus press mode. After this, the device must remain switched off until it has cooled down to room temperature. DANGER for children ~ Packing materials are not children's toys. Children should not be allowed to play with the plastic bags. There is a risk of suffocation. ~ Please ensure that children are not able to pull the device down from the work surface with the power cable. ~ Keep the device out of the reach of chil- dren. DANGER to and from pets and livestock ~ Electrical devices can represent a haz- ard to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times. DANGER! Risk of electric shock due to moisture ~ The device must never be operated in the vicinity of a bathtub, a shower, a filled washbasin or similar. ~ The base unit, the power cable and the mains plug must not be immersed in wa- ter or any other liquids. ~ Protect the base unit, the power cable and the mains plug from moisture and dripping or splashing water. ~ If liquid gets into the base unit, pull out the mains plug immediately. Have the de- vice checked before reusing. ~ Never touch the device with wet hands. ~ If the device falls into water, disconnect the mains plug immediately. Only then is it safe to retrieve the device. DANGER! Risk of electric shock ~ Only plug the mains plug into the wall socket after the device has been com- pletely assembled. ~ Only connect the mains plug to a prop- erly installed and easily accessible wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must continue to be eas- ily accessible after the device is plugged in. ~ Ensure that the power cable cannot be damaged by sharp edges or hot points. Do not wrap the power cable around the device. ~ Even after it has been switched off, the device has not been completely discon- nected from the mains. In order to fully disconnect it, pull out the mains plug. ~ When using the device, ensure that the power cable cannot be trapped or crushed. ~ When removing the mains plug from the wall socket, always pull the plug and never the cable. ~ Disconnect the mains plug from the wall socket … …if there is a fault, … when you are not using the device, … before you assemble or disassemble the device, … before you clean the device and … during thunderstorms. ~ Do not use the device if there is visible damage to the device or the power ca- ble. ~ To avoid any hazard, do not make mod- ifications to the device.25

DANGER! Risk of injury from cutting

The blades of the blade attachment are sharp. Please be very careful when han- dling them. WARNING! Risk of injury by turning parts

Do not touch the rotating juicer cones of the citrus press directly. Do not touch the rotating parts with spoons or similar uten- sils. Keep long hair and loose clothing away from the rotating parts. ~ Only plug the mains plug into the wall socket after the device has been com- pletely assembled. WARNING! Risk of material damage ~ Thick or firm peels, (e.g. of citrus fruits, pineapple), stems and pips of stone fruits (e.g. cherries, peaches, apricots) must be removed before blending.

Do not use the device for processing es- pecially hard foodstuffs, such as frozen foods, bones, nutmeg, cereals or coffee beans.

Do not use more than 50 g of ice cubes. ~ Do not put any ingredients hotter than 85 °C into the beaker. ~ In order to prevent damage to the de- vice, interrupt ... … the blending process immediately if the blades of the blade attachment are either turning with difficulty or not turning at all. … the juicing process immediately if the juicer cone is either turning with diffi- culty or not turning at all. Pull out the mains plug and check wheth- er there is a blockage in the device or whether the food is too tough. Also check that the device is assembled cor- rectly. ~ Do not operate the device as a smoothie maker with empty beakers, as this caus- es the motor to overheat and may result in it being damaged. ~ Only operate the device as a smoothie maker when the blade attachment is firmly screwed onto a beaker. ~ The blades of the blade attachment car- ry on rotating after the device has been switched off. Wait until the blades have come to a standstill before you remove the beaker. ~ Do not block or overload the motor. Do not apply excessive pressure to the juic- er cone. ~ Ensure that there are no foreign objects on the screen or in the device when op- erating it. ~ Only use the original accessories. ~ Place the device on a stable, level sur- face. ~ Never place the device on hot surfaces (e.g. hot plates) or near to heat sources or open fire. ~ The following parts must never be im- mersed in water or other liquids, and must not be cleaned in the dishwasher: - the citrus press attachment|5, - the base unit|4 including the power cable with mains plug|3. ~ Do not use any astringent or abrasive cleaning agents. ~ The device is fitted with non-slip plastic suction feet. As furniture is coated with a wide array of varnishes and synthet- ics, and is also treated with different care products, it cannot be fully ruled out that some of these materials contain ingredients that could attack and soften the non-slip plastic suction feet. If neces- sary, place a non-slip mat under the de- vice.26

1 copy of the user instructions 1 base unit|4 Smoothie maker accessories 1 large beaker|15 (min. 200 ml - max. 600 ml) 1 small beaker|13 (min. 200 ml - max. 400 ml) 1 blade attachment|12 2To-Go lids|14 Citrus press accessories 1lid|1 1 large juicer cone|11 1 small juicer cone|10 1 screen (for pulp)|9 1 juice container|8 1 citrus press attachment|5 with drive ax- le|7 and cover ring|6

• Check to ensure that all parts are pres- ent and undamaged.

• Clean the device prior to its first use! (see “Cleaning” on page 30) DANGER! Risk of electric shock! ~ Only plug the mains plug|3 into the wall socket after the base unit|4 and the ac- cessories have been assembled.

• Place the device on a dry, level, non-slip surface.

In its function as a smoothie maker, use the beaker|13 or|15 together with the blade at- tachment|12 for blending smoothies or chop- ping ice cubes. DANGER! Risk of electric shock! ~ Only plug the mains plug|3 into the wall socket after the device has been completely assembled. DANGER! Risk of injury from cutting! ~ Under no circumstances should the de- vice be operated without the beak- er|13/15.

The blades of the blade attachment|

are sharp. Please be very careful when handling them. ~ The blades of the blade attachment|12 carry on rotating after the device has been switched off. Wait until the blades have come to a standstill before you turn over the beaker|13/15 and un- screw the blade attachment. WARNING! Risk of material dam- age! ~ In order to prevent damage to the de- vice, interrupt the blending process im- mediately if the blades of the blade attachment|12 rotate with difficulty or not at all. In this case, pull out the mains plug|

and check whether there is an ob- struction in the beaker |13/15

~ The device is designed for a continuous operating time of no more than 1 min- ute in the smoothie maker mode. After this, the device must remain switched off until it has cooled down to room temper- ature.27

WARNING! Risk of material damage! ~ Thick or firm peels, (e.g. of citrus fruits, pineapple), stems and pips of stone fruits (e.g. cherries, peaches, apricots) must be removed before blending.

• Rinse or wash the fruits.

• Cut the fruit into rough pieces (approx. 3-4 cm edge length).

• Use a sufficient amount of liquid (miner- al water, fruit juice, milk, yoghurt). We recommend a mixing ratio of 1:1.

CAUTION: ~ See the MAX marking on the beak- ers|13/15 for the maximum filling quantity. ~ Depending on the hardness and consist- ency of the ingredients, do not fill the beaker|13/15 to the maximum, other- wise the blade attachment|12 can get blocked. ~ Place a maximum of 50 g of ice cubes into the beaker|13/15. Crush the ice cubes 5 times for 5 seconds. NOTE: if the smoothie is too thick, add a lit- tle mineral water, fruit juice, milk or yoghurt to suit your taste.

1. Place the fruit pieces and any other in-

gredients into the beaker|13/15 as desired. Mind the marking MAX for the maximum filling quantity.

2. Figure B: screw the blade attach-

ment|12 onto the beaker|13/15. En- sure that the blade attachment is screwed tightly onto the beaker.

3. Connect the mains plug|3 with the wall

4. Figure C: turn the beaker|13/15 over

and place it onto the base unit|4 so that the arrow Ton the blade attach- ment|12 points to the symbol on the base unit|4.

5. Rotate the beaker

|13/15 a short way clockwise (towards the symbol ) to switch the device on.

6. Rotate the beaker

|13/15 a short way anticlockwise (towards the symbol ) to switch the device off. Wait until the blades of the blade attach- ment|

have come to a standstill.

7. Disconnect the mains plug|3 from the

8. Remove the beaker|13/15 from the

base unit|4 and turn it over.

9. Unscrew the blade attachment|12 and

ensure that the liquid drips into the beaker|13/15.

10. Before using it again, and if necessary,

rinse the blade attachment|12 briefly under running water.

11. Clean the device as soon as possible

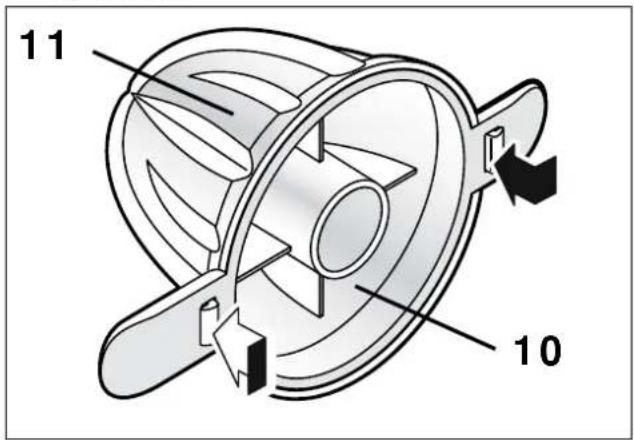

7.1 Juicer cones for large

and small citrus fruits Figure E: there are two different juicer cones for different sizes of citrus fruits.

• For small citrus fruits (e.g. lemons, limes), use the small juicer cone|10.

• For large citrus fruits (e.g. oranges, grapefruit), place the large juicer cone|11 onto the small juicer cone|10. The small ridges on the large juicer cone must engage with the recesses in the small juicer cone.28

• In order to separate the two juicer cones|10+11 again, press the small ridges inwards and upwards out of the recesses.

7.2 Assembling the citrus

press DANGER! ~ Only plug the mains plug|3 into the wall socket after the device has been completely assembled.

1. Place the base unit|4 on a dry, solid

and level surface. Figure A:

2. Place the citrus press attachment|5 onto

the base unit|4 in such a way that the two citrus press symbols are lined up. NOTE: you can lift off the entire citrus press attachment|5, complete with drive axle|7 and cover ring|6, and replace it again. These two parts can be removed e.g. for cleaning.

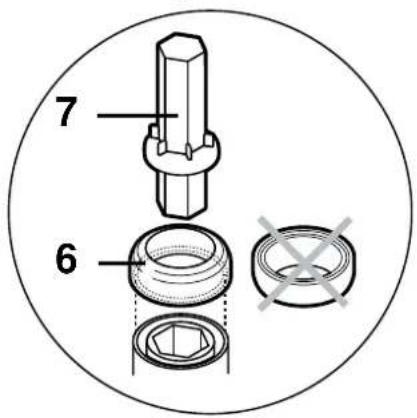

3. Insert the cover ring|6 and the drive ax-

4. Place the juice container|8 into the cit-

rus press attachment|5.

5. Place the screen|9 into the juice con-

tainer|8. The small grooves in the mid- dle of the screen need to fit onto the ridges on the juice container.

6. Place the small juicer cone|10 or the

assembled juicer cones|10+11 onto the drive axle|7.

7. Insert the mains plug|3 into a wall

Figure D: the outflow|2 of the juice con- tainer|8 has an integrated drip stopper func- tion. If you want to remove or replace the container under the outflow, you can close the drip stopper to prevent juice from drip- ping out. NOTE: ensure that the drip stopper is open during juicing, so that the juice does not col- lect in the juice container|8.

• To close the drip stopper, gently press the outflow|2 upwards.

• To open the drip stopper, gently press the outflow|2 downwards.

WARNING! ~ Ensure that there are no foreign objects on the screen|9 or in the device when operating it. ~ Do not apply excessive pressure to the juicer cones|10+11/10. ~ The device is designed for a continuous operating time of no more than 4 min- utes in the citrus press mode. After this, the device must remain switched off until it has cooled down to room tempera- ture. Figure D:

1. Place the small beaker|13 or another

container under the outflow|2.

2. Open the drip stopper if necessary by

pressing down on the outflow|2.

3. Cut the citrus fruits in half.

4. Gently press the citrus fruit halves onto

the juicer cone|10+11/10 with the cut surface facing downwards. The cit- rus press attachment is thus pressed downwards and the juicer cone starts turning. The juice flows into the juice container|8 and out through the out- flow|2.

5. As soon as you stop pressing on the

juicer cone|10+11/10, the device stops.

6. Close the drip stopper if necessary by

gently pressing the outflow|2 upwards.

7. Clean the device as soon as possible

after each use, so that the pulp does not dry onto the surfaces.

8. Drink, take along

and store Smoothies and freshly pressed juices are in- tended for prompt consumption. The To-Go lids|14 allow you to take the beakers along or store them for a short while.

• Figure F: in order to drink the fresh smoothie directly from the beaker |13/15, screw a To-Go lid|14 onto the filled beaker|13/15. Open the drinking clo- sure|17 and drink from the opening for drinking|16.

• After you have closed the drinking clo- sure|17 the opening for drinking|16 and beaker are|13/15 tightly closed. You can also enjoy your smoothie “to go” when you are out and about, or store it for a short while. In that case, is best to put the smoothie in the refrigera- tor.

protection The device has an overheating protection system. If the device has been in operation for too long thus causing the device to be- come too hot, it automatically switches off.

• In this case, pull out the mains plug and allow the device to cool.

• You may then use the device again.30

Clean the device prior to its first use! DANGER! Risk of electric shock! ~ Pull the mains plug|3 out of the wall socket before you disassemble and clean the device. WARNING! Risk of material dam- age! ~ Do not use any astringent or abrasive cleaning agents. After every use

• Clean the device and all accessories used after each use and remove all food residues.

• All accessories must be disassembled and individually cleaned. Exception: the drive axle|7 and the cov- er ring|6 can stay inserted in the citrus press attachment|5 if they are not dirty. Base unit and citrus press attach- ment DANGER! Risk of electric shock! ~ The following parts must never be im- mersed in water or other liquids, and must not be cleaned in the dishwasher: - the citrus press attachment|5, - the base unit|4 including the power cable with mains plug|3. Wipe off the citrus press attachment|5, the base unit|4 and the power cable|3, using a damp cloth. Dry with a dry cloth. Accessories DANGER! Risk of injury from cutting! ~ When washing by hand, the water should be sufficiently clear for you to see the blade attachment|12 easily. The following parts can be cleaned either by hand or in the dishwasher: - the lid|1 - the cover ring|6 - the drive axle|7 - the juice container|8 - the screen|9 - the two juicer cones|10/11 - the blade attachment 12 - the two beakers|13/15 - the two To-Go lids|14

1. Clean all accessories with warm water

and a little detergent. Afterwards, rinse all parts with clean water. Or: Place all accessories into the upper basket of the dishwasher, and the small parts into the cutlery basket.

2. Allow all parts to dry completely before

you put them away or use the device again. To-Go lids When cleaning the To-Go lids|14, pay par- ticular attention to thoroughly cleaning: - the rubber seals on the underside and at the drinking closure|17, - all recesses and corners.31

DANGER for children! ~ Keep the device out of the reach of chil- dren. DANGER!

In order to avoid accidents, the mains plug|3 must never be connected to a wall socket while in storage.

• Select a location where neither high temperatures nor moisture can affect the device.

This product is subject to the provisions of European Direc- tive 2012/19/EC. The sym- bol showing a wheelie bin crossed through indicates that the product requires sep- arate refuse collection in the European Un- ion. This applies to the product and all accessories marked with this symbol. Prod- ucts identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recy- cling electric and electronic appliances. Re- cycling helps to reduce the consumption of raw materials and protect the environment. Packaging When disposing of the packaging, make sure you comply with the environmental reg- ulations applicable in your country.

13. Trouble-shooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself. DANGER! Risk of electric shock! ~ Do not attempt to repair the device your- self under any circumstances. Fault Possible causes / Action No function

• Has the device been connected to the pow- er supply?

• Check the connection.

• Has the overheating protection switched off the device? (see “Overheating protec- tion” on page 29)

• Smoothie maker: Has the beaker|13/15 been inserted properly? Smoothie maker: Blade of the blade attach- ment|12 not turning or turn- ing only with difficulty

• Switch off immediately! Pull out mains plug|

and check: Blockage in the beak- er|

Citrus press: Juicer cone

• Did you apply exces- sive pressure to the juic- er cone

• Is there a foreign object in the device? Citrus press: The juice does not flow out of the outflow|

• Is the drip stopper closed? Gently press the outflow|

CAUTION: ~ depending on the hardness and consist- ency of the ingredients, do not fill the beaker|13/15 to the maximum, other- wise the blade attachment|12 can get blocked. Green smoothie Ingredients: ¼ lime ½ handful of fresh leaf spinach ¼ mango ¼ banana (peeled) ½ pineapple slice 100 ml water 1 ice cube

• Use the small juicer cone|10 to press the lime and collect the juice.

• Put the lime juice and the other ingredi- ents into the beaker|13/15 and mix un- til the desired consistency is reached. Tropical smoothie Ingredients: Oranges for 50 ml of orange juice 50 g pineapple ¼ banana (peeled) ½ kiwi (peeled) ½ handful of spinach

• Use the large juicer cone|10+11 to press approx. 50 ml of orange juice.

• Put the orange juice and the other ingre- dients into the beaker|15/13 and mix until the desired consistency is reached. Eye-openers Ingredients: ½ banana (peeled) ¼ mango ½ handful of leaf spinach ¼ tsp oil (e.g. sunflower oil) 50 ml apple juice 50 ml water

• Put all ingredients into the beaker|13/ 15 and mix until the desired consisten- cy is reached. Honey flip Ingredients: 200 ml milk 2 cl blackcurrant juice 1 tbs honey 1 egg yolk 1 ice cube

• Put all ingredients into the beaker|13/ 15 and mix until the desired consisten- cy is reached. Strawberry banana shake Ingredients: ½ banana (peeled) 75 g strawberries ½ sachet of vanilla sugar 100 ml milk

• Put all ingredients into the beaker|13/ 15 and mix until the desired consisten- cy is reached.33

• Put all ingredients into the beaker|13/15 and mix until the desired consistency is reached. Goodnight smoothie Ingredients: Lemon for ½ tbs lemon juice ¼ banana (peeled) ¼ apple ½ tbs honey ½ small handful of spinach 100 ml water

• Use the small juicer cone|10 to press approx. ½ tbs of lemon juice.

• Put the lemon juice and the other ingre- dients into the beaker|13/15 and mix until the desired consistency is reached. Mango shake Ingredients: 125 g mango 125 ml milk

• Put all ingredients into the beaker|13/15 and mix until the desired consistency is reached. Raspberry pear smoothie Ingredients: ½ ripe pear 75 g raspberries 100 ml water Honey to taste

• Put all ingredients into the beaker|13/15 and mix until the desired consistency is reached. Peach banana smoothie Ingredients: Grapefruit for 50 ml of grapefruit juice ½ banana (peeled) 1 peach (peeled and cored) 1 squirt of lemon juice

• Use the large juicer cone|10+11 to press approx. 50 ml of grapefruit juice.

• Put the grapefruit juice and the other in- gredients into the beaker|13/15 and mix until the desired consistency is reached.34

specifications Symbols used Subject to technical modifications.

HOYER Handel GmbH Dear Customer, your device is provided with a 3 year war- ranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our war- ranty presented in the following. Warranty conditions The warranty period starts with the purchase date. Please keep the original purchase re- ceipt in a safe place. This document is re- quired to verify the purchase. If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or re- placed by us – at our discretion – free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are present- ed, including a brief written description of the defect and the time it occurred. If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product. Warranty period and statutory claims for defects The warranty period is not extended when the warranty has been claimed. This also ap- plies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immedi- ately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge. Warranty coverage The device was produced carefully according to strict quality guidelines and tested diligent- ly prior to delivery. The warranty applies to material or factory defects. Model: SSMZ 300 A1 Mains voltage: 220 – 240 V

50/60 Hz Protection class: II Power rating: 300 W Filling volume: 200 ml - 600 ml Double insulation Certified Safety. Devices must comply with the generally ac- knowledged rules of technology and the German Product Safety Act (Produktsicherheitsgesetz - ProdSG). With the CE marking, HOYER|Handel GmbH declares the conformity with EU guide- lines. This symbol reminds you to dis- pose of the packaging in an envi- ronmentally friendly manner. Recyclable materials: cardboard (except corrugated cardboard) The symbol identifies parts that can be cleaned in the dishwasher.35

Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, batteries, lamps or other parts manufactured from glass. This warranty expires if the product is dam- aged, not used as intended or not serviced. For the proper operation of the product, all in- structions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided. The product is only intended for private and not for commercial use. In the case of incor- rect and improper treatment, use of force and interventions not performed by our author- ised Service Centre, the warranty shall cease. Handling in case of a warranty claim In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN: 302511 and the purchase receipt as a purchase verification for all inquiries.

• The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or under- side of the device.

• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.

• Then, you are able to send a product re- ported as defective free of charge to the service address specified to you, includ- ing the purchase receipt and the infor- mation on the defect and when it occurred. Please visit www.lidl-service.com to download this and many other manuals, product videos and soft- ware. Service Centre Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: hoyer@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: hoyer@lidl.ie Service Malta Tel.: 80062230 E-Mail: hoyer@lidl.com.mt Service Cyprus Tel.: 8009 4409 E-Mail: hoyer@lidl.com.cy IAN: 302511 Supplier Please note that the following address is no service address. First contact the afore- mentioned Service Centre. HOYER Handel GmbH Tasköprüstraße 3 DE-22761 Hamburg GERMANY
