USER MANUAL IAN 273624 POWERFIX

Touche RM (Read Memory)

Taste RM (Read Memory)

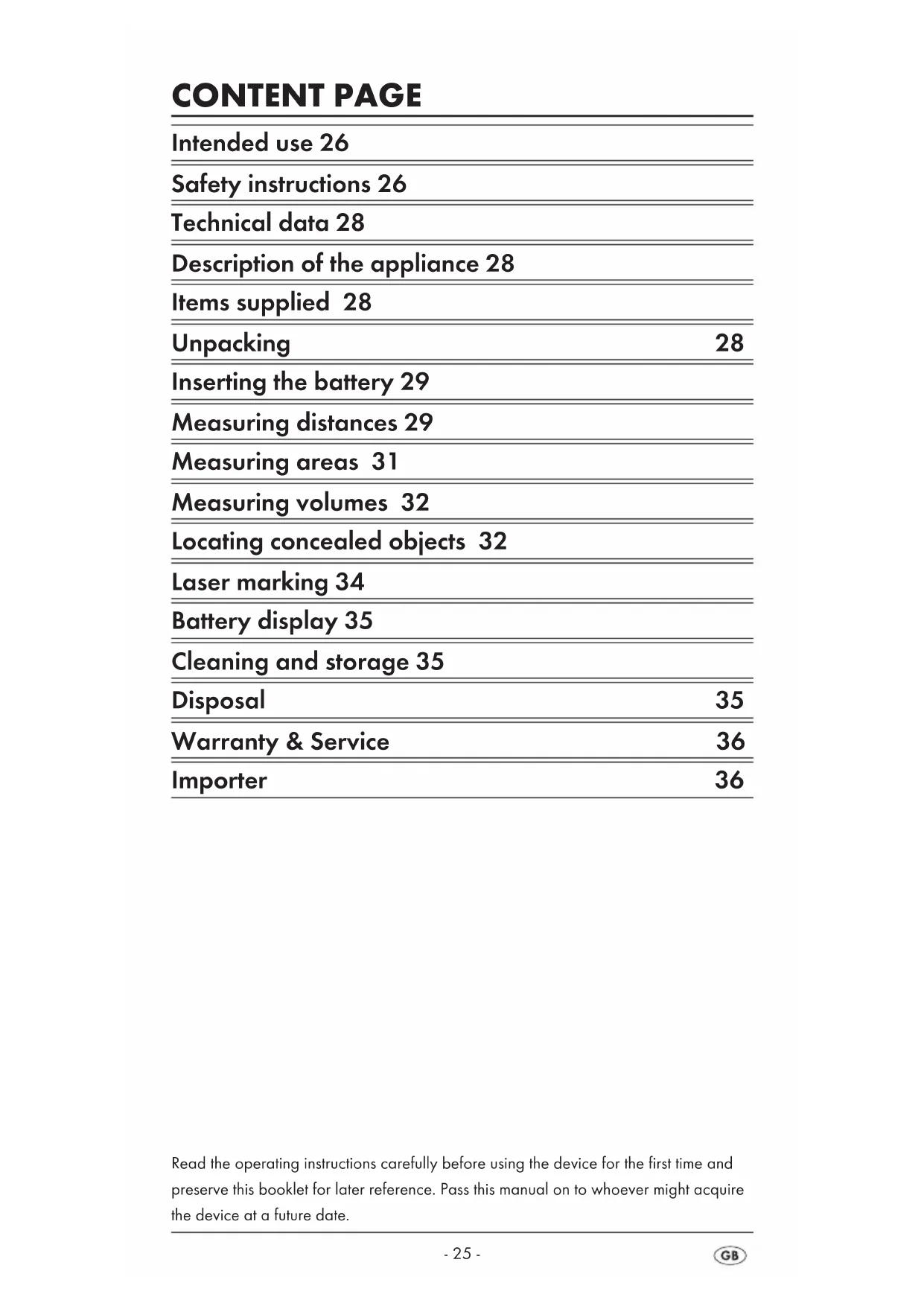

BURGSTRASSE 21 44867 BOCHUM, GERMANY www.kompernass.com IAN 273624 IAN 273624 IAN 273624 - 24 -- 25 - CONTENT PAGE Intended use 26 Safety instructions 26 Technical data 28 Description of the appliance 28 Items supplied 28 Unpacking 28 Inserting the battery 29 Measuring distances 29 Measuring areas 31 Measuring volumes 32 Locating concealed objects 32 Laser marking 34 Battery display 35 Cleaning and storage 35 Disposal 35 Warranty & Service 36 Importer 36 Read the operating instructions carefully before using the device for the first time and preserve this booklet for later reference. Pass this manual on to whoever might acquire the device at a future date.- 26 - MULTI-PURPOSE DETECTOR PMDL 5 B1 Intended use The Multi-Purpose Detector is designed for the locating of electrical cables, of wood and metal objects, for the projecting of laser lines, for the measuring of areas and volumes as well as for the measuring of distances. The appliance is intended for domestic use only. Do not use it for commercial purposes. A different or any other usage is regarded as unintended use and can lead to damages and injuries. No liabity will be accepted for damage caused by manipulation of the laser equipment, as well as of the ultrasound transmitter/ receiver, or through disregard of these safety instructions. Safety instructions Optimal and safe working with the Multi-Purpose Detector is only possible if you read these operating and safety instructions completely and strictly fol- low their instructions. Risk of injury!

• Do not use the appliance at locations where there is a risk of fire or explosion, e.g. close to inflammable liquids or gases.

• This appliance may be used by children aged 8 over and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use of the appliance safely and are aware of the potential risks. Children must not play with the appliance. Cleaning and user maintenance tasks must not be carried out by children unless they are supervised.

• Exercise caution with the holding pins. They are sharp and can cause injuries. Caution regarding damage to the appliance!

• Do not expose the appliance to rainfall. Do not use the appliance in moist or wet environments.

• Do not place objects containing liquids, e. g. flower vases, on the appli- ance.

• Do not place any open sources of fire, like candles, on the device.- 27 - This appliance contains a Class 2 laser. NEVER direct the laser beam at people or animals. NEVER look directly into the laser. The laser can cause serious eye damage.

• Do NOT direct the laser beam at strongly reflective material. Reflected laser beams are also dangerous.

• Do NOT use the appliance to determine the alternating voltage level in exposed or non-insulated power cables.

• Do NOT use the appliance as a substitute for a voltmeter. Notes regarding inaccurate measurement results The appliance does not always recognise all pipes and power cables. The following conditions can contribute to inaccurate results: – very thick walls – weak battery – deeply laid power cables or pipework – shielded cables – thick walls with thin pipes or power cables – walls panelled with metal sheets – very moist conditions

• This appliance is not suitable for detecting power cables in circuits, – which are isolated from the mains power supply. – through which direct current flows. – which are used for computer or telecommunications systems.

• With this appliance pipework made of plastic or similar materials cannot be detected, only pipework made of metal. Interaction with batteries

• Leaking batteries can cause damage to the appliance. If you do not in- tend to use the appliance for an extended period, remove the batteries.

• Should the batteries leak, wear protective gloves and clean the battery compartment with a dry cloth.

• Keep batteries away from children. Children can put batteries into their mouths and swallow them. Should a battery ever be swallowed, seek medical attention IMMEDIATELY. LASER

Technical data Distance measurement by means of Ultrasound Locating of: power cables, metal, wood Laser class: 2 Max. output power (P.max): < 1 mW Wave length (λ): 650 nm according EN60825-1:2014 Power supply: 9 V block battery Description of the appliance

Laser beam exit opening

Ultrasound sender/receiver

Button – RM (Read Memory)

Button – PUSH Items supplied

• Operating instructions Unpacking Take the Multi-Purpose Detector from its packaging. Remove all transport re- straints and packaging materials. Remove the protective foil from the display

1. Open the battery compartment

on the rear side of the Multi-Purpose Detector.

2. Place the 9V block battery onto the contacts. Pay heed to the correct

3. Lay the tape for removal of the battery underneath the 9 V block battery

and press it into the battery compartment

Important! Ensure that the wires are not trapped in any way. This would lead to irreparable damage to the appliance.

4. Close the battery compartment

. The battery compartment lid must close with an audible click. Measuring distances

switches itself on. To switch between the metric and the Anglo-American units of measurement, press and hold the button MODE

and release both buttons simultaneously. When you release the buttons, the mea- surement units change. Note: Measurements start at the measurement point

Should the measurement lie outside the measurement range, „Err“ or an illogical number appear in the display. The measurement range lies between 0,6 m (2’) and 16 m (53’).

2. Hold the appliance upright towards the wall to which you wish to measure

the distance. The ultrasound sender/receiver

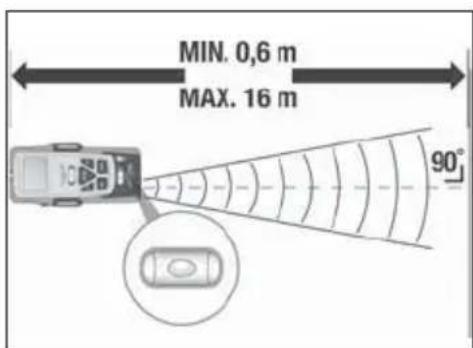

must be at a right-angle to the wall. For this, use the spirit level: The bubble in the glass

must stand between the marking lines (see Fig. 1).

. The distance measured appears in the display

pressed down and slowly move the appliance over the surface to be measured, the appliance continually measures the distances. These are shown on the display

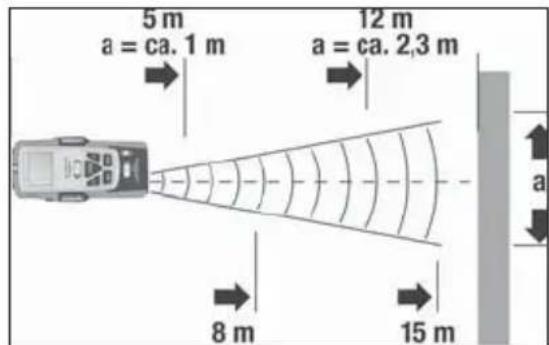

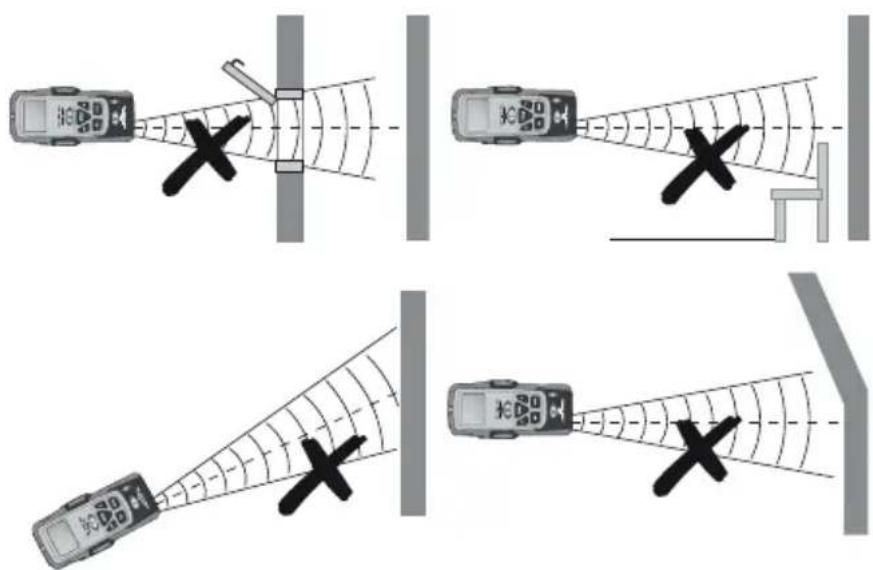

.- 30 - Take note of the following illustrations: Fig. 1 Fig. 2 The further you are from the wall, the wider is the area (a) that the Multi-Purpose Detector must measure by ultrasound (Fig. 2). Therefore take care that the Multi-Purpose Detector is always directed at a right angle towards a level surface (Fig. 1 and 3). Ensure that there are no objects positioned within the measurement area. False! (Fig. 3) The display illumination glows during the measurement. If a button is not pressed within ca. 15 seconds, the illumination extinguishes. After a further ca. 15 se- conds the diplay itself switches off. Press the button READ

, to reactivate the display and the illumination. Note: Inaccurate measurements can also occur through a weak battery. If the battery is too weak, the battery symbol appears in the display.- 31 - Adding distances together You can add the measured distances together:

1. Measure the first distance as described.

, „+“ appears and the distance measured carries itself over to the lower line.

3. Measure the next distance. The newly measured distance is shown in the

. The new measurement is added to the old measurement in the lower line.

5. Repeat steps 2 to 4 to add further measurements.

6. When you wish to leave the addition mode, press the button MODE

All values are erased. Measuring areas

once. In the display

, to measure the length. In the upper line the measured length appears and „W“ (Width) starts to flash.

to measure the width. The measured width appears on the upper line and the result of the area calculation in the lower line. Adding areas together

1. Measure an area as described in the section „Measuring areas“.

. The area measured is now saved.

. The appliance is now ready for the second measurement.

4. Measure the next area.

. The result of the first measurement is shown in the lower line.

. Both measurements are added together and the result is shown in the lower line.

8. Repeat the steps 2 to 7 to add in further measurement values.

9. When you wish to leave the addition mode, press the button MODE

twice. In the display

, to measure the length. In the upper line the measured length appears and „W“ (Width) starts to flash.

to measure the width. In the upper line the measured width appears and „H“ (Height) starts to flash.

to measure the height. The measured height ap- pears in the upper line. In the lower line appears the result of the volume calculation. Adding volumes together

1. Measure a volume as described in the section „Measuring volumes“.

The volume measured is now saved.

. The appliance is now ready for the second measurement.

. The result of the first measurement is shown in the lower line.

. Both measurements are added together and the result is shown in the lower line.

8. Repeat the steps 2 to 7 to add in further measurement values.

9. When you wish to leave the addition mode, press the button MODE

All values are erased. Locating concealed objects Notice:

• Before using the appliance for this task, first test it by locating a pipeline or electrical power cable at a known position.

• In cases of doubt, always ask a qualified building contractor. Attention! Should the appliance find a live wire carrying alternating current, appears in the display. Under no circumstances should you drill at this location! Danger of electric shock!- 33 - The locating of concealed objects is the same in all three modes (STUD = wood, AC WIRE = live electric power cables, METAL = metal).

to STUD, AC WIRE or METAL.

3. First of all, the appliance must be calibrated. Place it flat against the wall

where you wish to search for concealed objects.

until the arrows on the display disappear and two short beeps are heard. The appliance has now adjusted itself to the wall thickness. Continue to keep the button PUSH

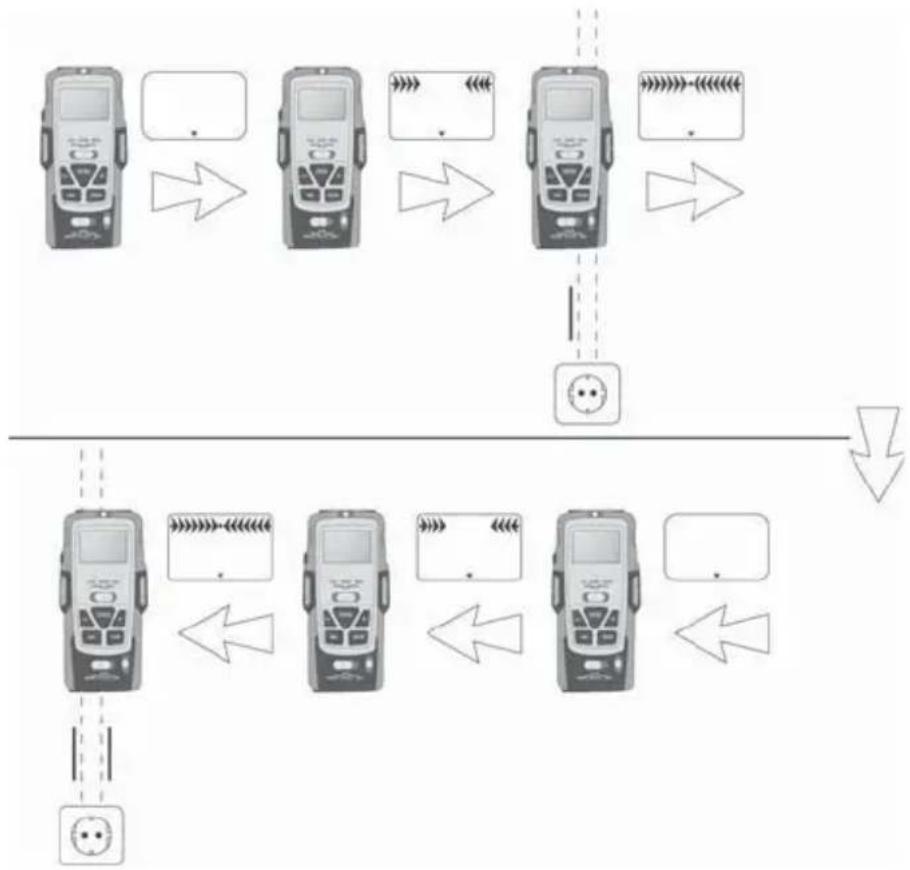

5. Move slowly along the wall with the appliance. As the arrows in the dis-

play move closer to the centre of the display, you are getting closer to the concealed object. When the arrows touch and a constant signal tone is heard, mark this position (see Fig. 4). Fig. 4

6. Now repeat the procedure, but this time approach the object from the

other side. As soon as the signal tone sounds, mark this position (see Fig. 4). The concealed object runs between these two positions.- 34 - Locating wood objects

1. Proceed with the search for wood objects as described in the section

„Locating concealed objects“.

2. When the Multi-Purpose Detector has found an object, mark it.

To be sure that the object is wood, slide the material switch

3. Now search in the same position for metal. Should the Multi-Purpose

Detector. not find anything, then the object is wood. Should it find something, then the object is metal. In this case, search again at a different position in the mode „STUD“ and re- peat steps 1 to 3. Laser marking The appliance contains a Class 2 laser. NEVER direct the laser beam at people or animals. NEVER look directly into the laser. The laser can cause serious eye damage. You can use laser marking for the exactly horizontal positioning of pictures, shelves etc.

to „LASER“. A laser line is projected. Horizontal laser line Attention! Exercise caution with the holding pins. They are sharp and can cause injuries.

1. Hold the Multi-Purpose Detector horizontally against the wall and align it

with the assistance of the spirit level

. The air bubble must stand between the two marking lines.

2. Push both of the holding pins (

) buttons firmly downwards. The pins lightly bore themselves into the wall so that the appliance does not fall to the floor. The laser throws a horizontal line onto the wall. Note: The holding pins do not function on stone or metal walls. The walls must have a soft upper surface.- 35 - Vertical laser line

1. Secure a strong thread in the eyelet above the measurement point

2. Hang the Multi-Purpose Detector on the wall at the position where

you want to project the vertical line. The Multi-Purpose Detector hangs like a plumbline, perpendicularly downwards. The laser throws a vertical line onto the wall. Battery display A battery symbol appears in the display

when the battery is weak resp. almost discharged. Replace the battery as soon as possible (see section „Inserting the battery“). If you do not, the measurements will be false. Cleaning and storage

• Store the appliance at a dry and frost-free location.

• If you do not intend to use the appliance for an extended period, remove the battery from the battery compartment.

• Clean the appliance with a soft, dry cloth.

• Do not use chemical or abrasive cleaning agents. These could damage the housing. Disposal Do not dispose of the appliance in your normal domestic waste. This product is subject to the European guideline 2012/19/EU. Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre. Battery disposal! Batteries may not be disposed of with normal domestic waste. All consumers are statutorily obliged to dispose of batteries at the collection point in their community/district or with the original supplier. The purpose of this obligation is to ensure that batteries can be disposed of in an environmentally friendly manner. Only dispose of batteries when they are fully discharged. Dispose of all packaging materials in an environmentally friendly manner.- 36 - Warranty & Service The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined be- fore delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Depart- ment. Only in this way can a post-free despatch for your goods be assured. The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile compo- nents, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty. The warranty period will not be extended by repairs made under warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appli- ance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment. Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: kompernass@lidl.co.uk Importer
