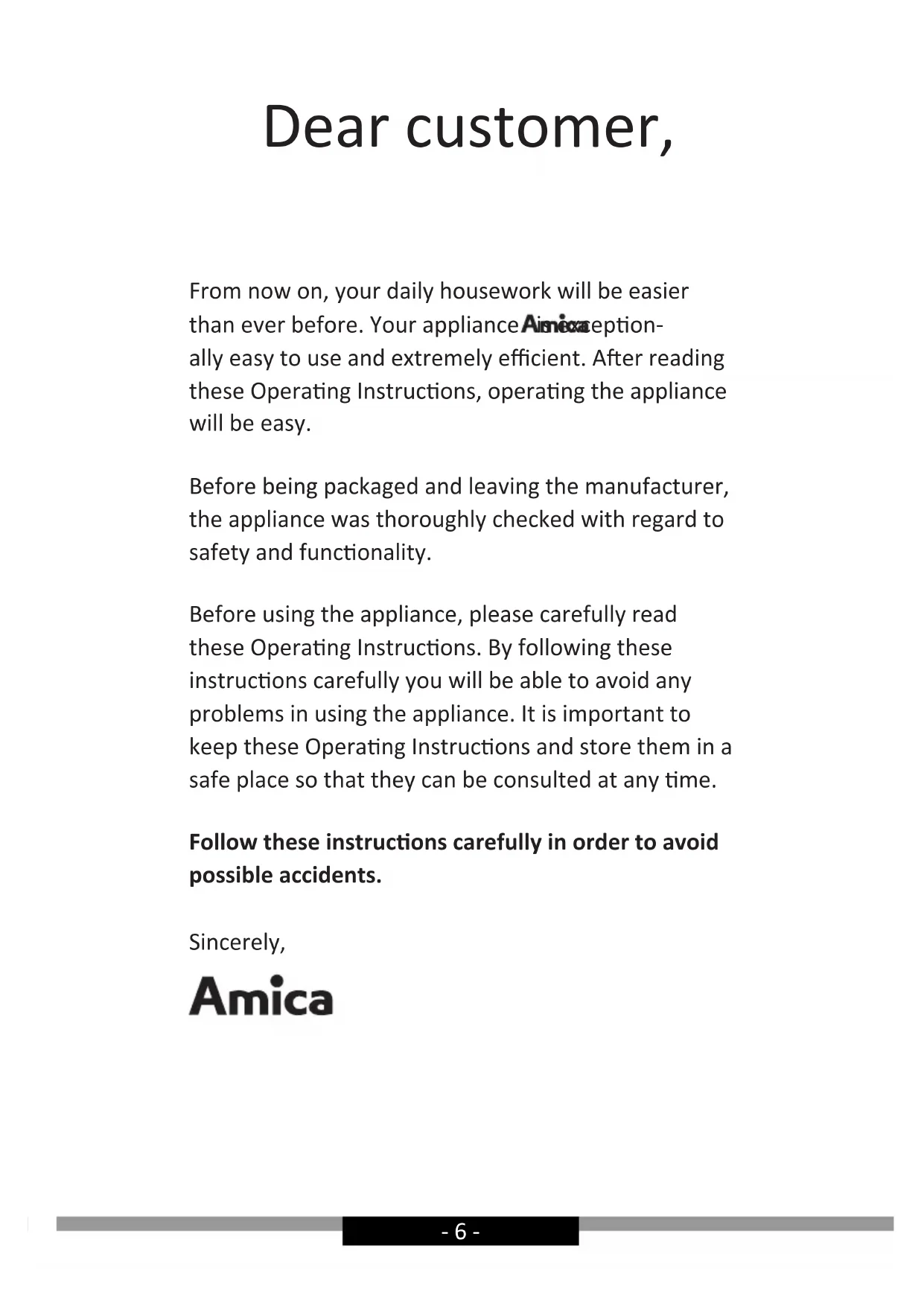

Dear customer, From now on, your daily housework will be easier than ever before. Your appliance is excepon- ally easy to use and extremely ecient. Aer reading these Operang Instrucons, operang the appliance will be easy. Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and funconality. Before using the appliance, please carefully read these Operang Instrucons. By following these instrucons carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operang Instrucons and store them in a safe place so that they can be consulted at any me. Follow these instrucons carefully in order to avoid possible accidents. Sincerely,- 7 -

• Before using the appliance, please carefully read this manual!

• The appliance is designed for household use only.

• The manufacturer reserves the right to introduce changes, which do not aect operation of the ap- pliance.

• The manufacturer shall not be liable for any dam- age or re caused by the appliance resulting from failure to follow instructions in this manual.

• Cooker hood is designed to remove cooking odours. Do not use cooker hood for other pur- poses.

• Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT con- nect the cooker to smoke or ue gas ducts, which are in use). It requires installation of the air ex- traction duct to the outside. The length of the duct (usually a pipe of Ø 120 or 150 mm) should not be longer than 4-5 m. An air extraction duct is also required for telescopic and furniture hoods in absorption mode.

• Cooker hood operating in air recirculation mode requires the installation of an activated charcoal lter. In this case, installing an extractor duct is not required, however it is recommended to in- stall an air guide vane (Mainly in chimney cooker hoods).

• The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.

• Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built- in hoods). Before installing, make sure that the- 8 - wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

• For details of the installation distance above an electric hob please refer to product technical sheet If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1).

• Do not leave an open ame under the hood. When the pots are removed from the burner, set the minimum ame. Always make sure that the ame does not extend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.

• When cooking on fat, supervise the pans con- stantly, because overheated fat can ignite.

• Unplug the appliance before any cleaning, replac- ing the lter or repair work.

• Cooker hood grease lter should be cleaned at least once a month, because the lter saturated with fat is ammable.

• Ensure adequate ventilation (air ow) if other equipment such as liquid fuel stoves or heaters are operated in the room in addition the cooker hood. When the cooker hood is simultaneously operated with burning appliances requiring ade- quate fresh air from the room to work properly, their safe operation is possible if under pressure around these appliances is a maximum of 0.004 mbar (this does not apply when the cooker hood is used as an odour lter)

• Do not lean on the hood.

• The hood should be cleaned regularly both inside and out (AT LEAST ONCE A MONTH, following the indications concerning maintenance provided in this manual)..Failure to adhere to the rules con- cerning cleaning the hood and replacing lters results in a re risk.

• If the power cord is damaged it should be re- placed by a specialised service centre.

• Ensure that it is possible to disconnect the ap-- 9 - pliance from the mains by removing the plug or switching o the bi-polar switch.

• This appliance is not intended for use by persons (including children) with physical, mental or sen- sory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under su- pervision or in accordance with the instructions as communicated to them by persons responsible for their safety.

• Particular attention should be paid not to allow unaccompanied children to use the appliance.

• Make sure voltage indicated on the nameplate corresponds to the local mains supply voltage.

• Before use, extend and straighten the power cord.

• Packaging materials (bags, polyethylene, poly- styrene, etc.) should be kept away from children during unpacking.

• Before connecting the hood to the mains power supply always check that the power cord is prop- erly installed and is not trapped by the appliance. Do not connect the appliance to the mains until assembly is complete.

• Do not operate your kitchen hood without the al- uminium grease lters.

• It is strictly forbidden to cook dishes under on an open ame (ambé) under your kitchen hood.

• Always strictly adhere to regulations issued by the competent local authorities regarding the techni- cal and safety requirements for fume extraction.

• Failing to tighten bolts and fasteners in accord- ance with these instructions may endanger life and health.

• Hanging kitchen hoods operate only in air circu- lation / odour absorber mode

• WARNING! Failure to install the screws or xing device in accordance with these instructions may result in electrical hazards.- 10 - UNPACKING During transportation, protective packaging was used to protect the appliance against any damage. Af- ter unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environ- ment. All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropri- ate symbol. Important! Packaging materials (bags, polyethyl- ene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

In accordance with European Directive 2012/19/EU and local legislation re- garding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used. The user is obliged to hand it over to waste collec- tion centre collecting used electrical and electron- ic goods. The collectors, including local collection points, shops and local authority departments pro- vide recycling schemes. Proper handling of used electrical and electronic goods helps avoid environmental and health haz- ards resulting from the presence of dangerous com- ponents and the inappropriate storage and process- ing of such goods.- 11 - OPERATION Cooker hood controls Control Panel is shown in Figure 4, for reference it is also shown below:

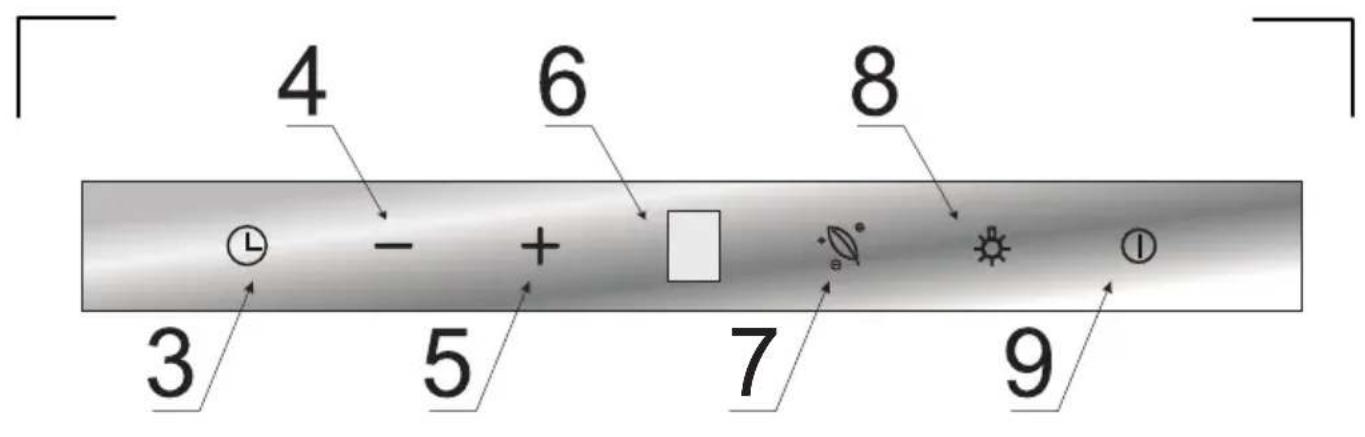

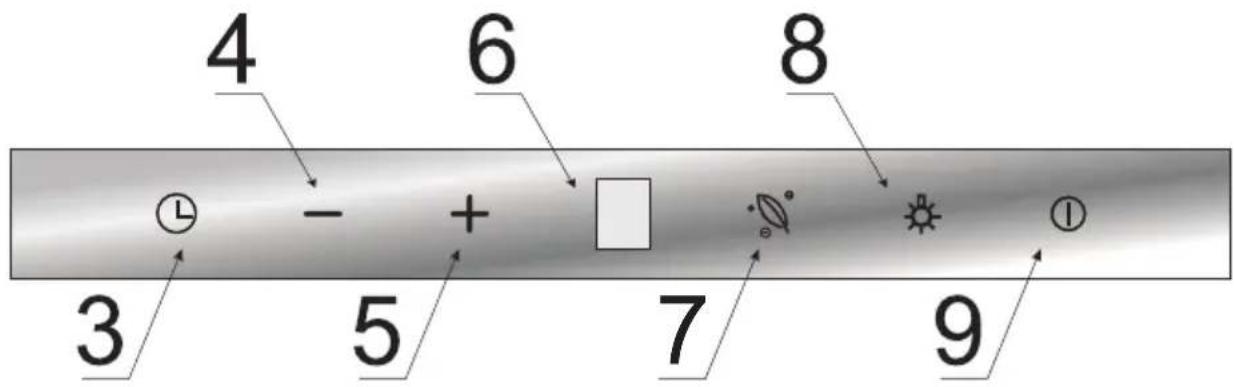

The control panel is equipped with touch controls: Control functions are described below:

8- Light control sensor

9- StandBy mode sensor

When you plug in your appliance, will be shown on the display for a fraction of a second, then the display will go o. Touch to activate the appliance — the pictogram will light up When activated, touch to start the fan. Available fan speeds:

• Low speed (1). Use this speed when cooking a little food with hardly any fumes.

• Medium speeds (2 - 3). Use this speed when cooking multiple dish- es at the same time with moderate amount of fumes.

• Turbo ( ) — use this speed when frying or grilling with large amount of fumes. Use the and sensors to increase or reduce fan speed. Note: The Turbo speed is active only for 5 minutes (the dot on the dis- play ashes), then the fan speed will be reduced. Turbo speed opera- tion is time limited. By activating the Turbo speed again and again, you can use it for a maximum of 30 minutes (including the Turbo o inter- vals if shorter than 5 minutes). After this time, Turbo speed will not be available for the next 30 minutes — during this time, the maximum possible fan speed is 3.- 12 - To turn o the fan, touch repeatedly until fan speed is reduced to zero , or touch . Touch to turn the lighting on. Touch again to turn the lighting o. The lighting operates independently of the on/o sensor. O-Timer Use O-Timer to turn o the hood after a specied time. Use O-Timer to lter the fumes out of the air after cooking. The O-Timer can be set to 5, 10 or 15 minutes. Touch to activate the O-Timer at any time. The sensor will ash and the display will show . Now use the and sensors to select the O-Timer delay: Display indication Delay time [min]

Touch to conrm your O-Timer setting (according to the above ta- ble). A ashing dot will appear by the fan speed on the display and the sensor will ash. Touch to deactivate the O-Timer at any time — the dot by the fan speed and will stop ashing. The ozone generator When this function is active, ozone is generated. Ozone has bactericid- al, viricidal and fungicidal properties, it destroys mites and germs. In addition, it removes and neutralizes organic and inorganic odours and disinfects rooms. Thanks to ozone, the odours of cooking and frying are removed faster and more eectively. The ozone generator function can be used independently of the kitchen hood operation in the air extraction or the recirculation mode. The ozone generator function is only available when the hood fan oper- ates. The ozone is emitted by the kitchen hood in regular cycles, pro- grammed in such a way that the ozone concentration does not exceed the permissible and safe doses, ensuring full safety of use. NOTE! Before using the ozone generator function for the rst time, set the appropriate ozonation programme, adapted to the size of the room (for open kitchens, the kitchen area with the directly connected room should be taken into account) to avoid the risk of a high ozone concen- tration, which can be harmful to health.- 13 - In order to set the appropriate ozonation programme:

• Touch to activate the appliance and will be shown on the dis- play.

• Touch and hold the sensor for 8 seconds, and the display will show the number 1, 2 or 3, which will reect the currently set pro- gramme.

• Now use the and sensors to select the desired ozonation pro- gramme suitable for the room size: Display indication The surface area of the room where the ozone generator function is used [m²] < 6m² 6-10m² > 10m²

• Touch again to conrm your choice and will be shown on the display. The selected ozonation programme is stored and will not be lost even in the event of a power outage. When the suitable ozonation programme is set you can start using the ozone generator function. To do this, turn on the kitchen hood and set any fan speed. Touch to activate the ozone generator function. You can smell ozone in the air much like just after the storm. Touch the sensor again to turn o the ozone generator function. This function deactivates automatically after 3 hours or when you turn o the fan. Excessive concentration of ozone in the air is harmful to health, there- fore use the suitable programme, and also, please observe these guide- lines:

• Do not inhale the ozone directly from ozone generator housing out- lets.

• Do not obstruct or block the air outlet grilles,

• Ozone generator function must not be used by persons suering from olfactory disorders.- 14 - Other important information concerning the operation of the hood Operation in air circulation / odour lter mode. In this mode, the ltered air returns to the room through the outlets. Install activated charcoal lter in this setting. It is recommended to install the air guide (available depending on the model, mainly in chimney cooker hoods). Air extraction operation: When cooker hood operates in extraction mode, air is discharged outside through an extraction duct. Remove activated charcoal lter in this setting. The cooker hood is connected to the air outlet opening using a rigid or exible extraction duct with a diameter of 150 or 120 mm, and the appropriate clamps, which must be purchased at a hardware store. The appliance should be installed by a qualied installer. Fan speed: Lowest and medium fan speed is used in normal conditions and less intense odours, while the highest speed is used only when cook- ing odours are very intense, such as during frying or grilling. Note (applies to universal hoods only): Due to the design of universal hoods you need to manually change the mode of operation. See Figure 8 for instructions on how to change the mode. Note (only applies to telescopic and in-built kitchen hoods): Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be di- rected to the room as it will discharge ltered air. Note: Hanging kitchen hoods operate only in air circulation / odour ab- sorber mode- 15 - CLEANING AND MAINTENANCE Maintenance Regular maintenance and cleaning of the appliance will ensure trou- ble-free operation of the cooker hood and extend its life. Especially make sure that the grease lter and activated charcoal lter are replaced ac- cording to manufacturer's recommendations.

• Do not use a soaked cloth, sponge, or water jet.

• Do not use solvents or alcohol, as they may tarnish lacquered sur- faces.

• Do not use caustic substances, especially for cleaning stainless steel.

• Do not use a rough or abrasive cloth.

• It is recommend to use a damp cloth and a neutral detergent. Note: After several washes in the dishwasher, the colour of the alumini- um lter may change. The change of colour does not indicate improprie- ties or the necessity to change it. Grease lter For normal hood operation, aluminium grease lter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap. Dismantling of aluminium grease lter is shown on Figure 5. Acrylic lter is used in some models. This lter should be replaced at least once every two months or more frequently if the appliance is used intensively. Activated charcoal lter Charcoal lter is used only when the cooker hood is not connected to the ventilation duct. Activated charcoal lter can absorb odours until saturated. Charcoal lter is not suitable for washing or regeneration and should be replaced at least once every two months or more frequently if the appliance is used intensively. Dismantling of charcoal lter is shown on Figure 6. Light Use incandescent / halogen / LED modules of the same specication as those factory-installed in the appliance. See Figure 7 for details how to replace lights. If there is no such gure in this manual, please contact authorised service to replace the lighting module.- 16 -

SALES SERVICE Warranty Warranty service as stated on the warranty card. The manufacturer shall not be held liable for any damage caused by improper use of the product. The manufacturer recommends that all repairs and adjust- ments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. Repairs should be carried out by a qualied technician only. Manufacturer’s Declaration The manufacturer hereby declares that this product meets the re- quirements of the following European directives:

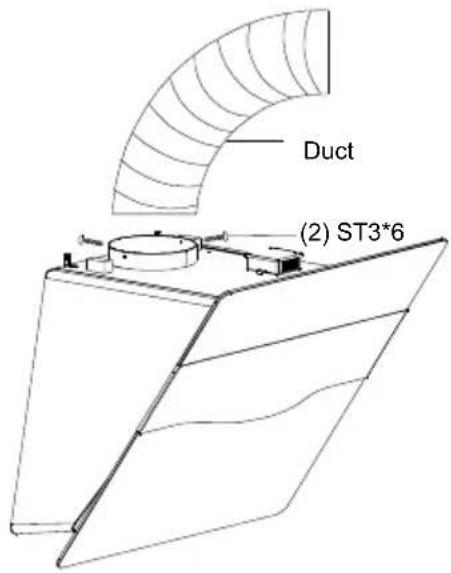

Duct (2) ST3*6 Hood Mounting Bracket (2) plastic tube

Optional Decorative ChimneyTop Decorative Chimney Bottom Chimney Mounting Bracket (2) plastic tube

Duct (2) ST3*6 Hood Mounting Bracket (2) plastic tube

Optional Decorative Chimney Top Decorative Chimney Bottom Chimney Mounting Bracket (2) plastic tube

Duct (2) ST3*6 Hood Mounting Bracket (2) plastic tube

Optional Decorative Chimney Top Decorative Chimney Bottom Chimney Mounting Bracket (2) plastic tube

10×45mm Duct (2) ST3*6 Hood Mounting Bracket (2) plastic tube

Optional Decorative ChimneyTop Decorative Chimney Bottom Chimney Mounting Bracket (2) plastic tube

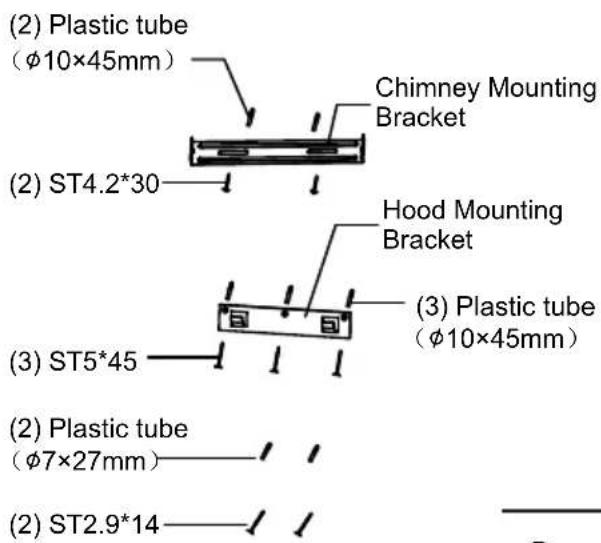

(3) ST5*45 Hood Mounting Bracket (2) ST4.2*30 Chimney Mounting Bracket
