USER MANUAL Transformer EZVIZ

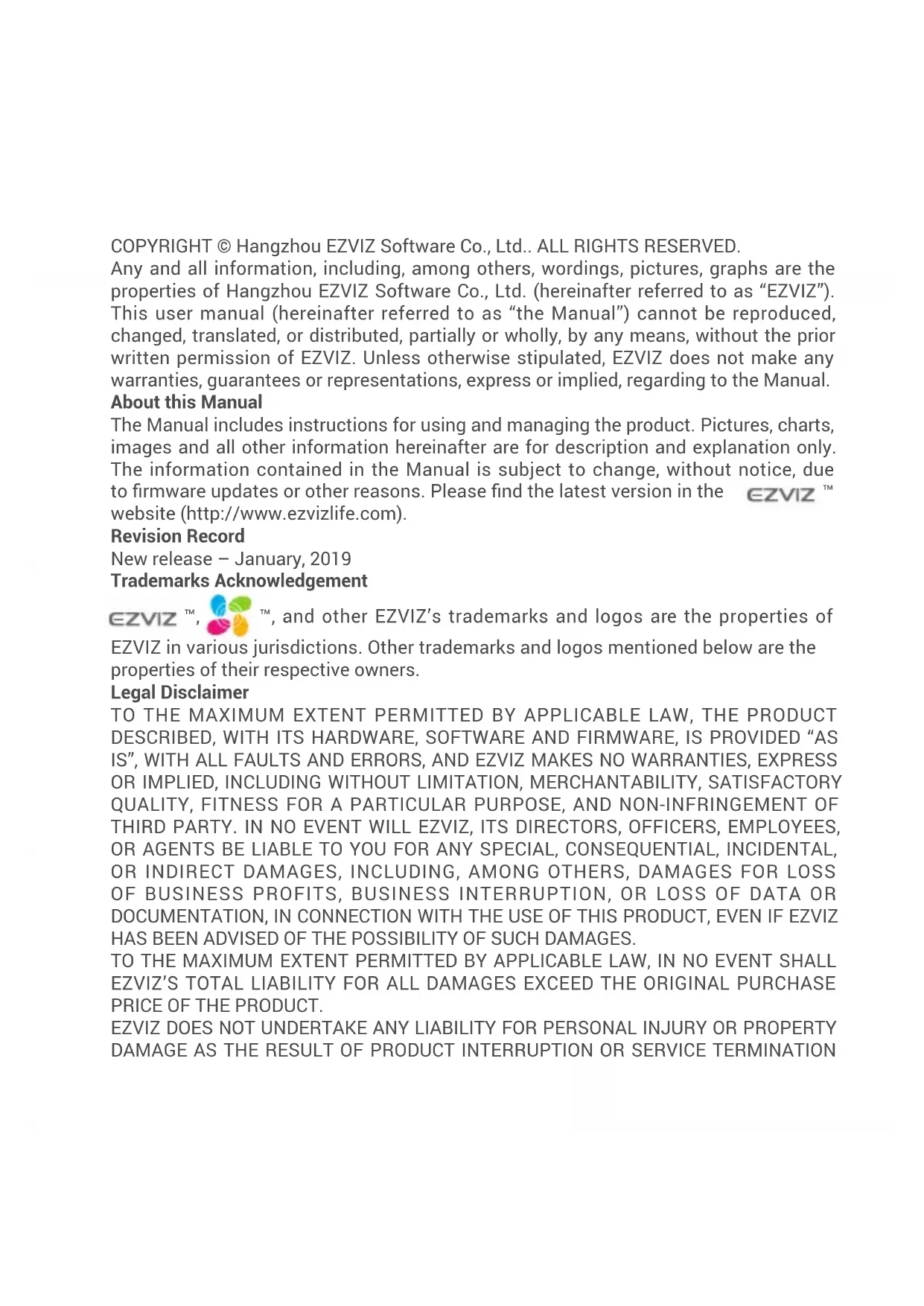

Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou EZVIZ Software Co., Ltd. (hereinafter referred to as "EZVIZ"). This user manual (hereinafter referred to as "the Manual") cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of EZVIZ. Unless otherwise stipulated, EZVIZ does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.

About this Manual

The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the EZVIZ^TM website (http://www.ezvizlife.com).

Revision Record

New release - January, 2019

Trademarks Acknowledgement

EZVIZ™, and other EZVIZ's trademarks and logos are the properties of EZVIZ in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND EZVIZ MAKES NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL EZVIZ, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF EZVIZ HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL EZVIZ'S TOTAL LIABILITY FOR ALL DAMAGES EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT.

EZVIZ DOES NOT UNDERTAKE ANY LIABILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE AS THE RESULT OF PRODUCT INTERRUPTION OR SERVICE TERMINATION

CAUSED BY: A) IMPROPER INSTALLATION OR USAGE OTHER THAN AS REQUESTED; B) THE PROTECTION OF NATIONAL OR PUBLIC INTERESTS; C) FORCE MAJEURE; D) YOURSELF OR THE THIRD PARTY, INCLUDING WITHOUT LIMITATION, USING ANY THIRD PARTY'S PRODUCTS, SOFTWARE, APPLICATIONS, AND AMONG OTHERS. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. EZVIZ SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, EZVIZ WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.SURVEILLANCE LAWS AND DATA PROTECTION LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. EZVIZ SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THE ABOVE AND THE APPLICABLE LAW, THE LATTER PREVAILS.

Regulatory Information

FCC Information

This Camera complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This Camera may not cause harmful interference, and
(2) This Camera must accept any interference received, including interference that may cause undesired operation.

Note: This product has been tested and found to comply with the limits for a Class B digital Camera, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body.

This Camera complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this Camera may not cause interference, and
(2) this Camera must accept any interference, including interference that may cause undesired operation of the Camera.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Radio Equipment Directive 2014/53/EU, the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information.

The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

EC DECLARATION OF CONFORMITY

Hereby, Hangzhou EZVIZ Software Co., Ltd. declares that the radio equipment type [BT16] is in compliance with Directive 2014/53/EU.

The full text of the EC DECLARATION OF CONFORMITY is available at the following web

link:

http://www.ezvizlife.com/declaration-of-conformity.

Safety Instruction

Key Safety Tips for Transformer:

• Inspect your transformer thoroughly to prevent or minimize breakdowns. Before installation, monitor your transformer by checking for any burnt odor, damaged power cords and connectors or any parts that are improperly installed.
• Keep the power off when working on the transformer. Make sure there is zero electrical leakage or continuity between the current source and the system.
• Learn the maximum voltage requirements of your transformer. Be careful of system overload from a single transformer, with the understanding that multiple transformers help balance the impedance of each load.
• Keep spare nuts, bolts and other objects away from your work, so that they don't touch or fall into the transformer.
• Be certain that your transformer is grounded, which will prevent static electricity and protect the coils from contacting the enclosure or core.
• Always keep your transformer and all of its components dry and free from any kind of moisture or water. To protect unskilled onlookers, set up caution signs that warn people to keep away from danger.

Due to the product shape and dimension, the name and address of the importer/ manufacturer are printed on the package.

Customer Service

For more information, please visit www.ezvizlife.com.

Need help? Contact us:

Telephone: [phone]

Technical Inquires Email: [e-mail]

SAVE THIS MANUAL FOR FUTURE REFERENCE

COPYRIGHT © Hangzhou EZVIZ Software Co., Ltd. ALLE RECHTE VORBEHALTEN.

Transformer (x1) Mounting Base (x1) Quick Start Guide (x1)

What's Required for Installation

Head Screwdriver

Installation

Step 1: Shut off power at the Fusebox.

Since you'll be working with high-voltage electricity, first shut off the main power switch on your fusebox or consumer unit.

1

Step 2: Locate your existing Doorbell Transformer.

In order for EZVIZ doorbell to function properly, 12V AC power is a must. Please check if your existing doorbell transformer meets this requirement. If not, please replace yours with the one in the package.

If you need help with this process or live in an area where it's illegal to work inside your fusebox or consumer unit, hire a qualified electrician.

Your transformer is most likely in your fusebox or consumer unit. If not, look in other places where electrical components are installed.

Step 3: Wire your Transformer.

1. Install the mounting base (included) to your new transformer.
2. Disconnect the 4 wires from your existing transformer, and remove it from your fusebox or other install location.
3. Connect these 4 wires to your new transformer, making sure not to swap the mains and secondary wires.
4. Insert the wire ends into each clamp-down terminal, and tighten each connection with a screwdriver.
5. Make sure that each wire is securely clamped for a solid connection.

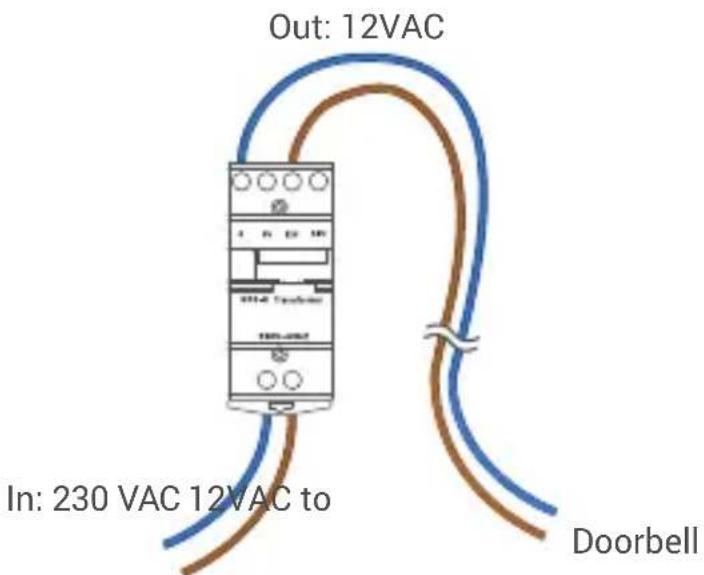

To your EZVIZ Doorbell (0, 12V)

Mains Power In

1. This repurposes those mains wires to carry 12 volt power to your doorbell. The resulting installation should look similar to the following diagram.

EN

Step 4:Restore Power at the Breaker.

For detailed information, please visit www.ezviz.eu.

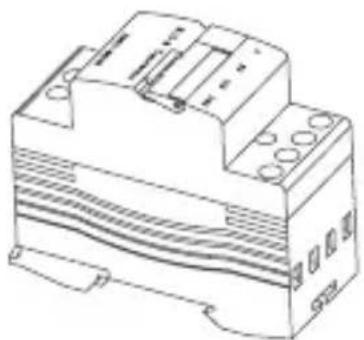

Lieferumfang

1 x Transformer 1 x Montagesocket 1 x Kurzanleitung

Thank you for purchasing Hangzhou EZVIZ Software Co., Ltd. ("EZVIZ") products. This limited warranty ("warranty") gives you, the original purchaser of the EZVIZ product, specific legal rights. You may also have other legal rights that vary by state, province or jurisdiction. This warranty applies only to the original purchaser of the product. "Original purchaser" means any consumer having purchased the EZVIZ product from an authorized seller. The disclaimers, exclusions, and limitations of liability under this warranty will not apply to the extent prohibited by applicable law. No distributor, reseller, agent, or employee is authorized to make any modification, extension, or addition to this warranty.

Your EZVIZ product is warranted for a period of two (2) years from the date of purchase against defects in materials and workmanship, or such longer period as may be required by law in the country or state where this product is sold, when used normally in accordance with user manual.

You can request warranty service by contacting our Customer Service.

For any defective EZVIZ products under warranty, EZVIZ will, at its option, (i) repair or replace your product free of charge; (ii) exchange your product with a functional equivalent product; or (iii) refund the original purchase price, provided you provide the original purchase receipt or copy, a brief explanation of the defect, and return the product in its original packaging. At EZVIZ's sole discretion, repair or replacement may be made with a new or refurbished product or components. This warranty does not cover the shipping cost, insurance, or any other incidental charges incurred by you in returning the product.

Except where prohibited by applicable law, this is your sole and exclusive remedy for breach of this warranty. Any product that has either been repaired or replaced under this warranty will be covered by the terms of this warranty for the longer of ninety (90) days from the date of delivery or the remaining original warranty period.

This warranty does not apply and is void:

If the warranty claim is made outside the warranty period or if the proof of purchase is not provided;
- For any malfunction, defect, or failure caused by or resulting from the evidence of impact; mishandling; tampering; use contrary to the applicable instruction manual; incorrect power line voltage; accident; loss; theft; fire; flood; or other Acts of God; shipping damage; or damage resulting from repairs performed by unauthorized personnel;
- For any consumable parts, such as batteries, where the malfunction is due to the normal aging of the product;
- Cosmetic damage, including but not limited to scratches, dents, and broken plastic on ports;
- Any software, even if packaged or sold with EZVIZ hardware;
- For any other damages free from defects in material or workmanship;
- Routine cleaning, normal cosmetic and mechanical wear and tear.

Please do not hesitate to contact your seller or our Customer Service, with any questions.

EINGESCHRANKTE GARANTIE

IPEPIOPISEMHN EIGYH∑H

Zac eXapioTooue yia thy ayopapnoovTow Hangzhou EZVIZ Software Co., Ltd. (EZVIZ). H napouoa nepiopiaevn eyunon (Evynon) napexei oecoc, tov apxikoyopaTou npoiovtoc EZVIZ, ioka vouka dikaiwupa. Evexetai va exetke alaa vouika dikaiwupaTou noikaiauov avaloya m To kpatoc, thy nepioxni Tn oyakaiobooia oac. H napouoa eyyunon loxuei movo ia tov apxikoyopaTou npoiovtoc. Oc apxikoc ayopaoTnc opizetai onoiooohnte katavaawntc exei ayopaoeI to npoiov EZVIZ ano Egoaobotnevo nwnt. Oi anoianoeic, eiaepoeic kal npiopipoioi euuvcbaoietnc npouoa c eyunonc deyiouv otov bafoiouanayopeutai ano to evapuooteo dikaio. Kavevac diavoueac, metanwantc, avtinpooomegaoc nepyzoevoc deivai Egoiaobotnevoc va npoeei oe onoiabhoteponton, enktaon npoohkn otny napouoa eyyunon.

To npoiov oac EZVIZ kaunntetai eeyunon duo (2) etwv ano tny nepounvia ayopac Tou evavti Eaattwpatwov oukai kai otnv noiotnata kataokcunc nyia eyalutepn xpvikn nepioo, onwc eoxoevc anaiteirai ano tn vooeeia otn xwa nptoKpatoC nolnonc autou tou npoiovtoc, eoov xpnoonoiitai unkavovkec ouvthekc oupwva e to eyxepidio xpnotn.

Mnopeite va unoalte aitnon yia eioekou nikoiovwwovtac tv Eunnpetno nlaatwv.

Tia onoiobnote eatwmuatko npoiov EZVIZ nou kaunrtai ano yyyuon, n EZVIZ, kata tny npoaipoean Tnc, (i) 0a eniakcuos i avtkataotnoe1 to npoiov oac domegaav, (ii) 0a avtaaalei to npoiov oac eva avtiotox oetoupyik npoiov n (iii) 0a eniortpewei to avtituo Tnc apxikn ts uopac, nTv npounoegon ot ta npookoiaote Tnv npwtotunn anodEiyn ayopac n avtypapo autnc ouvtounen EneHynon Tou elattwmuatoc Tou npoiovtoc kal ot Ta eniortpeveTe To npoiov otnv apxikn Tou oukeuaia. KaTn thdiakptkniexepea TNC EZVIZ, n eniokeuun n avtkataoTaon evdexetai va npaypatonoinBcI e veo n eniokeuauqevo npoiov n EApntmuata. H napouoa eyyunon dev kaunrtei Edoa anooTohnc, aoapaiion n allec napenoevec danavec, tic onoe c 0a eniapuvtheite kata tn vienotpnpou

EkToc av anayopeuEaI aTo EapuoTeo dikai, auto elvai To mvo kal anokkloTiko oc evkoipo eo oepin Twn npapaiaanc Tnc npouoc eyyunoc. Ooiobnone npoiov exei eniokuaotei n avtkataoTaee i duvaie Tn c npouoc eyyunoc kauntetai anotouc opouc autnc TNC eyyunoc eite yia dtaoTmaevynta (90) npew ano Tnv npepounvia napadoonc, ete yia tny evanopevouoa apxikn peio do eyyunoc, onioi sivalpeyalutepo.

H napouoa eyyunon 8ev loxuei n 8ewpeitai akupn:

• Eav n aξiωn εγγūnənc εγερθει εκτος της περιδòu εγγūnɔnc ἡ επερίπτωση μη προσκόμιαnc tou anodεικικού αγορά.
  Ia onoiabnnote duoaleitoupyia, eataTwa n 1 npoknnei an no opeiaetai oe eupavn npoekpouon, kako xieipioo, npapoinon, xhon avtioeTn me To oxetiko eyxepidio odnyiwv, eopaamevn taon Tpoopodooiac, atuxna, anwlaia, klonn, npkayia, nnpkupa n aoinec theomviic, babn kat a nnoaToan h znmu aou anoppee i an eiuokuec nou npayatonoiohkav ano m Eosoviootmevo npoowuko.
  Tia onoiabnote avawouma Eapntmuata, onw os matapiec, n duovaleitoupyia twv onoiw vpeiaetau otkavovikn xphon tou npoiovtoc me tny napobo tou xpvou.
• Iia aiothntikc znmuic, ounpneiplaaavouevwv, eTaEu dAawv, ypatzouviwv, baouawmuatwv kai onaouevwv naoTikwv otC hpeC.
• Ia onoiobhntoe loyiomuko, akoun k av ouokvuaotnke n wanthnke paiz e to uiauikoc Tc EZVIZ.
  Tia onoiadnoTE aaan 1aBn nou oev opieiaeal e eaattwmuata e uikakai otny noiota kataokcun.
• Ia ouvθη kaθαριομ, φuoiλoγικ aiθητικ kal μηχανικ φθopa.
  TuaTuXovEpwTnoeic,unDioTaOeTe va eniKoiVwVnoeTe μεTo kataoTma nWλnonc n Tnv Euxnpetnonn eatwv.
