USER MANUAL X200 WOXTER

Click this and open the detectability function
Imagen 4-3

Imagen 4-4

5. Comunicación

5.1 Camara

1.1 Acknowledgements

Many thanks for you choosing this product. The product belongs to Wox-ter X200, which is a kind of mobile internet device, delicate, small and exquisite, and also portable. It is also equipped with a piece of touch LCD of high definition, which can be used to watch videos and pictures of high definition. It supports installation of multiple application programs on office and entertainment. The fantastic operation interface will give you a brand-new user experience.

This manual systematically introduces diversified functions, using skills and matters needing attention of this Woxter X200, please read this manual carefully before using it.

1.2 Safety Notice

Before using Woxter X200, please read information in this section, and make your children learn about the information. About more detailed information, please refer to safety instructions and matters needing attention.

• Please don't use Woxter X200 when you are driving, for fear of hindering safe driving.
  In medical places, please observe relevant stipulations and regulations. And in regions near the medical devices, please shut down Woxter X200.
• Please shut down Waxter X200 or enable the airplane mode when boarding, so that the wireless signals will not interfere control signal of the airplane.
• Please shut down Woxter X200 neighboring electronic equipments with high accuracy, otherwise, breakdown of electronic equipments may be brought about.
• Please don't dismantle the Woxter X200 and its accessories on yourself, and only the authorized agency can maintain this Woxter X200.
• Please keep Woxter X200 far away from magnetic equipment, radiation from Woxter X200 will erase information stored on the magnetic equipment.
• Please don't use Woxter X200 in places with high temperature and inflammable gas (such as nearby gas station).
• Please put Woxter X200 and its accessories in places beyond children's touch, please don't let children use Woxter X200 without supervision.
• During using of this Woxter X200, please observe related laws and regulations, respect privacy and legitimate rights of others.
• Please strictly abide by relevant explanations in this manual when using USB data line, otherwise, Woxter X200 or personal computer may be damaged.

woxter.es

User manual Woxter X100 English

• Please don't use the Woxter X200 in humid environment such as bathroom, etc., and the Woxter X200 being soaked or rinsed by liquid must be avoided.

1.3 Abbreviation/term

Abbreviation/term	Full name Explanations
Woxter X200	Mobile Internet Device	Mobile internet terminal
WIFI Wireless Fidelity		Wireless Local Area Network based on IEEE 802.11b standard
TF Trans Flash		Alternate name Micro SD, super miniature storage card
HDMI	High Definition Multi-media Interface	High definition multi-media interface

2. Brief introduction to the Woxter X200 tablet

2.1 Diagram for Woxter X200 complete machine

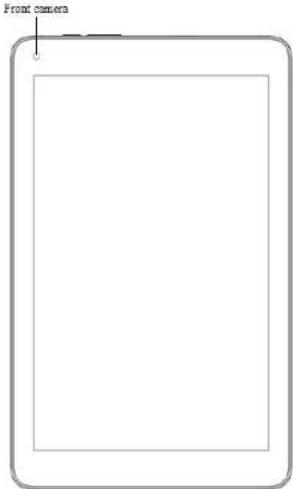

WOxTER X200 front view:

Figure 2-1

woxter.es

WOXTER X200 side view;
Figure 2-2

WOXTER X200 rear view
Figure 2-3

waxter.es

User manual Woxter X100 English

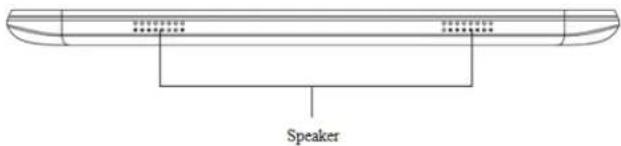

WOXTER X200 bottom view

Figure 2-4

2.2 Introduction to accessories

Packing list

The following articles are included in your packing box of Woxter X200:

Woxter X200
Power adaptor
- USB connecting line
- User's manual

2.3 Woxter X200 state and notice

Iconograph for notification

When a prompt message shows on your notice panel, please click the column box and slide on the screen with your finger to open the notice list. Click options needing to check to see detailed information. Then you may click the message box and slide upwards to close the message window. The following are iconography for icons in status bar:

	Mail notice		Mute
	Gmail notice Without SD card
	Computer and Tablet are connected through USB line		Uploading/Down-loading
	Events waiting to be done		Downloading finished

woxter.es

Alarm clock opening		General notice (for example: synchronous error)
Playing music in data synchronism
Insufficient space of SD card	+	More
WIFI service is connec-ted, network is available		Battery symbol
Airplane mode Charging
Bluetooth is already connected

3. Quick start

3.1 Key function

Descriptions for key function:

Power key●Press this key for a long time to start up ●Under starting up state, press this key for a long time to pop up shutdown option ●Under starting up state, press this key to close the screen. Under starting up state or when breakdown appears, press the power key for 7 seconds to make your device enter into shut-down state
Menu key●Press this key to open menu of the current interface
Return key●Press this key to return the last operating step or the previous operating interface
Homepage key	●Press this key to return back main function interface from any interface

waxter.es

3.2 Starting up and turning off

Starting up

Press the power key for 3 seconds; you can see the starting up picture. After the system is started, the machine enters into screen lock state, please unlock according to direction indication of sliding icon on the interface.

Turning off

After pressing the power key for a long time, the shutdown option will pop up.

Click OK.

3.3 Unlocking and closing of the screen

The machine will close automatically when the screen is left unused.

1. After the screen being left unused for a period of time, the machine will close screen automatically, so as to save battery power.
2. Under screen on state, press the power key, the screen will close immediately.

Prompt: if you want to inquire how to set turn-off time of screen, please refer to chapter 9.1.

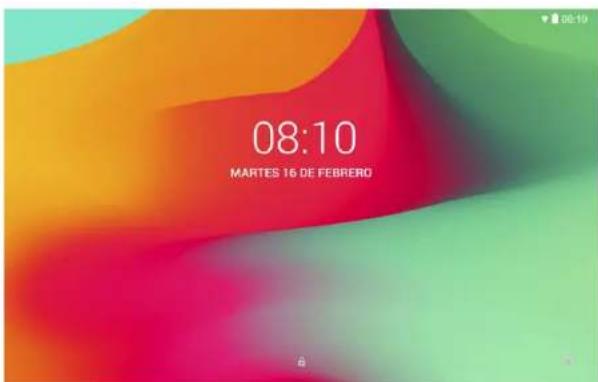

Turning on under screen off state

If the screen is in off state, you can unlock the screen by pressing power key for a short time or the return key for a long time. After opening, the screen will enter lock state, press "lock" icon by your finger and slide upward, the screen will be unlocked, slide on the camera icon, you can enter the camera function.

Figure 3-1

WOxter.es

3.4 Use of touch screen

Operating mode in Woxter X200

There are various ways to skim the main screen, menu and application program, etc. on your Woxter X200.

Click to select

When you want to use screen keyboard entry, and you want to select items on the homepage interface such as application program, you only use your finger to click.

Press on

If you want to unlock the available option of a certain item (such as textbox or interlinkage in the webpage), or move shortcut on the homepage interface and menu of main program, only press the item.

Slide quickly or slide

Quick sliding or sliding means doing rapid vertical or horizontal drag movement by using finger on the picture.

Drag

Before you starting to drag, you must press it with your finger and impose a certain pressure, and don't loosen the finger before dragging to the wanted position.

Rotate

Aiming at most of pictures, only turn the Woxter X200 in side direction, the screen direction can be shifted from cross direction to vertical direction. For example, when you input characters, watch cinema, etc.

All application programs on the machine will be displayed on the main menu screen. You may use application program, shortcut and user-defined mode to set wallpaper of your homepage interface

User manual Waxter X100 English

Figure 3-2

Skill: in any application programs, you can press homepage key to return homepage interface.

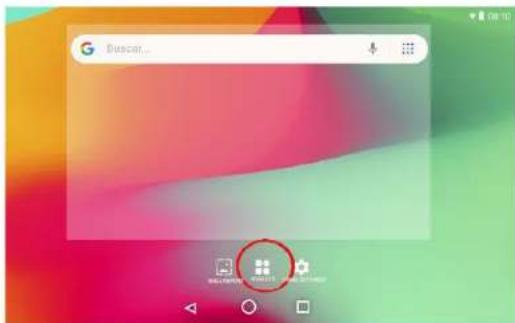

Custom homepage interface

Change desktop wallpaper

Press blank region on the homepage interface to pop up the menu.

»When the menu popping up, choose source of homepage interface wallpaper you want to change.

After clicking source of wallpaper, click picture you want, and then select "setting wallpaper".

Figure 3-3

woxter.es

3.6 USB connection

Storage setting of Woxter X200

Before transmitting document, you must set storage mode for your tablet firstly:
Connect Woxter X200 with computer by using USB transmission line. Notice bar will show the notice prompt.

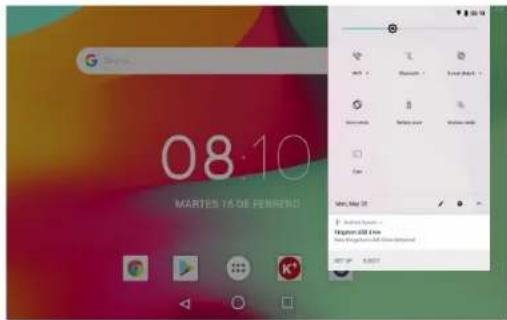

Click status bar, options of status bar show.

Among options of status, click to choose USB connected, then click to open USB storage device.

At this time, USB has already been connected.

Figure 3-4

Copy the document to storage card

Connect Woxter X200 and computer together with USB cable.
After setting according to storage of Woxter X200, connect with computer successfully.

Open your computer, in my computer; examine content in "removable disk (x)".
Find the document you want to copy, copy it to 'removable disk(x)'.
After completion of copying, click "safely remove hardware" in taskbar of your computer to unload.

Content of Woxter X200 storage device

NAND FLASH storage device, space for Woxter X200 to store document itself.
TF removable memory card.
The two above-mentioned storage devices both can be visited through connection with your computer with USB.

woxter.es

User manual Woxter X100 English

Attention: when your Woxter X200 is connected with USB cable, if you start up USB storage device, you will cannot visit the memory card through Tablet, if you want to visit memory card in Woxter X200, only disconnect USB cable.

3.7 Memory card

Copy the document to storage card

You can transmit document between Woxter X200 and computer, such as music and picture, etc. If you want to see documents in Woxter X200, only click the file browser to look through content in the SD card.

Delete documents on the storage card of Woxter X200

Find document you want to delete.

Press the document name you need to delete; a file menu will pop up.

Click delete.

Removing storage card when the Woxter X200 is in starting up state

If need to remove storage card under starting up state of Woxter X200, you must unload the storage card firstly for fear of failure or damage of the storage card.

In the homepage interface, press the menu key, and then click setting.

Pull the setting menu downwards, and then click storage.

Click SD card setting.

Click to uninstall the SD card.

4.1 WIFI Connection

Your Woxter X200 can be connected onto Wi-Fi network to connect the operation:

On the homepage interface, click and select the menu key and pop up the menu setting;
Click and select the System Setting;

»Click Wi-Fi and open Wi-Fi switch;

After opening Wi-Fi, the searched Wi-Fi network can be scanned automatically from the equipment in the windows on the right.

Select the Wi-Fi network required to be connected, if the password is added, pop up the password input windows and input the corresponding password.

»Click the Connection

Figure 4-1

Figure 4-2

4.2 Bluetooth Connection

Functions of Bluetooth:

You can exchange the files between two Bluetooth. You can exchange the files with other computers, mobile phones and PDA.
You can synchronously exchange pins data with mobile phones, PDA and laptop to support the Bluetooth (data of outlook E-mail address).
You can exchange the electronic name card with mobile phones, PDA and laptop to support the Bluetooth.
You can connect the keyboard, mouse and joystick to support the Bluetooth.

Application of Bluetooth (Figure 4-3)

Setting procedure of entering into Bluetooth: set Bluetooth set, open the Bluetooth equipment
»Name of equipment: you can randomly change the name of Bluetooth for your Woxter X200 by pressing Menu key.
Detectability: open this function by clicking the place for name of Bluetooth, which indicates that your Woxter X200 Bluetooth can be searched by other Bluetooth equipments, this default time for this opening is of 120 seconds.
Scan and look for equipment: you can detect the equipment desired to be connected by utilizing this function.
Bluetooth: after employing the scan to look for the equipment, all Bluetooth equipments searched by your Woxter X200 can display under this function.

Figure 4-3
Figure 4-4

woxter.es

5. Communication

5.1 Camera

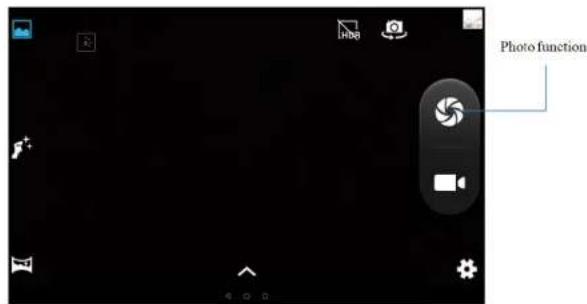

Camera functions

Click and select the camera;
The system enters into the camera interface;
Click and select the Photo button and easily take the photos;

Set such functions as photo sine, storage location, white balance and focal length regulating;
After completion of taking photo, there is the display for previewed minimap.

Figure 5-1

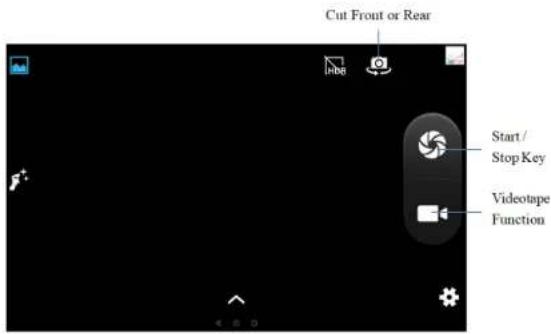

Videotape function

»Click the videotape icon and convert it as video recorder mode;
»Click and select the red videotape button to take video;

Set such setting functions as color effect, white balance and video quality;
Switch 720P and 480P high-definition video recording.
Click and select the video recording button, end the video recording and observe the previewed video

waxter.es

Figure 5-2

5.2 HDMI

HDMI High-definition video interface

The Woxter X200 and the high-definition television are connected by a standard HDMI cable. This interface supports the picture with highest quality of 1080p resolution ratio.

Woxter X200 is in the boot status.

» The Woxter X200 and the high-definition television are connected by a standard HDMI cable.
The system interface on Woxter X200 is automatically synchronized with the high-definition TV screen.

Click Display in the settings menu.
Click Output Select to switch HDMI mode.
Click Resolution to set the resolution ratio of HD TV.

6. Other Applications

6.1 File Management

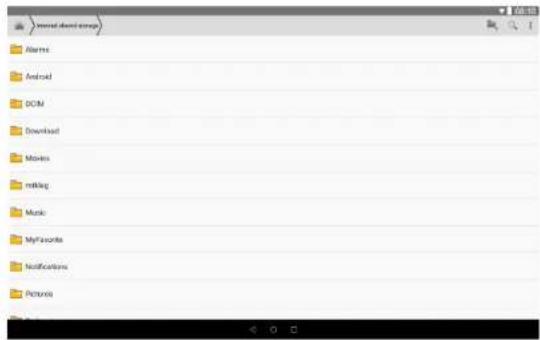

Browse files

Slide the desktop to locate the File browser.

You can use the file browser to manage, edit and delete the files and folders, or to create sharing and FTP server to achieve resource sharing.

Figure 5-3

Cut and copy files

In the file browser, press and select the file you want to operate.

Pop up operating menus, including Cut, Copy, Delete, Rename, Move to, Copy to, Play music, Select all, Set home directory and Attributes, etc.
Click Cut or Copy file or folder.
Click into the folder you want to paste, and pop up menu by pressing the Menu key.
Click Operate and then click Paste.

Delete files

In the file browser, press the file you want to delete.

ClickDelete.
»Click OK to delete file.

Folder setup

In the file browser, pop up menu by pressing the Menu key.
Click Create.
»Click Folder.

Click pop-up window and input the name of the new folder in the text box.
Click OK to create the folder.

Quick search

In the toolbar of the file browser
»Click Search icon.

User manual Woxter X100 English

Pop up the search panel and enter the keywords you need to find.

Click OK and the search progress bar will appear in the notification bar.
When the search is completed, pop up the dialog box to confirm whether to show the results.
»Click OK to show the search results.

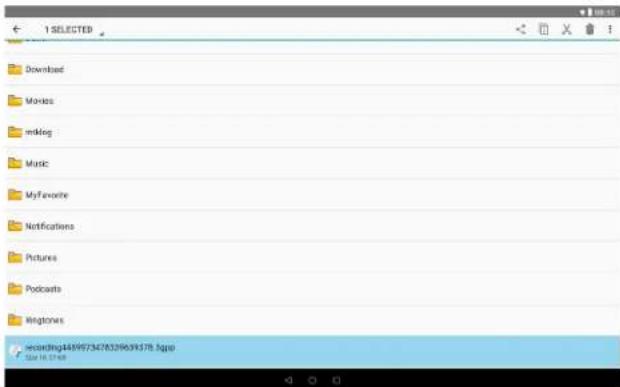

Create sharing

Load ES file browser. (Fig. 5-4)

Click 'Local' at the upper left corner and select 'Share' in the pop-up window.
» Click the menu bar 'Create', and select Search' in the pop-up window.
The system will automatically search all the computers within the LAN, and each drive of your computer can be seen by clicking OK.
You can Copy, Delete, Rename here.

Figure 5-4

7. Important. Attention:

The indicated storage capacity corresponds to the amount of memory installed in your device. The operating system and the pre-installed applications occupy part of that memory, so the available memory capacity will be lower.

TIPS TO TAKE INTO ACCOUNT FOR THE CORRECT LOADING OF YOUR TABLET.

Load preferably in places away from flammable products.
Monitor and control the loading period (not to exceed the recommended period).
Use only the original charger
Do not leave the Tablet charging at night.
Do not leave the Tablet on textile surfaces during loading.

The images in this document are only referential; they may be different from the device interface. The design of the interface may change due to device updates or changes made to its settings.

8. Technical security requirement

The power adapter is the device disconnect device. The socket outlet must be close to the equipment and easily accessible.

Google, Android, Google Play and other marks are trademarks of Google LLC.

1. Einführung

1.1 Danksagung

Applications Bluetooth (Figure 4-3)

7. Important Attention:

Click this and open the detectability function

Immagine 4-3

Click this scan to search for the equipment

Immagine 4-4

5. Comunicazione

5.1 Fotocamera

Vista traseira do WOXTER X200;

Imagen 2-3

waxter.es

Manual do uso Waxter X100 Portuguese

Vista inferior do WOXTER X200

Imagen 2-4

3.5 Interface initial

Click here and select WFI network
Imagen 4-1

Imagen 4-2

4.2 Conexão Bluetooth

Funções Bluetooth:

»Vocé pode trocar arquivos entre dois dispositivos Bluetooth, como computadores,telefones celulas e PDAs.

Click this and open the detectability function
Imagen 4-3

Click this scan to search for the equipment
Imagen 4-4

5. Comunicação

5.1 Camera

Funções da camera

Cut Front or Rear
Imagen 5-2

5.2 HDMI
