Nimbus 100Q - Tablet WOXTER - Free user manual and instructions

Product Type	Tablet
Brand	Woxter
Model	Nimbus 100Q
Display Size	10.1 inches
Display Type	IPS LCD, 1280 x 800 pixels
Processor	Quad-core 1.3 GHz
RAM	1 GB
Internal Storage	16 GB
Expandable Storage	microSD up to 32 GB
Operating System	Android 4.4 KitKat
Battery Capacity	6000 mAh
Dimensions (W x H x D)	240 x 170 x 8.5 mm
Weight	510 g
Camera (Rear)	2 MP
Camera (Front)	0.3 MP
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Ports	Micro USB, 3.5 mm audio jack, microSD slot
Sensors	G-sensor
Care & Cleaning	Wipe gently with a soft, dry cloth. Do not use liquids or abrasive cleaners.
Safety Warnings	Keep away from water and heat sources. Do not disassemble. Use only approved charger.
Spare Parts & Repairability	Battery is not user-replaceable. Charger and USB cable can be replaced. Contact authorized service center for repairs.
General Information	Ideal for web browsing, video playback, and light apps. Supports multiple languages.

Frequently Asked Questions - Nimbus 100Q WOXTER

How can I insert or remove a microSD card?

Locate the microSD slot on the side of the tablet. Gently push the card in until it clicks, or press to eject. Ensure the device is off before removing.

What is the battery life of the Woxter Nimbus 100Q?

With normal use, the 6000 mAh battery provides up to 6-8 hours of mixed usage, depending on screen brightness and running apps.

Can I use a mouse or keyboard with this tablet?

Yes, you can connect a USB mouse or keyboard via an OTG adapter (not included). Bluetooth devices are also supported.

How do I reset the tablet to factory settings?

Go to Settings > Backup & reset > Factory data reset. This will erase all data, so back up important files first.

Does the tablet support GPS?

No, the Woxter Nimbus 100Q does not have built-in GPS. It uses Wi-Fi positioning for approximate location services.

What is the screen resolution?

The display resolution is 1280 x 800 pixels, providing clear visuals for videos and reading.

Can I charge the tablet with a phone charger?

Yes, as long as the charger outputs 5V/2A or compatible. Using a lower power charger may charge slowly.

How do I take a screenshot?

Press and hold the Power button and Volume Down button simultaneously until you see a flash. The screenshot will be saved in the Gallery.

Is there a headphone jack?

Yes, a standard 3.5 mm audio jack is located on the top edge for connecting headphones or speakers.

What are the available storage expansion options?

You can expand storage using a microSD card up to 32 GB (not included). Insert it into the dedicated slot.

USER MANUAL Nimbus 100Q WOXTER

Woxter Tablet PC

(Android4.1)

manual de usuario

user guide

www.woxter.com

Encender/Apagar 2

Usar la pantalla digital 2

Interfaces 2

Close-up of a camera control panel with no visible text or symbols on the dial (text is part of the diagram)

☆Admite POP3 and SMTP.

1. Volver

2. Memoria interna

3. Micro SD

4.Memoria USB

Cargar

Using touch screen 2

Interfaces 2

1. Desktop....2
2. Locked screen (modified) 3

Operating programs 3

1. Player 3
2. Music 4
3. Recorder 5
4. Camera 5
5. Browser 6
6. Play store....7
7. Calendar 7
8. Clock....7
9. Calculator 8
10. Downloading 8
11. Map 8
12. Email 9
13. File manager .... 11

Settings 12

Wi-Fi settings....13

3G settings....13

Use of extended storage 14

1. Using USB disk....14
2. Using TF card....14

Downloading, installing/uninstalling applications 15

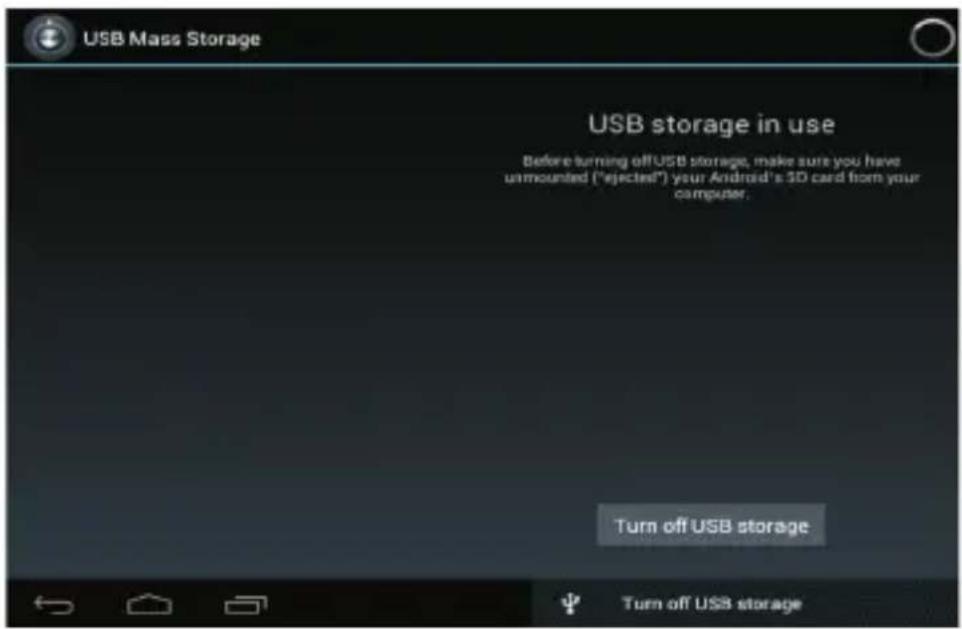

Connecting to PC 15

Charging 16

Precautions 16

Power on/off

Power on: press and hold the power key for 5 seconds

Power off: press and hold the power key for 5 seconds→ click Power off → click OK

Lock/unlock screen: press the power key swiftly to lock/unlock the screen

Forced shutdown: in case of no response of the device, press the Reset key to reset the device by force

Note: do not use forced shutdown unless necessary. Shutdown the device following power off steps.

Reset key: press this key to reset the device.

Using touch screen

Single click: click an icon to select the option you require.

Press and hold: select an icon and hold to drag it to the desktop.

Drag: drag on the desk to switch among different interfaces.

☆ To avoid scratching or damaging the screen, never put any thing on it.

Interfaces

1. Desktop

1: View all applications 2: Shortcut to voice search 3: google search

4: Return 5: Return to desktop 6: Select maltitaxk

7: Shortcut to menu 8: USB logo 9: TF card status

10: Time 11: 3G/WIFI status 12: Battery status

On the desktop, use the Menu button to display function list System Settings where you can operate accordingly. You can set frequently used programs on the top of the desktop by clicking and holding the program you want and dragging it to the desktop.

2. Locked screen (modified)

If there is no operation for a long time, or when you press the power key, the device will enter standby mode. There are two standby modes, one is sleep mode, the screen is off in this mode, and if you press the button key, it will wake up and enter nap mode, as shown in the picture. In this mode, click and

hold Lock/unlock icon, there identifiers at A\B\C positions will appear as shown in the picture.

In this interface, Camera icon is at A position, Unlock icon is at B position, and Google icon is at C position. The system will prompt you the currently activated path, as shown in the picture, the ripples at B position show the activated path. You can click and drag the Lock/unlock icon to B position to unlock the screen, to A position to activate the camera, or to C position to activate Google browser.

Operating programs

1. Player

AVI, WMV, RM, RMVB, 3GP, MKV, MP4, ASF, VOB, MPG, MOV up to 1080P HD-Definition Playing video

Supported image formats: JPEG, BMP, GIF, PNG

1. Click Video to enter player interface.

2. Select a video file to play and the system will enter video playing interface. Click icons on the screen to adjust the video accordingly (volume +/-, playing process bar, storage play, brightness +/-, pause/play, next video, screen size, desktop play, return, menu).

Note: System ver. 4.1 supports desktop multi-menu video playing mode. You can simply desktop-play the video by selecting the desktop playing menu. With this function more than one video can be played at the same time on the same device.

1. Select picture to enter Picture viewing interface, and slide the screen to view pictures.

2. Select icon at top right corner to view details of the video, or to select the functions such as auto viewing, rotating or cutting the pictures.

3. Select icon at top right corner to delete files in the player.

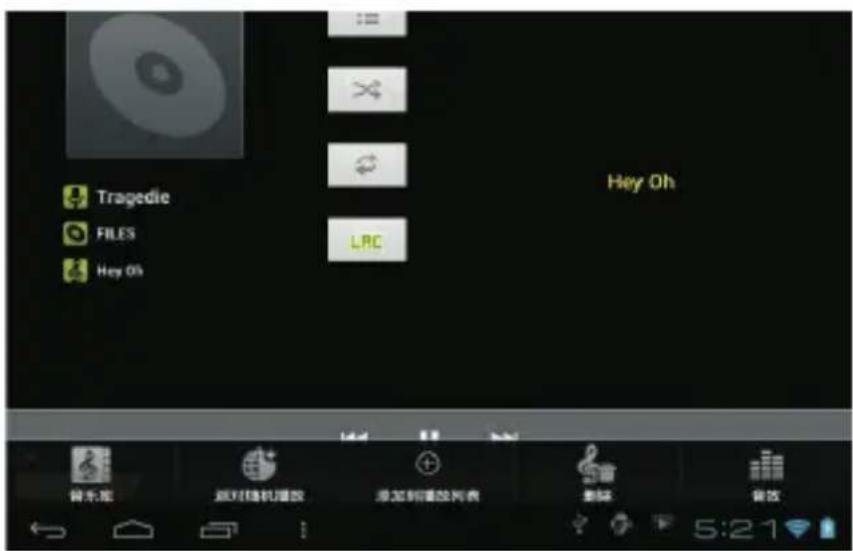

2. Music

Supported audio formats: MP3, WMA, OGG, FLAC, WAV, ACC.

1. Click the icon Music to enter player interface.

2. Select the music you want to play from track/album/artist/playlist.

3. Click Previous→Pause→Next icons to operate the playing.

4. You can click ← to go back to previous interface or click → to return to desktop while keeping the music playing.

You can operate the playing music by using the menu key. The interface is as follow:

Click icon sound/reward to enter recorder mode (see the picture).

Click to start recording, and click to stop. Click to play the recorded audio. The recorded files are named according to the recording time. You can select any one to play. In the above picture, the finger shows the sound wave intensity and the time shows the recording time.

4. Camera

Taking a photo

1. In camera interface, click to take a photo.

2. The photo will be saved.

3. For system ver. 4.1, you can drag the taken photo to enter the album directly. When entering album from camera mode, you can view the pictures in thumbnails and up to three pictures.

1. Click Return to go back to album

2. Click to enter camera settings.

Recording a video

1. Click to switch to video. You can record video.

2. Click to start recording and click to stop.

3. The video file will be saved.

4. Click the thumbnail to play this video.

5. Click Return to return to camera.

6. Click to switch back to camera interface.

7. Click to enter recorder settings.

Note: you can click 📄 to switch between front and rear camera (only available in models with double cameras).

5. Browser

1: The previous page, you can select and view; 2: The current; 3: Add new page 4: Menu key Note: Thesystemver.4.1 includes Google browser. You will be asked to select browser mode when using for the first time, and you can select anyone you like. Thenew browser

6. Play store

Open Play Store to view and download applications.

When running play store for the first time, you will be asked to login with your google account, (if you don't have a gmail account, apply one at http://gmail.google.com).

7. Calendar

Click Calendar calendar icon.

When running the calendar for the first time, you will be asked to login. Input your email address and password, click next, and complete the settings according to the guide. Then you can use the calendar.

New event

1. In Calendar interface, click the date you want to add a new event to.
2. Select the time of the event → Input the details of the event in each field.
3. Click Complete.
4. Select the calendar interface you want according to the menu.
   ☆ Date showing in gray means there is an agenda.

8. Clock

Click Clock Clock icon. You can view the current date and time.

Alarm clock

You can set more than one alarm clocks at the same time.

When icon appears on the screen, it means at least one alarm clock is activated.

Adding alarm clock

1. Click Clock Clock icon.
2. Click menu→ Add alarm clock
3. Set the alarm clock you required.

If Repeat is not selected, the alarm clock will be deleted after alarming.

1. Click Activate clock.
2. Click Complete.

Closing alarm clock

When reaching the set alarm time, a window with the name of the alarm clock will pop up. If want the clock to alarm again after 10 minutes, click Pause and alarm again. Click Cancel to stop the alarm.

Activating alarm clock

If the alarm clock is set to repeat, you may want to pause the alarm instead of deleting it.

1. In alarm clock interface, click the icon 📊 after the alarm clock you want to activate.

2. Click to reactivate.

Editing alarm clock

Clock icon, → Click

1. Click and enter the alarm clock you want to edit → Edit.

Deleting alarm clock

Clock icon, → Click

1. Click Clock Clock icon, → Click

2. Click and enter the alarm clock you want to delete.

3. Click Delete alarm clock.

Click to return to desktop.

9. Calculator

1. Click Calculator icon.

2. Click numbers and operators to calculate.

3. Click Clear to clear the input one by one, or click and hold Clear to clear all inputs.

10. Downloading

1. Click Downloads icon.

2. You can view the downloaded software and select one to install.

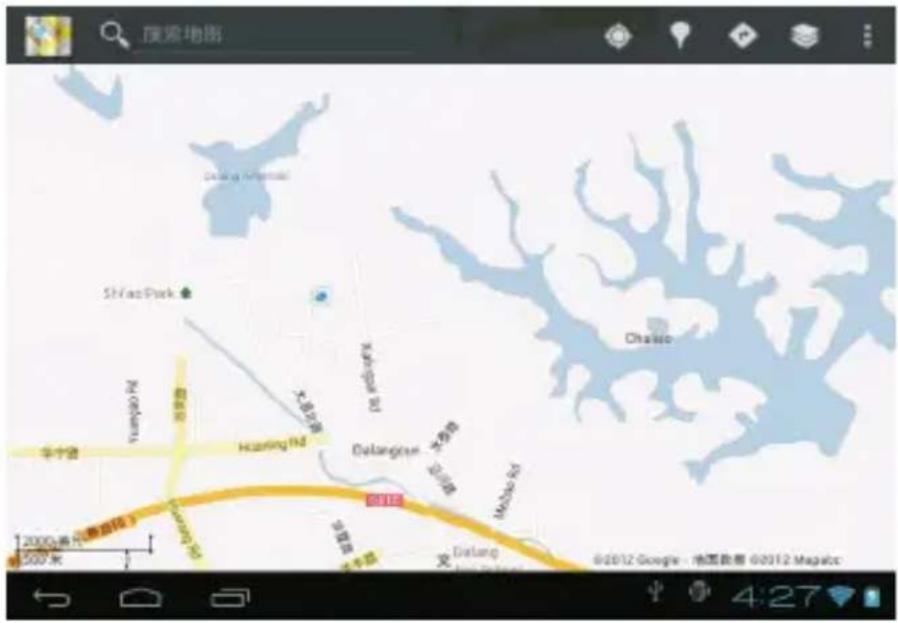

11. Map

To use this function, make sure you have an Internet access.

When there is an internet access, click icon Maps to open the map where you locate. You can search for the information you want as shown in the picture.

12. Email

Support POP3 and SMTP.

Adding email account

You can input one or more email addresses you want to use on the device.

1. Click Email Email icon.

2. In Your account interface, click Next.

3. Click Email address option→ Input your email address.

4. In Password option → Input your account password.

5. Click Complete.

6. Manual setting (optional): the server will select provider (gmail.com, etc.) automatically according to your email account. However, if you want to change server settings, you can click Manual setting and make changes.

7. Click Next.

8. Optional: input account name.

9. Input name to display when sending message → Click Complete.

☆ After setting, if you cannot connect to a free email account, please confirm with your email provider if their server support POP and SMTP or not.

Inbox

1. Click Email Email icon.

2. If you set only one email account, it will open directly. If you set more than one email accounts, you will see the email account list.

3. Click the email account you want to open → Click Inbox.

Opening an email

1. In Inbox interface, click an email to open it.
2. Click an attachment (if any) to enable a corresponding application to open it, or you can click Save to save it to SD card.
3. If you want to Reply, Click Reply or Reply all.
   a. Enter the message you want to reply in Writing email option. b. Click Send to send the email; you can also save it as draft without sending it. The email will be deleted if you don't save or send it.
4. To delete an email, click Delete.

Writing a new email

1. In Inbox interface, click Menu→Write
2. Click Send to option, then enter address of the Receiver.
3. If you want to cc or bcc to other receivers, click Menu → Add cc and bcc, then enter the email address of the receiver.
4. Enter the subject in the title bar.
5. Click Write an email option to enter your personal information.
6. If necessary, click Menu → Add attachment to add attachment files.
7. When you complete writing, click Menu→Send.

Editing email account

1. Click Email Email icon.
2. In Inbox interface, click Menu→ Account setting.
3. Set your email account according to your needs.
4. Click to return to Inbox interface.

Deleting an email account

If you have more than one accounts, and if you delete the default account, the next one in the list will become default.

1. Click Email Icon.

2. In Inbox interface, click Menu→ Account.

3. Click and hold the account you want to delete.

4. In the pop up Account option window, click Delete account.

5. Click Yes to confirm to delete.

Setting default account

You must always have a default account. Therefore, if you have more than one email accounts, you can select one as default.

1. Click Email Email icon

2. In Inbox interface, click Menu→ Account setting.

3. Click Default account to select it.

If you delete the default account, the next one in the list will become default.

13. File manager

Click File Manager File manager icon to view all files saved in the device (internal store, SD card, USB disk), and you can install Android applications to your device in a fast and convenient way.

1. Return 2. Internal storage 3. Micro SD card 4. USB disk

2. Pictures 6. Videos 7. Toolbox 8. File management

Copying files between devices

You can use file browser to copy files among external storage, internal storage and PC. To copy a file into the device, you must firstly copy it to SD card or USB disk.

1. Click 📄 or 🌐 to display files saved in the storage device.

2. Click and hold the file or folder you want to copy → click Copy.

3. Click icon 📄 to return to internal storage of the device → click the folder you want to copy to → click Paste.

Deleting a file

Click and hold the file or folder you want to delete → Click Delete → Click Yes to confirm to delete.

Settings

Wireless network
Wi-Fi		Set and manage wireless access point (refer to WIFI setting for details).
Traffic		Set and manage data traffic.
More..	Flight mode	Enable/disable flight mode
	Ethernet	Configure wired network.
	VPN	Configure VPN network
	Mobile network	Set 3G network (refer to 3G settings for details)
	3G support info.	Display 3G dongle model supported by the device
Device
Sound	Volume	Adjust volume of media, alarm clock and notification. Click and slide to adjust volume and then click OK.
	Notifying ringtone	Select the notifying ringtone you want.
	Screen lock prompt tone	Prompt tone when screen is locked/unlocked
Display	Brightness	Click and slide to adjust brightness and then click OK.
	Wallpaper	Set wallpaper
	Auto rotating screen	If this option is checked, the screen will switch between horizontal and vertical according to the direction of rotation.
	Sleep	Adjust sleep time.
	Font size	Adjust font size in the interface.
	G-sensor coordinates	Select coordinates. Some games require special coordinates.
	Screen adapting	Adjust screen display size for some games.
Storage		Display storage status.
	Format SD card	Delete all data saved in SD card.
Battery		Display battery status.
Applications		Manage and display status of applications in the device.
Personal
Account and sync		Add and manage accounts in the device.
Location service		Set Google location service and Google search applications.
Security	Screen saver	Set screen saver
	Password	Password input settings.
	Device management	1. Add or delete device manager.2. Unknown source APK installation settings.
	Credential storage	Manage application access surety credentials and other credentials.
Language and		Set default language
input method	Keyboard and input method	Set default keyboard and input method
	Mouse/Touchpad	Adjust mouse speed.
Backup and reset		1. Backup/restore device data.2. Restore default settings.
System
Date and time		Set or adjust time and date in the device.
Auxiliary functions		Set auto rotation, display font and touch screen effect.
Developer options		Basic applications for developers.
About the tablet PC		View system status, battery status, legal info, model, Android version, core version and version number.

Wi-Fi settings

Many functions require Wi-Fi connect, so we suggest you use the preset Wi-Fi network.

1. Click Settings → Settings → Wireless and network
2. Enable Wi-Fi.

The device will search and list all available Wi-Fi networks automatically. The icon beside Wi-Fi means you need to enter a password to connect to it.

1. Click the Wi-Fi network you want to connect to → if there is password, you need to enter

the password → Click Connect. After connecting to WIFI network, you will see icon on the desktop.

1. Click to return to desktop.

If your Wi-Fi is set to hidden, it will not be searched automatically. You need to click Add Wi-Fi network, and then enter required information to add your Wi-Fi.

3G settings

1. Before connecting to a 3G network, make sure you are using a 3G network card supported by the device. This device only supports external USB 3G network card. You can view all

3G models supported by the device from network→More→3G support info

Settings → Wireless and

1. After install a SIM UIM card to 3G network card, install the 3G network card on USB OTG connection wire, and the connect to the device.

1. After connecting to 3G network card, click Settings → Wireless and network→More→Mobile network for 3G network settings.

2. Enable mobile network and check Enable data traffic→Data roaming, then select Access point name, select Menu and then select: Add APN for network setting.

Take China Union 3G network for example, the settings are as following:

Name: 3GWAP/APN:3gnet/Proxy:Notset/Port:80/Username:Notset/Password:Notset/Server:

Not set/MMSC: Not set / MMS proxy: Not set/ MMS Port: Not set / MCC:460/ MNC:01/

Authentication type: Not set/APN type: Not set/APN protocol: Not set

After setting, you will be able to connect to 3G network, when you will see the icon in the screen. When this icon is gray, it means the system is searching for network, and when it is blue, it means the

network is successfully connected. The icon 📄 means there are data transmission.

Use of extended storage

1. Using USB disk

Insert the USB disk into OTG connection wire, → then insert the OTG connection wire into the USB OTG port of the device. You can use the U disk when it is ready.

Do not insert and remove USB disk repeatedly in a short time, otherwise it may damage the USB disk.

2. Using TF card

The device supports up to 32GB storage card.

Insert the storage card into the card slot, and press it down with your finger, the message Preparing for SD card will display on screen. When this message disappears, it means the TF card is ready, and you can use it.

Removing TF card

Close all applications or files on the card. Click Settings → Settings → TF card and device storage → Remove TF card. Tender press down the card and it will be ejected. Then move it out.

Do not insert and remove the card repeatedly in a short time, otherwise it may be damaged.

We recommend you to use card with famous brand to avoid incompatibility.

Downloading, installing/uninstalling applications

You can find many free interesting Android applications in the internet. Simply open the

browser and search for Android applications:

The Android applications you purchased or downloaded can be installed through

File manager in a fast and easy way.

1. Copy the .apk file you want to install to SD card or USB disk → Insert the card or connect USB disk to the device.

1. Click File Manager File manager icon.

1. Click or and find the folder in which .apk file is saved.
2. Select a .apk file → Install. After installing, the icon of the application will display in the interface where all applications are displayed.
3. Click to run the application directly, or click Complete to return to File manager interface.

Downloading and installing application from internet

You can download Android applications from internet or other e-market directly and install them into your device quickly and conveniently.

1. Click Browser icon to connect to internet.
2. Enter address and click the download link of the application you want to download to the device.
3. After downloading, click and hold the download file (in download record interface), → Click Open → Install.

Uninstalling application

You can uninstall any installed Android application conveniently.

1. Click Menu → Settings → Applications → Manage applications.
2. Click the application you want to uninstall, → Uninstall.
3. Click Yes to confirm to uninstall.

Connecting to PC

1. Connect the device to a PC, then this device can be used as a mobile storage device. When using a USB cable to connect to PC, connect one end of the cable to the USB OTG port of the device, and the other end to USB port of PC.

2. After connection, the device will prompt icon ____, and click it and select

, then select Enable USB device, then you can save data to the device via PC, as shown in the following picture:

Charging

Connect one end of the power adaptor to supply socket, and the other end to the power socket of the device for charging.

During charging, the icon of battery will be 📄, and when charging completes, the icon will

be

• You can charge the device via USB cable.
- You can still use the device while charging, but this will prolong the charging time.
• Use the device at least once every week.
• Fully charge the battery regularly.
- Don't keep the battery empty for a long time.

Precautions

Please follow the following safety precautions when using your device.

• Do not expose the product to direct rain or humidity.

• Keep the device away from direct sunlight or heat source.

• Protect the power cable. When connecting the power cable, do not step on it, put anything on it or press it by force. Give a special protection to the plugs of the power cable.

• Please use approved power adaptor for charging, otherwise it may cause damage.
  ● Never disassemble or repair your device without authorization.
• Always touch the screen tenderly. If you want to clean the fingerprint or dust on the screen, please use a soft cloth such as lens cloth but do not use a coarse cloth.
  ● Pictures in this manual are for demonstration purpose only and may differ from the real product.

*Product names, logos, brands, and other trademarks featured or referred to herein are the property of the respective trademark holders. Trademark holders are not affiliated with the product manufacturer or reseller and do not sponsor or endorse this product.*

Made in China
