30.5051 - Measuring equipment TFA - Free user manual and instructions

Product type	Digital thermo-hygrometer
Brand	TFA (Dostmann)
Model	30.5051
Housing dimensions	61 x 24 (31) x 61 (65) mm (with stand)
Weight	44 g (device only)
Power supply	1 x 1.5 V AAA battery (not included)
Temperature measurement range	-10°C to +50°C
Temperature accuracy	± 1°C
Humidity measurement range	10 % to 99 % RH
Measurement refresh rate	Every 10 seconds
Display	Digital display with segments
Wall mount	Magnetic stand with adhesive
Intended use	Indoor ambient temperature and humidity measurement
Care and cleaning	Soft damp cloth, no solvents or abrasives
Safety instructions	Do not repair, disassemble or modify; keep out of reach of children; handle batteries with care
Waste disposal	Device complies with WEEE directive; used batteries must be returned to retailer or recycling center
Spare parts and repairability	No spare parts available; repair by manufacturer only
Package contents	Device, magnetic stand, battery not included

Frequently Asked Questions - 30.5051 TFA

How to replace the battery of the TFA 30.5051 thermometer?

Open the battery compartment located on the back of the device. Remove the old battery and insert a new 1.5 V AAA battery, observing the indicated polarity +/-. Close the compartment. The device turns on automatically.

What to do if the display shows nothing?

Check the battery polarity and replace it if it is discharged. If the problem persists, make sure the battery is making good contact and that the compartment is properly closed.

How to clean the thermo-hygrometer?

Use a soft damp cloth. Never use solvents, alcohol, or abrasive products that could damage the device.

The display shows LL or HH, what to do?

The LL or HH indications mean the measured value is outside the measurement range. For temperature, the range is -10°C to +50°C and for humidity 10 to 99%. Place the device in a suitable environment.

Where to place the thermo-hygrometer for reliable measurement?

Place the device away from direct sunlight, heat sources (radiators, ovens) and excessive humidity. For a representative measurement of ambient air, avoid drafts and areas too close to exterior walls.

Can the thermometer be mounted on the wall?

Yes, the magnetic stand can be attached to the wall using the adhesive provided. Clean the surface before sticking the stand. The device then attaches magnetically.

What is the accuracy of the humidity measurement?

The manual does not specify the exact tolerance for humidity, but the sensor is designed for common household use. For professional measurements, a calibrated device is recommended.

How to know if the battery is low?

If the display becomes dim, segments flicker, or measurements seem erratic, replace the battery. A weak battery may leak; replace it as soon as possible.

Can I use the device outdoors?

The device is designed for indoor use. It is not protected against excessive humidity or weather. Do not expose it to rain or prolonged moisture.

What to do with used batteries?

Do not throw batteries in household waste. Return them to your retailer or deposit them at a recycling center in accordance with local regulations. Batteries contain substances harmful to the environment.

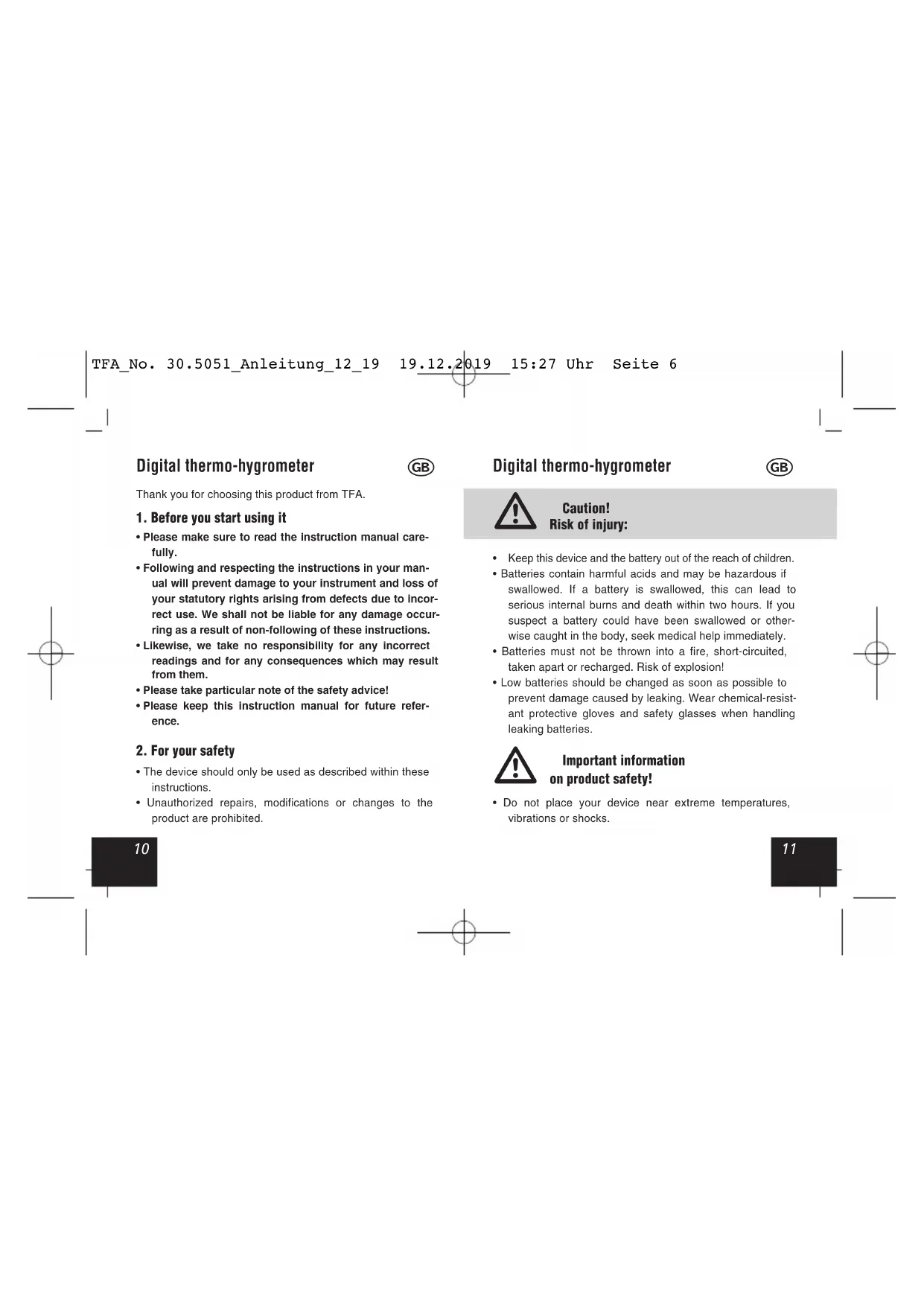

USER MANUAL 30.5051 TFA

Thank you for choosing this product from TFA.

1. Before you start using it

• Please make sure to read the instruction manual carefully.
• Following and respecting the Instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use. We shall not be liable for any damage occurring as a result of non-following of these Instructions.
• Likewise, we take no responsibility for any incorrect readings and for any consequences which may result from them.
• Please take particular note of the safety advice!
• Please keep this instruction manual for future reference.

2. For your safety

• The device should only be used as described within these instructions.
• Unauthorized repairs, modifications or changes to the product are prohibited.

Digital thermo-hygrometer

Caution! Risk of injury:

• Keep this device and the battery out of the reach of children.
• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

• Do not place your device near extreme temperatures, vibrations or shocks.

• Clean the instrument with a soft damp cloth. Do not use solvents or scouring agents.
• Protect it from moisture

3. Getting started

• Remove the protective foil from the display.
• Remove the magnetic holder.
• Open the battery compartment and insert a new battery 1,5 V AAA, ensure that the batteries' polarities are correct. Close the battery compartment again.
• All segments will be displayed for a short moment.
  The device is ready for use.
  The upper display will show the indoor temperature.
  The lower display will show the indoor humidity.
• Remove the battery to shut down the device.

4. Positioning and fixing

Fix the magnetic holder with the enclosed adhesive at your desired location. Please clean the surface before.
- The device can also be positioned on a flat surface by securing the holder to the bottom.

Digital thermo-hygrometer

5. Troubleshooting

Problems Solutions

No display Ensure that the battery

polarity is correct

Change the battery

Incorrect indication Change the battery

Indication LL/HH Outside measuring range

6. Waste disposal

Never dispose of empty batteries and rechargeable batteries in household waste.

As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.

The symbols for the heavy metals contained are: Cd=cadmium, Hg = mercury, Pb=lead

This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

Digital thermo-hygrometer

7. Specifications

Temperature

Measuring range -10^ +50^

Accuracy ±1°C

Humidity

Measuring range 10 ... 99%rH

Accuracy ±5 % @ (20...80%)

Update Every 10 seconds

Power consumption 1,5 V AAA battery

(not included)

Dimensions 61× 24 (31) x 61 (65) mm

Weight 44 g (instrument only)

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.

The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

www.tfa-dostmann.de 12/19

Precision ±5% @ (20...80%)

Precisione ±5% @ (20...80%)

Precisie ±5% @ (20...80%)

Update Elke 10 seconden
