SKH 64 D2 - Wireless Earbuds SILVERCREST - Free user manual and instructions

Product type	Wired audio headphone with cable and 3.5 mm jack plug
Brand	SilverCrest
Model	SKH 64 D2
Impedance	64 Ω ± 4 Ω
Frequency response	20 Hz – 20 kHz
Connector	Gold-plated 3.5 mm jack plug
Additional headphone socket	3.5 mm jack socket for a second headphone
Cable length	1.4 m
Dimensions (unfolded)	Approx. 18.1 x 15.3 x 6.8 cm (L x D x H)
Weight	Approx. 125 g
Foldability	Ear cups fold inward for transport
Size adjustment	Sliding headband to fit the head
Intended use	Domestic, audio entertainment
Storage temperature	0 °C to 45 °C
Maximum humidity	85 %
Cleaning	Soft, slightly damp cloth, no abrasive cleaners
Hearing safety	Adjust volume before connecting, avoid prolonged listening at high volume
Compatibility with pacemakers	Keep a distance of at least 10 cm
Warranty	3 years from date of purchase
Article number (IAN)	303234
After-sales service France	Tel. [phone], email [e-mail]

Frequently Asked Questions - SKH 64 D2 SILVERCREST

How to connect the SilverCrest SKH 64 D2 headphone?

Plug the 3.5 mm jack plug into the audio output of your device (player, TV, etc.). Make sure the source volume is set low before connecting, then adjust to your liking.

What to do if no sound comes from the headphone?

Check the connection between the sound source and the headphone. Make sure the plug is fully inserted. Also check the volume and playback settings on your source device.

Why does sound only come from one side?

Check the balance setting on your sound source. Make sure the jack plug is fully inserted and that any second headphone is properly connected to the socket.

Can I connect a second headphone?

Yes, the headphone has an additional 3.5 mm jack socket. Connect another headphone with a 3.5 mm jack plug for shared listening. Do not connect a distributor or other audio source.

How to fold the headphone for transport?

Set the ear cups to the middle position, then fold them inward over the headband. The headphone will then take up less space.

How to clean the headphone?

Use a soft, slightly damp cloth. Do not use corrosive or abrasive cleaning products. Protect the device from drips and splashes.

What safety precautions should be observed?

Avoid prolonged listening at high volume to preserve your hearing. Do not use while driving or cycling. Keep a distance of at least 10 cm from pacemakers.

What to do if the problem is not resolved?

Do not attempt to repair the device yourself. Contact customer service: in France at 0800 919270 or by email at [e-mail]. Keep the receipt and the IAN number 303234.

What is the warranty of this headphone?

The warranty is 3 years from the date of purchase. It covers material and manufacturing defects. Keep the receipt as proof of purchase.

Is the headphone suitable for professional use?

No, this headphone is designed for domestic use and should not be used in a professional context.

USER MANUAL SKH 64 D2 SILVERCREST

1. Overview 2
2. Intended purpose 4
3. Safety information 4
4. Items supplied 6
5. Operation 6
6. Transport 7
7. Cleaning / storing 7
8. Disposal 8
9. Problem-solving 9
10. Technical specifications 10
11. Warranty of the HOYER Handel GmbH 12

1. Overview

Please observe the illustrations on the fold-out page.

1	Headset
2	Bracket of the headphone earpieces (for adjusting the size)
3	Right headphone earpiece (R), adjustable and folding
4	Socket for 3.5 mm TRS connector (e.g. for connecting further headphones)
5	Left headphone earpiece (L), adjustable and folding
6	Cable
7	3.5 mm TRS connector

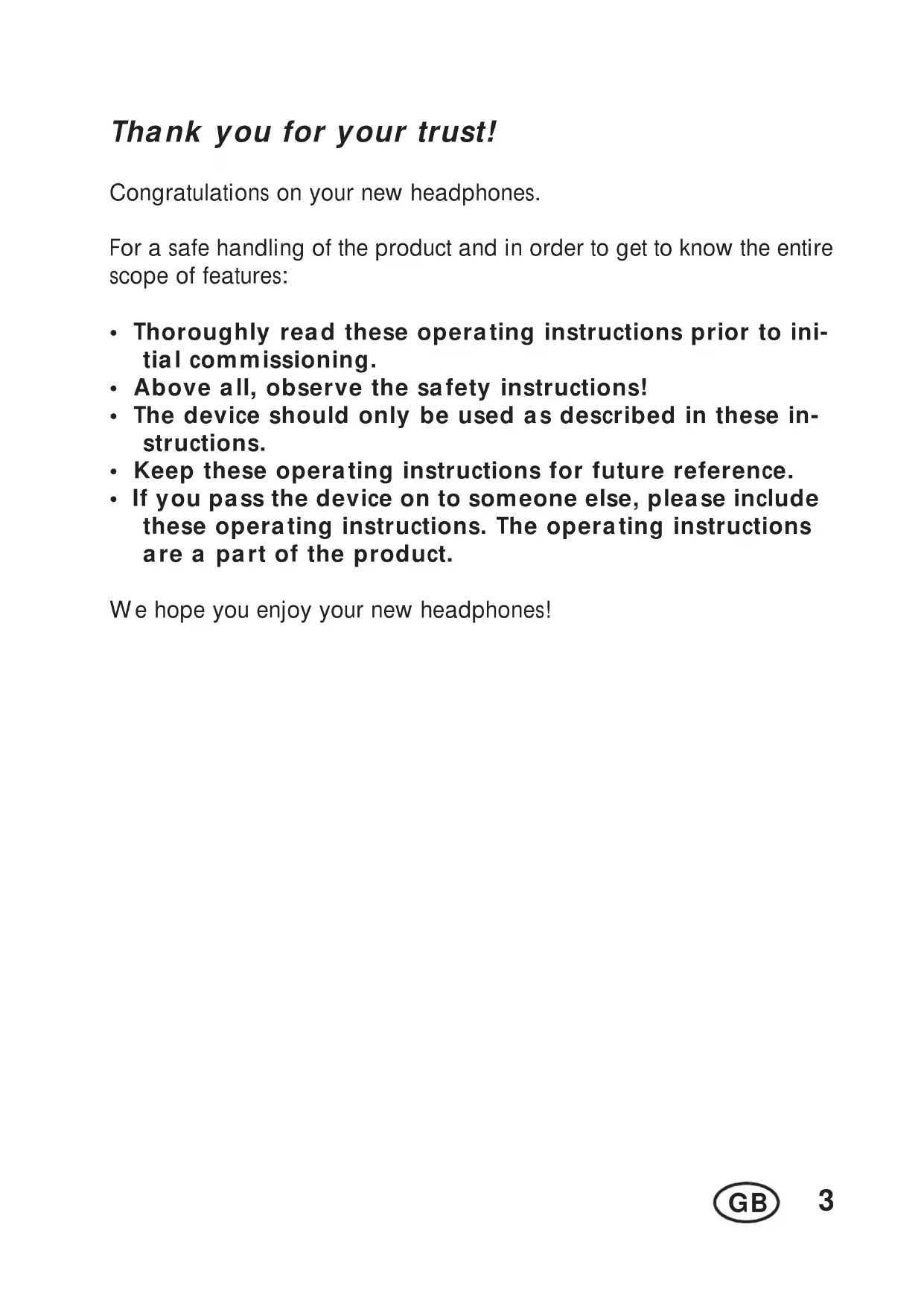

Thank you for your trust!

Congratulations on your new headphones.

For a safe handling of the product and in order to get to know the entire scope of features:

• Thoroughly read these operating instructions prior to initial commissioning.
• Above all, observe the safety instructions!
• The device should only be used as described in these instructions.
• Keep these operating instructions for future reference.
• If you pass the device on to someone else, please include these operating instructions. The operating instructions are a part of the product.

We hope you enjoy your new headphones!

2. Intended purpose

This is a consumer electronics device.

The headphones are intended for playing sound from audio devices at a normal listening volume.

The device is designed for use in private households.

This device must not be used for commercial purposes.

3. Safety information

Warnings

If necessary, the following symbols and warnings will be used in these operating instructions:

DANGER! This symbol, in combination with the note "Danger" means a high risk. Failure to observe this warning may result in injury to life and limb.

WARNING! This symbol, in combination with the note "Warning" means a moderate risk. Failure to observe this warning may result in injury or serious material damage.

WARNING! Risk of hearing damage!

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

DANGER for children and people with disabilities

• Packing materials are not children's toys. Children must not play with the packing material: there is a risk of suffocation.
  This device is not designed to be used by people (including children) with limited physical, sensory or mental capabilities or people without adequate experience and/ or understanding, unless they are supervised by someone responsible for their safety or are instructed by them on how to use the device.

Children must be supervised to ensure that they do not play with the device.
- Keep the device out of the reach of children.

DANGER of accidents due to impaired perception

• Surrounding noises may sound different than usual. Never use the headphones during activities when you must be attentively aware of your surroundings, particularly when operating machinery or vehicles in traffic. (This also applies to bicycles.) You must also comply with the legal provisions and regulations of the country in which you are using the device.

DANGER of affecting cardiac pacemakers

The magnetic fields generated by the headphones may impair the functioning of cardiac pacemakers and implanted defibrillators. You must therefore maintain a minimum distance of 10 cm between the headphones and the cardiac pacemaker / defibrillator.

WARNING! Risk of hearing damage

• Set a low volume on the audio device before you connect the headphones to the sound source.
• Avoid excessive volumes, particularly over extended periods or in the case of frequent use. Excessive volume can result in permanent hearing damage.

CAUTION: Risk of material damage

Protect the device against damage, e.g. from:

• drips and splashes of water
• heat, direct sunlight and open flames (e.g. candles)
• impacts and similar violent effects

Protect the cable against damage, e.g. from:

• s h a r p e d g e s

• hot places
  -clamping or crushing

• Do not use any astringent or abrasive cleaning agents.

• To avoid any risk, do not make modifications to the device. Repairs must be carried out by a specialist workshop or the Service Centre.

4. Items supplied

1 set of headphones
1 set of operating instructions

In the case of incomplete delivery, please contact the responsible service centre of the manufacturer see "Warranty of HOYER Handel GmbH". Please observe the illustrations on the fold-out page.

5. Operation

• Remove all packing material.
• Check that the device is undamaged.

Connecting

1. Set the sound source to a low volume.
2. Insert the TRS connector 7 into the headphone socket of the sound source (e.g. MP3 player, television).

Put on the headphones

1. Put on the headphones in such a way that the marking R is on the right and L is on the left.
2. Figure A: Adjust the size of the headphones to your head size using the two adjustable headphone earpieces 3 and 5 by pulling out or pushing in the brackets 2.
3. Set the volume of the sound source. Ensure that you are still able to hear sounds in your surroundings.

WARNING! Risk of material damage!

• Connect only one set of headphones, no splitters, and no additional audio sources, in order to avoid damage to the device.

The socket 4 can be used to attach a second set of headphones with a 3.5mm TRS connector, to allow a second person to listen in.

6. Transport

For transportation purposes, the headphones can be folded up to save space.

1. Figure A: Bring the headphone earpieces 3 and 5 to the central position by pulling out or pushing in.

2. Figure B+C: Fold the headphone earpieces inwards, into the headset 1.

7. Cleaning / storing

WARNING! Risk of material damage!

Protect the appliance from water drops and water spray.
- Do not use any astringent or abrasive cleaning agents.

• If necessary, clean the device with a soft, damp cloth.
• When no longer using the device, store it in a place where neither high temperatures nor moisture can affect it.

8. Disposal

This product is subject to the provisions of European Directive 2012/ 19/ EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products identified with this symbol may not

be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances. Recycling helps to reduce the consumption of raw materials and protect the environment.

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

9. Problem-solving

If your headphones fail to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself.

WARNING! Risk of material damage!

Do not attempt to repair the device yourself under any circumstances.

Fault Possible causes / Action
No sound	·Check the connection between the sound source and the headphones. ·Check the settings on your sound source.
Sound only on one side of the headphones	·Check the balance settings on your sound source. ·Make sure that the TRS connector 7 is fully inserted into the socket of the sound source, or that any second set of headphones used is properly plugged in.
Sound is not transmitted to a second set of headphones via the socket 4	·Make sure that the plug is fully inserted into the socket 4. ·Check the settings on the second set of headphones.

10. Technical specifications

Model: SKH 64 D2
Resistance: 64 Ω +/- 4	Ω
Broadband ID voltage (WBCV): 100 mV	+/- 10 %
Transmission range: 20	Hz - 20 kHz
Plug: 3.5 mm TPS connector, gold-plated
Socket: 3.5 mm TPS connector
Cable length: 1.4 m
Dimensions (WxDxH): approx. 18.1 x 15.3 x 6.8 cm (folded out)
Weight: approx. 125 g
Storage temperature: 0	- 45 °C
Maximum humidity: 85	%

Notes on the EU declaration of conformity

HOYER Handel GmbH hereby declares that this product conforms to the fundamental requirements of the applicable regulations of the RoHS Directive 2011/65/EU.

A complete EU declaration of conformity can be requested from HOYER Handel GmbH; see Service Centre.

Symbols used

CE	With the CE marking, HOYER Handel GmbH declares the conformity with EU guidelines.
	This symbol reminds you to dispose of the packaging in an environmentally friendly manner.
21PAP	Recyclable materials: cardboard (except corrugated card-board)

Subject to technical modifications.

11.Warranty of the HOYER Handel GmbH

Dear Customer,

your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us – at our discretion – free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred.

If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery.

The warranty applies to material or factory defects.

Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, batteries, lamps or other parts manufactured from glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN:303234 and the purchase receipt as a purchase verification for all inquiries.
• The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or underside of the device.
• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.
• Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

Please visit www.lidl-service.com to download this and many other manuals, product videos and software.

GB Service Great Britain

Tel.: [phone] (£ 0.10/ Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/ Min., (peak)) (0,06 EUR/ Min., (off peak))

E-Mail: [e-mail]

MT Service Malta

Tel.: [phone]

E-Mail: [e-mail](mt

CY Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

IAN:303234

Supplier

Please note that the following address is no service address. First contact the aforementioned Service Centre.

HOYER Handel GmbH

Taskoprüstae 3

DE-22761 Hamburg

GERMANY
