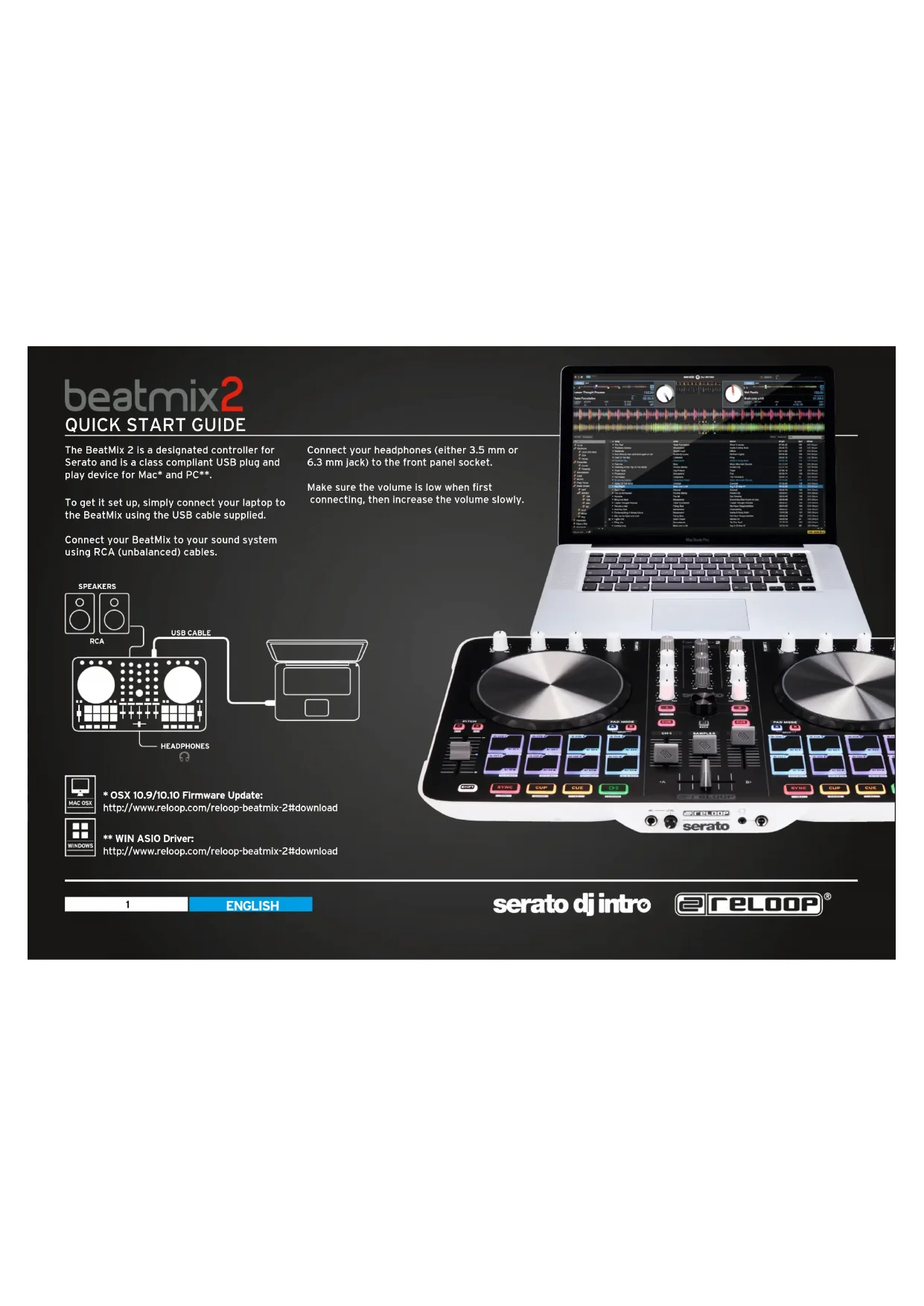

USER MANUAL Beatmix 2 MK2 Reloop

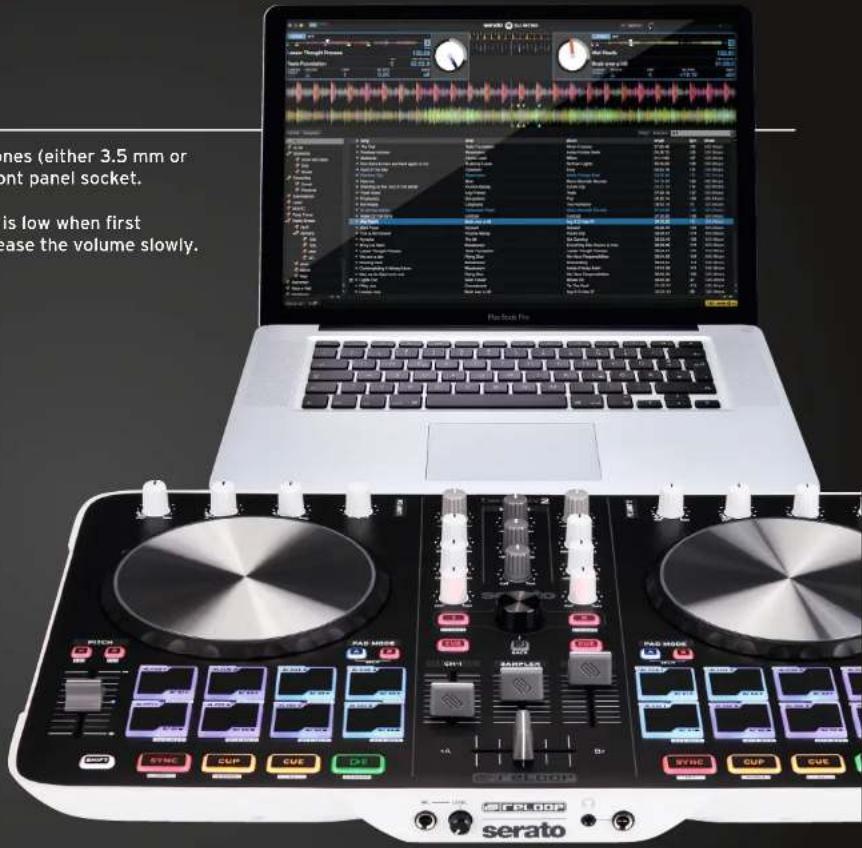

The BeatMix 2 is a designated controller for Serato and is a class compliant USB plug and play device for Mac and PC*.

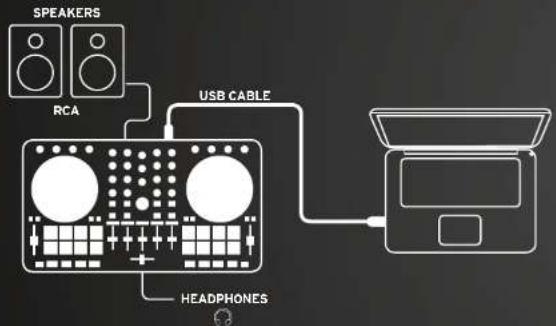

To get it set up, simply connect your laptop to the BeatMix using the USB cable supplied.
Connect your BeatMix to your sound system using RCA (unbalanced) cables.
- OSX 10.9/10.10 Firmware Update:
http://www.reloop.com/reloop-beatmix-2#download
** WIN ASIO Driver:
http://www.reloop.com/reloop-beatmix-2#download
Connect your headphones (either 3.5 mm or 6.3 mm jack) to the front panel socket.
Make sure the volume is low when first connecting, then increase the volume slowly.
beatmix2
QUICK START GUIDE

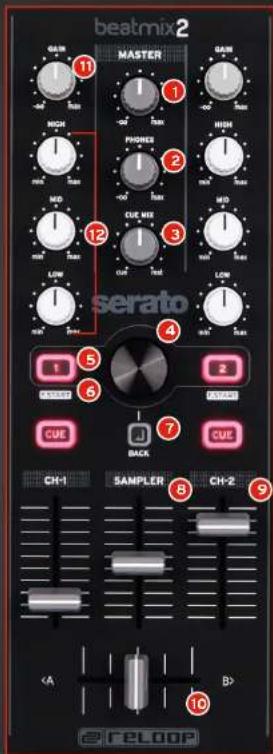

MIXER SECTION
MASTER
Controls the master volume to your main sound system.
2 PHONES
Controls your headphones volume.
3 CUE MIX
Mixes the headphones CUE signal between your selected channel and the master output.
4 TRAX SELECT
Use the trax select encoder to navigate through your song library.
TRACK LOAD
Press 1 - 4 to load tracks on either channel.
FADER-START
Press SHIFT + track load 1-4 to enable and launch a track using your linefader.
7 BACK
Moves you back one step in your track menu.
8 SAMPLER VOLUME
Controls the master volume of your sampler section.
LINEFADERS
Controls your channel volume.
CROSSFADE
Enables you to fade between your decks.
GAIN
Fine adjust the input volume for each deck.
12 EQ
Tweak the high, mid or low frequencies when mixing your track.
beatmix2
QUICK START GUIDE
TRANSPORT SECTION
0ff
RANGE
CENSOR
PLAY/PAUSE
Press to launch and pause your track.
SHIFT PLAY+PAUSE
This reverses the direction of the track playing.
CUE
Cue sets a temporary CUE point. It is set by pausing the track and pressing the CUE button. Whilst the track is playing, press CUE to return to that point, where it will pause.
SHIFT+ CUE
Takes you back to the start of your track.
CUP
Pressing CUP takes you directly to your temporary CUE point, starting playback instantly.
If no CUE point is set, it will jump to the beginning of the track.
FX SECTION
XUNI
Turning the FX knob will activate and increase the effect parameter.
SHIFT + turning allows you to browse through your effect selection.
Turning the Beats encoder sets the parameter length of the chosen effect.
SHIFT + pressing Beats sets a manual TAP tempo for the effects.
Pressing SHIFT + Pitch Bend +/- will activate FX1 and 2 for the corresponding deck.

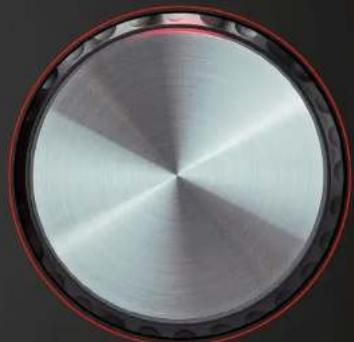

JOG WHEEL
Touch and move the jog wheel to scratch.
Hold SHIFT and turn the jog wheel to quick search through your track.
beatmix2
QUICK START GUIDE
DRUM PAD SECTION
There are two Pad modes, A + B. Pressing SHIFT in either mode deletes or effects that function
PAD MODE A
Top Row 4 Pads - CUE Points Press an unlit pad to set a new CUE point.
Top Row 4 Pads - SHIFT + DRUM PAD Deletes CUE points.
Lower Row 4 Pads -LOOP Press the Drum Pad to activate a loop.
Lower Row 4 Pads + SHIFT - LOOP ADJUST
A Drum Pad 1 - Sets a loop length.
B Drum Pad 2 - Shortens the LOOP.
Drum Pad 3 - Lengthens the LOOP.
D Drum Pad 4 -Replies the LOOP.
PAD MODE B
Top Row 4 Pads - S AMPLER PLAY Pressing drum pads 1-4 launches a sample.
Lower Row 4 Pads - SAMPLER STOP Pressing drum pads 5-8 stops the sample.
3 Top Row 4 Pads + SHIFT - CYCLE Pressing 1-4 cycles through sampler play types.
Lower Row 4 Pads + SHIFT - EJECT Pressing drum pads 5-8 ejects the sample.
SPLIT MODE
Press A + B simultaneously to split both modes across the top and bottom of the drum pads.
Top Row 4 Pads - CUE
Lower Row 4 Pads -SAMPLE PLAY
Top Row 4 Pads + SHIFT = DELETE CUE
Lower Row 4 Pads + SHIFT = STOP SAMPLE
beatmix2
QUICK START GUIDE

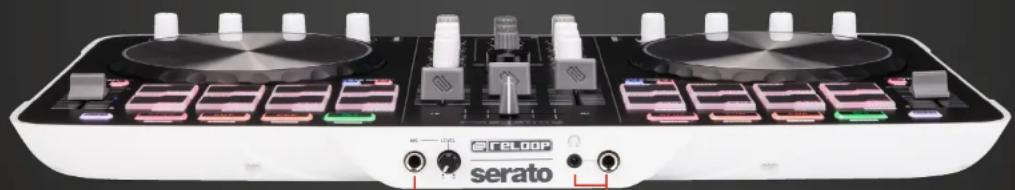

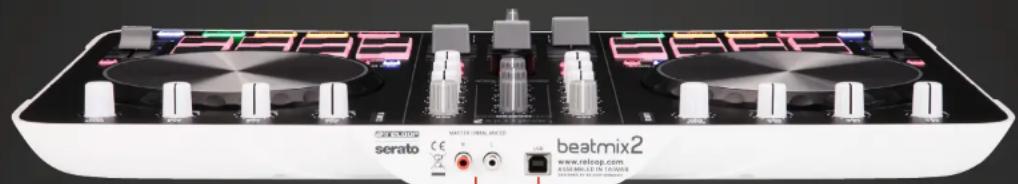

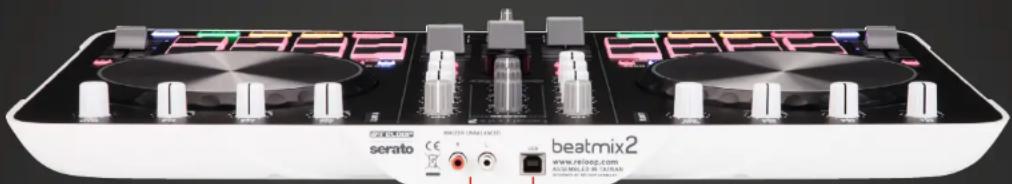

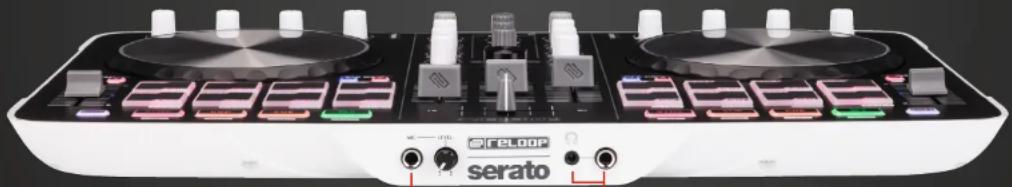

FRONT AND BACK
Unbalanced RCA
USB
Mic plug
Headphones Jack 3.5/6.3 mm
5
ENGLISH
serato dj intro
RELOOP
beatmix2
QUICK START GUIDE
A: ACTV/RIP M: C/CCLD
B/E/JEC
0/1JECT
B/EJECT
0/ CUEC1
PAD MODUS B
Range sup. 4 Pads - SHIFT + DRUM PAD
Range inf. 4 Pads - Loop
Range inf. 4 Pads + SHIFT - adaptation de boucle
Rangee sup. 4 Pads - CUE
Range inf. 4 Pads -SAMPLE PLAY
Rangee sup. 4 Pads + SHIFT = DELETE CUE
Rangee inf. 4 Pads + SHIFT = STOP SAMPLE
beatmix2
QUICK START GUIDE
FACE AVANT/ARRIÈRE
Fila superior 4 Pads + SHIFT = DELETE
Fila inferior 4 Pads + SHIFT = STOP SAI
beatmix2
QUICK START GUIDE
VORDER-/RUCKSEITE
RCA (asimétrico) USB
Conexión para microfondo Conexión para auriculares, clavija de 3,5/6,3 mm
20
ESPANOL
