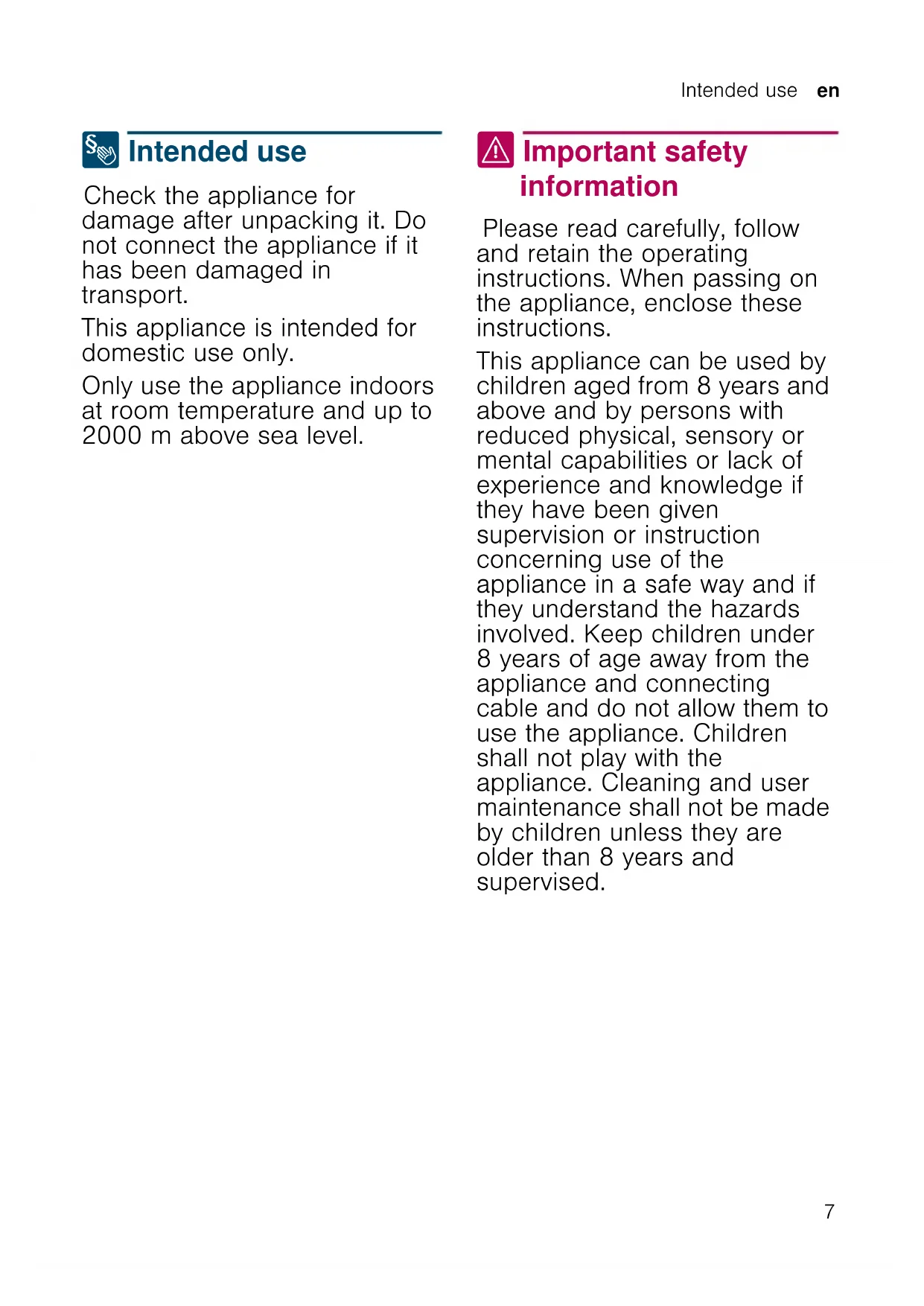

8 Intended use I nt ended use Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport. This appliance is intended for domestic use only. Only use the appliance indoors at room temperature and up to 2000 m above sea level. ( Important safety information Impor t ant saf et y informat i on Please read carefully, follow and retain the operating instructions. When passing on the appliance, enclose these instructions. This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.en Important safety information

:Warning Danger of electric shock! ■ The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic electricity supply has been correctly installed. Risk of electric shock! ■ Connect and operate the appliance only in accordance with the specifications on the rating plate. If the power cord of this appliance is damaged, it must be replaced by customer service. Risk of electric shock! ■ Do not use if the power cable or appliance is damaged. If a fault occurs, pull the mains plug or switch off the mains voltage immediately. Risk of electric shock! ■ To prevent hazards, the appliance may be repaired by our customer service only. Risk of electric shock! ■ Never immerse the appliance or mains cord in water. Risk of electric shock! ■ The plug and socket connection of the appliance must not come into contact with liquids. Risk of electric shock! ■ Please note the special information on cleaning in the instructions. :Warning Hazard due to magnetism! The appliance contains permanent magnets which may affect electronic implants, e.g. heart pacemakers or insulin pumps. Persons wearing electronic implants must maintain a minimum distance of 10 cm from the appliance and from the following parts upon removal: milk container, milk system, water tank and brewing unit. :Warning Risk of suffocation! Do not let children play with packaging material. Store small parts safely as they can be easily swallowed. :Warning Risk of burns! ■ The milk system becomes very hot. After use, allow it to cool down first before touching it. Risk of scalding!! ■ After use, surfaces may still be hot for a certain period. Risk of burns! ■ Freshly prepared beverages are very hot.Leave to cool a little if necessary. :Warning Risk of injury! ■ Improper use of this appliance may result in injury. Risk of injury! ■ Do not reach into the grinding unit.Environmental protection en

7 Environmental protection Envi r onment al pr ot ect i on Saving energy ■ If the appliance is not being used, switch it off. ■ Set the interval for automatic switch-off to the smallest value. ■ If possible, do not interrupt coffee or milk froth dispensing. Stopping a process prematurely results in higher energy consumption and the drip tray fills up more quickly. ■ Descale the appliance regularly to avoid a build-up of limescale. Limescale residue results in higher energy consumption. Environmentally-friendly disposal Dispose of packaging in an environmentally-friendly manner. Please ask your dealer about current disposal routes.

• Getting to know your appliance Get t i ng to know your appl i anc e This section provides an overview of the scope of delivery, the assembly and the components of your appliance. It also introduces you to the different controls. Note: Depending on the appliance model, individual details and colours may differ. How to use these instructions: The cover pages of the operating instructions can be folded out towards the front. The illustrations are identified using numbers that are referred to in the operating instructions. Example: ~ Fig. ! Included in delivery ~ Fig. ! The item marked with ** is only supplied with certain appliances. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. # Fully automatic coffee machine + Milk container (container, lid, riser, connection hose) 3** Adapter for milk carton ;** Water filter C Measuring spoon K Water hardness testing strip [ Operating instructionsen Getting to know your appliance

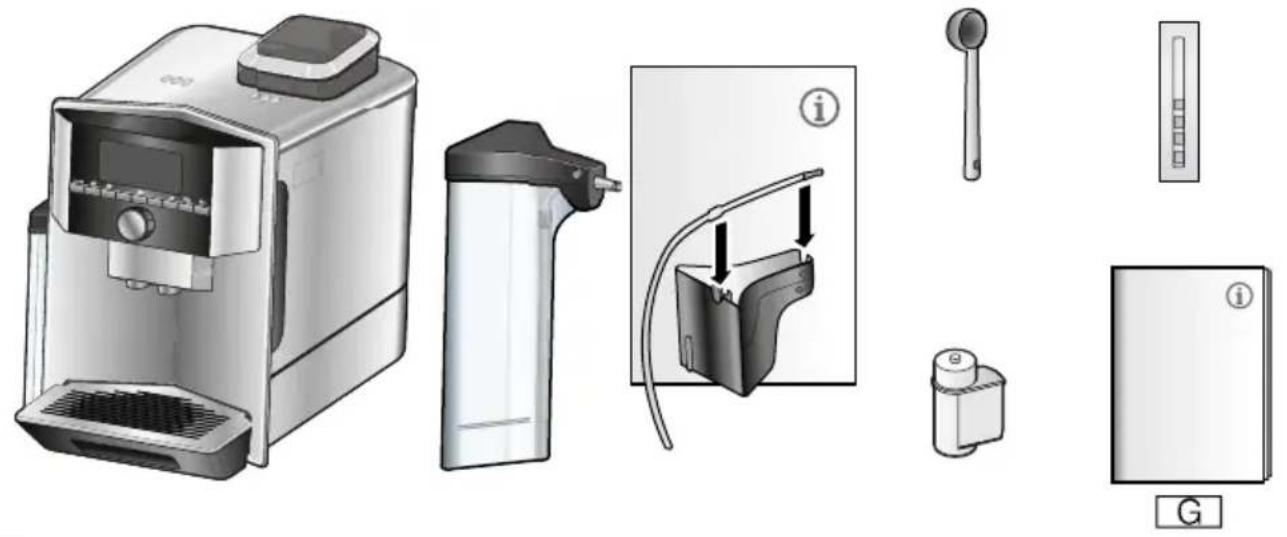

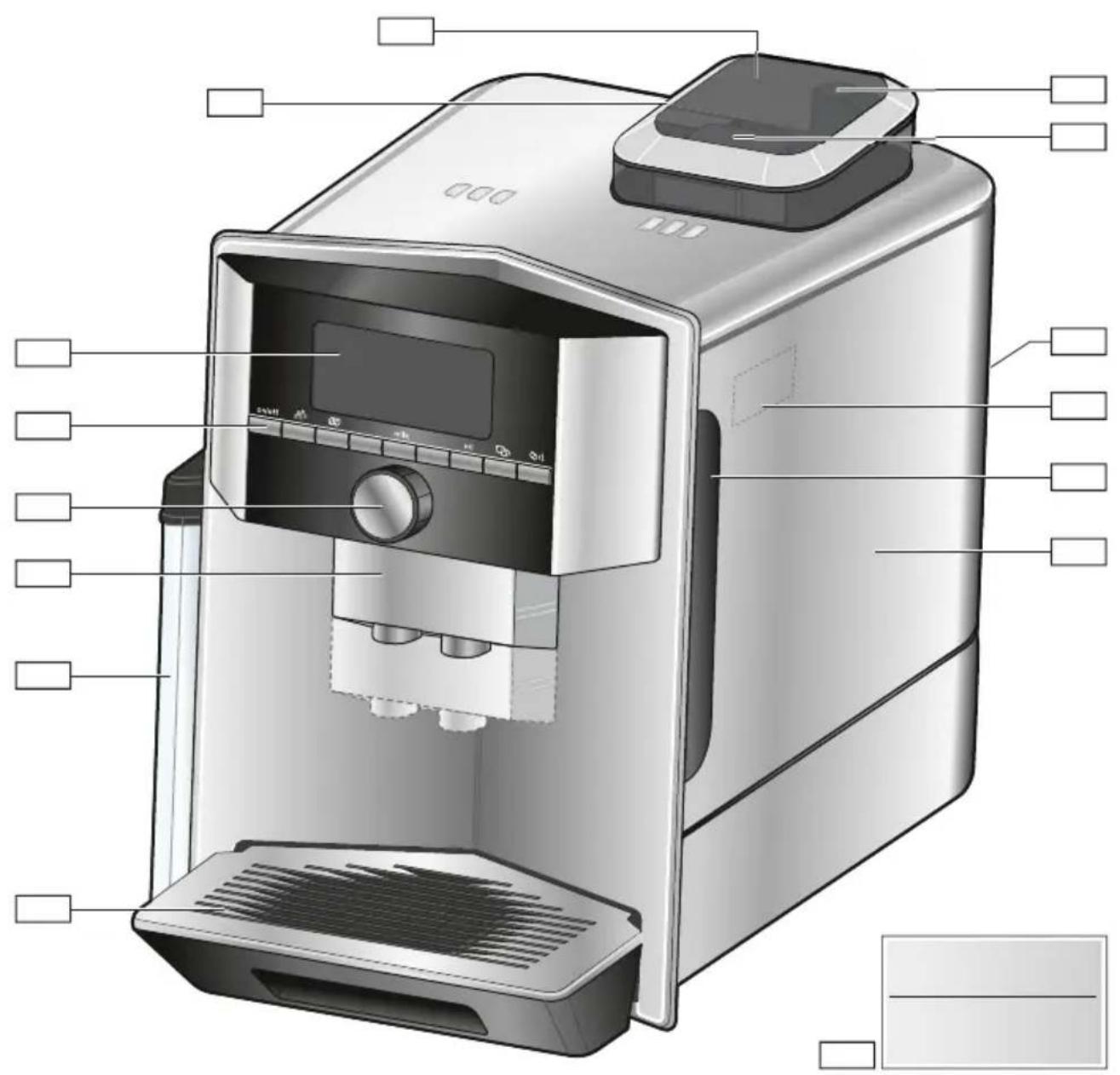

Assembly and components ~ Fig. " Controls ( Display 0 Control panel 8 Rotary selector/start- stop (rotate and press to navigate) @ Outlet system (coffee, milk, hot water), height adjustable H Milk container (container, lid, riser, connection hose) P Drip tray (coffee grounds container, drip plate) h Rating plate X Brewing chamber cover ` Water tank )" Recessed grip on water tank )* Grind compartment (ground coffee/cleaning tablet) )2 Rotary selector for grinding level setting ): Aroma lid )B Bean container Button Meaning on/off Switches the appliance on and off The appliance rinses automatically when it is switched on and off. The appliance is not rinsed if: ■ it is still warm when switched on, or ■ coffee was not dispensed before the appliance was switched off. The appliance is ready for use when the symbols for drink selection and the on/off button light up on the display. ! Customising The appliance provides the option of saving and calling up customised settings for coffee drinks. ~ "Customising" on page 19 " Coffee strength Adjusting the coffee strength. ~ "Adjusting beverage settings" on page 17 milk Briefly press: Setting for share of milk in the drink in % As a drink or as an ingredient in certain coffee drinks. ~ "Adjusting beverage settings" on page 17 Press and hold for at least 4 seconds: Child-proof lock ~ "Childproof lock" on page 21 ml Drink quantity in millilitres. ~ "Adjusting beverage settings" on page 17 # Two drinks Preparation of two drinks simultaneously. Position cups next to one another under the cof- fee dispenser. ~ "Adjusting beverage settings" on page 17 $/± Menu settings/service programmes Briefly press $/± button to call up service programmes. Briefly press $/± button again to return to the drink selection. If no selection is made within approx. 10 seconds, the appliance will automatically return to the drink selection. Note: Press and hold $/

button for at least 5 seconds to call up the menu settings directly. Navigation buttons For navigating in the display.Accessories en

Display The display ( shows the selected drinks, settings and setting options, as well as messages about the appliance’s operating status. Additional information is shown in the display; this is hidden after a short period of time or once the information is confirmed by pressing a button. The display also prompts the user to perform certain actions. The individual steps for performing the action are shown in the display. If the action required was carried out, e.g. "Fill water tank", the corresponding message will disappear. Rotary selector The rotary selector 8 has a range of different functions. ■ Rotation: navigate in the display and change settings. ■ Pressing: start beverage preparation or service programme, confirm menu selection. ■ Pressing while drink is being dispensed: prematurely stop dispensing. _ Accessories Ac c e s s o r i e s The following accessories are available from retailers or from customer service:

The contact data for customer service in all countries can be found at the back of these instructions. Accessory Order number Retail Customer ser- vice Cleaning tablets TZ80001N Descaling tablets TZ80002N Water filter TZ70003 00575491 Care set TZ80004 00576330 Adapter for milk car- ton TZ90008 00577862en Before using for the first time

K Before using for the first time Be f o r e usi ng for the fi rst ti me In this section, you will learn how to commission your appliance. Before you can use your new appliance, you must make some settings. Note: Only use the appliance in frost-free areas. If the appliance was transported or stored at temperatures below 0 °C, you must wait for at least 3 hours before using it. Installing and connecting the appliance

1. Remove any protective plastic film.

2. Place the appliance on a level,

water-resistant surface which can bear the weight.

3. Using the mains plug, connect the

appliance to an earthed socket that has been correctly installed. Commissioning the appliance Setting the language Notes ■ Language selection appears automatically when the appliance is switched on for the first time. ■ You can change the language at any time. ~ "Settings" on page 21

1. Switch on appliance with

on/off button. The preset language appears in the display.

2. Use the rotary selector to select the

desired display language.

3. Confirm with the right-hand

navigation button. The setting has been saved. Setting the water hardness It is important to set the water hardness correctly so that the appliance indicates in good time when the descaling programme should be run. The preset water hardness is level 4. You can check the water hardness using the enclosed test strip or by asking your local water supplier.If a water softening system is installed in the house, please select "Softening device". The table shows the allocation of the levels to the different degrees of water hardness: Subsequent changes to the water hardness can be made at any time. ~ "Settings" on page 21

1. Briefly immerse the enclosed test

strip in fresh tap water, leave it to drip and read off the result after one minute.

2. Use the rotary selector to set the

water hardness determined.

3. Confirm with the right-hand

navigation button. The reminder "Fill bean container" lights up briefly.

4. Either confirm with the right-hand

navigation button or wait a few seconds. The reminder "Please fill water tank" lights up. Fill the water tank. Level Water hardness German (°dH) French (°fH) 1 1-7 1-13 2 8-14 14-25 3 15-21 26-38 4 22-30 39-54Before using for the first time en

Filling the bean container This appliance can be used to prepare coffee drinks from coffee beans or ground coffee (not instant coffee).

3. Close the lid again.

Notes ■ Coffee beans that have been glazed or caramelised or treated with other sugary additives will block the brewing unit. Only use pure bean mixes that are suitable for use in fully automatic coffee or espresso machines. ■ Never use unroasted coffee beans. ■ The coffee beans are freshly ground for each brewing operation. ■ Store coffee beans in a sealed container in a cool place to ensure optimum quality. ■ Coffee beans can be kept in the bean container for a number of days without losing their aroma.Only ever add the ground coffee shortly before beverage preparation. ~ "Preparing coffee using ground coffee" on page 15 Filling the water tank Important: Fill the water tank with fresh, cold, still water on a daily basis. Prior to operation, check whether the water tank has been sufficiently filled.

1. Hold the recessed grip )" on the

side of the water tank ` and gently tilt out the water tank to the side.

2. Use the handle to remove the water

tank and then rinse out.

3. Fill the water tank with water up to

4. Re-insert the water tank in the holder

and tilt back to the starting position. The brand logo lights up on the display. The appliance heats up and rinses. Some water will run out of the outlet system. The appliance is ready for use when the symbols for the beverages and the on/off button light up on the display. Notes ■ When the appliance is used for the first time, after running a service programme or if it has not been operated for a long period, the first beverage will not have the full aroma and should not be consumed. ■ After starting up the appliance for the first time, you will consistently achieve a suitably thick and stable "crema" only after the first few cups have been dispensed. ■ If the appliance is in use for a long period of time, water droplets will form on the ventilation slots. This is normal.en Operating the appliance

1 Operating the appliance Oper at i ng the appl i anc e In this section, you will learn how to prepare your appliance for beverage preparation and how to prepare hot drinks. It features information on adjusting the beverage settings and adjusting the grinding level. Selecting a drink ■ Use the rotary selector to select the desired drink. ■ The display shows the name of the drink and the currently active values (e.g. strength or cup size). ■ The drink selected can be prepared with the pre-set values or first adjusted to individual taste. ~ "Adjusting beverage settings" on page 17 ■ If no controls are activated within approx. 5 seconds, the appliance will exit settings mode. The settings made will be automatically stored. You can choose from the following drinks: Note: For a number of settings, coffee is prepared in two steps ("aromaDoubleShot"). Wait until the procedure is fully completed. Tip: Preheat cups, above all small, thick-walled espresso cups, e.g. using hot water. Ristretto Espresso Doppio Espresso Espresso Macchiato Coffee Cappuccino Latte Macchiato Caffe Latte Milk froth Warm milk Hot waterOperating the appliance en

Preparing coffee using freshly ground beans You can choose between Ristretto, Espresso Doppio, Espresso and Coffee. The preparation of coffee drinks with milk is explained in a separate section. ~ "Preparing drinks with milk" on page 16 The appliance is switched on. The water tank and bean container have been filled.

1. Place a cup under the outlet system.

2. Use the rotary selector to select the

desired drink. The name of the drink and the currently active values are shown on the display.

3. To change the settings for the

selected drink. ~ "Adjusting beverage settings" on page 17 ~ "Settings" on page 21

4. To begin dispensing the drink, press

the rotary selector. The coffee is brewed and then dispensed into the cup. Note: To prematurely stop dispensing the drink, press the rotary selector again. Preparing coffee using ground coffee You can also operate this appliance using ground coffee. Do not use instant coffee. The preparation of coffee drinks with milk is explained in a separate section. ~ "Preparing drinks with milk" on page 16 The appliance is switched on. The water tank has been filled.

1. Place a cup under the outlet system.

2. Use the rotary selector to select the

4. Use the rotary selector to select

bean container )B and open the grounds compartment )*.

7. Add the ground coffee; do not press

firmly. Add no more than two level measuring spoons. Caution! Do not place coffee beans or instant coffee in the grounds compartment.

8. Close the grounds compartment and

the aroma lid. The name of the drink and the currently active values are shown on the display.

9. To change the settings for the

selected drink. ~ "Adjusting beverage settings" on page 17 ~ "Settings" on page 21

10. To begin dispensing the drink, press

the rotary selector. The coffee is brewed and then dispensed into the cup. Notes ■ Any grounds residue in the grounds shaft should be directed down the shaft using a soft brush. ■ To prematurely stop dispensing the drink, press the rotary selector again. ■ For another drink with ground coffee, repeat the procedure. ■ When ground coffee is used, the aromaDoubleShot function is not available.en Operating the appliance

Preparing drinks with milk This appliance features an integrated milk system. The milk system can be used to prepare coffee drinks with milk, as well as milk froth and warm milk. You can choose between Espresso Macchiato, Cappuccino, Latte Macchiato and Caffe Latte. Notes ■ While milk is being prepared, you may hear a whistling sound. These noises are emitted for technical reasons and are normal. ■ Dried milk residues are difficult to remove, therefore always perform cleaning. ~ "Cleaning the milk system" on page 26 :Warning Risk of burns! The milk system becomes very hot. After use, always let it cool down before you touch it. Using the milk container The milk container H has been designed especially for use together with this appliance. It is intended solely for use in the household and for storing milk in the refrigerator. Important: The milk container can only be connected if the milk system is installed in the outlet system with an adapter and hose. (~ Fig. #)

2. Pour in the milk.

4. Connect the milk container on the

left of the appliance. The milk container must engage. Coffee drinks with milk The appliance is switched on. The water tank and bean container have been filled. The milk container filled with milk is connected.

1. Place a cup or a glass under the

2. Use the rotary selector to select the

desired drink. The name of the drink and the currently active values are shown on the display.

3. To change the settings for the

selected drink. ~ "Adjusting beverage settings" on page 17 ~ "Settings" on page 21

4. To begin dispensing the drink, press

the rotary selector. The milk is dispensed into the cup or glass first. The coffee is then brewed and dispensed into the cup or the glass. Note: Pressing the rotary selector once can prematurely stop the dispensing of milk or coffee; pressing the rotary selector twice stops the drink dispensing completely. Milk froth or warm milk The appliance is switched on. The water tank has been filled. The milk container filled with milk is connected.

1. Place a cup or a glass under the

2. Select "Milk froth" or "Warm milk"

with the rotary selector. The name of the drink and the currently active values are shown on the display.

3. To change the settings for the

selected drink. ~ "Adjusting beverage settings" on page 17 ~ "Settings" on page 21

Milk froth or warm milk is dispensed into the cup or glass. Note: To prematurely stop dispensing the drink, press the rotary selector again. Dispensing hot water Note: Before dispensing hot water, clean the milk system and remove the milk container. If the milk system is not cleaned, the dispensed water may contain small quantities of milk. ~ "Cleaning the milk system" on page 26 :Warning Risk of burns! The outlet system becomes very hot. After use, always let the outlet system cool down before you touch it. The appliance is switched on. The water tank has been filled.

1. Place a cup under the outlet system.

3. Select "Hot water" with the rotary

4. To change the settings for the

selected drink. ~ "Adjusting beverage settings" on page 17 ~ "Settings" on page 21

5. To begin dispensing the drink, press

the rotary selector. Hot water is dispensed into the cup. Note: To prematurely stop dispensing the drink, press the rotary selector again. Adjusting beverage settings Once you have selected a drink, you can adjust certain values depending on the drink. To do so, please use the following buttons and the rotary selector: The factory settings are shown in orange on the display. The currently selected settings are backlit. Adjusting the coffee strength or selecting ground coffee A coffee drink is selected.

1. Press the " button.

2. Use the rotary selector to set the

coffee strength or select ground coffee.

3. Press the " button or the rotary

selector to confirm. Button Function Selection " Selecting coffee strength, ground coffee ■ mild ■ normal ■ strong ■ very strong ■ extra strong ■ doubleShot strong + ■ doubleShot strong ++ ■ Ground coffee milk Milk/coffee mixing ratio Setting share of milk in % (only for coffee drinks with milk) ml Cup size Adjustment of volume in ml increments. Not available for Ristretto. # Two cups at once Place two cups under the outlet.en Operating the appliance

doubleShot function The longer coffee is brewed, the more bitter substances and undesirable aromas are released. This has a negative effect on the taste and makes the coffee less easily digestible. The appliance therefore has a special doubleShot function for extra strong coffee.When half the volume has been prepared, a second portion of coffee beans is ground and brewed, so that in each case only the pleasant and beneficial flavours and aromas are released. Note: The doubleShot function can be selected for all coffee drinks except for: ■ drinks with a small volume of coffee, e.g. Ristretto ■ coffee drinks with milk and a small volume of coffee ■ a small volume of coffee, e.g. setting 200 ml "Caffe Latte" with a 90% share of milk (10% share of coffee) ■ preparation with ground coffee ■ dispensing two cups Adjusting the milk/coffee mixing ratio A coffee drink with milk is selected.

1. Press the milk button.

2. Use the rotary selector to set the

share of milk in %. Example: When a value of 30% is configured, 30% milk and 70% coffee will be dispensed.

3. Press the milk button or the rotary

selector to confirm. Selecting cup size A drink is selected.

1. Press the ml button. The preset

volume depends on the type of beverage.

2. Use the rotary selector to adjust the

desired volume in ml increments.

3. Press the ml button or the rotary

selector to confirm. Notes ■ The volume cannot be changed for ristretto. ■ The volume dispensed can fluctuate depending on the quality of the milk. Preparing two cups at once A coffee drink or a coffee drink with milk is selected.

1. Press the # button.

2. Place two pre-heated cups on the

the rotary selector. The selected drink will be brewed and will then be dispensed into the two cups. Notes ■ The drink is prepared in two steps (two grinding operations). Please wait until the process is fully completed. ■ The aromaDoubleShot function is not possible in the # selection.Customising en

Setting the grinding level This appliance features an adjustable grinder. This enables the grinding level of the coffee to be individually changed. :Warning Risk of injury! Do not reach into the grinding unit. Caution! The appliance may be damaged! Only adjust the grinding level when the grinder is running! When the grinder is in operation, use the rotary selector )2 to set the grinding level. ■ Finer grinding level: turn anticlockwise. (Fig. a) ■ Coarser grinding level: turn clockwise. (Fig. b) Notes ■ The new setting will not become apparent until the second cup of coffee. ■ For dark roast coffee beans, choose a finer grinding level; for lighter beans, choose a coarser grinding level. P Customising Cu s t o mising User profiles can be created in the customising menu. In the user profiles, individual beverages can be stored under names of your choice. Creating a user profile

1. Press ! button. The menu appears.

2. Use the rotary selector to select a

button to confirm the selection.

4. Use the rotary selector to select a

button to confirm the selection. The user name can be entered.

6. Use the rotary selector to select the

desired letter. Press the rotary selector to save the letter. The letter is saved. Once the user name has been entered in full:

7. Press the right-hand navigation

button to save the user name.

8. Press the right-hand navigation

button again to save the profile. The user profile picture appears. An individual beverage can be saved for the user created immediately afterwards. DEen Customising

Saving individual beverages:

1. Use the rotary selector to select the

2. Press the rotary selector.

"change beverages" appears.

3. Press the right-hand navigation

button to create the beverage.

4. Use the rotary selector to select the

desired beverage. The selected beverage can be adjusted in line with personal preference. ~ "Adjusting beverage settings" on page 17

5. Press the rotary selector.

A prompt appears for you to confirm the selection.

6. Press the right-hand navigation

button to confirm the selection.

The settings are completed. The appliance is ready for use again. Note: The appliance can store up to 6 profiles each with 10 drinks. Editing or deleting user profile

2. Use the rotary selector to select the

delete the profile. - or - Press the right navigation button to edit the settings in the profile. The settings in the profile can be changed as described. ~ "Creating a user profile" on page 19

4. Press the ! button.

The appliance is ready for use again. Saving individual drinks A drink that is currently being dispensed can be saved directly in a new or an existing profile using the individual settings.

1. Press and hold ! button for at least

5 seconds. If profiles have not yet been saved, a new profile appears immediately.

2. If profiles are already saved and the

individual drink is to be saved in a new profile, use the rotary selector to select a new profile. - or - If the individual drink is to be saved in an existing profile, use the rotary selector to select the desired profile.

3. Press the right-hand navigation

button to confirm. If a new profile is created, enter name and select background picture. Confirm the entries. Info: If a profile is already available, select it and save the drink.

The appliance is ready for use again. Note: To exit the menu automatically, select "Leave profiles automatically" under "User profiles". ~ "Settings" on page 21Childproof lock en

A Childproof lock Chi l dpr oof lock The appliance can be locked to protect children against scalding and burns. Activating the child-proof lock Press and hold the milk button for at least 4 seconds. "Child-proof lock activated" appears in the display. It is no longer possible to operate the appliance. Deactivating the child-proof lock Press and hold the milk button for at least 4 seconds. "Child-proof lock deactivated" appears in the display. The appliance can be used in the usual way. Q Settings Set t i ngs This menu is used for changing settings individually, accessing information and starting a programme. Changing settings

1. Press and hold the $/± button for at

least 5 seconds to open the "Menu". The different setting options will appear in the display.

2. Make the desired setting using the

rotary selector. The current setting is highlighted in colour on the display.

4. Use the rotary selector to change the

"confirm". The setting has been saved.

6. Press the $/± button to exit the

"Menu". The drink selection appears on the display. Notes ■ You can switch to the previous level by pressing the navigation button under "back". ■ The setting procedure can be aborted by pressing the navigation button under "abort". ■ Press the $/± button to exit the menu at any time. ■ If no entry is made within approx. 2 minutes, the menu closes automatically and the settings are not saved.en Settings

The following settings are available: Settings Possible settings Explanation Language Different languages Setting the language to be used for display texts. Beverage settings Espresso / Cof- fee temperature ■ normal ■ high ■ max. Setting the temperature for coffee drinks. The setting is effective for all preparation types. Hot water temper- ature ■ > 70°C ■ > 80°C ■ > 85°C ■ > 90°C ■ max. Setting the temperature for hot water. The setting is effective for all preparation types. Latte Macchiato pause ■ min ■ 5s ■ 10s Setting the pause between milk and coffee dis- pensing. Preparation of Cappuccino ■ first milk ■ first coffee Setting that determines whether milk or coffee should be brewed and dispensed first. (Cappuc- cino) Reset beverage settings ■ back ■ confirm Return to factory setting. User profiles ■ Leave profiles automati- cally ■ Delete all profiles Setting that determines whether user profiles are to be exited automatically or deletion of all user profiles. Water hardness ■ 1 (soft) ■ 2 (medium) ■ 3 (hard) ■ 4 (very hard) ■ Softening device Setting in line with the hardness of the local water supply. The preset water hardness is level 4 (very hard). The water hardness can, for example, be requested from your local water supplier. It is important to set the water hardness cor- rectly, so that the appliance indicates accurately when the descaling programme should be run. If a water softening system is installed in the house, please select the "Softening device" set- ting. Switch off after 5 minutes up to 8 hours Setting that determines how long the appliance should wait after the last beverage preparation before it automatically switches itself off. The factory setting is 30 minutes. Brightness display Level 1 up to level 10 Standard setting 7 Setting that governs the brightness of the dis- play Beverage info Shows the volume of drinks dispensed since the appliance was commissioned. For technical reasons, the counter does not represent a precise number of cups.Settings en

Starting the "Water filter"or "frost protection" programme

1. Briefly press the $/± button.

2. The rotary selector can be used to

select the "Water filter" or "frost protection" programme. The current setting is marked on the display. Note: The rotary selector can also be used to select a service programme. ~ "Service programmes" on page 27 Water filter A water filter lessens limescale deposits and reduces impurities in the water. The appliance also does not need to be descaled so often. Water filters are available from retailers or from customer service. ~ "Accessories" on page 11 If a water filter is inserted, the appliance will show when it needs to be changed. The display shows the relevant prompt. Inserting or replacing a water filter A new water filter must be rinsed before it can be used.

1. Select "Water filter" in the Settings

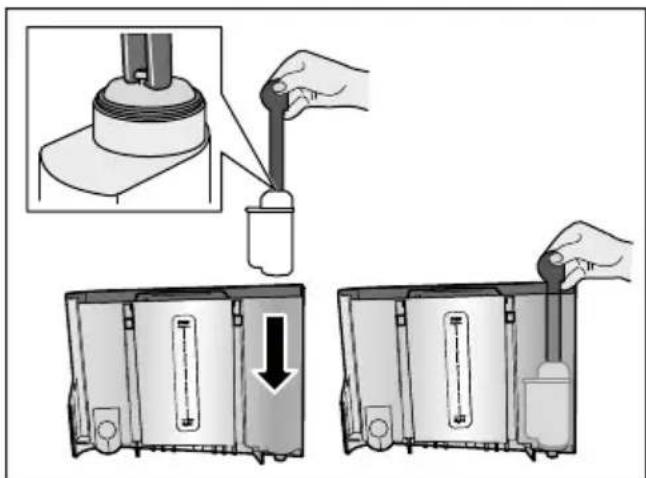

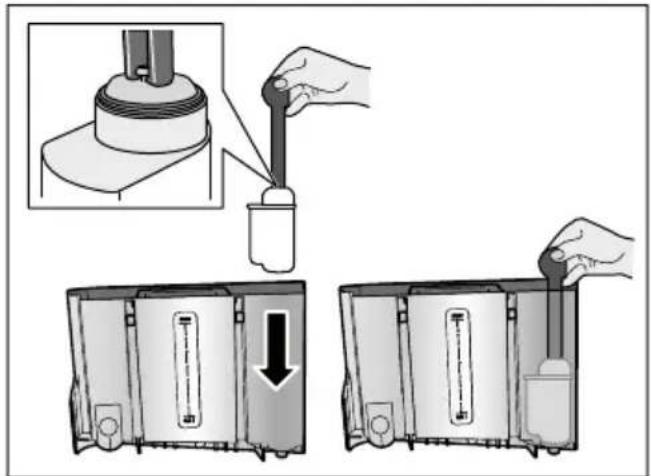

3. Use the measuring spoon to press

the water filter firmly into the empty water tank.

4. Fill the water tank with water up to

5. Place a container with a capacity of

at least 1.0 l under the outlet and confirm. Water will now flow through the filter. The filter is rinsed.

6. Then empty the container.

The appliance is ready for use again. Factory settings Appliance reset to factory set- tings Resets all your own settings to the condition when delivered. Demo mode ■ on ■ off For presentation purposes only. The setting "off" must be activated for normal operation. The set- ting is only possible in the first 3 minutes after switching on the appliance. Child-proof lock ■ activate ■ Child-proof lock activated To switch off, press milk Setting that governs whether the child-proof lock is activated or deactivated. ~ "Childproof lock" on page 21en Daily care and cleaning

Notes ■ Rinsing the filter automatically activates the interval for display of the filter change.After this interval or after 2 months at the latest the filter will no longer be effective. It needs to be replaced for reasons of hygiene and to prevent a build-up of limescale (which could damage the appliance). ■ If the appliance has not been used for a prolonged period (for example, while you are on holiday), the inserted filter should be rinsed before the first time the appliance is used again. To do this, simply dispense a cup of hot water. Removing the water filter If a new water filter is not inserted, the "Water filter" function must be deactivated.

1. Select "Water filter" in the Settings

2. Select and confirm the setting

3. Remove the water filter from the

4. Re-insert the water tank.

The appliance is ready for use again. Frost protection A service programme to prevent frost damage during transportation and storage. This programme completely empties the appliance. The appliance must be ready for use.

1. Press the rotary selector to start the

2. Empty the water tank and re-insert it.3. The appliance emits steam.4. Empty the drip tray and thoroughly

clean the appliance. The appliance can now be transported or stored. D Daily care and cleaning Da i l y car e and cl eani ng With good care and cleaning, your appliance will remain fully functioning for a long time to come. In this section, you will learn how to correctly clean and care for your appliance. :Warning Risk of electric shock! Before cleaning the appliance, pull out the mains plug. Never immerse the appliance in water. Do not use a steam cleaner. Cleaning agent Please observe the following information to ensure that the different surfaces are not damaged by using the wrong type of cleaning agent. Do not use: ■ Harsh or abrasive cleaning agents.■ Any cleaning agents containing alcohol or spirits. ■ Hard scouring pads or sponges.

9Daily care and cleaning en

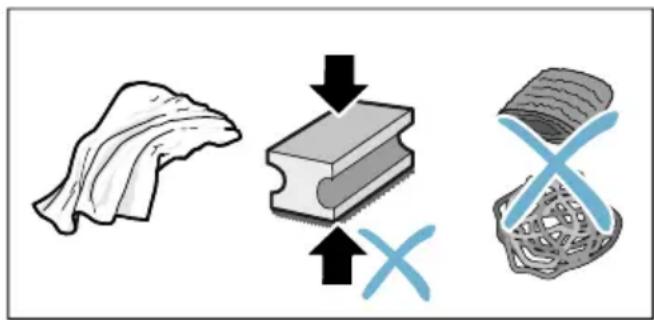

Notes ■ New sponge cloths may contain salts. Salts can cause rust film on stainless steel. Wash new sponge cloths thoroughly before use. ■ Always remove any limescale, residues of coffee or milk, cleaning or descaling solution immediately. This residue may cause corrosion to form. Caution! Not all of the appliance's components can be cleaned in the dishwasher. ~ Fig. % - ( Cleaning the appliance

1. Wipe down the outside of the

appliance with a soft, damp cloth.

3. Any grounds residue in the powder

compartment should be pushed down using a soft brush. Notes ■ If the appliance is cold when switched on or if it is switched off after dispensing coffee, it rinses automatically.The system is therefore self-cleaning. ■ If the appliance has not been used for a prolonged period of time (e.g. while you are on holiday), clean the entire appliance thoroughly, including the coffee outlet, water tank, milk system, brewing unit and trays. Cleaning the drip tray and coffee grounds container ~ Fig. % Note: The drip tray and coffee grounds container should be emptied and cleaned every day in order to prevent deposits.

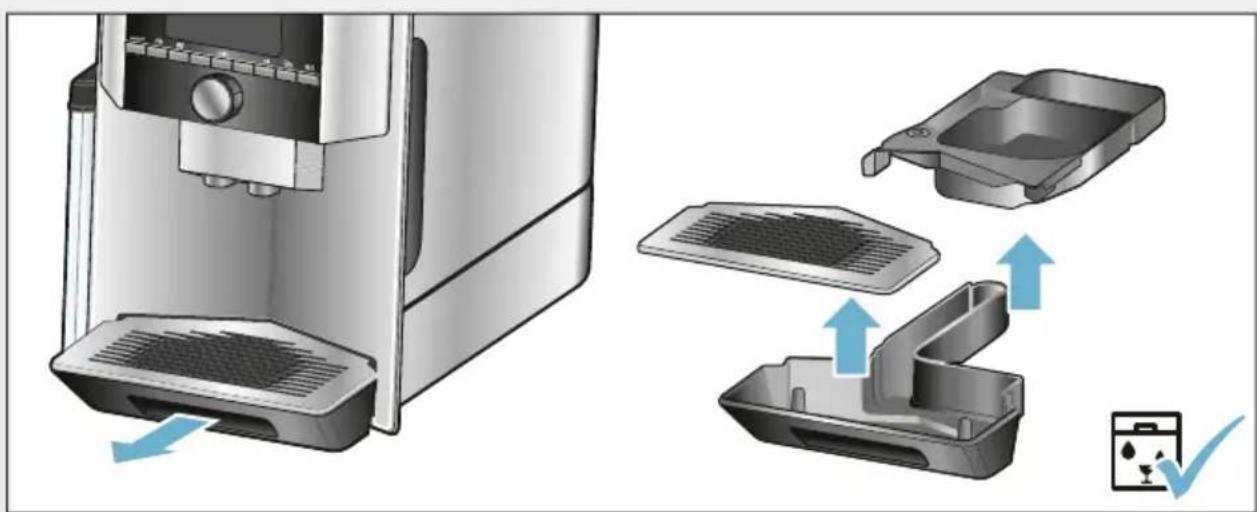

1. Pull the drip tray with the coffee

grounds container forwards and out.

2. Remove the drip plate and clean

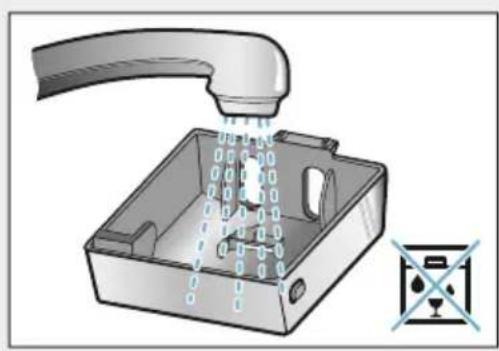

3. Empty and clean the drip tray and

coffee grounds container.

4. Wipe out the interior of the appliance

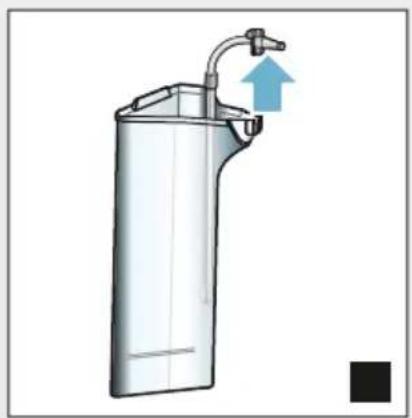

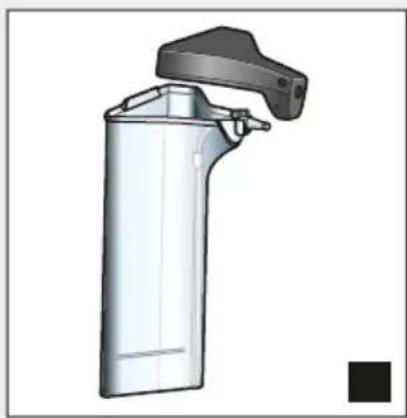

(intake trays). Cleaning the milk container ~ Fig. ' Note: For reasons of hygiene, the milk container must be cleaned regularly

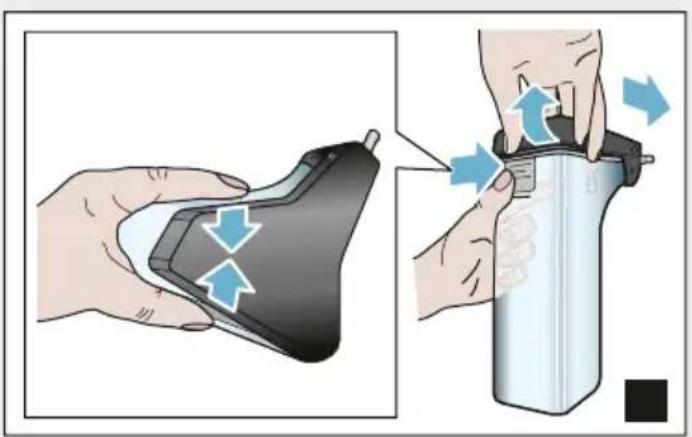

1. Dismantle the milk container into its

2. Clean all parts of the milk container

or put them in the dishwasher. Not dishwasher-safe: Outlet system cover Brewing chamber cover Brewing unit Water tank Aroma lid Dishwasher- safe: max. 60°C Drip plate Drip tray Coffee grounds container Coffee grounds slider, red Brewing unit cover, red Measuring spoon Milk system, all parts Milk container, all partsen Daily care and cleaning

Cleaning the milk system The milk system is automatically cleaned with a short jet of steam directly after preparing a milk drink. :Warning Risk of burns! The outlet system becomes very hot. After use, always let the outlet system cool down before you touch it. Manually clean the milk system on a weekly basis or more frequently if required.For particularly thorough cleaning, the milk system can be additionally rinsed with water. ~ "Rinse milk system" on page 28 Removing the milk system ~ Fig.#:

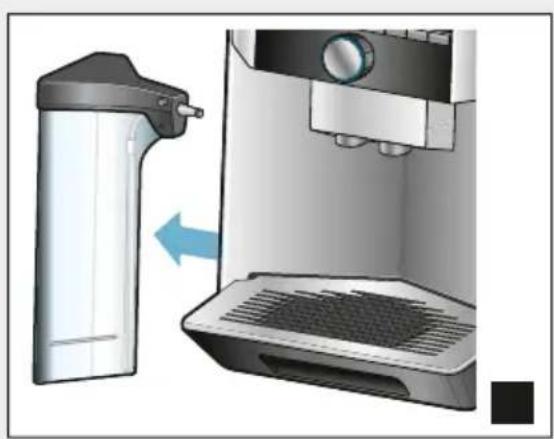

1. Remove the milk container from the

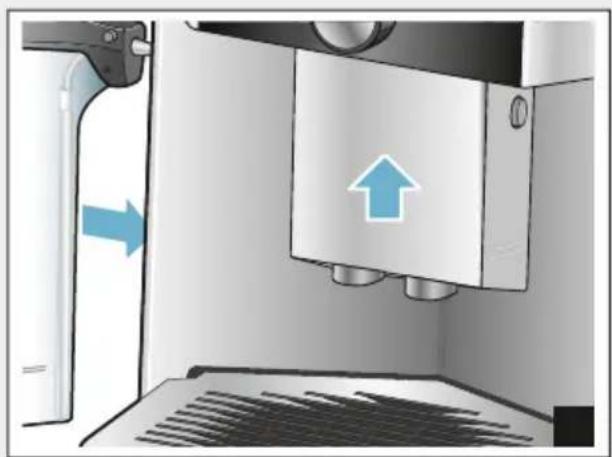

2. Slide the outlet system to the bottom

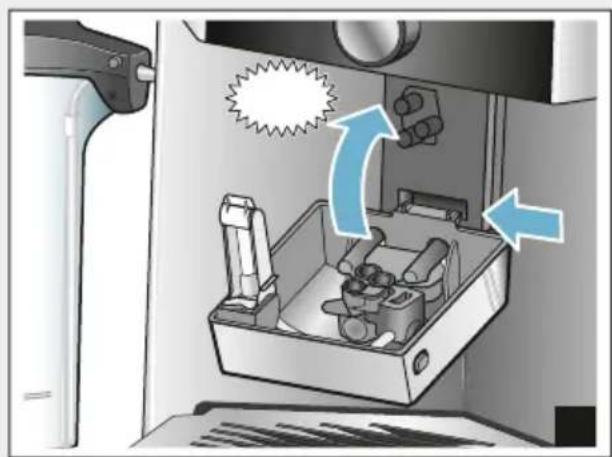

3. Press the unlocking mechanism at

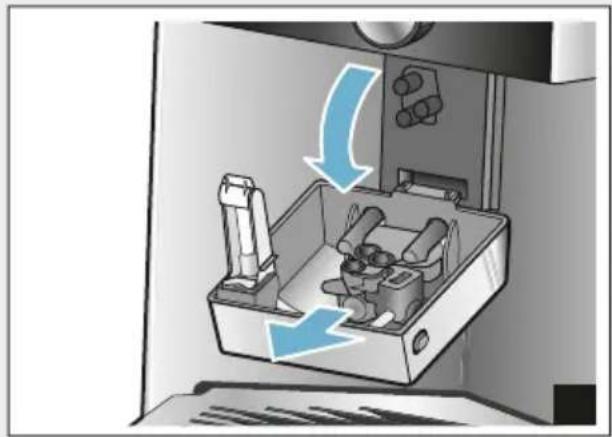

4. Fold the cover down towards the

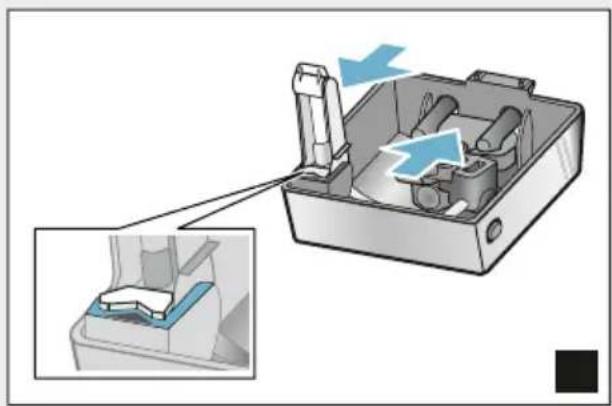

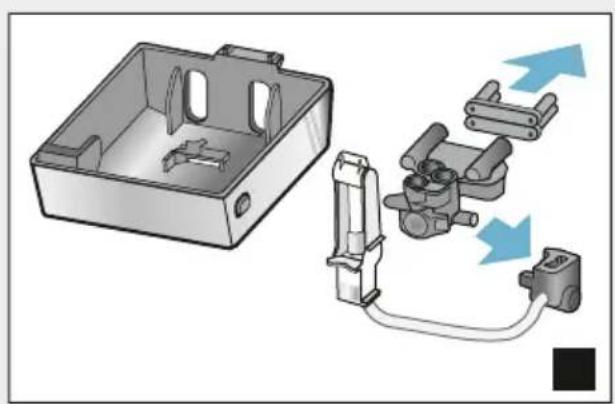

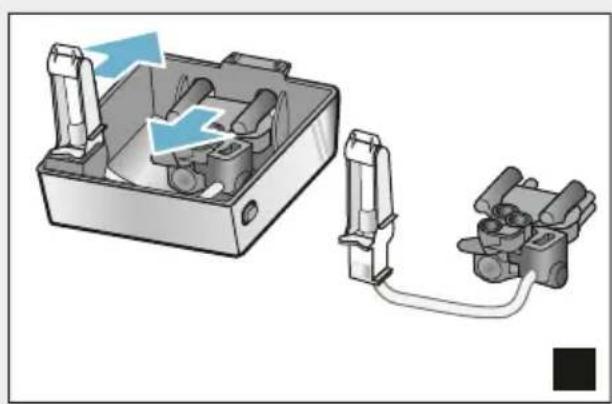

5. Remove the milk system and

dismantle into individual parts.

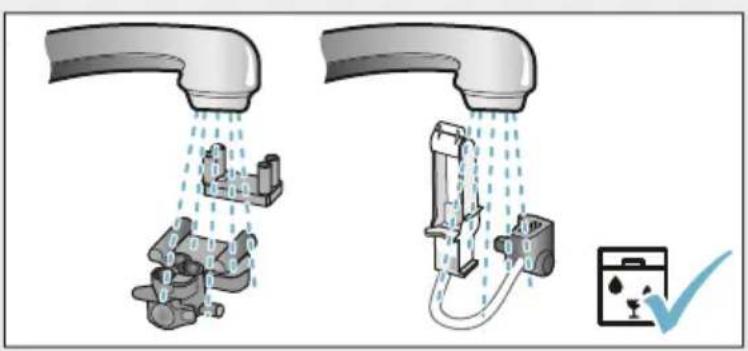

6. Clean the individual parts with

detergent solution and a soft cloth ~ Fig. &.

7. Rinse all parts with clean water and

leave to dry. Notes ■ All parts of the milk system can be cleaned in the dishwasher. Detergent residues in the milk system must be thoroughly removed following the rinsing process. ■ Important: The outlet system cover is not dishwasher-safe. Inserting the milk system: ~ Fig. #:

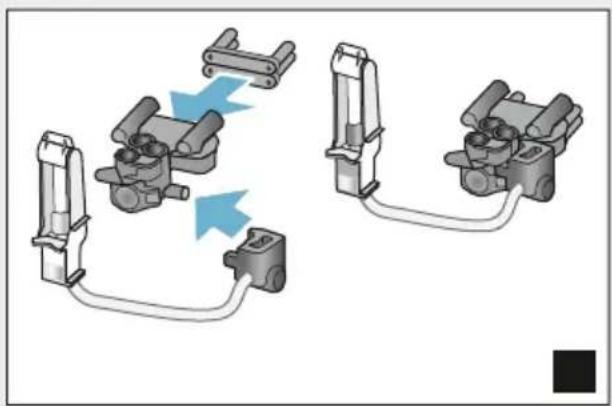

1. Assemble the individual parts of the

2. Insert the milk system into the cover.

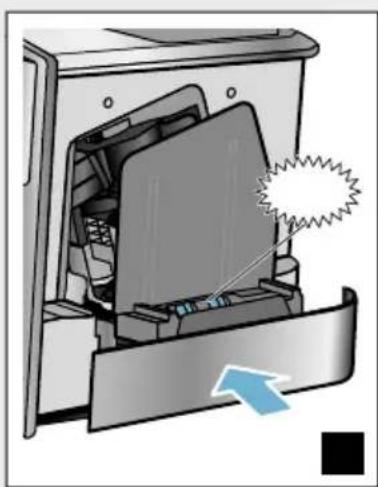

3. Slide the outlet system to the bottom

4. Position the cover at the bottom and

pivot it upwards until it engages. Cleaning the brewing unit ~ Fig. $, ~ Fig. ( In addition to the automatic cleaning programme, the brewing unit should be removed regularly for cleaning. Caution! Clean the brewing unit without detergent and do not put it in the dishwasher. Remove the brewing unit:

1. Switch the appliance off.

2. Remove the water tank.

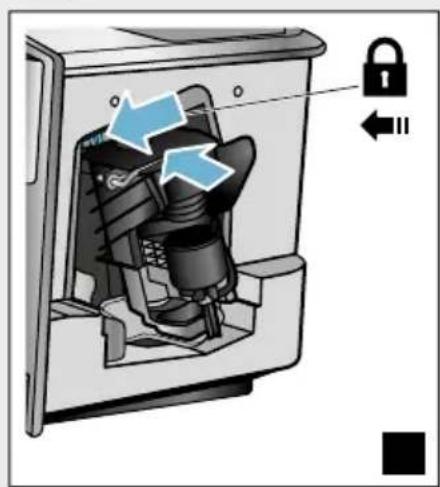

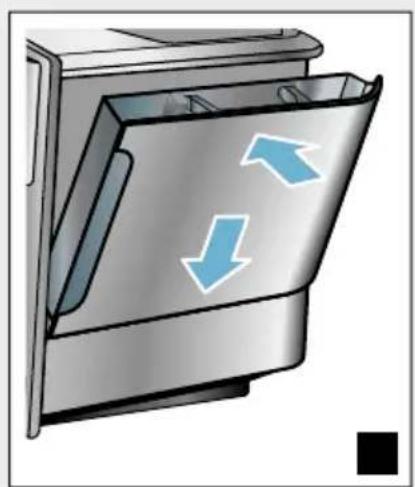

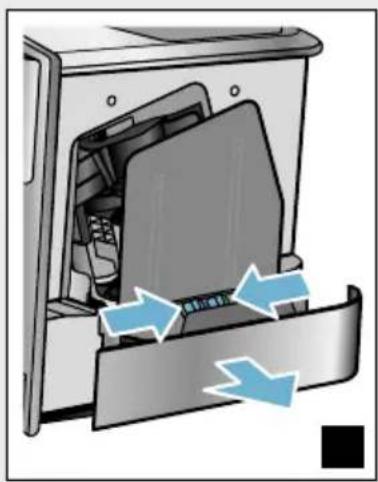

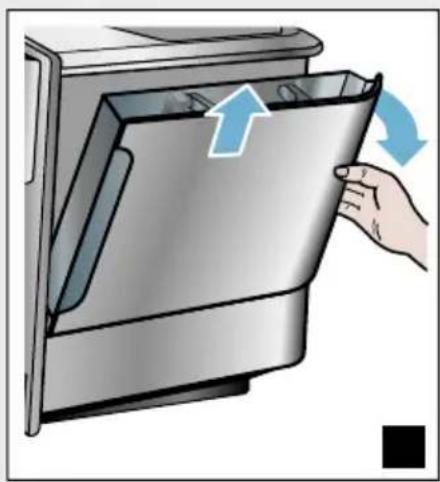

3. Slide both red locking sliders

towards one another and remove the cover.

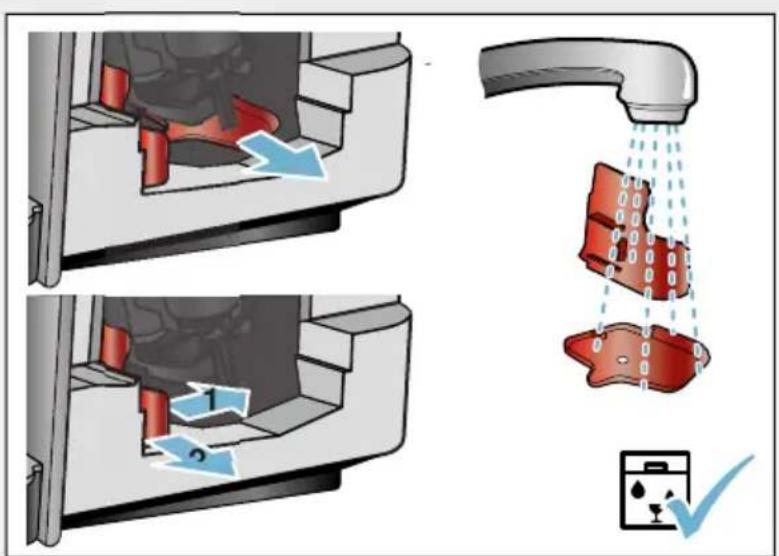

4. Remove, clean and dry the coffee

grounds slider (red) and the brewing unit cover (red).

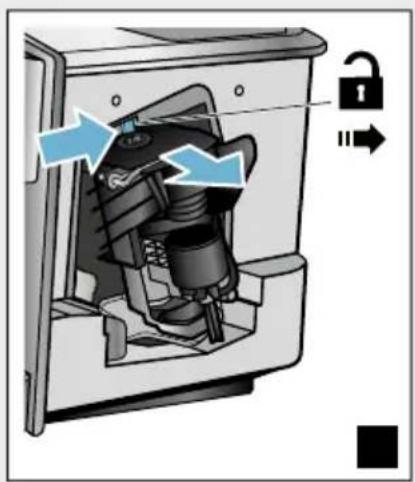

5. Slide the red lock to the right across

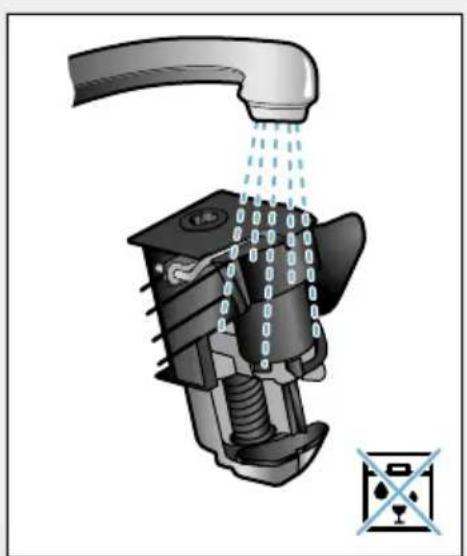

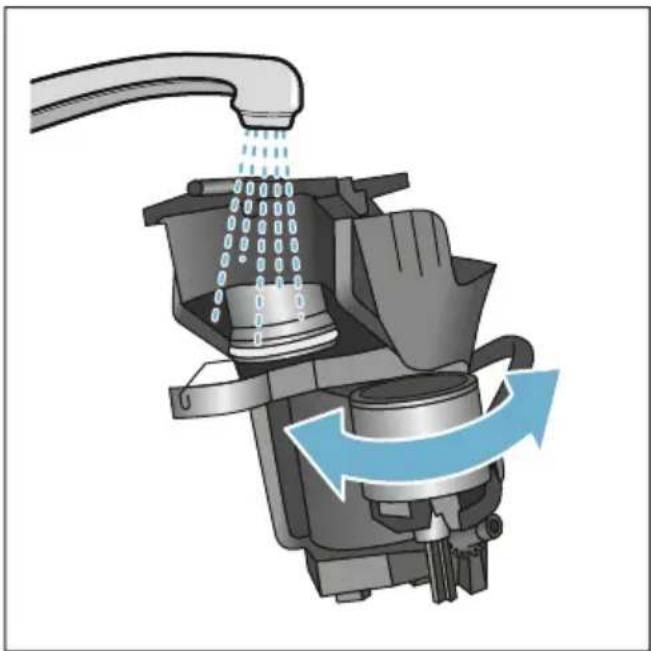

6. Carefully remove the brewing unit

and clean thoroughly under running water.

7. Clean the interior of the appliance

thoroughly with a damp cloth, removing any coffee residues.

8. Allow the brewing unit and the

interior of the appliance to dry. [Service programmes en

Insert the brewing unit:

1. Push the brewing unit into the

appliance in the direction of the arrow. The arrow is located on top of the brewing unit. Position the brewing unit from above, suspend on the guide rails and push into the appliance.

2. Slide the red lock to the left across

3. Insert the coffee grounds slider (red)

and the brewing unit cover (red).

4. Insert the cover until it engages.

5. Insert the water tank.

. Service programmes Se r v i c e pr ogr ammes Every so often – the exact frequency depends on usage and water hardness – one of the following messages will appear in the display in place of the coffee selection: ■ Rinse milk system ■ Run descaling program urgently! ■ Run cleaning program urgently! ■ Run calc'nClean program urgently! The appliance should immediately be cleaned or descaled using the appropriate programme. Alternatively, the two processes Descale and Clean can be carried out together using the calc’nClean function. Failure to carry out the service programme according to the instructions may damage the appliance. You can also start the service programmes at any time without having to wait for a reminder to appear in the display. Press the $/± button, select the desired programme and run it. Notes ■ Important: If descaling is not performed on the appliance in good time, the following appears "Descaling programme overdue. Device will shortly be locked!". Immediately perform the descaling process in accordance with the instructions. If the appliance is locked, it can only be operated again once descaling has been carried out. ■ Caution! For each of the service programmes, use descaling and cleaning agents as described in the instructions and observe the (relevant) safety information. ■ Do not drink the liquids. ■ Never use citric acid, vinegar or any vinegar-based agents to descale the appliance.en Service programmes

■ For cleaning and descaling, only use the tablets intended for such purpose.They have been specially developed for this appliance, and new stocks can be ordered through customer service. ~ "Accessories" on page 11 ■ Never insert descaling tablets or other products into the grounds compartment. ■ Never interrupt the service programme. ■ Prior to starting a service programme, remove, clean and re-insert the brewing unit. Rinse the milk system. ■ At the end of a service programme, wipe down the appliance using a soft, damp cloth to immediately remove any descaler residue. This residue may cause corrosion. ■ New sponge cloths may contain salts. Salts can cause rust film on stainless steel, so cloths must always be washed out thoroughly before use. ■ Using a water filter increases the intervals until a service programme needs to be performed. ■ If one of the service programmes is interrupted, e.g. by a power failure, proceed as follows: The appliance automatically starts a special rinsing process.

1. Rinse out the water tank.

2. Pour in fresh, still water up to the

"max" marking and confirm. The programme starts and rinses the appliance.Duration: approx. 2 minutes.

3. Empty, clean and re-insert the drip

4. Empty, clean and re-insert the milk

container. The programme has finished. The appliance is ready for use again.

5. Press $/± button to close the

programme. Rinse milk system The milk system is automatically cleaned with a short jet of steam directly after preparing a milk drink. For particularly thorough cleaning, the milk system can be additionally rinsed with water. Duration: approx. 2 minutes

2. Use the rotary selector to select

"Rinse milk system".

3. Press the rotary selector to start the

4. Empty, clean and re-connect the milk

5. Place an empty glass under the

outlet system and confirm. The programme runs.

6. Empty, clean and re-connect the milk

The programme has finished. The appliance is ready for use again.

8. Press the $/± button to exit the

programme. The milk system should also be subject to thorough manual cleaning at regular intervals. ~ "Cleaning the milk system" on page 26Service programmes en

Descaling Duration: approx. 21 minutes The line at the bottom of the display indicates in how many minutes the water tank will need to be rinsed and refilled with water, for example.

2. Use the rotary selector to select

3. Press the rotary selector to start the

programme. The instructions in the display guide you through the programme.

4. Empty the drip tray and re-insert.

5. Empty, clean and re-connect the milk

6. Remove the water filter (if present)

7. Fill the empty water tank with

lukewarm water up to the marking "0.5 l". Dissolve 1 descaling tablet in the water.

8. Place a container with a capacity of

at least 1.0 l under the outlet system and confirm.

9. Press the rotary selector.

The programme runs. Duration: approx. 19 minutes Info: If there is not enough descaling solution in the water tank, you will be asked to: Refill with still water and confirm.

10. Rinse out the water tank and (if

removed) re-insert the water filter.

11. Pour in fresh still water up to the

"max" marking and re-insert the water tank. The programme runs. Duration: approx. 2 minutes

12. Empty the container and confirm.

13. Empty the drip tray and re-insert.

14. Empty, clean and re-connect the milk

container. The programme has finished. The appliance is ready for use again.

15. Press the $/± button to exit the

programme. Cleaning Duration: approx. 6 minutes

2. Use the rotary selector to select

3. Press the rotary selector to start the

programme. The instructions in the display guide you through the programme.

4. Empty the drip tray and re-insert.

5. Open the grounds compartment,

add a cleaning tablet, close the grounds compartment and confirm.

6. Place a container with a capacity of

at least 1.0 l under the outlet system and confirm. The programme runs. Duration: approx. 5 minutes

7. Empty the container and confirm.

The programme has finished. The appliance is ready for use again.

8. Press the $/± button to exit the

calc’nClean Duration: approx. 26 minutes calc’nClean combines the functions "Descale" and "Clean". If the two programmes are due close together, the appliance suggests this service programme automatically. The line at the bottom of the display indicates in how many minutes the water tank will need to be rinsed and refilled with water, for example.

2. Use the rotary selector to select

3. Press the rotary selector to start the

programme. The instructions in the display guide you through the programme.

4. Empty the drip tray and re-insert.

5. Empty, clean and re-connect the milk

6. Open the grounds compartment,

add a cleaning tablet, close the grounds compartment and confirm.

7. Remove the water filter (if present)

8. Fill the empty water tank with

lukewarm water up to the marking "0.5 l". Dissolve 1 descaling tablet in the water.

9. Place a container with a capacity of

at least 1.0 l under the outlet system and confirm. The programme runs. Duration: approx. 19 minutes Info: If there is not enough descaling solution in the water tank, you will be asked to: Refill with still water and confirm.

10. Rinse out the water tank and (if

removed) re-insert the water filter.

11. Pour in fresh still water up to the

"max" marking and re-insert the water tank. The programme runs. Duration: approx. 7 minutes

12. Empty the container and confirm.

13. Empty the drip tray and re-insert.

14. Empty, clean and re-connect the milk

container. The programme has finished. The appliance is ready for use again.

15. Press the $/± button to exit the

3 Trouble shooting Tr ou bl e shoot i ng Faults often have simple explanations. Before calling the customer service, please refer to the fault table and attempt to correct the fault yourself. Please read through the safety information at the beginning of these instructions. Fault table Problem Reason Solution Coffee or milk froth quality var- ies widely. Build-up of limescale in the appliance. Descale the appliance as described in the instructions. No hot water dispensed. The milk system or the intake of the milk system is soiled. Clean the milk system or the intake. ~ "Cleaning the milk system" on page 26 Too little or no milk froth. The milk system or the intake of the milk system is soiled. Clean the milk system or the intake. ~ "Cleaning the milk system" on page 26 Unsuitable milk. Do not use milk that has already been boiled. Use cold milk with a fat content of at least 1.5%. Build-up of limescale in the appliance. Descale the appliance as described in the instructions. No intake of milk by the milk system. The milk system is assembled incorrectly. Correctly assemble all parts. ~ Fig. # Incorrect connection sequence for milk container and milk sys- tem. Connect the milk system to the outlet system first, then the milk container. The individually selected per-cup quantity is not reached. Coffee dispensing slows to a trickle or stops completely The grinding level is too fine. The ground coffee is too fine. Set a coarser grinding level. Use coarser ground coffee. Heavy build-up of limescale in the appliance. Descale the appliance as described in the instructions. Air in the water filter. Immerse the water filter in water until no more air bubbles escape; insert the filter again. No coffee dispensed, only water. An empty bean container is not detected by the appliance. Add coffee beans Note: The appliance will adjust to the coffee beans on the next dispensing process. The coffee shaft on the brewing unit is blocked. Clean the brewing unit. ~ "Cleaning the brewing unit" on page 26en Trouble shooting

The appliance no longer responds. Fault in the appliance. Press and hold on/off button for 10 seconds. Coffee has no "crema". Unsuitable type of coffee. Use a type of coffee with a higher pro- portion of robusta beans. The beans are no longer freshly roasted. Use fresh beans. The grinding level is not suita- ble for the coffee beans. Set a finer grinding level. The coffee is too "acidic". The grinding level is set too coarse or the ground coffee is too coarse. Set a finer grinding level or use finer ground coffee. Unsuitable type of coffee. Use a darker roast. The coffee is too "bitter". The grinding level is set too fine or the ground coffee is too fine. Set a coarser grinding level or use coarser ground coffee. Unsuitable type of coffee. Change the type of coffee. The coffee tastes burnt. The brewing temperature is too high Reduce the temperature. ~ "Adjusting beverage settings" on page 17 The grinding level is set too fine or the ground coffee is too fine. Set a coarser grinding level or use coarser ground coffee. Unsuitable type of coffee. Change the type of coffee. The water filter does not stay in position in the water tank. The water filter is not secured correctly. Immerse the water filter in water until no more air bubbles escape; insert the filter again. Firmly press the water filter straight down into the tank connection. The coffee grounds are not compact and are too wet. The grinding level is set too fine or coarse, or not enough ground coffee has been used. Set a coarser or finer grinding level or use 2 level measuring spoons of ground coffee. Water dripped onto the inner floor of the appliance when the drip tray was removed. Drip tray removed too early. Wait a few seconds after the last drink was dispensed before removing the drip tray. The drip tray cannot be removed. The coffee grounds container is very full. The coffee grounds slider becomes stuck. Clean the interior of the brewing unit. ~ "Cleaning the appliance" on page 25 Correctly insert the coffee grounds slider. Problem Reason SolutionTrouble shooting en

The outlet system cannot be assembled or disassembled. Incorrect sequence Connect the outlet system (with milk system) first, then connect the milk sys- tem; alternatively, on disassembly first remove the milk container and then the outlet system. Display shows "Fill bean con- tainer". Displayed although the bean container )B is already full, or the grinder is not grind- ing any coffee beans. Beans are not falling into the grinding unit (beans too oily). Gently tap the bean container.Possibly change the type of coffee. When the bean container is empty, wipe it with a dry cloth. Display shows: "Empty drip tray" even if the drip tray is empty - what to do? Emptying is not detected when the appliance is switched off. When the appliance is switched on, remove and re-insert the drip tray. The drip tray is soiled. Clean the drip tray thoroughly. Display shows "Refill with still water" or "Remove filter" Water tank wrongly inserted. Insert water tank correctly. Carbonated water in the water tank. Fill the water tank with fresh tap water. Float is stuck in the water tank. Remove the water tank and clean thor- oughly. New water filter not rinsed according to the instructions. Rinse the water filter according to the instructions and then switch on. Air in the water filter. Immerse the water filter in water until no more air bubbles escape; insert the filter again. Water filter is old. Insert a new water filter. Very frequent display that des- caling is necessary. Water is too hard. Insert water filter and activate accord- ing to the instructions. ~ "Starting the "Water filter"or "frost protection" programme" on page 23 Problem Reason Solution Display shows "Clean brewing unit". Brewing unit soiled. Clean the brewing unit. Too much ground coffee in the brewing unit. Clean the brewing unit.Add no more than 2 level measuring spoons of ground coffee. The brewing unit mechanism is stiff. Clean the brewing unit. ~ "Daily care and cleaning" on page 24 If you are unable to solve the problem, always call the hotline. You will find the telephone numbers at the back of these instructionsen Customer service

4 Customer service Cu s t o mer ser vi ce Technical data E number and FD number When calling us, please give the full product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. These numbers can be found on the rating plate h. (~ Fig. ") To save time, you can make a note of the data for your appliance and the telephone number for customer service here, should this be required. The contact data for customer service in all countries can be found at the back of these instructions. Guarantee The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee. Changes reserved. Electrical connection (voltage – frequency) 220–240 V ∼, 50/60 Hz Power rating 1500 W Maximum static pump pressure 19 bar Maximum capacity of water tank (without filter) 2.3 l Maximum capacity of bean container 290 g Length of power cable 100 cm Dimensions (H x W x D) 39.2 x 31.6 x 47.0 cm Weight, empty 10–12 kg Type of grinder Ceramic E no.

Number Customer service Ofr

&DUO:HU\6WUDH0QFKHQ*(50$1<
