| Product Type | Car Radio |
| Brand | Sony |
| Model | DSX-GS80 |
| Dimensions (w × h × d) | Approx. 178 × 50 × 177 mm |
| Weight | Approx. 1.0 kg |
| Power Supply | 12 V DC car battery (negative ground) |
| Rated Current Consumption | 10 A |
| Maximum Power Output | 100 W × 4 (at 2 Ω / 4 Ω) |
| FM Radio | 87.5 – 108.0 MHz (EUROPE); FM1/FM2: 87.5 – 108.0 MHz, FM3: 65 – 74 MHz (RUSSIA) |
| AM/LW Radio | 531 – 1602 kHz (AM); 153 – 279 kHz (LW) |
| USB Player | Front USB (1 A) and Rear USB (1.5 A) ports; MP3, WMA, AAC, WAV, FLAC compatibility |
| Bluetooth | Version 3.0, profiles A2DP, AVRCP, HFP, PBAP, SPP |
| iPhone/iPod Compatibility | iPhone XR to iPhone 5s, iPod touch 5th/6th gen, iPod nano 7th gen |
| Hands-free Function | Built-in microphone for Bluetooth calls |
| EXTRA BASS | Bass enhancement with [1], [2], [OFF] settings |
| Audio Outputs | Front, rear, subwoofer (RCA) |
| Front Panel | Detachable for anti-theft protection |
| Installation | In dashboard, tilt < 30° |
| Maintenance | Clean connectors with cotton swab |
| Safety | AUTO OFF function to prevent battery drain; do not use near flammable gases |
| Package Contents | Mounting frame, release keys, trim, screws, bushing, power cable, microphone, holder, double-sided tape |
Frequently Asked Questions - DSXGS80 SONY
User questions about DSXGS80 SONY
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Car stereo in PDF format for free! Find your manual DSXGS80 - SONY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DSXGS80 by SONY.
USER MANUAL DSXGS80 SONY
FM/AM/LW Bluetooth® Car Audio
Operating Instructions
GB
Mode d'emploi
FR
Bedienungsanleitung
DE
To cancel the demonstration (DEMO) display, see page 6.
For the connection/installation, see page 11.

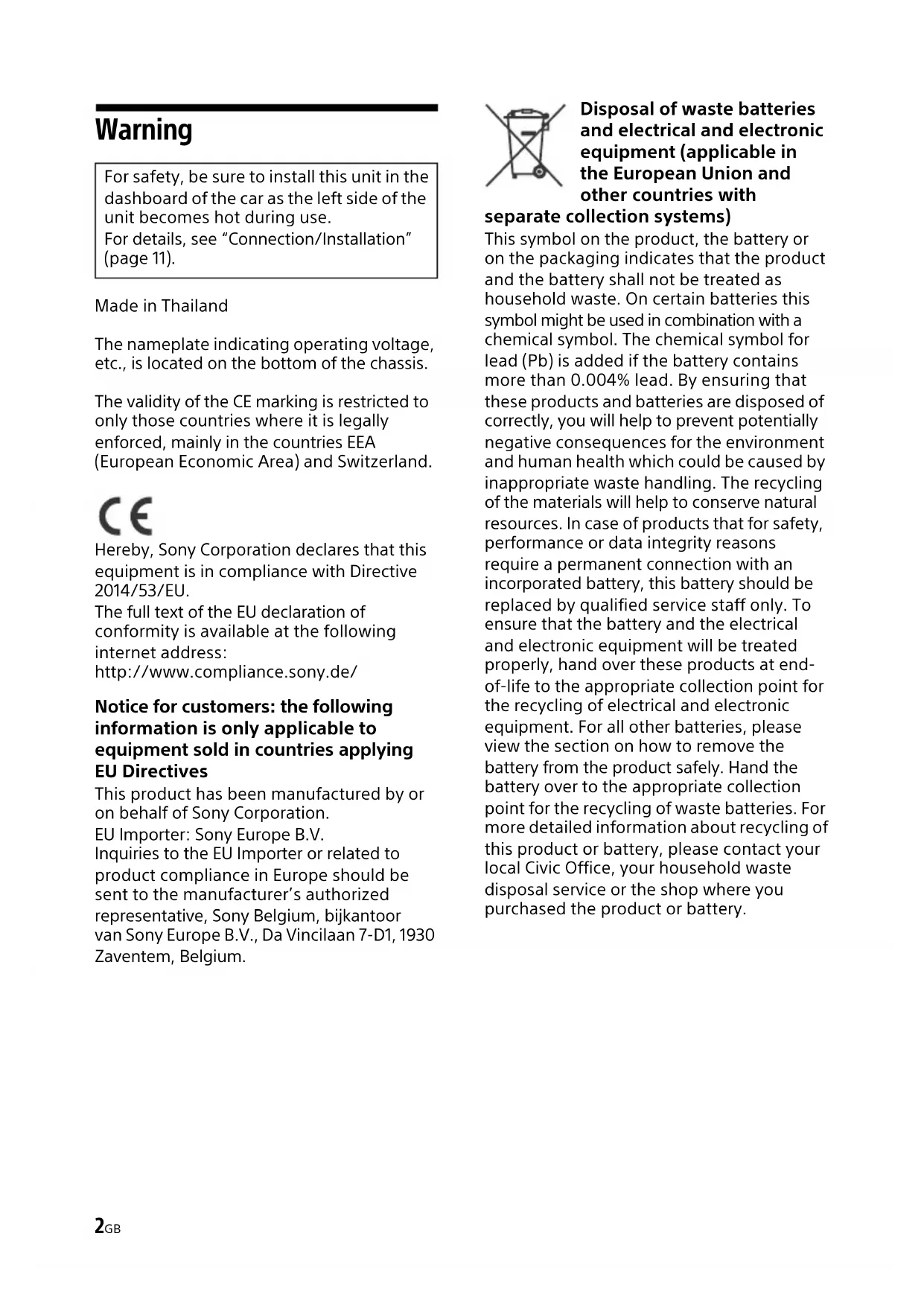

For safety, be sure to install this unit in the dashboard of the car as the left side of the unit becomes hot during use.
For details, see "Connection/Installation" (page 11).
Made in Thailand
The nameplate indicating operating voltage, etc., is located on the bottom of the chassis.
The validity of the CE marking is restricted to only those countries where it is legally enforced, mainly in the countries EEA (European Economic Area) and Switzerland.
CE
Hereby, Sony Corporation declares that this equipment is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
http://www.compliance.sony.de/
Notice for customers: the following information is only applicable to equipment sold in countries applying EU Directives
This product has been manufactured by or on behalf of Sony Corporation.
EU Importer: Sony Europe B.V.
Inquiries to the EU Importer or related to product compliance in Europe should be sent to the manufacturer's authorized representative, Sony Belgium, bijkantoor van Sony Europe B.V., Da Vincilaan 7-D1, 1930 Zaventem, Belgium.
Disposal of waste batteries and electrical and electronic equipment (applicable in the European Union and other countries with
separate collection systems)
This symbol on the product, the battery or on the packaging indicates that the product and the battery shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbol for lead (Pb) is added if the battery contains more than 0.004% lead. By ensuring that these products and batteries are disposed of correctly, you will help to prevent potentially negative consequences for the environment and human health which could be caused by inappropriate waste handling. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery and the electrical and electronic equipment will be treated properly, hand over these products at end-of-life to the appropriate collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the appropriate collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product or battery.
CAUTION
The following frequency 65 – 74 MHz range is not allocated to sound broadcasting in the European Common Allocations table and cannot be used in Europe.
Warning if your car's ignition has no ACC position
Be sure to set the AUTO OFF function. The unit will shut off completely and automatically in the set time after the unit is turned off and the clock is displayed (i.e. press and hold OFF for 1 second), which prevents battery drain. If you do not set the AUTO OFF function, press and hold OFF until the display disappears each time you turn the ignition off.
Disclaimer regarding services offered by third parties
Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony does not bear any responsibility in these sorts of situations.
Important notice
Caution
IN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER'S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HARDWARE AND/OR ITS SOFTWARE.
Dear customer, this product includes a radio transmitter.
According to UNECE Regulation no. 10, a vehicle manufacturers may impose specific conditions for installation of radio transmitters into vehicles.
Please check your vehicle operation manual or contact the manufacturer of your vehicle or your vehicle dealer, before you install this product into your vehicle.
Emergency calls
This BLUETOOTH car handsfree and the electronic device connected to the handsfree operate using radio signals, cellular, and landline networks as well as user-programmed function, which cannot guarantee connection under all conditions. Therefore do not rely solely upon any electronic device for essential communications (such as medical emergencies).
On BLUETOOTH communication
- Microwaves emitting from a BLUETOOTH device may affect the operation of electronic medical devices. Turn off this unit and other BLUETOOTH devices in the following locations, as it may cause an accident.
- where inflammable gas is present, in a hospital, train, airplane, or petrol station
- near automatic doors or a fire alarm
- This unit supports security capabilities that comply with the BLUETOOTH standard to provide a secure connection when the BLUETOOTH wireless technology is used, but security may not be enough depending on the setting. Be careful when communicating using BLUETOOTH wireless technology.
- We do not take any responsibility for the leakage of information during BLUETOOTH communication.
If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

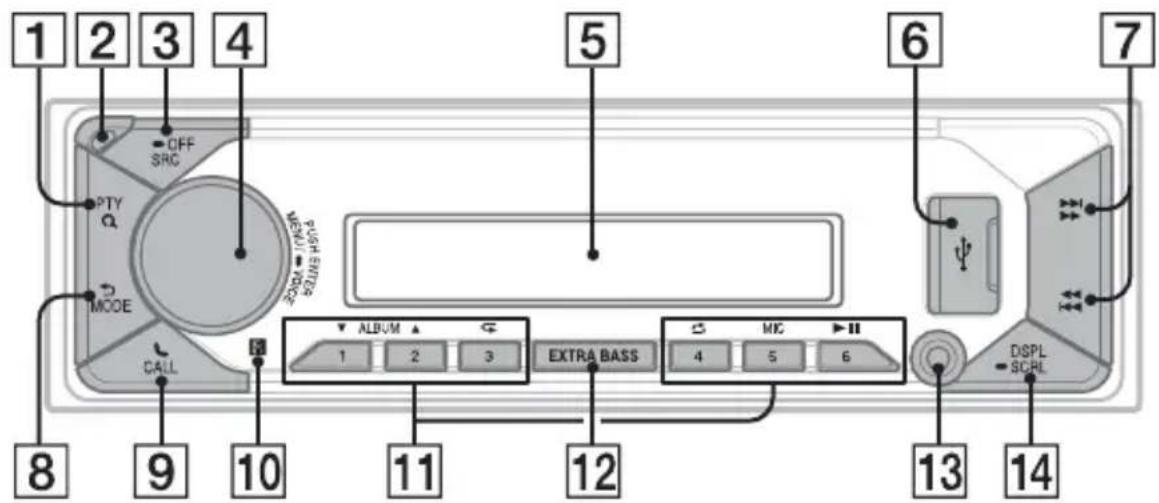

Main Unit
Front panel removed (inner panel)
1 PTY (program type)
Selects PTY in RDS.
Q (browse)
Enters the browse mode during playback. (Not available when a USB device in
Android™ mode or iPod is connected.)
2 Front panel release button
3 SRC (source)
Turns on the power.
Changes the source.
OFF
Press and hold for 1 second to turn the source off and display the clock.
Press and hold for more than 2 seconds to turn off the power and the display.
4 Control dial
Adjusts the volume.
PUSH ENTER
Enters the selected item.
Press SRC, rotate then press to change the source (timeout in 2 seconds).
MENU
Opens the setup menu.
VOICE
Press and hold for more than 2 seconds to activate voice dial, voice recognition (Android smartphone only), or the Siri function (iPhone only).
5 Display window
6 USB port
7 / ( S E E K - / + )
Tunes in radio stations automatically. Press and hold to tune manually.
◀◀/▶▶I (prev/next)
◀◀/▶▶ (fast-reverse/fast-forward)
8 (back)
Returns to the previous display.
MODE
Selects the radio bands or function modes.
9 CALL
Enters the call menu. Receive/end a call. Press and hold for more than 2 seconds to switch the BLUETOOTH signal.
10 Receptor for the remote commander
11 Number buttons (1 to 6)
Receives preset radio stations. Press and hold to store stations.
ALBUM ▼/▲
Skips an album for audio device.
Press and hold to skip albums continuously.
(Not available when a USB device in Android mode or iPod is connected.)
⊂ (repeat)
(Not available when a USB device in Android mode is connected.)
(shuffle)
(Not available when a USB device in Android mode is connected.)
MIC
Adjusts the microphone settings.
▶II (play/pause)
12 EXTRA BASS
Reinforces bass sound in synchronization with the volume level.
Press to change the EXTRA BASS setting: [1], [2], [OFF].
13 AUX input jack
14 DSPL (display)
Changes display items.
- SCRL (scroll)
Press and hold to scroll a display item.
15 RESET (inner panel)
Restarts the unit (press with a ballpoint pen, etc.).
Basic Operations
Detaching the Front Panel
You can detach the front panel of this unit to prevent theft.
1 Press and hold OFF ① until the unit turns off, press the front panel release button ②, then pull the panel towards you to remove.
Attaching the front panel
When connecting a BLUETOOTH device for the first time, mutual registration (called "pairing") is required. Pairing enables this unit and other devices to recognize each other. This unit can connect two BLUETOOTH devices (two mobile phones, or a mobile phone and an audio device).
→ [PAIRING] → [DEVICE 1]/[DEVICE 2]*.
flashes while the unit is in pairing standby mode.
* [DEVICE 1] or [DEVICE 2] will be changed to the paired device name after pairing is complete.
2 Perform pairing on the BLUETOOTH device so it detects this unit.
3 Select your model name shown in the display of the BLUETOOTH device*.
When pairing is made, stays lit.
* If passkey input is required on the BLUETOOTH device, input [0000].
Canceling the Demonstration Mode
You can cancel the demonstration display which appears when the source is off and the clock is displayed.
1 Press MENU, rotate the control dial to select [GENERAL], then press it.
2 Rotate the control dial to select [DEMO], then press it.
3 Rotate the control dial to select [DEMO-OFF], then press it.
The setting is complete.
4 Press (back) twice.
The display returns to normal reception/play mode.
Updating the Firmware
To update the firmware, visit the support site on the back cover, then follow the online instructions.
Note
During the update, do not remove the USB device.
Initializing the Unit
Initializing the unit will erase the clock settings and all your settings stored in the backup memory.
[INITIALIZE] appears only while the source is off and the clock is displayed.
1 Press MENU, rotate the control dial to select [GENERAL], then press it.
2 Rotate the control dial to select [INITIALIZE], then press it.
3 Rotate the control dial to select [INIT-YES], then press it.
Note
Initialize the unit before discarding the unit to prevent the leakage of phone information.
Setting the area/region
After initializing the unit, the area/region setting display appears.
1 Press ENTER while [AREA] is displayed.
The area/region currently set appears.
2 Rotate the control dial to select [EUROPE] or [RUSSIA], then press it.
3 Rotate the control dial to select [YES] or [NO], then press it.
If the setting area/region is changed, the unit will initialize, then the clock is displayed.
This setting can be configured in the general setup menu.
Additional Information
Precautions
- Do not leave the front panel or audio devices on the dashboard.
- When the unit is turned on, the power antenna (aerial) extends automatically.
- Do not splash liquid onto the unit.

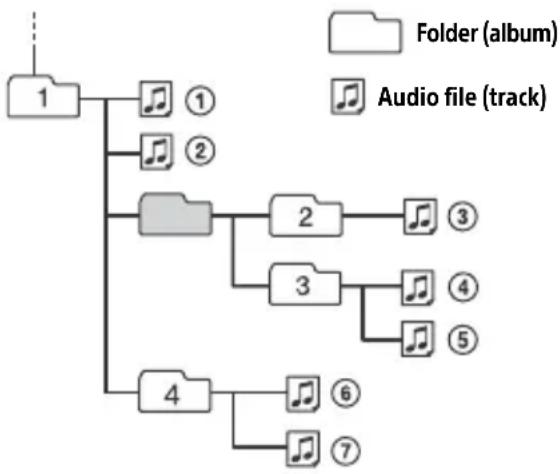

Playback order of audio files
About iPod
- You can connect to the following iPod models. Update your iPod devices to the latest software before use.
Compatible iPhone/iPod models
| Compatible Model | Bluetooth® | USB |
| iPhone XR √ | √ | |
| iPhone Xs max √ | √ | |
| iPhone Xs √ | √ | |
| iPhone X √ | √ | |
| iPhone 8 √ | √ | |
| iPhone 8 Plus √ | √ | |
| iPhone 7 √ | √ | |
| iPhone 7 Plus √ | √ | |
| iPhone SE √ | √ | |
| iPhone 6s √ | √ | |
| iPhone 6s Plus √ | √ | |
| iPhone 6 √ | √ | |
| iPhone 6 Plus √ | √ | |
| iPhone 5s √ | √ | |
| iPhone 5c √ | √ | |
| iPhone 5 √ | √ | |
| iPhone 4s √ | √ | |
| iPod touch (6th generation) | √ | √ |
| iPod touch (5th generation) | √ | √ |
| iPod nano (7th generation) | √ |
- Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.
Maintenance
Cleaning the connectors
Avoid touching the connectors directly. The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 5) and clean the connectors with a cotton swab. Do not apply too much force. Otherwise, the connectors may be damaged.
For safety, do not remove the front panel while driving.
Specifications
Radio section
FM
Tuning range:
When [AREA] is set to [EUROPE]: 87.5 MHz – 108.0 MHz
When [AREA] is set to [RUSSIA]: FM1/FM2: 87.5 MHz – 108.0 MHz (at 50 kHz step) FM3: 65 MHz – 74 MHz (at 30 kHz step)
Usable sensitivity: 8 dBf
Signal-to-noise ratio: 73 dB
Separation: 50 dB at 1 kHz
AM/LW
Tuning range: 531 kHz – 1,602 kHz (AM), 153 kHz – 279 kHz (LW)
Sensitivity: AM: 26 μV, LW: 50 μV
USB Player section
Interface:
USB1 port (front): USB (Hi-speed) USB2 port (rear): USB (Hi-speed)
Maximum current:
USB1 port (front): 1 A USB2 port (rear): 1.5 A
The maximum number of recognizable files (tracks): 10,000
Compatible Android Open Accessory protocol (AOA): 2.0
Corresponding codec: MP3 (.mp3)
Bit rate: 8 kbps – 320 kbps (Supports VBR (Variable Bit Rate)) Sampling rate: 16 kHz – 48 kHz
WMA (.wma)
Bit rate: 32 kbps – 192 kbps (Supports VBR (Variable Bit Rate)) Sampling rate: 32 kHz, 44.1 kHz, 48 kHz
AAC (.m4a, .mp4)
Bit rate: 8 kbps - 320 kbps
Sampling rate: 11.025 kHz – 48 kHz
WAV (.wav)
Bit depth: 16 bit
Sampling rate: 44.1 kHz, 48 kHz
FLAC (.flac)
Bit depth: 16 bit, 24 bit
Sampling rate: 44.1 kHz, 48 kHz
Supported file system: FAT16, FAT32
Wireless Communication
Communication System: BLUETOOTH Standard version 3.0
Output:
BLUETOOTH Standard Power Class 2 (Max. Conducted +1 dBm)
Maximum communication range*1: Line of sight approx. 10 m (33 ft)
Frequency band: 2.4 GHz band (2.4000 GHz – 2.4835 GHz)
Modulation method: FHSS
Compatible BLUETOOTH Profiles ^2 : A2DP (Advanced Audio Distribution Profile) 1.3
AVRCP (Audio Video Remote Control Profile) 1.5
HFP (Handsfree Profile) 1.6
PBAP (Phone Book Access Profile)
SPP (Serial Port Profile)
Corresponding codec: SBC (.sbc), AAC (.m4a)
*1 The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antenna (aerial)'s performance, operating system, software application, etc.
*2 BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communication between devices.
Power amplifier section
Output: Speaker outputs
Speaker impedance: 2 Ω/4 Ω - 8 Ω
Maximum power output: 100 W × 4 (at 2 Ω/4 Ω)
General
Power requirements: 12 V DC car battery (negative ground (earth))
Rated current consumption: 10 A
Dimensions:
Approx. 178 mm × 50 mm × 177 mm (7 1/8 in × 2 in × 7 in) (w/h/d)
Mounting dimensions:
Approx. 182 mm × 53 mm × 160 mm (7 1/4 in × 2 1/8 in × 6 3/8 in) (w/h/d)
Mass: Approx. 1.0 kg (2 lb 4 oz)
Package contents: Main unit (1)
Parts for installation and connections (1 set)
Ask the dealer for detailed information.
Design and specifications are subject to change without notice.
Copyrights
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.
Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.
Apple, iPhone, iPod, iPod nano, iPod touch, and Siri are trademarks of Apple Inc., registered in the U.S. and other countries.
Android is a trademark of Google LLC.
libFLAC
Copyright (C) 2000-2009 Josh Coalson Copyright (C) 2011-2013 Xiph.Org Foundation
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
- Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Connection/Installation
Cautions
- Run all ground (earth) leads to a common ground (earth) point.
- Do not get the leads trapped under a screw, or caught in moving parts (e.g., seat railing).
- Before making connections, turn the car ignition off to avoid short circuits.
- Connect the power supply leads ⑥ to the unit and speakers before connecting it to the auxiliary power connector.
- Be sure to insulate any loose unconnected leads with electrical tape for safety.
- Choose the installation location carefully so that the unit will not interfere with normal driving operations.
- Avoid installing the unit in areas subject to dust, dirt, excessive vibration, or high temperature, such as in direct sunlight or near heater ducts.
- Use only the supplied mounting hardware for a safe and secure installation.
Note on the power supply lead (yellow)
When connecting this unit in combination with other stereo components, the amperage rating of the car circuit to which the unit is connected must be higher than the sum of each component's fuse amperage rating.
Note on installing in cars with a start-stop system
The unit may restart when starting the engine from start-stop. In this case, turn off the start-stop system of your car.
Mounting angle adjustment
Adjust the mounting angle to less than 30^ .
Parts List for Installation
① Mounting sleeve (1) ② Release keys (2)
③ Trim ring (1) ④ Securing screw (1)
⑤ Bushing (1) ⑥ Power supply leads (1)
⑦ Microphone (1) ⑧ Flat-mount base (1)
⑨ Double-sided tape (1)
- This parts list does not include all the package contents.
- The mounting sleeve ① and the trim ring ③ are attached to the unit before shipping. Before mounting the unit, use the release keys ② to remove the mounting sleeve ① from the unit. For details, see "Removing the trim ring and the mounting sleeve" (page 16).
- Keep the release keys ② for future use as they are also necessary if you remove the unit from your car.

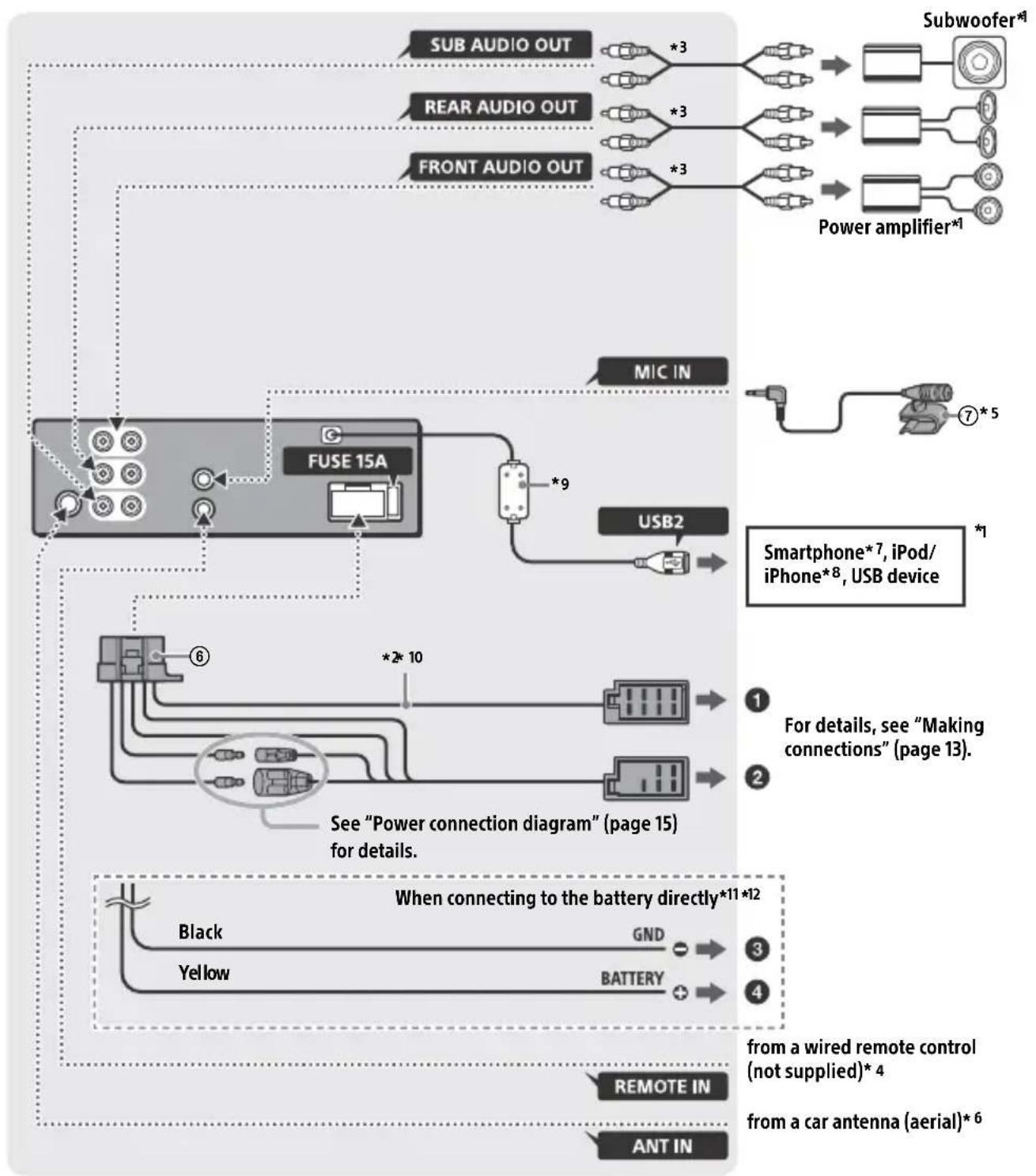

Connection
*1 Not supplied
*2 Speaker impedance: 4 Ω to 8 Ω × 4
*3 RCA pin cord (not supplied)
*4 Depending on the type of car, use an adaptor for a wired remote control (not supplied). For details on using the wired remote control, see "Using the wired remote control" (page 16).
*5 Whether in use or not, route the microphone input cord such that it does not interfere with driving operations. Secure the cord with a clamp, etc., if it is installed around your feet. For details on installing the microphone, see "Installing the microphone" (page 15).
*6 Depending on the type of car, use an adaptor (not supplied) if the antenna (aerial) connector does not fit.
*7 To connect a smartphone to the main unit, an appropriate cable (not supplied) is required.
*8 To connect an iPod/iPhone, use the USB connection cable for iPod (not supplied).
*9 Ferrite sleeve
*10 Use speakers with 50W RMS or higher power input capacity. Using Sony XB series full range speakers is recommended.
*11 When the amperage rating of the fuse used on your car is 10 A, make the power connection to the battery directly to avoid short circuits.
*12 Before connection, arranging the yellow and black leads of the power supply leads ⑥ is required.
Making connections
If you have a power antenna (aerial) without a relay box, connecting this unit with the power supply leads ⑥ may damage the antenna (aerial).
① To the car's speaker connector
| 1 | Rear speaker(right) | ⊕ | Purple |
| 2 | Purple/blackstriped | ||
| 3 | Front speaker(right) | ⊕ | Gray |
| 4 | Gray/blackstriped | ||
| 5 | Front speaker(left) | ⊕ | White |
| 6 | White/blackstriped | ||
| 7 | Rear speaker(left) | ⊕ | Green |
| 8 | Green/blackstriped |
② To the car's power connector
| 12 | continuous power supply | Yellow |
| 13 | power antenna (aerial) /power amplifier control (REM OUT) | Blue/white striped |
| 14 | switched illumination power supply | Orange/ white striped |
| 15 | switched power supply | Red |
| 16 | ground (earth) Black |
When connecting to the battery directly
When the amperage rating of the fuse used on your car is 10 A, make the power connection to the battery directly to avoid short circuits.
③ to a metal point of car
④ to the positive battery terminal
Notes
- Despite connecting to the power supply lead of the car, the unit may not fully provide its performance due to insufficient power. In this case, make the power connection to the battery directly.
- All power wires connected to the positive battery post should be fused within 450 mm (18 in) of the battery post, and before they pass through any metal.
- Make sure that the car's battery wires connected to the car (ground (earth) to chassis)* are of a wire gauge at least equal to that of the main power wire connected from the battery to the head unit.
- During full-power operation, a current of more than 15 A will run through the system. Therefore, make sure that the wires to be connected to the +12 V and GND terminals of this unit are at least 14-Gauge (AWG14) or have a sectional area of more than 2 mm ^2 (3/32 in).
When making the speaker parallel connection, use wires with more than 12-Gauge (AWG12) or wires that have a sectional area of more than 3.5 mm ^2 (5/32 in).
If you have any questions or problems concerning the connection, consult the dealer for details.
Memory hold connection
When the yellow power supply lead is connected, power will always be supplied to the memory circuit even when the ignition switch is turned off.
Connecting the speakers
- Before connecting the speakers, turn the unit off.
- Use speakers with a 2 impedance or 4 to 8 impedance, and with adequate power handling capacities to avoid damage.
Subwoofer direct connection
You can use a subwoofer without a power amplifier when it is connected to a rear speaker lead.
To enable the connection, set [SUBW MODE] in [SUBW DIRECT] to [1] to [3].
Notes
- Preparation of the rear speaker leads is required.
- Use a subwoofer with a 2 Ω impedance or 4 Ω to 8 Ω impedance, and with adequate power handling capacities to avoid damage.
Speaker connection for high volume playback
For high volume playback, you can connect front speaker in parallel.
For this connection:
- Set [SPEAKER LOAD] in [GENERAL] to [2 OHM].
- Connect the subwoofers to right and left rear speaker leads or use a dual voice coil subwoofer with 4 to 8 impedance.
Notes

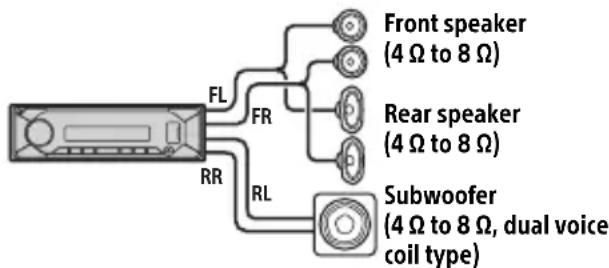

- When using a subwoofer with dual voice coil, or using subwoofer(s) by connecting to the right and left rear speaker leads, be sure to set [SPEAKER LOAD] in [GENERAL] to [2 OHM].
- To exert the speaker's potential, make the power connection to the battery directly (page 14).
Power connection diagram
Check your car's auxiliary power connector, and match the connections of leads correctly depending on the car.
Auxiliary power connector
Common connection
Yellow Yellow
| 12 | continuous power supply | Yellow |
| 15 | switched power supply Red |
When the positions of the red and yellow leads are inverted
Yellow Yellow
| 12 | switched power supply | Yellow |
| 15 | continuous powersupply | Red |
When the car without ACC position
After matching the connections and switching power supply leads correctly, connect the unit to the car's power supply. If you have any questions and problems connecting your unit that are not covered in this manual, consult the car dealer.

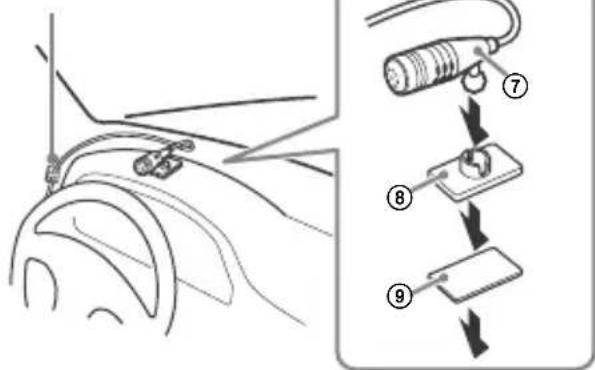

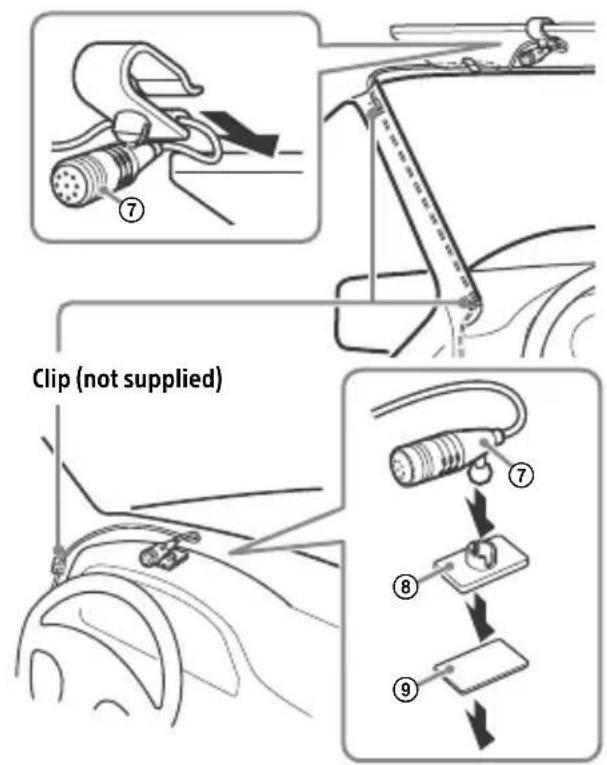

Installing the microphone
To capture your voice during handsfree calling, you need to install the microphone ⑦.
Cautions
- It is extremely dangerous if the cord becomes wound around the steering column or gearstick. Be sure to keep it and other parts from interfering with your driving operations.
- If airbags or any other shock-absorbing equipment is in your car, contact the store where you purchased this unit, or the car dealer, before installation.
Notes
- When mounting on the dashboard, remove the visor clip carefully from the microphone ⑦, then attach the flat-mount base ⑧ to the microphone ⑦.
- Before attaching the double-sided tape ⑨ clean the surface of the dashboard with a dry cloth.
Using the wired remote control
1 To enable the wired remote control, set [STRG CONTROL] in [STEERING] to [PRESET].
Installation

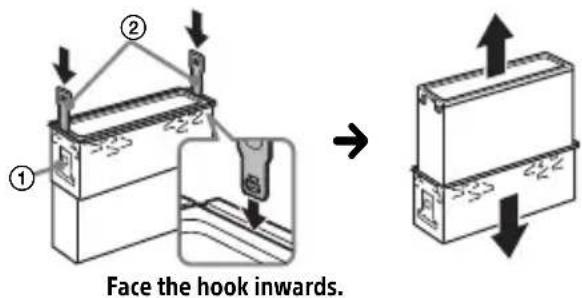

Removing the trim ring and the mounting sleeve
Before installing the unit, remove the trim ring ③ and the mounting sleeve ① from the unit.
1 Pinch both edges of the trim ring ③, then pull it out.
2 Insert both release keys ② until they click, and pull down the mounting sleeve ①, then pull up the unit to separate.

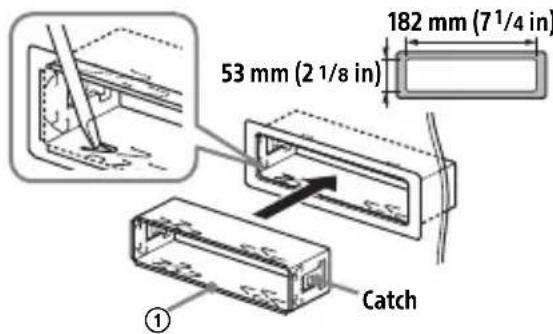

Mounting the unit in the dashboard
Before installing, make sure the catches on both sides of the mounting sleeve ① are bent inwards 2 mm (3/32 in).
CAUTION
Do not touch the left side of the unit when removing from the dashboard. The heatsink on the left side of the unit remains hot right after use.

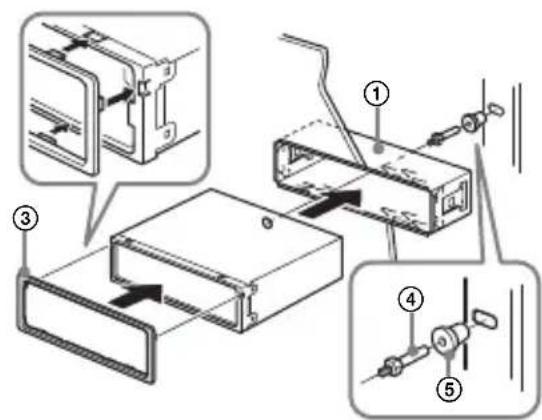

1 Position the mounting sleeve ① inside the dashboard, then bend the claws outward for a tight fit.
2 Mount the unit onto the mounting sleeve ①, then attach the trim ring ③.
Notes
- If the catches are straight or bent outwards, the unit will not be installed securely and may spring out.
- Make sure the 4 catches on the trim ring ③ are properly engaged in the slots of the unit.
Detaching and attaching the front panel
For details, see "Detaching the Front Panel" (page 5).
Initializing the unit
For details, see "Initializing the Unit" (page 7).
Fuse replacement
When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.
Fuse (15 A)
Avertissement
Illustration showing a smartphone and a CD with wireless signal waves (no text or symbols)natural_image
Line drawing of a hand holding a tool, no text or symbols present
Protocole AOA (Android Open Accessory) compatible : 2.0
Appareil principal (1)
Raccordement/Installation
Attention
Attention
Remarques
Illustration showing two devices with wireless signals, one smartphone and one CD (no text or symbols)natural_image
Line drawing of a hand inserting a small object into a rectangular frame (no text or symbols)
531 kHz - 1.602 kHz (AM),
153 kHz - 279 kHz (LW)
Empfindlichkeit:
AM: 26 μV,
LW: 50 μV
USB-Player
Schnittstelle:
Abtastrate: 16 kHz – 48 kHz
WMA (.wma)
Abtastrate: 32 kHz, 44,1 kHz, 48 kHz
AAC (.m4a, .mp4)
Bitrate: 8 Kbps - 320 Kbps
Abtastrate: 11,025 kHz - 48 kHz
WAV (.wav)
Bittiefe: 16 Bit
Abtastrate: 44,1 kHz, 48 kHz
FLAC (.flac)
A2DP (Advanced Audio Distribution Profile) 1.3
AVRCP (Audio Video Remote Control Profile) 1.5
HFP (Handsfree Profile) 1.6
PBAP (Phone Book Access Profile)
SPP (Serial Port Profile)
Two technical line drawings: a rectangular plate and a threaded bolt (no text or symbols)natural_image
Simple line drawing of a cord with connectors and a small component on a base (no text or symbols)Hinweise
Illustration showing two smartphones with wireless signal waves, next to a CD-ROM device (no text or symbols)natural_image
Line drawing of a hand inserting a small object into a bracket (no text or symbols)
531 kHz - 1.602 kHz (AM),
153 kHz - 279 kHz (LW)
Sensibilidad:
AM: 26 μV,
LW: 50 μV
Puerto USB1 (frontal): 1 A
Puerto USB2 (posterior): 1,5 A
Gancho (no suministrado)
Precauciones
Notas
Selecteert PTY in RDS.
Q (bladeren)
Illustration showing two smartphones with wireless signals, one emitting sound waves, and the other emitting a CD (no text or symbols)natural_image
Line drawing of a hand holding a tool, no text or symbols present
Wanneer [AREA] is ingesteld op [EUROPE]: 87,5 MHz – 108,0 MHz
Wanneer [AREA] is ingesteld op [RUSSIA]:
FM1/FM2: 87,5 MHz – 108,0 MHz (bij stap van 50 kHz)
531 kHz - 1.602 kHz (AM),
153 kHz - 279 kHz (LW)
Gevoeligheid:
AM: 26 μV,
LW: 50 μV
USB-spelergedeelte
Interface:
USB2-poort (achter): USB (Hi-speed)
Maximale stroom:
A2DP (Advanced Audio Distribution Profile) 1.3
AVRCP (Audio Video Remote Control Profile) 1.5
HFP (Handsfree Profile) 1.6
PBAP (Phone Book Access Profile)
SPP (Serial Port Profile)
Overeenkomstige codec:
SBC (.sbc), AAC (.m4a)
Opmerkingen
Montera frontpanelen
Illustration showing two smartphones with wireless signals, next to a CD-ROM device (no text or symbols)natural_image
Line drawing of a hand inserting a small object into a mechanical component (no text or symbols)
531 kHz - 1 602 kHz (AM),
153 kHz - 279 kHz (LW)
Känslighet:
AM: 26 μV,
LW: 50 μV
USB-spelare
Gränssnitt:
USB1-port (fram): USB (full hastighet)
USB2-port (bak): USB (full hastighet)
Maximal ström:
USB1-port (fram): 1 A
USB2-port (bak): 1,5 A
A2DP (Advanced Audio Distribution Profile) 1.3
AVRCP (Audio Video Remote Control Profile) 1.5
HFP (Handsfree Profile) 1.6
PBAP (Phone Book Access Profile)
SPP (Serial Port Profile)
Motsvarande kodec:
SBC (.sbc), AAC (.m4a)
Obs!
Hereby, Sony Corporation declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.compliance.sony.de/
Eesti keel
If you have any questions or for the latest support information on this product, please visit the web site below:
Support-Website
https://www.sony.eu/support
Register your product online now at:
For more details, please visit the following web site and refer to your unit name as shown below.
https://rd1.sony.net/help/ev/dsx-gs80/h_zz/
Made for
iPhone
iPod
Bluetooth®
