CO 3031 - Rice cooker Orbegozo - Free user manual and instructions

Product Type	Rice Cooker
Brand	Orbegozo
Model	CO 3031
Capacity	Up to 10 cups of raw rice (approx. 1.8 L)
Bowl Material	Non-stick Pot
Lid	Tempered Glass
Included Accessories	Rice spoon, measuring cup, steamer basket
Functions	Automatic cooking, automatic keep warm, steam cooking
Controls	ON/OFF switch (0/I), function switch (cook/keep warm)
Indicator Lights	COOK (red) and WARM (orange/green)
Power Supply	Mains, detachable power cord
Maintenance	Clean pot and lid with warm water and detergent; exterior with a damp cloth; do not immerse the housing
Safety	Do not open during cooking, hot surfaces, keep away from flammable materials (30 cm), do not use if cord is damaged
Recommended Use	Wash rice before cooking, add water up to the corresponding line, the switch turns off automatically at the end of cooking
Features	Keep warm function up to 12 hours, steam cooking possible with included basket

Frequently Asked Questions - CO 3031 Orbegozo

How to use the rice cooker CO 3031?

Measure the rice with the included cup. Wash the rice until the water runs clear. Place the rice in the non-stick pot and add water up to the line corresponding to the number of cups (see table in the manual). Place the pot in the appliance, close the lid, plug in and set the ON/OFF switch to 'I'. Press the function switch; the red COOK light turns on. At the end of cooking, the switch automatically switches to keep warm (WARM light).

Why is the rice not cooked properly?

Check that the pot is correctly placed in the appliance and that the lid is well closed. Make sure you have added the correct amount of water. Do not turn on the cooker until the rice is ready (rice and water in the pot). If the pot is not in place, the appliance does not work.

How does the 'keep warm' function work?

The WARM function activates automatically after cooking. The red COOK light turns off and the WARM light turns on. It is recommended to let the rice stay in WARM mode for 6 to 8 minutes before serving. Do not use this function for more than 12 hours to avoid discoloration and bad odors.

Can I steam at the same time as the rice?

Yes, use the provided steamer basket. Place it on the pot containing the rice and water. If you want to steam only, add an extra 1/8 cup of water to compensate. Follow the instructions in the manual for quantities.

How to clean the rice cooker?

Unplug the appliance and let it cool completely. Remove the pot and lid, wash them with warm water and detergent, rinse and dry with a soft cloth. Clean the exterior with a damp cloth (no abrasive products). Never immerse the housing in water.

What to do if moisture enters the appliance?

Unplug the power cord immediately to avoid any risk of short circuit. Do not reuse the appliance until it is completely dry.

Can I use non-provided accessories?

No, use only the original accessories (non-stick pot, glass lid, spoon, cup, steamer basket). Use of non-suitable accessories may damage the appliance or compromise safety.

How to remove burnt residues from the heating plate?

Unplug and let cool. Use a knife or similar instrument to gently scrape off residues. Then use steel wool to smooth and polish the surface to ensure good contact between the plate and the bottom of the pot.

What is the maximum rice capacity?

The cooker can hold up to 10 cups of raw rice (according to the provided measuring cup). This corresponds to approximately 1.8 liters. For 10 cups, add water up to the 10-10 1/2 line in the pot.

What to do if the power cord is damaged?

Do not use the appliance. Contact an authorized technical service for replacement, as the cord is special and must be changed by a professional to avoid any danger.

USER MANUAL CO 3031 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.
13. In case you need a copy of the instruction manual, you can find it in www.orbegozo.com.

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges.

16. If the appliance is humid or wet, unplug it immediately.
17. Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
18. Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged. Use only original spare parts.
19. Place the appliance on an even, moisture and heat-resistant surface. Use a heat-resistant plate when placing on sensitive surfaces.
20. Attention! Fill water into the rice pot only, never into the housing.
21. Caution! Hot steam escapes from the lid during operation!

22. Be sure to hold the lid only by the intended handles after cooking. Risk of steam burns!

23. Keep the unit at a safe distance from easily inflammable objects such as furniture, curtains, etc. (30 cm).

24. ATTENTION. Hot surface. The surface can become hot during operation.

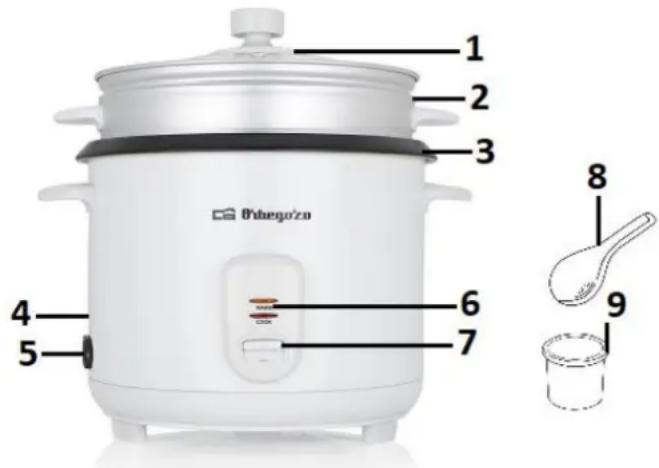

DESCRIPTION

1. Tempered glass lid
2. Steamer for vegetables, meat and fish
3. Non-stick pot
4. ON/OFF switch (0/I)
5. Connection for power cord
6. Indicator lights
7. Function switch (cook and keep warm)
8. Rice spoon
9. Measuring cup

OPERATING INSTRUCTIONS

1. Measure the rice with included measuring cup. One cup of raw rice makes approximately 3 cups cooked rice. Before cooking rice, it's recommended wash the rice with water in a bowl until the water is relatively clear.
2. Place desired quantity of rice (after wash it) in the pot. Add water in the pot according following chart:

Raw rice in measuring cup	Added water to the line on pot
10 cups	10 – 10 1/2 cups
8 cups	8 – 8 1/2 cups
6 cups	6 – 6 1/2 cups
4 cups	4 – 4 1/2 cups

1. Place pot in cooker. To place it correctly, turn pot gently to right and left. Close the lid firmly.
2. Connect the supplied power cord to cooker and plug it to mains. Turn on the rice cooker putting ON/OFF switch in "T" position. Don't turn on the rice cooker until the rice is ready to be cooked, otherwise it won't prepare well. If the pot is not in the cooker, it won't work.
3. Push function switch, "COOK" red light will light and the cooker will start to work.
4. When the rice is cooked, the function switch will disconnect automatically and you will hear a click. At the same time "COOK" light will turn off and "WARM" light will turn on, indicating that keep warm function is activated to avoid the rice gets cold.
5. It is recommended let cooked rice in "WARM" function for 6-8 minutes.
6. Disconnect the cooker with ON/OFF switch (0 position) and unplug it after its using.

HINTS

• Wash the rice: bran gives an unpleasant odor while rice cooking. To remove the bran it is recommended washing the rice with warm water. However, wash the rice may cause loss pf vitamins and nutrients.

• "Keep warm" function: using this function for more than 12 hours may cause discoloration and bad odor. The sooner rice is served the better it will taste. It is better to use this function shortly before to eat it or while you are eating the rice to avoid getting cold.

• Steam cooking: add as much water as you need in pot. Place the steamer on the pot. If you want to cook rice at the same time than using steamer add 1/8 measuring cup of water to pot.

CLEANING

Before cleaning, unplug the unit from the mains and let it cool down completely.

1. Remove the pot and the lid and wash them with warm water and detergent. Ensure to rinse them completely when you finish, after that dry them with soft cloth.
2. Clean outside of cooker with damp cloth, never use a scourer or abrasive detergents, you could spoil it. Instead of it, soft cloth or lightly wet sponge with water and detergent. Never immerse any part of the cooker in water except pot and lid.
3. Grains of rice or other kind of meal may be placed on heating plate. You have to remove it to avoid uneven cooking. If it is necessary use a knife or similar instrument to remove it. Afterwards, steel wood can be used to smooth out and polish the area to insure good contact between heater plate and bottom of pot.
4. Improper cleaning can cause unpleasant odors.
5. Any residue of vinegar or salt may cause pot finish to corrode.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be

separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-technica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
