USER MANUAL HO 800 A Orbegozo

MINI HORNO - MANUAL DE INSTRUCCIONES MINI OVEN - INSTRUCTION MANUAL MINI FOUR - MANUEL D'INSTRUCTIONS MINI FORNO - MANUAL DE INSTRUÇÕES

Exterior view of a modern 150-degree portable toaster oven (no visible text or symbols)

HO 810 A

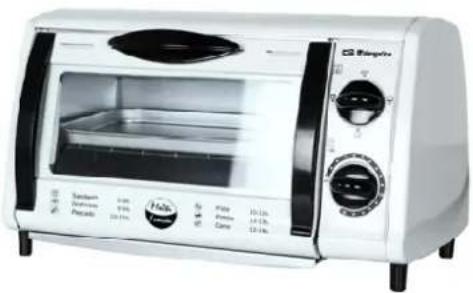

White portable toaster oven with open lid and control knobs (no visible text or symbols)

HO 800 A

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Labeled diagram of a toaster oven with numbered parts for identification

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

GENERAL SAFETY INSTRUCTIONS:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

IMPORTANT SAFETY INSTRUCTIONS:

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands.
• If the appliance is humid or wet, unplug it immediately.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.

• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.

• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• On the products you will find symbols that indicate warnings or provide information. WARNING: Danger of burns.
• During operation the temperature of the exposed surface may be very hot.
• The oven gives off heat. You should therefore not place it close to combustible materials such as curtains or wood.
• The clearance above the oven should be at least 50 cm and at least 20 cm at the sides.
• Put the unit down onto a heat-resistant mat.

• Ensure that the timer is in the “off” position when you are not using the unit.

• Please do not operate the device with an external timer or a separate remote control system.

• This device is not suitable for operation out of doors!
• Do not carry or lift the appliance during use. Always switch it off first and pull out the plug. Carry the appliance always with both hands!
• Please ensure that the mains lead does not come into contact with the hot sections of the device.
• Do not touch the hot parts of the device. Use an oven cloth if necessary.
• The rear of the appliance should be against the wall.

⚠️ATTENTION: do not cover the appliance when it is operating to avoid the risk of fires.

ATTENTION: This symbol show: Hot surface. The temperature of the door or the outer surface may be high when the appliance is operating.

Overview of the Components

1 Function Switch
2 15 minute timer
3 Removable crumb/drip pan
4 Door with glass window
5 Door handle
6 Toasting rack

Installation

This oven has not been designed to be built-in. Place the unit on a dry and smooth surface and make sure that the oven is a miniumin 10 cm away from the wall at both sides and 20cm at the upper part. The back should be placed against a wall. Do not place it close to a closet. Make sure the door can be completely open without resistance.

Preliminary Operations

- Remove any packaging materials that may be present in the oven.

• Before initial use please operate the oven for 15 minutes to remove the protective coating on the heating element. Please select dual operation.
• The presence of smoke is normal. Make sure that a sufficient level of ventilation is available.

How to use

1. The timer must be switched to the position.
2. Open the door and place the food to be cooked in the oven. Use the baking tin for meat. The grill is suitable for preparing toast If you would like to use other tableware, please ensure that this is sufficiently heat-resistant.
3. Close the oven door.
4. Set the required heating with the upper knob (top or bottom heating or both together).
5. Use the lower knob (timer) to set the desired cooking time. Please see the table in these instructions for reference values.
6. After the set time has expired, the machine automatically switches off and a short ringing is heard. The control lamp goes off. The timer can continue for a short time (ticking sounds).
7. If you would like to terminate the heating process prematurely, simply turn the button of the timer to the left.
8. If the cooking time is to be set to less than three minutes, please first set the timer to approximately 10 minutes and then to 3 minutes, for example.
9. In the case of short cooking times (under 5 minutes) it is recommended that the oven is preheated briefly (approximately 3 minutes) without food.
10. When the oven is switched off, you can open the door again and take out the food (Warning - this is hot!). For your safety you should use a cloth or similar object.

Recommended Toasting Times

Cooked Food	Quantity/No.	Cooking Time	Type of heating
Sandwiches	2 – 3	2 – 3 Min.	dual
Toast	2 – 3 slices	2 – 3 Min.	dual
Bacon	4 rashers	5 – 10 Min. each side	top heat
Ham slices	3 – 4 slices	7 – 12 Min. each side	top heat
Hamburger	2 – 3 slices	8 – 10 Min. each side	top heat
Pork cutlets	2	12 – 14 Min. each side	top heat
Fish fillet	1 – 2 slices	10 – 12 Min. each side	top heat
Sausage/hotdogs	3 – 4	10 – 12 Min. each side	top heat
Beef steaks	2 slices (approx. 2 cm thick)	12 – 14 Min. each side	top heat
Lamb cutlets	2 – 3	11 – 14 Min. each side	top heat
Chicken	1 half	15 – 20 Min. each side	top heat

These times are only approximations and may vary depending on circumstances.

How to clean

• Please remove the mains plug.
• ONLY clean the machine after it has cooled down.
• The machine must never be immersed in water!
• Wipe surfaces and quartz heating rods with a dry, soft cloth.
• Crumbs and other residues are removed by pulling out the collection dish.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
