USER MANUAL 4 Pizze ALFA

Silhouette of a traditional-style stove or stove with arched windows and a chimney (no text or symbols)

FORNO

A LEGNA

4 PIZZE

DETTAGLI PRODOTTO / PRODUCT DETAILS

WRITE IN THIS SECTION THE DATA OF YOUR PRODUCT

Modello / Model:

Lotto / Lot: ....

Data di acquisto / Purchase date: ....

The identification label is located on the back of the product.

SOMMARIO / SUMMARY / ÍNDICE / SOMMAIRE / INHALT

1. Scheda Tecnica / Technical sheet / Ficha Técnica / Fiche technique / Technisches Datenblatt 2

2. Manuale d'uso

Avvertenze

Consigli per l'uso

Cottura

Cleaning and maintenance

Troubleshooting

Warranty information

1. Manual de uso

Advertencias

Line drawing of a traditional clay stove with arched top and side legs (no text or symbols)

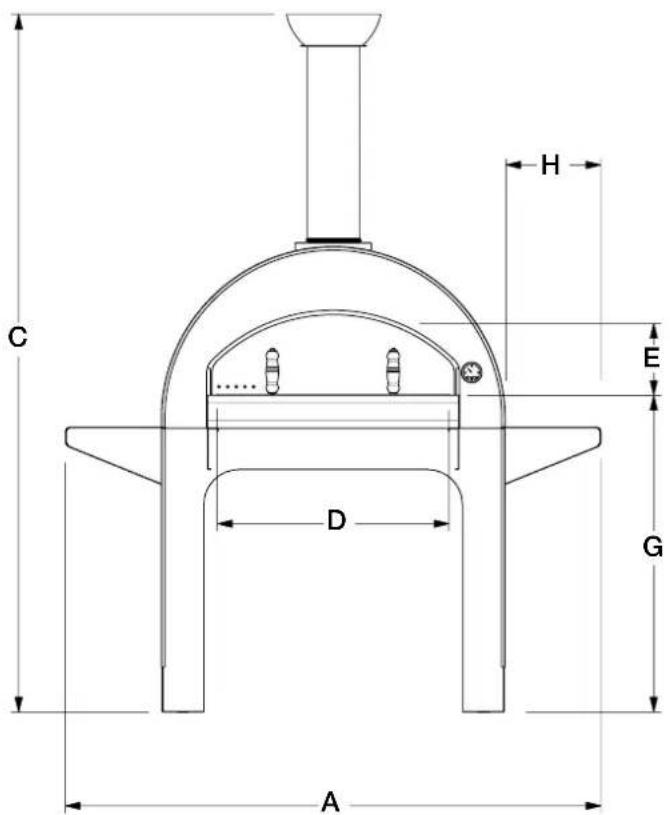

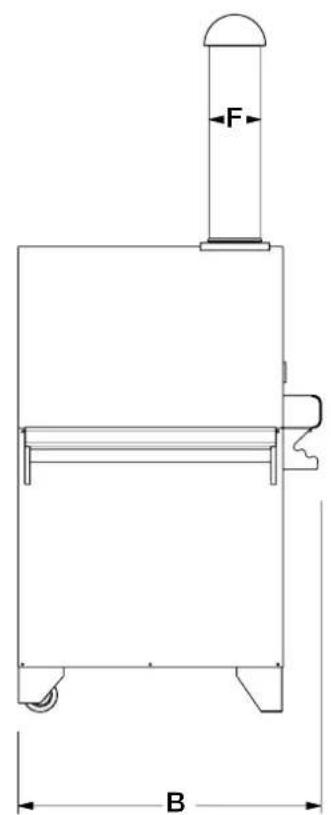

A	155 cm / 61 in
B	87,5 cm / 34,4 in
C	202 cm / 79,5 in
D	68 cm / 26,7 in
E	22 cm / 8,6 in
F	15 cm / 5,9 in
G	91,5 cm / 36 in
H	27,5 cm / 10,8 in

C H E D G A

F B

Peso Weight	140 kg308,6 lbs
Area piano fornoOven floor area	0,48 m^2 5,1 ft^2
Dim. piano fornoOven floor dim.	80 x 60 cm31,5 x 23,6 in
Minuti per scaldare Heating time (min)	20
N° pizze alla volta Pizza capacity	4
Informata di pane Bread capacity	4 kg8,8 lbs
Temperatura massima Max oven temperature	400°C752°F
Consumo medio Average fuel consumption	4 kg/h8,8 lbs/h

Materiali utilizzatiUsed material	lamiera ferro, acciaio inox, fibra ceramica iron sheet, stainless steel, ceramic fiber
Tipo di refrattarioType of refractory	Tavella silico-alluminosoAlumina silicate bricks
Combustibile consigliatoRecommended fuel	Ciocchi diam. Max 5 cm, potatureMax 1,9 In diam. logs, trimmings
Carica nominaleRated charge	8,3 kg/h18,3 Lbs/h
Tiraggio minimoMinimum flue draught	11 Pa
Flusso volumetrico fumiFlue smokes mass flow	49,6 g/s
Emissioni CO al 13% O_2 CO emission at 13% O_2	0,35% 4444 mg/ Nm^3
Temperatura fumiSmoke temperature	387°C728°F

QUESTO FORNO, SE NON PROPRIAMENTE USATO ED INSTALLATO, PUÒ CAUSARE INCENDI; PER RIDURRE IL RISCHIO, SEGUIRE LE ISTRUZIONI ED USARE MATERIALI STUDIATI APPOSITAMENTE PER LE ALTE TEMPERATURE.

Illustration of a hand pressing down on a curved mechanical component (no text or symbols visible)

Warning sign with crossed-out black exclamation mark over a flame symbol, indicating no exposure to fire or smoke.

Technical line drawing of a mechanical component with a 3D block and dimension lines (no text or symbols)

ACCENSIONE

Simple line drawing of a mechanical assembly with cylindrical components inside a curved housing (no text or symbols)

Simple line drawing of a fire pit with three lit fire extinguishers (no text or symbols)

Simple line drawing of a pipe being compressed into a container with an arrow indicating compression (no text or symbols)

ATTENZIONE:

Diagram showing two safety symbols: a flame inside a semi-circular gauge with 'X' mark and a checkmark inside a shield-like container.

COTTURA

• Remove the protective film from all surfaces, to facilitate removal use hot air (e.g.
  Hair dryer).
• Alfa Pizza stainless steel ready-to-use ovens, despite including insulating material between the two layers of steel, can become hot on the outside.
• For safety reasons, keep the oven out of the reach of children and pets.
• Safety must be the first priority: when the oven is in operation ensure that no other fuel is close to it.
• Make sure that the oven is positioned away from objects and materials that may

be damaged by heat and sparks. Do not place flammable materials in the area of the floor in front of the oven, protect the floor with a suitable material if it is made of flammable material.

• Do not move the oven during use.
• Position the oven on a flat surface and away from strong winds.

- Sparks may be ejected from the mouth at the bottom of the oven; do not place flammable liquids near this outlet.

• Do not use the oven if it is not working properly or you suspect a fault.
• Do not lean on or rest objects on the oven, this may compromise its stability.
• Operate the oven door by gripping the handles.
• Avoid excessive fires that reach out of the mouth of the oven.
• Do not turn the oven off by throwing water inside.
• Do not throw logs into the oven but place them carefully.
• Do not use flammable liquids near the oven.

- Do not lean over the oven when lighting. Keep your face and body at least 50 cm / 19,6 inches far from the oven door.

• Do not make any unauthorized modifications to the unit.
• The appliance installation must guarantee easy access for cleaning the appliance itself, discharge gas pipe and flue

• Install the oven on floors with adequate load capacity. If the existing construction does not meet this requirement, appropriate measures (eg. Plate load distribution) have to be taken.

• All local regulations, including those referring to national and European standards must be respected in the installation of the device.

• Do not use the appliance as an incinerator or for any purpose other than that for which it was conceived.
• The appliance, especially the external surfaces, when in operation reaches high temperatures to the touch; handle with care to avoid burns.

Illustration of a hand pressing down on a curved mechanical component (no text or symbols visible)

Warning sign with crossed-out black-and-white symbol and flame icon, indicating no smoking or fire hazard

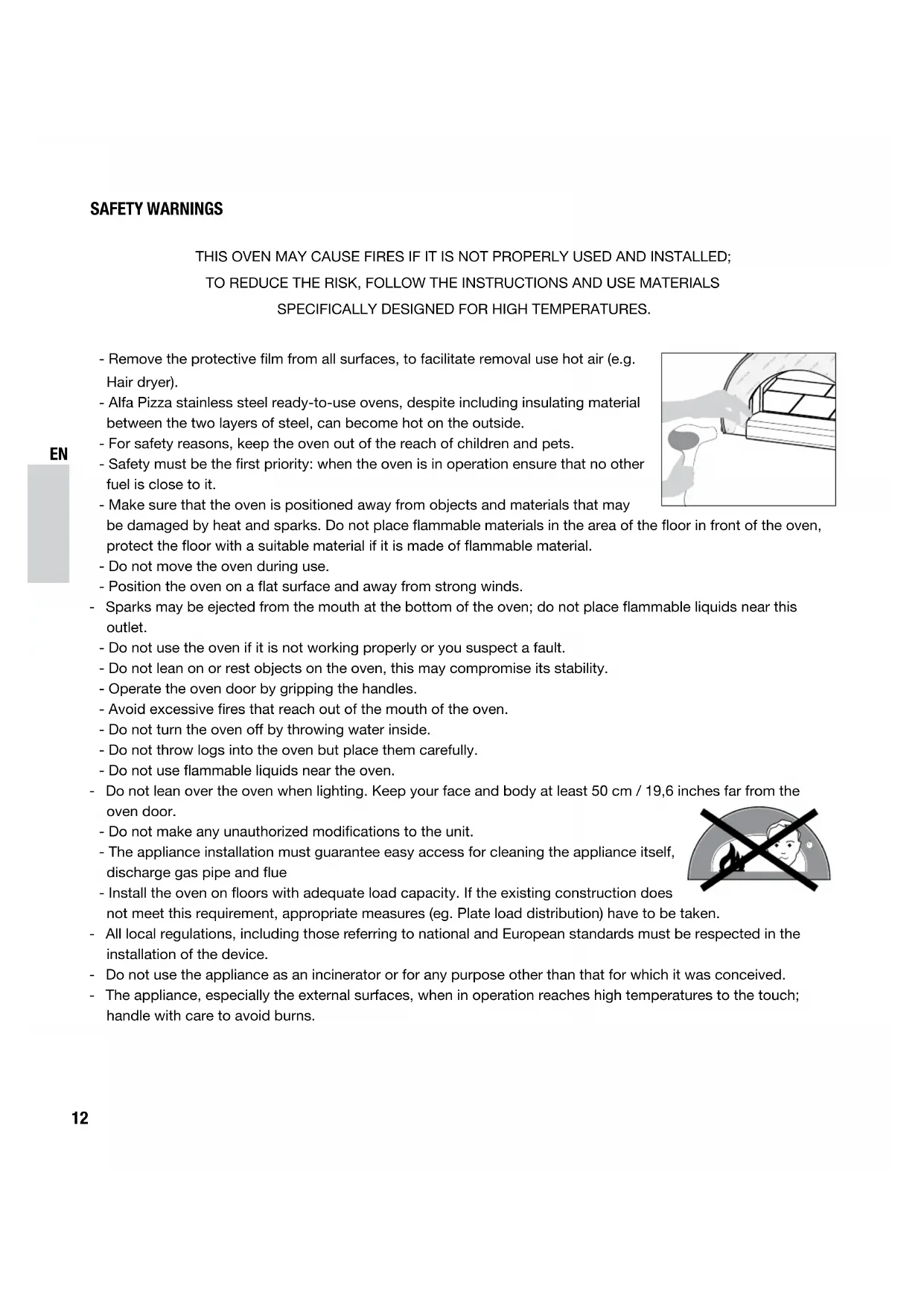

GENERAL WARNINGS

PLEASE READ THE FOLLOWING INFORMATION FOR PROPER INSTALLATION AND OPTIMUM PERFORMANCE OF THE OVEN.

• The identification plate, with technical data, lot number and brand name is visibly applied to the device. The label must not be removed.
• Before putting the unit into operation, it is mandatory to remove all protective laser films present.
• Never use steel sponges or sharp scrapers, its will damage the surfaces. Use ordinary non-abrasive products, use, if necessary, wood or plastic tools. Rinse thoroughly and dry with a soft cloth or microfiber cloth.
• Do not use dishes or containers made of plastic material. The high temperatures inside the oven could melt the plastic, damaging the appliance.
• Do not use sealed tins or containers in the appliance. During cooking Overpressure may occur inside the containers creating danger of bursting.
• Do not leave the appliance unattended during cooking that can free fats or oils. Fats and oils may cause fire.
• Use tools and utensils that are resistant to high temperatures.
• Due to the temperature, the colour of the surfaces may vary.
• Do not paint or apply objects to the oven.
• Do not use any fuel other than wood.

RECOMMENDATIONS FOR USE

Follow these simple steps to get the most out of your Alfa Pizza oven.

SIDE SHELVES

- The 4 Pizze has two practical side shelves which are mounted with 6 screws; the allen wrench is supplied.

Technical line drawing of a mechanical component with a 3D block and dimension lines (no text or symbols)

LIGHTING

1. Make a small pile of wood in the centre of the oven with small pieces of dry wood.
2. When the wood is well-lit, add two larger logs and move the fire to one side.
3. After a few minutes of continuous burning, never excessive, the temperature of 250^ C/482°F will be reached, burning to a dark soot. This is the moment the oven is ready to be used.

Simple line drawing of a mechanical assembly with cylindrical rods inside a curved housing (no text or symbols)

Simple line drawing of a campfire with three burners inside a tent (no text or symbols)

Simple line drawing of a pipe being inserted into a container with an arrow indicating direction (no text or symbols)

CAUTION:

The oven should be fed with little of small cut firewood, at most 4 kg. The use of a higher quantity has to be avoided and does not allow good baking results.

TURNING OFF

1. To turn the oven off, close the oven door and wait for ash to form.
2. When the oven has been completely turned off for 30 minutes you can remove the ashes.

DIFFERENT TYPES OF WOOD

• Use small sized wood pieces that are very dry, above all for lighting.
• Each wood type provides a fragrance to food in a different way, for example wood from fruit trees is used to give food a more appetising aroma similarly, maple, walnut and chestnut go well for other foods like meat.
• Treated wood, resin or scrap wood are strictly excluded.
• Wet or damp wood can pop due to the increased volume of water. This will produce a lot of smoke and less heat.

PYROMETER

- The pyrometer detects the temperature at a point inside the oven. The value detected by the pyrometer is therefore indicative. With experience it will be easy to better assess when the oven is ready for various types of cooking. You will acquire, therefore, complete control of the oven and you will become very adept at choosing the cooking temperature.

OVEN DOOR

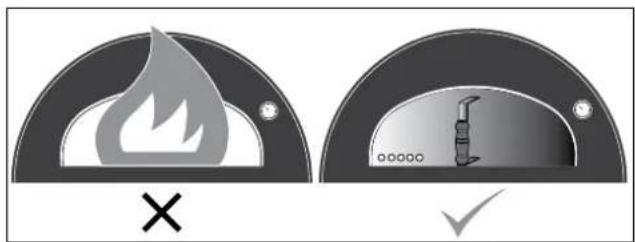

• The door is very effective at adjusting heat intensity: by closing and opening it the temperature may be better managed.
• If the fire is too high and comes out from the oven mouth, use the door to adjust the flame.

Safety warning sign showing flame symbol and gear mechanism with checkmark

COOKING

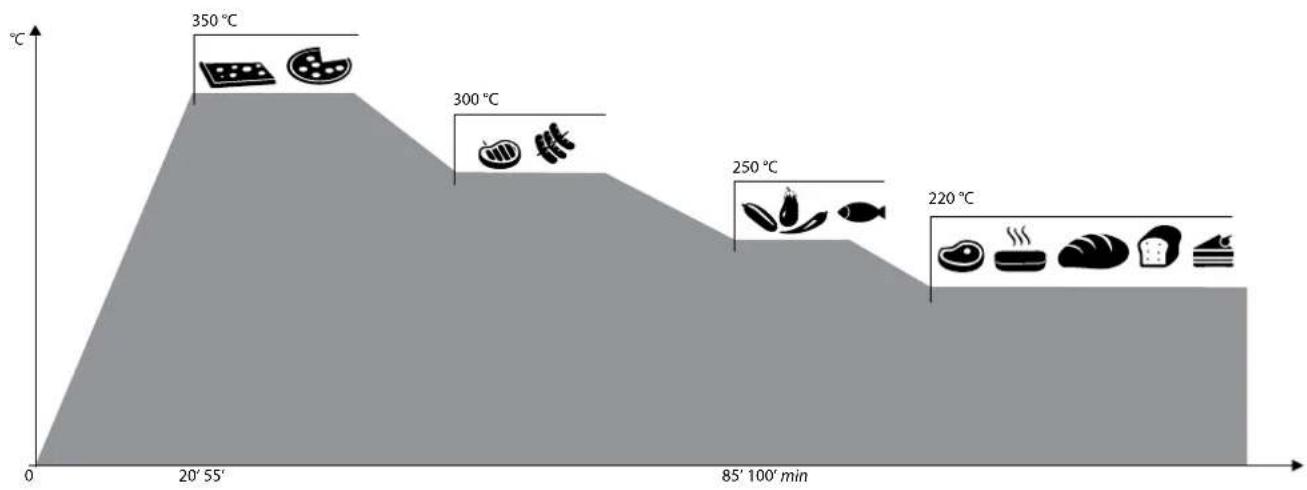

• Always preheat the oven before cooking; heat for 15 minutes, or until the thermometer reaches 350-400°C / 660-750°F; once the temperature has been reached, wait a few minutes for it to stabilise to ensure that the oven floor warms up properly.
• Calculate longer cooking time for cold or ventilated days or high altitudes. Calculate a shorter cooking time if the external temperature is particularly high.
• Cooking times vary according to weather conditions or the amount, dimensions and shape of the food to be cooked.

ADVICE FOR COOKING PIZZA

Wait for around 20 minutes after lighting the oven with a high quantity of wood to reach the optimum temperature for cooking an excellent Neapolitan pizza (with an increased level of moisture):

• Air temperature of 400°C/750°F,
• Refractory floor temperature of 350^ C/660°F.
  Once the optimal temperature is reached, it is sufficient to add a few small sized wooden logs every 3-5 minutes with a vivid flame. The oven will maintain a constant temperature and you can begin inserting the pizzas one after another.
• Check that there is no build-up of grease, and, if present, remove to prevent the grease from catching fire
• During cooking do not lean over the open oven and do not place hands or fingers on the front edge of the oven.
• During cooking the oven will have high temperatures, therefore, it should never be moved or left unattended.

MAINTENANCE

• For proper maintenance of the oven, make sure before you turn it on that the chimney flue is free from any objects and that ash from previous cooking has been removed.
• Remove the embers when the ash has extinguished.
• The oven can be used all year round; in the winter, heat the oven with a smaller fire to avoid thermal shock due to the humidity.
• It is recommended regular maintenance by a qualified technician.

CLEANING

• When the fire has gone out and the oven is not hot enough, collect the ashes left over from previous cooking with a metallic brush and a pan.
• Clean the oven floor (when the oven is cold) with a brush and gently wipe the oven floor with a damp cloth.
• Use a damp cloth to clean the external sheet.
• Apply a light coat of vaseline to make the metal shine.
• Remove and clean the chimney flue once a year; animals may nest there and/or ash may block the passage of smoke.
• There is no problem if the oven gets dirty with food residue! The high temperature and flames incinerate these residues.
• If traces of rust begin to appear, clean with a polishing brush and apply a thin coat of vaseline.
• To sanitise, clean and heat the cooking floor before cooking, sprinkle the inside of the oven with hot embers all over the oven floor and leave for a few minutes.
• Do not use chemical products to clean the oven.
• Do not clean the product when it is in use.
• If the oven is exposed in a sea side, in order to prevent corrosion and fouling, it is recommended to frequently clean the oven with fresh water.

TROUBLESHOOTING

IF THE OVEN PRODUCES SMOKE

• Check that the wood is not too moist and the embers are not unburned.
• Make sure that you have started a fire with vivid flames, gradual but steady, in order to avoid incomplete combustion.
• If the oven is installed indoors, check the chimney flue and any air inlets in the room.
• It is recommended to close the oven door.

IF THE OVEN DOES NOT HEAT

• Check that the fire is on one side of the oven and not near the mouth.
• Fire with vivid flames for 20 minutes.
• Do not amass the wood over the embers.
• Gradually add the wood to the fire.

• Check that no moisture or water has infiltrated the oven.
• It may be lit for the first time or after a long idle period.
• Avoid sudden short fires that do not warm the bottom of the oven.

IF THE FLAMES COME OUT OF THE MOUTH OR CHIMNEY CAP

- Avoid excessive fires and immediately dampen the flames that reach out of the oven by resting the door over the mouth of the oven, leaving a gap of 2 or 3 cm.

IF THE OVEN DOESN'T COOK AS YOU WOULD LIKE

• Ensure the oven is at the right temperature.
• Ensure the oven maintains the desired temperature for the duration of the cooking time; use the counter to adjust the heat intensity as well as the flame adjuster: open and close it to raise or lower the temperature as necessary.
• Contact us directly for expert advice on the web site www.alfapizza.it.

Alfa Pizza is not responsible for veins, cracks, hairline cracks of the floor as they are an intrinsic characteristic of the material.

WARRANTY INFORMATION

Alfa Pizza ovens fully comply with the Italian and European proposed regulations.

The 4 Pizze oven is guaranteed for 2 (two) years; good maintenance and proper use can make sure that the oven lasts much longer.

PLEASE RETAIN YOUR SALES RECEIPT OR INVOICE

WRITE DOWN THE NUMBER OF PRODUCTION LOT ON THE PRODUCT IDENTIFICATION TAG

WINTER STORAGE

It is advisable to place the oven indoors during the winter months to protect it from the elements. Otherwise a waterproof breathable cover is recommended.

NOT GUARANTEED

The warranty does not apply in the following options:

1. If the oven is not properly used and installed as described in this manual.
2. If the oven has been tampered with either voluntarily or involuntarily in any way.
3. If the oven, for any cause, has been altered and is no longer in the condition detected at delivery of the product.
4. If other combustibles have been used other than wood. Do not use liquid coal for barbecues, chemicals products, or other fuel.
5. If the damage is the result of the use of chemicals inside or outside the oven.
6. If the oven is used for professional purposes.
7. The refractory stones of the oven floor wear out with use. Alfa Pizza provides the stones as spare parts.
8. Damage caused by exceeding the temperature limit of 400°C / 752°F in the lower chamber.
9. If components not produced or recommended by Alfa Pizza are used.
10. Damage to parts not functional and decorative that do not affect the normal use of the oven, including scratches and color differences.

We recommend the exclusive use of spare parts recommended by Alfa Pizza.

Illustration of a hand pressing down on a curved mechanical component (no text or symbols visible)

Warning sign with crossed-out black-and-white symbol and flame icon, indicating no smoking or fire hazard

Technical line drawing of a mechanical component with a 3D block and dimension lines (no text or symbols)

ENCENDIDO

Simple line drawing of a mechanical assembly with cylindrical components inside a curved housing (no text or symbols)

Simple line drawing of a campfire with three burners inside a tent (no text or symbols)

Simple line drawing of a pipe being compressed into a container with an arrow indicating downward motion (no text or symbols)

PRECAUCIÓN:

Diagram showing fire symbol and gear mechanism with checkmark, indicating cancellation or repair

COCCIÓN

Illustration of a hand holding a device next to a curved panel or tray (no text or symbols visible)

Prohibition sign with crossed-out black-and-white graphic and a person silhouette inside a semi-circular frame

AVERTISSEMENTS GÉNÉRAUX

LIRE ATTENTIVEMENT LES INFORMATIONS SUIVANTES POUR UNE INSTALLATION CORRECTE ET UN BON FONCTIONNEMENT DU FOUR.

Technical line drawing of a mechanical component with a 3D block and dimension lines (no text or symbols)

ALLUMAGE

Simple line drawing of a lampshade with three candles (no text or symbols)

Simple line drawing of a fire pit with multiple fire extinguishers (no text or symbols)

Diagram of a mechanical or electrical component with a flame and directional arrow (no text or symbols)

ATTENTION:

Safety warning sign showing flame symbol and gear icon with checkmark

CUISSON

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

Warning sign with crossed-out black exclamation mark over flame and sun icon

WARNHINWEISE

Technical line drawing of a mechanical component with a 3D block and dimension lines (no text or symbols)

ANZÜNDEN

Simple line drawing of a lampshade with three candles inside (no text or symbols)

Simple line drawing of a fire pit with multiple fire extinguishers (no text or symbols)

Diagram of a pipe joint with a flame inside, showing directional movement (no text or symbols)

ACHTUNG:

Diagram showing two safety symbols: a flame symbol with cross mark and a gear-like device with checkmark, both enclosed in semi-circular gauges.

BACKEN
