IAN 323471 - Scale SILVERCREST - Free user manual and instructions

Product type	Kitchen scale
Brand	SilverCrest
Model	IAN 323471
Weighing range	5000 g / 176 oz / 11 lb / 5000 ml / 175 fl'oz
Graduation	1 g / 0.05 oz / 0 lb:0.1 oz / 1 ml / 0.05 fl'oz
Display	LCD screen
Power supply	1 CR2032 battery (included)
Functions	Weighing, tare, unit change, auto-off
Maximum capacity	5 kg
Surface material	Glass
Package contents	Scale, battery, instruction manual
Measurement units	g, oz, lb:oz, ml, fl'oz
Automatic shut-off	After 3 minutes of inactivity
Battery type	CR2032 (replaceable)
Volume measurement (water)	Up to 5000 ml
Safety	Do not immerse, do not expose to moisture
Maintenance	Slightly damp lint-free cloth, soapy water if necessary
Warranty	3 years
After-sales service (France)	0800 919270 / [e-mail]
Disposal	Recycle according to local regulations

Frequently Asked Questions - IAN 323471 SILVERCREST

How to change the scale's battery?

Turn the scale over and loosen the screw of the battery compartment cover. Open the cover, remove the old battery and insert a new CR2032 battery, respecting polarity. Close and tighten the screw.

What type of battery to use?

Use a CR2032 battery (3 V). A battery is included with the scale.

How to change the weight unit?

Briefly press the UNIT button to cycle through grams (g), ounces (oz), pounds/ounces (lb:oz), milliliters (ml), and fluid ounces (fl'oz).

What does the 'EEEE' display mean?

The EEEE display indicates overload. Remove excess weight. Maximum capacity is 5 kg.

What does the 'Lo' display mean?

Lo means the battery is too low. Replace the battery with a new CR2032.

Can you weigh liquids with this scale?

Yes, in milliliter (ml) or fluid ounce (fl'oz) mode, the weight of water is converted to volume. Use a container and the tare function.

How to perform a weighing with tare?

Place an empty container on the scale, press TARE to reset the display to zero, then add the food. The T symbol appears.

How to clean the scale?

Clean with a slightly damp lint-free cloth. For stubborn dirt, use soapy water. Never immerse the scale in water.

Does the scale turn off automatically?

Yes, if no movement is detected and no button is pressed for 3 minutes, the scale automatically turns off.

Where to find after-sales service?

In France, call 0800 919270 or write to [e-mail]. Keep the receipt as proof of purchase.

USER MANUAL IAN 323471 SILVERCREST

Operation and safety notes

FR BE

BALANCE DE CUISINE

List of pictograms used

Introduction

Proper use.. 6
Description of parts.. 6
Technical data.. 6
Scope of delivery.. 6

Safety notices.. 7

General safety instructions.. 7
Safety instructions for batteries/rechargeable batteries 8

Before first use.. 9

Replacing the battery.. 9

Operation 9

Weighing.. 9
Incremental weighing.. Page 10
Changing the measuring unit. Page 10
Switching off.. Page 10

Troubleshooting

Cleaning and care

Disposal

Warranty

Warranty claim procedure.. Page 12
Service Page 12

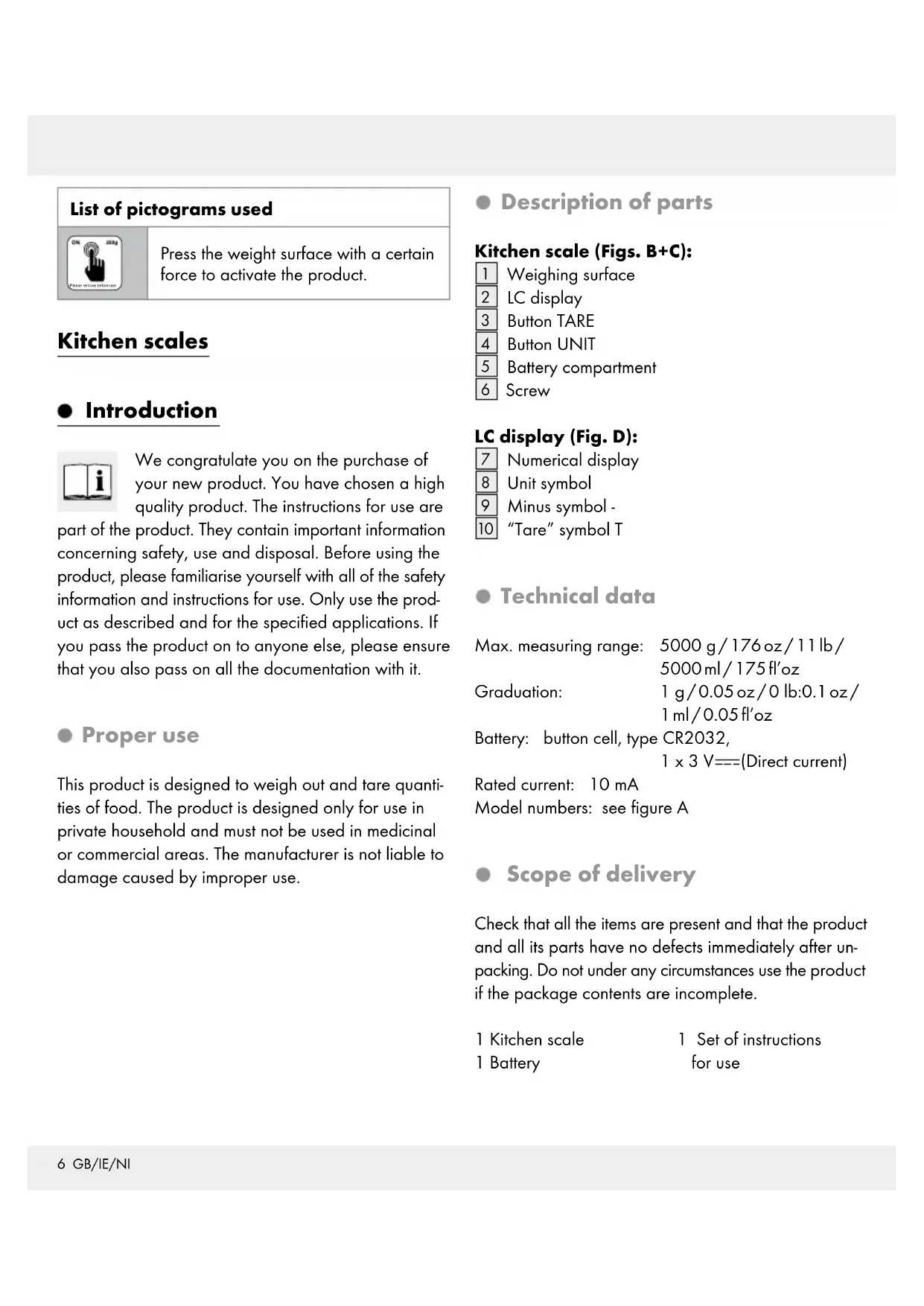

List of pictograms used

Press the weight surface with a certain force to activate the product.

Kitchen scales

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are

part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Proper use

This product is designed to weigh out and fare quantities of food. The product is designed only for use in private household and must not be used in medicinal or commercial areas. The manufacturer is not liable to damage caused by improper use.

Description of parts

Kitchen scale (Figs. B+C):

Weighing surface
2 LC display
3 Button TARE
4 Button UNIT
5 Battery compartment
6 Screw

LC display (Fig. D):

7 Numerical display
Unit symbol
9 Minus symbol -
10 "Tare" symbol T

Technical data

Max. measuring range: 5000 g/176 oz/11 lb/5000 ml/175 fl'oz

Graduation: 1g / 0.05oz / 0lb:0.1oz/ 1ml / 0.05fl'oz

Battery: button cell, type CR2032,

$$ 1 \times 3 \mathrm {V} = = (\text {D i r e c t c u r r e n t}) $$

Rated current: 10 mA

Model numbers: see figure A

- Scope of delivery

Check that all the items are present and that the product and all its parts have no defects immediately after unpacking. Do not under any circumstances use the product if the package contents are incomplete.

1 Kitchen scale

1 Set of instructions

1 Battery

for use

Safety notices

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

General safety instructions

WARNING! DANGER OF DEATH AND

ACCIDENTS FOR TODDLERS AND CHILDREN! Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Always keep children away from the packaging material.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards

involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.

CAUTION! RISK OF INJURY! Do not place

more than 5kg on the product. This could damage the product.

Do not expose the product to

• extreme temperatures,
• direct sunlight
  -magnetic fields,
• moisture.

These can damage the product.

This product has delicate electronic components. This means that if it is placed near an object that transmits radio signals, it could cause interference. This could be, for example, mobile telephones, walkie talkies, CB radios, remote controls and microwaves. If the display indicates a problem, move such objects away from it.

Electromagneticinterference/high-frequency emissions can lead to the product failing. In cases of the product failing to work, remove the battery for a short while and then

replace it. Do this as described in the "Replacing the battery" section.

• Protect the product from electrostatic charge / discharge. This could hinder the internal data exchange, which causes errors in the LC display [2].
  Check the product for damage before use. Never use a damaged product.
  FOOD-SAFE! The taste and smell of your food are not detrimentally affected by this product.

Safety instructions for batteries/rechargeable batteries

DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.
DANGER OF EXPLOSION! Never recharge non-rechargeable batteries. Do not short-circuit batteries/rechargeable batteries and/or open them. Overheating, fire or bursting can be the result.

• Never throw batteries / rechargeable batteries into fire or water.
  Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries / rechargeable batteries

• Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
  If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!
  You can remove leaked battery fluids with a dry, absorbent cloth.

WEAR PROTECTIVE GLOVES! Leaked or

damaged batteries/rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

In the event of a leakage of batteries/rechargeable batteries, immediately remove them from the product to prevent damage.
Remove batteries/rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

Only use the specified type of battery/rechargeable battery!
- Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
Use a dry, lint-free cloth to clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
Remove exhausted batteries / rechargeable batteries from the product immediately.

Before first use (Fig. C)

Remove all packaging materials from the product.
Turn the product over and place it on a soft underlay to avoid scratching the surface. Loosen the screw 6 located at the cover of the battery compartment 5 on the back of the product.

Open the cover of the battery compartment 5 on the back of the product.
Pull out the insulation strip from the battery compartment 5
Close the cover of the battery compartment 5 and tighten the screw 6

- Replacing the battery (Fig. C)

Turn the product over and place it on a soft underlay to avoid scratching the surface. Loosen the screw located at the cover of the battery compartment on the back of the product.
Open the cover of the battery compartment 5 on the back of the product.
Remove the used battery, if present.
Insert a battery type CR2032 in the battery compartment 5

Note: Make sure you insert the batteries with the correct polarity. This is indicated on the cover of the battery compartment 5.
Close the cover of the battery compartment 5 and tighten the screw 6

Operation

Set the product on a solid, level and flat surface to weigh.

Weighing

Note: Always place the object you wish to weigh gently onto the weighing surface 1 to avoid damaging the glass surface.

To activate the product, you may directly put a load (e.g. food container) with minimum 250 g onto the weighing surface. Press the weight surface with a

certain force is also possible to activate the product. You can always press the button TARE 3 at any time to set the zero point.

Place the item you wish to weigh onto the product. The numerical display 7 will show the weight of the item you are weighing.

Incrementalweighing

Touching the button TARE 3 with the product on will change the numerical display 7 from the reading to "0". The "T" symbol 10 will appear. Note: A slight touch of the button TARE 3 and the button UNIT 4 is sufficient to operate the product. If there is too much pressure, the product may cause tilting.
Now add another item to weigh onto the product. The numerical display 7 will show the weight of the newly added item.
□ If you remove the item added to the product, the numerical display 7 will again read "0".
If you remove all items from the product, the LC display 2 will show a negative value indicated by the minus symbol 9.
Then briefly touch the button TARE 3 and the "T" symbol 10 will disappear.
Important! Be sure never to add more than 5kg to the weighing surface. Overloading the product can damage it.

- Changing the measuring unit

The product will display the weight in the official European measuring unit "g" (grams), as well as the traditional unit of weight "oz" (ounce, 1 oz ≈ 28.35 g) or "lb'oz" (pound: ounce, 1 lb = 16 oz ≈ 453.59 g). When measuring the volume of water, the product calculates it by the weight using the official European

unit of volume "ml" (millilitres) or the traditional unit of measure fl'oz (fluid ounces, 1 fl'oz ≈ 28.41 ml). To switch the unit of measure, briefly touch the UNIT button 4. After each time it is touched, the unit display 8 will switch to the next unit listed:

- Switching off

□ Holding the button TARE 3 for approx. 3 seconds will off the product. If no movement is detected on the weighing surface 1 for 3 minutes and no button is pressed, the product will automatically switch off.

Troubleshooting

= Fault
Cause
O = Solution

---

= The product is overloaded.
O = Remove the overload.

• = L0
  = The batteries are too weak to weigh. You cannot operate the product.
  O = Replace the battery (see section "Replacing the battery").

Note: The product contains sensitive electronic components. For this reason it is possible that it can be disrupted by radio transmitting equipment in the immediate vicinity. If the LC display 2 indicates a problem, move such objects away from it.

Electrostatic discharges can lead to malfunctions. In cases of the product failing to work, remove the batteries for a short while and then replace them.

- Cleaning and care

• Never immerse the product in water or other liquids. This can damage the product.
  Clean the product with a slightly dampened, fluff-free cloth. To remove more stubborn dirt, you can also dampen the cloth with a weak soap solution.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on

collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/ EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries/rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location.

This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase. You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance. If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

NI Service Northern Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR / Min., (off peak))

E-Mail: [e-mail]
