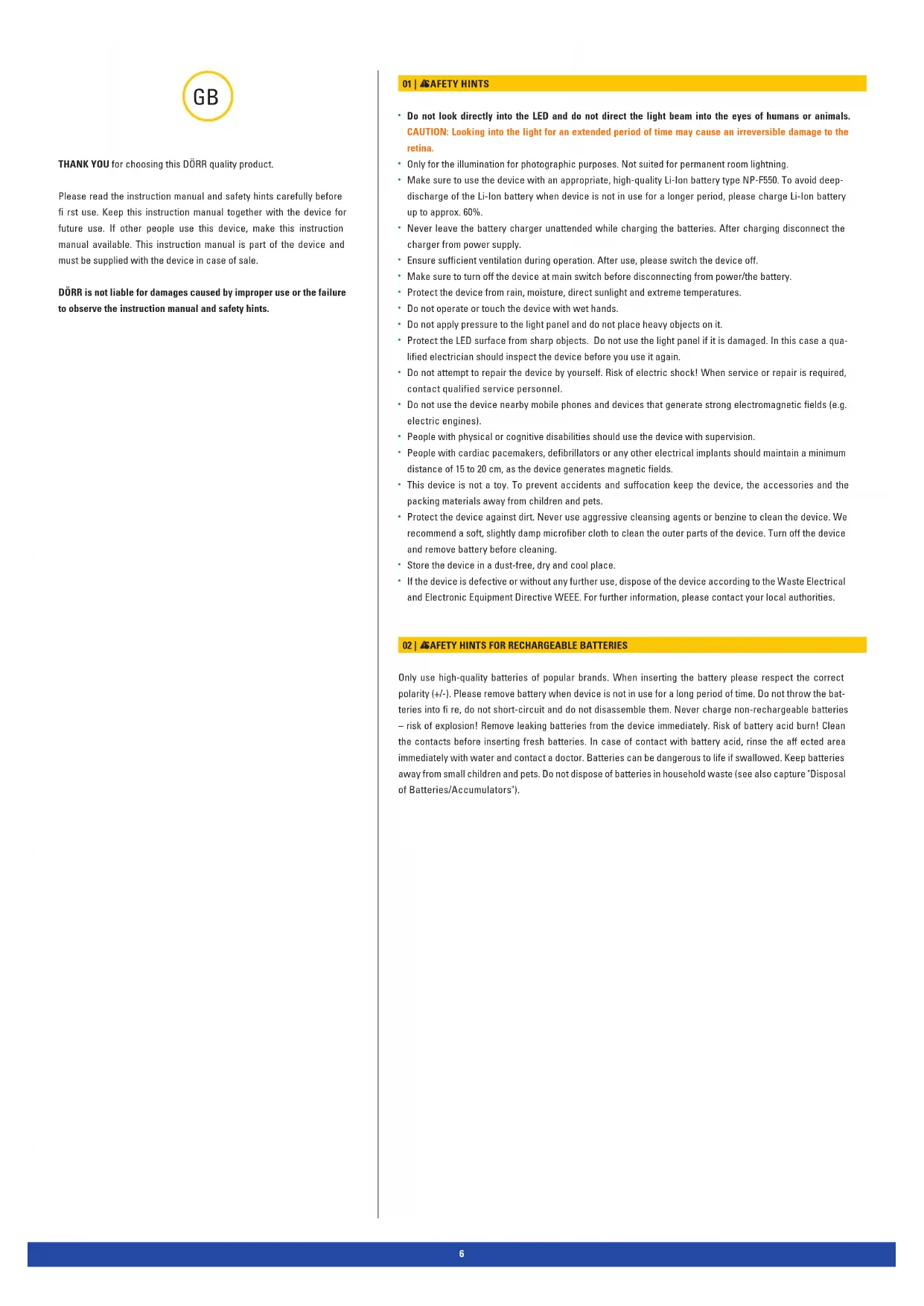

Das aufgedruckte CE Kennzeichen entspricht den geltenden EU Normen.6 THANK YOU for choosing this DÖRR quality product. Please read the instruction manual and safety hints carefully before fi rst use. Keep this instruction manual together with the device for future use. If other people use this device, make this instruction manual available. This instruction manual is part of the device and must be supplied with the device in case of sale. DÖRR is not liable for damages caused by improper use or the failure to observe the instruction manual and safety hints.

Do not look directly into the LED and do not direct the light beam into the eyes of humans or animals. CAUTION: Looking into the light for an extended period of time may cause an irreversible damage to the retina.

Only for the illumination for photographic purposes. Not suited for permanent room lightning.

Make sure to use the device with an appropriate, high-quality Li-Ion battery type NP-F550. To avoid deep- discharge of the Li-Ion battery when device is not in use for a longer period, please charge Li-Ion battery up to approx. 60%.

Never leave the battery charger unattended while charging the batteries. After charging disconnect the charger from power supply.

Ensure sufficient ventilation during operation. After use, please switch the device off.

Make sure to turn off the device at main switch before disconnecting from power/the battery.

Protect the device from rain, moisture, direct sunlight and extreme temperatures.

Do not operate or touch the device with wet hands.

Do not apply pressure to the light panel and do not place heavy objects on it.

Protect the LED surface from sharp objects. Do not use the light panel if it is damaged. In this case a qua- lified electrician should inspect the device before you use it again.

Do not attempt to repair the device by yourself. Risk of electric shock! When service or repair is required, contact qualified service personnel.

Do not use the device nearby mobile phones and devices that generate strong electromagnetic fields (e.g. electric engines).

People with physical or cognitive disabilities should use the device with supervision.

People with cardiac pacemakers, defibrillators or any other electrical implants should maintain a minimum distance of 15 to 20 cm, as the device generates magnetic fields.

This device is not a toy. To prevent accidents and suffocation keep the device, the accessories and the packing materials away from children and pets.

Protect the device against dirt. Never use aggressive cleansing agents or benzine to clean the device. We recommend a soft, slightly damp microfiber cloth to clean the outer parts of the device. Turn off the device and remove battery before cleaning.

Store the device in a dust-free, dry and cool place.

If the device is defective or without any further use, dispose of the device according to the Waste Electrical and Electronic Equipment Directive WEEE. For further information, please contact your local authorities.

02 | SAFETY HINTS FOR RECHARGEABLE BATTERIES

Only use high-quality batteries of popular brands. When inserting the battery please respect the correct polarity (+/-). Please remove battery when device is not in use for a long period of time. Do not throw the bat- teries into fi re, do not short-circuit and do not disassemble them. Never charge non-rechargeable batteries – risk of explosion! Remove leaking batteries from the device immediately. Risk of battery acid burn! Clean the contacts before inserting fresh batteries. In case of contact with battery acid, rinse the a ected area immediately with water and contact a doctor. Batteries can be dangerous to life if swallowed. Keep batteries away from small children and pets. Do not dispose of batteries in household waste (see also capture "Disposal of Batteries/Accumulators").7 1 LED illuminated area 2 Control unit 3 Brightness control 4 Hot shoe 5 On/O switch 6 Socket for power supply (optional) 7 ¼" Tripod socket (7a below, 7b lateral) 8 Battery slot 9 Battery release button 10 Battery contacts pins +/- 11 LED Indicator 12 Battery charger 13 Power cable socket 14 Charging slot 15 Battery contact pins +/- 16 LED charging indicator 17 Power cable 18 Li-Ion battery 19 Battery contacts +/- 20 Ball head 21 ¼" screw mount 22 Locking screw ball head 23 ¼" tripod socket 24 Universal fl ash shoe 25 Locking screw fl ash shoe 03 | PRODUCT DESCRIPTION The DÖRR LED FX Flex Panels are equipped with the latest LED technology and are fully fl exible in their application. The LED Flex Panels ensure a bright illumination even in hard to reach areas or in the smallest spaces. With a height of only 10mm, they can be folded or rolled up and are easy to transport. Well suited for portrait, product and video shootings. 04 | FEATURES

Fully flexible, compact and ultra-flat

Environmentally friendly, long-lasting LEDs

Brightness variably adjustable with dimmer

Operation via supplied (Replace-) NP-F550 Li-Ion battery, including battery charger

Supplied with ball head with universal flash shoe with tripod socket ¼" 05 | NOMENCLATURE

Before fi rst use of the Flex Panel, please fully charge the Li-Ion battery (18) with the supplied battery charger (12). CAUTION Only charge rechargeable Li-Ion batteries of the type NP-F550 with the supplied battery char- ger! The charger is not suited to charge other battery types! Insert the power cable (17) to the cable socket of battery charger (13) and connect with an electrical outlet. The LED charging indicator (16) lights up green. Place the Li-Ion battery (18) over the center of the charging slot (14) and pay attention to correct polarity (markings +/- on the battery and in the charging slot). Slide the battery fully forward into the battery contacts (15). If battery is inserted properly and the char- ging process is started, the LED charging indicator (16) lights up red. When battery is fully charged, the LED charging indicator (16) turns green. Slide the Li-Ion battery backwards and remove it from the charging slot. Disconnect the battery charger from the electrical outlet. CAUTION Never leave the battery charger unattended while charging the battery. After charging, disconnect the charger from power supply. NOTE To avoid deep-discharge of the Li-Ion battery when Flex Panel is not in use for a longer period, please charge Li-Ion battery up to approx. 60%. Replacement battery from DÖRR optionally available from DÖRR in stores: DÖRR Li-Ion battery (Replace-) NP-F550 Item-No. 980075

06.2 INSERTING THE LI-ION BATTERY INTO FLEX PANEL

CAUTION Before inserting or removing the Li-Ion battery, make sure that Flex Panel is turned o (On/ O switch (5) = OFF). Insert the Li-Ion battery (18) into the battery slot (8). Pay attention to correct polarity (markings +/- on the battery and in the battery slot). Slide the battery fully forward into the battery contacts (10) until the battery clicks into place. To remove the Li-Ion battery, press the release button (9) and slide out the battery.

06.3 ALTERNATIVE POWER SUPPLY

Alternatively, the Flex Panel can be operated with a power supply DC 7-12V, 3A (optional), which will be connected with the power supply socket(6). Note the instructions for use and the safety hints of the manufacturer. 08 | MOUNTING

08.1 MOUNTING ON A CAMERA/CAMCORDER WITH FLASH HOT SHOE

For mounting on your camera or camcorder, slide ball head (20) with the universal fl ash shoe (24) in the hot shoe mount of your camera or your camcorder. Turn down the locking screw (25) to lock the ball head tight.

08.2 MOUNTING ON A TRIPOD

For mounting on a tripod, unscrew the universal fl ash shoe (24) from the ball head. With the ¼ tripod socket (23) underneath the ball head, the Flex Panel can be mounted onto a tripod. For landscape format use the ¼" tripod socket below the Flex Panel (7a), for portrait for- mat use the lateral ¼" tripod socket (7b).

09 | CLEANING AND STORAGE

Never use aggressive cleansing agents or benzine to clean the device. We recommend a soft, slightly damp microfi ber cloth to clean the outer parts of the device and the LED surface. Turn o the device and remove the battery before cleaning. Store the device in a dust-free, dry and cool place. This device is not a toy - keep it out of reach of children. Keep away from pets. 10 | TECHNICAL SPECIFICATIONS

FLEX PANEL FX-1520 DL

07 | OPERATION To turn on the Flex Panel, slide the On/O switch (5) to the position ON. Turn the brightness control (3) to dim the brightness continuously (to the left = darker/to the right = lighter). To t u r n o the Flex Panel, slide the On/O switch (5) to the position OFF. CAUTION After use please turn o the LED fl ex panel (On/O switch 5 = position OFF).

11 | SCOPE OF DELIVERY

1 Flex Panel FX-1520 DL 1 Battery (Replace-) NP-F550 1 Ball head with fl ash shoe 1 Battery charger with power cable 1 Safety hints Number of LEDs 80 white Colour temperature max. 5600 K Power 16 W Beam angle 65° Colour rendering index (CRI) 95 R

Illuminance 0,5 m: 1660 Lux, 1,0 m: 406 Lux Operation via (Replace-) NP-F550 Li-Ion Battery 7,4 V 2300 mAh (Port for optional power supply DC 7-12 V, 3 A available) Dimensions approx. 215 x 215 x 40 mm Dimensions illuminated area approx. 150 x 200 mm Transport dimensions including battery approx. 110 x 215 x 60 mm Weight including battery approx. 415 g Input AC100-240 V 50/60 Hz 150 mA (max.) Output DC 8,4 V/600 mA Dimensions approx. 85 x 46 x 40 mm Weight approx. 118 g BATTERY CHARGER9

12 | DISPOSAL, CE MARKING

12.1 DISPOSAL OF BATTERIES/ACCUMULATORS

Batteries are marked with the symbol of a crossed out bin. This symbol indi- cates that empty batteries or accumulators which can no longer be charged should not be disposed of with household waste. Waste batteries may con- tain harmful substances that can cause damage to health and to the environ- ment. Please use the return and collection systems available in your country for the disposal of the waste batteries.

12.2 WEEE INFORMATION

The Waste Electrical and Electronic Equipment Directive (WEEE Directive) is the European community directive on waste electrical and electronic equip- ment, which became European law in February 2003. The main purpose of this directive is to prevent electronic waste. Recycling and other forms of waste recovery should be encouraged to reduce waste. The symbol (trash can) on the product and on the packing means that used electrical and electronic pro- ducts should not be disposed of with general household waste. It is your res- ponsibility to dispose of all your electronic or electrical waste at designated collection points. Disposing of this product correctly will help to save valu- able resources and it is a signifi cant contribution to protect our environment as well as human health. For more information about the correct disposal of electrical and electronic equipment, recycling and collection points please contact your local authorities, waste management companies, your retailer or the manufacturer of this device.

12.3 ROHS CONFORMITY

This product is compliant with the European directive 2011/65/EU of June 08, 2011 for the restriction of use of certain hazardous substances in electrical and electronic equipment (RoHS) and its amendments.
