USER MANUAL Bi-1350 Dörr

THANK YOU for choosing this DÖRR quality product. Please read the instruction manual and safety hints carefully before first use. Keep this instruction manual together with the device for future use. If other people use this device, make this instruction manual available. This instruction manual is part of the device and must be supplied with the device in case of sale. DÖRR is not liable for damages caused by improper use or the failure to observe the instruction manual and safety hints.

SAFETY HINTS

• Do not look directly into the LED and do not direct the light beam into the eyes of humans or animals.
• CAUTION: Do not look longer than 45 seconds and with a distance of less than 1m into the light. This may cause an irreversible damage to the retina.
  This torch is subject to the risk group 2 according to EN 62471 "Blue Light" hazard: Does not pose a hazard due to the aversion response of the human eye to bright light or thermal discomfort.
• The torch is not suitable for examinations of the eyes (pupils test).
• Do not light up any magnifying bundled objects (e.g. mirrors) - risk of fire!
• LED bulb cannot be replaced.
• Make sure to use the device only with an appropriate, high-quality Li-Ion battery type 18650 which is protected against over or under voltage and against short circuit and reverse polarity.
  Do not attempt to repair the devise by yourself. When service or repair is required, contact qualified service personnel.
  Do not use the device nearby mobile phones and devices that generate strong electromagnetic fields (e.g. electric engines).
• People with physical or cognitive disabilities should use the device with supervision.
• Protect the device against dirt. Never use aggressive cleansing agents or benzine to clean the device. We recommend a soft microfiber cloth to clean the outer parts of the device.
• Store the device in a dust-free, dry and cool place.
• The device is not a toy - keep it out of reach of children.
• Keep away from pets.
• If the device is defective or without any further use, dispose of the device according to the Waste Electrical and Electronic Equipment Directive WEEE. For further information, please contact your local authorities.

SAFETY HINTS FOR BATTERIES/ACCUMULATORS

Only use high-quality batteries/accumulators of popular brands. When inserting the batteries/accumulators, please respect the correct polarity (+/-). Please remove batteries/accumulators when device is not in use for a longer period. Do not throw the batteries/accumulators into fire, do not short-circuit and do not disassemble them! Never charge non-rechargeable batteries - risk of explosion! Remove empty or defective batteries immediately from the device to avoid the leaking of battery acid. Remove leaking batteries from the device immediately. Clean the contacts before inserting fresh batteries. Risk of battery acid burn! In case of contact with battery acid, rinse the affected area immediately with water and contact a doctor. Batteries can be dangerous to life if swallowed. Keep batteries/accumulators away from small children and pets. Do not dispose of batteries in household waste (see also capture "Disposal of Batteries/Accumulators").

PRODUCT DESCRIPTION

Multifunctional, extendable LED Outdoor Lantern. Can be used as a torch, camping light, warning light, etc. The extendable light head provides an even ambient light.

FEATURES

• Ultra bright white LED CREE® plus 2 red LEDs
  · Maximum brightness 115 lumen, dimmable
• Flashing function
  · Magnetic lantern base for attaching to metal surfaces
• Sturdy bracket and carabiner hook for hanging up
• Compact, space-saving design
  · Supplied with 3 x AA batteries

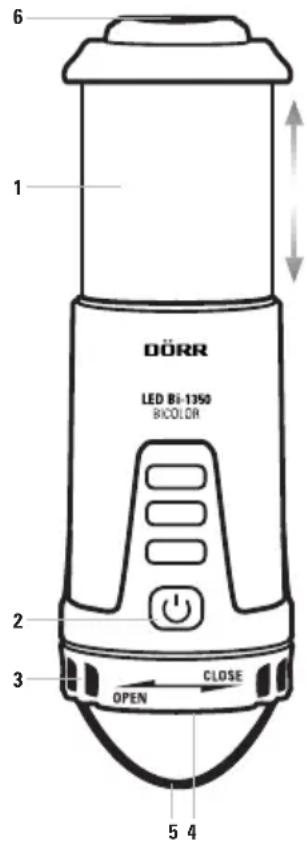

NOMENCLATURE

1 Extendable light head
2 On/Off button
3 Battery compartment lid
4 Magnetic base
5 Bracket
6 Light lens

USAGE

6 1 DÖRR LED Bi-1350 BICOLOR 2 3 OPEN CLOSE 5 4

Inserting/replacing batteries

Unscrew the battery compartment lid (3) in the direction of arrow „Open“. Insert 3 pieces of AA batteries according to the polarity +/- markings in the battery compartment. Screw on the battery compartment lid again.

Turn on/off the lantern

To turn on/off the lantern press the On/Off button (2).

Use as a torch

Slide the light head (1) down and turn on the light by pressing the On/Off button (2). The light beam comes out of the light lens (6).

Use as a camping lantern/warning light

Pull the light head (1) upwards and turn on the light by pressing the On/Off button (2). The light head (1) provides an even ambient light.

White light

Press the On/Off button (2) once for full, white light (115 lumens). To dim the light (35 lumens) press the On/Off button once again. A third press activates the flashing function. A fourth press turns off the light.

Red light

For red light, press the On/Off button (2) twice in quick succession. A second press activates the red light flashing function. A third press turns off the light.

Changing the light colour

To switch between white and red light when lantern is on, just press the On/Off button (2) twice in quick succession.

CLEANING/STORAGE

Never use aggressive cleansing agents or benzine to clean the light. We recommend a soft microfiber cloth to clean the outer plastic parts. Store the device in a dust-free, dry and cool place. This device is not a toy – keep it out of reach of children. Keep away from pets.

SPECIFICATIONS

	LANTERN (white light) TORCH (white light) RED WARNING LIGHT
Function Full Light Dimmed Flashing Full Light Dimmed Flashing Full Light Flashing
Brightness 115 lm 35 lm – 80 lm 25 lm	– – –
Runtime (with fresh batteries) app. 14	h app. 42 h app. 60 h app. 14 h app. 42 h app. 60 h app. 45 h app. 90 h
Illuminant	white LED: 1x CREE® XPG / 2x red LEDs: SMD 2835
LED life time	approx. 100.000 h
Beam distance	–			app. 45 m	app. 25 m	–	–
Impact resistance	up to 1 m drop height
Weather resistance	IP X4
Power source	3x AA batteries (included)
Dimensions	ø 45 mm, height: 90 mm, extended height: 135 mm
Weight	approx. 75g (w/o batteries)
Content	Lantern, carabiner hook, batteries, instruction manual
Item No.	980546

DISPOSAL OF BATTERIES/ACCUMULATORS

Batteries are marked with the symbol of a crossed out bin. This symbol indicates that empty batteries or accumulators which can no longer be charged, should not be disposed of with household waste. Waste batteries may contain harmful substances that can cause damage to health and to the environment. Please use the return and collection systems available in your country for the disposal of the waste batteries.

WEEE INFORMATION

The Waste Electrical and Electronic Equipment Directive (WEEE Directive) is the European community directive on waste electrical and electronic equipment, which became European law in February 2003. The main purpose of this directive is to prevent electronic waste. Recycling and other forms of waste recovery should be encouraged to reduce waste. The symbol (trash can) on the product and on the packing means that used electrical and electronic products should not be disposed of with general household waste. It is your responsibility to dispose of all your electronic or electrical waste at designated collection points. Disposing of this product correctly will help to save valuable resources and it is a significant contribution to protect our environment as well as human health. For more information about the correct disposal of electrical and electronic equipment, recycling and collection points please contact your local authorities, waste management companies, your retailer or the manufacturer of this device.

ROHS CONFORMITY

This product is compliant with the European directive 2011/65/EU of June 08, 2011 for the restriction of use of certain hazardous substances in electrical and electronic equipment (RoHS) and its amendments.

CE MARKING

The CE marking complies with the European directives.
