USER MANUAL DSC-QX10 SONY

Digital Still Camera

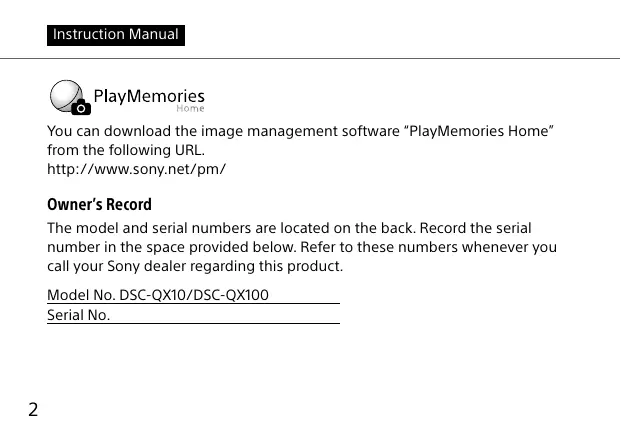

©2013 Sony Corporation Printed in China DSC-QX10/QX100 DSC-QX10/QX100 Instruction Manual You can download the image management software “PlayMemories Home” from the following URL. http://www.sony.net/pm/ Owner’s Record The model and serial numbers are located on the back. Record the serial number in the space provided below. Refer to these numbers whenever you call your Sony dealer regarding this product. Model No. DSC-QX10/DSC-QX100 Serial No.

To reduce fire or shock hazard, do not expose the unit to rain or moisture. CAUTION Battery pack If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical burns. Observe the following cautions. ˎˎDo not disassemble. ˎˎDo not crush and do not expose the battery pack to any shock or force such as hammering, dropping or stepping on it. ˎˎDo not short circuit and do not allow metal objects to come into contact with the battery terminals.

ˎˎDo not expose to high temperature above 60°C (140°F) such as in direct sunlight or in a car parked in the sun. ˎˎDo not incinerate or dispose of in fire. ˎˎDo not handle damaged or leaking lithium ion batteries. ˎˎBe sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack. ˎˎKeep the battery pack out of the reach of small children. ˎˎKeep the battery pack dry. ˎˎReplace only with the same or equivalent type recommended by Sony. ˎˎDispose of used battery packs promptly as described in the instructions. AC Adaptor Use the nearby wall outlet (wall socket) when using the AC Adaptor. Disconnect the AC Adaptor from the wall outlet (wall socket) immediately if any malfunction occurs while using the apparatus.

For Customers in Europe

Hereby, Sony Corporation, declares that this DSC-QX10/QX100 Digital Still Camera is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For details, please access the following URL: http://www.compliance.sony.de/ Notice for the customers in the countries applying EU Directives Manufacturer: Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan For EU product compliance: Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany

Notice If static electricity or electromagnetism causes data transfer to discontinue midway (fail), restart the application or disconnect and connect the communication cable (USB, etc.) again. This product has been tested and found compliant with the limits set out in the EMC regulation for using connection cables shorter than 3 meters (9.8 feet). The electromagnetic fields at the specific frequencies may influence the picture and sound of this unit.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems) This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only.

To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

For Customers in Singapore

About the camera The camera is designed to be connected to a smartphone via Wi-Fi. You can transfer images to a smartphone on the spot just after shooting. Check the supplied items ˎˎRechargeable battery pack NP-BN (1) ˎˎMicro USB cable (1) ˎˎWrist strap (1) ˎˎSmartphone attachment (1) ˎˎInstruction Manual (this manual) (1)

Name of main parts Power button Microphone Display panel : Indicates memory card not inserted : Indicates remaining battery capacity Hook for strap Tripod socket Control ring (DSC-QX100)

Power/Charge/Movie lamp Green: Power ON Orange: Charging Red: Recording a movie Zoom lever Shutter button Multi terminal RESET button DSC-QX10 DSC-QX100

Charging the battery Charge the battery before using the camera. To charge, use the micro USB cable (supplied) to connect the camera to a computer. ˎˎTurn off the power when the battery is being charged. ˎˎIf you do not have a computer, use the AC adaptor AC-UD10 or AC-UD11 (both sold separately). The AC-UD11 (sold separately) may not be available in some countries/ regions.

Battery cover Inserting a memory card Insert a microSD memory card or “Memory Stick Micro” (M2) media before shooting. microSD memory card “Memory Stick Micro” media Printed side DSC-QX10 microSD memory card DSC-QX100

Terminal side “Memory Stick Micro” media Printed side Terminal side

Installing “PlayMemories Mobile” Install “PlayMemories Mobile” to the smartphone before using the camera. If “PlayMemories Mobile” is already installed, update it to the latest version. Android Search for “PlayMemories Mobile” from Google Play and install it. iPhone For details on “PlayMemories Mobile”, refer to the support website http://www.sony.net/ pmm/

Search for “PlayMemories Mobile” from App Store and install it. Connecting the camera and a smartphone via Wi-Fi The connection method varies depending on the type of smartphone. Confirm your smartphone type and connect via Wi-Fi. Input the password, as printed on

the same label (first time only). Android Turn on the power of the camera. Start “PlayMemories Mobile” on the smartphone. Select the SSID, as printed on the inside of the camera’s battery cover or on the cover of this manual. Continued

Connecting the camera and a smartphone via Wi-Fi (continued)

(N mark) of the smartphone against the N Mark of the camera. Powered on: Continue to touch (1-2 seconds) without moving until “PlayMemories Mobile” starts up. Powered off: Keep the camera and a smartphone touching until the lens of the camera extends.

iPhone Turn on the power of the camera. On the smartphone, select [Settings], then select [Wi-Fi]. Select the SSID, as printed on the inside of the camera’s battery cover or on the cover of this manual. Input the password, as printed on the same label (first time only). Confirm the connection to the SSID of the camera. Go back to the Home screen, then start “PlayMemories Mobile”.

Power button Continued

Connecting the camera and a smartphone via Wi-Fi (continued)

Attaching the camera to a smartphone

Attach a smartphone after fixing the camera to the smartphone attachment (supplied). Fix the camera to the attachment. Put the camera into the slot of the attachment, aligning the index, then rotate the attachment until it clicks. Sony mark Smartphone Attachment Index (-) Continued

Attaching the camera to a smartphone (continued) Open the clamps of the attachment. Extend the clamps and attach a smartphone. ˎˎDo not swing the camera around with a smartphone attached to it, as the smartphone may slip out of the attachment. ˎˎMake sure no buttons are caught when the smartphone is attached.

Removing the smartphone attachment

Slide the removal lever to the lens side and rotate the attachment. Removal lever

Shooting images Start “PlayMemories Mobile” on the smartphone. Shoot images with the shutter button of the camera or “PlayMemories Mobile”. The shutter button of the camera is not available while shooting movies. [2M] images are transmitted automatically to the smartphone. [18M] images are saved into the memory card of the camera (default setting).

Screen of “PlayMemories Mobile” Switching exposure modes Settings Shutter/movie button Switching between still image/ movie Zoom Terminating End “PlayMemories Mobile” to return to the Home screen. Turn off the power of the camera. ˎˎIf you turn off the power of

the camera before ending “PlayMemories Mobile”, an error message will be displayed. This is not a malfunction. The display screen for the application is subject to change without notice by future upgrades.

Refer to the Help Guide The Help Guide is an online manual. Refer to the Help Guide when you would like to know further details, settings and operations of “PlayMemories Mobile”, and precautions. http://www.sony.net/SonyInfo/Support/

Q&A Why doesn’t the camera charge? How can I return to the default setting? ˎˎTurn the power off. ˎˎTurn on the power of the camera, Why the power lamp flashing red? ˎˎMemory card is not inserted correctly. Insert it in the correct direction. How can I correct the date/ time? ˎˎWhen Wi-Fi connection between the camera and the smartphone is made, the date/time on the camera is automatically set to that of the smartphone.

How can I change a setup of image size, etc.? ˎˎYou can make changes on the settings screen of “PlayMemories Mobile”. How can I see the number of images or information about the camera? ˎˎRefer to the “Specifications” of this manual or the “Help Guide (HTML)”. Continued

Q & A (continued) Why has the power of the camera turned on unexpectedly? ˎˎIf an NFC-enabled smartphone is close to the camera, the power may turn on accidentally. This is not a malfunction. Why does an image not transfer to my smartphone after shooting? ˎˎMovies are recorded on a memory card, but are not transferred automatically.

I’ve forgotten the password. Where can I find out what it is? ˎˎThe password and SSID are printed on the inside of the battery cover or on the cover of this manual. Specifications

Dimensions (CIPA compliant): DSC-QX100: 62.5 mm × 62.5 mm × 55.5 mm (2 1/2 inches × 2 1/2 inches × 2 1/4 inches) (W/H/D) DSC-QX10: 62.4 mm × 61.8 mm × 33.3 mm (2 1/2 inches × 2 1/2 inches × 1 5/16 inches) (W/H/D) Mass (CIPA compliant) (including NP-BN battery pack, “Memory Stick Micro” media): DSC-QX100: Approx. 179 g (6.3 oz) DSC-QX10: Approx. 105 g (3.7 oz) Power: Rechargeable battery pack NP-BN, 3.6 V Power consumption (during shooting): 1.1 W

Battery life and number of images that can be recorded Battery life Number of images Shooting (still images) Approx. 110 min. Approx. 220 images Actual shooting (movies) Approx. 25 min.

Continuous shooting (movies) Approx. 55 min. (DSC-QX100) Approx. 65 min. (DSC-QX10)

ˎˎThe number is based on the CIPA standard. (CIPA: Camera & Imaging Products Association) ˎˎThe above number varies depending on the type of smartphone and how it is used.

ˎˎThe following marks are trademarks of Sony Corporation. , “Cyber-shot”, “Memory Stick”, , “Memory Stick Micro”, , “PlayMemories Home”. ˎˎmicroSDXC logo is a trademark of SD-3C, LLC. ˎˎAndroid, Google Play are trademarks or registered trademarks of Google Inc. ˎˎWi-Fi, the Wi-Fi logo, Wi-Fi PROTECTED SET-UP are trademarks or registered trademarks of the Wi-Fi Alliance. ˎˎThe N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries. ˎˎIn addition, system and product names used in this manual are, in general, trademarks or registered trademarks of their respective developers or anufacturers. However, the ™ or ® marks are not used in all cases in this manual.

Notes on using the camera Notes on using the camera When you attach a smartphone attachment to the camera, be careful not to pinch a finger. On camera’s temperature Your camera and battery may get hot due to continuous use, but it is not a malfunction. On the overheat protection Depending on the camera and battery temperature, you may be unable to record movies or the power may turn off automatically to protect the camera. In this case, leave the power off and wait until the camera and battery temperature goes down. If you turn on the power without letting the camera and battery cool enough, the power may turn off again or you may be unable to record movies.

Avoid rough handling, disassembling, modifying, physical shock, or impact such as hammering, dropping, or stepping on the product. Be particularly careful of the lens. Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website. http://www.sony.net/
