10028009 - Air purifier Klarstein - Free user manual and instructions

Product type	Air purifier
Brand	Klarstein
Model	10028009
Filtration system	4 stages: pre-filter, HEPA filter, cold catalyst filter, carbon fiber filter
Ionizer	Yes, negative ion generator
Display	LCD, displays functions and duration
Remote control	Yes, with CR2025 lithium battery
Timer	1 to 12 hours (adjustable in 1-hour increments)
Fan speeds	3 (Low, Medium, High)
Settings memory	Yes, retains last settings
Power supply	220-240 V ~ 50/60 Hz
Maintenance	Clean with a soft, damp cloth; do not use solvents
Filter replacement	Every 12 months (depending on use)
Safety	Do not expose to rain; do not repair yourself; install on a flat, heat-resistant surface
Included accessories	Remote control, battery, user manual
Repairability	Repairs exclusively by an authorized specialist workshop
Warranty	Void if unauthorized opening
Recycling	Complies with WEEE directive (crossed-out bin)

Frequently Asked Questions - 10028009 Klarstein

How to replace the filter of my Klarstein 10028009 air purifier?

To replace the filter, gently pull the front cover forward to remove it. First install the upper part of the new filter, then the lower part. Secure the bottom of the cover and press on the upper part. Replace the filter at least every 12 months.

How to set the timer?

Press the TIMER button to increase the operating time in 1-hour increments from 1 to 12 hours. The timer counts down and the device turns off automatically at the end.

What to do if the device does not turn on?

Check that the device is properly plugged into a working electrical outlet. If the problem persists, contact an authorized technician.

The device is noisy, what should I do?

Excessive noise may be due to high humidity or a dirty filter. Dehumidify the room or replace the filter if necessary.

How to use the remote control?

Insert a CR2025 lithium battery into the remote control by unlocking the battery holder. The buttons allow you to adjust the speed (SPEED) and timer (TIMER), as well as activate the ionizer (ANION).

What are the different filters of the device?

The device has a pre-filter, HEPA filter, cold catalyst filter and carbon fiber filter. They are grouped into one block for easy replacement.

How to activate the ionizer function?

Press the ANION button to operate the ionizer simultaneously with the HEPA filter. The negative ion icon is displayed on the screen.

Does the device retain settings after power off?

Yes, the device remembers the last settings (speed, timer, ionizer) and restores them at next start.

How to clean the air purifier?

Turn off and unplug the device. Use a soft, damp cloth without solvent or chemicals. Do not use volatile liquids.

Where can I find the complete manual?

The complete manual in PDF format is available for free download on notice-facile.com in French, German and English.

USER MANUAL 10028009 Klarstein

General Safety Information

• Read carefully these instructions before using this appliance.
• Before using the appliance check that the technical data declared on the nameplate conform to the voltage of the electrical supply network.
• Place the appliance on a stable and flat surface. Keep at least 60~cm distance from curtains, furniture, walls and other surfaces which may be an obstacle to the air flow.
• For a better air circulation it is advisable to set the air purifier at least at 90~cm from the floor.
• Do not employ the air purifier if the cord is damaged or if the electrical socket is loose, in order to prevent electric shock, short circuits or fire hazards.
• Do not damage the cable pulling the appliance by the cable, do not run it around sharp edges, do not wind it, do not set heavy objects above the cable, do not set it near hot surfaces.
• In order to remove the plug, pull by the plug and not by the cable.
• Before extracting the plug, switch off the appliance.
• In order to move the appliance use the side handles. Do not use extensions cords.
• Do not modify the appliance. If the appliance needs to be serviced or the cable needs to be substituted, please contact an argo service center.
• Before cleaning the appliance or substituting the filters, switch off it and remove the plug from the socket.
• Never touch the plug or the air punfier with wet hands. Do not operate the appliance while using antimosquito spray.
• The appliance is equipped with a protection against the humidity, therefore it should be used only inside houses and far away from rocks, washing basins or similar places where there could be presence of humidity.
• Do not immerse the appliance into water or other liquids. Do not operate the appliance near a heater. Do not use the appliance near flammable gases, such as natural gas or propane.
• Keep the appliance away from children and invalids in order to avoid accidents.
• Do clean the appliance with solvents or petroline. Use only dry clothes.
• Do not insert your fingers and/or any objects into air inlet openings.
• During long periods of inactivity, please remove the plug from the socket.
• The batteries must be removed from the remote control before scrapping the appliance and must be thrown away in the proper bins for batteries.

Description of the Air Purifier

Ionizer

This air purifier can produce negative ions. Negative ions abound in natural ambient such as forests, waterfalls, the mountains or the seaside.

Negative ions are useful in order to increase the metabolism and and the equilibrium of the human body.

This air purifier is equipped with a generator of negative ions that process a high quantity of negative ions.

Advanced filter system

One of the special features of this machine lies in the advanced four stages filtration system which comprises the pre-filter, the HEPA filter, the cold catalyst filter and the activated carbon filter, all included in a single piece, easy to substitute.

LCD display

Ionization function, ventilation and time of functioning can be shown on the screen in a very immediate way.

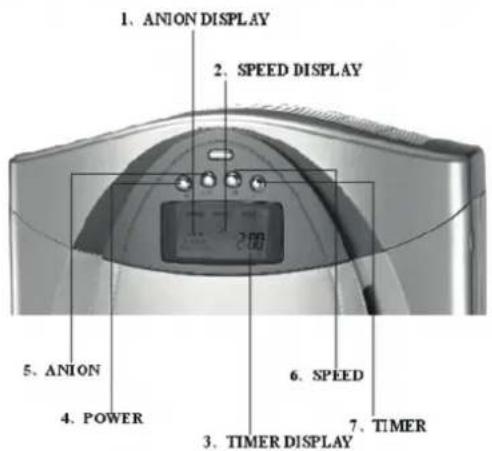

Control Panel

1. SETHNG THE SPEED: When the appliance starts to run, the velocity of the fan is low and the signal of the low speed fan switches on the display. If you need to purify the air urgently, press the button SPEED once or twice, then the velocity of the fan will turn to the medium velocity and then to the maximum and the signal of air speed will appear on top of the display.
2. TIMER SETTING: The minimum running of the timer is 1 hour. Press the TIMER once, the timer will increase one hour. The longest period that you can set automatically is 12 hours. After setting the timer it will reduce continually the time of running minute per minute. The appliance will switch off automatically when the timer displays the last minute.
3. IONIZATION FUNCTION: When you need that both the ionizer and the HEPA filter work, press the button ANION, the signal of negative ions will appear on the display.
4. REMOTE CONTROL: This appliance is equipped with a remote control besides the manual controls on the display.
5. MEMORY FUNCTION: The previous settings are registered automatically so that the way of running that has been settled previously will be repeated when the air purifier is restarted after switching it off with the button ON/OFF.

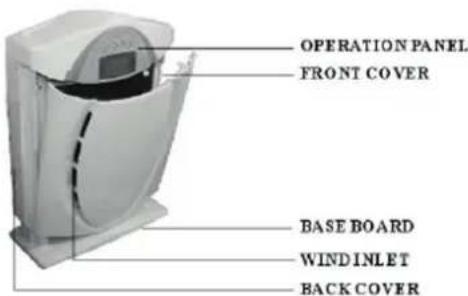

Structure

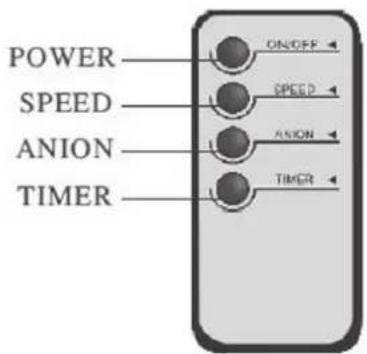

Remote Control

How to change batteries in the remote control:

1. Flip the remote on its side.
2. Press the battery release on the bottom edge of the remote.
3. Grasp the battery socket and pull the battery out.
4. Replace battery with lithium battery CR2025.

Technical details

1. Input voltage: AC 220-240 V
2. Frequency: 50/60 Hz
3. Consumption power: ≤ 40w
4. Noise level: ≤ 30dB
5. Negative ions: 3.0 million / cm' (10cm far from the wind exit)
6. Rate of absorbed CO2: ≥50% PPM
7. Applicable area: 30 - 40m^2
8. Remote control distance: ≤ 5m
9. Operating condition: Temperature- 10^ 55^ Humidity: ≤ 95^ /ORH
10. Power of motor: ≤ 1,300 RPM

Installation of the Filter

Pull the upper part of the front cover, then the front cover opens.

Remove the front cover.

Install the upper part of the filter first, then push the bottom.

Fix the bottom first, then push the upper part of the front cover.

Warning

Do not plug in or plug out the power cable with wet hands.

Put plug into the socket properly and tightly to avoid any danger.

Replace if found the power cable damaged. Do not use the machine with damaged cable.

Switch off the appliance before you change the filter. Only professional workers can open the back cover and upper cover.

It is forbidden to put fingers and metals into the wind exit.

Do not use the machine in the bathroom and other rooms with high humidity.

Attention

Do not sit on the air purifier.

Please open the window when use this machine in the kitchen.

Do not put combustible things (such as tabacco, fire) near the machine to avoid fire.

Do not spray any liquid on this machine.

Hints on Disposal

According to the European waste regulation 2002/96/EG this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
