CYBERSHOT DSC-W510 - Camera SONY - Free user manual and instructions

Product type	Compact digital camera
Brand	Sony
Model	Cyber-shot DSC-W510
Sensor	CCD 1/2.3", 12.4 MP (total), 12.1 MP (effective)
Lens	Optical zoom 4x, f=4.7-18.8 mm (equiv. 26-105 mm in 35 mm), F2.8-5.9
LCD screen	2.7 inches (6.7 cm), 230,400 dots
Focusing	Autofocus
Exposure modes	Auto, Scene Selection (9 modes)
White balance	Auto, Daylight, Cloudy, Fluorescent 1/2/3, Incandescent, Flash
Built-in flash	Range: 0.2 m to 4.8 m (W), 0.2 m to 2.3 m (T)
Burst mode	Approx. 1 fps
File formats	Still images: JPEG; Movies: AVI (Motion JPEG)
Storage media	Internal memory (6 MB), Memory Stick Duo, SD/SDHC
Battery	Rechargeable Li-ion NP-BN1, 3.6 V, 630 mAh (typical)
Battery life (CIPA)	Approx. 110 min (recording), 320 min (playback); 220 shots (recording)
Power source	AC charger BC-CSN/BC-CSNB, input 100-240 V AC
Weight	Approx. 119 g (with battery and Memory Stick Duo)
Connectors	USB 2.0 Hi-Speed, A/V OUT jack (video, mono audio)
Special features	Smile detection, Face detection, Sweep Panorama, Self-timer
Supplied accessories	Battery charger, battery NP-BN1, USB cable, wrist strap, CD-ROM (user manual)
Maintenance	Clean the exterior with a soft cloth lightly dampened with water; avoid chemicals
Spare parts / Repairability	Battery NP-BN1, charger BC-CSN/BC-CSNB; contact Sony customer service for repair

Frequently Asked Questions - CYBERSHOT DSC-W510 SONY

How to charge the camera battery?

Insert the NP-BN1 battery into the BC-CSN/BC-CSNB charger, then plug the charger into a wall outlet. The CHARGE indicator lights up during charging and turns off when complete. Full charging takes about 245 minutes.

How to insert the battery and a memory card?

Open the compartment cover at the bottom of the camera. Insert the memory card (Memory Stick Duo or SD) until it clicks, then insert the battery by aligning the guide. Close the cover. To remove, press the memory card or slide the battery eject lever.

How to set date and time?

The first time you turn on the camera, the Date&Time setting screen appears. Use the ▲/▼/◄/► keys to select the format, daylight saving time, and date, then press the center ● to confirm. Confirm the geographic area and display settings.

How to take a photo?

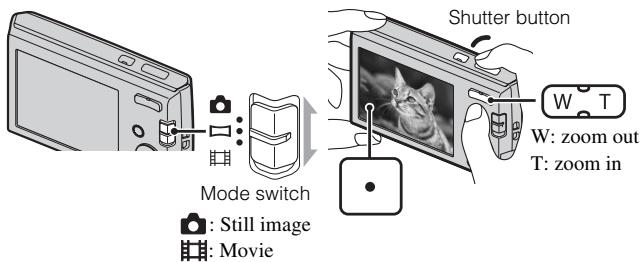

Set the mode switch to (still image). Press the shutter button halfway to focus (a beep sounds), then press fully to take the photo.

How to record a movie?

Set the mode switch to (movie). Press the shutter button fully to start recording, and press again to stop. You can use the zoom during shooting.

How to delete an image?

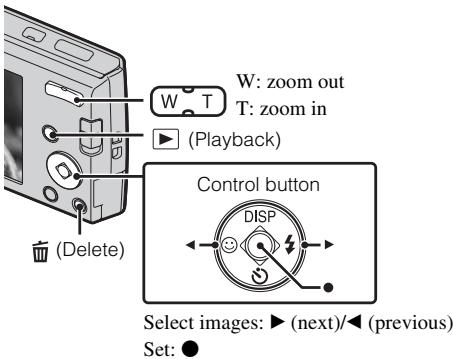

In playback mode, press the Delete button. Select This img with ▲ and press ● to confirm deletion.

What types of memory cards are compatible?

The camera accepts Memory Stick Duo (PRO Duo, PRO-HG Duo, Duo) and SD/SDHC cards. For movies, it is recommended to use a Class 2 or higher SD card.

What is the battery life?

According to CIPA standards, the NP-BN1 battery allows approximately 220 photos or 110 minutes of recording. In playback, battery life is about 320 minutes.

How to clean the camera?

Use a soft cloth lightly dampened with water to clean the exterior, then wipe with a dry cloth. Avoid thinners, alcohol, insect repellents, or other chemicals that may damage the casing.

Where to find the full user guide?

A detailed user guide (HTML format) is on the supplied CD-ROM. Insert it into a computer and follow the installation instructions. It is also available online on the Sony support website.

USER MANUAL CYBERSHOT DSC-W510 SONY

The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. DSC-W510

Serial No. ____

WARNING

To reduce fire or shock hazard, do not expose the unit to rain or moisture.

IMPORTANT SAFETY INSTRUCTIONS -SAVE THESE INSTRUCTIONS DANGER TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS

If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet.

CAUTION

Battery pack

If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical burns. Observe the following cautions.

• Do not disassemble.
• Do not crush and do not expose the battery pack to any shock or force such as hammering, dropping or stepping on it.
• Do not short circuit and do not allow metal objects to come into contact with the battery terminals.
• Do not expose to high temperature above 60^ (140°F) such as in direct sunlight or in a car parked in the sun.
• Do not incinerate or dispose of in fire.

• Do not handle damaged or leaking lithium ion batteries.

• Be sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack.

• Keep the battery pack out of the reach of small children.
• Keep the battery pack dry.
• Replace only with the same or equivalent type recommended by Sony.
• Dispose of used battery packs promptly as described in the instructions.

Battery charger

Even if the CHARGE lamp is not lit, the battery charger is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet (wall socket). If some trouble occurs while using the battery charger, immediately shut off the power by disconnecting the plug from the wall outlet (wall socket).

For Customers in the U.S.A. and Canada

I RECYCLING LITHIUM-ION BATTERIES

Lithium-Ion batteries are recyclable.

You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you.

For more information regarding recycling of rechargeable batteries, call toll free

1-800-822-8837, or visit http://www.rbrc.org/

Caution: Do not handle damaged or leaking Lithium-Ion batteries.

Battery pack

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

For Customers in the U.S.A.

UL is an internationally recognized safety organization.

The UL Mark on the product means it has been UL Listed.

If you have any questions about this product, you may call:

Sony Customer Information Center

The number below is for the FCC related matters only.

Regulatory Information

Declaration of Conformity

Trade Name: SONY

Model No.: DSC-W510

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone No.: 858-942-2230

This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

I Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

For Customers in Europe

Notice for the customers in the countries applying EU Directives

The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

This product has been tested and found compliant with the limits set out in the EMC Directive for using connection cables shorter than 3 meters (9.8 feet).

Attention

The electromagnetic fields at the specific frequencies may influence the picture and sound of this unit.

Notice

If static electricity or electromagnetism causes data transfer to discontinue midway (fail), restart the application or disconnect and connect the communication cable (USB, etc.) again.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the product safely.

Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Notice for customers in the United Kingdom

A moulded plug complying with BS 1363 is fitted to this equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced, a fuse of the same rating as the supplied one and approved by ASTA or BSI to BS 1362, (i.e., marked with an ◇ or ⚙ mark) must be used.

If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.

Refer to "Cyber-shot User Guide" (HTML) on supplied CD-ROM

For details on advanced operations, please read “Cyber-shot User Guide” (HTML) on the CD-ROM (supplied) using a computer.

GB

Illustration of a desktop computer setup with CD, monitor, keyboard, and mouse (no text or symbols)

Insert the CD-ROM into the CD-ROM drive.

For Windows users:

① Click [User Guide] → [Install].
② Start “User Guide” from the shortcut on the desktop.

For Macintosh users:

① Select the [User Guide] and copy [eng] folder stored in the [User Guide] folder to your computer.
② After copying is complete, double-click “index.html” in the [eng] folder.

Checking the accessories supplied

• Battery charger BC-CSN/BC-CSNB (1)
• Power cord (mains lead) (not supplied in the USA and Canada) (1)
• Rechargeable battery pack NP-BN1 (1)
  • Dedicated USB cable (1) (Sony Corporation 1-837-783-) (1)
• Wrist strap (1)
• CD-ROM (1)
  – Cyber-shot application software
• “Cyber-shot User Guide”
• Instruction Manual (this manual) (1)

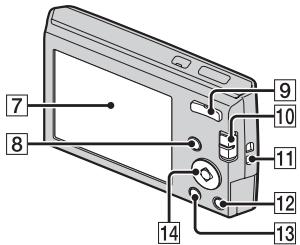

Identifying parts

1 ON/OFF (Power) button
2 Shutter button
3 Flash
4 Self-timer lamp/Smile Shutter lamp
5 Microphone
6 Lens
7 LCD screen
8 ▶ (Playback) button

⑨ For shooting: W/T (Zoom) button
For viewing: Q (Playback zoom) button/ [ICON] (Index) button

10 Mode switch

11 Hook for wrist strap

12 (Delete) button

13 MENU button

14 Control button Menu on: ▲/▼/◄/►/●

Menu off: DISP/ Sunshine /

15 Access lamp

16 Memory card slot

17 Speaker

18 Tripod receptacle

- Use a tripod with a screw less than 5.5 mm (7/32 inches) long. Otherwise, you cannot firmly secure the camera, and damage to the camera may occur.

19 Battery/memory card cover

20 Battery eject lever

21 Battery insertion slot

22 (USB) / A/V OUT jack

23 Terminal cover

Charging the battery pack

For customers in the USA and Canada

For customers in countries/regions other than the USA and Canada

GB

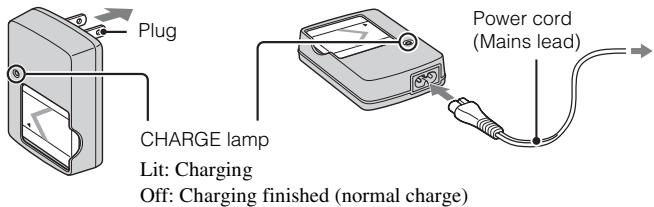

1 Insert the battery pack into the battery charger.

- You can charge the battery even when it is partially charged.

2 Connect the battery charger to the wall outlet (wall socket).

- If you continue charging the battery pack for about one more hour after the CHARGE lamp turns off, the charge will last slightly longer (full charge).

Charging time

Full charge time: approx. 245 min.

Normal charge time: approx. 185 min.

Notes

• The above charging times apply when charging a fully depleted battery pack at a temperature of 25^ (77°F). Charging may take longer depending on conditions of use and circumstances.
• Connect the battery charger to the nearest wall outlet (wall socket).
• When charging is finished, disconnect the power cord (mains lead) from the wall outlet (wall socket), and remove the battery pack from the battery charger.
• Be sure to use the battery pack or the battery charger of the genuine Sony brand.

Battery life and number of still images you can record/view

Battery life: approx. 110 min. (recording)/approx. 320 min. (viewing) Number of images: approx. 220 images (recording)/approx. 6400 images (viewing)

Note

- The number of still images that can be recorded is based on the CIPA standard, and is for shooting under the following conditions.

(CIPA: Camera & Imaging Products Association)

• DISP (Screen Display Settings) is set to [Normal].
  – Shooting once every 30 seconds.
• The zoom is switched alternately between the W and T ends.
  – The flash strobes once every two times.
  – The power turns on and off once every ten times.
  – A fully charged battery pack (supplied) is used at an ambient temperature of 25 ^ ( 77 ^ ).
• Using Sony “Memory Stick PRO Duo” media (sold separately).

Inserting the battery pack/a memory card (sold separately)

Ensure the notched corner faces correctly.

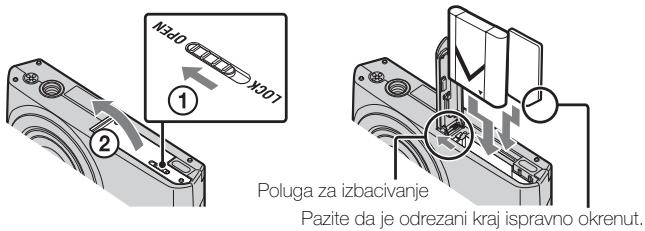

1 Open the cover.

2 Insert the memory card (sold separately).

- With the notched corner facing as illustrated, insert the memory card until it clicks into place.

3 Insert the battery pack.

- Align the battery pack with the guide arrow inside the battery insertion slot. Then, insert the battery pack until the battery eject lever locks into place.

4 Close the cover.

- Closing the cover with the battery inserted incorrectly may damage the camera.

■ Memory cards that you can use

	Memory Card	For still images	For movies
A	Memory Stick PRO Duo	○	○
	Memory Stick PRO-HG Duo	○	○
	Memory Stick Duo	○	—
B	SD memory card	○	○
	SDHC memory card	○	○

• In this manual, products in A are collectively referred to as “Memory Stick Duo” media.
• In this manual, products in B are collectively referred to as SD card.
• When recording movies, it is recommended that you use Class 2 or faster SD cards.

To remove the memory card/battery pack

Memory card: Push the memory card in once.

Battery pack: Slide the battery eject lever. Be sure not to drop the battery pack.

Note

- Never remove the memory card/battery pack when the access lamp (page 8) is lit. This may cause damage to data in the memory card/internal memory.

Setting the date and time

Date & Time setting is displayed when you press the ON/OFF (Power) button for the first time.

Select items: ▲/▼/◄/►
Set: ●

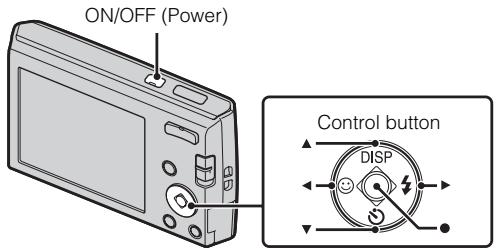

1 Press the ON/OFF (Power) button.

Date & Time setting is displayed when you press the ON/OFF (Power) button for the first time.

- It may take time for the power to turn on and allow operation.

2 Set [Date & Time Format], [Daylight Savings] and [Date & Time], then press [OK].

- Midnight is indicated as 12:00 AM, and noon as 12:00 PM.

3 Select the desired area following the instructions on the screen, then press ● → [OK].

4 Select the desired display color and display resolution mode, following the instructions on the screen.

Shooting still images/movies

GB

Shooting still images:

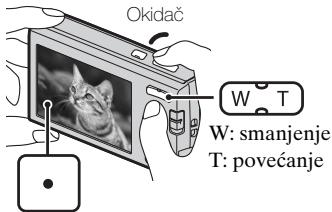

1 Press the shutter button halfway down to focus.
When the image is in focus, a beep sounds and the ● indicator lights.
2 Press the shutter button fully down.

Shooting movies:

1 Press the shutter button fully down to start recording.
- You can zoom by pressing the W/T (zoom) button before shooting.

2 Press the shutter button fully down again to stop recording.

1 Press the ▶ (Playback) button.

■ Selecting next/previous image

Select an image with ▶ (next)/◀ (previous) on the control button. Press ● in the center of the control button to view movies.

■ Deleting an image

① Press ☑ (Delete) button.
② Select [This Image] with ▲ on the control button, then press ●.

■ Returning to shooting images

Press the shutter button halfway down.

List of icons displayed on the screen (When shooting still images)

1

Display	Indication
NR	NR slow shutter
125	Shutter speed
F2.8	Aperture value
+2.0EV	Exposure Value
[]	AF range finder frame indicator

GB

Display	Indication
[SWBG]	Battery remaining
	Low battery warning
[TAO3]	Image size
[seral]	Scene Selection
[weval]	Shooting mode
[local]	Scene Recognition icon
[local]	White balance
[seral]	Metering Mode
[local]	Vibration warning
[seral]	Scene Recognition
[seral]	DRO
[ceal]	Smile Detection Sensitivity indicator
[ceal]
[seral]
[seral]	Zoom scaling
[seral]
[seral]

2

Display	Indication
●	AE/AF lock
ISO400	ISO number

3

Display	Indication
	Recording folder
	Number of recordable images
	Recording/Playback Media (memory card, internal memory)
	Flash mode
	Red-eye reduction
	Flash charging

4

Display	Indication
	Self-timer
	Face Detection
	Destination
	Burst Settings
	AF range finder frame
	Spot metering cross-hairs

Introduction of other functions

Other functions used when shooting or playing back can be operated using the Control button or MENU button on the camera. This camera is equipped with a Function Guide that allows you to easily select from the functions. While displaying the guide, try the other functions.

Function Guide

Control button

DISP (Screen Display Settings): Allows you to change the screen display.

(Self-Timer): Allows you to use the self-timer.
☺ (Smile Shutter): Allows you to use the Smile Shutter mode.
(Flash): Allows you to select a flash mode for still images.

Menu Items

Shooting

REC Mode	Select recording mode.
Scene Selection	Select pre-set settings to match various scene conditions.
Easy Mode	Shoot still images using minimal functions.
Shooting Direction	Set the direction to pan the camera when shooting Sweep Panorama images.
Image Size	Select the image size for still images, panoramic images or movie files.
Burst Settings	Select single-image mode or burst mode.
EV	Adjust the exposure manually.
ISO	Adjust the luminous sensitivity.
White Balance	Adjust color tones of an image.

Focus	Select the focus method.
Metering Mode	Select the metering mode that sets which part of the subject to measure to determine the exposure.
Scene Recognition	Set to automatically detect shooting conditions in Intelligent Auto mode.
Smile Detection Sensitivity	Set the Smile Shutter function sensitivity for detecting smiles.
Face Detection	The camera detects faces and adjusts various settings automatically.
DRO	Set DRO function to correct the brightness and contrast and improve the image quality.

Viewing

Easy Mode	Set the text-size increases and all indicators become easier to see.
Slideshow	Select a method of continuous playback.
Retouch	Retouch an image using various effects.
Delete	Delete an image.
Protect	Protect the images.
DPOF	Add a print order mark to a still image.
Rotate	Rotate a still image to the left or right.
Select Folder	Select a folder which contains the images you want to play back.

Setting items

If you press the MENU button while shooting or during playback,

☑ (Settings) is provided as a final selection. You can change the default settings on the ☑ (Settings) screen.

* If a memory card is not inserted, (Internal Memory Tool) will be displayed and only [Format] and [File Number] can be selected.

[sw=4] Shooting Settings	Grid Line/Disp. Resolution/Digital Zoom/Red Eye Reduction
[co=3] Main Settings	Beep/Language Setting/Function Guide/Display color/Power Save/Initialize/Video Out/USB Connect/LUN Setting
Memory Card Tool*	Format/Create REC. Folder/Change REC. Folder/Delete REC. Folder/Copy/File Number
Clock Settings	Area Setting/Date & Time Setting

Number of still images and recordable time of movies

The number of still images and recordable time may vary depending on the shooting conditions and the memory card.

Still images

(Units: Images)

Size\Capacity	Internal memory	Memory card
	Approx. 6 MB	2 GB
12M	1	340
VGA	35	11500
16:9(9M)	1	380

Movies

The table below shows the approximate maximum recording times. These are the total times for all movie files. The recordable movie file size is up to approx. 2 GB for each file.

(Units: hour : minute : second)

Size\Capacity	Internal memory	Memory card
	Approx. 6 MB	2 GB
VGA	0:00:05	0:25:00
QVGA	0:00:15	1:40:00

Notes on using the camera

Changing the language setting

The screen language setting, press the MENU button, then select

(Settings) → ♦T (Main Settings) → [Language Setting].

GB

Notes on recording/playback

• Before you start recording, make a trial recording to make sure that the camera is working correctly.
• The camera is neither dust-proof, nor splash-proof, nor water-proof.
• Avoid exposing the camera to water. If water enters inside the camera, a malfunction may occur. In some cases, the camera cannot be repaired.
• Do not aim the camera at the sun or other bright light. It may cause the malfunction of the camera.
• If moisture condensation occurs, remove it before using the camera.
• Do not shake or strike the camera. It may cause a malfunction and you may not be able to record images. Furthermore, the recording media may become unusable or image data may be damaged.

Do not use/store the camera in the following places

• In an extremely hot, cold or humid place
  In places such as in a car parked in the sun, the camera body may become deformed and this may cause a malfunction.
  • Under direct sunlight or near a heater
  The camera body may become discolored or deformed, and this may cause a malfunction.
• In a location subject to rocking vibration
• Near a location that generates strong radio waves, emits radiation or is strongly magnetic place. Otherwise, the camera may not properly record or play back images.
  • In sandy or dusty places
  Be careful not to let sand or dust get into the camera. This may cause the camera to malfunction, and in some cases this malfunction cannot be repaired.

On carrying

Do not sit down in a chair or other place with the camera in the back pocket of your trousers or skirt, as this may cause malfunction or damage the camera.

Notes on the LCD screen and lens

- The LCD screen is manufactured using extremely high-precision technology so over 99.99% of the pixels are operational for effective use. However, some tiny black and/or bright dots (white, red, blue or green) may appear on the LCD screen. These dots are a normal result of the manufacturing process, and do not affect the recording.

On camera's temperature

Your camera and battery may get warm due to continuous use, but it is not a malfunction.

On the overheat protection

Depending on the camera and battery temperature, you may be unable to record movies or the power may turn off automatically to protect the camera. A message will be displayed on the LCD screen before the power turns off or you can no longer record movies.

Warning on copyright

Television programs, films, videotapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provisions of the copyright laws.

No compensation for damaged content or recording failure

Sony cannot compensate for failure to record or loss or damage of recorded content due to a malfunction of the camera or recording media, etc.

Cleaning the camera surface

Clean the camera surface with a soft cloth slightly moistened with water, then wipe the surface with a dry cloth. To prevent damage to the finish or casing:

- Do not expose the camera to chemical products such as thinner, benzine, alcohol, disposable cloths, insect repellent, sunscreen or insecticide.

Recommended computer environment (Macintosh)

OS (pre-installed):

USB connection: Mac OS X (v10.3 to v10.6)

PMB Portable: Mac OS X* (v10.4 to v10.6)

* Intel processor-compatible model

On use and care

Avoid rough handling, disassembling, modifying, physical shock, or impact such as hammering, dropping or stepping on the product. Be particularly careful of the lens.

Camera

[System]

Image device:

7.79 mm (1/2.3 type) color CCD, Primary color filter

Total pixel number of camera: Approx. 12.4 Megapixels

Effective pixel number of camera: Approx. 12.1 Megapixels

Lens: 4× zoom lens

f = 4.7 mm - 18.8 mm (26 mm - 105 mm (35 mm film equivalent)) F2.8 (W) - F5.9 (T)

Exposure control: Automatic exposure, Scene Selection (9 modes)

White balance: Automatic, Daylight, Cloudy, Fluorescent 1/2/3, Incandescent, Flash

Recording interval for Burst mode: Approx. 1.0 second

File format:

Still images: JPEG (DCF Ver. 2.0, Exif Ver. 2.3, MPF Baseline) compliant, DPOF compatible Movies: AVI (Motion JPEG)

Recording media: Internal Memory (approx. 6 MB), “Memory Stick Duo” media, SD card

Flash: Flash range (ISO sensitivity (Recommended exposure Index) set to Auto):

Approx. 0.2 m to 4.8 m (7 7/8 inches to 15 ft 9 inches) (W)/ approx. 0.2 m to 2.3 m (7 7/8 inches to 7 ft 6 5/8 inches) (T)

[Input and Output connectors]

(USB)/A/V OUT terminal:

Video output Audio output (Monaural) USB communication

USB communication: Hi-Speed USB (USB 2.0)

GB

[LCD screen]

LCD panel:

6.7 cm (2.7 type) TFT drive Total number of dots: 230 400 (960 × 240) dots

[Power, general]

Power: Rechargeable battery pack NP-BN1, 3.6 V

Power consumption (during shooting): 1.1 W

Operating temperature: 0^ C to 40^ C ( 32^ F to 104^ F)

Storage temperature: -20^ to +60^ (-4^ to +140^)

Dimensions: 96.0 mm × 54.0 mm × 19.9 mm (3 7/8 inches × 2 1/4 inches × 13/16 inches) (W/H/D, excluding protrusions)

Mass: Approx. 119 g (4.2 oz) (including NP-BN1 battery pack and “Memory Stick Duo” media)

Microphone: Monaural

Speaker: Monaural

Exif Print: Compatible

PRINT Image Matching III: Compatible

BC-CSN/BC-CSNB battery charger

Power requirements: AC 100 V to 240 V, 50 Hz/60 Hz, 2 W

Output voltage: DC 4.2 V, 0.25 A

Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)

Storage temperature: -20 ^ to +60 ^ (-4 ^ to +140 ^)

Dimensions: Approx. 55 mm × 24 mm × 83 mm (2 1/4 inches × 31/32 inches × 3 3/8 inches) (W/H/D)

Mass: Approx. 55 g (1.9 oz.)

Rechargeable battery pack NP-BN1

Used battery: Lithium-ion battery

Maximum voltage: DC 4.2 V

Nominal voltage: DC 3.6 V

Maximum charge voltage: DC 4.2 V

Maximum charge current: 0.9 A

Capacity:

typical: 2.3 Wh (630 mAh)

minimum: 2.2 Wh (600 mAh)

Design and specifications are subject to change without notice.

Trademarks

- The following marks are trademarks of Sony Corporation.

Cyber-shot, “Cyber-shot,” “Memory Stick PRO Duo,” “Memory Stick PRO-HG Duo,” “Memory Stick Duo”

- Windows is registered trademark of Microsoft Corporation in the United States and/or other countries.

• Macintosh is registered trademark of Apple Inc.

- SDHC logo is trademarks of SD-3C, LLC.

- In addition, system and product names used in this manual are, in general, trademarks or registered trademarks of their respective developers or manufacturers. However, the ^TM or ^® marks are not used in all cases in this manual.

Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website.

http://www.sony.net/

Printed on 70% or more recycled paper using VOC (Volatile Organic Compound)-free vegetable oil based ink.

Français

Aide-mémoire

Responsible : Sony Electronics Inc.

Adresse : 16530 Via Esprillo,

San Diego, CA 92127 É.-U.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Illustration of a desktop computer setup with CD, monitor, keyboard, and mouse (no text or symbols)

(CIPA: Camera & Imaging Products Association)

Dimensions : 96,0 mm × 54,0 mm × 19,9 mm (3 7/8 pouces × 2 1/4 pouces × 13/16 pouces) (L/H/P, parties saillantes non comprises)

Batterie rechargeable NP-BN1

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Illustration of a desktop computer setup with CD, monitor, keyboard, and mouse (no text or symbols)

(CIPA: Camera & Imaging Products Association)

Dimensioni: circa 55 mm × 24 mm × 83 mm (L/A/P)

Peso: circa 55 g

Cyber-shot, “Cyber-shot”, “Memory Stick PRO Duo”, “Memory Stick PRO-HG Duo”, “Memory Stick Duo”

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a desktop computer setup with CD, monitor, keyboard, and mouse (no text or symbols)

(CIPA: Camera & Imaging Products Association)

Cyber-shot, “Cyber-shot”, “Memory Stick PRO Duo”, “Memory Stick PRO-HG Duo”, “Memory Stick Duo”

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Illustration of a desktop computer setup with CD, monitor, keyboard, and mouse (no text or symbols)

Introduza o CD-ROM na unidade de CD-ROM.

Para utilizadores do Windows:

(CIPA: Camera & Imaging Products Association)

Terminal ◯ (USB)/A/V OUT:

Saída vídeo

Saída áudio (Mono)

Comunicação USB

Dimensões: 96,0 mm × 54,0 mm ×

19,9 mm (L/A/P, excluindo partes salientes)

Cyber-shot, “Cyber-shot”, “Memory Stick PRO Duo”, “Memory Stick PRO-HG Duo”, “Memory Stick Duo”

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Illustration of a desktop computer setup with CD, monitor, keyboard, and mouse (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Illustration of a desktop computer setup with CD, keyboard, mouse, and monitor (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or elimination (no text or numbers present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Illustration of a desktop computer setup with CD, keyboard, mouse, and monitor (no text or symbols)

(CIPA: Camera & Imaging Products Association)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Illustration of a desktop computer setup with CD, keyboard, mouse, and monitor (no text or symbols)

(CIPA: Camera & Imaging Products Association)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a desktop computer setup with CD, monitor, keyboard, and mouse (no text or symbols)

(CIPA: Camera & Imaging Products Association)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Illustration of a desktop computer setup with CD, keyboard, mouse, and monitor (no text or symbols)

(CIPA: Camera & Imaging Products Association)

Shooting Settings	Grid Line/Disp. Resolution/Digital Zoom/Red Eye Reduction
Main Settings	Beep/Language Setting/Function Guide/Display color/Power Save/Initialize/Video Out/USB Connect/LUN Setting
Memory Card Tool*	Format/Create REC. Folder/Change REC. Folder/Delete REC. Folder/Copy/File Number
Clock Settings	Area Setting/Date & Time Setting

Pribl. 12,4 Megapixelov

Pribl. 12,1 Megapixelov

Objektív: 4× priblíženie

f = 4,7 ~mm - 18,8 ~mm (26 mm -

Rozmery: 96,0 mm × 54,0 mm ×

19,9 mm

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Illustration of a desktop computer setup with CD, monitor, keyboard, and mouse (no text or symbols)

(CIPA: Camera & Imaging Products Association)

Cyber-shot, "Cyber-shot", "Memory Stick PRO Duo", "Memory Stick PRO-HG Duo", "Memory Stick Duo"

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Illustration of a desktop computer setup with CD, monitor, keyboard, and mouse (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Dette symbolet på batteriet eller på forpakningen betyr at batteriet ikke skal behandles som vanlig husholdningsavfall.

Illustration of a desktop computer setup with CD, monitor, keyboard, and mouse (no text or symbols)

(CIPA: Camera & Imaging Products Association)

(Innst.) → ♦T (Hovedinnstillinger) → [Language Setting].

Mål: 96,0 mm × 54,0 mm × 19,9 mm

(B/H/D, ekskludert fremspring)

Vekt: Ca. 119 g (inkludert NP-BN1-

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Illustration of a desktop computer setup with CD, monitor, keyboard, and mouse (no text or symbols)

(CIPA: Camera & Imaging Products Association)

(DCF Ver. 2.0, Exif Ver. 2.3, MPF

Baseline), DPOF-kompatibel

Film: AVI (Motion JPEG)

Optagemedie: Intern hukommelse

(ca. 6 MB), "Memory Stick Duo", SD-kort

Mål: 96,0 mm × 54,0 mm × 19,9 mm

(B/H/D, uden fremspringende dele)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Ova oznaka na bateriji ili na ambalaži označava da se baterija ne smije zbrinjavati kao ostali kućni otpad.

Na nekim baterijama se uz ovaj simbol može nalaziti kemijski simbol. Kemijski simboli za živu (Hg) ili olovo (Pb) dodaju se ako baterija sadrži više od 0,0005% žive ili 0,004% olova.

Illustration of a desktop computer setup with CD, monitor, keyboard, and mouse (no text or symbols)

Umetnite CD-ROM u pogon CD-ROM-a.

Za korisnike sustava Windows:

① Kliknite [Korisnički priručnik] → [Instaliranje].
② Pokrenite »Korisnički priručnik« preko prečice na radnoj površini.

Za korisnike sustava Macintosh:

① Odaberite [Korisnički priručnik] i kopirajte mapu [hr] pohranjenu u mapi [Korisnički priručnik] na računalo.
② Kada se kopiranje dovrši, dva puta pritisnite »index.html« u mapi [hr].

(CIPA: Camera & Imaging Products Association)

• DISP (Postavke zaslonskog prikaza) se postavljene na [Uobičajeno].
  – Razmak između snimanja je 30 sekundi.
  – Zumiranje se naizmjence mijenja između krajeva W i T.
  – Bljeskalica se uključuje svaki drugi put.
  – Napajanje se uključuje i isključuje svaki deseti put.
• Potpuno napunjena baterija (isporučeno) koristi se na temperaturi od 25 °C.
• Upotreba Sony »Memory Stick PRO Duo« (prodaje se zasebno).

Umetanje baterije/memorijske kartice (prodaje se zasebno)

1 Otvorite poklopac.
2 Umetnite memorijsku karticu (prodaje se zasebno).

Diagram of a device with a camera and connector, showing internal components (no text or symbols)

Prekidač za odabir načina rada

: fotografija

film

W T

W: smanjenje

T: povećanje

Dimenzije: 96,0 mm × 54,0 mm × 19,9 mm (Š/V/D bez izbočina)

Težina: približno 119 g (uključujući NP-BN1 bateriju i »Memory Stick Duo«)

Mikrofon: monotički

Zvučnik: monotički

Exif Print: Kompatibilan

PRINT Image Matching III: Kompatibilan

BC-CSN/BC-CSNB punjač za baterije

Energetski zahtjevi: AC 100 V do 240 V, 50 Hz/60 Hz, 2 W

Izlazni napon: DC 4,2 V, 0,25 A

Radna temperatura: 0 °C do 40 °C

Temperatura za pohranu: -20^ do +60^

Dimenzije: približno 55 mm × 24 mm × 83 mm (Š/V/D)

Težina: Pribl. 55 g

Punjive baterije NP-BN1

Baterija koja se koristi: litij-ionska baterija

Maksimalni napon: DC 4,2 V

Nominalni napon: DC 3,6 V

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Illustration of a desktop computer setup with CD, monitor, keyboard, and mouse (no text or symbols)

(CIPA: Camera & Imaging Products Association)

Dimensiuni: 96,0 mm × 54,0 mm × 19,9 mm (L/Î/D, fără protuberanțe)

Accumulator reîncărcabil NP-BN1

Accumulator utilizat: Accumulator litiu-ion

Voltaj maxim: 4,2 V c.c.

Voltaj normal: 3,6 V c.c.

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Illustration of a desktop computer setup with CD, keyboard, mouse, and monitor (no text or symbols)

Boyutlar: 96,0 mm × 54,0 mm × 19,9 mm

1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan

Türkiye İrtibat Numaraları: Tel: [phone] Faks: 0216-632 70 30 e-mail: [e-mail]

TR

SONY YETKİLİ SERVİSLERİ

ADANA CENGİZ ELEKTRONİK (322) 2251587/ADIYAMAN STAR ELEKTRONİK (416) 2165383/ANKARA (Anittepe) BİLGİLİ ELEKTRONİK (312) 2308382, (Mamak) FILİZ ELEKTRONİK (312) 3689834, (Aydınlıkevler) DUZOLLAR ELEKTRONİK (312) 3169852/ANTALYA NECMİ ELK.SAN.TİC. LTD. ŞTİ. (242) 3451374, EKEN ELEKTRONİK (242) 3124242, OLCAY ELEKTRONİK (242) 7467603, (Alanya) ERTUNÇ ELEKTRONİK (242) 5136314/BURSA UFO ELKT. MÜH. TİC. LTD. ŞTİ. (224) 2341192/BOLU ARDA ELEKTRONİK (374) 2155748/ÇANAKKALE GÜVEN ELEKTRONİK (286) 2173618/DENİZLİ MAVİ ELK. LTD. ŞTİ. (258) 2421749/DIYARBAKIR TELEVIZYON HASTANESİ (412) 2236869/ESKİŞEHİR GÖRGÜN ELEKTRONİK (222) 2265626/ERZURUM ELEKTRONAL TİC. (442) 2130528/GİRESUN ÖZEN ELEKTRONİK (454) 2168161/GAZİANTEP İBRAHİM SERİN (342) 2153545/HATAY ZEKİ ELEKTRONİK (326) 2210597/İÇEL SEDAFON ELK.S.T.LTD. ŞTİ. (324) 3227655/İSTANBUL (Moda) SENTEZ ELK.S.T.LTD. ŞTİ. (216) 4145250, (Kadıköy) ENDER ELEK.LTD. (216) 3468024, (Suadiye) MERCOM ELK.LTD.ŞTİ. (216) 3612858, (Göztepe) İTEM LTD. ŞTİ. (216) 5664888, (Üsküdar) BURCU ELEKTRONİK (216) 5536929, (Maslak) MODVİ ELK.SAN.TİC.LTD. (212) 2862270, (Şişli) VEBE ELK.SN.TC.LT.ŞTİ. (212) 2336778, (1.Levent) AVE ELEKTRONİK (212) 2823469, (Maçka) MEKEL ELEKTRONİK (212) 2604677, (Fatih) CİHAN ELK. SAN. TİC. LTD. ŞTİ. (212) 5317001, (Bakırköy) VIP VİDEO ELK. TİC. LTD. ŞTİ. (212) 5705868, (Bakırköy) MEST ELK.SAN.TİC.LTD (212) 5438242, (Beşiktaş) P.M. ELEKTRONİK LTD.ŞTİ. (212) 2275247, (Florya) AVC ELK. LTD. ŞTİ. (212) 5740426/İZMİR BÜLENT EROL (232) 4221225, (Hatay) ASİL2 ELK.SR.T.LTD. ŞTİ. (232) 2288310, (Karşıyaka) TEKNİK TV.ELK.LTD. ŞTİ. (232) 3696175, (Güzelyalı) APEX ELEKTRONİK (232) 2464044/KARS ŞAHİN ELEKTRONİK (474) 2238732/KAYSERİ ÇAĞDAŞ ELEKTRONİK (352) 2222627, KÜRKÇÜOĞLU (352) 2210634/KOCAELİ TEKNİK TV. (262) 3223368/KONYA DENİZ ELEKTRONİK (332) 3501735, ÖZEL ELEKTRONİK (332) 3514425/MALATYA GÜRBÜZ ELEKTRONİK (422) 3250460/MARDİN (Nusaybin) ÇİFTSÜREN ELK. PAZ. LTD. (482) 4153592/MUĞLA (Marmaris) MTM SERVICE (252) 4126217/RiZE METE ELEKTRONİK (464) 2120078/SAKARYA İSMAİL SENOĞLU (264) 2714704/SAMSUN YALIM ELEKTRONİK (362) 2334883/SiIRT İSMET ELEKTRONİK (484) 2245724/SiVAS CAN ELEKTRONİK (346) 2230015/TRABZON LİDER ELEKTRONİK (462) 3232641/ZONGULDAK ÖZDEMİRLER TV. (372) 3167044

İTHALATÇI FİRMA

SONY®

SONY EURASIA PAZARLAMA AŞ.

ΠΡΟΕΙΔΟΠΟΙΗΣΗ

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Illustration of a desktop computer setup with CD, monitor, keyboard, and mouse (no text or symbols)
