Product type	Wristwatch
Brand	Candino
Model	C4520
Category	Analog quartz watch with chronograph
Movement	Battery-powered quartz
Display	Analog (hands for hours, minutes, seconds, date)
Functions	Display of hours, minutes, seconds, date, chronograph
Chronograph	1/10-second, minute and second counters; start/stop, reset, split times, totalizing
Chronograph hand adjustment	Zero position adjustment via pushers A and B
Time and date setting	By crown with 3 positions: I (normal position), II (quick date setting), III (time setting)
Power supply	Battery
Battery replacement	Performed by a professional watchmaker
Maintenance	Clean with a soft dry cloth; avoid shocks and contact with chemicals
Recycling	Selective collection of waste electrical and electronic equipment (WEEE)
Instructions available	In French, German, English, Spanish, Italian and other languages upon request

Frequently Asked Questions - C4520 Candino

How to set the time on my Candino C4520 watch?

Pull the crown to position III (the second hand stops). Turn the crown until the correct time is displayed. Push the crown back to position I. For second accuracy, pull the crown when the second hand is at 60 seconds.

How to quickly set the date?

Pull the crown to position II (the watch continues running). Turn the crown until the current date is displayed. Push back to position I. Caution: do not correct the date between 9 pm and midnight to avoid damaging the mechanism.

How to use the chronograph?

Press push button A to start timing. Press A again to stop. To reset, press push button B. The counters display 1/10 seconds, minutes and seconds.

How to take split times?

Press push button A to start. To display a split time, press push button B (timing continues in the background). To catch up to the elapsed time, press B again. To stop, press A, then press B to reset.

The chronograph hands are not at zero, how to adjust them?

Pull the crown to position III. Press push buttons A and B simultaneously for at least 2 seconds. Correction mode activates. Use push button A to adjust the second hand (step by step or continuously), then press B to move to the next hand (1/10s, minutes). Push the crown back to position I to finish.

Is my watch water-resistant?

Water resistance information is not provided in the instructions. Avoid prolonged contact with water. For an accurate answer, consult a watchmaker.

What type of battery does my watch use?

The watch uses a standard quartz battery. Replacement should be done by a professional to ensure water resistance and proper functioning.

How to maintain my Candino C4520 watch?

Clean it regularly with a soft dry cloth. Avoid shocks, extreme temperatures and chemicals. Have the water resistance and battery condition checked every 2-3 years by a watchmaker.

What to do if my watch stops?

Check if the battery is worn out. If replacing the battery does not solve the problem, take the watch to an authorized Candino watchmaker.

Can I recycle my watch at the end of its life?

Yes, quartz watches are subject to WEEE regulations. Dispose of it at a selective collection point (store, recycling center) to allow recycling of components.

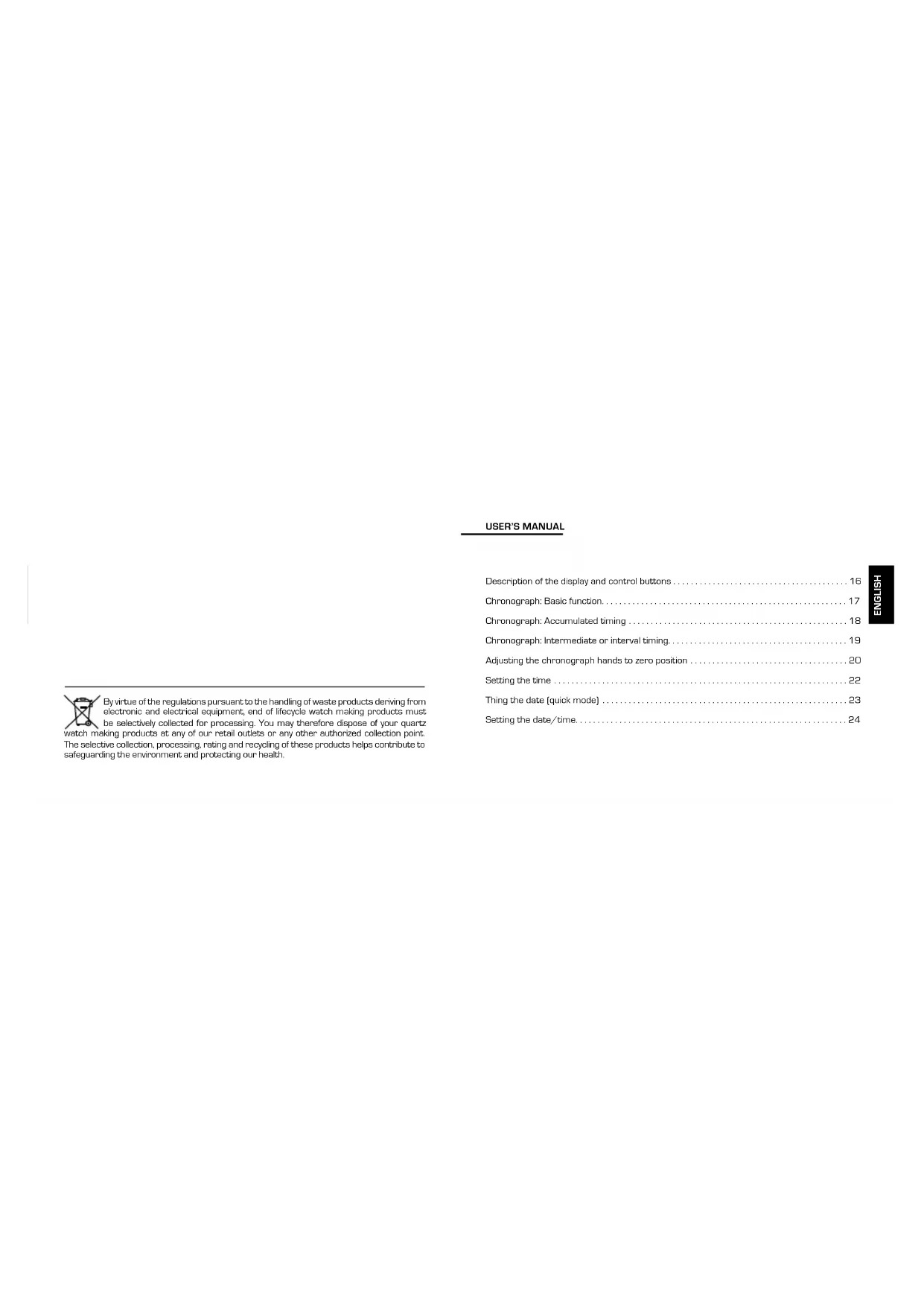

USER MANUAL C4520 Candino

Description of the display and control buttons 16
Chronograph:Basic function. 17
Chronograph: Accumulated timing 18
Chronograph: Intermediate or interval timing. 19
Adjusting the chronograph hands to zero position 20
Setting the time 22
Thing the date [quick mode] 23
Setting the date/time. 24

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must

watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

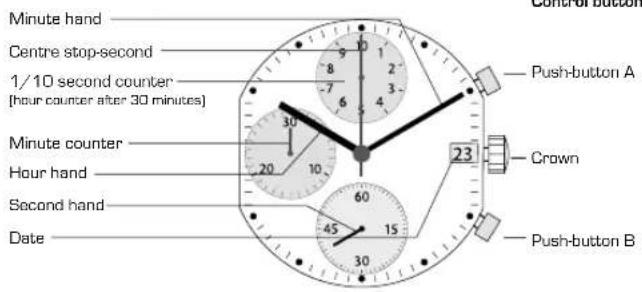

Display elements

16

CHRONOGRAPH: BASIC FUNCTION

[START/STOP/RESET]

Example:
Start: Press push button A.
Stop: To stop the timing, press pushbutton A once more and read the 3 chronograph counters: 4 min/38 sec/7/10 sec

Zero positioning:

Press push-button B

[The 3 chronograph hands will be reset to their zero positions].

17

ADJUSTING THE CHRONOGRAPH

ANDS TO ZERO POSITION

1/10 second counter

Center stop-second

Minute counter

2021

Example:
One or several chronograph hands are not in their correct zero positions and have to be adjusted [e.g. following a battery change].
Pull out the crown to position III [all 3 chronograph hands are in their correct or incorrect zero position].
Keep push Buttons A and B depressed simultaneously during 2 segundas como minimo [the centre stop-second rotates by 360^ corrective mode is activated).

Adjusting the centre stop second.
Single step A 1 x short
Continuous A long
Adjusting the next hand B
Adjusting the 1/10 second counter hand (position 6h)
Single step 一 ~ A ~ 1xshort Continuous 一 ~ A ~ long
Adjusting the next hand B
Adjusting the minute counter (position 9h) Single step A 1 x short
Continuous A long

• Returning the crown to position I Termination of the chronograph hands adjustment [can be carried out at any time].

SETTING THE TIME TING THE DATE

Second hand

2223

Pull out the crown to position III (the watch stops).
Turn the crown until you reach the correct time 8:45.
Push the crown back into position!

Please note:

* In order to set the time to the exact second, must be pulled out when the second hand is in position 60] []. Once the hour and minute hands have been set, must be pushed back into position I at the exact second.

[QUICK MODE]

Pull out the crown to position II [the watch continues to run].
um the crown backwards until the correct date I appears.
Push the crown back into position I.

Please note:

The date can be changed during the date changing phase between 08:30 PM and 12:00 PM; please note that the date must be set to the date of the following day as in this case the automatic date changing does not occur at midnight.

SETTING THE DATE/TIME

2425

Example:

-Date/time on the watch: [17]/ 1:25 AM
- Present data / time: [4] / 8:30 PM

Pull out the crown to position II (the watch continues to run).

Turn the crown until yesterday's date appears (3).

*Pull out the crown to position III [the watch stops].
Turn the crown until the correct date
**Continue to turn the crown until the correct time 8:30 PM appears.
Push the crown back into position L.

Please note:

To set your watch to the exact second, please refer to the chapter entitled "setting the time".
** Please observe the AM/PM clock rhythm
