10332 - Coffee machine KORONA - Free user manual and instructions

Product type	Drip coffee maker
Brand	KORONA
Model	10332
Maximum capacity	7 cups (approx. 1 liter)
Power supply	220-240 V ~ 50/60 Hz
Display	LCD screen
Functions	Delayed programming, automatic shut-off, anti-drip stop
Carafe	Thermal carafe (thermos) with brew-through lid
Filter type	Standard 1x4 paper filter
Housing material	Plastic
Warranty	2 years
Maintenance	Regular descaling recommended
Safety	Automatic shut-off at end of cycle, hot surface indicated, do not immerse
Spare parts	Available from customer service (KORONA Service)
Reparability	Have it repaired by a certified professional

Frequently Asked Questions - 10332 KORONA

How to set the time on the machine?

Press the Prog button to make CLOCK blink. Use the Hour and Min buttons to set the time. After 10 seconds, the setting is confirmed.

How to program a delayed brew?

Fill the water tank and filter, then press Prog twice. Set the desired time with Hour and Min. Press Prog again to confirm. The green indicator lights up and the machine will start at the programmed time.

Why is the coffee not hot enough?

Make sure the thermal carafe is preheated with hot water before use. Brew at least half of the carafe to maintain temperature. Also check that the carafe lid is tightly closed.

How to descale the machine?

Use a mild descaling agent suitable for coffee machines. Follow the manufacturer's instructions. After descaling, rinse the machine by running 2-3 cycles with fresh water. Never use metal objects to remove limescale.

Can I use a carafe other than the one supplied?

No, only use the thermal carafe supplied with the machine. It is designed for brew-through and has a specific mechanism.

What to do if the screen does not light up?

Check that the machine is properly plugged in and that the outlet works. If the screen remains off, contact customer service. Do not attempt to repair it yourself.

How to clean the thermal carafe?

The thermal carafe and its lid are not dishwasher safe. Clean them with warm soapy water, rinse, and dry thoroughly.

The machine does not stop after brewing, what to do?

Normally the machine shuts off automatically. If not, press the On/Off button to turn it off manually. If the problem persists, contact after-sales service.

Can I use ground coffee other than drip grind?

The machine is designed for drip ground coffee. Use a medium grind. Too fine a grind could clog the filter.

Where to find after-sales service?

Address: KORONA Service, Am Steinbach 9, 59872 Meschede-Enste, Germany. Phone: [phone]. Email: [e-mail]. Website: www.korona-electric.de.

USER MANUAL 10332 KORONA

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

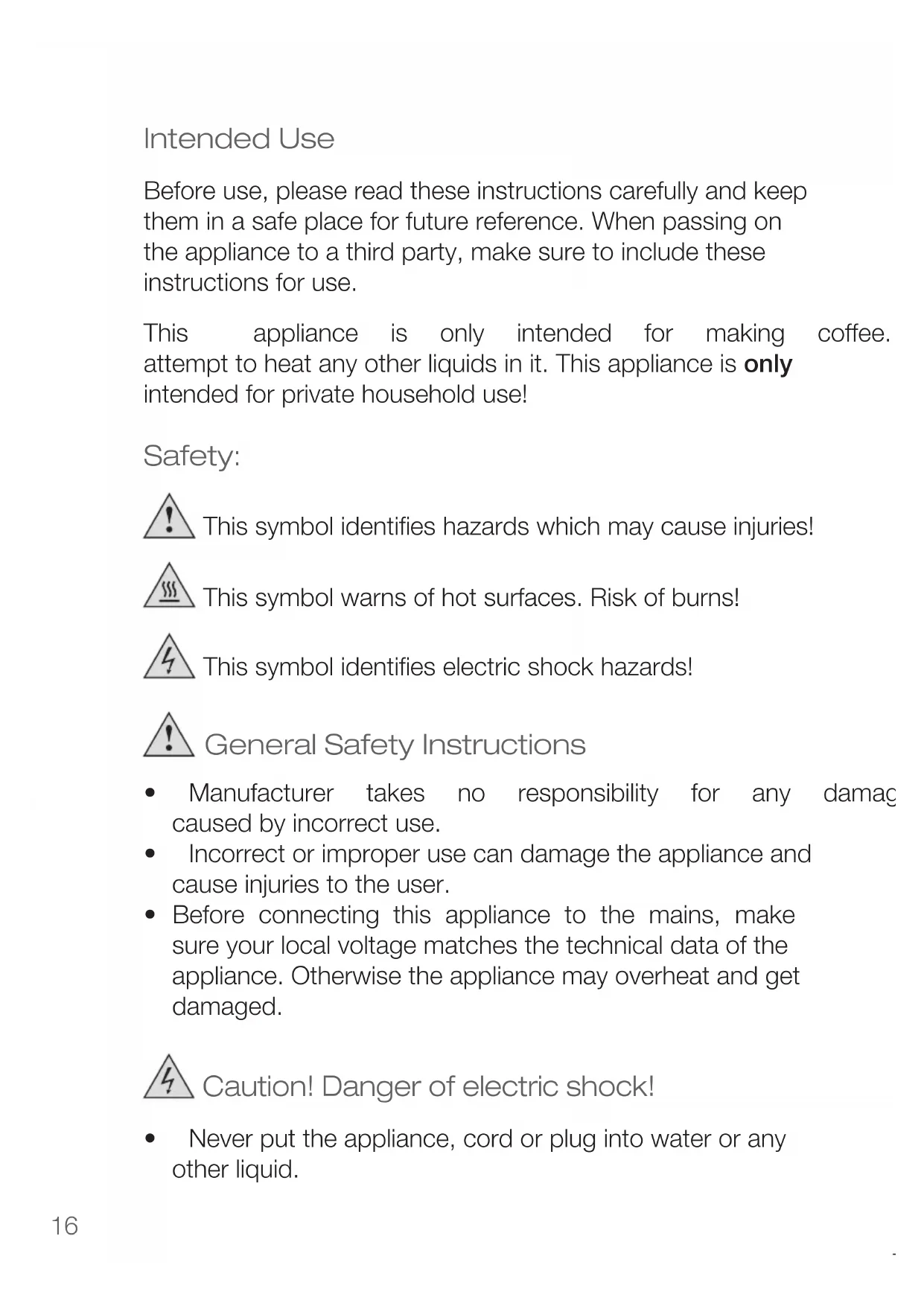

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for making coffee. attempt to heat any other liquids in it. This appliance is only intended for private household use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

! General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.

• Incorrect or improper use can damage the appliance and cause injuries to the user.

• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.

• Do not use the appliance near a sink or wash basin.

• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
  Always unplug your appliance when it is not in use, and before cleaning.
  Always pull the plug - not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Make sure the cord may not inadvertently be pulled, cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
  in case of malfunction.
• if the appliance was dropped or is damaged otherwise.

Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.

• Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

1 4

Warning! To avoid the possibility of injury/damage to the appliance, electric shock and risk of burns.

• Your coffee maker is only intended for making coffee.
• Place the appliance on an even and heat-resistant surface.
• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Only use the handle Danger of serious burns!
• Never open the filter cover or the filter holder respectively during operation, hot steam evaporates. Danger of serious burns!
• Never operate the appliance without water.
• Never exceed the Max. filling level to avoid any water from spilling. Danger of serious burns!
• Only use the thermos jug with this coffee maker. Do not use it on top of a stove or inside a microwave/oven.
• Only use the thermo jug with the lid on (brew serving coffee).
• Do not clean the thermo jug in the dishwasher, it is not dishwasher safe.

• Do not use the thermo jug if it shows any signs of damages.

• Do not move the appliance during operation.

• Do not place the appliance near any inflammable objects.
• Always unplug the appliance after use and let it completely cool down before cleaning.

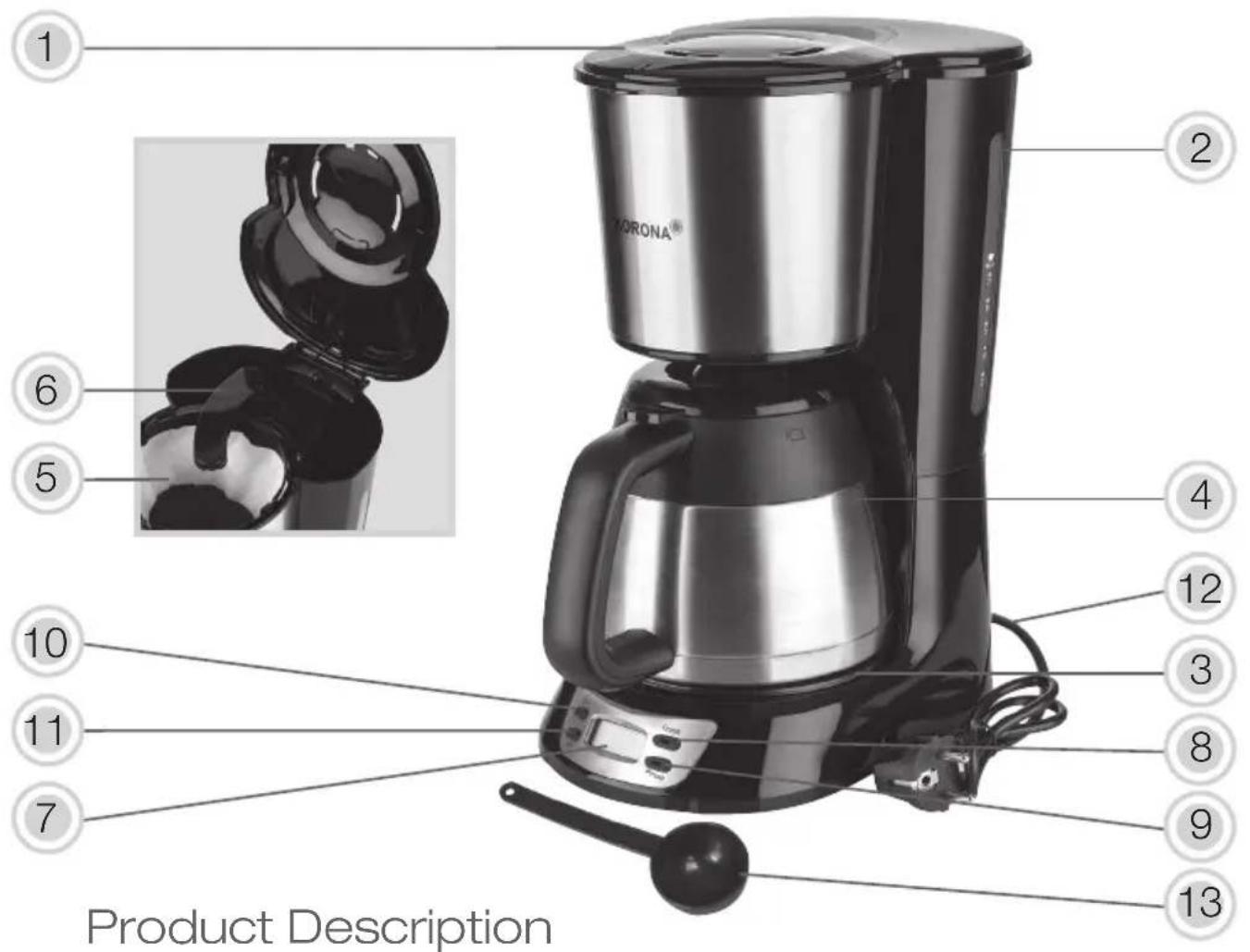

1. Appliance lid
2. Water tank with water level indicator
3. Mounting Plate
4. Thermo jug with brewing through lid
5. Filter holder
6. Water outlet
7. LCD Display
8. On/Off button with indicator light
9. Program button (Prog)
10. Hour button
11. Minute button (Min)
12. Power cord and plug
13. Measuring Spoon

Before First Use

• Remove all packaging material and check whether appliance is complete.
• Fully unwind the power cord.
• Clean the detachable parts as described under Cleaning and Care.
• Place the appliance on an even and heat resistant surface and connect it to a properly installed wall socket.
• Before making your first coffee, rinse the unit by filling the water tank (2) up to the Max. marking and operate it 2-3 times without coffee. After that your coffee maker is ready for operation.

Note: After each rinse cycle, the appliance has to be switched off for approx. 5 minutes, in order to cool down.

Warning: Plastic bags are a danger to toddlers and

babies, therefore keep them away to avoid suffocation.

Operation

• Place the appliance on an even and heat resistant surface and connect it to a properly installed wall socket.

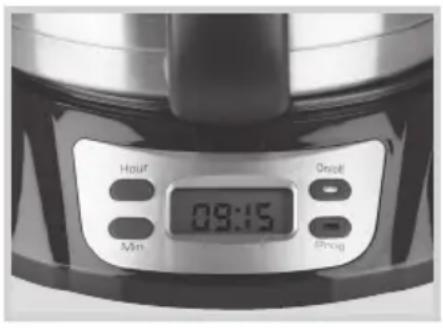

Setting the Time (CLOCK) :

The time can be set in 24 hour mode (00:00 - 24:00)

Once connected to the power supply the LCD display shows 12:00 (default setting). No indicator light is on and the appliance is off.

• Press the "Prog" (9) button and "CLOCK" starts flashing on the display.

• Press "Hour" (10) to adjust the hour setting.

• Press "Min" (11) to adjust the minute setting.

After approx. 10 seconds "CLOCK" stops flashing and the actual time setting is confirmed.

Note: Once disconnect from the mains, the clock setting is reset to default setting!

Brewing Coffee

! Note: Never open the appliance lid (1) during operation - hot water could evaporate - Danger of serious burns!

1. Open the appliance lid (1) and fill the water tank (2) with cold, fresh tap water. The markings on the water tank (2) indicate the required water level to brew the desired number of cups. Do not exceed the Max. filling level (7 cups).
2. Insert a standard paper filter 1 × 4 into the filter holder (5). Make sure to fold the edges of the paper filter and push it slightly down.
3. For each cup of coffee, use one leveled measuring spoon (13) of grounded coffee. For stronger or milder coffee, adjust the amount of coffee!
4. Close the appliance lid (1).

5. Place the thermo jug (4) with its lid on into the appliance. Make sure that the lid is properly screwed on. The arrow symbol on the thermo jug must be pointing towards the "closed/brewing symbol" on the lid.

6. Make sure that the thermo jug (4) is properly placed into the appliance.

7. Press the On/Off button (8) to switch on the appliance. The integrated indicator light indicates that the appliance is in operation. An integrated mechanism automatically opens the lid for the brewing through function.

Note: The brewing process can be interrupted at any time by pressing the On/Off button (8). Once the unit is switched on again the appliance will continue with the brewing process.

Note: If you wish to have a cup of coffee before the brewing cycle is completed, remove the thermo jug (4) from appliance. Due to the automatic drip stop, dripping will automatically cease. Put the thermo jug (4) back within 30 seconds, dripping process will automatically resume.

1. After the brewing cycle is completed (no more water is dripping through the filter), the thermo jug (4) can be removed. When serving coffee do not remove the lid in order to preserve the proper serving temperature.

Attention: The appliance will automatically shut-off

after the brewing cycle is completed. The indicator light will go OFF as well.

1. To switch off the appliance before the automatic shut-off, press the On/Off button (8). The red indicator light will go off and the appliance is no longer in operation.

Note: If you wish to prepare more than one pot of

coffee, the appliance has to be switched off for approx. 5 minutes, in order to cool down.

Always disconnect the appliance from the mains if you are not using it!

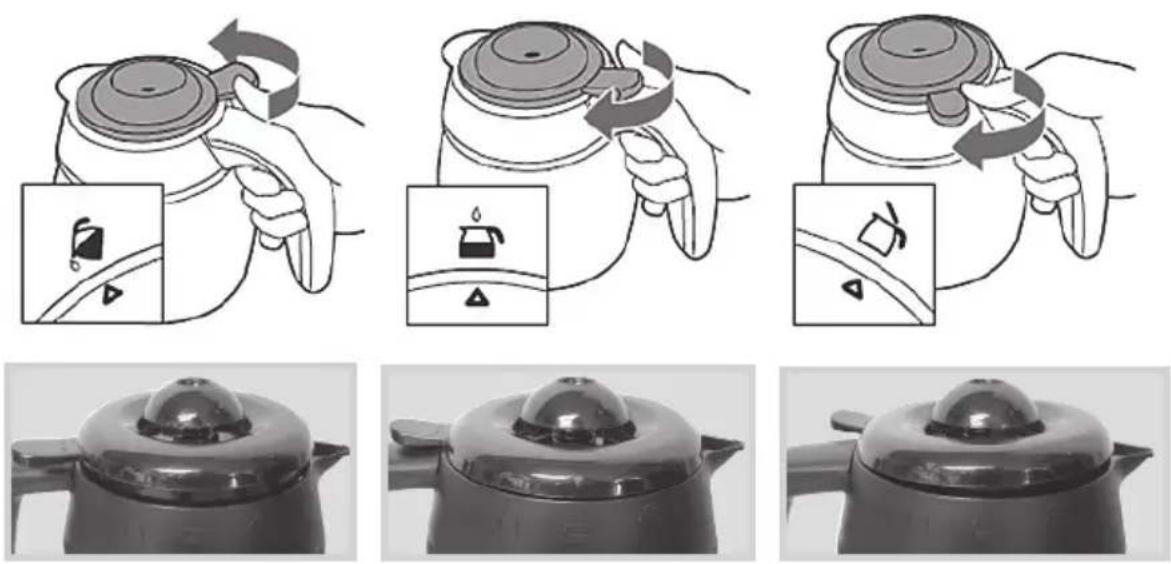

Thermo jug / brewing through lid

The thermo jug (4) accumulates heat energy. Therefore, the jug should preferably be filled to its max. capacity.

Tip: Before starting the brewing process, rinse your thermo jug (4) with hot tap water. To obtain tasteful coffee, brew at least half a jug otherwise the temperature will not be held as efficiently.

The brewing through lid does not close hermetically. Therefore, always hold the thermo jug (4) upright when filled with coffee.

When serving coffee, push the lid by its lever into clockwise direction until the arrow on the thermo jug points toward the "pour" symbol on the lid.

To fasten the lid, insert it into the thermo jug a clockwise until it the arrow symbol on the thermo jug points towards the "closed / brewing" symbol on the lid.

To remove the lid, turn it clockwise until the arrow symbol on the thermo jug points towards the "open lid" symbol on the lid.

Setting the Timer

If you wish to enjoy your coffee at a specific time, you need to set the timer to the desired time setting.

1. Follow the steps as described under Brewing Coffee
2. Press the "Prog" (9) button twice "TIMER" starts flashing and 12:00 (default setting) will appear on the display.
3. Press "Hour" (10) to adjust the hour setting.
4. Press "Min" (11) to adjust the minute setting. If no input is made within approx. 10 seconds, the "Timer" indicator will no longer be shown on the display
5. Press the "Prog" button (9) again to confirm the setting. The green indicator light of the "Prog" button turns on.

“CLOCK” and “Timer” time setting will alternately be displayed on the LCD display until the desired time has been reached.
6. Once the desired time has been reached, the green indicator light of the "Prog" button (9) turns off, the appliance switches on automatically and the brewing cycle starts. This is indicated by the red indicator light of the on/off button.

If you wish to cancel the preset time, simply press the "Prog" button (9) and the green indicator light goes off.

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down.

Never immerse the appliance in water. Danger! Electr Shock!

Before cleaning always remove the paper filter resp. the permanent filter!

Clean the body of the appliance with a moistened soft cloth.

Do not use any aggressive cleaning agents and/or c hard objects to clean the appliance.

The thermo jug (4) and lid are not dishwasher safe, rins them under some tap water and dry it afterwards.

All detachable parts can be cleaned in warm water using some dishwashing detergent, rinse them afterwards and dry them thoroughly.

DESCALING

Depending on the water quality and usage, calcification can occur. Therefore, to keep your coffee maker operating efficiently, you should descale it on a regular basis.

Never use any sharp, pointed or metal objects to remove limescale built up in the appliance.

To remove limescale, use a common gentle descaler, which is suitable for your appliance. Follow the manufacturer's instructions.

After descending, always rinse your appliance as described under Before First Use.

Note: Descaler mixtures should not be poured down enamel coated sinks.

Storage

Disconnect the appliance from the mains and let it completely cool down.

Keep the appliance away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special

collection points for disposal or your local dealer.

Your Coffee maker 10332 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V ~ 50 / 60 Hz

Rated Power: 800 W

Protection Class: I

Technical data subject to change!

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  for damages due to wear and tear (batteries, etc.)
• for damages known by customer at time of purchase
  for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
