Product type	Drip coffee maker
Brand	Korona
Model	12304
Capacity	5 cups (approx. 0.6 L)
Coffee type	Ground coffee (paper or permanent filter)
Filter included	Reusable permanent filter
Measuring spoon included	Yes
Automatic shut-off	Yes, after 40 minutes
Keep warm function	Yes (warming plate)
Anti-drip system	Yes (automatic drip stop)
Water tank	Removable with level indicator
Carafe	Glass carafe with lid
Warming plate	Yes, automatic keep warm
Voltage	220-240 V ~ 50/60 Hz
Housing material	Plastic
Cleaning	Removable parts washable with warm water and mild detergent
Descaling	Recommended regularly with a mild descaling agent
Safety	Automatic shut-off, burn protection (hot surfaces)
Warranty	2 years
Customer service	Tel: [phone], Email: [e-mail]

Frequently Asked Questions - 12304 KORONA

How to prepare coffee with the Korona 12304 machine?

Open the lid, fill the water tank with cold water to the desired level (max 5 cups). Place a paper filter or the permanent filter in the filter holder. Add one measuring spoon of ground coffee per cup. Close the lid, place the carafe, then press the On/Off button. The automatic shut-off occurs after 40 minutes.

How to use the permanent filter?

Remove the paper filter if used. Insert the permanent filter into the filter holder. Add medium grind ground coffee. Then follow the normal preparation steps. After use, clean the permanent filter with warm water and a mild detergent.

What to do if the machine does not turn on?

Check that the machine is plugged into a working power outlet (220-240 V). Make sure the lid is securely closed and the carafe is properly placed. If the problem persists, contact customer service at [phone].

How to clean the Korona 12304 coffee maker?

Unplug the machine and let it cool down. Clean the exterior with a damp cloth. The removable parts (carafe, permanent filter, filter holder, spoon) can be washed with warm water and a mild detergent. Never immerse the appliance body in water.

How to descale the machine?

Use a mild descaling agent suitable for coffee makers. Follow the manufacturer's instructions. After descaling, rinse the machine by running 2 to 3 cycles of clear water. Do not pour the descaling agent into an enamel sink.

Is the carafe made of glass?

Yes, the supplied carafe is made of glass with a lid. It is designed to withstand heat. Do not use it if damaged.

What is the power of the machine?

The power is not specified in the manual, but a drip coffee maker of this size typically consumes between 600 and 1000 W. For precise information, refer to the rating plate.

Is there an automatic shut-off?

Yes, the machine turns off automatically after 40 minutes of operation. The indicator light also turns off.

Can I use very finely ground coffee?

It is recommended to use a medium grind for the permanent filter. Too fine a grind can clog the pores of the permanent filter and slow down brewing.

How to get a cup of coffee before the end of the cycle?

Remove the carafe from the warming plate: the anti-drip system automatically stops the flow. Serve your cup, then replace the carafe within 30 seconds so the cycle resumes.

USER MANUAL 12304 KORONA

Exterior view of a Korona coffee maker with clear glass and black lid (no text or symbols visible on the device itself)

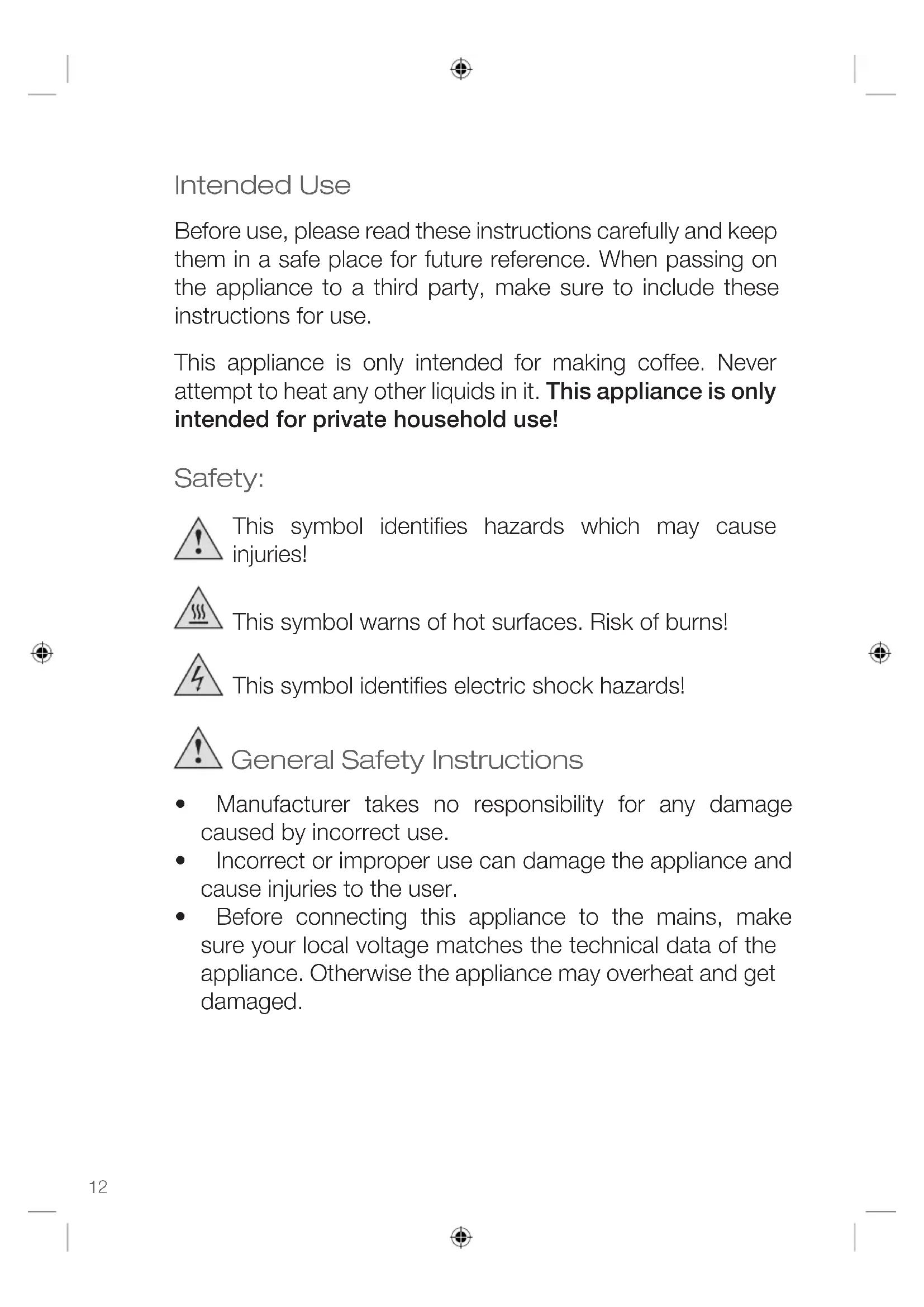

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for making coffee. Never attempt to heat any other liquids in it. This appliance is only intended for private household use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
- Incorrect or improper use can damage the appliance and cause injuries to the user.
- Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or another liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 y and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 supervised.

- Keep the appliance and its cord out of reach of childr less than 8 years.

• Always unplug your appliance when it is not in use, and before cleaning.

• Always pull the plug - not the cord.

- Keep the appliance and the cord well away from any surfaces to avoid any damage to the appliance.

- Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.

- Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
  • in case of malfunction.
• if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.
  • Only use accessories evaluated for use with this applia
• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
• The appliance is not intended to be operated by means an external timer or separate remote-control system.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock and risk of burns.

• Your coffee maker is only intended for making coffee.
• Place the appliance on an even and heat-resistant sur
• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Only use the handle. Danger of serious burns!
• Never open the filter cover or the filter holder respectively during operation, hot steam evaporates. Danger of serious burns!
  • Never operate the appliance without water.

• Never exceed the Max. filling level to avoid any boiling water from spilling. Danger of serious burns!
  • Do not leave the empty carafe on the hotplate.
  • Do not use the carafe if it shows any damages.

• Do not move the appliance during operation.

• Do not place the appliance near any inflammable objects.
• Always unplug the appliance after use and let it completely cool down before cleaning.

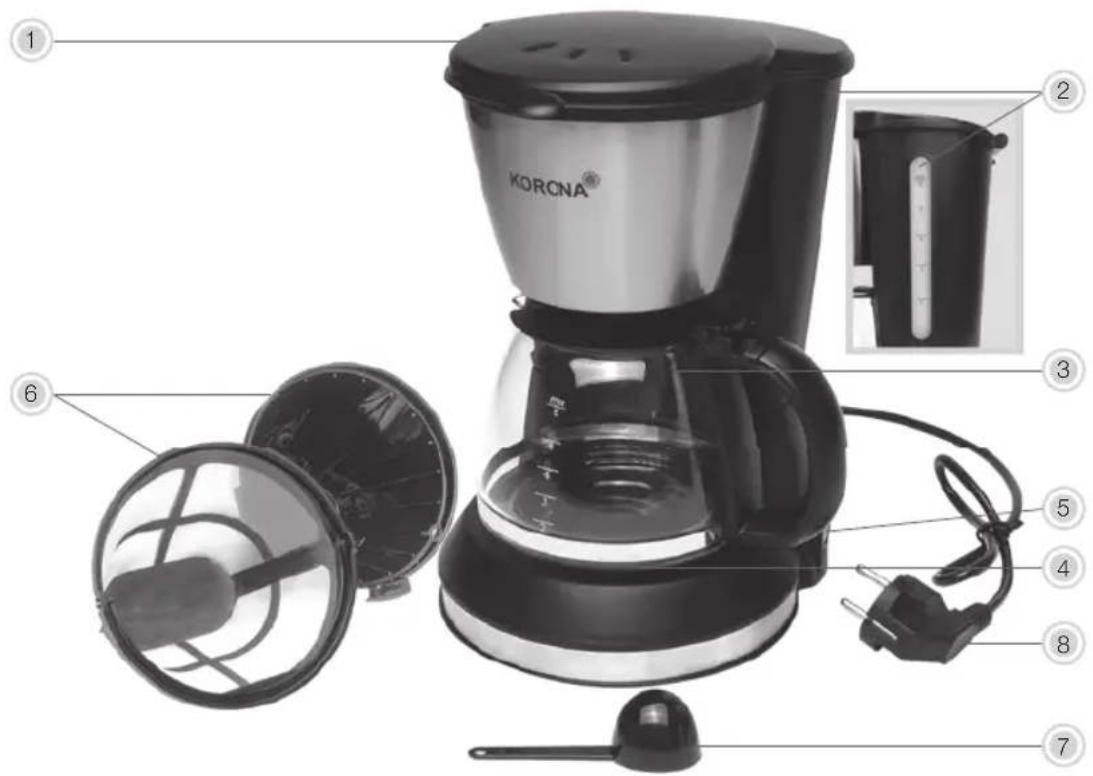

Product Description

KORONA® ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

1. Appliance lid
2. Water tank with water level indicator
3. Carafe
4. Hot Plate
5. On/Off button with indicator light
6. Filter holder + permanent filter
7. Measuring spoon
8. Power cord and plug

Before First Use

- Remove all packaging material and check whether the appliance is complete.

Do not use the appliance if it shows any signs of damage and contact your dealer or customer service.

• Fully unwind the power cord.
- Clean the detachable parts as described under "Cleaning and Care".
- Place the appliance on an even and heat resistant surface and connect it to a properly installed wall socket.
- Before making your first coffee, rinse the unit by filling the water tank up to the Max. and operate times without coffee. After that your coffee maker is ready for operation.

Note: After each rinse cycle, the appliance has to be switched off for approx. 5 minutes, in order

to cool down.

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid

suffocation.

Operation

Note: Never open the appliance lid during operation – hot water could evaporate – Danger of

serious burns!

Brewing Coffee

Using a Paper Filter

1. Place the appliance on an even and heat resistant surface and connect it to a properly installed wall socket.
2. Open the appliance lid (1) and fill the water tank (2) with cold, fresh tap water. The markings on the tank (2) indicate the required water level to brew the desired number of cups. Do not exceed the Max. filling level (5 cups).
3. Insert a standard paper filter 1 x 2. Make sure to fold the edges of the paper filter and push it slightly down.

Note: When using a paper filter remove the permanent filter from the filter holder before inserting

the paper filter.

1. For each cup of coffee, use one leveled measuring spoon (7) of grounded coffee. For stronger or mil coffee, adjust the amount of coffee!
2. Close the appliance lid (1).
3. Place the carafe (3) into the appliance. Always make sure that the lid is attached.
4. Press the On/Off button (5) to switch on the appliance The integrated indicator light indicates that the appliance is in operation.

The brewing process can be interrupted at any time by pressing the On/Off button (5). Once the unit is switched on again the appliance will continue with the brewing process. If you wish to have a cup of coffee before the brewing cycle is completed, remove the carafe (3) from the appliance. Due to the auto drip stop, dripping will automatically cease. Put the carafe (3) back within 30 seconds, dripping process w automatically resume.

1. After the brewing cycle is completed (no more water is dripping through the filter), the carafe (3) removed. When serving coffee do not remove the lid in order to preserve the proper serving temperature
2. As long as the appliance is switched on, you can keep the coffee hot, by returning the carafe hotplate (4) after serving. The hotplate (4) will automatically cycle on and off to maintain the ideal serving temperature as long as the coffee maker is switched on.

Attention: The appliance will automatically shut-off within 40 minutes and the indicator light will go

OFF as well. Once the appliance has automatically shut-off, the keeping warm function is also deactiva

1. To switch off the appliance before the automatic shut-off, press the On/Off button (5).

Always disconnect the appliance from the mains if you are not using it!

Note: If you wish to prepare more than one pot of coffee, the appliance has to be switched off for approx. 5 minutes, in order to cool down.

Using the permanent filter

When using the permanent filter, do not insert a paper filter!

Instead of inserting a paper filter into the filter holder (6), insert the permanent filter (6) into the filter. Add your grounded coffee and follow steps 5 - 10.

Only use a medium fine coffee grind when using the permanent filter. Fine coffee grind will only block the pores of the permanent filter.

After use, remove the grounded coffee and clean the permanent filter (6) as described under "Cleaning and Care".

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Clean the body of the appliance with a moistened soft cloth.

Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

All detachable parts can be cleaned in warm water using some dishwashing detergent. Rinse them afterwards and dry them thoroughly.

Descaling

Depending on the water quality and usage, calcification can occur. Therefore, to keep your coffee maker operating efficiently, you should descale it on a regular basis.

Never use any sharp, pointed or metal objects to remove limescale built up in the appliance.

To remove limescale, use a common gentle descaler, which is suitable for your appliance. Follow the manufacturer's instructions.

After descaling, always rinse your appliance as described under "Before First Use".

Note: Descaler mixtures should not be poured down enamel coated sinks.

Storage

Disconnect the appliance from the mains and let it completely cool down.

Keep the appliance away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Coffee Maker 12304 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data

Voltage: 220 - 240 V \~50 / 60 Hz

Rated Power: 550 W

Protection Class: I

Protection: IXP0

Technical data subject to change!

CE

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to t instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a customer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.

Beoogd gebruik

Abstract geometric shape with curved and angular gray segments, no text or symbols present

Ref: 12304/2021.12
