USER MANUAL Cosmopolitan Mountain Buggy

for detailed instructions please visit:

mountainbuggy.com/instructions

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

IMPORTANT - A LIRE ATTENTIVEMENT ET À CONSERVER POUR RÉFÉRENCE ULTÉRIEURE.

WICHTIG - BITTE SORGFÄLTIG LESEN UND FÜR SPÄTERES NACHLESEN UNBEDINGT AUFBEWAHREN.

IMPORTANTE - LEER DETENIDAMENTE Y MANTENERLAS PARA FUTURAS CONSULTAS.

BELANGRIJK - LEES ZORGVULDIG EN BEWAR VOOR LATERE RAADPLEGING.

IMPORTANTE - LEGGERE ATTENTAMENTE E CONSERVARE PER FUTURO RIFERIMENTO.

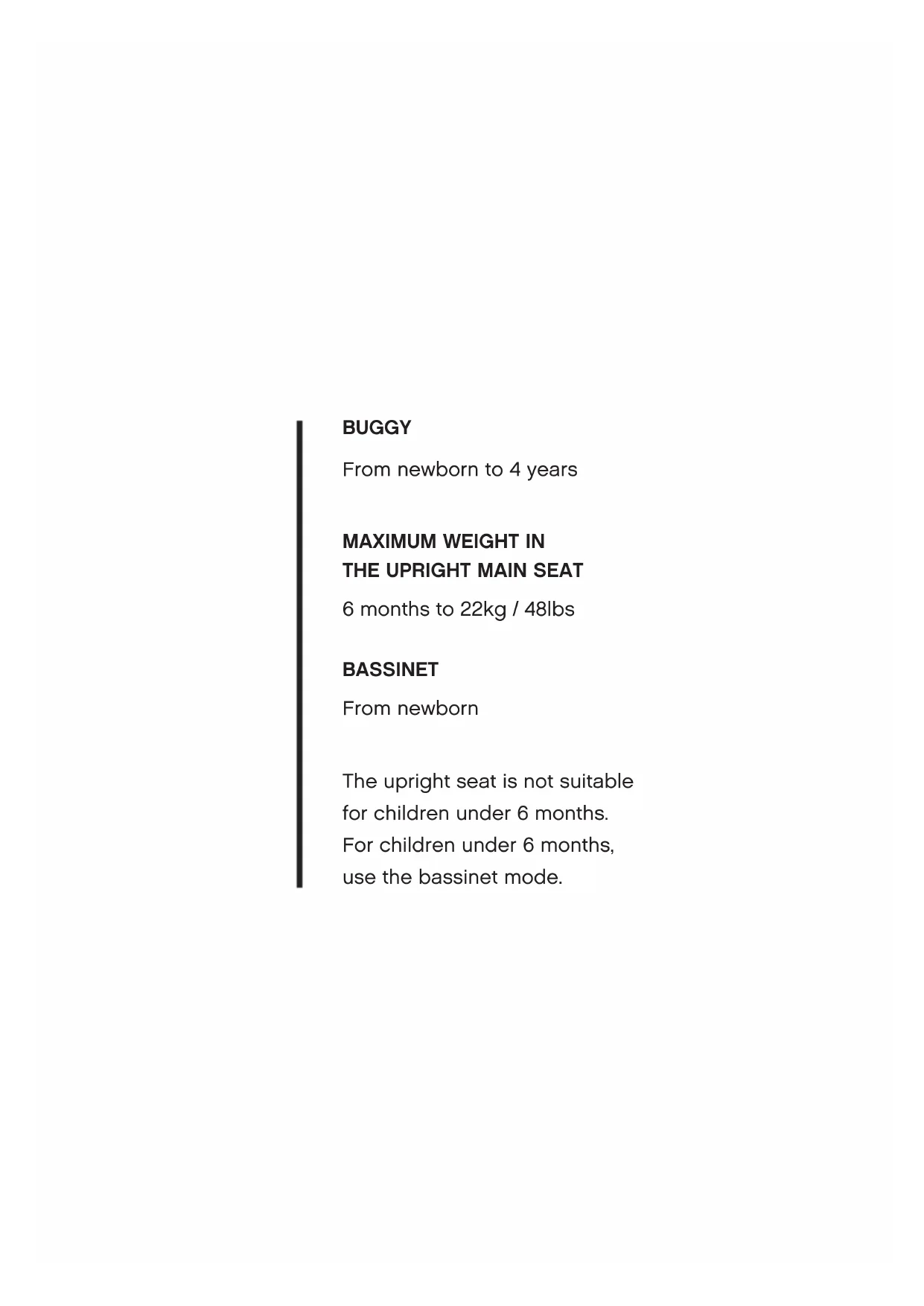

From newborn to 4 years

MAXIMUM WEIGHT IN

THE UPRIGHT MAIN SEAT

6 months to 22kg / 48lbs

BASSINET

From newborn

The upright seat is not suitable for children under 6 months.

For children under 6 months, use the bassinet mode.

important information

• Always load / unload your child on level ground.
• Ensure the brake is engaged during the loading and unloading of your child.
• Care should be taken if the stroller is used on stairs or escalators.

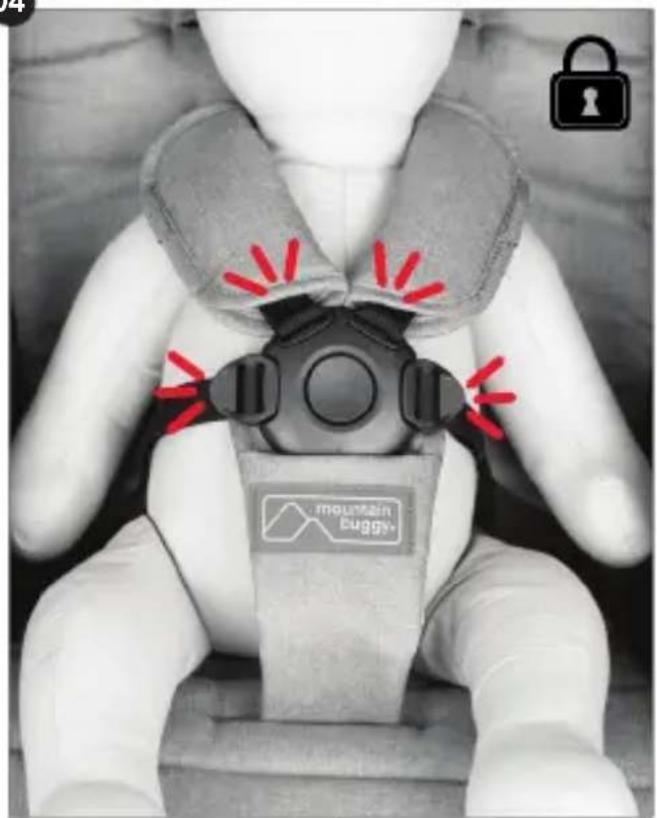

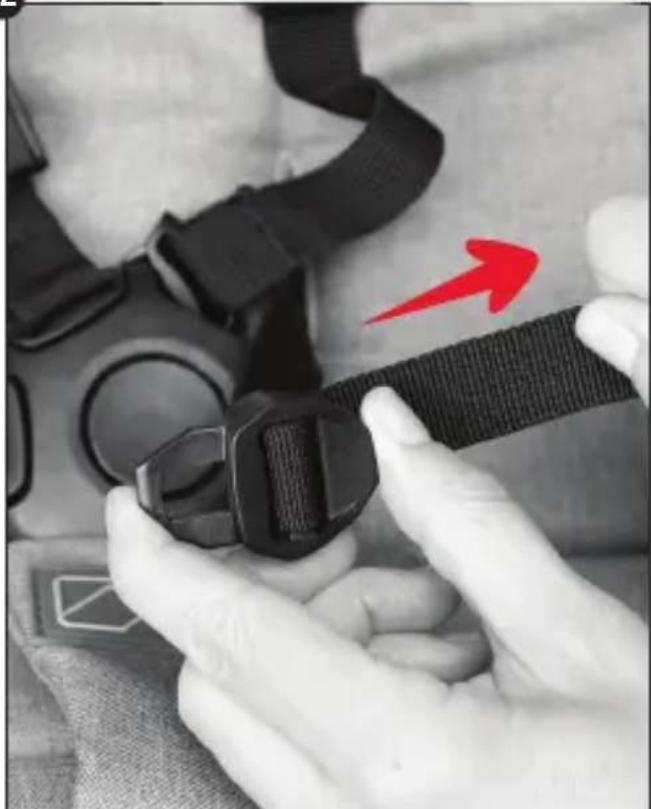

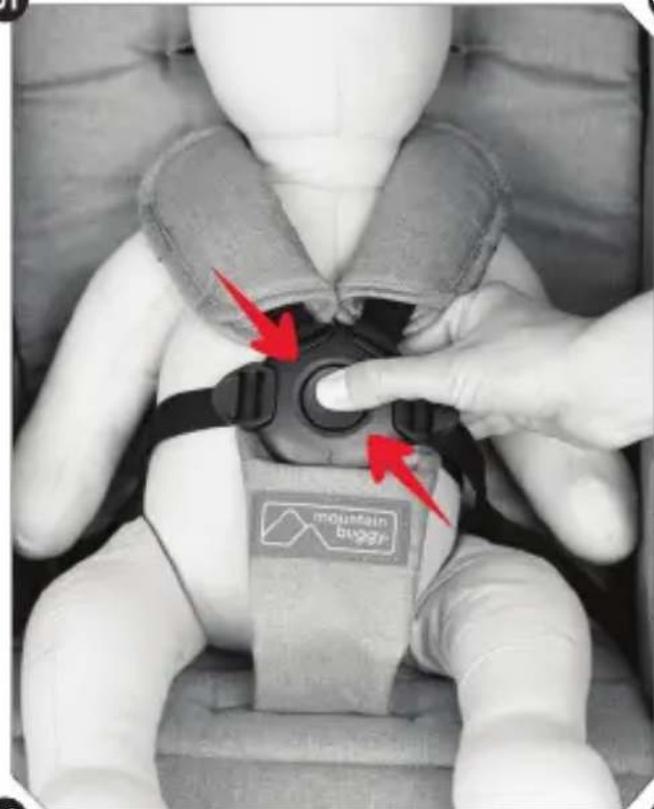

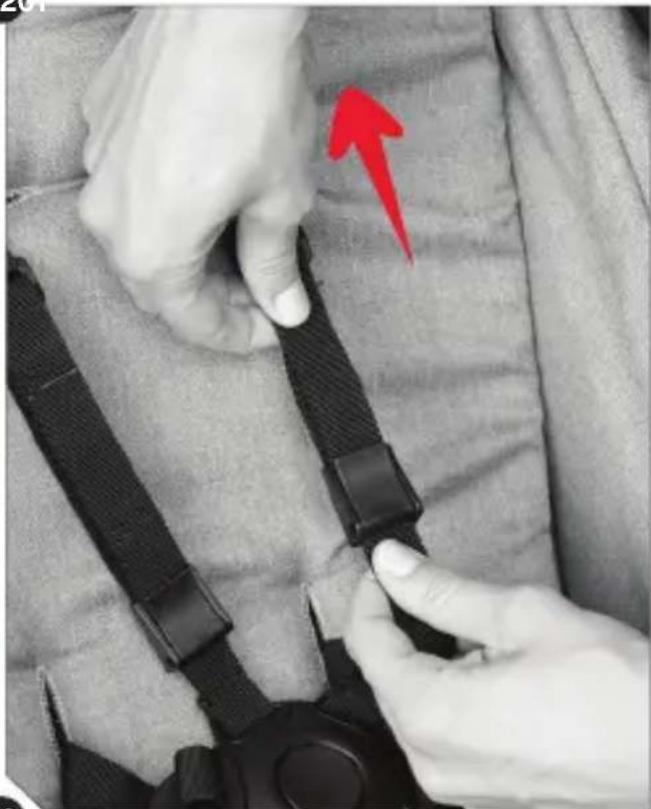

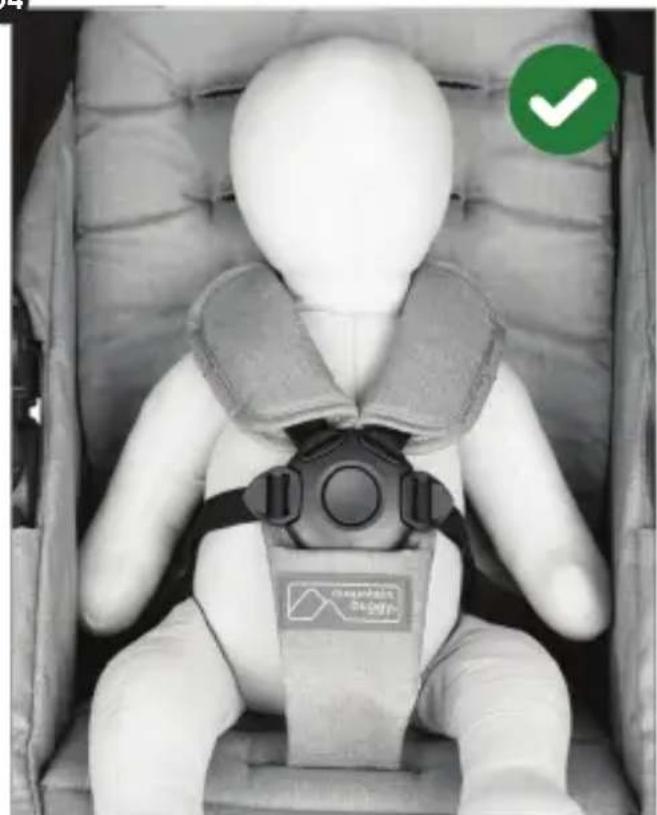

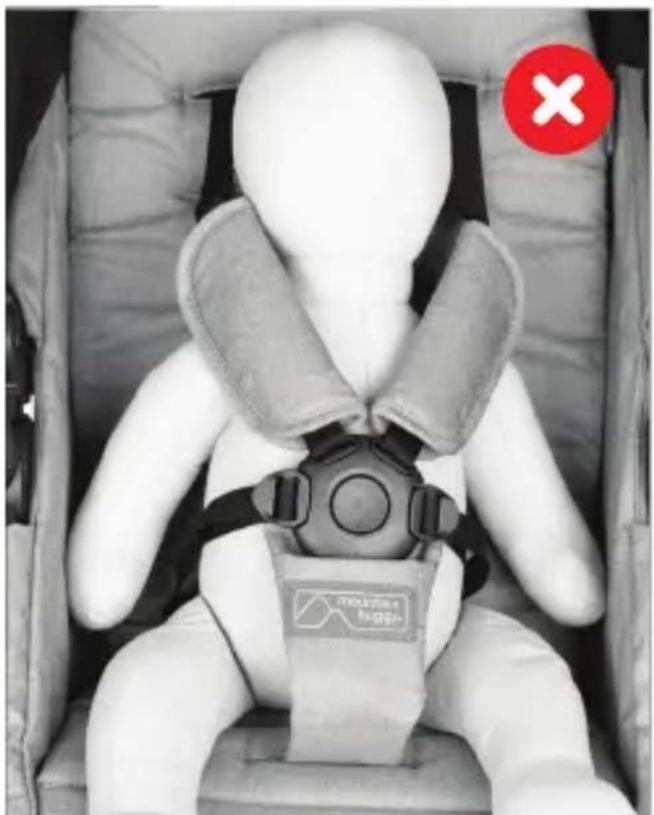

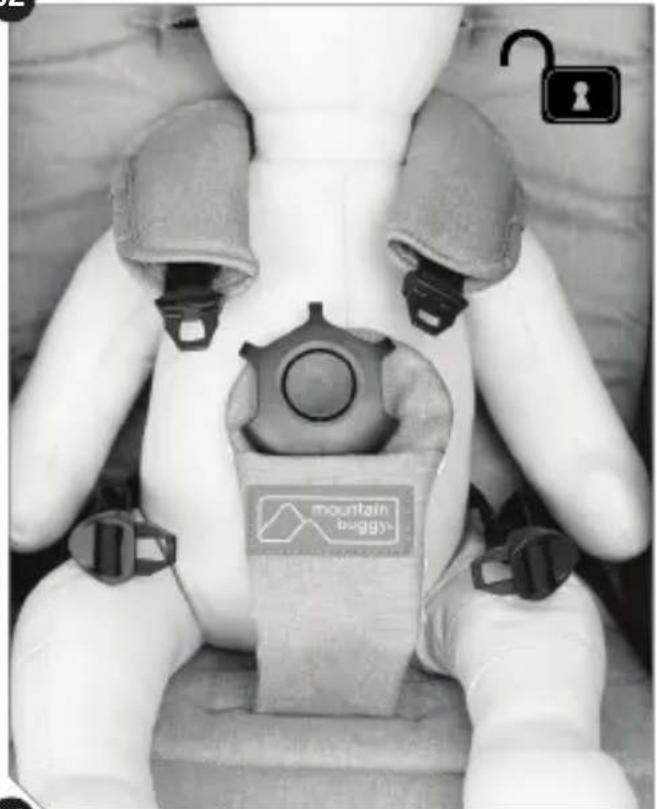

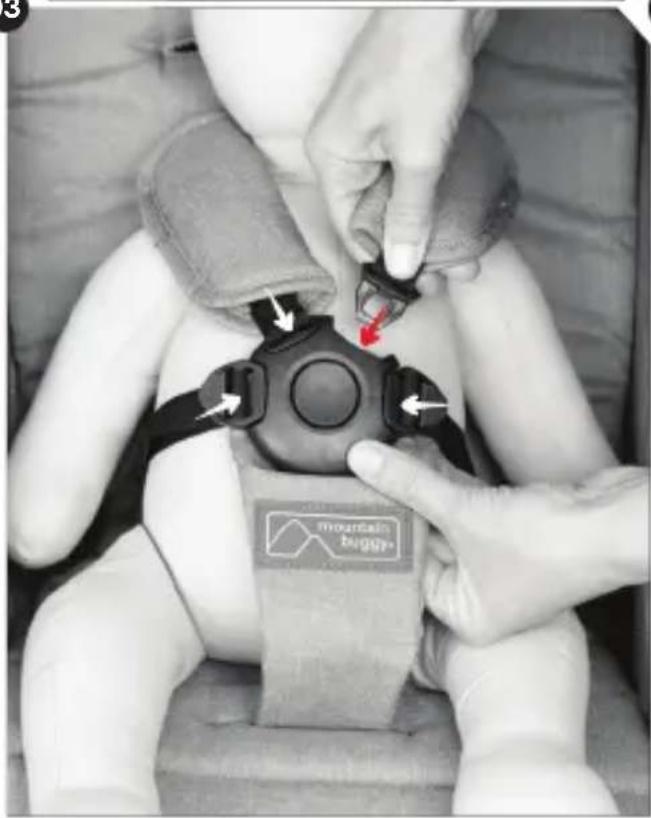

  Always use the safety strap.

• Excessive wear can reduce effectiveness and safety. Parts may need lubrication. Inspect essential components for:

• Fraying - especially webbing straps and safety harness.

• Wear - locks, snap fasteners, tyres, plastic and moving parts.
• Safety - locks must not be loose.

tyres

• Tyres and tubes are not under warranty.
• The cosmopolitan ^TM front tyres are immune from punctures and eliminate the need for tube replacements.
• With use, tyres can show signs of wear. This is normal.
• The cosmopolitan™ rear tyres are air-filled tyres. The valve is car-size.
  Manually inflate to 22psi.

• Releasing air gives a softer ride but lower pressure reduces tread life.

• New inner tubes and tyres are generally available from your dealer, cycle or specialist wheel shops. standard tyre kits can repair punctures.

• A flat tyre can result from grit holding the valve open; to check: inflate tyre, deflate rapidly, and re-inflate.
• Do not over inflate. Tyre pressure is affected by heat especially when inside parked cars.

warranty

All of our products have a one year warranty from date of purchase against defects in material and workmanship.*

Additionally, when you register your product online within 30 days of purchase, you are eligible for a 2 year warranty free of charge.

Once registered, you can further extend the warranty to 3 years by purchasing an extended warranty within 30 days of purchase.

Please register your product purchase

online now at mountainbuggy.com/register

*you may be entitled to other rights in some countries.

care information

If your product is damaged in any way, or you're not sure how to use it, please consult our web support team (mountainbuggy.com/support).

• Brush dirt off frame and wheels regularly.
• Clean with non-abrasive household cleaner and a soft cloth.
• Wash off sand and salt after visiting the beach.
  Always dry frame if wet.
• Fabrics can be sponge cleaned with warm water, using a mild natural soap. Do not use detergents or bleach.
• Store in a well ventilated space, away from direct sunlight (which can harm and fade fabric), and moisture.
• Take care to avoid damage to foam rubber. Foam rubber is not under warranty.
• Improper care will void any warranties. Do not use the cosmopolitan™ if deterioration is detected or suspected.

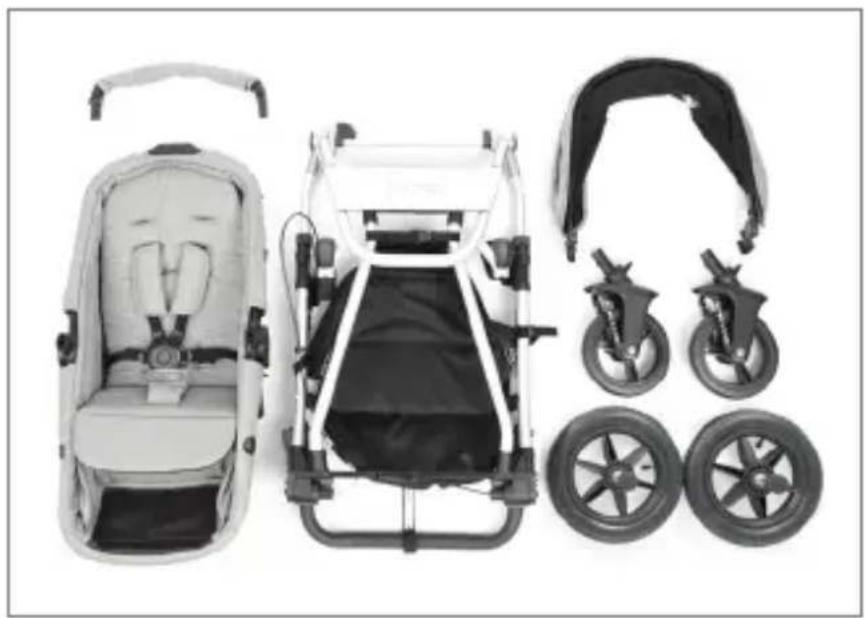

what's in the box

cosmopolitan

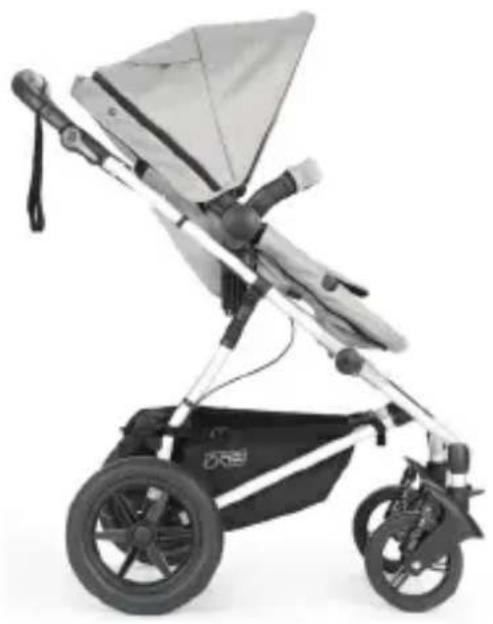

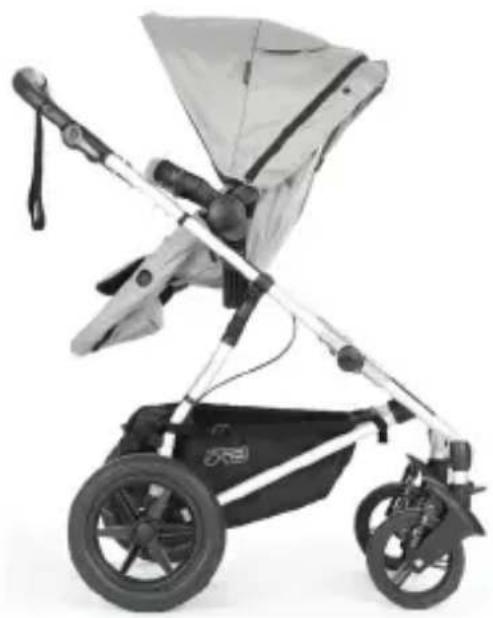

modes

forward facing

parent facing

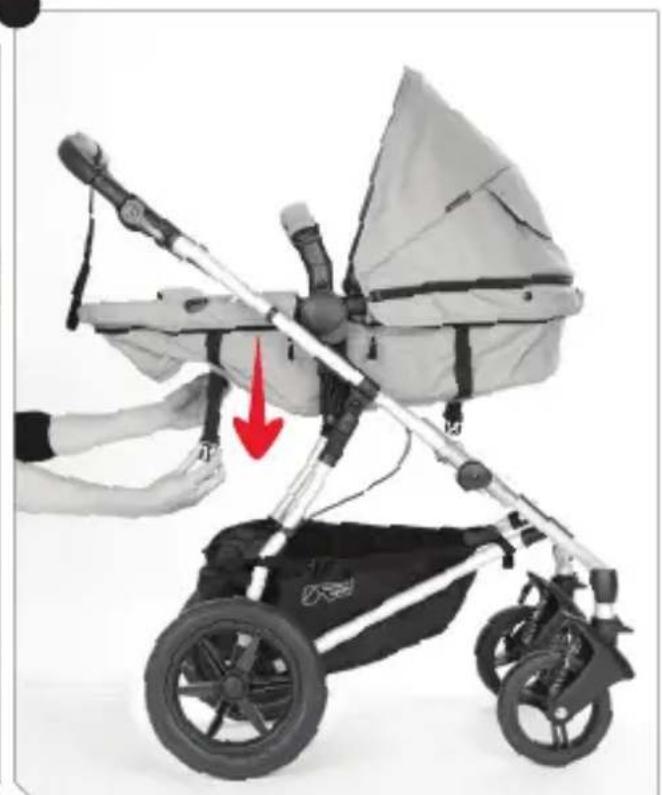

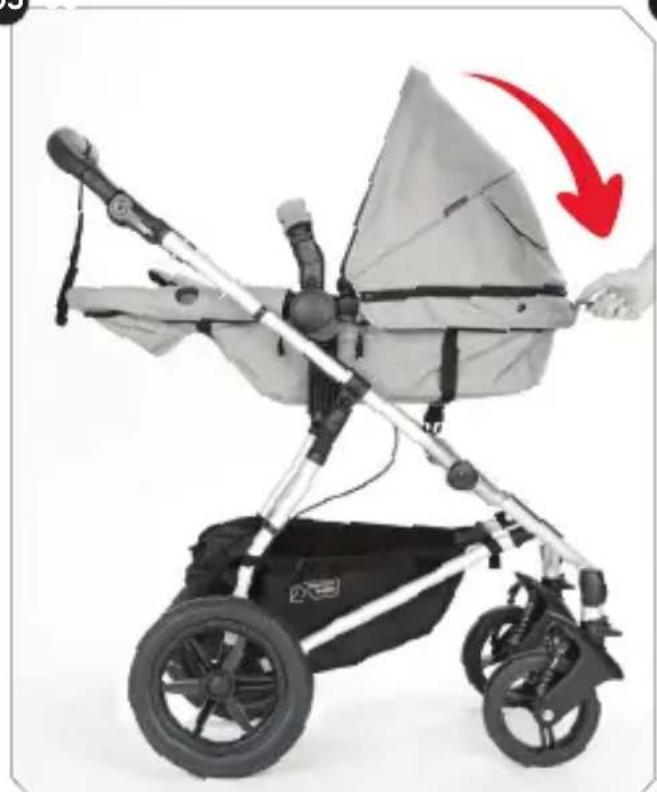

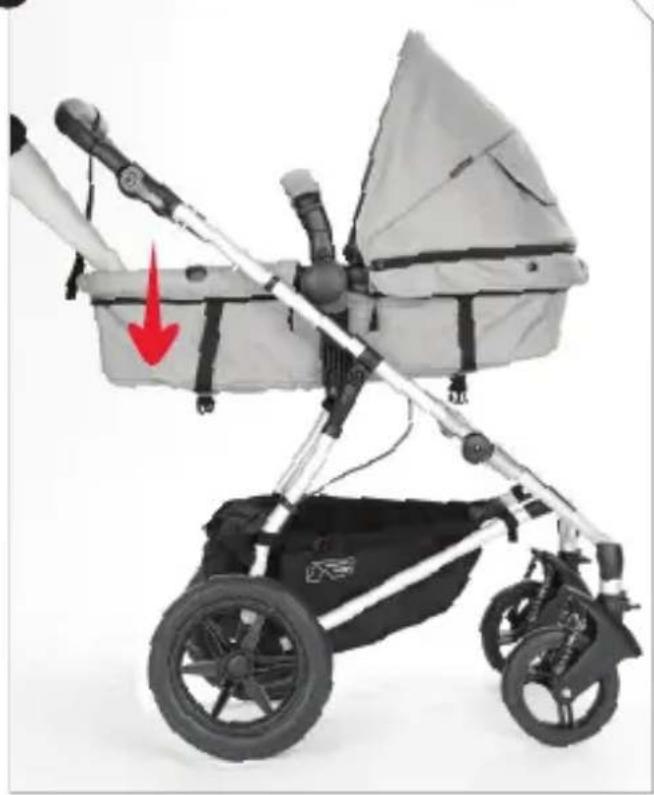

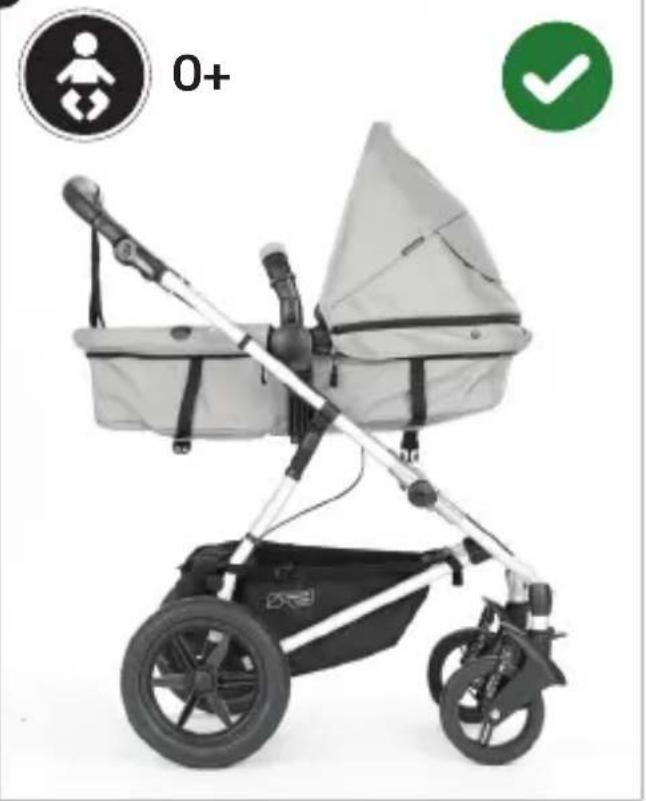

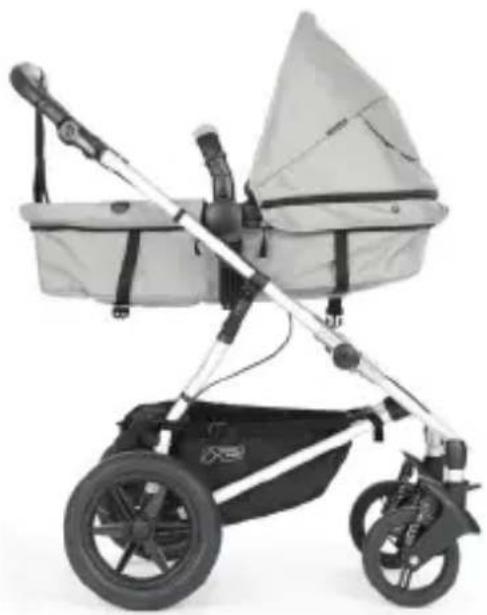

bassinet

accessories

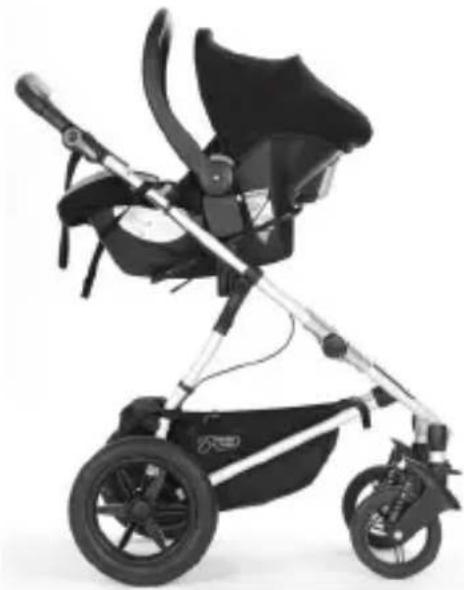

protect ^TM and cosmopolitanTM universal car seat adaptor

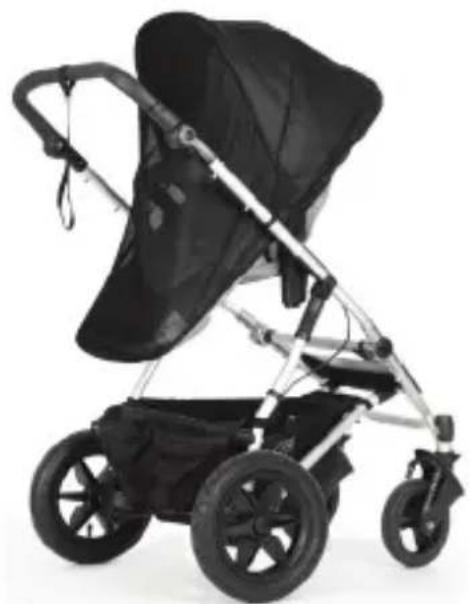

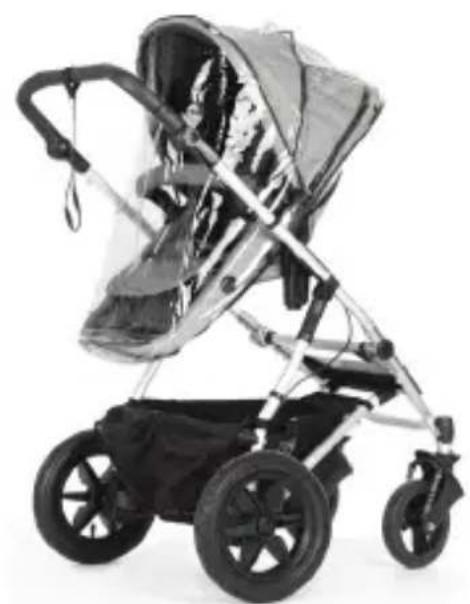

mesh cover storm cover

020

03
04

01
02

03

04

01

02

03

04

03

04

04

03
22kg max 48lbs max

04

020

01

02

01

02

03

04

05

080

WARNING

European safety standard states:

• This stroller is intended for children from newborn to 4 years. Use range main seat: 6 months to 22kg . Use range in the bassinet: newborn to 9kg . The bassinet is recommended for newborn babies. • The bassinet shall not be used once the child is able to sit up by itself, roll over and can push itself up on its hands and knees. Maximum weight of child in bassinet: 9kg . • The upright seat is not suitable for a child less than 6 months. • The stroller shall only be used for a maximum of 1 child. • Never leave the child unattended. • Always use the restraint system. • Accessories or replacement parts that are not approved by the manufacturer or distributor should not be used. • Only additional mattress recommended by the manufacturer shall be

used. • Any load attached to the handle and/or back of the backrest and/or the sides of the stroller will affect stability of the stroller. • Do not place more than 10kg in the parcel tray. • Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use. • Ensure that all the locking devices are engaged before use. • The parking device shall be engaged during the loading and unloading of children. • To avoid injury ensure that the child is kept away when unfolding and folding this product. • Do not let the child play with this product. • This product is not suitable for running or skating. • A car seat used on a stroller does not replace a cot or a bed. Should your child need to sleep, place it in a suitable pram body, cot or bed.

WARNING

American safety standard states:

• This stroller is intended for children from newborn to 4 years. Use range main seat: 6 months to 48lbs. Use range in the bassinet: newborn to 20lbs. The bassinet should be used for 1 child with a maximum weight of 20lbs.

• The upright seat is not suitable for a child less than 6 months. - Never leave your child unattended in the stroller. - Avoid serious injury from falling or sliding out. Always use safety harness. - To prevent the stroller from becoming unstable, do not place parcels or accessory items anywhere except in the storage basket and pockets provided. - Do not place more than 22lbs in the parcel tray. - Excessive weight may cause a hazardous unstable condition to exist.

WARNING

Australia / New Zealand safety standard states:

To avoid injury or death:

• This stroller is intended for children up to a maximum weight of 22kg . • The upright seat is not suitable for a child less than 6 months. • The bassinet is recommended for newborn babies. • Do not place more than 10kg in the parcel tray. • Always apply the brakes whenever the stroller is stationary. • Do not leave children unattended. • Secure the child in the harness at all times. • Do not carry extra children or bags on this stroller. • Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured. • When not in use, never leave the harness buckled, as harness can form loops which may pose a strangulation hazard. • Do not use this seat with any other models of stroller. • It is unsafe to use accessories other than those approved by the manufacturer. • Care should be taken if the stroller is

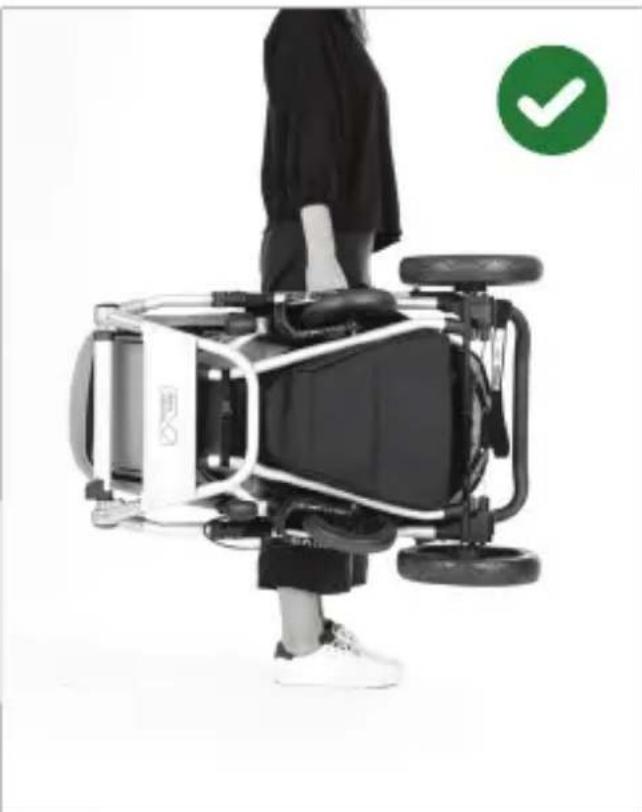

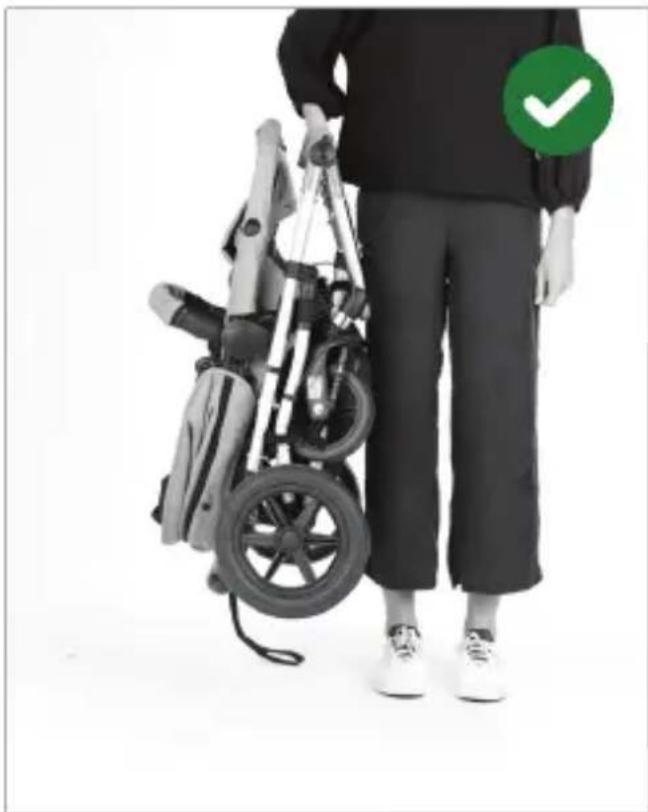

used on stairs or escalators. • The stroller should not be used near an open fire or exposed flame. • Use the tether strap to stop the stroller rolling away. • The stroller is designed for use on flat or gently sloping surfaces and may be unstable on higher sloping and uneven surfaces, resulting in the possibility of the stroller tipping over. • Due care should be exercised when folding or unfolding the stroller, as there is potential for fingers or body parts to be injured. • The stroller should only be carried or lifted when it is properly folded. Do not carry or lift the stroller by the wheels, the grab bar or the harness - position your hands at the centre of the side frame. • When folding the stroller, please check visually that the automatic frame lock is engaged. • When using the seat mode, do not release recline buckle.

WARNING

Canadian safety standard states:

• Do not place more than 10 ~kg in the parcel tray.
• The stroller may become unstable if a parcel bag, other than one recommended by the manufacturer, is used. - The stroller may become unstable if the recommended load is exceeded. - Take care when folding or unfolding the stroller to prevent fingers being entrapped. - Maximum weight in the upright main seat 22kg . - The upright seat is not suitable for a child less than 6 months. - Maximum height for main seat is 100cm .
