USER MANUAL SteamXpress AS675 BLACK & DECKER

Please Read and Save this Use and Care Book

Register your product online at www.prodprotect.com/applica, for a chance to WIN $100,000!

For US residents only

Accessories/Parts (USA/Canada)

IMPORTANT SAFETY INSTRUCTIONS

When using your iron, basic safety precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING.
Use iron only for its intended use.
To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
The iron should always be turned to before plugging or unplugging from outlet. Never yank cord to disconnect from outlet; instead grasp plug and pull to disconnect.
- Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around the iron when storing.
Always disconnect iron from electrical outlet when filling with water or emptying and when not in use.
- Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron; take it to a qualified serviceman for examination and repair. Incorrect reassembly can cause a risk of electric shock when the iron is used.
- Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board.
Burns can occur from touching hot metal parts, hot water or steam. Use caution when you turn a steam iron upside down - there may be hot water in the reservoir.

SPECIAL INSTRUCTIONS

To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit.
If an extension cord is absolutely necessary, a 15-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

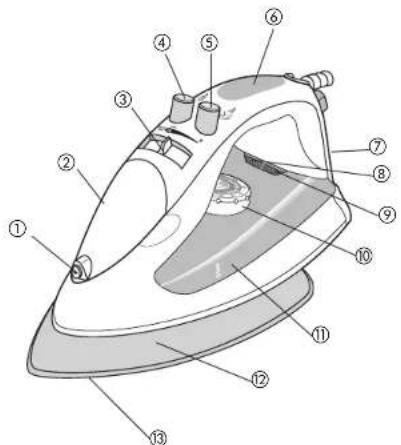

Product may vary slightly from what is illustrated.

1. Spray nozzle
2. Water-fill cover
3. Dry/steam and self-cleaning selector
4. Spray button
5. Steam button
6. Comfort GripTM handle (Model AS685)
7. Heel rest
8. Temperature-ready light
9. Auto off light
10. Fabric-select dial
11. Water tank
12. Chrome metal skirt
13. Soleplate

Symbols

Steam/Surge of Steam

Spray

Self-cleaning

How to Use

This appliance is for household use only.

GETTING STARTED

Remove any labels, stickers or tags attached to the body or soleplate of the iron.

Note: Use ordinary tap water for ironing. Do not use water processed through a home softening system.

Important: For optimum performance, let the iron stand for 90 seconds before beginning to iron.

TO FILL THE WATER TANK

1. Grip the sides of the water-fill cover and pull open (A).

1. Tilt the iron and using a clean measuring cup, pour water into opening until the water reaches the MAX level mark on the water tank (B). Do not overfill.
2. Close the water-fill cover by pushing down until it snaps into place.

1. Plug in the iron. The temperature-ready light comes on (C).

Tip: If unsure of a garment's fiber, test a small area (on an inside seam or hem) before ironing.

FOR STEAM IRONING

1. Move the dry/steam selector to the desired steam level (D).

1. Turn the fabric-select dial to appropriate setting (between 4 and 6) for your fabric (E). Read garment's label to help you determine fabric type.

2. The temperature-ready light glows until it reaches the appropriate temperature.
   The light cycles glows on and off during ironing.

3. When finished ironing, turn the fabric-select dial to lowest heat setting, move the dry/steam selector to and unplug the iron.

FOR DRY IRONING

1. Make sure dry/steam selector is set to . You may want to empty the water (see "Emptying Water Tank Alter Ironing - Optional").
2. Turn the fabric-select dial to the appropriate setting for your fabric. Read garment's label to help you determine fabric type.

The temperature-ready light glows until it reaches the appropriate temperature.
The light cycle glows on and off during ironing.
3. When finished ironing, unplug the iron and place it on its heel rest.
4. Move the dry/steam selector to .

10-MINUTE AUTO SHUTOFF

For your peace of mind, the iron will turn off after 10 minutes of inactivity.

The iron beeps and the auto shutoff light starts blinking to let you know that the iron has stopped heating (F).
- As soon as you pick up the iron, it starts heating again.

SURGE OF STEAM

1. With the water tank filled to the MAX mark, turn the fabric-select dial to at least setting 4 and wait for the temperature-ready light to go off.
2. To remove tough wrinkles, pump the button at 5-second intervals for a concentrated blast of steam.

VERTICAL STEAM

1. Hang the garment to be steamed on a clothes hanger. (Curtains or drapes can be steamed once they are hung.)
2. Move the selector to
3. Hold the iron close to, but not touching, the fabric.
4. Pull the fabric tight with your free hand and pump the button as you move the iron over the fabric (G).

SPRAY

You can use spray at any setting. Check that the water tank is filled with water.

1. Press the button (H).
2. If spray is weak, pump the button a few times.

EMPTYING WATER TANK AFTER IRONING (OPTIONAL)

1. Unplug the iron and let it cool.
2. Open the water-fill cover.
3. To release the water, hold the iron over a sink with the tip pointing down and to one side. Water will empty out of the water-fill opening (0).

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

CLEANING OUTSIDE SURFACES

1. Make sure iron is unplugged and has cooled completely. Wipe the soleplate and outer surfaces with a soft cloth dampened with water and mild household detergent. Never use abrasives, heavy-duty cleansers, vinegar or scouring pads that may scratch or discolor the iron.
2. After cleaning, steam iron over an old cloth to remove any residue from the steam vents.

SELF-CLEANING

To keep the steam vents free of any buildup, follow these instructions about once a month.

1. Fill the water tank below the MAX line.
2. Plug in the iron.
3. Turn the fabric-select dial to 6 and place iron on its heel rest. Allow it to heat until the temperature-ready light goes out and comes on again.
4. Unplug the iron and hold over a sink with the soleplate facing down.

1. Move the dry/steam selector to . Be careful, as hot water and steam will come out of the steam vents (K). Continue to hold the selector in the position until all the water has emptied, or until you feel all mineral deposits have been flushed. If necessary, rock iron side to side and front to back.

2. When finished, release the selector, stand the iron on its heel rest and plug it in. Heat for about 2 minutes to dry out any remaining water.

STORING YOUR IRON

1. Unplug the iron and allow it to cool.
2. Check that the selector is set to
3. Store vertically on its heel rest to prevent water leaking from the soleplate.

IMPORTANT MISES EN GARDE

For service, repair or any questions regarding your appliance, call the appropriate "800" number on the cover of this book. Do not return the product to the place of purchase. Do not mail the product back to the manufacturer nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Appplies only in the United States and Canada)

What does it cover?

• Any defect in material or workmanship; provided; however, Applica's liability will not exceed the purchase price of the product

For how long?

One year after the date of original purchase

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished

How do you get service?

• Save your receipt as proof of the date of sale.
• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service
  If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
  Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

NECESITA AYUDA?

Copyright © 2008 Applica Consumer Products, Inc., a subsidiary of Salton Inc.

R12007/4-9-4E/S/F

Printed on recycled paper. Impreso en papel reciclado. Imprimé sur du papier recyclé.

Made in People's Republic of China Printed in People's Republic of China
