VP 3101 S - Vacuum Cleaner ECG - Free user manual and instructions

Brand	ECG
Model	VP 3101 S
Product type	Canister vacuum cleaner with bag
Color	Not specified
Rated power	800 W
Maximum power	1000 W
Suction power	180 W
Rated voltage	230 V ~ 50/60 Hz
Dust bag capacity	2.5 L
Operating radius	7.8 m
Noise level	< 78 dB
Weight	3.7 kg
Energy class	A (33.6 kWh/year)
Filter type	Washable motor filter and exhaust filter
Bag full indicator	Yes, red light
Cable rewinder	Yes, automatic
Power adjustment	Yes, control on the unit
Included accessories	Flexible hose, chrome-plated telescopic metal tube, floor/carpet brush head, combined narrow nozzle, dusting brush
Replacement bags	Reference: KOMA ECG VP 3101 S
Maintenance	Regular filter cleaning and bag replacement

Frequently Asked Questions - VP 3101 S ECG

How to assemble the ECG VP 3101 S vacuum cleaner?

Before assembly, make sure the appliance is turned off and unplugged. Insert the end of the flexible hose into the front opening until it locks. Connect the other end to the telescopic tube, then add the desired accessory (brush, nozzle...).

How to replace the dust bag?

When the fill indicator turns red, open the front cover by pressing the lock. Remove the holder with the full bag, discard it and insert a new bag of type KOMA ECG VP 3101 S.

How to clean the filters?

For the exhaust filter: fold down and remove the cover, wash the filter in hot water and dry it. For the motor filter (once a year): open the front cover, remove the filter, wash in hot water and dry. Replace if damaged.

What to do if suction power decreases?

First check if the dust bag is full. Replace it if necessary. If the problem persists, inspect the flexible hose and tube for any blockages. Clean or replace the filters.

How to use the cable rewinder?

After use, unplug the cord from the outlet, then press the rewinding button located on the appliance. The cable rewinds automatically. Never pull on the cable.

Can the vacuum cleaner pick up liquids?

No, the vacuum cleaner is designed only for dry use. Never vacuum water or liquids, as this could damage the appliance and cause electrocution.

What to do if the bag full indicator remains red after changing the bag?

Turn off and unplug the vacuum cleaner. Check if the flexible hose or tube is blocked. If the problem persists, contact an authorized service.

Can I use the vacuum cleaner without a bag?

No, the vacuum cleaner must always be used with a dust bag, motor filter and exhaust filter in place, otherwise damage may occur.

What accessories are included with the vacuum cleaner?

The vacuum cleaner is supplied with a flexible hose, a chrome-plated telescopic metal tube, a brush head for carpets or hard floors, a combined narrow nozzle and a dusting brush.

Where to find spare parts?

The replacement bags are referenced KOMA ECG VP 3101 S. For filters or other parts, contact an authorized service or your retailer.

USER MANUAL VP 3101 S ECG

Exterior view of a white and silver ECG vacuum cleaner with control panel (no visible text or symbols on body)

VP 3101 S

CZ

PODLAHOVÝ VYSAVAČ NÁVOD K OBSLUZE

SK

PODLAHOVÝ VYSÁVAČ NÁVOD NA OBSLUHU

PL

ODKURZACZ PODŁOGOWY INSTRUKCJA OBSŁUGI

HU

PADLÓPORSZÍVÓ HASZNÁLATI ÚTMUTATÓ

DE

Seznam součástí

Close-up of a white spray gun with a black handle and blue dome, no visible text or symbols

Close-up of a hand pressing a button on a white circular object (no visible text or symbols)

Close-up of a hand holding an object, possibly a tool or device, with no visible text or symbols.

Close-up of a person's foot using a black tool on a surface (no visible text or symbols)

567

Close-up of a black cylindrical tool or tool with a small square end, isolated on a plain background (no text or symbols visible)

Close-up of a car's side profile with a white arrow pointing to the front edge (no text or symbols visible)

Close-up of a car's side profile with a white arrow pointing to the nose area (no text or symbols visible)

Po použití

Top-down view of a black and white electronic device with a circular button on the side (no visible text or symbols)

Close-up of a mechanical component with a circular hole and a white arrow pointing to it (no visible text or symbols)

Close-up of a mechanical component with a white arrow pointing upward (no visible text or symbols)

Upozornění:

SK

Zoznam súčastí

Top-down view of a black and white electronic device with a circular button on the side (no visible text or symbols)

Close-up of a mechanical component with a circular hole and a white arrow pointing to it (no visible text or symbols)

Close-up of a mechanical component with a white arrow pointing upward (no visible text or symbols)

Upozornenie:

Lista elementów

Close-up of a white disposable vacuum cleaner with a coiled tube inserted (no visible text or symbols)

Close-up of a hand pressing a button on a computer mouse (no visible text or symbols)

Close-up of a hand holding an object, possibly a tool or device, with no visible text or symbols.

Close-up of a person's foot using a black tool on a surface, no visible text or symbols

PL

567

Close-up of a black cylindrical object with a small protrusion on the left end, against a plain background (no text or symbols visible)

Close-up of a car's side panel corner with a white arrow pointing to the edge (no text or symbols visible)

Close-up of a car's side panel corner with a white arrow pointing to a circular button (no text or symbols visible)

Po użyciu

Top-down view of a black robotic vacuum cleaner with a circular vent and metallic top (no text or symbols visible)

9 10 11

Close-up of a mechanical component with a circular bolt and textured base, no visible text or symbols

Close-up of a mechanical component with a white arrow pointing upward (no visible text or symbols)

Ostrzeżenie:

A készülék részei

Close-up of a black cylindrical object with a small protrusion on top, against a plain background (no text or symbols visible)

Close-up of a car's side profile with a white arrow pointing to the nose area (no text or symbols visible)

Close-up of a car's side profile with a white arrow pointing to a small mark on the front edge (no text or symbols visible)

Használat után

Top-down view of a black robotic device with a circular base and top panel (no visible text or symbols)

9 10 11

Close-up of a mechanical component with a circular hole and textured base, no visible text or symbols

Close-up of a mechanical component with a white arrow pointing upward (no visible text or symbols)

Figyelmeztetés!

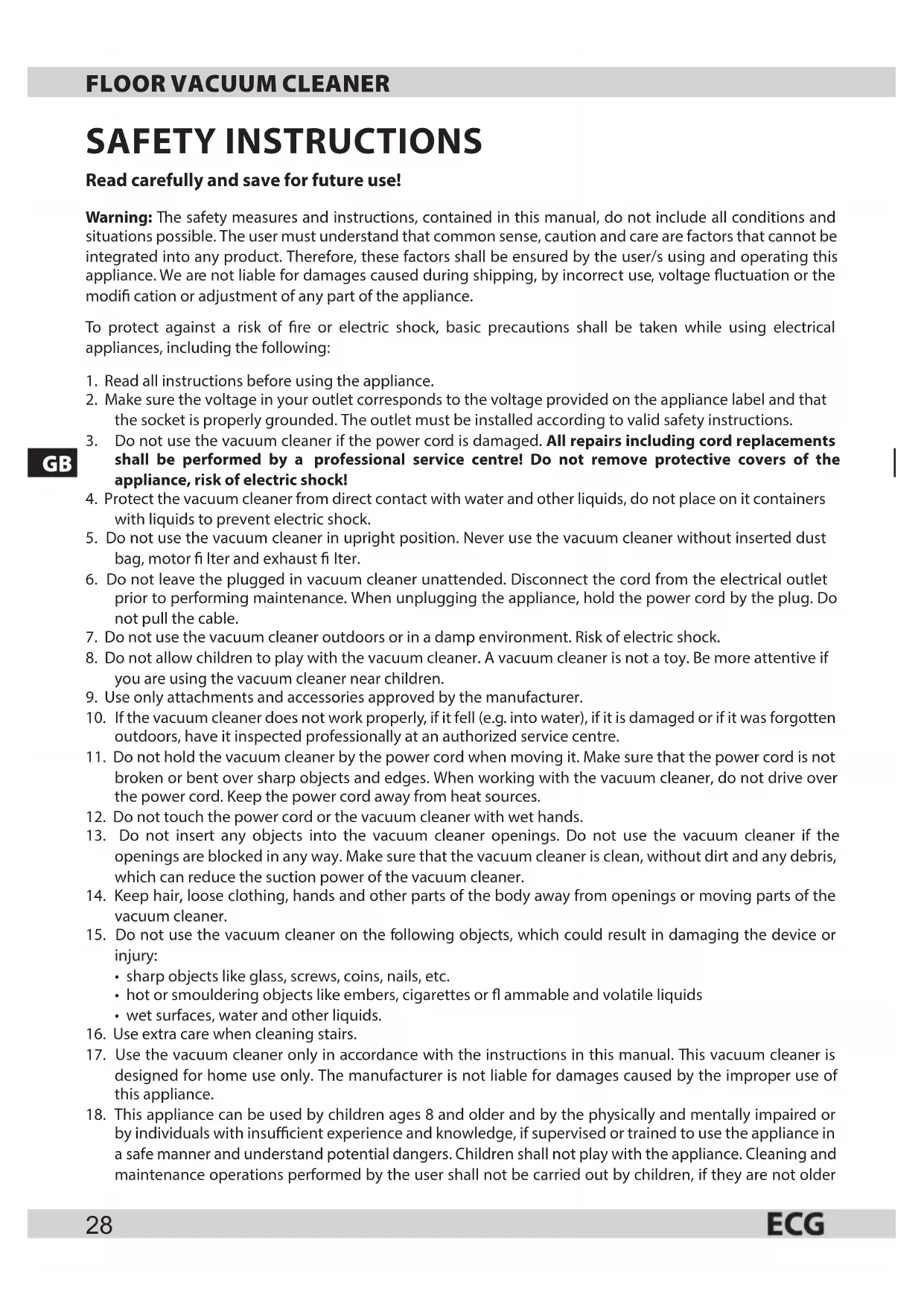

SICHERHEITSHINWEISE

Stückliste

Top-down view of a black and white electronic device with a circular button on the surface (no visible text or symbols)

9 10 11

Close-up of a mechanical component with a circular hole and textured base, no visible text or symbols

Close-up of a mechanical component with a white arrow pointing upward, no visible text or symbols

Hinweis:

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Read all instructions before using the appliance.
2. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed according to valid safety instructions.
3. Do not use the vacuum cleaner if the power cord is damaged. All repairs including cord replacements shall be performed by a professional service centre! Do not remove protective covers of the appliance, risk of electric shock!
4. Protect the vacuum cleaner from direct contact with water and other liquids, do not place on it containers with liquids to prevent electric shock.
5. Do not use the vacuum cleaner in upright position. Never use the vacuum cleaner without inserted dust bag, motor fi liter and exhaust fi liter.
6. Do not leave the plugged in vacuum cleaner unattended. Disconnect the cord from the electrical outlet prior to performing maintenance. When unplugging the appliance, hold the power cord by the plug. Do not pull the cable.
7. Do not use the vacuum cleaner outdoors or in a damp environment. Risk of electric shock.
8. Do not allow children to play with the vacuum cleaner. A vacuum cleaner is not a toy. Be more attentive if you are using the vacuum cleaner near children.
9. Use only attachments and accessories approved by the manufacturer.
10. If the vacuum cleaner does not work properly, if it fell (e.g. into water), if it is damaged or if it was forgotten outdoors, have it inspected professionally at an authorized service centre.
11. Do not hold the vacuum cleaner by the power cord when moving it. Make sure that the power cord is not broken or bent over sharp objects and edges. When working with the vacuum cleaner, do not drive over the power cord. Keep the power cord away from heat sources.
12. Do not touch the power cord or the vacuum cleaner with wet hands.
13. Do not insert any objects into the vacuum cleaner openings. Do not use the vacuum cleaner if the openings are blocked in any way. Make sure that the vacuum cleaner is clean, without dirt and any debris, which can reduce the suction power of the vacuum cleaner.
14. Keep hair, loose clothing, hands and other parts of the body away from openings or moving parts of the vacuum cleaner.
15. Do not use the vacuum cleaner on the following objects, which could result in damaging the device or injury:
16. sharp objects like glass, screws, coins, nails, etc.
17. hot or smouldering objects like embers, cigarettes or fl ammable and volatile liquids

18. wet surfaces, water and other liquids.

19. Use extra care when cleaning stairs.

20. Use the vacuum cleaner only in accordance with the instructions in this manual. This vacuum cleaner is designed for home use only. The manufacturer is not liable for damages caused by the improper use of this appliance.

21. This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children shall not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older

than 8 years and under supervision. Children under the age of 8 shall keep away from the appliance and its power supply.

DESCRIPTION OF THE VACUUM CLEANER

GB

List of parts

1. Front cover

2. The full dust bag indicator

3. Back cover

4. Cable rewind button

5. Power control

6. ON/OFF button

7. Opening for inserting the hose

8. Handle for moving

9. Power control panel

Accessories:

Hose, metal chrome plated telescopic tube, brush nozzle for carpets or hard floors, combined tapered nozzle and dust brush.

USING THE VACUUM CLEANER

The vacuum cleaner must be switched off and unplugged prior to assembly!

1. Insert the end of the hose in the opening in front of the vacuum cleaner and secure it (Fig. 1). If you want to remove the hose, press the release buttons on both sides of the hose connection and remove the hose from the vacuum cleaner. (Fig. 2).

2. Connect the other end of the hose with curved ending to the tube (Fig. 3).

3. Connect to the tube accessories suitable for a given type of flooring: brush nozzle for carpets or hard floors (switch according to floor type) (Fig. 4), combined tapered nozzle and dust brush for sofas, curtains and hard to reach places in the corners or between the furniture (Fig. 5).

4. Starting the vacuum cleaner: plug the power cord in the electrical outlet whose parameters correspond to those in the type label of the appliance and press the power button to start the vacuum cleaner (Fig. 6).

5. Retracting the power cord: Grasp the plug and pull out the power cord. Press the retractor button, the power cord rewinds back into the vacuum cleaner (Fig. 7.).

Issues

Do not use an appliance showing any signs of damage. Damaged power cords must be replaced by a qualified authorized service centre. Only this way can you prevent safety risks.

See the troubleshooting guide if your vacuum cleaner does not operate correctly. Refer to an authorized service centre if you are not able to resolve an issue yourself.

1234

GB

567

After use

Turn off the vacuum cleaner and unplug the power cord from the outlet. Before you add any accessories or before cleaning the appliance, always turn the vacuum cleaner off and unplug it from the outlet.

Full dust bag indicator

The vacuum cleaner is equipped with an indicator ②, which changes to red colour, if the dust bag is full or if the suction hoses are clogged. If the full dust bag indicator is red even after inserting a new bag, switch off the vacuum cleaner, unplug the power cord and check the hose or tube for jammed objects. If the indicator remains red, refer to an authorized service centre or your dealer. To prevent overheating and possible damage to the vacuum cleaner, check the following:

• All the connections between hose, telescopic tube and the floor brush
• Opening for connecting the hose

• Brush throughput

• Exhaust fi Iter

• Motor filter
• Dust bag

MAINTENANCE AND CLEANING

Attention:

Always unplug the power cord from the outlet before any maintenance and cleaning.

1. Changing the dust bag: When the colour of the dust bag indicator ② changes to red, it is time to change or empty the dust bag.

2. Press the lock in front to open the front cover (Fig. 8).

3. Remove the holder with the bag and remove the full bag from the holder (Fig. 9).

4. Cleaning of the exhaust filter: Open and remove the exhaust filter cover. Wash the filter with warm water and dry thoroughly before using it again. If the filter is damaged, replace it (Fig. 10).

5. Clean the motor filter once a year: Open the front cover, remove the filter, wash it with warm water and dry thoroughly before using it again. If the filter is damaged, replace it (Fig. 11).

6. Cleaning of the appliance surface: Use soft and slightly moistened cloth with a few drops of the cleaning solution to clean. Never use solvents or other abrasive cleaners. Never immerse the vacuum cleaner into water or any other liquid and do not leave it under running water.

8

Top-down view of a black and white electronic device with a circular button on the front panel (no visible text or symbols)

9 10 11

Close-up of a mechanical component with a circular hole and textured base, no visible text or symbols

Close-up of a mechanical component with no visible text or symbols

Close-up of a mechanical component with a white arrow pointing upward (no visible text or symbols)

Attention:

Replacement fi liter bags for the VP 3101 S vacuum cleaner can be found under the name KOMA ECG 3101 S.

GB

TROUBLESHOOTING

Before referring to a service centre, check the following list of common problems and how to remove them.

Problem Possible cause Solution
The motor will not start.	The vacuum cleaner is not powered.	Check the power cord and plug. Refer to an authorized service centre if the problems persist.
The suction power is reduced.	Full dust bag, clogged hose or tube, dirty fi Iters.	Replace the dust bag, remove foreign objects from the hose or tube, replace fi Iters.

TECHNICAL SPECIFICATIONS

Suction power: 180 W

Range: 7.8 m

Dustbag capacity: 2.5 l

Weight: 3.7 kg

Nominal voltage: 230 V\~ 50/60 Hz

Nominal input power: 800 W

Maximum power consumption: 1000 W

Noise level: < 78 dB

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

08/05

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.

SIGURNOSNE UPUTE

HR/BIH

Popis dijelova

1. Prednji poklopac

2. Indikator napunjenosti vrećice za prašinu

3. Stražnji poklopac

4. Tipka za namatanje kabela

5. Regulator snage

6. Tipka ON/OFF

7. Otvor za crijevo

8. Ručka za nošenje

9. Ploča regulacije snage

Pribor:

Close-up of a white spray gun with a black handle and blue dome, no visible text or symbols

Close-up of a hand pressing a button on a white circular object (no visible text or symbols)

Close-up of a hand holding an object, possibly a tool or device, with no visible text or symbols.

Close-up of a person's foot using a black tool on a surface (no visible text or symbols)

567

Close-up of a black cylindrical tool or tool with a small square end, isolated on a plain background (no text or symbols visible)

Close-up of a car's side profile with a white arrow pointing to the front edge (no text or symbols visible)

Close-up of a car's side panel corner with a white arrow pointing to a circular mark (no text or symbols visible)

HR/BIH

Nakon korištenja

Close-up of a white spray gun with a black handle and blue dome, no visible text or symbols

Close-up of a hand pressing a button on a white circular object (no visible text or symbols)

Close-up of a hand holding an object, possibly a tool or device (no visible text or symbols)

Close-up of a person's foot using a black tool on a surface (no visible text or symbols)

567

Close-up of a black cylindrical tool or tool with a small square end, isolated on a plain background (no text or symbols visible)

Close-up of a car's side profile with a white arrow pointing to the front edge (no text or symbols visible)

Close-up of a car's side panel corner with a white arrow pointing to a circular mark (no text or symbols visible)

SI

Po uporabi

Sesalnik izklopite in kabel potegnite iz el. vtičnice. Pred nameščanjem pritiklin ali čiščenjem aparata le-tega vedno izklopite in potegnite iz vtičnice el. kabel.

Top-down view of a black and white electronic device with a circular button on the side (no visible text or symbols)

Close-up of a mechanical component with a circular hole and a white arrow pointing to it (no visible text or symbols)

Close-up of a mechanical component with a white arrow pointing upward (no visible text or symbols)

Opozorilo:

Nadomestne fi Itrirne vrečke za sesalnik VP 3101 S najdete pod oznako KOMA ECG VP 3101 S.

ODPRAVLJANJE TEŽAV

BEZBEDNOSNA UPUTSTVA

SR/MNE

Lista delova

1. Prednji poklopac

2. Indikator napunjenosti kese za prašinu

3. Zadnji poklopac

4. Dugme za namotavanje kabla

5. Regulator snage

6. Dugme ON/OFF

7. Otvor za crevo

8. Ručka za nošenje

9. Panel regulatora snage

Pribor:

Crevo, metalna inoks teleskopska cev, četka za ćilime i tvrde podove, kombinovana uska mlaznica i četka za prašinu

KORIŠĆENJE USISIVAČA

Pre sastavljanja, usisivač mora biti isključen i odvojen od izvora električne struje!

1. Kraj creva umetnite u otvor u prednjem delu usisivača i učvrstite (slika 1). Ako želite da skinete crevo, pritisnite osigurače na obe strane grla creva i izvucite ga iz usisivača (slika 2).
2. Drugi kraj creva spojite sa zaobljenim krajem cevi (slika 3).
3. Na cev spojite onaj nastavak koji je prikladan za vrstu poda koju treba da čistite: nastavak sa četkom za cilime ili tvrde podove (može se prilagoditi tipu poda) (slika 4), kombinovani uski nastavak i četku za prašinu za naslonjače, fotelje i za teško dostupna mesta između nameštaja (slika 5).
4. Pokretanje usisivača: Priključite kabl za napajanje u utičnicu onih karakteristika koje odgovaraju onima koje su navedene na nazivnoj pločici na usisivaču i pritisnite taster za uključivanje da biste ga pokrenuli (slika 6).
5. Namotavanje kabla: Uhvatite utikač i izvucite ga iz utičnice. Pritisnite taster za uvlačenje i kabl će se namotati u usisivaču (slika 7).

U slučaju problema

Top-down view of a black and white electronic device with a circular button on the surface (no visible text or symbols)

9 10 11

Close-up of a mechanical component with a circular hole and arrow pointing to it (no visible text or symbols)

Close-up of a mechanical component with a white arrow pointing upward (no visible text or symbols)

Upozorenje:

Zamenske fi Iter kese za usisivač VP 3101 S možete naći pod nazivom KOMA ECG VP 3101 S.

OTKLANJANJE PROBLEMA

Liste des diff érentes parties

Top-down view of a black and white electronic device with a square base and circular vent, placed on a surface (no visible text or symbols)

9 10 11

Close-up of a mechanical component with a circular hole and a white arrow pointing to it (no visible text or symbols)

Close-up of a mechanical component with a white arrow pointing upward (no visible text or symbols)

Information :

Close-up of a white disposable vacuum cleaner with a coiled tube inserted (no visible text or symbols)

Close-up of a hand pressing a button on a white circular object (no visible text or symbols)

Close-up of a hand holding an object, possibly a tool or device (no visible text or symbols)

Close-up of a person's foot using a black tool on a flat surface (no visible text or symbols)

567

Close-up of a black cylindrical mechanical component with a small protrusion on top (no visible text or symbols)

Close-up of a car's side edge with a white arrow pointing to the nose area (no text or symbols visible)

Close-up of a car's side profile with a white arrow pointing to a circular mark on the nose (no text or symbols visible)

Dopo l'uso

Top-down view of a black robotic vacuum cleaner with a circular vent and metallic top (no text or symbols visible)

9 10 11

Close-up of a mechanical component with a circular bolt and textured base, no visible text or symbols

Close-up of a mechanical component with a white arrow pointing upward (no visible text or symbols)

Attenzione:

Lista de partes

Close-up of a white disposable vacuum cleaner with a black handle and blue vent, no visible text or symbols.

234

Close-up of a hand pressing a button on a white circular object (no visible text or symbols)

Close-up of a hand holding an object, possibly a tool or device (no visible text or symbols)

Close-up of a person's foot using a black vacuum cleaner on a tiled floor (no text or symbols visible)

567

Close-up of a black cylindrical tool with a small square head (no visible text or symbols)

Close-up of a car's side profile with a white arrow pointing to the nose area (no text or symbols visible)

Close-up of a car's side profile with a white arrow pointing to a circular mark on the nose (no text or symbols visible)

Después de usar

Top-down view of a black and silver robotic device with a circular base (no visible text or symbols)

9 10 11

Close-up of a mechanical component with a circular bolt and arrow pointing to it (no visible text or symbols)

Close-up of a mechanical component with a white arrow pointing upward (no visible text or symbols)

Atención:

Osade loetelu

Dalių sąrašas

Top-down view of a black and white electronic device with a circular button on the front face (no visible text or symbols)

Close-up of a mechanical component with a circular hole and a white arrow pointing to it (no visible text or symbols)

Close-up of a mechanical component with a white arrow pointing upward (no visible text or symbols)

Dèmesio:

Dalu saraksts

Top-down view of a black and white electronic device with a circular button on the side (no visible text or symbols)

Close-up of a mechanical component with a circular hole and textured surface, no visible text or symbols

Close-up of a mechanical component with a white arrow pointing upward (no visible text or symbols)

Uzmanību:

Filtra maisi puteklusücējam VP 3101 S ir atrodami ar nosaukumu KOMA ECG 3101 S.

PROBLÉMU NOVĚRŠANA

PEČAT I POTPIS PRODAVATELJA

K+B Progres

PROIZVAJALEC ali DAJALEC GARANCIJE:

K+B Progres, a.s.; MBS: 61860123

250 69 Klíčany, Czech Rep. e-post: [e-mail]

LT

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. el. paštas: [e-mail]

LV

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Kličany, Czech Rep. e-pasts: [e-mail]
