Product Type	Steam Iron
Brand	Russell Hobbs
Model	Pearl Glide 23972
Soleplate	Pearl Glide (scratch-resistant)
Power Supply	220-240 V ~ 50/60 Hz (estimated)
Power	2400 W (estimated)
Water Tank Capacity	300 ml (estimated)
Dimensions (L x W x H)	30 x 15 x 15 cm (estimated)
Weight	1.5 kg (estimated)
Functions	Steam ironing, dry ironing, spray, steam burst, vertical steam, self-cleaning, anti-scale, adjustable thermostat
Indicator Light	Heating indicator light
Safety	Protective cut-off in case of overheating, supervised use for children aged 8 and up, unplug before filling/cleaning
Usage	Household use only
Water Type	Tap water (demineralized water if hard water)
Maintenance	Monthly self-cleaning, do not use descaling liquid, wipe after use, empty tank
Storage	On the heel, cord wrapped around the heel
Spare Parts	Power cord replaceable by an approved professional
Reparability	Repair by manufacturer or approved technician
Warranty	Standard (details not provided)
Included Accessories	No accessories mentioned
Country of Origin	Not specified

Frequently Asked Questions - Pearl Glide 23972 RUSSELL HOBBS

How to fill the water tank?

Unplug the iron, set the thermostat to ● and the steam control to . Open the filling hole cover, pour water slowly up to the MAX level. Close the cover and wipe up any spilled water.

How to use vertical steam?

Set the thermostat to MAX and the steam control to . Hold the iron away from the fabric, press the vertical steam button. Wait 4 seconds between each burst. Ensure good ventilation behind the fabric.

What to do if the soleplate is scratched?

Avoid ironing over buttons, zippers, etc. Do not scratch the soleplate. If already scratched, no solution is indicated; a damaged soleplate may affect gliding.

How to clean the iron?

After use, unplug and let cool. Wipe moisture with a cloth. Use the self-cleaning function monthly: set thermostat to MAX, wait for the indicator light to go off, then hold the iron over a sink, soleplate down, and press the self-cleaning button while gently rocking it.

Why does the iron smoke during first use?

This is normal: the smoke comes from the heating tank. It will disappear once the appliance is dry. Iron an old cotton cloth to clean the soleplate before first use.

What water to use in the iron?

You can use tap water. If the water is very hard, use demineralized water (not chemically). Do not mix with descaling liquids.

How to store the iron after use?

Set the thermostat to ● and the steam control to . Unplug, empty water through the filling hole, close the cover. Let cool, wipe moisture, wind the cord around the heel, and store the iron upright on its heel.

What to do if the indicator light does not turn on?

Check that the iron is plugged in and that the thermostat is not at the minimum setting. If the light remains off, the iron may be faulty: contact customer service.

How to prevent scale buildup in the iron?

Use the self-cleaning function at least once a month. Use demineralized water if water is hard. Never pour chemical descaler.

Can I iron all fabrics with this iron?

Yes, set the thermostat according to the fabric: ● for synthetics, ●● for wool/polyester, ●●● for cotton/linen. Do not iron fabrics marked with a cross. Test the spray on a hidden area if necessary.

USER MANUAL Pearl Glide 23972 RUSSELL HOBBS

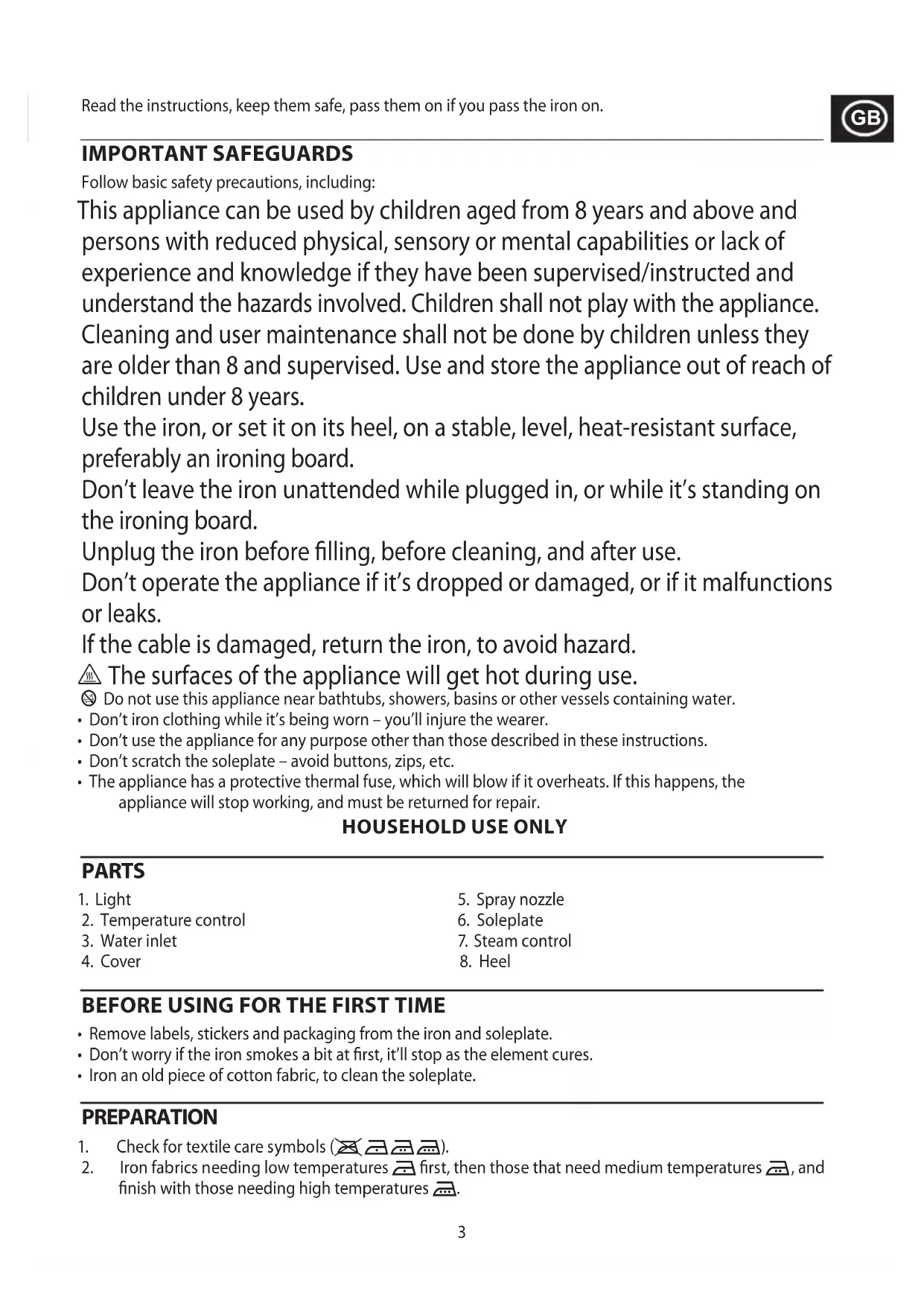

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Use and store the appliance out of reach of children under 8 years.

Use the iron, or set it on its heel, on a stable, level, heat-resistant surface, preferably an ironing board.

Don't leave the iron unattended while plugged in, or while it's standing on the ironing board.

Unplug the iron before filling, before cleaning, and after use.

Don't operate the appliance if it's dropped or damaged, or if it malfunctions or leaks.

If the cable is damaged, return the iron, to avoid hazard.

The surfaces of the appliance will get hot during use.
Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
- Don't iron clothing while it's being worn - you'll injure the wearer.
- Don't use the appliance for any purpose other than those described in these instructions.
- Don't scratch the soleplate - avoid buttons, zips, etc.
- The appliance has a protective thermal fuse, which will blow if it overheats. If this happens, the appliance will stop working, and must be returned for repair.

HOUSEHOLD USE ONLY

PARTS

1. Light
2. Temperature control
3. Water inlet

4. Cover

5. Spray nozzle

6. Soleplate
7. Steam control
8. Heel

BEFORE USING FOR THE FIRST TIME

• Remove labels, stickers and packaging from the iron and soleplate.
• Don't worry if the iron smokes a bit at first, it'll stop as the element cures.
• Iron an old piece of cotton fabric, to clean the soleplate.

PREPARATION

1. Check for textile care symbols (a).
2. Iron fabrics needing low temperatures first, then those that need medium temperatures and finish with those needing high temperatures

FILLING

You may use the iron with tap-water, but if you live in a hard water area, you should use distilled water (not chemically descaled or softened water).

If you buy distilled water, check that it's suitable for use in irons.

1. Unplug the iron.
2. Set the temperature control to . Set the steam control to
3. Open the cover.
4. Pour slowly, to let the air in the reservoir escape, otherwise you'll cause an air lock and the water will overflow.
5. Don't fill past max, or water will escape in use.
6. Wipe up any spillage.

SWITCH ON

1. Set the temperature control to . Set the steam control to
2. Sit the iron on its heel.
3. Put the plug into the power socket (switch the socket on, if it's switchable).
4. Turn the temperature control to bring the setting you want next to the mark. The light will come on.
5. When the iron reaches the temperature you set, the light will go off. It'll then cycle on and off as the thermostat operates to maintain the temperature.

TEMPERATURE SETTING GUIDE

Label marking Dot setting
cool – nylon, acrylics, polyester	●
warm – wool, polyester mixtures	●●
hot – cotton, linen	●●●/max
do not iron	-

If the instructions on the fabric label differ from this guide, follow the instructions on the label.

STEAM IRONING

1. If you intend to use steam, the temperature setting must be or higher.
2. Set the steam control to the setting you want (空 = no steam, 高)
3. Wait till the light goes off, then start ironing.

SPRAY

Water spotting affects some fabrics. Test this out on a hidden part of the fabric.

1. Lift the iron off the fabric.
2. Aim the spray nozzle at the fabric.
3. Press the 12 button - you may have to press it 2 or 3 times to pump water through the system.

SHOT OF STEAM

If you intend to use steam the temperature control must be at or higher.

1. Lift the iron off the fabric.
2. Press the button.
3. Leave 4 seconds between shots, to let the temperature build up.

DRY IRONING

If you're going to be dry ironing for 20 minutes or more, empty the reservoir first, to avoid spontaneous bursts of steam.

1. Set the steam control to
2. Wait till the light goes off, then start ironing.

VERTICAL STEAMING

Remove wrinkles from hanging clothes, hanging curtains, and furnishing fabrics.

• Check that there's adequate ventilation behind the fabric, otherwise moisture may build up, causing mildew.
• Check that there's nothing behind the fabric that may be damaged by the steam.
• Check that pockets, turn-ups, and cuffs are empty.

• Check that there's water in the reservoir.

• Set the temperature control to max. Set the steam control to

• Hold the iron close to (but not touching) the fabric.
• Press the button (you're using the "shot of steam" function vertically).
• Leave 4 seconds between shots, to let the temperature build up.

AFTERUSE

1. Set the temperature control to . Set the steam control to
2. Unplug the iron.
3. Open the cover.
4. Hold it over a sink, turn it upside down, and drain the water from the reservoir, via the water inlet.
5. Close the cover.
6. Sit the iron on its heel.
7. Leave it to cool down completely.
8. When it's cold, wipe off any moisture, and wind the cable round the heel.
9. Store the iron on its heel, to avoid corrosion and damage to the soleplate.

SELF CLEAN

To avoid scale build up, use the self clean function at least monthly in normal water areas, more often in hard water areas.

Products returned under guarantee with faults due to scale will be subject to a repair charge. You'll need a basin or a large bowl to catch the water coming out of the soleplate.

1. Fill the reservoir to the max mark.
2. Set the temperature control to max. Set the steam control to
3. Sit the iron on its heel.
4. Put the plug into the power socket and wait till the light goes out.
5. Hold the iron over the basin or bowl with the soleplate down.
6. Press the , and hold it down.
7. Gently move the iron to and fro, over the basin or bowl.
8. Water and steam will wash scale and dust through the soleplate, and into the sink.
9. When the reservoir is empty, release the button.

ANTI-SCALE

The anti-scale agent incorporated in the iron helps prevent the build-up of scale.

Don't use a descending solution, or you'll destroy the anti-scale.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.
