Product type	Adventure trail motorcycle
Brand	BMW
Model	R 1250 GS Adventure (2019)
Engine	Boxer twin, 1254 cc, air/oil-cooled, 4-stroke, ShiftCam
Maximum power	136 hp (100 kW) at 7750 rpm
Maximum torque	143 Nm at 6250 rpm
Gearbox	6-speed, manual
Final drive	Shaft drive
Frame	Steel tubular trellis
Front suspension	Telelever with D-ESA (electronically adjustable)
Rear suspension	Paralever with D-ESA (electronically adjustable)
Front brakes	Dual floating disc 305 mm, 4-piston calipers
Rear brakes	Single disc 276 mm, 2-piston caliper
ABS	BMW Integral ABS (partially integral), with optional ABS Pro
Traction control	ASC/DTC (depending on equipment)
Riding modes	Rain, Road, Dynamic, Enduro, Enduro Pro (optional)
Fuel tank	30 L (4 L reserve)
Fuel	Unleaded Super gasoline (max 15% ethanol)
Curb weight with full tank	268 kg (approximate)
Seat height	890 mm (adjustable)
Display	6.5-inch color TFT
Lighting	Full LED (daytime running lights, turn signals, tail light)
Comfort equipment	Keyless Ride, heated grips, cruise control, Hill Start Control (depending on version)
Security	Intelligent emergency call, tire pressure monitoring (RDC), anti-theft alarm (optional)
Routine maintenance	Oil change with filter, spark plugs, air filter, brake fluid every 2 years

Frequently Asked Questions - R 1250 GS Adventure (2019) BMW

How to activate the cruise control?

To activate the cruise control, use the toggle switch on the left handlebar. Press the corresponding button (speed symbol) to activate, then ride at the desired speed and press the SET button. The cruise control maintains the speed. You can adjust the speed with the +/- buttons.

What does the flashing ABS warning light mean?

The flashing ABS light indicates that the ABS self-diagnosis is not complete. This usually occurs at startup. Ride at a speed of at least 5 km/h to complete the diagnosis. If the light remains on continuously, the ABS is disabled or faulty.

How to adjust the riding mode?

Use the MODE button on the right handlebar. Press to scroll through the available modes: Rain, Road, Dynamic, etc. The selected mode is displayed on the TFT screen. Confirm your choice by releasing the button.

What is the fuel tank capacity?

The tank has a total capacity of approximately 30 liters, including 4 liters of reserve. Use unleaded super gasoline (max 15% ethanol) for optimal performance.

How to check the engine oil level?

The oil level is checked via the indicator on the engine casing (dipstick). Ensure the motorcycle is upright and the engine is warm. The level must be between the MIN and MAX marks. Use the electronic oil level check in the My Vehicle menu.

How to use the Hill Start Control?

Activate Hill Start Control by pressing the dedicated button (hill symbol) on the handlebar. Brake firmly and the system maintains brake pressure for a few seconds after releasing the lever, allowing you to start without rolling back. It automatically deactivates when you move forward.

How to pair a smartphone with the motorcycle?

In the Bluetooth menu of the TFT screen, select 'Pairing' and put your smartphone in discovery mode. The motorcycle's name appears, select it and confirm the displayed PIN. Once connected, you can use phone, music, and navigation.

How often should the R 1250 GS Adventure be serviced?

The maintenance intervals are indicated in the service schedule in the manual. Generally, a service is recommended every 10,000 km or once a year. Operations include oil change, air filter replacement, brake inspection, etc. Consult your BMW dealer.

How to replace the battery of the Keyless Ride key?

The Keyless Ride remote contains a battery. To replace it, open the key housing with a small screwdriver. Remove the old battery and insert a new CR2032 battery, respecting polarity. Close the housing. If the battery is low, a warning message appears.

What to do if the tire pressure warning light (RDC) comes on?

If the light turns on yellow, the pressure is in the borderline zone. Check the pressures with a gauge and adjust them to the specified values (2.5 bar front, 2.9 bar rear cold). If the light is red, stop immediately and check the tires. If necessary, contact a workshop.

USER MANUAL R 1250 GS Adventure (2019) BMW

Side profile of a silver BMW 2019 motorcycle with red accents, displayed against a plain background (no text or symbols on the motorcycle body)

Livret de bord

R 1250 GS Adventure

Barcode image with vertical black and white stripes, no visible human-readable text

Table des matières

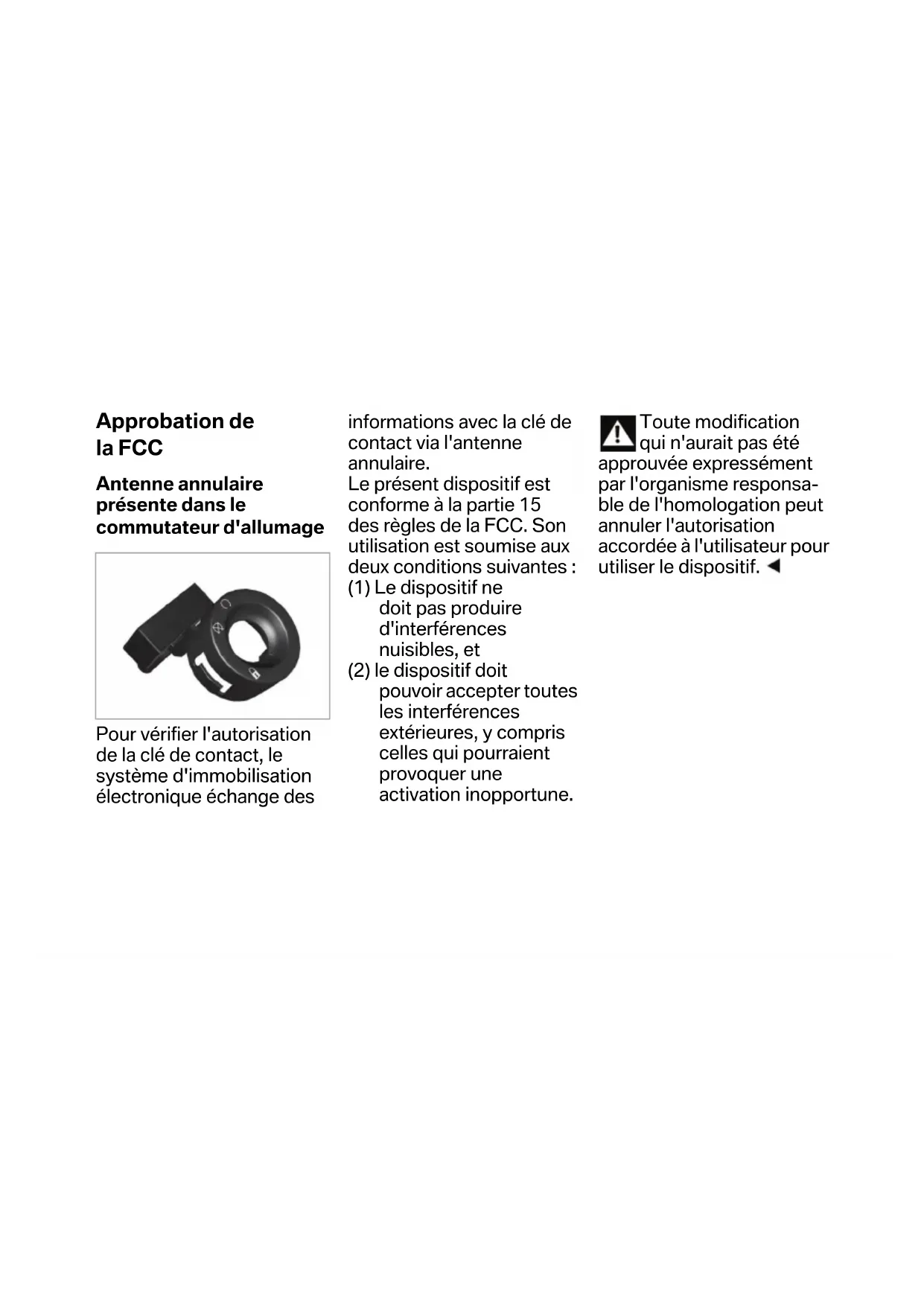

Certificates et homologations.

Mémoire de données

Labeled diagram of a BMW B50 motorcycle showing three key parts with numbered annotations.

Technical diagram of a mechanical assembly with numbered components for identification

Labeled diagram of a car dashboard control panel with numbered buttons and function keys

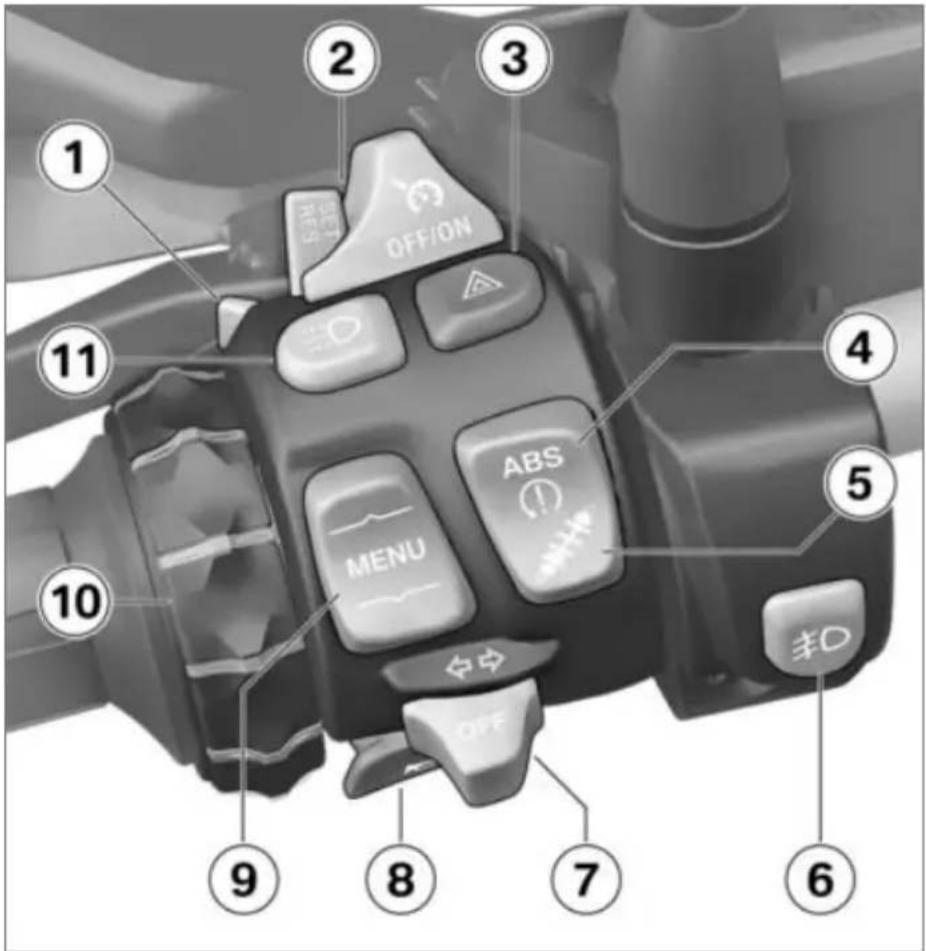

Commodo gauche

Labeled diagram of a camera control panel showing buttons for Start, Stop, and Motion, with numbered annotations pointing to key components.

Commodo droit

FONE ① C M O F ②

Diagram of a mechanical component with numbered parts labeled 1, 2, and 3

Diagram of a mechanical component with numbered parts and directional arrow indicating motion or movement

Close-up of a hand gripping a black brake lever with buttons and a numbered marker (1) on the side, no visible text or symbols.

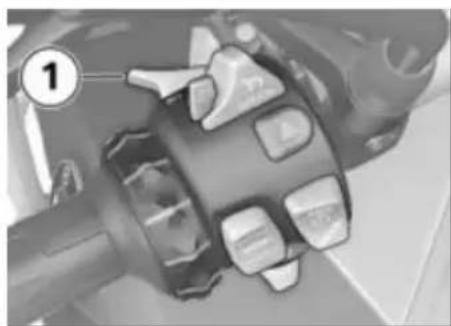

AVIS

Close-up of a mechanical component with no visible text or symbols

Close-up of a black brake switch with control buttons and a numbered indicator (1) on the right side, no readable text or symbols beyond the number.

Close-up of a hand gripping a brake lever with buttons and a labeled section (no readable text or symbols)

Close-up of a hand holding a brake switch with buttons and a numbered label (1), no readable text or symbols present.

Close-up of a mechanical brake lever with buttons and adjustment knobs (no visible text or symbols)

Close-up of a hand gripping a brake switch and grip (no visible text or symbols)

mon- er- ①

continue de clignoter.

Close-up of a mechanical device with labeled parts and numbered annotation '1'

Close-up of a mechanical device with labeled parts, no readable text or symbols present

Close-up of a mechanical switch or grip assembly with labeled component (1), no visible text or symbols beyond the number marker.

Close-up of a mechanical component with labeled parts, no visible text or symbols

Close-up of a mechanical component with a hand operating a lever, labeled with number 1 (no visible text or symbols)

Close-up of a mechanical lever mechanism with a numbered callout (1) pointing to the component, no visible text or symbols.

ATTENTION

Close-up mechanical assembly showing internal components and a numbered label (1) on the left side, no readable text or symbols present.

ATTENTION

Close-up of a black electrical connector with a labeled pin (1), no text or symbols present.

fa II edu at ①

Illustration of a device with a circular button and label (1), no readable text or symbols present.

Illustration of a device with a labeled button (1), no text or symbols present

Illustration of a camera lens with label pointing to the button (no text or symbols on the lens itself)

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Technical diagram of a vehicle's front compartment with numbered annotations indicating structural components

Mechanical component diagram showing a clamping mechanism with labeled part (1), no readable text or symbols present.

Diagram of a mechanical device with numbered parts and directional arrows indicating motion or flow

Diagram of a mechanical device with labeled parts, showing components and motion path

Diagram of a robotic hand with labeled parts, showing numbered callouts (1 and 2) and a downward arrow indicating motion or movement.

BMW Motorrad due Connected

1 FT 2 AEB

Close-up of a mechanical hand knob with directional arrows indicating movement or adjustment (no text or symbols visible)

Close-up of a hand operating a mechanical switch with directional arrows (no text or symbols visible)

Close-up of a mechanical component with directional arrows indicating movement or force (no text or symbols visible)

Close-up of a hand operating a mechanical control knob with directional arrows (no text or symbols visible)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or movement.

Close-up of a mechanical component with numbered callouts and directional arrows indicating motion or assembly.

Close-up of a black eyeshadow with a curved, oval-shaped lens and a long handle (no text or symbols visible)

Diagram showing mechanical assembly with numbered parts labeled 1 and 2

Relever le capuchon de protec-

Diagram of a robotic arm with labeled component (1), no readable text or symbols present

Close-up of a mechanical component with a tool inserted, no visible text or symbols

Close-up of a motorcycle's front wheel and dashboard (no visible text or symbols)

Mechanical tool with a labeled component (1) showing a handle and lever mechanism (no text or symbols beyond label)

Illustration of a hand gripping a small object with a downward arrow indicating compression or disassembly (no text or symbols)

Mechanical diagram showing two labeled components (1 and 2) with directional arrows indicating motion or movement.

Diagram illustrating a mechanical tool with labeled parts and directional arrows indicating motion or rotation.

Diagram illustrating automotive tool path with numbered annotations indicating movement and rotation steps

Diagram of car engine components with numbered labels indicating parts of the engine and battery

Diagram showing three labeled parts (1, 2, 3) of a mechanical or automotive component with connection points and components.

1 -10° 0 0 10°

Mechanical assembly diagram showing a linkage mechanism with labeled component 1 (no readable text or symbols)

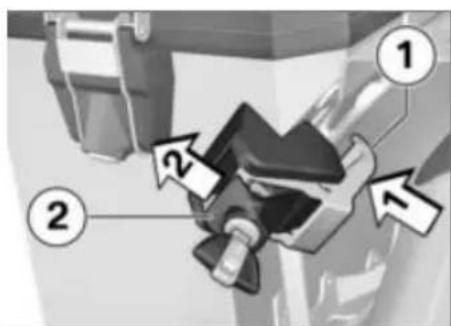

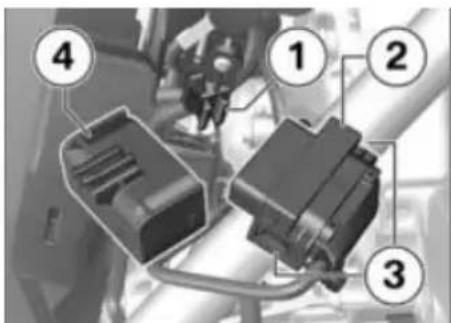

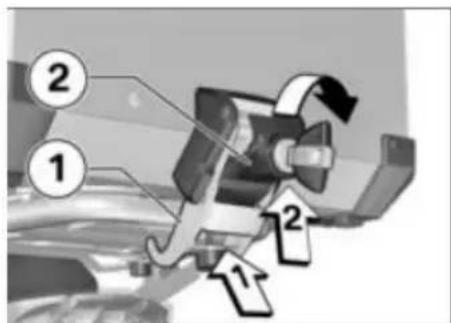

AVERTISSEMENT

Close-up of a mechanical device with a control knob and lever mechanism (no visible text or symbols)

Close-up of mechanical components with no visible text or symbols

AVIS

① ② ervoir

Cross-sectional view of a vehicle showing internal components and a labeled MAX (no text or symbols beyond label)

de ① re- f3

Close-up of a mechanical component with a labeled MAX indicator (no other text or symbols visible)

Black-and-white photo of a motorcycle on a vehicle chassis, no visible text or symbols

ATTENTION

Close-up of mechanical components including a tire and hoses, no visible text or symbols

ATTENTION

Composants coincés

Close-up of a motorcycle wheel assembly with visible tire and suspension components (no text or symbols)

Close-up of a mechanical tool kit with multiple cylindrical components and a spring-like component (no visible text or symbols)

Diagram of a mechanical device with numbered components labeled 1, 2, and 3

Mechanical assembly diagram showing two numbered components (1 and 2) with no visible text or symbols

Mechanical assembly diagram showing a wheel mounted on a wheeled platform with a bracket and arrow indicating motion (no text or symbols)

ATTENTION

Close-up of a mechanical component with numbered label (1) and no visible text or symbols

que as MAX de MIN

Technical diagram showing mechanical assembly with numbered components and an arrow indicating motion direction

Close-up mechanical assembly showing a brake caliper and suspension components (no visible text or symbols)

Cross-sectional view of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

Mechanical component with two vertical pins and a central arrow, no visible text or symbols

Close-up of a mechanical component with a numbered label (1) pointing to a specific part, no visible text or symbols beyond the number.

Mechanical assembly diagram showing suspension components and a numbered label (1) in the center, no readable text or symbols present.

Close-up of a car's side panel showing the wheel and seat, with part number 1 labeled (no text or symbols beyond label)

Diagram of a vehicle engine compartment with numbered parts labeled 1 and 2

Close-up of a BMW car's wheel and dashboard components (no visible text or symbols)

- Mettre le cache 1 en place. - Poser la vis 2.

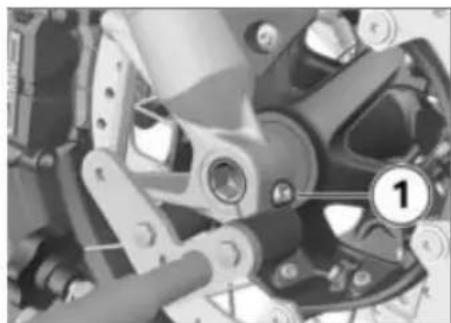

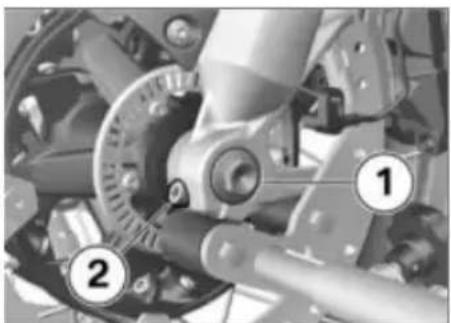

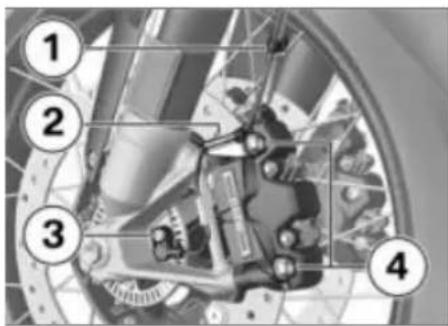

Pneus

Labeled mechanical diagram showing components of a bicycle wheel and brake system with numbered parts

Technical diagram of a mechanical component with numbered parts labeled 1, 2, and 3

Close-up mechanical assembly showing gears and levers with no visible text or symbols

Mechanical assembly diagram with numbered components and labeled parts

Close-up of mechanical components with numbered annotation (1) and hand interacting, no readable text or symbols present.

Mechanical assembly diagram showing a clamping mechanism with labeled component (1), no readable text or symbols present.

Mechanical assembly diagram showing a clamping mechanism with labeled component (1), no readable text or symbols present.

Close-up of mechanical components with a numbered label (1) indicating a specific part, no readable text or symbols present.

Mechanical assembly diagram showing two numbered components (1 and 2) with no visible text or symbols

3x 3x

Close-up of mechanical components with no visible text or symbols

Technical diagram of a bicycle wheel assembly with numbered parts labeled 1 to 4

Close-up of a tire assembly with a circular component and mechanical components (no visible text or symbols)

Close-up of a tire assembly with mechanical components and a numbered label (1) on the wheel (no readable text or symbols)

AVERTISSEMENT

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Close-up mechanical component with numbered label (1) and no visible text or symbols

Technical diagram of a mechanical assembly with numbered components, likely illustrating a gear or cam mechanism.

Close-up of a mechanical component with numbered callouts (1 and 2), no visible text or symbols.

Close-up of a mechanical component with numbered callouts (1 and 2), no visible text or symbols beyond labels

Mechanical assembly diagram showing a motor and gear components (no text or labels visible)

Close-up of a car's front bumper with numbered callouts (1 and 2) and an arrow pointing to the bumper area (no text or symbols on the car itself)

Technical diagram of a vehicle's front wheel assembly with numbered parts labeled 1 to 4

Close-up of a smooth, curved object with a numbered label pointing to the edge (no text or symbols on the object itself)

• Déposer la vis 1.

3D rendered image of a transparent plastic object with a spherical protrusion, possibly a lens or connector (no text or symbols visible)

Cross-sectional diagram of a jet engine component with labeled parts (1), showing internal structure without any text or symbols.

Cross-sectional diagram of a mechanical component with labeled part (1), showing internal structure without any text or symbols.

Illustration of a car hood with a spherical object inside, no text or symbols present

Close-up of a smooth, curved object with a labeled point '1' (no text or symbols on the object itself)

- Poser la vis 1.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

- Enlever le capuchon de protection 1.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Mechanical assembly diagram showing internal components with numbered labels (1 and 2), no readable text or symbols present.

Close-up of a mechanical assembly with visible gears and shafts (no text or symbols)

Close-up of a mechanical assembly with numbered component (1), no visible text or symbols

Close-up of a mechanical assembly with numbered component (1), no visible text or symbols

Mechanical assembly diagram showing a component with numbered parts (1 and 2), no visible text or symbols.

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance reference.

Close-up of a mechanical assembly with pipes and components (no visible text or symbols)

Mechanical assembly diagram showing internal components with an arrow and numbered marker (1), no readable text or symbols present.

Mechanical assembly diagram showing components like gears and springs (no text or labels visible)

1 50 A

Technical diagram showing mechanical assembly with numbered components and an arrow indicating a specific feature

Technical diagram of a mechanical assembly with numbered components labeled 2, 3, and 4

Close-up of a mechanical component with no visible text or symbols

Technical diagram of a mechanical assembly with numbered components labeled 1 to 4

Diagram of a vehicle seatbelt mechanism with numbered parts and directional arrows indicating motion or movement.

Open mechanical device with a numbered label pointing to the open lid (no text or symbols on the device itself)

Illustration of an open cylindrical container with a numbered label pointing to it (no text or symbols on the container itself)

Technical diagram showing two views of a mechanical component with numbered annotations (1 and 2), no readable text or symbols present.

Diagram of a mechanical component with numbered parts and directional arrows indicating assembly or movement.

Diagram of a mechanical assembly with numbered components, likely illustrating a valve or clamp mechanism.

Diagram of a mechanical assembly with numbered parts and directional arrows indicating motion or movement.

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Technical diagram showing two labeled components (1 and 2) of a mechanical assembly or component, with numbered annotations.

Diagram of a mechanical assembly with numbered components, likely illustrating a gear or cam mechanism.

Diagram of a vehicle's internal combustion engine with numbered components and directional arrows indicating flow or movement.

Diagram of a vehicle's internal components with numbered parts and directional arrows indicating movement or flow.

Diagram of a vehicle engine compartment with numbered parts and directional arrows indicating flow or movement.

Diagram showing mechanical components with numbered labels and directional arrows indicating movement or flow

confirmation de service. Si ce

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

11

Hd^2-

à air

□ □

Ring aerial in the ignition switch

Close-up of a black plastic mechanical component with no visible text or symbols

To verify the authorization of the ignition key, the electronic immobilizer exchanges information with the ignition key via the ring aerial.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Close-up of a black industrial component with circular and angular features (no visible text or symbols)

3D rendered image of a black and silver remote control device with a circular dial and control button (no text or symbols visible)

USA, Canada

Product name: BMW Keyless Ride ID Device

FCC ID: YGOHUF5750

IC: 4008C-HUF5750

Canada:

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

USA:

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

We declare under our responsibility that the product

BMW Keyless Ride ID Device (Model: HUF5750)

camplies with the appropriate essential requirements of the article 3 of the R&TIE and the other relevant provisions, when used for its intended purpose. Applied Standards:

1. Health and safety requirements contained in article 3 (1) a)

• EN 60950-1:2006+A11:2009+A1:2010+A12:2011; Information technology equipment- Safety

1. Protection requirements with respect to electromagnetic compatibility article 3 (1) b)

- EN 301 489-1 (V1 .9.2, 09/2011 ), Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements

- EN 301 489-3 (V1.4.1, 08/2002) Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services; Part 3: Specific conditions for short range devices (SRD) operating on frequencies between 9 kHz and 40 GHz

1. Means of the efficient use of the radio frequency spectrum article 3 (2)

- EN 300 220-1 & -2 (V2.4.1, 05/2012), electromagnetic compatibility and radio spectrum matters (ERM); Short range devices (SRD); Radio equipment tobe used in the 25 MHz to 1000 MHz frequency range with power levels ranging up to 500 mW;

Part 1: Technical characteristics and test methods.

Part 2: Harmonized EN covering essential requirements under article 3.2 of the R&TIE directive

The product is labeled with the CE marking: CE

Velbert, October 15 ^4 , 2013

Dr. Qie

Benjamin A. Müller

Product Development Systems

Car Access and Immobilization – Electronics

Steeger Straße 17, D-42551 Velbert

Certification Tire Pressure Control (TPC)

FCC ID: MRXBC54MA4

IC: 2546A-BC54MA4

FCC ID: MRXBC5A4

IC: 2546A-BC5A4

This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met.

Declaration of Conformity

Radio equipment TFT instrument cluster

For all Countries without EU

Technical information

BT operating frq. Range: 2402 – 2480 MHz

BT version: 4.2 (no BTLE)

BT output power: < 4 dBm

WLAN operating frq. Range: 2412 – 2462 MHz

WLAN standards: IEEE 802.11 b/g/n

WLAN output power: < 20 dBm

Manufacturer and Address

Manufacturer:

Robert Bosch Car Multimedia GmbH

Adress: Robert Bosch Str. 200,

31139 Hildesheim, GERMANY

Turkey

This device complies with Industry Canada's licence-exempt RSSs and part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

(This telecommunication equipments is in compliance with NTC requirements)

United States (USA)

This device complies with Industry Canada's licence-exempt RSSs and part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Black and white barcode image with vertical lines and a small number 'n' in the center.
