USER MANUAL CA05073 V7

Line drawing of a multi-tiered rack-mounted server unit with wheels and ventilation slots (no text or symbols)

CHGCT30-1E

CHGCT30-1K

7SEVEN

1 Safety and Warnings
2 Getting Started

Package Includes

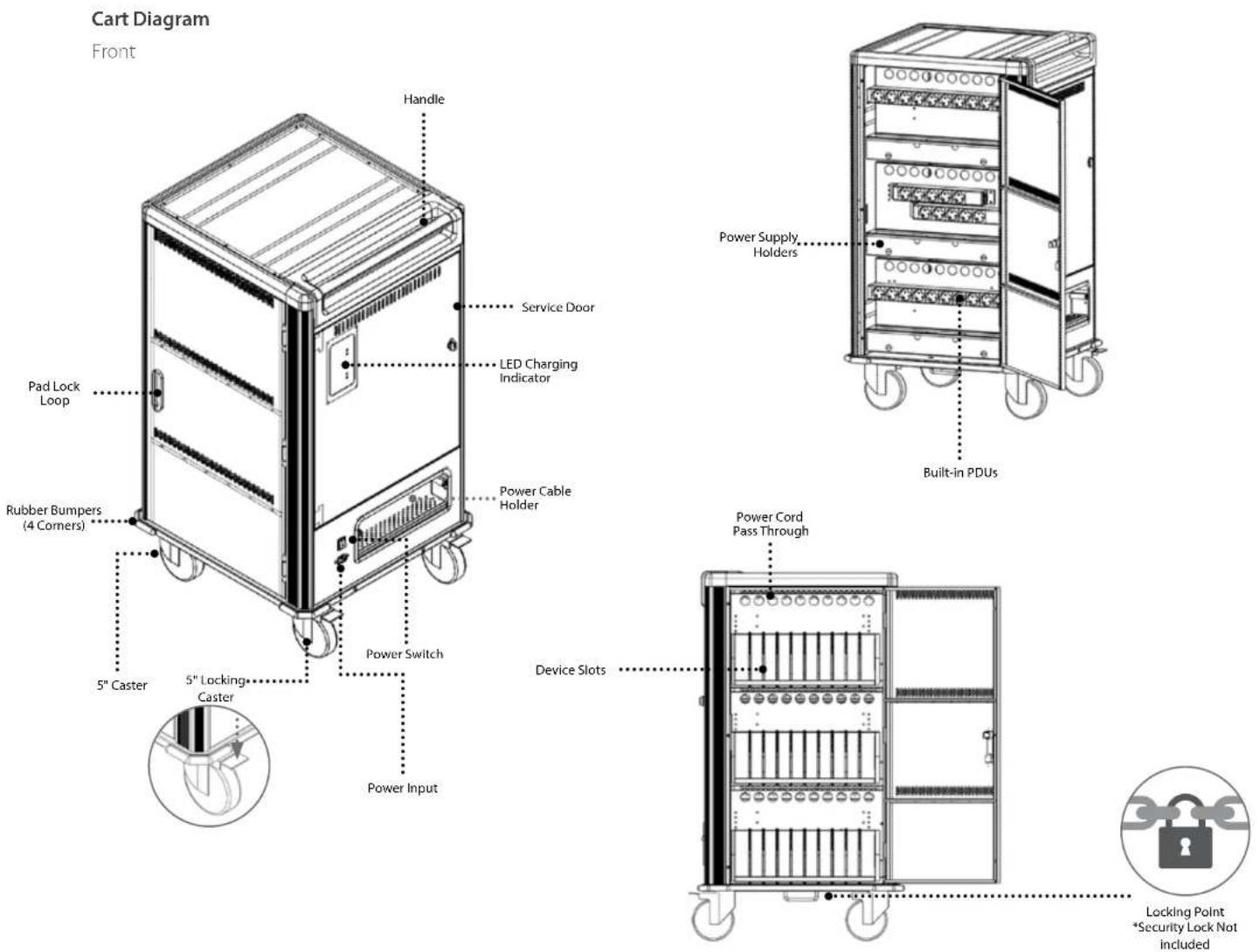

Cart Diagram

Unboxing

Locking the Cart

3 Setup

Plugging in Devices

Advanced Features

4 Technical Specs

CAUTION

• To reduce risk of electric shock only use this product indoors.
- This product is heavy. Use caution handling and keep upright. Do not attempt to unpack or move it unassisted.
- Use caution when unpacking and save the packing material for later use. Scratches and other damage caused by mishandling is not covered by the warranty.
- Do not allow anyone to sit, stand, or climb on this product.
- Do not block the ventilation holes used for air circulation.
- Do not overload heavy objects on or inside this product.
- Before moving this product, disconnect the power from the wall outlet.
- While moving this product, make sure the power cord is secured.
- This product should always be used by adults or with adult supervision.
- Never unplug this product from the outlet when hands are wet or by pulling the power cord.
- Do not use an extension cord in conjunction with this product.
- Connection to any other type of receptacle other than a two-pole, three-wire grounded receptacle may result in shock hazard as well as violate local electrical codes.
- In the event of an emergency, disconnect the power cord from the AC power outlet.
- Do not plug the input of this product into its own output.
- Do not attach an additional extension cord, power strip, or surge protector to this product.
- Do not attach non-computer-related items, such as medical equipment, life-support equipment, microwave ovens, or vacuum cleaners to this product.
- Place cables in such a way that they won't be pulled or snagged, and no one can step on or trip over them.
- Do not attempt to disassemble this product. This product contains no user replaceable parts. Only factory service personnel may perform repairs.
- If this product is misused, incorrectly operated or repaired, the warranty will be void.
- Do not remove plugs from outlets in use labeled "Do not remove" with a red sticker. These are required for the charging system and auxiliary outlets of the cart to function.

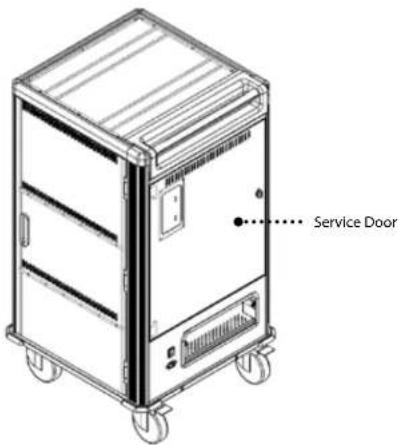

• Service Door - Please open only if requested by V7 Technical Support.

Service Door

Package includes

• AC Power Cord
• Keys

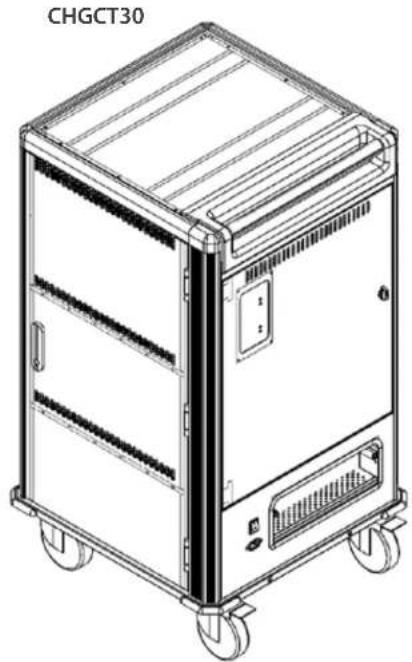

Line drawing of a CHGCT30 air conditioner unit with wheels and internal compartments (no text or symbols on the device itself)

Simple line drawing of a black cable with two terminal connectors (no text or symbols)

AC Power Cord Keys

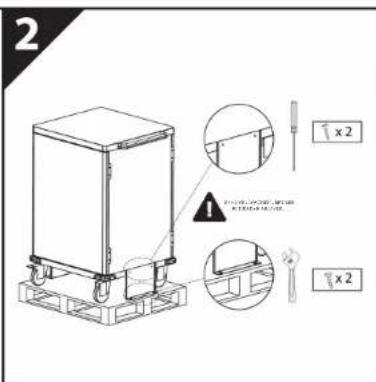

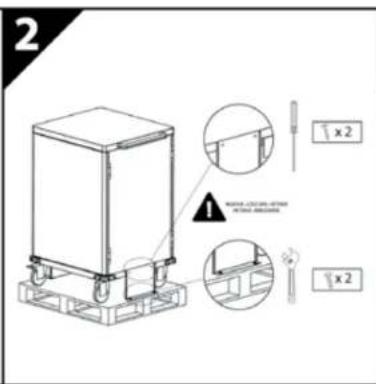

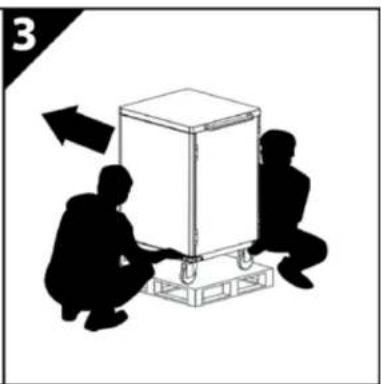

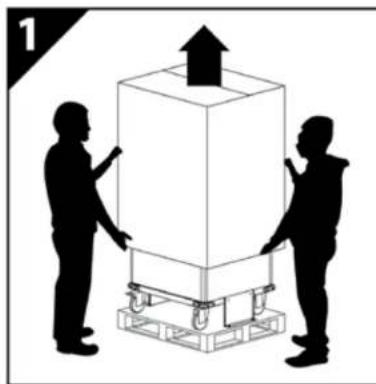

Remove from pallet

Two silhouettes of two people pushing a large box with an upward arrow, no text or symbols present

2 x 2 WATER-CAUTIONS-TEMPLE TEMPLE AMOUNTS x 2

Silhouettes of two people handling a large box on a platform, with an arrow indicating motion (no text or symbols)

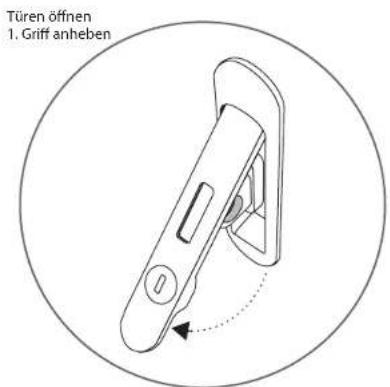

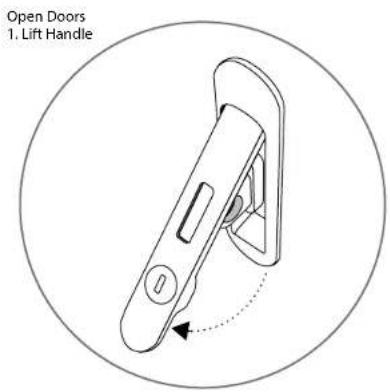

Open Doors 1. Lift Handle

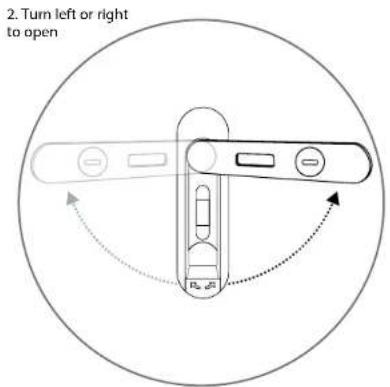

2. Turn left or right to open

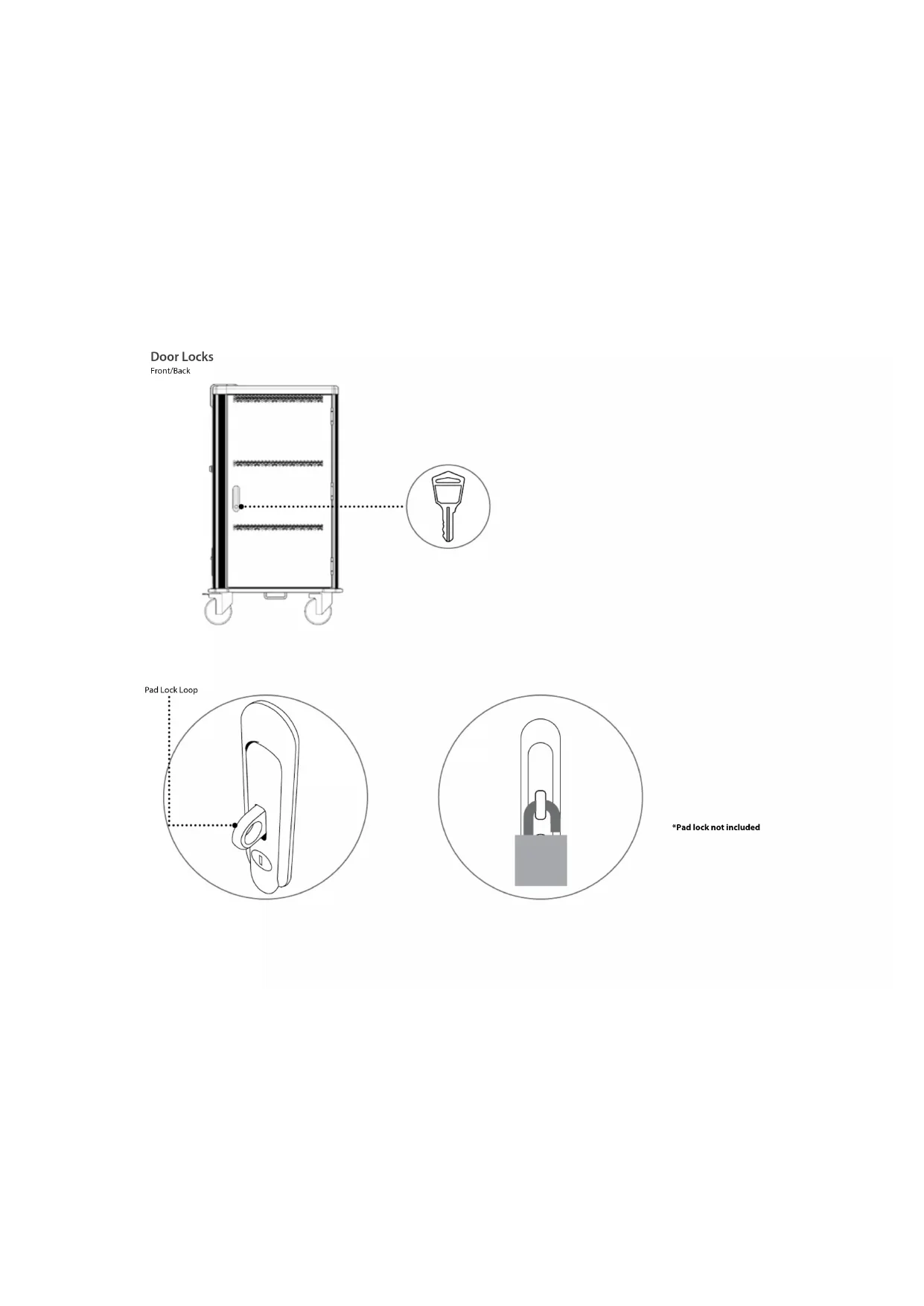

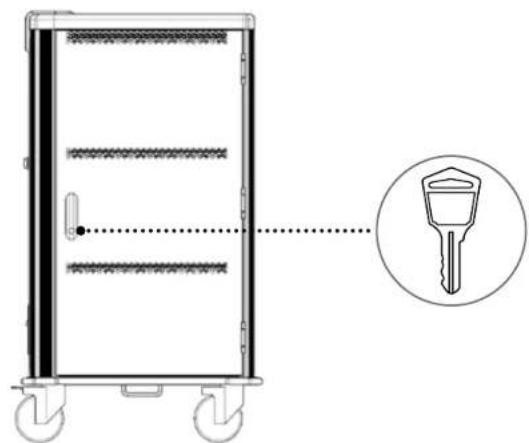

Door Locks
Front/Back

Diagram of a mechanical device with wheels and a key icon, no text or symbols present

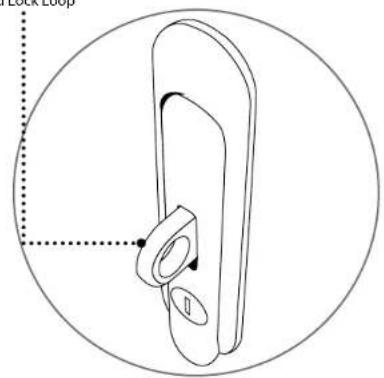

Pad Lock Loop

Line drawing of a handheld device with a circular outline and dotted line indicating a measurement or alignment point (no text or symbols)

Simple line drawing of a paperclip with a handle, enclosed in a circle (no text or symbols)

*Pad lock not included

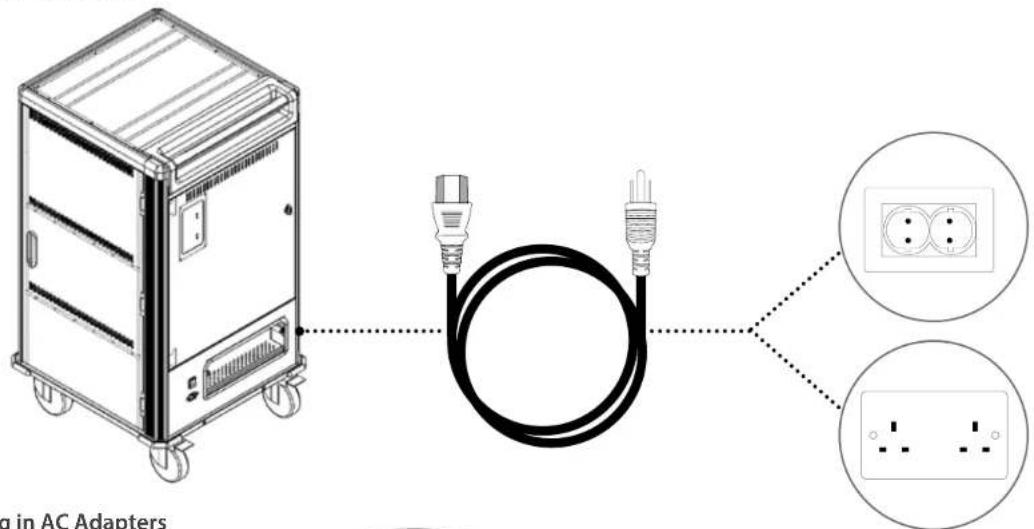

1. Plug cart into outlet

g in AC Adapters

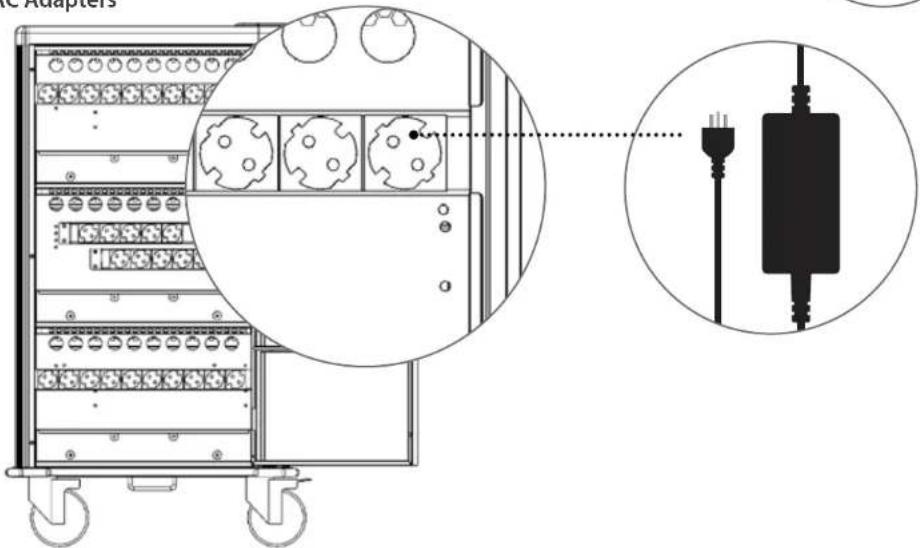

1. Plug in AC Adapters

AC Adapters 12/06/2017 12/06/2017 12/06/2017 12/06/2017 12/06/2017 12/06/2017 12/06/2017 12/06/2017 12/06/2017 12/06/2017

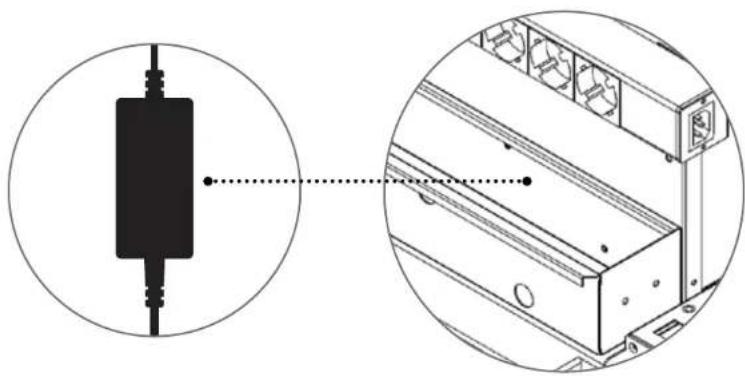

1. Place adapters into power supply holders

Technical diagram showing a black rectangular component and its close-up view of an electrical enclosure (no text or symbols)

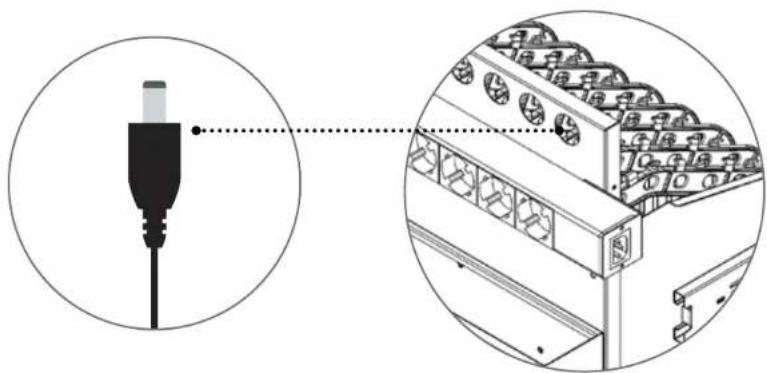

1. Insert the adapters through the pass through holes

Diagram showing a plug inserted into an electrical terminal block, with no visible text or symbols.

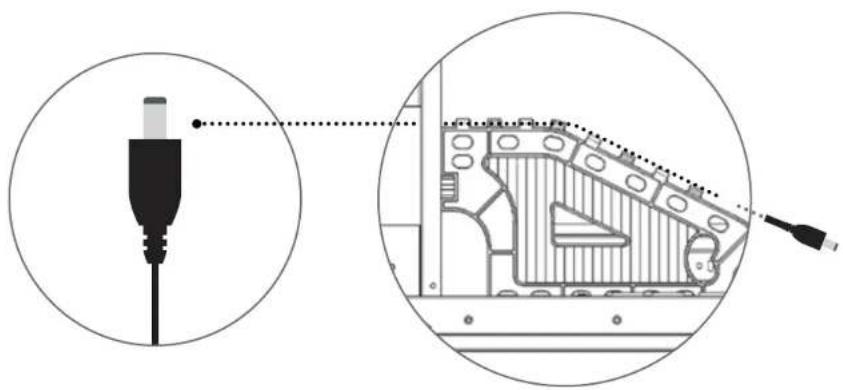

1. Place the adapter wires on the cable holder dividers

Technical diagram showing a plug inserted into a mechanical housing with a close-up view of the internal structure (no text or symbols present)

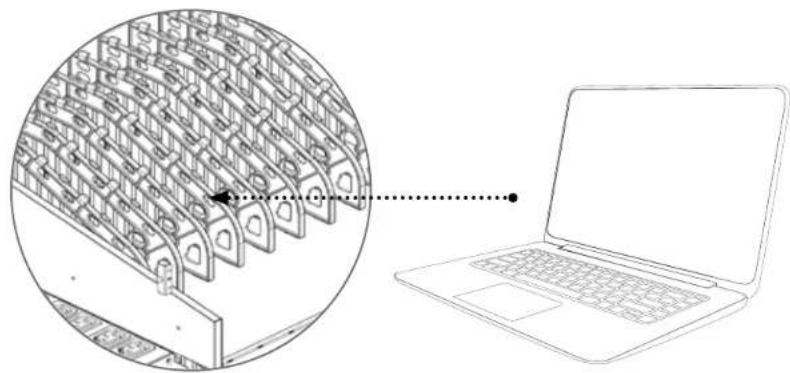

1. Place the devices in the dividers

Line drawing of a laptop with an inset showing a grid-patterned mechanical component (no text or symbols)

Charging System

Charging System

Charging all of your devices at one time can overload a typical circuit. V7 Charge Carts are equipped with an intelligent timing device that automatically switches the AC power supply from one half of the device outlets to the other to help protect against overload.

The charging system will provide power to the first half of the outlets for 15 minutes. When that time expires, the cart will change power to the other set, and continue to alternate sides. Once the total current is less than 14 amps, it will power all the outlets at once.

The LED indicator on the outside of the cart will show you which set is currently charging.

Charging System Bank Sensor Intelligent
How it Charges	Cycle charging between 2 groups. When total current is less than 14a, full charging starts
LED Indicator	Red (On): ChargingOff: Not Charging
Time to Charge 36 Computers 4.5 hours
Cart Switches to Full Charging After 6 cycles (~3 hours)

The LED indicator will illuminate red when charging

TECHNICAL SPECS

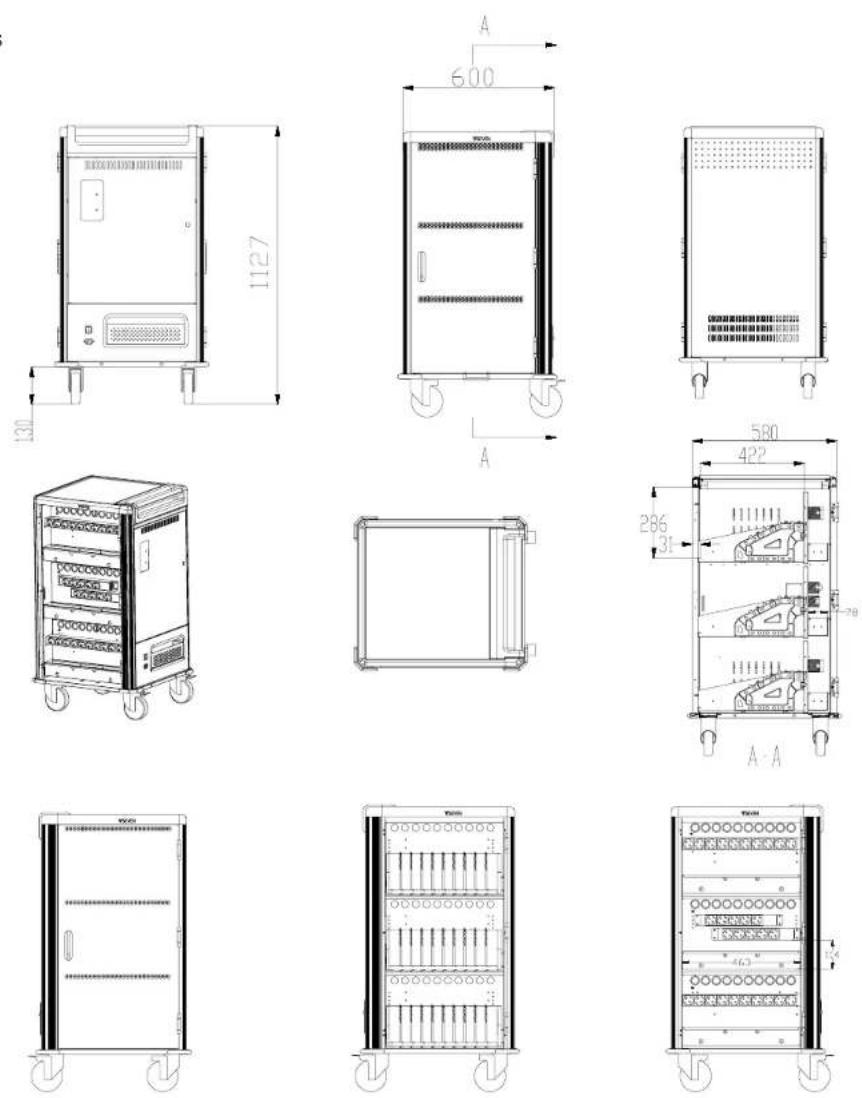

Cart Dimensions

CHGCT30

Color Black and Dark Gray
Material I high-grade 18 gauge cold rolled steel
Numbered Device Spaces 30
Organization and convenience F	flexible device dividers with cable channels and numbered device slots, numbered power adapter slots with cable management, recessed push handle
Warranty 5 Year
Package Contents Charging Cart, 6 ft (1.83 m) Power Cord, Manual
Input Voltage 230VAC, 15A, 60HZ
Output Voltage 230VAC, 15A, 60HZ
Charging System Intelligent Charging
Rolling Casters size 5 in (12.7 cm)
Product Dimensions 31.89 x 25.64 x 42.52 in (810 x 652 x 1080 mm)
Product Weight 200.62 lbs (91 kg)
Package Size 33.27 x 29.61 x 50.08 in (845 x 752 x 12/2 mm)
Package Weight	240.3 lbs (109 kg)
Device slot dimensions	16.61 x 1.38 x 11.25 in (422 x 35 x 286 mm)
Power adapter slot dimensions	3.07x 18.22 x 4.48 in (78 x 463 x 114mm)
Safety & Compliance	ROHS, CF approved power distribution units
Environment*	"Operating: -10°C to 40°C Humidity: 20% to 80% RHStorage: -40°C to +60°C Humidity: 20% to 90% RH"

*Note: For this charge cart only. Check the environment specifications of the devices you are storing.

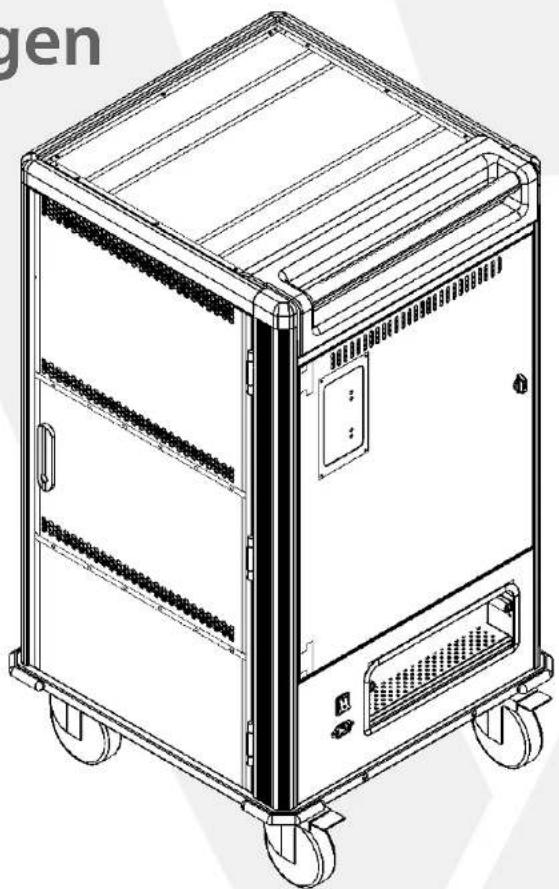

Ladewagen

Line drawing of a multi-tiered industrial control cabinet with wheels and ventilation slots (no text or symbols)

CHGCT30-1E

CHGCT30-1K

7SEVEN

Line drawing of a CHGCT30 industrial control cabinet with wheels and ventilation slots (no text or symbols on the device itself)

Coiled black cable with two connectors (no text or symbols visible)

Two silhouettes of two people pushing a large box with an upward arrow, no text or symbols present

2 x2 x2

Two silhouettes of two people handling a large box on a platform, with an arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with wheels and a key icon (no text or symbols)

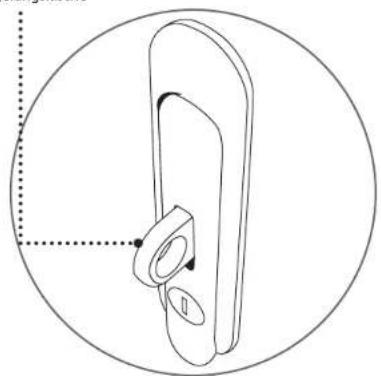

Verriegelungslasche

Line drawing of a mechanical component with a circular outline and dotted line indicating dimension (no text or symbols)

Simple line drawing of a paperclip with a handle, enclosed in a circle (no text or symbols)

Technical diagram showing a black rectangular component and its close-up of an electrical enclosure (no text or symbols)

Diagram showing a plug inserted into a socket and its internal wiring, with no visible text or symbols.

Technical diagram showing a plug inserted into a device with an internal structure and a close-up view of the component (no text or symbols present)

Line drawing of a laptop connected to a grid-patterned rack structure, with an inset magnified view showing the rack layout (no text or symbols)

Ladesystem

Ladesystem

Line drawing of a multi-tiered industrial control cabinet with wheels and ventilation slots (no text or symbols)

CHGCT30-1E
CHGCT30-1K

Assistance

Contenu du paquet

Line drawing of a CHGCT30 industrial control cabinet with wheels and ventilation slots (no text or symbols on the device itself)

Coiled black cable with two connectors (no text or symbols visible)

Two silhouettes of two people pushing a large box with an upward arrow, no text or symbols present

2 x2 x2

Two silhouettes of two people handling a large box on a platform, with an arrow indicating motion (no text or symbols)

Line drawing of a mechanical device with a circular outline and dotted arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical device with wheels and a key icon (no text or symbols)

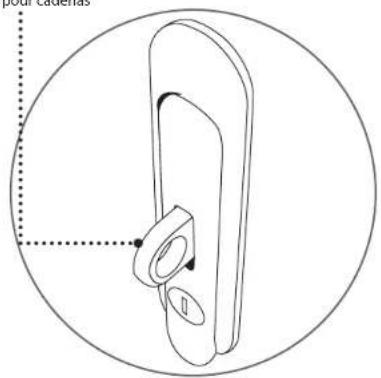

Anneau pour cadenas

Line drawing of a mechanical component with a circular outline and dotted line indicating a reference point (no text or symbols)

Simple line drawing of a paperclip with a handle, enclosed in a circle (no text or symbols)

*Cadenas non inclus

Technical diagram showing a black rectangular component and its close-up of an electrical enclosure (no text or symbols)

Diagram showing a plug inserted into a socket and its internal wiring, with no visible text or symbols.

Technical diagram showing a plug inserted into a device with an internal structure and a close-up view of the component (no text or symbols present)

Line drawing of a laptop connected to a grid-patterned rack, with an inset magnified view showing the rack structure (no text or symbols)

Système de charge

Système de charge

Line drawing of a multi-compartment electronic device with wheels and internal compartments (no text or symbols)

CHGCT30-1E
CHGCT30-1K

Line drawing of a CHGCT30 industrial control cabinet with wheels and ventilation slots (no text or symbols on the device itself)

Coiled black cable with two connectors (no text or symbols visible)

Two silhouettes of two people pushing a large box with an upward arrow, no text or symbols present

2 x2 x2

Two silhouettes of two people handling a large box on a platform, with an arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with wheels and a key icon (no text or symbols)

Line drawing of a mechanical component with a circular outline and dotted line indicating alignment (no text or symbols)

Simple line drawing of a paperclip inside a circle (no text or symbols)

Diagram showing a server rack connected to a cable with two socket outlets, illustrating electrical connection or wiring setup.

Technical diagram showing a black rectangular component and its close-up of an electrical enclosure (no text or symbols)

Diagram showing a plug inserted into a socket and its internal circuit board with switches (no text or symbols present)

Technical diagram showing a plug inserted into a housing with an inset close-up of its internal structure (no text or symbols)

Line drawing of a laptop connected to a grid-patterned rack structure, with an inset magnified view showing the rack layout (no text or symbols)

Sistema de carga

Sistema de carga

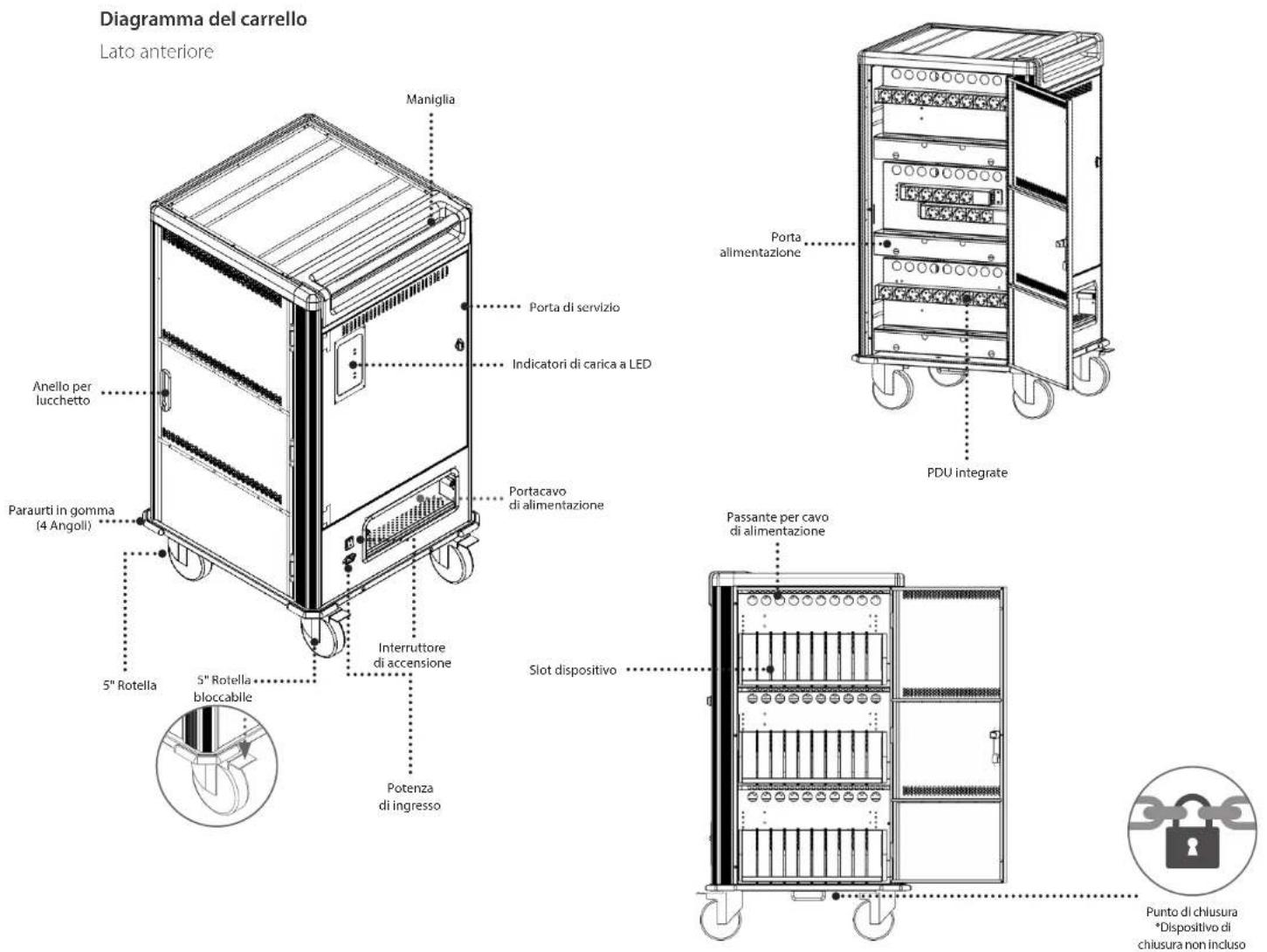

Line drawing of a modular electronic device with wheels and internal compartments (no text or symbols)

CHGCT30-1E

CHGCT30-1K

7SEVEN

Line drawing of a CHGCT30 industrial control cabinet with wheels and ventilation slots (no text or symbols on the device itself)

Coiled black cable with two plug connectors, labeled 'Cavo di alimentazione CA Chiavi' at bottom (no other text or symbols)

Two silhouettes of two people pushing a large box with an upward arrow, no text or symbols present

2 x2 x2

Two silhouettes of two people handling a large box on a platform, with an arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with wheels and a key icon (no text or symbols)

Line drawing of a handheld device with a circular outline and dotted line indicating alignment (no text or symbols)

Simple line drawing of a paperclip inside a circle (no text or symbols)

Technical diagram showing a black rectangular component and its close-up view of an electrical enclosure (no text or symbols)

Diagram showing a plug inserted into a socket and its internal wiring, with no visible text or symbols.

Technical diagram showing a plug inserted into a device with an internal structure and a close-up view of the component (no text or symbols present)

Line drawing of a laptop connected to a grid-patterned rack structure, with an inset magnified view showing the rack layout (no text or symbols)

Sistema di carica

Sistema di carica

English: 5 Year Limited Warranty

V7 Limited Manufacturer's Warranty covers this Product against defects in materials or workmanship from the date of purchase for a period of 60 months for parts and labor. Liability under this limited warranty shall in no event exceed the cost of replacement or the original cost of the product at the time of purchase. In the event of product discontinuance or unavailability wherein failure has occurred the product shall, at the sole discretion of Manufacturer, be replaced to the first purchaser with a substantially similar product of equal or lesser value or the first purchaser shall be provided with a refund equal to the original lie first purchaser purchase price. This limited warranty does not cover the repair of cracked, scratched, broken or modified plastic or other cosmetic damage or parts that have been altered, defaced or removed. Also, it does not apply to repairs or replacement necessitated by any cause beyond the control of the Manufacturer or a servant or agent of the Manufacturer including, but not limited to, any malfunction, defects or failures which in the opinion of Manufacturer were caused by or resulting from unauthorized service or parts, improper maintenance, operation contrary to furnished instructions, shipping or transit accidents, modification or repair by the user, abuse, misuse, neglect, accident, fire, flood, or other acts of God, incorrect line voltage or normal wear and tear, or which did not exist at the time when the Product was purchased. This limited warranty does not apply to damage that occurs during unpacking, setup, or installation; removal of the product for repair; re-installation of the product after repair; or shipping cost of the product for any purpose. There are no other expressed warranties, whether written or oral, other than this printed limited warranty. All implied warranties, including without limitation the implied warranties or merchantability or fitness for a particular purpose, are limited to the durations of this limited warranty. In no event shall V7 be liable for incidental or consequential damages of any nature whatsoever, including but not limited to lost profit or commercial loss, to the full extent those damages can be disclaimed by law. Some countries do not allow the exclusion or limitation of liability arising from implied warranties, or limitation of the duration of implied warranties, so the preceding limitations or exclusions may not apply to all purchasers. This limited warranty is subject to the laws of the relevant jurisdiction, being the country where the product is originally purchased. This limited warranty shall only apply to the extent permitted by applicable national legislation governing the sale of consumer goods. The rights and remedies that consumers enjoy under such consumer protection laws shall not be limited. This warranty is valid only in the country where the product is originally purchased. Additional information can be found at www.V7-world.com.

You may execute this warranty where you purchased in accordance with the exchange policy of the establishment. At any time thereafter during the term of this warranty, please refer to the authorized distributor of your jurisdiction.

English: 5 Year Limited Warranty

Warranty provider. This warranty is provided by V7/Ingram Micro Pty Ltd, 61 Dunning Ave, Rosebery, NSW 2018, Australia.

V7 Limited Manufacturer's Warranty, V7 warrants that this Product shall be free from defects in material and workmanship from the date of purchase for a period of twenty-four (24) months for parts and labor. This Product warranty is non transferable and is limited to the original purchaser. This warranty is in addition to the guarantees that cannot be excluded under the Australian Consumer Law and besides such Australian Consumer Law guarantees, there are no other expressed warranties given by V7, whether written or oral, other than this printed Product warranty. How to Obtain Warranty Support. Before submitting a warranty claim, we recommend you visit the support section at www.v7-world.com for technical assistance. Valid warranty claims are generally processed through the point of purchase during the first thirty (30) days after purchase; however, this period of time may vary depending on where you purchased your product – please check with V7 or the retailer where you purchased your product for details. Warranty claims that cannot be processed through the point of purchase and any other product related questions should be addressed directly to V7, as follows:

V7/Ingram Micro Pty Ltd

61 Dunning Ave, Rosebery, NSW 2018, Australia

Email: [e-mail]

Telephone: [phone]

URL: www.v7-world.com

To make a claim under this warranty you should return the Product to the place of purchase or to V7 with proof of original purchase such as a copy of the sales receipt or dated Itemized receipt. Any expense of claiming under this warranty will be borne by you.

Your consumer rights. The Benefits V7 gives you in this Product warranty are in addition to and do not detract from any rights and remedies that you may have under Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This Product warranty is not intended to: (1) change or exclude any statutory consumer rights that cannot be lawfully changed or excluded; or (2) limit or exclude any right you have against the person who sold the V7 product to you if that person has breached their sale contract with you. V7 provides no warranty against defects beyond the rights given to you under this Product warranty and which are available to you under the Australian Consumer Law.

Remedies. If you make a valid claim under this warranty during the warranty period, V7 will at its option; (1) repair or replace the product; or (2) refund the price paid. Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. Repair of the goods may result in loss of data contained in the goods and V7 takes no responsibility for the loss of such data. If V7 replaces your hardware product, this warranty will be extended to cover the replacement product for the remainder of the original warranty period or thirty (30) days from the date of replacement, whichever is longer.

Exclusions. This warranty does not cover any defects, problems, damage or failures, which in the opinion of V7 resulted from: (1) accident, abuse, misuse, neglect, misapplication, fire, flood or other acts of God or any unauthorized repair, service, modification or disassembly; (2) Improper operation or maintenance, usage not in accordance with product instructions or connection to improper voltage supply; (3) use of consumables, such as replacement batteries, not supplied by V7; (4) operation contrary to furnished instructions, (5) shipping or transit accidents, (6) normal wear and tear; (7) which did not exist at the time when the Product was purchased; or (8) scratched or modified plastic, or other cosmetic damage; or (9) parts that have been altered, defaced or removed. This Product warranty does not apply to: (1) damage that occurs during unpacking, setup, or installation; (2) removal of the product for repair; (3) reinstallation of the product after repair, or (4) shipping cost of the product for any purpose.

USA

Ingram Micro Inc.

3351 Michelson Dr. Suite 100

Irvine, CA 92612, USA

Canada

Ingram Micro, LP Canada

5.5 Standish Court

Mississauga, ON, L5R 4A1, Canada

Mexico

Ingram Micro Mexico, S.A. de C.V.

78 Apollo Drive, Albany

Auckland 0642, New Zealand

India

Ingram Micro India Limited

Godrej IT Park, B Block, 5th Floor

Pirojsahanagar, L.B.S. Road,

Vikhroli (West), Mumbai-400 079, India

Australia

Ingram Micro Pty Ltd

61 Dunning Ave, Rosebery

NSW 2019, Australia

Brazil

Ingram Micro Brasil Ltda

Av. Francisco Matarazzo, 1500 - Tome NY

Sao Paulo, SP 05001-100, Brazil

Hong Kong

Ingram Micro (China) Limited

Room 1205-18, 12/F, Tower 1, Millennium City,

388 Kwun Tong Road, Kowloon, Hong Kong

Model/ Modelo/ Modèle/Modell/Modello/Model/Modelo :

Date of purchase/Fecha de compra/ Date d'achat/Kaufdatum/Data di acquisto/Aankoop-datum/Data de compra:

CE

English	Herby, Ingram Micro Pan Europe GmbH, Munich, Germany declare under our sole responsibility that the Information Technology Equipment products are fully compliant with the essential requirements and other relative provisions set out in the Council Directive on the Approximation of the Laws of the Member States relating to EMC (2014/30/EU) and RoHS (2011/65/EU).
Espanol	Por la presente, Ingram Micro Pan Europe GmbH, Munich, Alemania, declara bajo nuestra sola responsabilidad que los productos equipo de tecnologia de la Información cumplen plenamente los requisitos esenciales y otras provisiones relativas detalladas en la Directiva del Consejo relativa a la aproximación de las legislaciones de los Estados miembros en materia de EMC (2014/30/EU y RoHS (2011/65/EU).
Français	Par les présentes, Ingram Micro Pan Europe GmbH, Munich, Allemagne, déclare sous sa seule responsabilité que les produits d'équipements issus de la technologie de l'information sont totalement conformes aux imperatifs essentiels et aux autres conditions relatives définis dans la Directive du Consoil sur la rapprochomont des Kgalations des pays membres se rapportant EMC (2014/30/EU) et RoHS (2011/65/EU).
Deutsch	Hiermit erklärt Ingram Micro Pan Europe GmbH, München, Deutschland unter alleiniger Verantwortung, dass die Informationstechnologiegerät- Produkte mit den wesentlichen Voraussetzungen und sonstigen relativen Bestimmungen, die in der rlichtlinie des Rates zur Angleichung der Rechtsworschriften der Mitgliedraten in Bezug auf EMC (2014/30/EU) und RoHS (2011/65/EU) enthalten sind, vollständig konform sind.
Italiano	La Ingram Micro Pan Europe GmbH di Monaco di Baviera, Germania, con la presente dichiara sotto sua exclusiva responsabilità che i prodotti di Tecnologia dell'informazione sono interamente conformi ai requisiti essenziali e alle altre disposizioni relative definite nella Diretiva consiliare sull'Approssimazione delle leggi dicoli Stati Membri che regolamentano EMC (2014/30/EU e RoHS (2011/65/EU).

www.V7world.com
