USER MANUAL CHGCT361E V7

Line drawing of a portable electronic device with wheels and control panel (no text or symbols)

CHGCT36-1E

CHGCT36-1K

7SEVEN

1 Getting Started

Package Includes

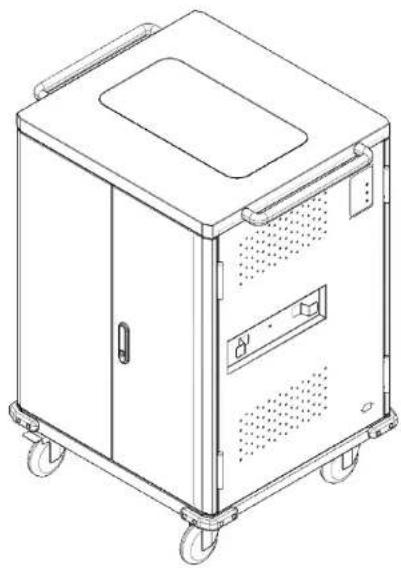

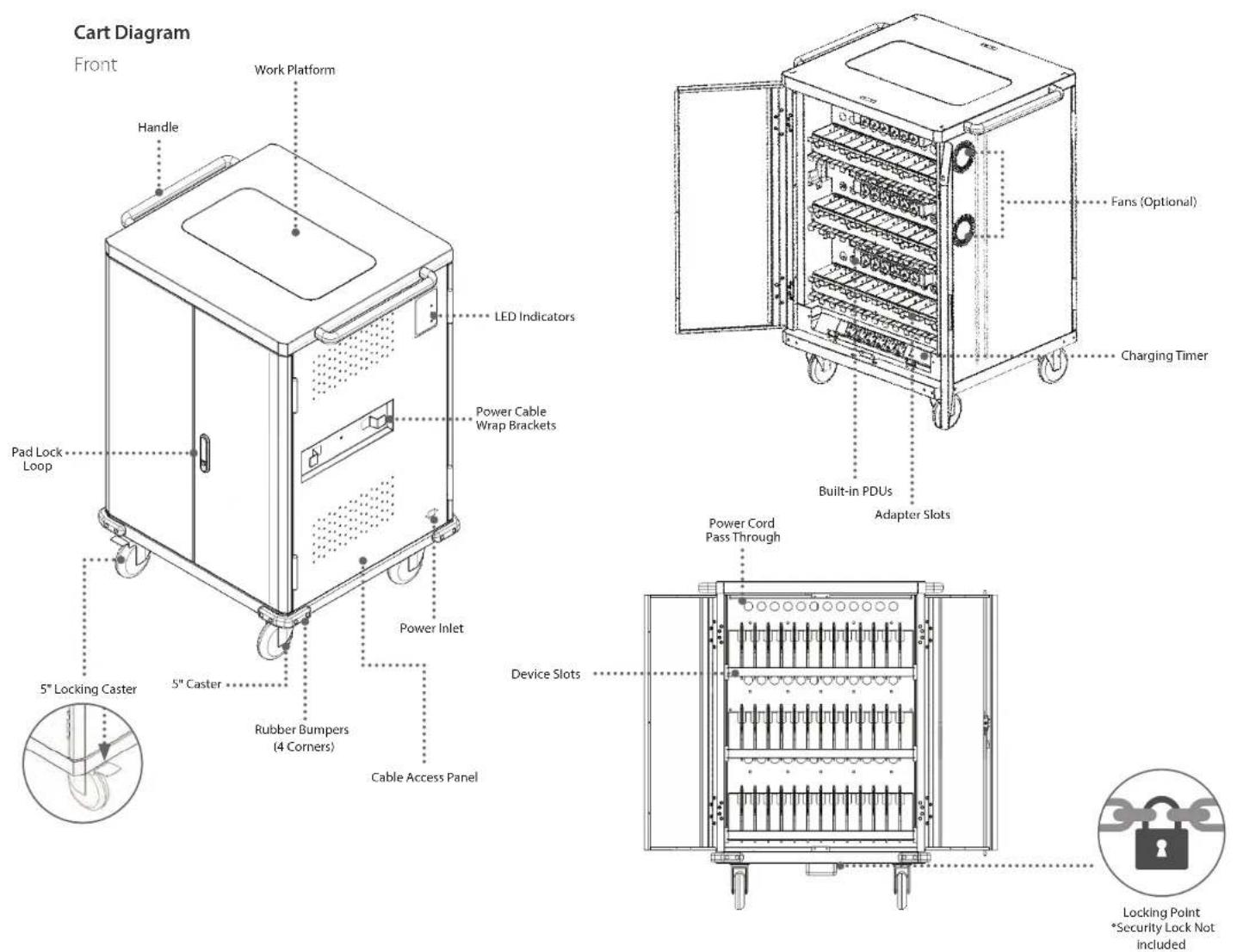

Cart Diagram

Unboxing

Locking the Cart

2 Setup

Plugging in Devices

Advanced Features

3 Technical Specs

4 Safety and Warnings

Package includes

• AC Power Cord
• Keys

CHGCT36

Line drawing of a modular electronic device with wheels and a top cover (no text or symbols)

Coiled black cable with two metallic connectors (no text or symbols visible)

AC Power Cord Keys

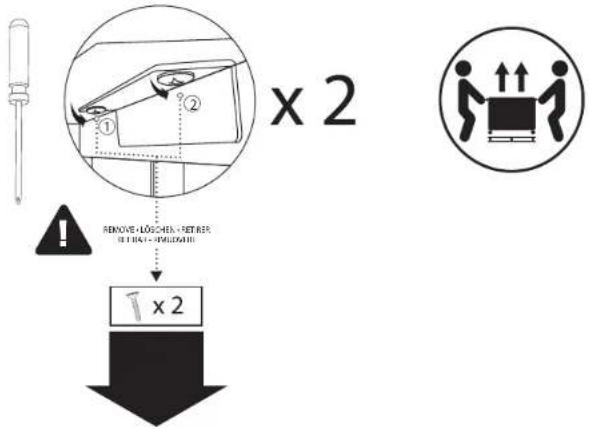

Remove from pallet

x 2 REMOVE LÜSCHEN - RETIREN SETTA - POMOZAHI x 2

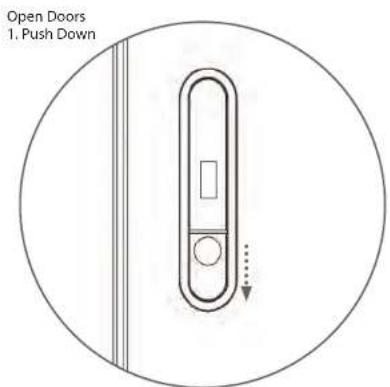

Open Doors 1. Push Down

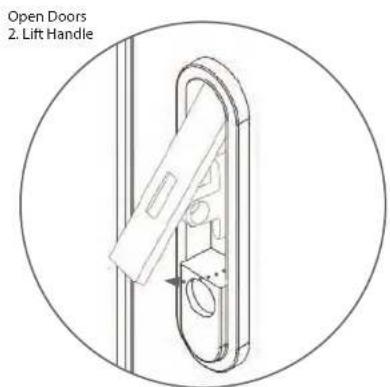

Open Doors 2. Lift Handle

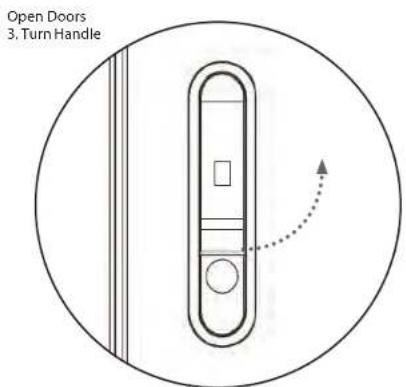

Open Doors 3, Turn Handle

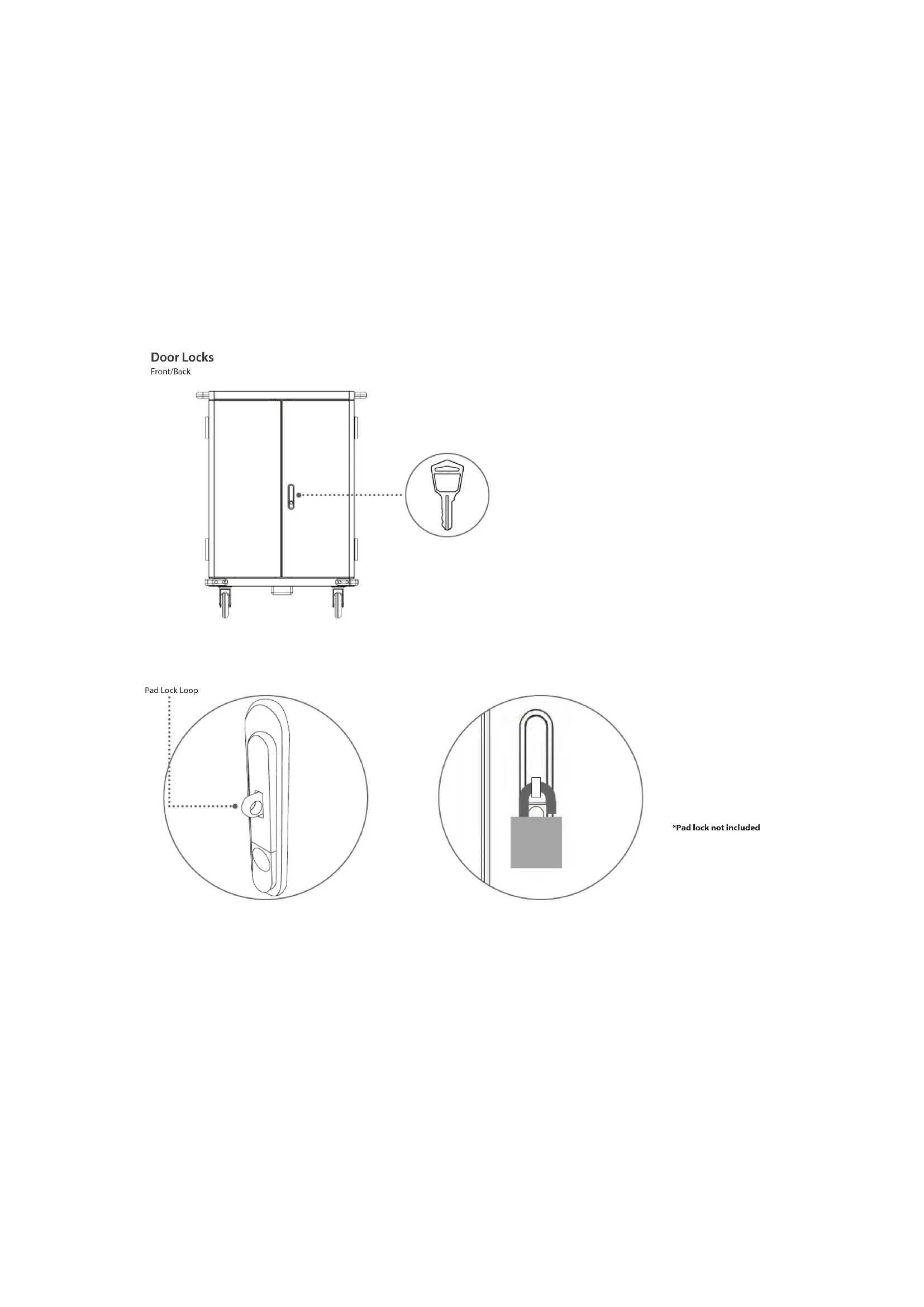

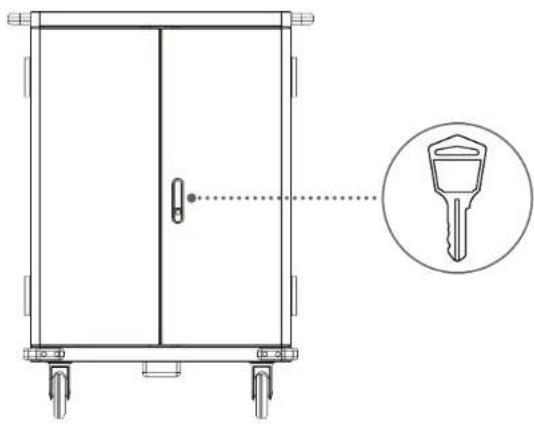

Door Locks
Front/Back

Technical line drawing of a door frame with wheels and a key icon (no text or symbols)

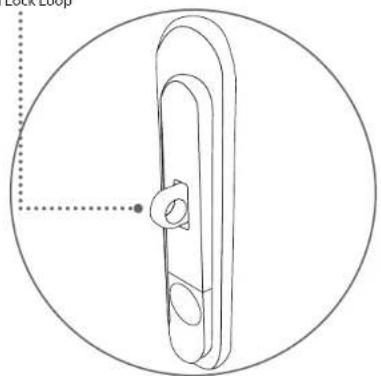

Pad Lock Loop

Technical line drawing of a mechanical component with a circular outline and dotted line indicating a dimension (no text or symbols)

Simple line drawing of a padlock inside a circular frame (no text or symbols)

*Pad lock not included

N SETUP

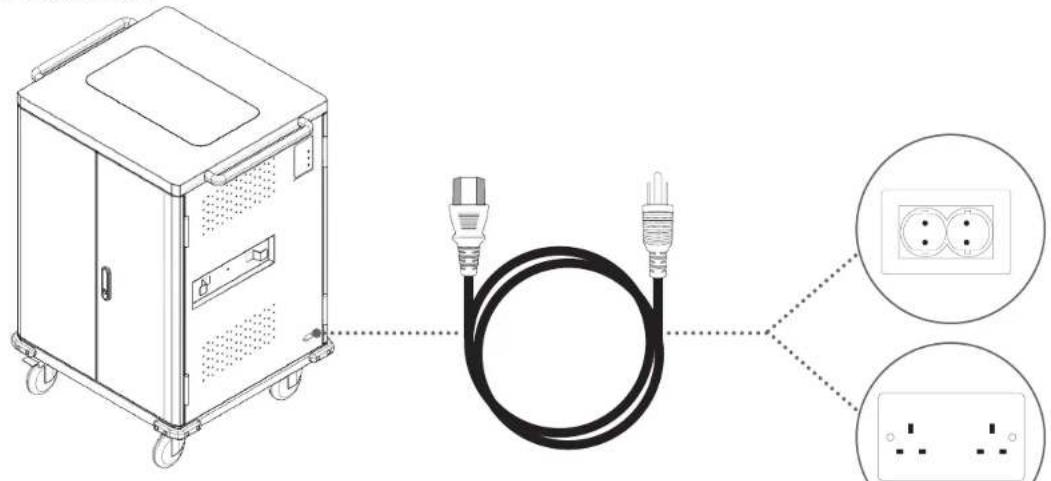

1. Plug cart into outlet


Diagram showing a device connected to a black cable with three electrical socket symbols, no text or labels present.

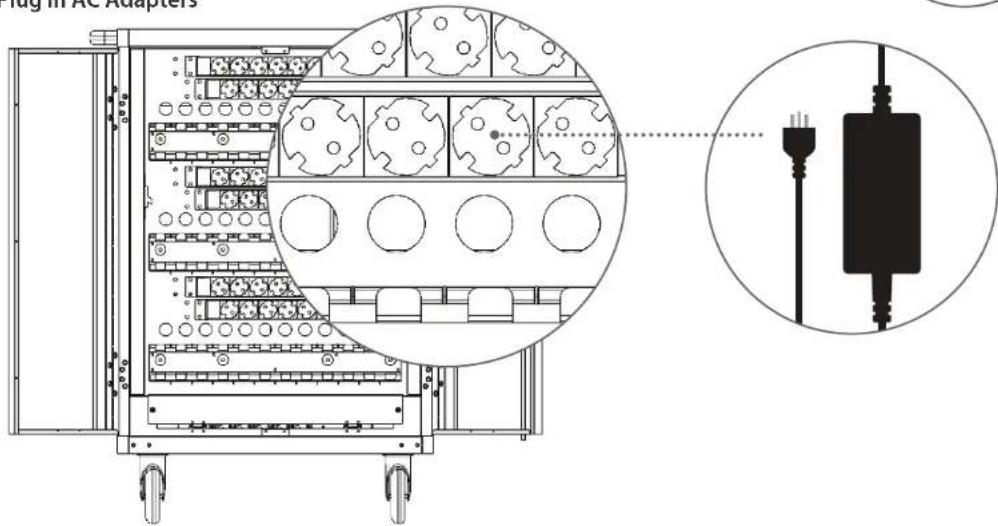

1. Plug in AC Adapters


lug in AC Adapters

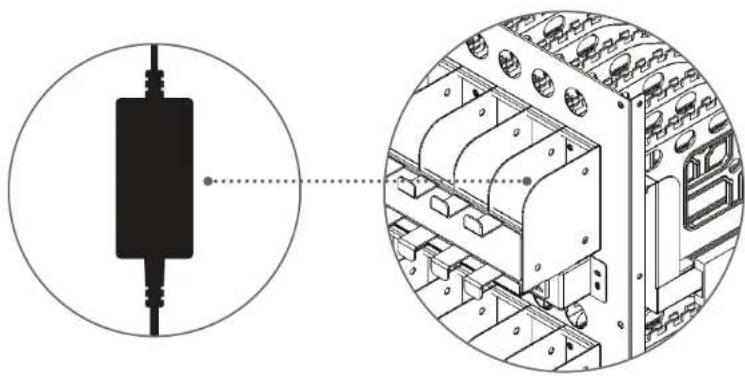

1. Place adapters into slots


Technical diagram showing a black rectangular component inserted into a rack, with an inset close-up of its internal structure (no text or symbols)

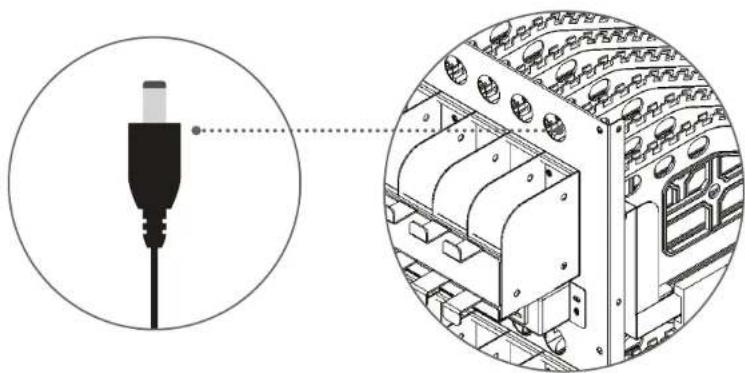

1. Insert the adapters through the pass through holes


Technical illustration of a plug and its internal circuit board assembly (no text or symbols)

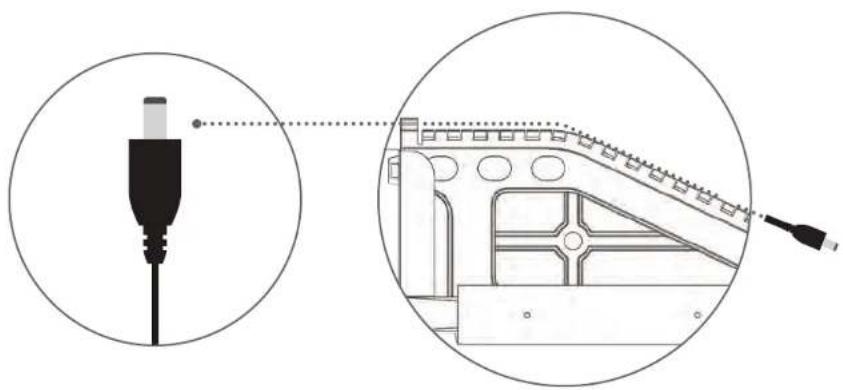

1. Place the adapter wires on the cable holder dividers

Diagram showing a plug inserted into a device, with an inset close-up of the internal structure (no text or symbols)

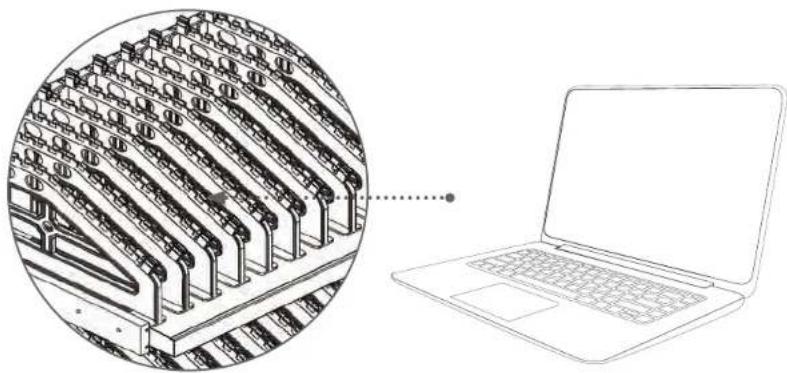

1. Place the devices in the dividers

Line drawing of a server rack with an inset close-up showing internal components, next to a laptop (no text or symbols present)

Charging System

Charging all of your devices at one time can overload a typical circuit. V7 Charge Carts are equipped with a built-in timing device that automatically switches the AC power supply from one half of the device outlets to the other, at specified intervals to help protect against overload.

The timer module will provide power to each set of 18 outlets for the amount of time indicated on the timer (default is set to 15 minutes). When that time expires, the cart will change power to the other set, and continue to alternate sides. Every time power is turned off and then restored to the cart, power starts with the first set.

The LED indicator on the outside of the cart will show you which set is currently charging.

The timer is factory-set on a 15-minute cycle. Devices with fully depleted batteries will require more than one cycle to fully charge.

The LED indicator will illuminate red when charging

Circuit Breaker:

There is a circuit breaker on the cart. If there is no power to internal and external outlets, check to see if the circuit breaker is tripped.

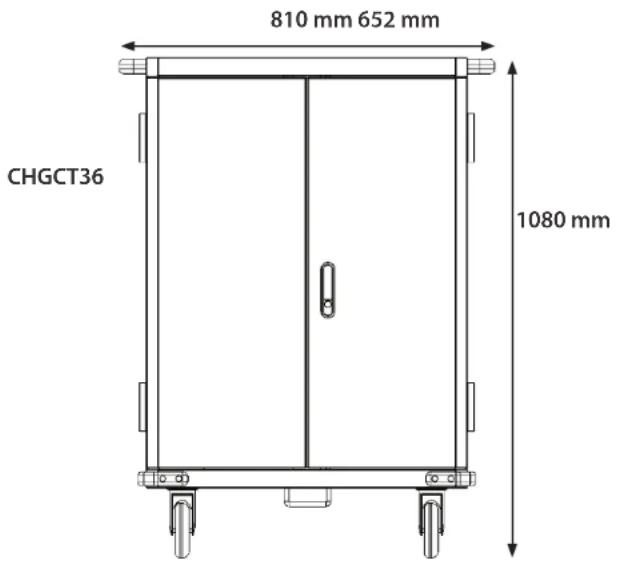

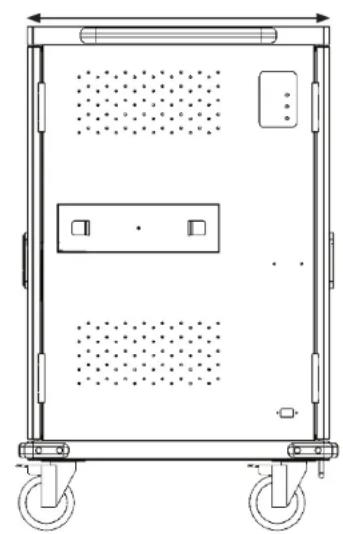

Cart Dimensions

810 mm 652 mm CHGCT36 1080 mm

Technical line drawing of a four-wheel industrial cart with perforated panels and control buttons (no text or symbols)

CHGCT36-1ECHGCT36-1K

V7 Model Number CHGCT36-1L CHGCT36-1K
IM SKU J154274 J154275
EAN / UPC 066291910115/ 0662919101164
Color Black and Gray Black and Gray
Material High-grade 18 gauge cold rolled steel High-grade 18 gauge cold rolled steel
Numbered Device Spaces 36 36
Organization and convenience Flexible device dividers with cable channels and numbered device slots on sliding shelves, numbered power adapter slots with cable management, two push handles		Flexible device dividers with cable channels and numbered device slots on sliding shelves, numbered power adapter slots with cable management, two push handles
Cooling system	Ventilation slots (60% rate), optional fan system	Ventilation slots (60% rate), optional fan system
Warranty	5 Year	5 Year
Package Contents	Charging Carl, 6 ft (1.83 m) Shuko Power Cord, Manual	Charging Carl, 6 ft (1.83 m) UK Power Cord, Manual
Input Voltage	230VAC, 15A, 60HZ	230VAC, 15A, 60HZ
Output Voltage	230VAC, 15A, 60HZ	230VAC, 15A, 60HZ
Charging System	Adjustable zone based timer system	Adjustable zone based timer system
Rolling Casters size	5 in (12.7 cm)	5 in (12.7 cm)
Product Dimensions	31.89 x 25.67 x 42.52 in (810 x 652 x 1080 mm)	31.89 x 25.67 x 42.52 in (810 x 652 x 1080 mm)
Product Weight	200.62 lbs (91 kg)	200.62 lbs (91 kg)
Package Size	33.27 x 29.61 x 50.08 in (845 x 752 x 1272 mm)	33.27 x 29.61 x 50.08 in (845 x 752 x 1272 mm)
Package Weight	240.3 lbs (109 kg)	240.3 lbs (109 kg)
Device slot dimensions	15 x 1.42 x 20.24 in (381 x 36 x 260 mm)	15 x 1.42 x 20.24 in (381 x 36 x 260 mm)
Power adapter slot dimensions	3.5 x 1.5 x 7.9 in (89 x 40 x 200 mm)	3.5 x 1.5 x 7.9 in (89 x 40 x 200 mm)
Weight capacity (top of cart)	132.28 lbs (60 kg)	132.28 lbs (60 kg)
Safety & Compliance	ROHS, CE approved power distribution units	ROHS, CE approved power distribution units
Environment*	"Operating: -10°C to 40°C Humidity: 20% to 80% RHStorage: -40°C to +60°C Humidity: 20% to 90% RH"	"Operating: -10°C to 40°C Humidity: 20% to 80% RHStorage: -40°C to +60°C Humidity: 20% to 90% RH"

*Note: For this charge cart only. Check the environment specifications of the devices you are storing.

CAUTION

• To reduce risk of electric shock only use this product indoors.
- This product is heavy. Use caution handling and keep upright. Do not attempt to unpack or move it unassisted.
- Use caution when unpacking and save the packing material for later use. Scratches and other damage caused by mishandling is not covered by the warranty.
- Do not allow anyone to sit, stand, or climb on this product.
- Do not block the ventilation holes used for air circulation.
- Do not overload heavy objects on or inside this product.
- Before moving this product, disconnect the power from the wall outlet.
- While moving this product, make sure the power cord is secured.
- This product should always be used by adults or with adult supervision.
- Never unplug this product from the outlet when hands are wet or by pulling the power cord.
- Do not use an extension cord in conjunction with this product.
- Connection to any other type of receptacle other than a two-pole, three-wire grounded receptacle may result in shock hazard as well as violate local electrical codes.
- In the event of an emergency, disconnect the power cord from the AC power outlet.
- Do not plug the input of this product into its own output.
- Do not attach an additional extension cord, power strip, or surge protector to this product.
- Do not attach non-computer-related items, such as medical equipment, life-support equipment, microwave ovens, or vacuum cleaners to this product.
- Place cables in such a way that they won't be pulled or snagged, and no one can step on or trip over them.
- Do not attempt to disassemble this product. This product contains no user replaceable parts. Only factory service personnel may perform repairs.
- If this product is misused, incorrectly operated or repaired, the warranty will be void.
- Do not remove plugs from outlets in use labeled "Do not remove" with a red sticker. These are required for the charging system and auxiliary outlets of the cart to function.

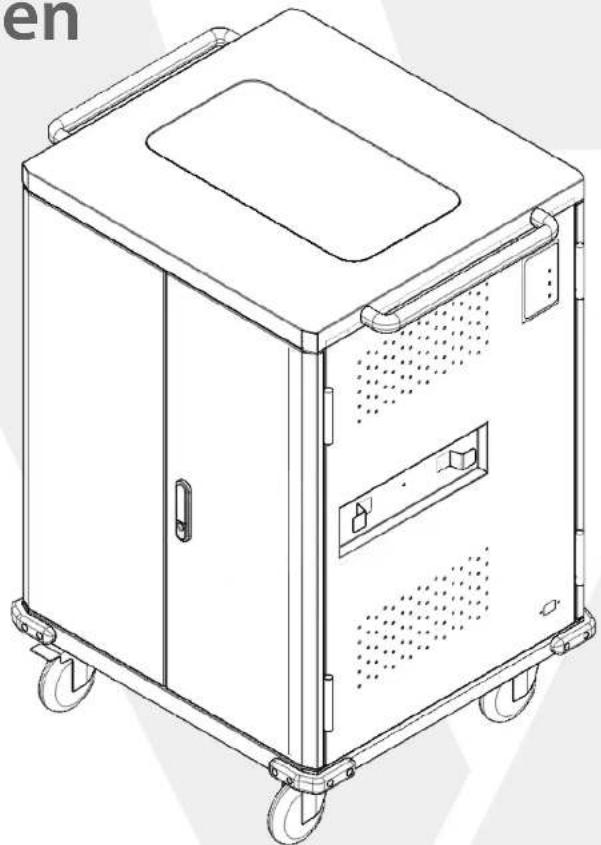

Ladewagen

Line drawing of a portable electronic device with wheels and control panel (no text or symbols)

CHGCT36-1E
CHGCT36-1K

1 Erste Schritte

Paketinhalt

Übersicht

Auspacken

Line drawing of a modular electronic device with wheels and a top cover (no text or symbols)

Coiled black cable with two metallic connectors (no text or symbols visible)

Technical line drawing of a door frame with wheels and a key icon (no text or symbols)

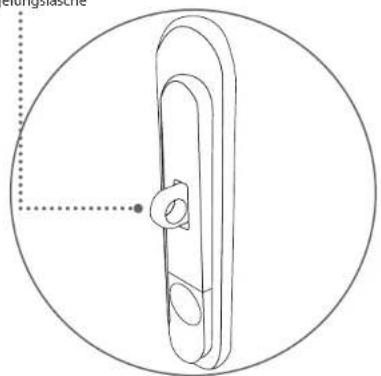

Verriegelungslasche

Technical line drawing of a mechanical component with a circular outline and dotted line indicating dimension (no text or symbols)

Simple line drawing of a padlock inside a circular frame (no text or symbols)

1. Adapter in Fächer legen


Technical diagram showing a black rectangular component inserted into a rack, with an inset close-up of its internal structure (no text or symbols)

Diagram showing a plug inserted into an electrical enclosure with wiring, alongside its close-up view (no text or symbols present)

Diagram showing a plug inserted into a device, with an inset close-up of the internal structure (no text or symbols)

Line drawing of a server rack with an inset close-up showing internal components, next to a laptop (no text or symbols present)

Ladesystem

Technical line drawing of a rectangular electronic device with wheels and ventilation slots (no text or symbols)

CHGCT36-1ECHGCT36-1K

Line drawing of a rectangular industrial machine with wheels and a top cover (no text or symbols)

CHGCT36-1E

CHGCT36-1K

7SEVEN

1 Démarrage

Contenu du paquet

Schéma du chariot

Déballage

Line drawing of a modular electronic device with wheels and a top cover (no text or symbols)

Coiled black cable with two metallic connectors (no text or symbols visible)

Technical line drawing of a door frame with wheels and a key icon (no text or symbols)

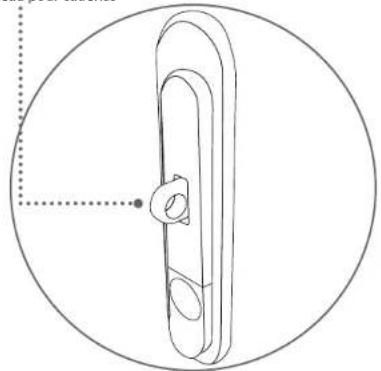

Anneau pour cadenas

Technical line drawing of a mechanical component inside a circular frame (no text or symbols)

Simple line drawing of a padlock inside a circular frame (no text or symbols)

*Cadenas non inclus

Diagram showing a device connected to a black cable with two outlets, and three separate electrical socket icons below (no text or labels)

Technical diagram showing a black rectangular component inserted into a rack, with an inset close-up of its internal structure (no text or symbols)

Technical illustration of a plug and its internal circuit board assembly (no text or symbols)

Diagram showing a plug inserted into a device, with an inset close-up of the internal structure (no text or symbols)

Line drawing of a server rack with an inset close-up showing internal components, next to a laptop (no text or symbols present)

Système de charge

Technical line drawing of a rectangular electronic device with wheels and ventilation slots (no text or symbols)

CHGCT36-1ECHGCT36-1K

Line drawing of a rectangular industrial machine with wheels and a top cover (no text or symbols)

CHGCT36-1E
CHGCT36-1K

1 Inicio

El paquete incluye

Line drawing of a rectangular industrial machine with wheels and a lid (no text or symbols)

Coiled black cable with two metallic connectors (no text or symbols visible)

Technical line drawing of a door frame with wheels and a key icon (no text or symbols)

Technical line drawing of a mechanical component inside a circular frame (no text or symbols)

Simple line drawing of a padlock inside a circular frame (no text or symbols)

Diagram showing a device connected to a black cable with two outlets, and three separate electrical socket icons below (no text or labels)

Technical diagram showing a black rectangular component inserted into a rack, with an inset close-up of its internal structure (no text or symbols)

Technical illustration of a plug and its internal circuit board assembly (no text or symbols)

Diagram showing a plug inserted into a device, with an inset close-up of the internal structure (no text or symbols)

Line drawing of a laptop connected to a rack of server racks, with an inset magnified view showing the rack structure (no text or symbols)

Sistema de carga

Technical line drawing of a four-wheel modular device with perforated panels and control buttons (no text or symbols)

CHGCT36-1ECHGCT36-1K

Line drawing of a rectangular industrial machine with wheels and a top cover (no text or symbols)

CHGCT36-1E

CHGCT36-1K

7SEVEN

Line drawing of a modular electronic device with wheels and a top cover (no text or symbols)

Coiled black electrical plug with two connectors (no text or symbols)

Technical line drawing of a door frame with wheels and a key icon (no text or symbols)

Technical line drawing of a mechanical component with a circular outline and dotted line indicating alignment (no text or symbols)

Simple line drawing of a padlock inside a circular frame (no text or symbols)

Diagram of a portable electrical device connected to a black cable with two outlets, showing wiring connections (no text or labels)

Technical diagram showing a black rectangular component inserted into a rack, with an inset close-up of its internal structure (no text or symbols)

Technical illustration of a plug and its internal circuit board assembly (no text or symbols)

Diagram showing a plug inserted into a device, with an inset close-up of the internal structure (no text or symbols)

Line drawing of a server rack with an inset close-up showing internal components, next to a laptop (no text or symbols present)

Sistema di ricarica

Technical line drawing of a rectangular electronic device with wheels and internal compartments (no text or symbols)

CHGCT36-1ECHGCT36-1K

English: 5 Year Limited Warranty

V7 Limited Manufacturer's Warranty covers this Product against defects in materials or workmanship from the date of purchase for a period of 60 months for parts and labor. Liability under this limited warranty shall in no event exceed the cost of replacement or the original cost of the product at the time of purchase. In the event of product discontinuance or unavailability wherein failure has occurred the product shall, at the sole discretion of Manufacturer, be replaced to the first purchaser with a substantially similar product of equal or lesser value or the first purchaser shall be provided with a refund equal to the original i.e. first purchaser purchase price. This limited warranty does not cover the repair of cracked, scratched, broken or modified plastic or other cosmetic damage; or parts that have been altered, defaced or removed. Also, it does not apply to repairs or replacement necessitated by any cause beyond the control of the Manufacturer or a servant or agent of the Manufacturer including, but not limited to, any malfunction, defects or failures which in the opinion of Manufacturer were caused by or resulting from unauthorized service or parts, improper maintenance, operation contrary to furnished instructions, shipping or transit accidents, modification or repair by the user, abuse, misuse, neglect, accident, fire, flood, or other acts of God, incorrect line voltage or normal wear and tear, or which did not exist at the time when the Product was purchased. This limited warranty does not apply to damage that occurs during unpacking, setup, or installation; removal of the product for repair; reinstitution of the product after repair; or shipping cost of the product for any purpose. There are no other expressed warranties, whether written or oral, other than this printed limited warranty. All implied warranties, including without limitation the implied warranties or merchantability or fitness for a particular purpose, are limited to the durations of this limited warranty. In no event shall V7 be liable for incidental or consequential damages of any nature whatsoever, including but not limited to lost profit or commercial loss, to the full extent those damages can be disclaimed by law. Some countries do not allow the exclusion or limitation of liability arising from implied warranties, or limitation of the duration of implied warranties, so the preceding limitations or exclusions may not apply to all purchasers. This limited warranty is subject to the laws of the relevant jurisdiction, being the country where the product is originally purchased. This limited warranty shall only apply to the extent permitted by applicable national legislation governing the sale of consumer goods. The rights and remedies that consumers enjoy under such consumer protection laws shall not be limited. This warranty is valid only in the country where the product is originally purchased. Additional information can be found at www.V7-world.com.

You may execute this warranty where you purchased in accordance with the exchange policy of the establishment. At any time thereafter during the term of this warranty, please refer to the authorized distributor of your jurisdiction.

English: 5 Year Limited Warranty

Warranty provider. This warranty is provided by V7/Ingram Micro Pty Ltd, 61 Dunning Ave, Rosebery, NSW 2018, Australia.

V7 Limited Manufacturer's Warranty. V7 warrants that this Product shall be free from defects in material and workmanship from the date of purchase for a period of twenty-four (24) months for parts and labor. This Product warranty is non-transferable and is limited to the original purchaser. This warranty is in addition to the guarantees that cannot be excluded under the Australian Consumer Law and besides such Australian Consumer Law guarantees, there are no other expressed warranties given by V7, whether written or oral, other than this printed Product warranty.

How to Obtain Warranty Support. Before submitting a warranty claim, we recommend you visit the support section at www.v7-world.com for technical assistance. Valid warranty claims are generally processed through the point of purchase during the first thirty (30) days after purchase; however, this period of time may vary depending on where you purchased your product, please check with v7 or the retailer where you purchased your product for details. Warranty claims that cannot be processed through the point of purchase and any other product related questions should be advanced differently to v7 or

of time may vary depending on where you purchased your product - please check money or the detail where you purchased your product for details. Many claims that cannot be processed through the point of purchase and any other product related questions should be purchased directly to it, as follows:

V7/Ingram Micro Pty Ltd

61 Dunning Ave, Rosebery, NSW 2018, Australia

Email: [e-mail]

Telephone: [phone]

URL: www.v7-world.com

To make a claim under this warranty you should return the Product to the place of purchase or to V7 with proof of original purchase such as a copy of the sales receipt or dated Itemized receipt. Any expense of claiming under this warranty will be borne by you.

Your consumer rights. The benefits V7 gives you in this Product warranty are in addition to and do not detract from any rights and remedies that you may have under Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This Product warranty is not intended to: (1) change or exclude any statutory consumer rights that cannot be lawfully changed or excluded; or (2) limit or exclude any right you have against the person who sold the V7 product to you if that person has breached their sale contract with you. V7 provides no warranty against defects beyond the rights given to you under this Product warranty and which are available to you under the Australian Consumer Law.

Remedies. If you make a valid claim under this warranty during the warranty period, V7 will at its option: (1) repair or replace the product or (2) refund the price paid. Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. Repair of the goods may result in loss of data contained in the goods and V7 takes no responsibility for the loss of such data. If V7 replaces your hardware product, this warranty will be extended to cover the replacement product for the remainder of the original warranty period or thirty (30) days from the date of replacement; whichever is longer.

Exclusions. This warranty does not cover any defects, problems, damage or failures, which in the opinion of V7 resulted from: (1) accident, abuse, misuse, neglect, misapplication, fire, flood or other acts of God or any unauthorized repair, service, modification or disassembly; (2) improper operation or maintenance, usage not in accordance with product instructions or connection to improper voltage supply; (3) use of consumables, such as replacement batteries, not supplied by V7; (4) operation contrary to furnished instructions; (5) shipping or transit accidents; (6) normal wear and tear; (7) which did not exist at the time when the Product was purchased; or (8) scratched or modified plastic, or other cosmetic damage; or (9) parts that have been altered, defaced or removed. This Product warranty does not apply to: (1) damage that occurs during unpacking, setup, or installation; (2) removal of the product for repair; (3) reinstation of the product after repair, or (4) shipping cost of the product for any purpose.

USA

Ingram Micro Inc.

3351 Michelson Dr. Suite 100

Irvine, CA 92612, USA

Canada

Ingram Micro, LP Canada

5.5 Standish Court

Mississauga, ON, L5R 4A1, Canada

Mexico

Ingram Micro Mexico, S.A. de C.V.

78 Apollo Drive, Albany

Auckland 0642, New Zealand

India

Ingram Micro India Limited

Godrej IT Park, B-Block, 5th Floor

Pirojsahanagar, L.B.S. Road,

Vikhroli (West), Mumbai-400 079, India

Australia

Ingram Micro Pty Ltd

61 Dunning Ave, Rosebery

NSW 2019, Australia

Brazil

Ingram Micro Brasil Ltda

Av. Francisco Matarazzo, 1500 - Tome NY

Sao Paulo, SP 05001-100, Brazil

Hong Kong

Ingram Micro (China) Limited

Room 1205-18, 12/F, Tower 1, Millennium City,

388 Kwun Tong Road, Kowloon, Hong Kong

Model/ Modelo/ Modèle/Modell/Modello/Model/Modelo :

Date of purchase/Fecha de compra/ Date d'achat/Kaufdatum/Data di acquisto/ Aankoop- datum/Data de compra:

CE

English	Hereby, Ingram Micro Pan Europe GmbH, Munich, Germany declare under our sole responsibility that the Information Technology Equipment products are fully compliant with the essential requirements and other relative provisions set out in the Council Directive on the Approximation of the Laws of the Member States relating to EMC (2014/30/EU) and RoHS (2011/65/EU).
Espa-nol	Por la presente, Ingram Micro Pan Europe GmbH, Munich, Alemania, declara bajo nuestra sola responsabilidad que los productos equipo de tecnologia de la información cumplen plenamente los requisitos esenciales y otras provisiones relativas detalladas en la Directiva del Consejo relativa a la aproximación de las legislaciones de los Estados miembros en materia de EMC (2014/30/EU) y RoHS (2011/65/EU).
Fran-cais	Par les présentes, Ingram Micro Pan Europe GmbH, Munich, Allemagne, déclare sous sa seule responsabilité que los produits d'équipements issus de la technologie de l'information sont totalement conformes aux impératifs essentiels et aux autres conditions relatives définis dans la Directive du Conseil sur lc rapprochmont des législations des pays membres se rapportant EMC (2014/30/EU) et RoHS (2011/65/EU).
Deut-sch	Hiermit erklärt Ingram Micro Pan Europe GmbH, München, Deutschland unter alleinigter Verantwortung, dass die Informationstechnologiegerät- Produkte mit den wesentlichen Voraussetzungen und sonstigen relativen Bestimmungen, die in der Richtlinie des Rates zur Angleichung der Rechtsvorschriften der Mitgliedstaten in Bezug auf EMC (2014/30/EU) und RoHS (2011/65/EU) enthalten sind, vollständig konform sind.
Italiano	La Ingram Micro Pan Europe GmbH di Monaco di Baviera, Germania, con la presente dichiara sotto sua exclusiva responsabilità che i prodotti di Tecnologia dell'informazione sono interamente conformi ai requisiti essenziali e alle altre disposizioni relative definite nella Direttiva consiliare sull'Approssimazione delle leggi degli Stati Membri che regolamentano EMC (2014/30/EU e RoHS (2011/65/EU)).

www.V7world.com
