USER MANUAL DO9036G DOMO

RECYCLING INFORMATION This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential nega- tive consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city ofce, your house- hold waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat package ecologically

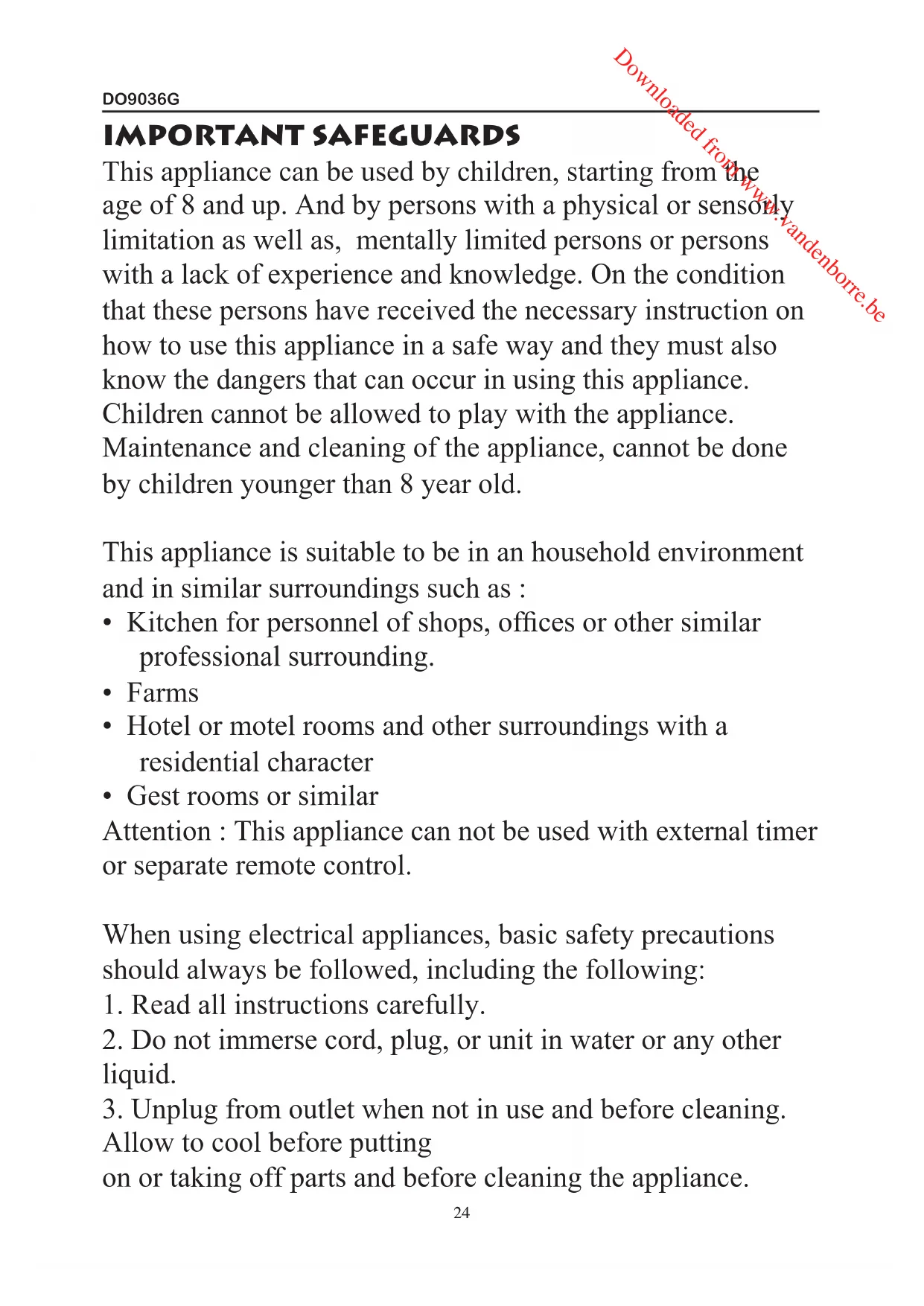

Downloaded from www.vandenborre.beDO9036G IMPORTANT SAFEGUARDS This appliance can be used by children, starting from the age of 8 and up. And by persons with a physical or sensorly limitation as well as, mentally limited persons or persons with a lack of experience and knowledge. On the condition that these persons have received the necessary instruction on how to use this appliance in a safe way and they must also know the dangers that can occur in using this appliance. Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance, cannot be done by children younger than 8 year old. This appliance is suitable to be in an household environment and in similar surroundings such as :

• Kitchen for personnel of shops, ofces or other similar professional surrounding.

• Hotel or motel rooms and other surroundings with a residential character

• Gest rooms or similar Attention : This appliance can not be used with external timer or separate remote control. When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.

2. Do not immerse cord, plug, or unit in water or any other

3. Unplug from outlet when not in use and before cleaning.

Allow to cool before putting on or taking off parts and before cleaning the appliance.

4. To disconnect, turn all controls to OFF, then remove plug

5. Do not operate any appliance with damaged cord or plug,

or after the appliance malfunctions or has been dropped or damaged in any matter.

6. Close supervision is necessary when appliance is being

used near children. Not recommended for use by children.

7. Do not touch hot surface. Use handles or knobs.

8. The use of accessory attachments not recommended by the

appliance manufacturer may result in re, electric shock, or personal injury and will void warranty.

9. Do not use outdoors.

10. Do not let cord hang over edge of table or counter, or

touch hot surfaces, including the stove.

11. Do not place on or near a hot gas or electric burner, or in

12. Always use appliance on a dry, smooth at surface

13. Do not use abrasive agents when cleaning the appliance.

14. Do not use this appliance for anything other than its

15. Do not leave your panini grill unattended while in use.

16. When using the appliance, be sure to allow at lease 10

cm of space on all sides of the unit to allow for adequate air circulation. Never place anything on top of the unit.

17. To ensure continued protection against the risk of electric

shock, connect to properly grounded outlets only.

• The handle comes warm during use.

• Keep children at a safe distance.

SAVE THESE INSTRUCTIONS

POWER CORD A short power-supply cord is provided to reduce the hazards resulting from entanglement or tripping over a long cord. An extension cord may be used with care; however, be sure the marked electrical rating is equal to or greater than the rating of this appliance. The extension cord should be positioned such that it does not drape over the counter or tabletop where it can be pulled on by children or tripped over. Use only 3-wire extension cord with 3-blade grounding plug. The electrical rating of this appliance is listed on the bottom panel of the unit.

BEFORE USING YOUR PANINI GRILL

Unpack your new panini grill and remove all of the packaging materials. Wipe the exterior and the grill plates with a clean, damp cloth. Wipe dry before use. Never use harsh or abrasive cleaners.

A. Brushed stanless steel Exterior B. Latch for Upright Storage C. Temperature Dial D. Thermal-Insulated Handle E. Power Indicator Light (Red) F. Ready Indicator Light (Green) G. Nonstick Grill Plates

WHEN USING YOUR PANINI GRILL

1. Place your panini grill on a dry, at surface. Ensure that the sides, back and top are

at least 4 inches (10 cm) away from walls, cabinets, and other objects. Plug the panini grill into a 230V, 50Hz AC-only outlet. Once plugged in, the red “POWER” indicator light and the green “READY” indicator light will come on.

2. Turn the temperature control knob to the required setting. The green “READY”

light will turn off. Allow the panini grill to preheat in the closed position. When the

Downloaded from www.vandenborre.beDO9036G correct temperature has been achieved, the green “READY” light will turn on. Note: During cooking, the green “READY” light will turn on and off. This is the panini grill automatically adjusting the temperature to retain the desired cooking temperature.

3. Place sandwiches, seasoned meat or sliced vegetables onto the bottom grill plate

and close the lid. It is not necessary to press down on the handle as the hinge will allow the grill plate to press down evenly on your sandwich and the weight of it will cause the plate to press down during cooking as necessary. Do not use the latch to lock down the top plate. It is a safety feature for storage purposes only.

4. Please refer to the chart provided at the end of this manual for cooking time

suggestions. Check on the panini grill’s progress often to ensure that your food is being toasted or grilled to your preference.

5. When your food is ready, remove it from the panini grill with a plastic or wooden

spatula. Do not use metal utensils as this will damage the nonstick coating on the grill plates.

6. When you have nished cooking, turn the temperature control to the “OFF” position

and unplug your panini grill.

1. The panini grill is designed to toast sandwiches and grill meats and vegetables.

Use the variable temperature control to choose the right temperature and prepare your favourite meal.

2. The oating back hinge on your panini grill can accommodate all kinds of

breads, thick and thin. Try making your favourite sandwich on focaccia, pita breads, sourdough or mini-baguettes. Sweet breads, like raisin bread, have a higher sugar content and will brown faster than regular breads.

3. Allow your sandwich or meat to cool for a few minutes before eating.

4. Season your meat before cooking for tastier results.

5. Grease the grill plates when cooking sh to prevent sticking.

6. Adjustable hinge level allows any thickness of food to toast or melt perfectly.

Simply lift and adjust the hinge to the desired level for precise cooking. COOKING CHART FOOD TEMP. SELECTION COOKING TIME (MIN.) REMARKS Chicken (1 kg) medium 75 – 80 Cut in half. Doesn’t need to be turned over. Sausages 2 pcs High 4 – 6 Cut in half

Downloaded from www.vandenborre.beDO9036G Hamburger 2 pcs High 3 – 5 Wait 2-3 min. before opening the top plate. Kebabs 3 pcs HIgh 8 – 10 turn kebabs after 4-5 min. Liver 2 pcs Medium 2 – 3 Clean liver thoroughly. Pork chops High 6 – 8 Pork chops should be of even thickness. Salmon Medium 16 – 20 Grease the plate and turn halfway through cooking sole 1 pc Medium 18 – 22 Grease te plate and turn halfway through cooking. Spare ribs 3 pcs High 15 – 18 Turn ribs after 10 min. Steak 1 pc Medium 2 – 3 Meat cooked rare in time indicated, time will vary with thickness of steak. Eggplant 6 slices Medium 6 - 8 slice evenly Onions sliced Medium 6 - 8 Slice evenly Yellow/green/red pepper 1 pc Medium 6 - 8 Close the grill plates and press down. Filled bread rolls Medium 3 - 9 Use soft rolls Toasted sandwich/ panini Medium 2 - 3 Place only half a slice of cheese in each sandwich. - Pease note these are recommended cook times only. - Please adjust the cook times for personal preference and taste. - Different cuts of meat will require different cook times. Please ensure your meat is cooked at a safe internal temperature for consumption.

CLEANING & CARING FOR YOUR PANINI GRILL

1. Unplug your panini grill and allow it to cool slightly before cleaning. We

recommend to clean the grill plates while they are still slightly warm.

2. Wipe the grill plates with a clean, damp cloth. Never use abrasive cleaners or

scouring pads, as they will scratch the nonstick coating on the grill plates.

3. If there is food remnants cooked onto the grill plates, reheat the unit and brush on a

little vegetable oil. Let this stand for a few minutes before wiping the plates again with a damp cloth.

4. Never immerse any part of your panini grill in water or any other liquid.

5. Be sure to clean your panini grill every time you use it.

6. For safe and convenient storage, allow the panini grill to cool completely, close

the unit and press the locking latch on the side handle into place. Once locked closed, your panini grill can be stored in an upright position.
