USER MANUAL DO9249G DOMO

I PRODUCTSPECIFIEKE WAARSCHUWINGEN

I AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

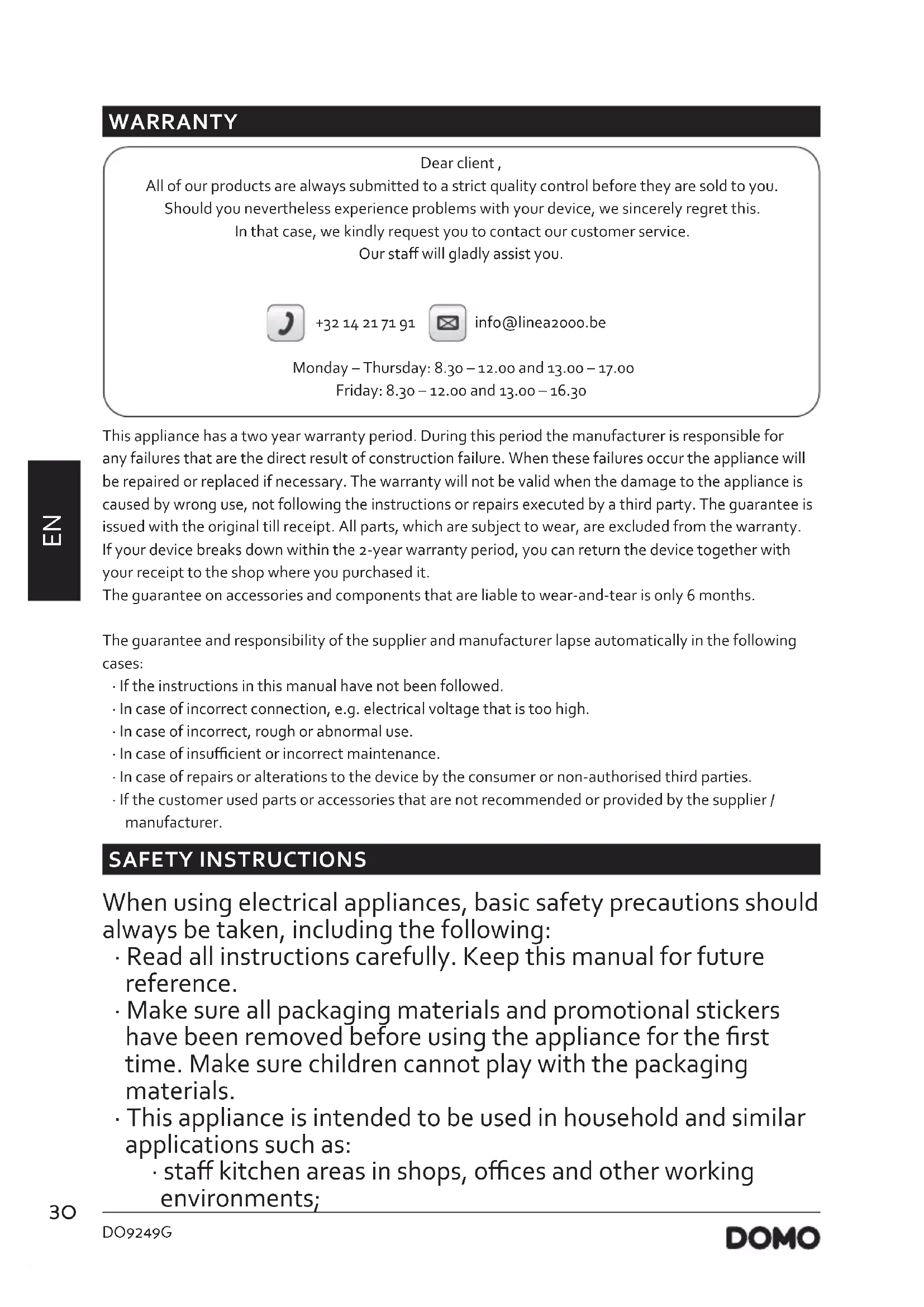

WARRANTY Dear client , All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our sta will gladly assist you. [phone] [e-mail] Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00 Friday: 8.30 – 12.00 and 13.00 – 16.30 This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.

• In case of incorrect connection, e.g. electrical voltage that is too high.

• In case of incorrect, rough or abnormal use.

• In case of insucient or incorrect maintenance.

• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer. SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the rst time. Make sure children cannot play with the packaging materials.

• This appliance is intended to be used in household and similar applications such as:

• sta kitchen areas in shops, oces and other working environments;31 DO9249G www.domo-elektro.be

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.

• All repairs should be carried out by the manufacturer or its aftersales service.

• Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

I ELECTRICAL WARNINGS

• In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and o by the utility.

• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking o parts, and before cleaning the appliance. To disconnect, turn controls to “OFF” or “0” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

• Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

• The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.32 DO9249G

• Keep the power cord away from hot parts and don’t cover the appliance.

• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

• The appliance may not be used with an extension lead or a multiple socket.

• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself. I INSTALLATION

• Do not place near ammable materials, gases or explosives.

• Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance. I USE

• Do not use this appliance for other than intended use.

• Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• Never leave the appliance unattended while it is functioning.

• Do not operate the appliance with wet hands.

• The use of accessories that are not recommended or sold by the manufacturer can cause re, electrical shock or injuries. Only use the utensils delivered with the appliance.

I CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

• Failure to maintain this appliance in a clean condition could adversely aect the life of the appliance and possibly result in a hazardous situation.33 DO9249G www.domo-elektro.be

The appliance can become hot during use. Keep the power cord away from hot parts and don’t cover the appliance.

• Do not touch any hot surfaces, use the handles.

• Make sure that the air can circulate freely around the appliance.

• Do not use any sharp objects to remove any remains.

• Always unplug the appliance when cleaning it. Also let the appliance cool down completely.

• Do not use this appliance with charcoal or similar ammable fuels.

• Take care with the hot griddle and steam escaping alongside the appliance to avoid injury, burns, or re.

• Never use the handle to move the appliance; always hold the entire device.

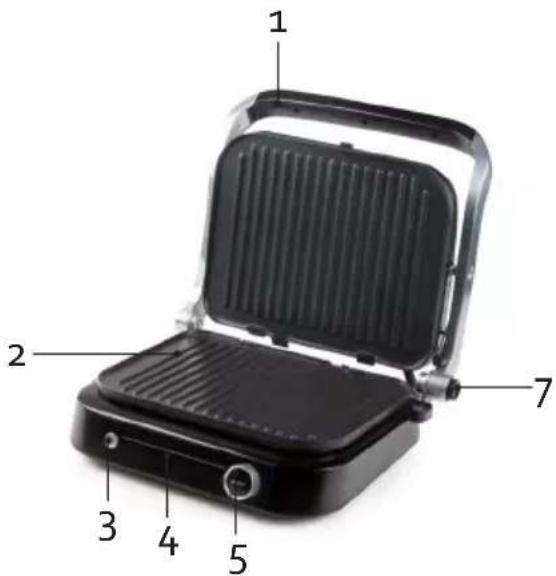

2. Backing surface with non-stick coating

6. Catch basin for fat and moisture

7. Button to open 180°

8. Griddle release buttons

10. Cool touch cover

• Remove all packaging materials and any promotional stickers.

• Wipe the inside and outside of the appliance clean with a soft cloth.

• When using the appliance for the rst time there may be a slight smell and light smoke from the backing plates. This is normal.

INSERT/REMOVE GRIDDLES

Easily insert the griddles into the appliance using the recesses provided. You will hear a click when secured. Press the release buttons to remove. USE

1. Place the appliance on a dry, at surface and ensure there is adequate ventilation.

2. Put the mains plug in the wall socket. Press the power button. The display will light up.

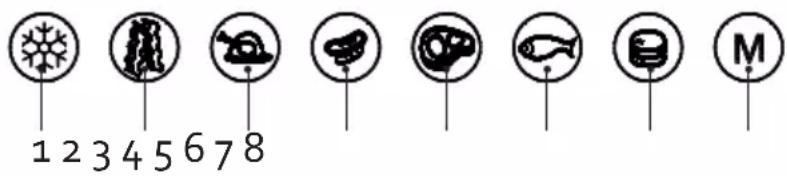

3. Turn the selector button to select the desired programme. The selected programme will be lit up in

blue. To conrm the selected programme, press ‘SELECT’. You can choose from the following programmes:

4. Select the desired cooking mode using the selector button and conrm by pressing the button.

• RARE: red meat, lightly cooked

• MEDIUM: cooked on the outside, slightly pink inside

• WELL DONE: fully cooked

5. The appliance will start to heat up. The display will say ‘PRE-HEATING’.

6. Once the appliance has reached the correct temperature, ‘START TO COOK’ will light up on the

display. The appliance will also emit a sound alert.

7. Open the appliance and place the food inside. Then close the appliance. The oating lid adjusts

automatically to the thickness of the food. This ensures the cooking surface maintains optimal contact with the food for an even grilling result. The appliance will detect the thickness of the food automatically and adjust the cooking time. NOTE: If you do not place any food in the appliance after it is at temperature, the appliance will emit a sound alert after 5 minutes to remind you to place food in the grill. A sound alert will be emitted again after 2 minutes, the appliance will then switch o if you have not placed any food on the grill.35 DO9249G www.domo-elektro.be

8. The display shows the cooking progress. ‘RARE‘ will light up, then ‘MEDIUM’ and nally ‘WELL

DONE‘. Once the selected cooking mode is nished, the appliance will emit a sound alert and switch o automatically. Note: for example, if you selected cooking mode ‘RARE’, ‘MEDIUM’ and ‘WELL DONE’ will not be completed.

9. The fan in the appliance will continue after cooking to cool the appliance. When the fan stops,

remove the plug from the socket.

10. Open the lid and remove the food from the appliance using a plastic or wooden spatula. Never use

metal objects as these can damage the non-stick coating. DEFROST PROGRAMME

1. Press the power button to turn the appliance on.

2. Select the ‘Defrost’ programme by turning the selector button and pressing the button to conrm

your programme selection.

3. The appliance will start to heat up. The display will say ‘PRE-HEATING’. Wait for the appliance to

4. Once the appliance has reached the correct temperature, ‘START TO COOK’ will light up on the

5. Place the frozen food on the griddle and close the appliance. The appliance will detect the thickness

of the food automatically and adjust the thawing time.

6. The grill will move through the dierent cooking modes (RARE-MEDIUM-WELL DONE), these can

be followed on the display. This indicator shows the progress of the thawing mode.

7. When ‘WELL DONE’ is nished, the appliance emits a sound alert to indicate that the food has

thawed. The appliance switches o automatically.

8. Remove the food from the appliance using a plastic or wooden spatula. Never use metal objects as

these can damage the non-stick coating.

GENERAL GRILLING PROGRAMME

The grill has a default opening angle of 105°. To open 180°, press the button on the side. This button can be pressed if the appliance is opened at an angle of less than 105°. Using the grill at this setting doubles the cooking surface. When using the grill at this setting, select the ‘General grilling’ programme (M). This programme can also be used when the appliance is closed, for example to prepare a panini or grilled vegetables.

1. Press the power button to turn the appliance on.

2. Select the ‘General grilling’ programme by turning the selector button and pressing the button to

conrm your programme selection.

3. Select the desired cooking mode using the selector button and conrm by pressing the button.

4. Wait for the appliance to heat up. The display will say ‘PRE-HEATING’.

5. Once the appliance has reached the correct temperature, ‘START TO COOK’ will light up on the

6. Place the food on the griddle and close the appliance. The selected temperature will stay visible on

7. When your food has nished cooking, remove the food from the appliance using a plastic or wooden

spatula. Never use metal objects as these can damage the non-stick coating. Note: When using the appliance’s ‘General grilling’ programme at 105° or 180° opened setting, the appliance is not able to detect the thickness of the food. As such, the cooking time will not be adjusted automatically. Cook the food to your own preference.

8. Press the on/o button to switch o the appliance. The fan in the appliance will continue after

cooking to cool the appliance. When the fan stops, remove the plug from the socket. NOTES

• Lightly grease the griddles for best results.

• It is normal that the cooking results vary depending on the type of food, the quality and origin.

• Defrost frozen food before putting it in the appliance. Except when using the defrost programme.

• Open the appliance using the handle to remove food from the appliance. Remove the food from the appliance using a plastic or wooden spatula. Never use metal objects as these can damage the non- stick coating.

• The excess fat or moisture from the food is collected in the drip tray.

• When using the appliance’s ‘General grilling’ programme at 105° or 180° opened setting, the appliance is not able to detect the thickness of the food. As such, the cooking time will not be adjusted automatically. Cook the food to your own preference.

• Keep the appliance closed when heating up.

• If you do not place any food in the appliance after it is at temperature, the appliance will emit a sound alert after 5 minutes to remind you to place food in the grill. A sound alert will be emitted again after 2 minutes, the appliance will then switch o if you have not placed any food on the grill.

• When set to the ‘General grilling’ programme, the appliance will switch o automatically after 2 hours. Press the on/o button again of you want to continue using the appliance.

CLEANING AND MAINTENANCE

• Press the on/o button to switch o the appliance. The fan in the appliance will continue after cooking to cool the appliance. When the fan stops, remove the plug from the socket.

• It is recommended that all food residues be removed with a wooden spatula or a heat-resistant plastic utensil while the appliance is still hot. If the residues dry up, they will be harder to remove.

• Remove the griddles from the appliance using the release buttons. The griddles are dishwasher-safe.

• The griddles can also be cleaned with hot water and a mild detergent. Dry the griddles thoroughly before placing them back in the appliance.

• Clean the outside of the appliance using a clean, damp cloth. Dry the appliance thoroughly. Never use aggressive or abrasive cleaning products.

• Never submerge the appliance, the electric cord or the plug into water or another liquid.

• The catch basin for fat and moisture can be removed for easy cleaning. Clean it in hot water using a mild detergent.37 DO9249G www.domo-elektro.be

PROBLEM AND SOLUTION

PROBLEM SOLUTION The meat is not cooked properly. · The meat was still too cold at the start of cooking. Please ensure that it is suciently thawed (or at room temperature, if required) at the start of the cooking mode.

• Select the ‘WELL DONE’ cooking mode. The appliance switched o after PRE-HEATING. Too much time has elapsed between the appliance heating up and placing food in the appliance. The appliance stops cooking too soon. · You might have placed the food in the appliance too soon, before the pre-heating time had nished completely.

• No thickness measured or incorrect thickness measured. Do not place the food in the appliance until pre-heating is nished and emits a sound alert, and ‘START TO COOK’ is displayed. The appliance does not heat up or unexpectedly switched o during cooking. The appliance may have overheated, triggering the overheating protection. Contact your point of sale for a repair. ENVIRONMENTAL GUIDELINES This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city oce, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.38 DO9249G
