Product type	Capsule coffee machine
Brand	Caffitaly
Model	Nautilus S11
Use	Domestic and similar (offices, hotels, etc.)
Water tank capacity	1.2 liters
Used capsule container capacity	14 capsules
Maximum pressure	15 bar
Weight	Approximately 5 kg
Dimensions (L x D x H)	22 x 29 x 33.2 cm
Main functions	Espresso, filtered/American coffee, hot water, steam for cappuccino
Capsule type	Caffitaly System capsules exclusively
Descaling signal	Orange indicator light C steady on
Energy saving	Automatic shutdown after 10 minutes of inactivity
Daily cleaning	Empty capsule container, drip tray, water tank; wash dispensing nozzle and steam tube
Periodic maintenance	Descaling with Caffitaly System product; replacement of the sealing gasket
Safety	Stop dispensing if handle lifted; burn protection (steam tube)
Included spare parts	Replacement gasket
Compatibility	Caffitaly System capsules only

Frequently Asked Questions - Nautilus S11 Caffitaly

Which capsules to use with the Nautilus S11?

Use exclusively Caffitaly System capsules. Capsules from other brands could damage the appliance.

How to make a cappuccino with this machine?

First prepare a coffee in a cup. Press the B button (steam) and wait until it stays on. Immerse the steam tube in cold milk in a metal container, then push the control handle backward to froth the milk. Pour the frothy milk over the coffee.

Why is my coffee not hot enough?

This may be due to cold cups or excess limescale. Preheat the cups with hot water and perform regular descaling.

How to descale the machine?

Use Caffitaly System descaler. Mix one bottle with about 750 ml of water to obtain 1 liter. Pour into the tank, place a container under the nozzles, then follow the procedure: hold down the A button while turning on the appliance, press A to start the cycle. After the first phase, rinse the tank, add fresh water and restart the rinse cycle.

What to do if coffee does not come out?

Check that the water tank is filled. If the handle does not close, empty the used capsule container or remove a blocked capsule.

Why is the C light flashing red?

The C light flashes red if the control handle is not in the central position (Fig. 20). Return it to the center. If it stays on steady red, turn the appliance off and on again; if the problem persists, contact an authorized service center.

How to clean the coffee dispensing nozzle?

Gently turn the nozzle 45° clockwise to the stop, then pull it out. Remove the top cover and wash the parts with hot water. Do not put them in the dishwasher.

Can I use vinegar for descaling?

No, never use vinegar as it could damage the appliance. Use only the descaler recommended by Caffitaly System.

How to replace the sealing gasket?

Wait for the appliance to cool down. Lift the handle, remove the old gasket with a screwdriver if necessary, then insert the new gasket (supplied with the appliance) until it is firmly in place. Close the handle.

What does the alternating flashing of buttons A and B mean?

This is the energy saving mode: the appliance reduces consumption after 10 minutes of inactivity. Press any button or open the handle to reactivate.

USER MANUAL Nautilus S11 Caffitaly

English Instruction book

A: "Filter coffee" button;

B: "Steam" button;

C: "Multifunction" indicator light.

D: Coffee / Hot water / steam control lever;

E: Capsule compartment;

F: Used capsule drawer;

G: Power on/off switch;

H: Lever for opening / closing capsule compartment;

I: Water tank cover;

J: Water tank;

K: Dispensing spout (adjustable);

L: Hot water / steam dispensing tube;

M: Drip tray;

N: Power cord;

Deutsch

N: Cable electrolytic;

Portugues

• Follow the instructions (Symbols) 17
• Your Caffitaly System contact 17
  Safety warnings 18
• Instructions for use and disposal 19

Installation:

First use or after a long period of disuse 19
- Turning on the appliance 19
General operating indications 20

Dispensing the product:

• Correct use of the buttons 20
  Dispensing coffee 21
  Dispensing filter coffee / other beverages 21
  Dispensing hot water 21
• Preparing cappuccino / Dispensing steam 22

Cleaning and Maintenance:

Saving energy 22
Daily maintenance 23
- Changing the gasket 23
- Dscaling 24

Miscellaneous:

Troubleshooting 25
Technical data 25

Thank you for having chosen our product and for your confidence in our company.

You can savour your favourite hot beverages at any time of the day with our appliance by choosing one of the capsules that Caffity System offers you. For example: an espresso, a cocoa-fl avoured beverage or a tea will be ready in just a few seconds.

Follow the instructions (Symbols)

Warning.

This is the safety warning symbol.

It is used to call your attention to potential personal injury hazards.

Abide by the safety messages provided in order to avoid possible injury or death.

Note.

This is the symbol used to highlight some actions that will optimise use of the appliance.

Not dishwasher safe Cleaning advice

Your Caffi taly System contact

[e-mail]

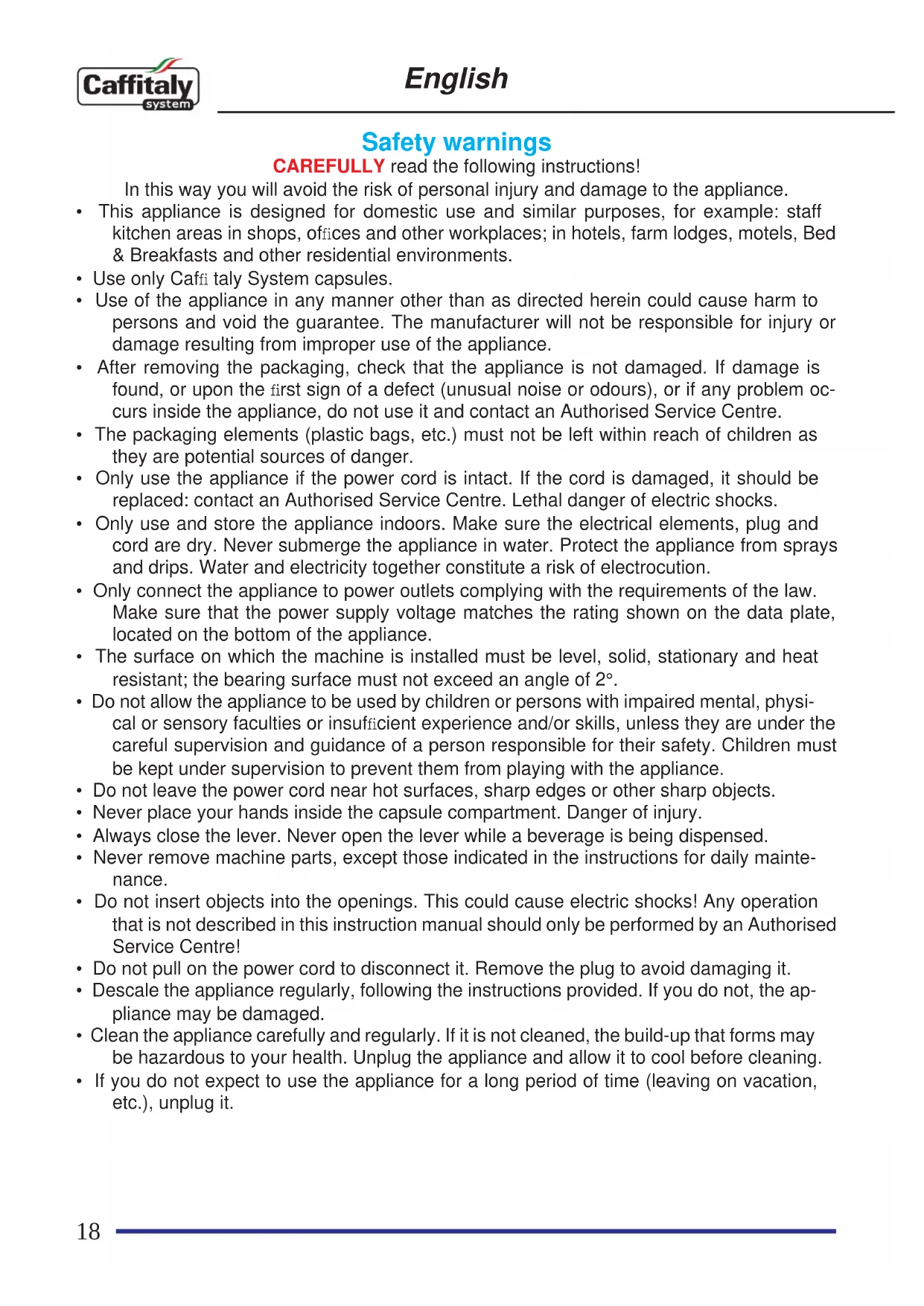

Safety warnings

CAREFULLY read the following instructions!

In this way you will avoid the risk of personal injury and damage to the appliance.

• This appliance is designed for domestic use and similar purposes, for example: staff kitchen areas in shops, offices and other workplaces; in hotels, farm lodges, motels, Bed & Breakfasts and other residential environments.
• Use only Caffi taly System capsules.
• Use of the appliance in any manner other than as directed herein could cause harm to persons and void the guarantee. The manufacturer will not be responsible for injury or damage resulting from improper use of the appliance.
• After removing the packaging, check that the appliance is not damaged. If damage is found, or upon the first sign of a defect (unusual noise or odours), or if any problem occurs inside the appliance, do not use it and contact an Authorised Service Centre.
• The packaging elements (plastic bags, etc.) must not be left within reach of children as they are potential sources of danger.
• Only use the appliance if the power cord is intact. If the cord is damaged, it should be replaced: contact an Authorised Service Centre. Lethal danger of electric shocks.
• Only use and store the appliance indoors. Make sure the electrical elements, plug and cord are dry. Never submerge the appliance in water. Protect the appliance from sprays and drips. Water and electricity together constitute a risk of electrocution.
• Only connect the appliance to power outlets complying with the requirements of the law. Make sure that the power supply voltage matches the rating shown on the data plate, located on the bottom of the appliance.
• The surface on which the machine is installed must be level, solid, stationary and heat resistant; the bearing surface must not exceed an angle of 2^ .
• Do not allow the appliance to be used by children or persons with impaired mental, physical or sensory faculties or insufficient experience and/or skills, unless they are under the careful supervision and guidance of a person responsible for their safety. Children must be kept under supervision to prevent them from playing with the appliance.
• Do not leave the power cord near hot surfaces, sharp edges or other sharp objects.
• Never place your hands inside the capsule compartment. Danger of injury.
  Always close the lever. Never open the lever while a beverage is being dispensed.
• Never remove machine parts, except those indicated in the instructions for daily maintenance.
• Do not insert objects into the openings. This could cause electric shocks! Any operation that is not described in this instruction manual should only be performed by an Authorised Service Centre!
• Do not pull on the power cord to disconnect it. Remove the plug to avoid damaging it.
• Descale the appliance regularly, following the instructions provided. If you do not, the appliance may be damaged.
• Clean the appliance carefully and regularly. If it is not cleaned, the build-up that forms may be hazardous to your health. Unplug the appliance and allow it to cool before cleaning.
• If you do not expect to use the appliance for a long period of time (leaving on vacation, etc.), unplug it.

Instructions for use and disposal

The appliance has been manufactured using high quality materials that can be used or recycled. Dispose of the appliance in a suitable waste collection centre.

Directions for correct disposal of the product according to European Direc 2002/96/EC and Italian Legislative Decree no. 151 dated 25th July 2005. At the end of its useful life, the product should not be disposed of with unsorted household waste. It should be taken to a suitable selective waste collection centre set up by the local authorities or returned to a retailer who provides this service.

Separate collection of an electrical household appliance avoids a possible nega impact on the environment and health arising from improper disposal and enables the materials it is made of to be recovered so as to achieve significant savings of energy and resources. The crossed-out wheelie bin symbol applied on the product highlights the need to dispose of electric appliances separately. Improper disposal of the product by the user shall be subject to specific administrative sanctions as provided for under current regulations.

The packaging is made from recyclable materials. Contact the relevant authori for information regarding local legislation.

First use or after a long period of disuse

• Fill the tank with fresh, still water (Fig. 4).
  Make sure the lever is closed (Fig. 3).
• Plug in the appliance and turn it on (Fig. 13).
• Buttons A-B blink simultaneously.
• Place a large container (at least 250ml ) under the hot water dispensing tube (Fig. 8).
• To fill the circuit, turn the control lever backwards (Fig. 21). Dispensing stops after 15 seconds and indicator light B blinks YELLOW.
• Set the lever back to its central position (Fig. 20). Indicator light C blinks GREEN. After approximately 1 minute, it becomes lit steadily and the machine is ready to use.
• Empty the water from the used capsule drawer (Fig. 6).

Turning on the appliance

• Fill the tank with fresh, still water (Fig. 4).
• Switch on the appliance by pressing the power on/off switch (Fig. 14).
  Indicator light C blinks GREEN. After approximately 1 minute, it becomes lit steadily; the machine is ready to use.

General operating indications

DESCALING SIGNAL

• When indicator light C is lit in ORANGE, we recommend carrying out the descending cycle (see Ch. Descaling).

HEATING:

Indicator light C blinks GREEN.

IF THE LEVER IS RAISED WHILE DISPENSING:

• Raising the lever while dispensing a product or hot water (Fig. 1) may cause splashes. Danger of scalding!
  The appliance will immediately stop dispensing. Indicator light C blinks RED.
• Close the lever (Fig. 3).
• Set the lever back to its central position (Fig. 20).
• When indicator light C comes on and remains lit in GREEN, the machine is ready for use.

Correct use of the buttons

Button A (2nd from the top, lit in BLUE) must be used solely for "Filter Coffee" or "Americano" (very mild). This same button can be used for capsules of tea, chamomile tea or herbal tea.

Button B (1st from the top, lit in YELLOW) must be used to activate the steam function.

Do not use button A for espresso or any other coffee with an intense flavour. In this function the machine is set for low pressure and this reduces the "crema", diminishes the flavour of the coffee, and could cause a break in the flow.

NOTE: Traces of the product just dispensed may remain in the circuit of the machine. To retain maximum beverage flavour, when changing from one product to another, rinse it briefly.

Rinsing is carried out by dispensing a coffee without inserting a capsule.

Dispensing coffee

• Raise the lever to open the capsule compartment (Fig. 1).
• Insert the capsule, pressing it gently into place (Fig. 2).
• Close the lever fully (Fig. 3).
• Place a cup or espresso cup under the coffee dispensing spout (Fig. 9).
• Turn the control lever forwards (Fig. 19).
• When the desired quantity has been dispensed, set the control lever back to the central position (Fig. 20).
• Raise the lever to eject the used capsule into the drawer (Fig. 1).
• Close the lever (Fig. 3).

Dispensing fi liter coffee / other beverages

• Raise the lever to open the capsule compartment (Fig. 1).
• Insert the capsule, pressing it gently into place (Fig. 2).
• Close the lever fully (Fiq. 3).
• Place a cup or espresso cup under the coffee dispensing spout (Fig. 9).
• Press button A, which lights up in BLUE.
• Turn the control lever forwards (Fig. 19).
• When the desired quantity has been dispensed, set the control lever back to the central position (Fig. 20). Button A switches off.
• Raise the lever to eject the used capsule into the drawer (Fig. 1).
• Close the lever (Fig. 3).

Dispensing hot water

WARNING! The tube for dispensing hot water reaches very high temperatures: Danger of scalding! The tube must only be handled using the special rubber grip. After each use, clean the tube with a damp cloth.

Make sure the lever is closed (Fig. 3).
- Place a metal container under the hot water dispensing tube (Fig. 10).
- Turn the control lever backwards (Fig. 21). Start dispensing hot water.
- To end dispensing, set the control lever back to its central position (Fig. 20).
- Remove the container of hot water.

Preparing cappuccino / Dispensing steam

WARNING! During preparation there may be some brief splashes of hot water and the steam dispensing tube reaches very high temperatures. Danger of scalding! The tube must only be handled using the special rubber grip. After each use, clean the tube with a damp cloth.

• Dispense the coffee as desired into a cup (see Ch. Dispensing coffee).

• Press button B, which begins to blink YELLOW. After approximately 1 minute, button B is lit steadily in YELLOW; the machine is ready to dispense steam.

• Place a metal container under the hot water dispensing tube (Fig. 8).

• Turn the control lever backwards (Fig. 21); this discharges any water left in the circuit.

After a few seconds, only steam will start to come out; return the control lever to a central position (Fig. 20). Empty the container.

• Fill one third of a metal container with milk. Submerge the steam tube in the container (Fig. 10).

• Turn the control lever backwards (Fig. 21) to start dispensing steam.

• Move the metal container in a slight circular motion to ensure the milk is more evenly heated (Fig. 11).

• When preparation is complete, return the control lever to a central position (Fig. 20).

• Pour the heated and frothed milk into a coffee cup (Fig. 12).

• Press button B. Indicator light C blinks GREEN rapidly; the machine is in its cooling phase. When indicator light C comes on and remains lit in GREEN, the machine is ready for use.

NOTE: To speed up machine cooling during the cooling phase, when indicator light C blinks GREEN rapidly we recommend dispensing hot water into a metal container for a few seconds, until indicator light C comes on and remains lit steadily in GREEN.

Saving energy

The machine will automatically reduce consumption after 10 minutes of inactivity. Buttons A-B blink slowly and sequentially. To restore normal operating conditions, press any button or raise the lever. Indicator light C blinks GREEN. After approximately 1 minute, it becomes lit steadily and the machine is ready to use.

Daily maintenance

• Take out the used capsule drawer; empty and rinse it (Fig. 6).
• Remove the drip tray and the grid (Fig. 7). Empty the drip tray. Wash the parts with fresh water.
• Remove the water tank (Fig. 5); empty and rinse it.
• Gently turn the coffee dispensing spout clockwise by approximately 45^ (Fig. 15) until it comes to a stop, then remove it. Remove the top cover of the coffee dispensing spout (Fig. 16) and wash the components in hot water.
• Remove the outside of the steam dispensing tube and wash it in hot water to remove any milk residue (Fig. 17). Clean the inside using a damp cloth.

Use a soft cloth and a neutral detergent to clean the surfaces of the appliance. Do not use jets of water to clean the appliance.

The plastic parts of the machine, including the water tank, are NOT dishwasher safe.

Changing the gasket

WARNING! If the gasket shows signs of wear (small cuts or cracks, deformations, ...) you can replace it easily using the spare gasket supplied in the pack.

Perform the following operations only when the machine is cold; contact v the inside surfaces of the machine could cause burns.

• Raise the lever (Fig. 1).
  Find the gasket.
• Remove the worn gasket (Fig. 18), extracting it if necessary with the aid of a screwdriver.
• Insert the new gasket, ensuring that it fits snugly in place.
• Close the lever (Fig. 3).

Dscaling

It is advisable to use the Caffitaly System descending agent, designed to comply with the technical characteristics of the machine, in full observance of consumer safety. The descending agent must be disposed of in compliance with manufacturer instructions and/or with current regulations in force in the country where the appliance is used.

CAREFULLY read the directions for use on the package of the descaling agent. Avoid contact with eyes, skin and machine surfaces.

Switch the machine off during descending, and do not lift the lever.

A person must be present during the operation.

Do not use vinegar: it could damage your machine!

• Switch the machine off by pressing the power on/off switch (Fig. 14).
• Empty and rinse out the used capsule drawer and drip tray (Fig. 6).
• Remove and empty the water tank (Fig. 5).
• Mix the contents of a bottle of Caffitaly System descaling agent with approximately 750 cc. of water (a total of 1 litre) and pour into the tank.
• Place a metal container (at least 500ml ) under the dispensing spout and the hot water dispensing tube (Fig. 8).
• Make sure that the lever is lowered (Fig. 3) and that there is no capsule inside the capsule compartment.
• Turn the control lever backwards (Fig. 22).
• Press and hold button A while switching on the machine by pressing the power on/off switch.
• Button A lights up in BLUE, while button B and indicator light C blink alternately (YELLOW and RED respectively).
• Press button A to start the descending cycle.
• The machine dispenses the descending solution at specific intervals (5 doses with a 4 minute pause between each one, for a total duration of about 25 minutes). During this step, when the buttons must not be pressed, button B and indicator light C blink alternately (YELLOW and RED respectively).
  If the container fi IIs up, empty it out.
• When the first step is complete, button A lights up in BLUE, while button B and indicator light C blink alternately (YELLOW and RED respectively).
• Carefully rinse out the water tank and refill it with fresh water (Fig. 4).
• Empty and rinse the used capsule drawer, the drip tray and the container used and put them back in position (Fig. 6).
• Press button A to start the rinse cycle.
• Rinse water (about 500ml ) will be run through the machine. Button B and indicator light C blink alternately (YELLOW and RED respectively).
• When the rinse cycle is complete, button B blinks YELLOW.
• Set the lever back to its central position (Fig. 20).
  Indicator light C blinks GREEN. When lit steadily, the machine is ready to use.
• Carefully empty and rinse out the water tank and refill it with fresh, still water (Fig. 4).
• Empty and rinse out the used capsule drawer and drip tray (Fig. 6).

Troubleshooting

PROBLEM	POSSIBLE	CAUSE	SOLUTION
The coffee is not hot enough.	- Cold cups / espresso cups. - Scale build-up in machine.	- Preheat cup. - Descale.
No coffee is brewed. The water tank is empty. Fill the tank with fresh water (Fig. 4).
The lever cannot be lowered.	- The used capsule drawer is full. - Capsule stuck inside the machine.	- Empty out the used capsule drawer (Fig. 6). - Remove the used capsule.
Indicator light C blinks RED when: - the machine is switched on; - preheating for steam dispensing is in progress.	The control lever is not in the correct position.	Set the lever back to its central position (Fig. 20).
Warning light D is lit steadily in RED.	Heating problems. Turn off the machine, then turn it back on (Fig. 14). If the problem persists, take the machine to an Authorised Service Centre.
Indicator light C blinks GREEN rapidly for several minutes.	Machine overheating. Dispense	hot water for a few seconds (Fig. 21), until indicator light C remains lit steadily.
Coffee is dispensed very slowly, and is of poor quality.	Button A was pressed with an espresso capsule.	Do not press button A.

Technical data

See the data plate on the base of the machine.	kg About 5 kg
1,2 litres	P Max. 15 bar
ambient temperature: 10°C ÷ 40°C	<70dB A
380 mm 14 capsules
220 mm 290 mm 332 mm

The materials and objects in contact with food products comply with the requirements of European Regulation 1935/2004.

INDEX

Einleitung:

Web: www.caffi taly.com

Caffitaly

system

Caffitaly

system

professional
