| Product Type | Coffee Capsule Machine |
| Brand | Caffitaly |
| Model | S05 |
| Dimensions (W x D x H) | 33 x 26 x 28 cm |
| Weight | 4.5 kg |
| Power Supply | 220–240 V, 50/60 Hz |
| Power Consumption | 1200 W |
| Pump Pressure | 15 bar |
| Water Tank Capacity | 1 L |
| Capsule Compatibility | Caffitaly Capsules Only |
| Coffee Preparation | Espresso, Lungo, Hot Water |
| Functions | One-Touch Brewing, Auto Shut-Off, Descaling Alert |
| Control Type | Push Button |
| Indicator Lights | Power, Ready, Descale |
| Maintenance | Descaling Every 3 Months; Daily Rinse Cycle |
| Cleaning | Removable Drip Tray, Water Tank; Wipe Exterior with Damp Cloth |
| Safety Features | Auto Shut-Off After 9 min, Thermal Fuse, Overheat Protection |
| Spare Parts Available | Water Tank, Drip Tray, Capsule Container, Descaling Kit |
| Repairability | Modular Design; Service Centers Worldwide |
| Warranty | 2 Years |
Frequently Asked Questions - S05 Caffitaly
User questions about S05 Caffitaly
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Coffee machine in PDF format for free! Find your manual S05 - Caffitaly and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. S05 by Caffitaly.
USER MANUAL S05 Caffitaly
Italiano

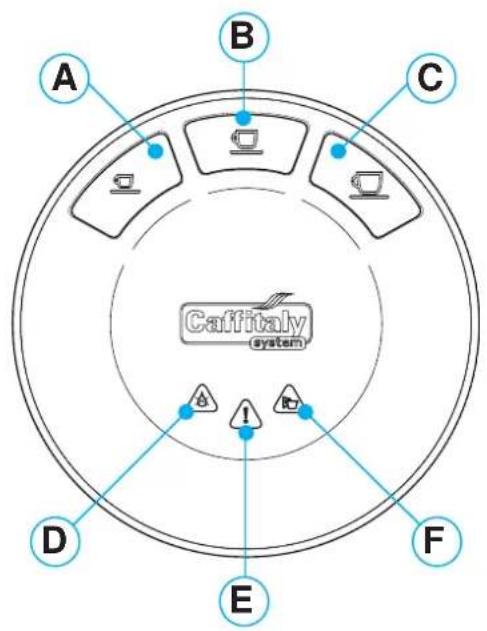

A: "Espresso" button;
B: "Long coffee" button;
C: "Filter coffee" button;
D: "No Water" indicator light.
E: "Descaling" indicator light";
F: "Capsule drawer full" indicator light;
G: Lever for opening / closing capsule compartment;
H: Capsule compartment;
I: Dispensing spout (adjustable);
J: Used capsule drawer;
K: Drip tray;
L: Water tank cover;
M: Water tank;
N: Power cord;
O: Power on/off switch;
Deutsch
- Following the instructions (Symbols) 15
- Your Cafitaly System contact ....15
• Safety warnings....16 - Instructions for use and disposal....17
Installation:
- First use or after a long period of disuse....17
• Turning on the appliance....17 - General operating indications....18
- Adjusting the cup/espresso cup height....18
Dispensing the product:
- Correct use of the buttons ....18
• Dispensing coffee....19 - Programming the quantity of coffee in a cup ....19
Cleaning and Maintenance:
• Saving energy ....19
• Daily maintenance....19
- Descaling....20
Miscellaneous:
- Troubleshooting....21
• Technical data ....21
Thank you for having chosen our product and for your confidence in our company. You can savour your favourite hot beverages at any time of the day with our appliance by choosing one of the capsules that Caffitaly System offers. For example: an espresso, a cocoa-fl avoured beverage or a tea will be ready in just a few seconds.
Following the instructions (Symbols)
Warning.
This is the safety warning symbol.
It is used to call your attention to potential personal injury hazards.
Abide by the safety messages provided in order to avoid possible injury or death.
Note.
This symbol is used to highlight some actions that will optimise appliance use.
Cleaning advice
Your Cafitaly System contact
info@caffita.com
Safety warnings
CAREFULLY read the following instructions!
In this way you will avoid the risk of personal injury and damage to the appliance.
- This appliance is designed for domestic use and similar purposes, for example: staff kitchen areas in shops, offices and other workplaces; in hotels, farm lodges, motels, Bed & Breakfasts and other residential environments.
• Use only Caffi taly System capsules.
- Use of the appliance in any manner other than as directed herein could cause harm to persons and void the guarantee. The manufacturer will not be responsible for injury or damage resulting from improper use of the appliance.
• After removing the packaging, check that the appliance is not damaged. If damage is found, or upon the first sign of a defect (unusual noise or odours), or if any problem occurs inside the appliance, do not use it and contact an Authorised Service Centre.
- The packaging elements (plastic bags, etc.) must not be left within reach of children as they are potential sources of danger.
- Only use the appliance if the power cord is intact. If the cord is damaged, it should be replaced: contact an Authorised Service Centre. Lethal danger of electric shocks.
- Only use and store the appliance indoors. Make sure the electrical elements, plug and cord are dry. Never submerge the appliance in water. Protect the appliance from sprays and drips. Water and electricity together constitute a risk of electrocution.
- Only connect the appliance to power outlets complying with the requirements of the law. Make sure that the power supply voltage matches the rating shown on the data plate, located on the bottom of the appliance.
- The surface on which the machine is installed must be level, solid, stationary and heat resistant; the bearing surface must not exceed an angle of 2^ .
- Do not allow the appliance to be used by children or persons with impaired mental, physical or sensory faculties or insufficient experience and/or skills, unless they are under the careful supervision and guidance of a person responsible for their safety. Children must be kept under supervision to prevent them from playing with the appliance.
- Do not leave the power cord near hot surfaces, sharp edges or other sharp objects.
- Never place your hands inside the capsule compartment. Danger of injury.
• Always close the lever. Never open the lever while a product is being dispensed.
- Never remove machine parts, except those indicated in the instructions for daily maintenance.
- Do not insert objects into the openings. This could cause electric shocks! Any operation that is not described in this instruction manual should only be performed by an Authorised Service Centre!
- Do not pull on the power cord to disconnect it. Remove the plug to avoid damaging it.
- Descale the appliance regularly, following the instructions provided. If you do not, the appliance may be damaged.
- Clean the appliance carefully and regularly. If it is not cleaned, the build-up that forms may be hazardous to your health. Unplug the appliance and allow it to cool before cleaning.
- If you do not expect to use the appliance for a long period of time (leaving on vacation, etc.), unplug it.
Instructions for use and disposal
The appliance has been manufactured using high quality materials that can reuse or recycled. Dispose of the appliance in a suitable waste collection centre.
Directions for correct disposal of the product according to European Direc 2002/96/EC and Italian Legislative Decree no. 151 dated 25 July 2005. At the end of its useful life, the product should not be disposed of with unsorted household waste. It should be taken to a suitable selective waste collection centre set up by the local authorities or returned to a retailer who provides this service.
Separate collection of an electrical household appliance avoids a possible nega impact on the environment and health arising from improper disposal and enables the materials it is made of to be recovered so as to achieve significant savings of energy and resources. The crossed-out wheelie bin symbol applied on the product highlights the need to dispose of electric appliances separately. Improper disposal of the product by the user shall be subject to specific administrative sanctions as provided for under current regulations.
The packaging is made from recyclable materials. Contact the competent authori for information regarding local legislation.
First use or after a long period of disuse
• Fill the tank with fresh, still water (Fig. 4).

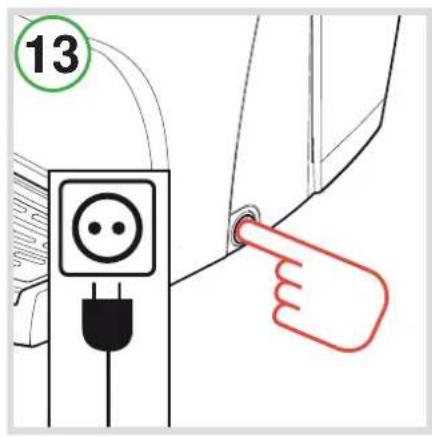

- Plug in the appliance and turn it on (Fig. 13).
• Make sure the lever is closed (Fig. 3).
• As well as buttons A-B-C, warning light D also blinks RED.
- Place a large container (at least 250 ml) under the dispensing spout (Fig. 9).
- Press one of the buttons A-B-C. Wait for the machine to complete the priming cycle and fi ll with water. Warning light D will switch off.
NOTE: if, at the end of the priming cycle, buttons A-B-C and warning light D continue to blink, repeat the procedures as listed in the previous step.
- Buttons A-B-C will blink simultaneously to indicate that the machine is warming up.
- When buttons A-B-C turn on and remain steadily lit, perform a rinse by pressing button C. Press the button again to perform a second rinse. Wait for the machine to complete the rinse cycle.
- At the end of this operation, empty out the water from the used capsule drawer (Fig. 6).
Turning on the appliance
• Fill the tank with fresh, still water (Fig. 4).

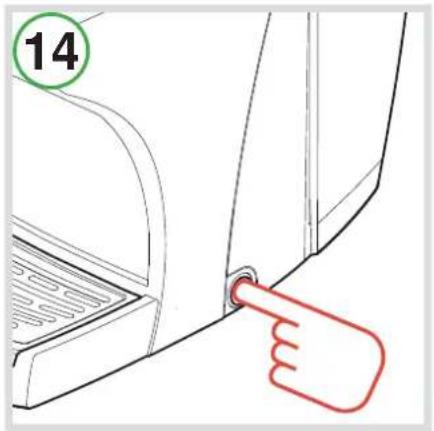

- Switch on the appliance by pressing the power on/off switch (Fig. 14).
- Buttons A-B-C will blink simultaneously to indicate that the machine is warming up. When the buttons turn on and remain steadily lit, the appliance is ready for use.
General operating indications
DESCALING SIGNAL:
- When warning light E blinks YELLOW and the machine beeps 3 times, a descaling cycle should be carried out (see ch. Descaling).
HEATING:
- Buttons A-B-C blink simultaneously.
WHEN THE WATER RUNS OUT DURING OPERATION:
- When warning light D blinks RED and the machine beeps 3 times, the water tank is empty.
• Fill the water tank with fresh, still water (Fig. 4). - Press one of the buttons A-B-C. Wait for the machine to complete the priming cycle and fill with water.
- When buttons A-B-C turn on and remain steadily lit, the appliance is ready for use.
1st CAPSULE DRAWER FULL SIGNAL:
- When warning light F blinks RED, the used capsule drawer should be emptied (Fig. 6).
2nd CAPSULE DRAWER FULL DISABLING SIGNAL:
- When warning light F is steadily lit in RED, the machine is disabled and the used capsule drawer must be emptied (Fig. 6). The procedure must be carried out while the machine is switched on!
IF THE LEVER IS RAISED WHILE DISPENSING:
- Raising the lever while dispensing a product (Fig. 1) may cause splashes of hot water. Danger of scalding!
- Warning light E blinks RED and the machine beeps. The appliance will immediately stop dispensing.
- Close the lever (Fig. 3).
- Press one of the buttons A-B-C to reset the alarm.
• The appliance is ready for use again.
Adjusting the cup/espresso cup height
- The machine can be adjusted for the use of large cups or espresso cups.
- The machine is initially set for the use of large cups (Fig. 7).
- For optimum results when using espresso cups, lower the end of the dispensing spout (Fig. 10).
Correct use of the buttons
To dispense “Espresso” or “Caffè crema”, only use button A or B (1st and 2nd from the left respectively, lit up in WHITE). The same buttons, depending on the quantity, are to be used for dispensing capsules of orzo, ginseng, cocoa or milk.
Button C (3rd from the left, lit in BLUE) must be used solely for "Filter Coffee" or "Americano". This same button can be used for capsules of tea, chamomile tea or herbal tea.
Do not use button C for espresso or any other coffee with an intense flavour. In this function the machine is set for low pressure and this reduces the "crema", diminishes the flavour of the coffee, and could cause a break in the flow.
NOTE: Traces of the beverage just dispensed may remain in the circuit of the machine. To retain maximum beverage flavour, when changing from one product to another, rinse it briefly.
Rinsing is carried out by dispensing a coffee without inserting a capsule.
Dispensing coffee
- Raise the lever to open the capsule compartment (Fig. 1).
- Insert the capsule, pressing it gently into place (Fig. 2).
- Close the lever fully (Fig. 3).

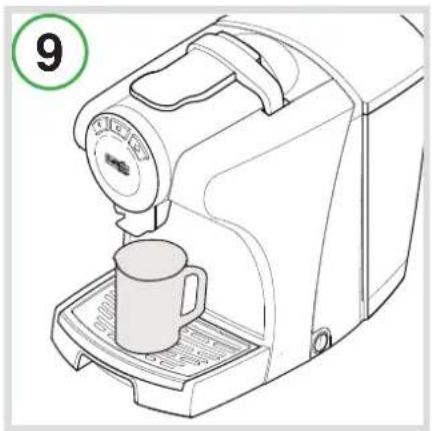

- Place a cup or espresso cup under the coffee dispensing spout (Fig. 7 or 8).
• Press and release button A or B, depending on the desired coffee.
- The pressed button will flash. The machine will stop dispensing on reaching the programmed quantity and emit a beep.
- Raise the lever to eject the used capsule into the drawer (Fig. 1).
- Close the lever (Fig. 3).
NOTE: the quantities of coffee dispensed can be programmed according to personal taste and the size of the cups or espresso cups used.
To program the quantities, please refer to ch. "Programming the quantity of coffee in a cup".
Programming the quantity of coffee in a cup
- Raise the lever to open the capsule compartment (Fig. 1).
- Insert the capsule, pressing it gently into place (Fig. 2).
- Close the lever fully (Fig. 3).
- Place a cup or espresso cup under the dispensing spout (Fig. 7 or 8).
- Press and hold the desired coffee button.
- On reaching the desired amount of coffee, release the button. Now the button is programmed. The quantity of coffee dispensed can be programmed from a minimum of 20 up to a maximum of 250 ml.
- Raise the lever to eject the used capsule into the drawer (Fig. 1).
- Close the lever (Fig. 3).
Saving energy
The machine will automatically reduce consumption one hour after it was last us. Buttons A-B-C blink slowly and sequentially. To restore normal operating conditions, press any button or raise the lever. The appliance will start warming up. When the buttons A-B-C turn on and remain steadily lit, the appliance is ready for use.
Daily maintenance
During normal operations, warning light F may come on. The capsule expulsion process should be carried out while the machine is switched on. If this is done while the machine is switched off, the count of capsules deposited in the drawer will not be reset. As a result, the warning light may come on even if the capsule drawer is almost empty.
- Remove the drip tray and used capsule drawer (Fig. 6).
- Lift the used capsule drawer (Fig. 11); empty and rinse it.
- Remove the grid (Fig. 12). Empty the drip tray and rinse it out with water.
- Remove the water tank (Fig. 5): empty and rinse it.
Use a soft cloth and a neutral detergent to clean the surfaces of the appliance. Do not use jets of water to clean the appliance.
The plastic parts of the machine, including the water tank, are NOT dishwasher safe.
Descaling
Descaling signal: when warning light E blinks YELLOW and the machine beeps 3 times, a descaling cycle should be carried out, as illustrated below.
The machine features an advanced program that monitors how much water is used to dispense beverages. This measurement provides the user with indications as to when the machine needs to be descaled.
It is advisable to use the Cafitaly System descaling agent. It is designed to comply with the technical characteristics of the machine, in full observance of consumer safety. The descaling agent must be disposed of in compliance with manufacturer instructions and/or with current regulations in force in the country where the appliance is used.
CAREFULLY read the directions for use on the packaging of the descaling agent. Avoid contact with eyes, skin and machine surfaces. Switch the machine off during descaling, and do not lift the lever. A person must be present during the operation.
Do not use vinegar: it could damage your appliance!
- Switch the machine off by pressing the power on/off switch (Fig. 14).
• Empty and rinse out the used capsule drawer and drip tray (Fig. 6).
- Remove and empty the water tank (Fig. 5).
- Mix the contents of a bottle of Caffitaly System descaling agent with approximately 750 cc. of water (a total of 1 litre) and pour into the tank.
- Place a container (at least 1 litre) under the dispensing spout (Fig. 9).
- Make sure that the lever is lowered (Fig. 3) and there is not a capsule inside the capsule compartment.
- Press and hold buttons A and B while switching the machine on by pressing the power on/off switch.
- Button B will light up, while warning light E blinks YELLOW and RED alternately.
- Press button B to start the descaling cycle.
- The machine dispenses the descaling solution at intervals (5 doses with a 4-minute pause between each one, for a total duration of about 25 minutes). During this step, when the buttons must not be pressed, warning light E blinks YELLOW and RED alternately.
- When the first phase is over, button B lights up and the machine beeps repeatedly. The water tank is empty.
• Carefully rinse out the water tank and refill it with fresh water (Fig. 4).
- Empty and rinse the used capsule drawer, the drip tray and the container used and put them back in place (Fig. 15).
- Press button B to start the rinse cycle.
- Rinse water (about 500 ml) will be run through the machine. During this step, warning light E blinks alternately (twice YELLOW and twice RED).
- When the rinse cycle is complete, the machine beeps and buttons A-B-C blink simultaneously; the machine is warming up. When the buttons turn on and remain steadily lit, the appliance is ready for use.
• Carefully empty and rinse out the water tank and refill it with fresh, still water (Fig. 4).
• Empty and rinse out the used capsule drawer and drip tray (Fig. 6).
Troubleshooting
| PROBLEM | POSSIBLE | CAUSE | SOLUTION |
| No coffee comes out. Warning light D blinks RED. | The water tank is empty. Fill the tank with fresh water. Press a button to ref ll the circuit. When the buttons remain steadily lit, the appliance is ready for use. | ||
| The coffee is not hot enough. | - Cold cups / espresso cups.- Scale build-up in machine. | - Preheat the cup.- Descale the machine. | |
| The lever cannot be lowered. | - The used capsule drawer is full.- Capsule stuck inside the machine. | - Empty out the used capsule drawer.- Remove the used capsule. | |
| Warning light E is lit steadily in RED. | Heating problems. Switch the machine off and on again. If the problem persists, take the machine to an Authorised Service Centre. | ||
| When a button is pressed to dispense coffee, the machine seems to work but then stops without dispensing any coffee, or only dispenses a tiny amount. | Incorrect quantity programming. | Reprogram the quantity associated with that button.See ch. "Programming the quantity of coffee in a cup". | |
| Coffee is dispensed very slowly, and is of poor quality. | Button C was used with an espresso capsule. | Use buttons A or B. | |
Technical data
 | See the data plate on the base of the machine. |
| [AOAW] | Max. 15 bar |
 | < 70dB A |
 | About 6 kg |
 | 2 litres |
 | Ambient temperature: 10°C - 40°C |
 | 220 mm 340 mm 320 mm |
The materials and objects in contact with food products comply with the requirements of European Regulation 1935/2004.
Web: www.caffi taly.com
Caffitaly
system
Caffitaly
system
professional
- Italiano
- Deutsch
- Installation:
- Dispensing the product:
- Cleaning and Maintenance:
- Miscellaneous:
- Following the instructions (Symbols)
- Safety warnings
- Instructions for use and disposal
- First use or after a long period of disuse
- Turning on the appliance
- General operating indications
- DESCALING SIGNAL:
- HEATING:
- WHEN THE WATER RUNS OUT DURING OPERATION:
- 1st CAPSULE DRAWER FULL SIGNAL:
- 2nd CAPSULE DRAWER FULL DISABLING SIGNAL:
- IF THE LEVER IS RAISED WHILE DISPENSING:
- Adjusting the cup/espresso cup height
- Correct use of the buttons
- Dispensing coffee
- Programming the quantity of coffee in a cup
- Saving energy
- Daily maintenance
- Descaling
Brand : Caffitaly
Model : S05
Category : Coffee machine
