USER MANUAL LIFE P14310 (MD 31360) MEDION

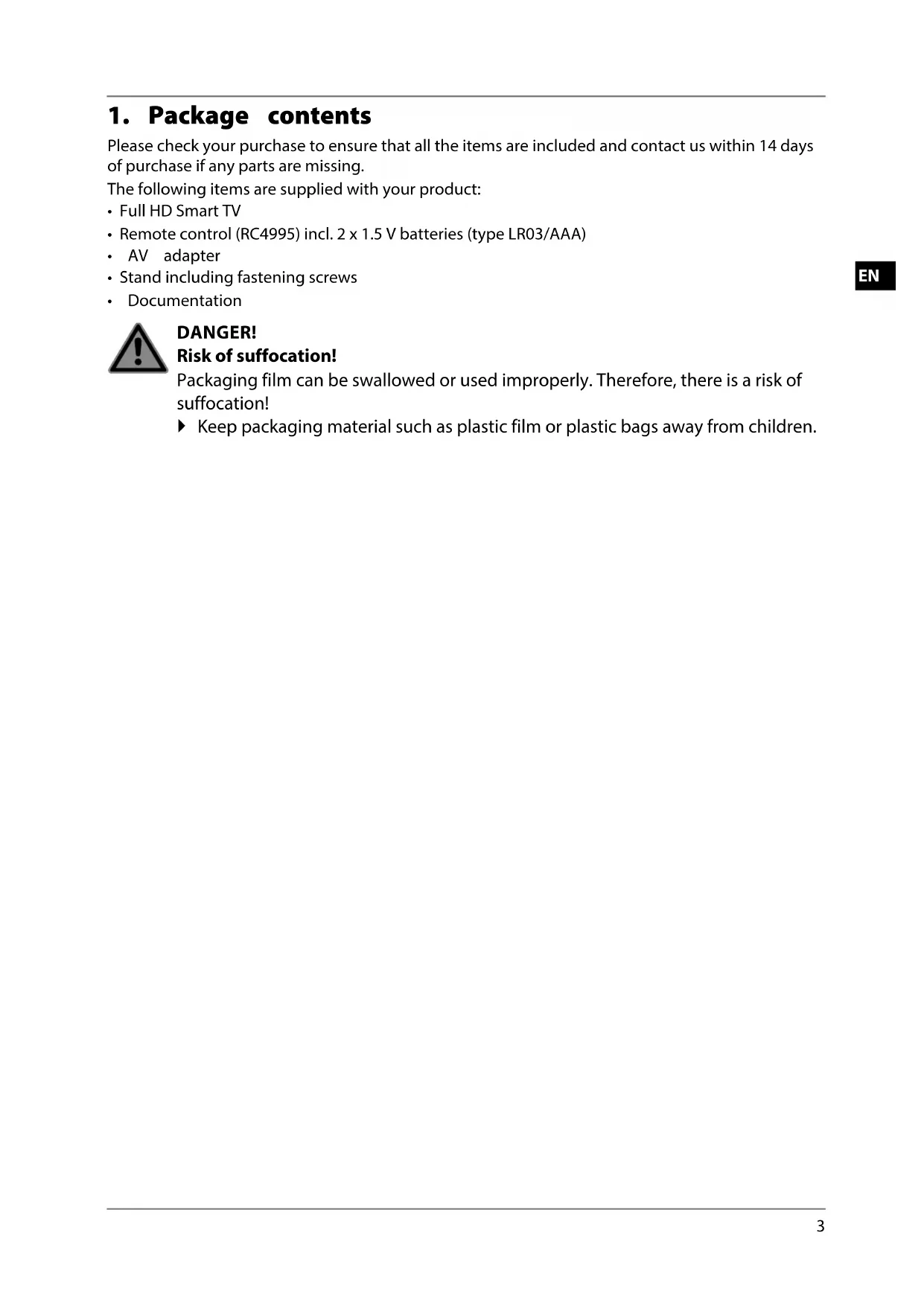

EN21. Package contents Please check your purchase to ensure that all the items are included and contact us within 14 days of purchase if any parts are missing. The following items are supplied with your product:

• Stand including fastening screws

• Documentation DANGER! Risk of suffocation! Packaging film can be swallowed or used improperly. Therefore, there is a risk of suffocation! Keep packaging material such as plastic film or plastic bags away from children.

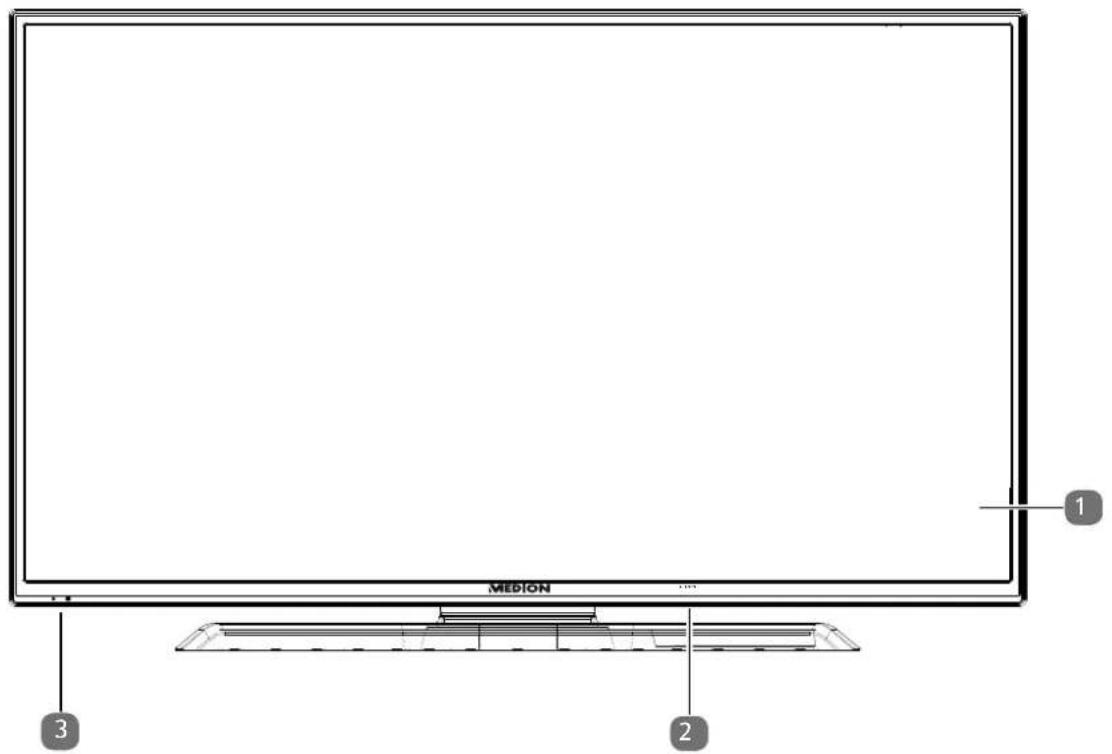

EN2. Overview of the device 2.1. Front OFF/ON

2) Mains switch (bottom of the device on the left or right)

3) Infrared sensor: Reception field for the infrared TV signals.

Operating light: Lights up when the device is in standby mode. 42.2. Rear and right-hand side

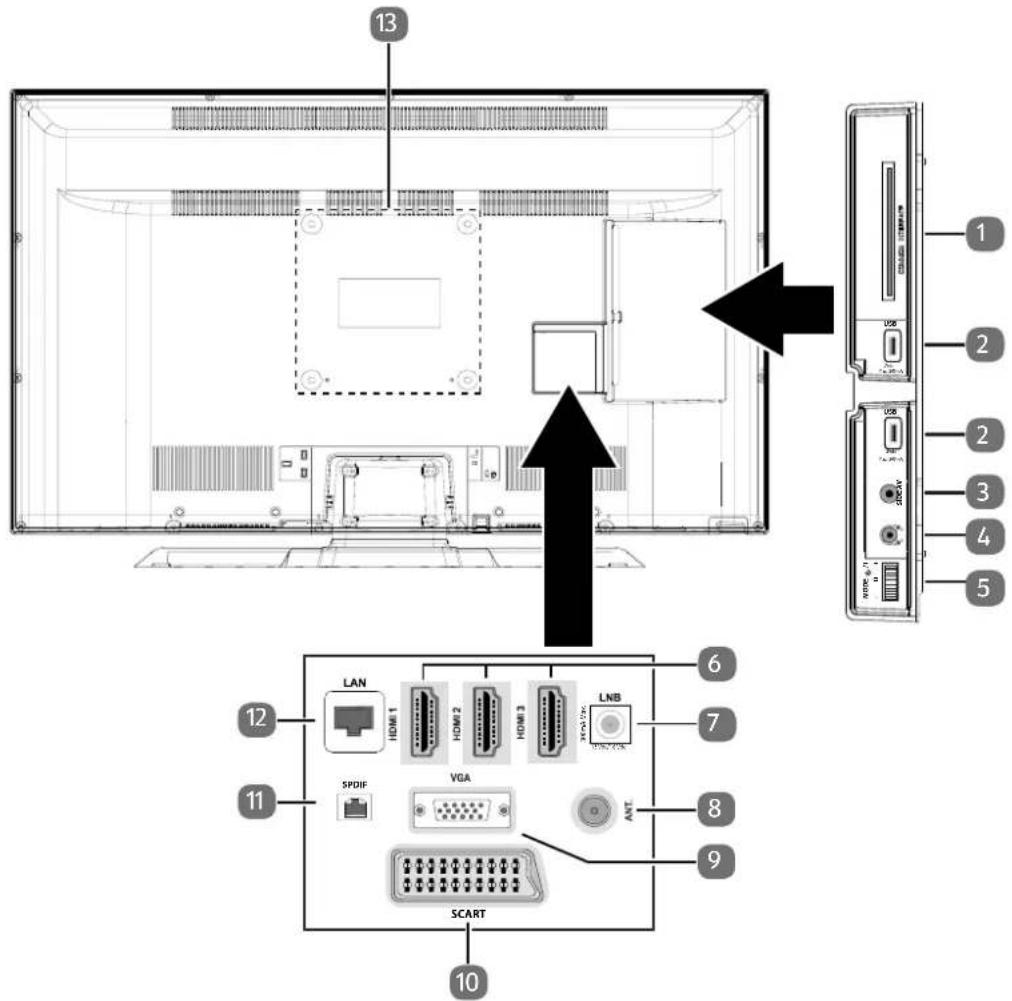

1) COMMON INTERFACE (CI+): Card slot for connecting pay TV cards

, 500 mA max.): USB connection for media playback/recording (PVR)

3) SIDE AV: Audio/video input (yellow): for connecting a device via AV adapter 3.5 mm jack > 3 x

: For connecting headphones with 3.5 mm jack

5) MODE: Multifunction button for channel switching, input source selection or volume

adjustment. Settings are made by tilting upwards (+) or downwards (-). Pressing the button briefly switches between functions. A long press switches the device into standby mode or operating mode.

6) HDMI 1-3: HDMI connection for devices with a HDMI output (HDMI 1 can be used for CEC/

9) VGA: VGA port for connecting a PC or a YUV adapter (optional)

12) LAN: Network connection to connect to the Internet

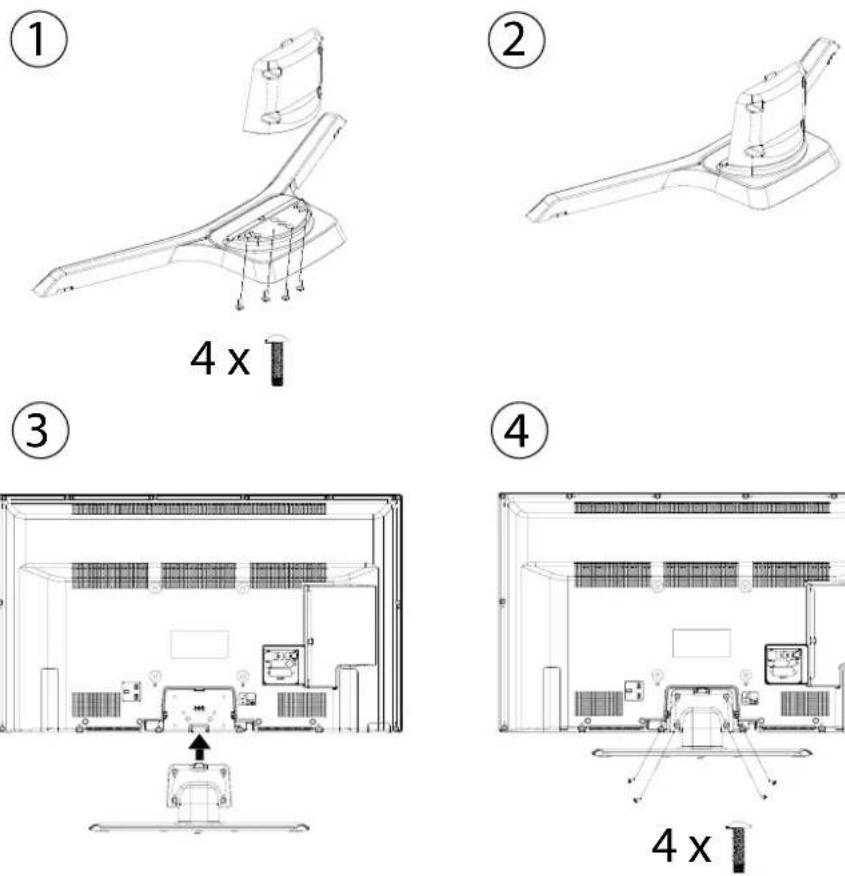

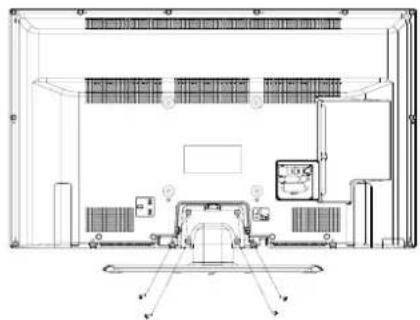

Wall mount not supplied. When mounting the device, make sure that you use M6 screws. The length of the screws corresponds to the thickness of the wall bracket plus 10 mm.

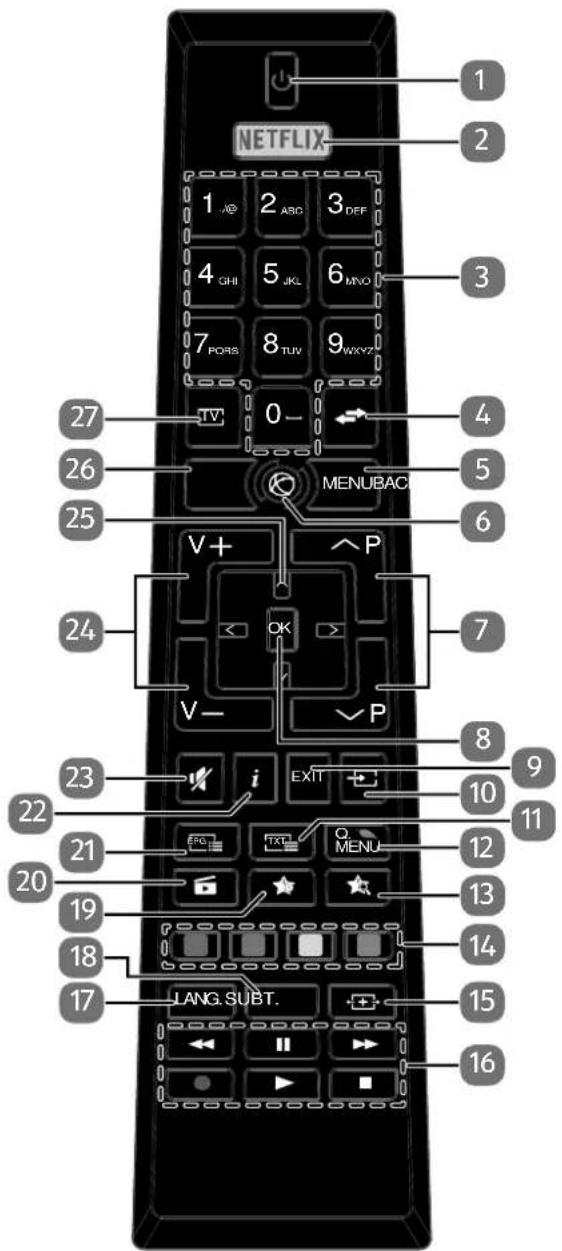

TV: programme selection, teletext: page selection

(SWAP): Set previous TV programme

P-/+: Programme selection buttons TV: select next (+) / previous (−) programme; teletext: select next (+) / previous (−) page

OK: Confirm selection in certain menus

EXIT: Exiting the menu 10) (SOURCE): Select input signal of connected devices 611) TXT : Activate teletext Press 2 x = set transparent; Press 3 x = close

12) Q. MENU: Access the quick menu (OPTION MENU) to quickly call up basic options

13) : Switching between DVB-S, DVB-T and DVB-C channels / multifunction button for programme channel or input source

Switch to TV operation/call up information on channel-specific button functions

The and buttons can be programmed to any channel position or a particular input source Start by selecting the function you require and then hold down the corresponding button for 5 seconds until MY BUTTON IS SET appears on the screen. This confirms the new programming. After each INITIAL INSTALLATION your customised button programming is deleted and reset to the factory defaults

EN3. Using the device for the fi rst time Before using for the first time, be sure to read the section “Safety instructions”. 3.1. Unpacking

• Select a suitable place for setting up the device before unpacking.

• Open the box very carefully to avoid damaging the device. The device could be damaged if you use a knife with a long blade to open the box.

• The box contains a number of small items (including batteries). Keep these out of the reach of children as they represent a choking hazard.

• Store the packaging material in a safe place; only use this box to transport the TV. DANGER! Risk of suffocation! Packaging film can be swallowed or used improperly. Therefore, there is a risk of suffocation! Keep packaging material such as plastic film or plastic bags away from children. 83.2. Mounting Attach the stand as shown in the illustration. Carry out this step before connecting the smart TV. 4 x

3.3. Inserting batteries in the remote control Loose the screw of the battery compartment cover on the back of the remote control and remove the cover. Insert two LR03 (AAA) 1.5 V batteries in the battery compartment of the remote control. Check the battery polarity (inscribed on the bottom of the battery compartment). Close the battery compartment by fixing the cover with the screw. NOTICE! Risk of damage! The remote control can be damaged by leaking batteries if not used for a long period of time! Remove the batteries from the remote control if the device is not going to be used for a long period. 3.4. Connecting the antenna Your smart TV supports different antenna signals. You can feed the following picture signals via the connection labelled ANT.:

connector (digital cable) Connect the antenna cable from either the house aerial/the analogue cable connection, the DVB-T antenna or the DVB-C connection to the antenna connection on the smart TV

This service must be available in your region.

ENYou also have the option of connecting a digital satellite system to the connection labelled LNB. Screw the F connector of a coaxial antenna cable onto the connection on the smart TV. To receive encrypted/subscription channels you will need to use a CI module and an appropriate card. Insert a CI module (available in specialist shops) into the slot provided for this purpose on the left-hand side of the device (Common Interface). You can then insert the card from your provider into the CI module. 3.5. Connecting the power supply Connect the mains plug on the device to an easily accessible 220 - 240 V ~ 50 Hz mains socket. 3.6. Switching the smart TV on and off Set the power switch on the bottom of the device to ON. The device switches to standby mode and the display on the front will light up. To switch on the device, press − on the remote control: the Standby/On button , one of the number buttons or one of the P-/+ buttons; − on the device: the multifunction button

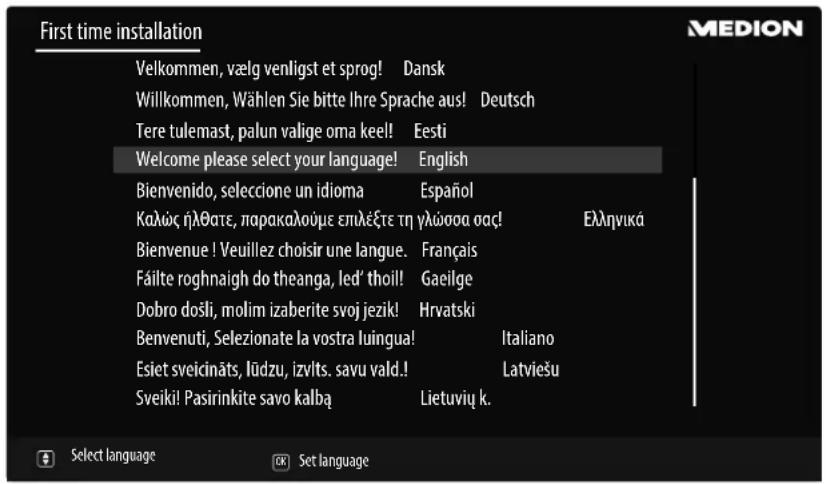

You can move up or down in the menu and select the required language using the direction buttons . After confirming the selected language with OK the initial installation will begin 10First time installation CountryScan Encrypted ChannelsSelect favourite network typeSelect Broadcast Type:Digital AerialDigital CableSatelliteAnalogueWelcome!NavigateContinueChoose your country

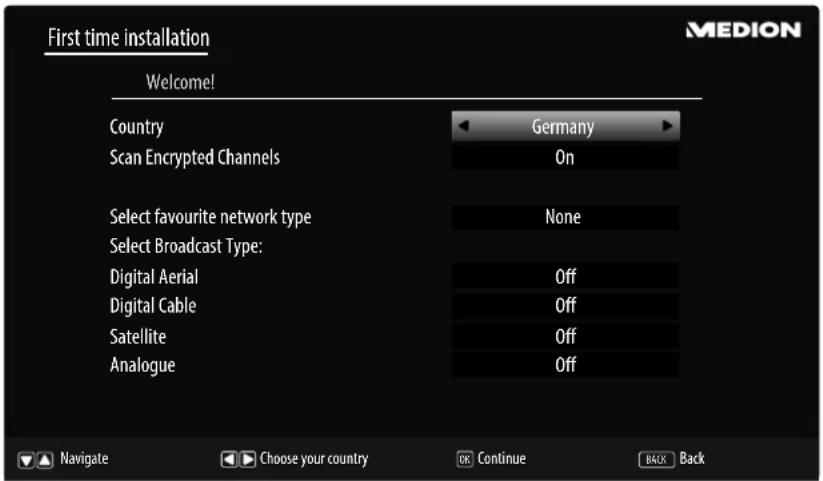

Use to select the desired country. The country setting will influence the order in which the channels are stored. Also, there are a number of options preset for the individual countries. If Siyou would also like to search for encrypted channels, set the option to ON. Now use the direction buttons to select the preferred reception type: DIGITAL AERIAL, DIGITAL CABLE, SATELLITE or ANALOGUE. This reception mode will set to ON in the corresponding options. After the channel scan, the preferred reception type will be activated. If you want to activate other reception types, use the direction buttons to select the reception type DIGITAL AERIAL, DIGITAL CABLE, SATELLITE or ANALOGUE and then use to select ON for the desired reception type. Afterwards, press OK to continue. Then you will be prompted to accept the MEDION® Smart TV privacy policy. This is necessary if you intend to make use of the network/Internet services. In this case, answer the query with YES. If you select NO you will not be able to use these services without subsequently agreeing to the terms. Now a query appears asking whether you want to make network/Internet settings. Select

if you want to skip this step. If you have selected NO here, you cannot subsequently use any network/Internet/HbbTV services.

Wi-FiDelete Saved Wi Prole

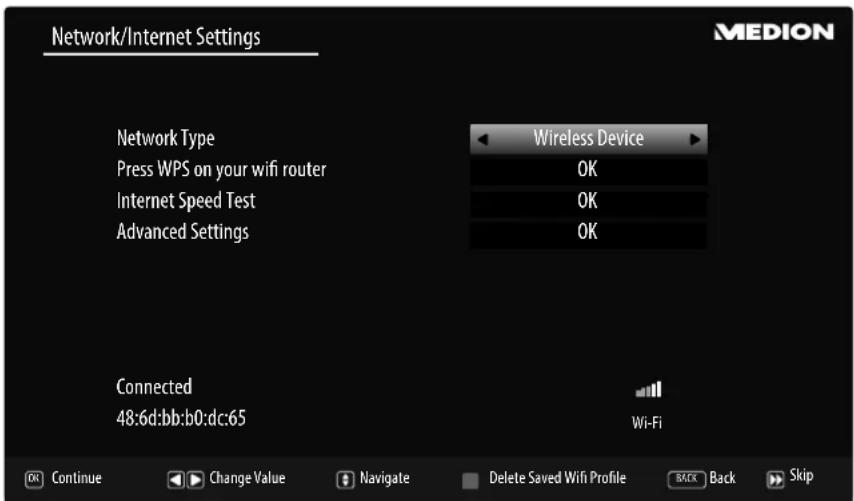

ENNetwork settings NETWORK TYPE Here you select the network type: WIRELESS DEVICE or WIRED DEVICE. After making a selection with the direction buttons and confirming with the OK button, an overview of all available networks appears. Make a selection and confirm with the OK button. If a password is required for a network, a virtual keyboard appears which you can use to enter this with the help of the direction buttons and the OK button. After entering the password, select OK on the keyboard and confirm with the OK button. PRESS WPS

FI ROUTER (only for WLAN) This option enables you to quickly establish a WPS connection via a wireless network (Wi-Fi). Hold down the WPS button on your router and confirm this option OK using the OK button. Then the WPS connection will be made. INTERNET SPEED TEST Press the OK button in order to test the Internet speed. ADVANCED SETTINGS Press the OK button to call up further network configuration options. CONFIGURATION Choose the setting AUTOMATIC IP or MANUAL IP. If you select MANUAL IP, three additional lines appear in which you can manually enter the data for the

ADRESS, SUBNET MASK and DEFAULT GATEWAY using the direction buttons and the number buttons. CONFIGURATION Select here between AUTOMATIC DNS or MANUAL DNS. If you select MANUAL DNS, two additional lines appear in which you can manually enter the data for the DNS SERVER 1 and DNS SERVER 2 using the direction buttons and the number buttons. An existing network connection can be terminated by pressing the red button. Exit the network settings by pressing OK. After exiting the network settings, the channel search will start for your previously selected preferred reception type. Also pay attention to any other information that is displayed on the screen depending on your selection.

123.7.2. Cable digital

Automatic channel scan - Digital Cable NetworkFrequencyNetwork IDSearch StepContinueChange Value

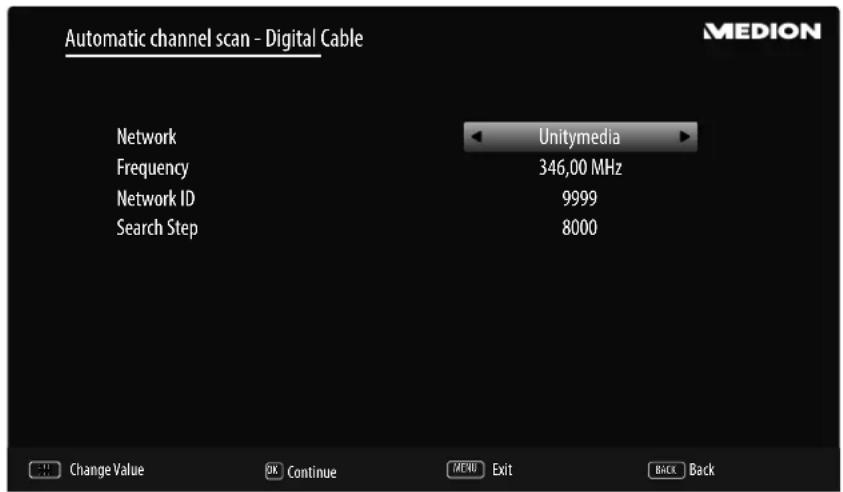

If you have previously activated the reception type DIGITAL CABLE, you can now make settings for the network search. If it should be necessary, you can adjust the NETWORK, FREQUENCY, the NETWORK ID and the SEARCH STEP correspondingly.

First time installation Direct Continue

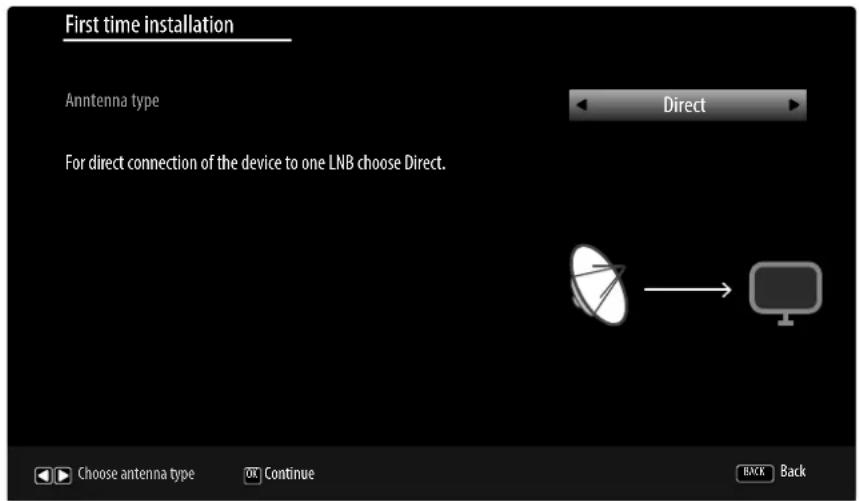

Anntenna type For direct connection of the device to one LNB choose Direct. Choose antenna type Back BACK If you have previously activated the reception type SATELLITE, you can now make settings for the antenna type.

EN To set the antenna type, select one of the following antenna types:

DIRECT: Select this antenna type if you have a single receiver and a satellite antenna. Press the OK button and then choose the desired satellite (you can also call up the transponder list using the blue button). Afterwards, press the OK button again to start the search. After that, decide whether or not the channel list should be loaded.

UNICABLE: Select this antenna type if you have multiple receivers and a single-cable system. Press the OK button and make all the necessary settings regarding SATELLITE POSITION 1/2, USER BAND and BAND FREQUENCY (here you can also call up the transponder list using the blue button). Afterwards, press the OK button again to start the search. After that, decide whether or not the channel list should be loaded.

DISEQC SWITCH: Select this antenna type if you have multiple satellite antennas and a DiSEqC switch. Press the OK button and activate the desired DISEQC switch 1 - 4 (here you can also call up the corresponding transponder list using the blue button). Afterwards, press the OK button again to start the search. After that, decide whether or not the channel list should be loaded. Afterwards, press OK to continue. Scan statistics Network Type DVB-T DVB-C DVB-S Analogue TV / Radio Exit

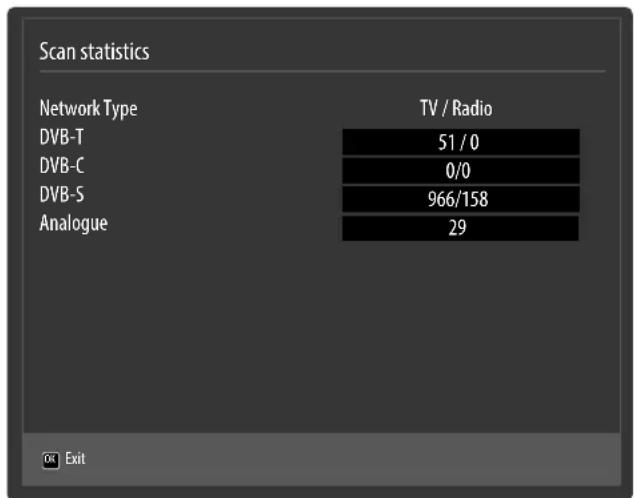

After the end of the automatic channel storage, an overview of the number of found channels appears for the corresponding reception types. Press the OKbutton to close the list and complete the search. The device now switches to the channel of the previously selected preferred reception type. At the same time, the channel list is displayed. If the list is not processed further, it closes after a few minutes. If the channel list does not close automatically, press the MENUbutton to exit the function. The initial installation described here corresponds to the FIRST TIME INSTALLATION option in the INSTALLATION menu.

144. Troubleshooting

Malfunctions can sometimes have quite trivial causes, but they may also be the result of defective components. We have included a brief troubleshooting guide below which may help to solve any problems. If these tips don’t solve the problem then we’ll be more than pleased to help you out. Just give us a call! Error Measures There is no picture and no sound.

• Check if the power cable is inserted properly into the socket.

• Check if signal reception is set to TV.

• Check whether the power switch on the bottom of the device is turned on. There is no AV picture. • Check to ensure that the contrast and brightness settings are correct.

• Check to ensure that all external devices have been connected properly.

• Check to ensure that you have selected the correct AV source.

• Any input source that you want to select with

(SOURCE ) must be marked in the SOURCES menu. There is no sound. • Ensure that the volume has not been set to the minimum level.

• Ensure the mute setting is not active. Do this by pressing the button in the top left of the remote control with the crossed out loudspeaker symbol.

• If you have connected a satellite receiver or DVD player via a SCART cable to the television, check whether the cable has been connected properly to the SCART socket. There is no picture and no sound. I can hear noise, though.

• The reception might be poor. Check if the antenna is connected properly. The picture is not clear. • The reception might be poor.

• Check if the antenna is connected properly. The picture is too bright or too dark.

• Check the settings for contrast and brightness. The picture is not sharp. • The reception might be poor.

• Check if the antenna is connected properly.

• Check the settings for sharpness and noise reduction in the PICTURE menu. There is a double/triple picture.

• Check if the antenna is aligned properly.

• Waves might be reflected off buildings or mountains. The picture is pixellated. • There might be interference from cars, trains, power lines, neon lights, etc.

• There might be interference between the antenna and power cables. Position the cables further apart. There are stripes on the screen or the colours are faded.

• Is there interference from another device?

• Transmission antennae on radio stations, ham radios and portable phones can also cause interference.

• Operate the device as far away as possible from the device that might be causing the interference.

ENThe MODE multifunction button on the device is not working.

• The child lock might be on. TV switches off • Check whether the automatic TV switch off function is activated under MORE... No reception/poor reception via a wireless network connection (WLAN).

• Ensure that all necessary settings have been made. WIRELESS DISPLAY cannot be established.

• Check that all necessary settings have been made. Read the section “Wireless Display”. The remote control is not working.

• Check whether the batteries in the remote control are functional and have been inserted the right way round.

• Ensure the sensor field is not exposed to strong light.

• Turn the device off and on again using the power switch on the bottom of the device. Menu cannot be opened. • Check whether CEC is enabled. In this case, the menu cannot be opened. This is not a defect. In some cases, the menu of the device connected via HDMI1 opens. This is dependent on the source device and must be supported accordingly.

• Change the input source. Filter function of the channel list does not work permanently.

• To set a "permanent" filter, you need to call up the channel list with the OK button and then the expanded channel list with the green button.

• Call up the expanded channel list via MENU > CHANNEL LIST and then use the FILTER function. If, however, you call up the channel list during operation via the OK button and then use the FILTER option, this option acts more like a search function. This means that the complete channel list is displayed the next time you press the OK button after closing the channel list. The previously filtered results are not retained. For further information on troubleshooting, read where applicable the comprehensive operating instructions available online because certain measures and procedures are described there in more detail 4.1. Do you need more help? If the suggestions in the previous section did not solve your problem, please contact us. To make it easier for us to help you, please have the following information to hand:

• What external devices are connected?

• What messages appear on the screen?

• When operating the device, at which step did the problem occur?

• If you have a PC connected to the device: − How is your computer configured? − What software were you using when the problem occurred?

• What steps have you already taken to try and rectify the problem?

• Please provide us with your customer number if you have one.

165. Legal notice & operating instructions download
