Product type	Motorcycle
Brand	BMW
Model	K 1600 GTL (2018)
Category	Motorcycle
Tank capacity	26.5 L (reserve 4 L)
Recommended fuel	Unleaded premium (E5, E10) 95 ROZ/RON, 90 AKI
Front tire inflation pressure	2.9 bar (cold tires)
Rear tire inflation pressure	2.9 bar (cold tires)
Anti-lock Braking System (ABS)	ABS Pro with self-diagnosis
Dynamic Traction Control (DTC)	With self-diagnosis and can be disabled
Electronic Suspension Adjustment (ESA)	D-ESA with damping and preload adjustment
Hill Start Assist	Hill Start Control Pro
Intelligent emergency call	Manual and automatic eCall (with EO)
Keyless system	Keyless Ride with radio remote
Anti-theft alarm	DWA (anti-theft alarm device) with backup battery
Cruise control	Integrated, control on left handlebar switch
Recommended engine oil	BMW ADVANTEC ORIGINAL BMW ENGINE OIL
Keyless Ride remote battery	CR 2032 (replacement possible)

Frequently Asked Questions - K 1600 GTL (2018) BMW

How to activate the Hill Start Control Pro?

To activate the Hill Start Control Pro, the motorcycle must be stopped, engine running, gear in neutral, side stand retracted, and clutch not pulled. Briefly press the control button on the right handlebar switch. The stop symbol appears. To deactivate, deploy the side stand or turn off the engine.

How to use the intelligent emergency call?

In an emergency, lift the protective cover above the right handlebar switch and press the SOS button. A countdown is displayed, then connection with the BMW Call Center is established. You can transmit information via microphone and speaker. In case of a severe fall, the call is automatic.

How to check the engine oil level?

The engine oil level is checked with the engine warm and running at idle, motorcycle upright. Consult the display on the multifunction screen after riding a few kilometers. If the oil can symbol appears, the level is too low. Use the dipstick located under the filler neck (right side of engine).

What to do if the DTC indicator flashes?

Rapid flashing of the DTC indicator indicates system intervention to stabilize the rear wheel. Slow flashing means the self-diagnosis is not complete (ride at least 5 km/h). If the indicator stays on continuously, DTC is disabled or faulty. Have it checked by a dealer.

How to adjust the ESA suspension?

The Electronic Suspension Adjustment (ESA) is done via the left handlebar switch: select the corresponding menu (ESA symbol) and choose the damping mode (comfort, normal, sport) and spring preload (solo, solo with luggage, duo, duo with luggage). The settings are visible on the multifunction screen.

How to replace the battery of the Keyless Ride remote?

Remove the emergency key by pressing the button, then remove the battery cover. Replace the old battery with a CR 2032 respecting polarity (+ facing up). Replace the cover and seal. If range is reduced, the battery is low.

How to activate the cruise control?

At speeds above approximately 30 km/h, press the cruise control button on the left handlebar switch (symbol). The indicator lights up. To increase speed, push the button upward; to decrease, push downward. Press the button to deactivate or brake.

What does the yellow general warning indicator with tire symbol mean?

This indicates that the tire inflation pressure is out of tolerance (in red) or a sensor fault (if dashes). Check the pressure cold (front and rear: 2.9 bar). If the tire is damaged, do not ride and contact a workshop.

How to set the clock?

Turn on the ignition, then use the Multi-Controller on the left handlebar switch to navigate the menu. Select 'Settings' then 'Clock'. Set the hours and minutes. The clock is displayed on the multifunction screen.

How to open the seat without key?

With the Keyless Ride system, the radio remote must be within reception range (approx. 1 m). Press the central unlocking button on the right handlebar switch or use the manual lock under the seat (left side) with the emergency key.

USER MANUAL K 1600 GTL (2018) BMW

routines. organise vehicule.

Motorrad.

Indications. generale29 1

Consummation instantanee

Hill Start Control Pro- active

Ring aerial in the ignition switch

To verify the authorization of the ignition key, the electronic immobilizer exchanges information with the ignition key via the ring aerial.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifi cations not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Remote Control for central locking system

Cesky

Hereby, Meta System S.p.A., declares that this PF240009 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Espanol

Product name: TX BMW MR
FCC ID: P3O98400
IC:4429A - TXBMWMR

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate the equipment.

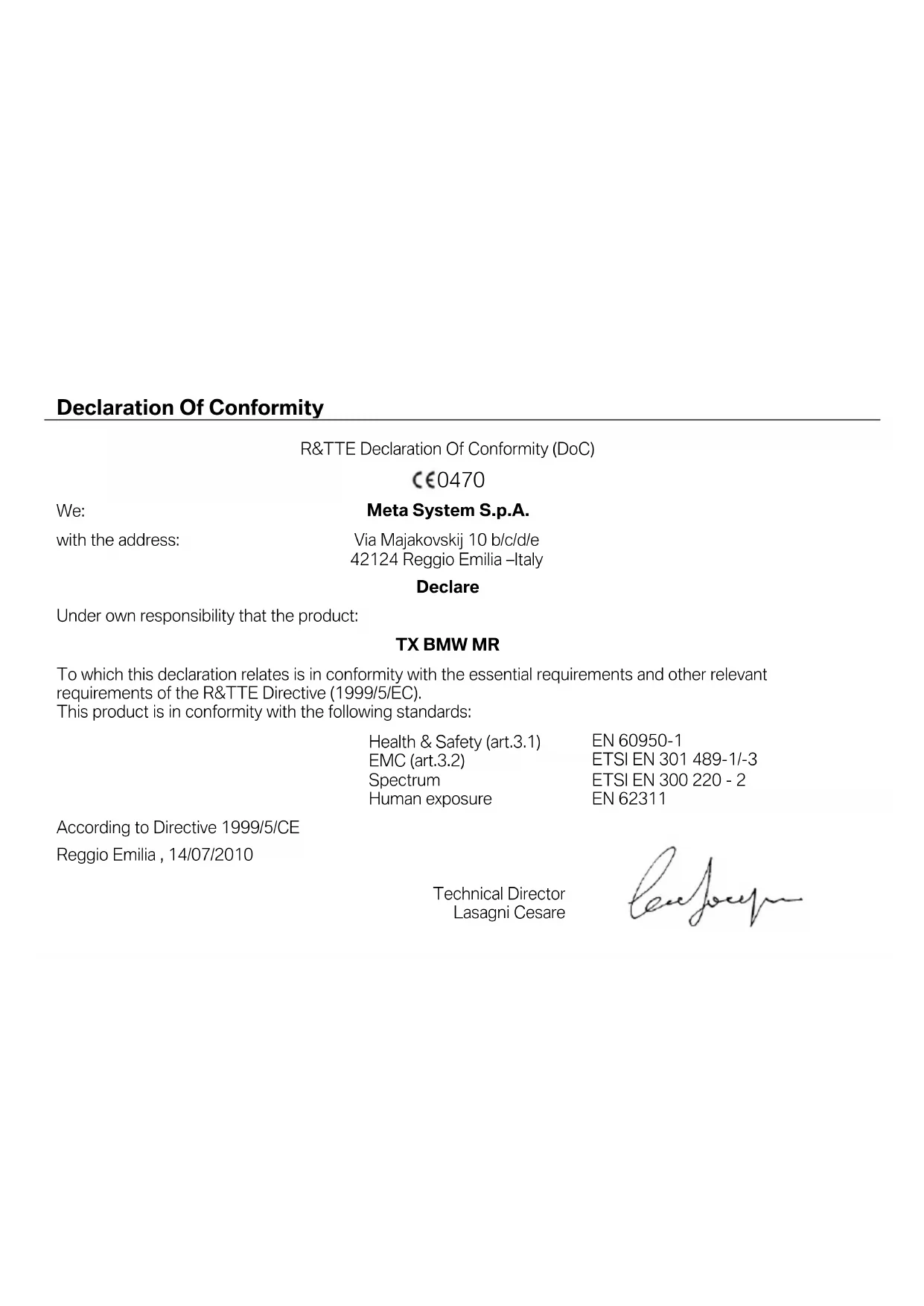

Declaration Of Conformity

R&TTE Declaration Of Conformity (DoC)

0470

We:

with the address:

Meta System S.p.A.

Via Majakovskij 10 b/c/d/e 42124 Reggio Emilia -Italy

Declare

Under own responsibility that the product:

TX BMW MR

To which this declaration relates is in conformity with the essential requirements and other relevant requirements of the R&TTE Directive (1999/5/EC).

This product is in conformity with the following standards:

Health & Safety (art.3.1)

EMC (art.3.2)

Spectrum

Human exposure

EN 60950-1

ETSIEN301489-1/-3

ETSI EN 300 220 - 2

EN 62311

According to Directive 1999/5/CE

Reggio Emilia, 14/07/2010

Technical Director Lasagni Cesare

Certifications

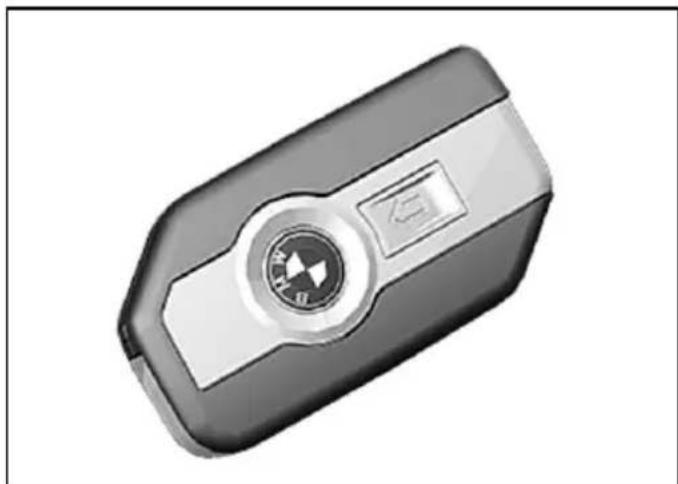

BMW Keyless Ride ID Device

USA, Canada

Product name: BMW Keyless Ride ID Device
FCC ID: YGOHUF5750
IC: 4008C-HUF5750

Canada:

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

USA:

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

Declaration Of Conformity

We declare under our responsibility that the product

BMW Keyless Ride ID Device (Model: HUF5750)

complies with the appropriate essential requirements of the article 3 of the R&TIE and the other relevant provisions, when used for its intended purpose. Applied Standards:

1. Health and safety requirements contained in article 3 (1) a)

EN 60950-1:2006+A11:2009+A1:2010+A12:2011; Information technology equipment-Safety

1. Protection requirements with respect to electromagnetic compatibility article 3 (1) b)

EN 301 489-1 (V1 .9.2, 09/2011), Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements
EN 301 489-3 (V1.4.1, 08/2002) Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services; Part 3: Specific conditions for short range devices (SRD) operating on frequencies between 9kHz and 40GHz

1. Means of the efficient use of the radio frequency spectrum article 3 (2)
   EN 300 220-1 & -2 (V2.4.1, 05/2012), electromagnetic compatibility and radio spectrum matters (ERM); Short range devices (SRD); Radio equipment tobe used in the 25 MHz to 1000 MHz frequency range with power levels ranging up to 500mW Part 1: Technical characteristics and test methods. Part 2: Harmonized EN covering essential requirements under article 3.2 ofthe R&TIE directive

The product is labeted with the CE marking: C

Velbert, October 15 ^in , 2013

Benjamin A. Muller

Product Development Systems

Car Access and Immobilization - Electronics

Steeger Straße 17, D-42551 Velbert

Certification Tire Pressure Control (TPC)

FCC ID: MRXBC54MA4
IC: 2546A-BC54MA4

FCC ID:MRXBC5A4 IC:2546A-BC5A4

This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met.
