Features	Details
Washing capacity	7 kg
Spin speed	1200 rpm
Energy class	A++
Washing programs	16 programs, including delicate, quick, and eco
Dimensions (W x D x H)	59.5 x 54.5 x 85 cm
Control panel	Digital display with selection buttons
Water consumption	44 liters per cycle
Weight	70 kg
Safety system	Overflow protection
Warranty	2 years

Frequently Asked Questions - WIXXE 127 (EU) INDESIT

Why won\u0027t my INDESIT WIXXE 127 washing machine start?

Check that the machine is properly plugged in and that the outlet is working. Also make sure the door is properly closed and the program selector is correctly positioned.

How can I fix excessive vibration during washing?

Make sure the machine is level. Check that the machine\u0027s feet are properly adjusted and that the load is balanced inside the drum.

What should I do if my INDESIT WIXXE 127 washing machine does not drain water?

Check the drain filter and clean it if necessary. Also ensure that the drain hose is not bent or blocked.

Why does my washing machine display an error code?

Error codes indicate specific problems. Consult the user manual to identify the code and follow the instructions to fix the issue.

How can I clean the drum of my washing machine?

To clean the drum, run an empty cycle at high temperature with white vinegar or a specific washing machine cleaner.

My washing machine smells bad, what should I do?

Check if the filter is clogged and clean it. Also run a cleaning cycle to remove detergent residues and moisture.

How can I save energy with my INDESIT WIXXE 127 washing machine?

Use low temperature cycles and always load the machine to full capacity to maximize energy efficiency.

Is it normal for my washing machine to make noise during the cycle?

Some noise is normal, especially during spinning, but if the noise is excessive, check that no foreign objects are stuck in the drum.

How can I adjust the water hardness on my washing machine?

You can adjust the water hardness in your machine\u0027s settings menu according to the manual instructions. Use water softeners if necessary.

What should I do if the washing machine does not take detergent?

Check that the detergent drawer is not blocked and is properly inserted. Also make sure you are using the correct type of detergent.

USER MANUAL WIXXE 127 (EU) INDESIT

Unpacking and levelling

Electric and water connections

The first wash cycle

Technical details

Washing machine description, 4-5

Control panel

Display

"MEMO"Programme

Starting and Programmes, 6

Briefly: how to start a programme

Programme table

Personalisations, 7

Setting the spin cycle

Setting the delay timer

Setting the temperature

Functions

Detergents and laundry, 8

Detergent dispenser

Bleach cycle

Preparing your laundry

Special items

Precautions and advice, 9

General safety

Disposal

Saving energy and respecting the environment

Care and maintenance, 10

Cutting off the water or electricity supply

Cleaning your appliance

Cleaning the detergent dispenser

Caring for your appliance door and drum

Cleaning the pump

Checking the water inlet hose

Troubleshooting, 11

Service, 12

Before calling for Assistance

INDESIT

GB

!Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features.

!Read these instructions carefully: they contain vital information on installation, use and safety.

Unpacking and levelling

Unpacking

1. Unpack the washing machine.
2. Check whether the washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer.

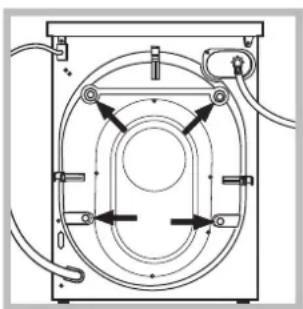

1. Remove the 4 protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

2. Seal the gaps using the plastic plugs provided.

3. Keep all the parts: you will need them again if the washing machine needs to be moved to another location.

!Packaging materials are not children's toys.

Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or other.

1. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2^ .

Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine.

Electric and water connections

Connecting the water inlet hose

1. Insert seal A into the end of the inlet hose and screw the latter onto a cold water tap with a 3/4 gas threaded mouth (see figure). Before making the connection, allow the water to run freely until it is perfectly clear.

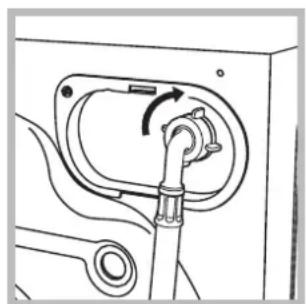

2. Connect the other end of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

1. Make sure there are no kinks or bends in the hose.

The water pressure at the tap must be within the values indicated in the Technical details table (on the next page).
If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman.
! Never use hoses that have already been used.

Connecting the drain hose

Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100cm from the floor;

alternatively, place it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

We advise against the use of hose extensions; in case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150~cm in length.

Electric connection

Before plugging the appliance into the mains socket, make sure that:

• the socket is earthed and in compliance with the applicable law;
• the socket is able to sustain the appliance's maximum power load indicated in the Technical details table (on the right);
  the supply voltage is included within the values indicated on the Technical details table (on the right);
• the socket is compatible with the washing machine's plug. If this is not the case, replace the socket or the plug.

The washing machine should not be installed in an outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms.

! When the washing machine is installed, the mains socket must be within easy reach.

! Do not use extensions or multiple sockets.
The power supply cable must never be bent or dangerously compressed.
The power supply cable must only be replaced by an authorised serviceman.

Warning! The company denies all liability if and when these norms are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90^ programme without a pre-wash cycle.

Technical details
Model	WIXXE 127
Dimensions	59.5 cm wide 85 cm high 53.5 cm deep
Capacity	from 1 to 7 kg
Electric connections	please refer to the technical data plate fixed to the machine
Water connections	maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 52 litres
Spin speed	up to 1200 rpm
Control programmes according to EN 60456 directive	programme 2; temperature 60°C; run with a load of 7 kg.
CE	This appliance is compliant with the following European Community Directives: - 89/336/CEE of 03/05/89 (Electromagnetic Compatibility) and subsequent amendments - 2002/96/CE - 2006/95/CE (Low Voltage)

Washing machine description

GB

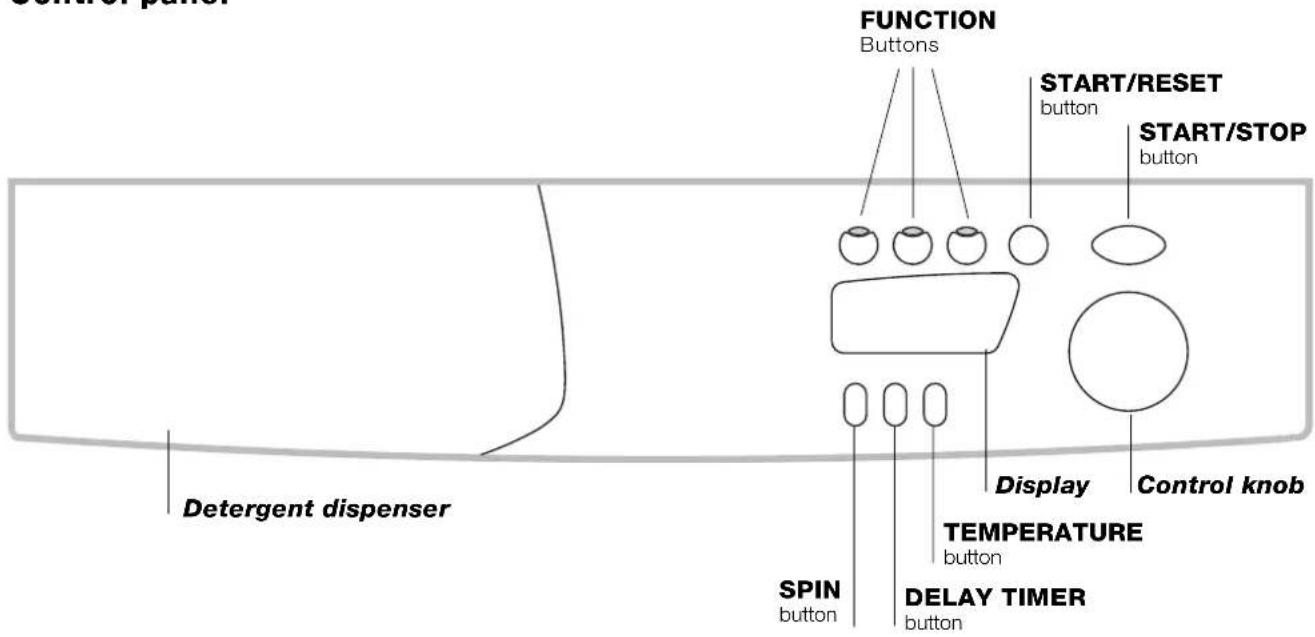

Control panel

Detergent dispenser to add detergent and fabric softener (see page 8).

SPIN button to adjust the spin speed or exclude it altogether (see page 7).

DELAY TIMER button to delay the start of the set programme for a maximum period of 24 hours (see page 7).

TEMPERATURE button to adjust the wash temperature (see page 7).

Display to programme the washing machine and follow the wash cycle progress (see opposite page).

FUNCTION buttons: to select the functions available. The button corresponding to the function selected will remain on.

START/RESET button to start the programmes or cancel any incorrect settings.

START/STOP button to turn the washing machine on and off.

Control knob to select the wash programmes. The knob stays still during the cycle.

Note: to avoid excessive vibrations, before every spin cycle the machine distributes the load in a uniform manner by continuously rotating the drum at a speed which is slightly faster than the normal washing speed.

When, despite repeated attempts, the load is still not evenly distributed, the machine spins at a lower speed than the set frequency.

If the load is excessively unbalanced, the machine attempts to distribute it instead of spinning.

The balancing attempts may extend the total duration of the cycle, up to a maximum of 10 minutes.

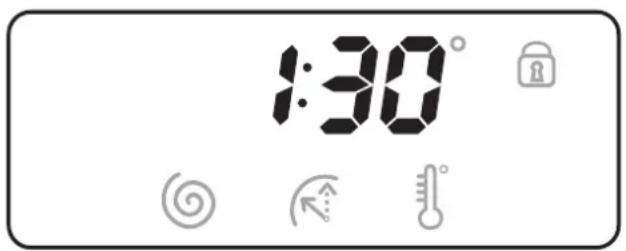

Display

In addition to being a practical tool to programme your appliance (see page 7), the display provides useful information concerning the wash cycle.

GB

Once you have pressed the START/RESET button to start the programme, the display will indicate the amount of time left until the end of the wash cycle. If a delayed start has been set (using the Delay Timer, see page 7), the delay time will be indicated on the display.

Door lock:

If the symbol is on, the washing machine door is locked to prevent it from being opened accidentally. To avoid any damages, wait for the symbol to switch itself off before you open the appliance door.

At the end of the programme, the word END is displayed.

In the event of an anomaly, an error code will appear, such as: F-01, (see page 11).

"MEMO"Programme

This programme allows you to store your favourite or most-used wash cycle.

All you have to do is set the desired programme and, once it has started, turn the KNOB to position; the wash cycle will be stored automatically and the word MEMO appears on the display, flashing for a few seconds. Subsequently, you can start the "MEMO" cycle by simply turning the KNOB to position; you will be able to see the temperature/spin cycle/delay timer values by pressing the corresponding buttons; you will also be able to modify them but this variation will only be valid for the programme in progress and it will not be stored in the "MEMO" cycle.

If you want to store a new wash cycle, repeat the above-mentioned operations.

Starting and Programmes

Briefly: starting a programme

1. Turn the washing machine on by pressing button (D).
2. Load your laundry into the washing machine and shut the appliance door.
3. Set the knob to the desired programme. The estimated duration of the selected programme is displayed. The temperature and spin speed are automatically set according to the programme (to change them, see page 7).

4. Select any functions (see page 7).

5. Add the detergent and any fabric softener (see page 8).

6. Start the programme by pressing the START/RESET button.

To cancel it, keep the START/RESET button pressed for at least 2 seconds.

1. When the programme has ended, the word END is displayed. Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly.
2. Turn the washing machine off by pressing button ①

Programme table

Type of fabric and degree of soil	Programmes	Tempe-rature	Detergent		Fabric softener	Stain removal option/bleach	Cycle length (m inutes)	Description of wash cycle
			pre-wash	wash

Standard

Cottons:Extremely soiled whites (sheets, tablecloths, etc.)	1	\( {90}^{ \circ }\mathrm{C} \bullet \)	- -				170	Pre-wash, wash cycle, rinse cycles, intermediate and final spin cycles
Cottons:Extremely soiled whites (sheets, tablecloths, etc.)	2	\( {90}^{ \circ }\mathrm{C} \bullet \)	-			Delicate/ Traditional	155	Wash cycle, rinse cycles, intermediate and final spin cycles
Cottons: Heavily soiled whites and fast colours	2	\( {60}^{ \circ }\mathrm{C} \bullet \)	-			Delicate/ Traditional	153	Wash cycle, rinse cycles, intermediate and final spin cycles
Cottons: Heavily soiled whites and delicate colours	2	\( {40}^{ \circ }\mathrm{C} \bullet \)	-			Delicate/ Traditional	115	Wash cycle, rinse cycles, intermediate and final spin cycles
Cottons: Slightly soiled whites and delicate colours (shirts, jumpers, etc.)	3	\( {40}^{ \circ }\mathrm{C} \bullet \)	-			Delicate/ Traditional	85	Wash cycle, rinse cycles, intermediate and final spin cycles
Synthetics: Heavily soiled fast colours (baby linen, etc.)	4	\( {60}^{ \circ }\mathrm{C} \)		- - Delicate			85	Wash cycle, rinse cycles, anti- crease or delicate spin cycle
Synthetics: Heavily soiled fast colours (baby linen, etc.)	4	\( {40}^{ \circ }\mathrm{C} \bullet \)	- Delicate				75	Wash cycle, rinse cycles, anti- crease or delicate spin cycle
Wool	5	\( {40}^{ \circ }\mathrm{C} \bullet \)	-				55	Wash cycle, rinse cycles, delicate spin cycle
Very delicate fabrics (curtains, silk, viscose, etc.)	6	\( {30}^{ \circ }\mathrm{C} \bullet \)	-				55	Wash cycle, rinse cycles, anti- crease or draining cycle

Time 4 you

Cottons: Heavily soiled whites and fast colours	7	60°C	●				60	Wash cycle, rinse cycles, intermediate and final spin cycles
Cottons: Slightly soiled whites and delicate colours (shirts, jumpers, etc.)	8	40°C	●				50	Wash cycle, rinse cycles, intermediate and final spin cycles
Synthetics: Delicate colours (all types of slightly soiled garments)	9	40°C		●	●		40	Wash cycle, rinse cycles, delicate spin cycle
Synthetics: Delicate colours (all types of slightly soiled garments)	10	30°C	● 30					Wash cycle, rinse cycles and delicate spin cycle

Sport

Sports shoes (MAX. 2 pairs)	11	30°C		•	•	5	0	Cold wash (without detergents), wash cycle, rinse cycles, and delicate spin cycle
Fabrics for sportswear(Tracksuits, shorts, etc.)	12	30°C •	60					Wash cycle, rinse cycles, intermediate and final spin cycles
MEMO	m	Allows for any wash cycle to be stored (see page 5).

PARTIAL PROGRAMMES

Rinse					•	Delicate/ Traditional	31	Rinse cycles and spin cycle
Spin							12	Draining and spin cycle
Drain							2	Draining

Notes

-For programmes 7 and 8, we advise against exceeding a wash load of 3.5kg
-For programme 12 we advise against exceeding a wash load of 2kg
-For the anti-crease function: see Easy iron, opposite page. The information contained in the table is purely indicative.

Special programme

Daily (programme 10 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (10 at 30^ ), you can wash different fabrics together (except for woollen and silk items), with a maximum load of 3kg .

We recommend the use of liquid detergent.

Setting the spin cycle

If, when the appliance is switched on, the KNOB is positioned on a programme with a spin cycle, a fixed appears. Press button and the maximum spin speed allowed for the programme set will be displayed, and the icon flashes. Press it again and the values lower until they reach OFF, which indicates that the spin cycle has been excluded (press it again to go back to the maximum value); stop on the desired speed, after approximately 2 seconds the setting is accepted: the symbol remains fixed. The spin cycle setting is enabled with all the programmes except for 6 and the Draining cycle.

Setting the delay timer

Press the button and you will see the word OFF on the display, while the relative symbol flashes.

Press the button again and "1h" appears, that is, a delay of one hour (this can reach up to 24h); stop on the "desired" delay; after approximately 2 seconds the setting is accepted, following which, the time for the set programme appears on the display and the symbol remains on.

If you now press the START/RESET button, the set "delay" appears; this decreases every hour until the start of the cycle. In

this phase, the "delay" can only be modified by decreasing it.

The Delay Timer regulation is enabled with all programmes.

Setting the temperature

If, when the appliance is switched on, the KNOB is positioned on a programme for which the temperature needs to be regulated, a fixed appears. Press button and the maximum temperature allowed for the programme set will be displayed and the icon flashes. Press it again and the temperature lowers until it reaches OFF, which indicates a cold wash cycle (press it again to go back to the maximum value); stop on the desired value, after approximately 2 seconds the setting is accepted: the symbol remains fixed.

The temperature adjustment is enabled with all wash programmes.

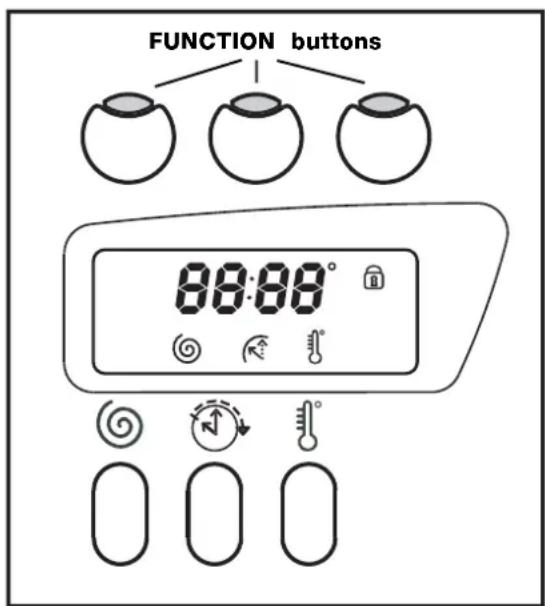

Functions

To enable a function:

1. press the button corresponding to the desired function, according to the table below;
2. the function is enabled when the corresponding button is illuminated.

Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set.

If you set a function that is incompatible with another function you selected previously, only the last one selected will be enabled.

Function Effect	Effect Comments		Enabled with programmes:
Stain removal	Bleaching cycle designed to remove the toughest stains.	Please remember to pour the bleach into extra compartment 4 (see page 8). This function is incompatible with the EASY IRON function.	2, 3, 4, Rinse cycle.
Extra Rinse	Increases the efficiency of the rinse.	Recommended when the appliance has a full load or with large quantities of detergent.	1, 2, 3, 4, 7, 8, 9, 11, 12, Rinse cycle.
Easy iron	This option reduces the amount of creasing on fabrics, making them easier to iron.	When this function is set, programmes 4 and 6 will end, with the laundry left to soak (Anti-crease), and the relative button flashes: - to conclude the cycle, press the START/RESET button or the EASY IRON button; - to run the draining cycle alone, set the knob to the relative symbol and press the START/RESET button. This function is incompatible with the STAIN REMOVAL function.	3, 4, 6, 7, 8, 9, Rinse cycle.

Detergents and laundry

GB

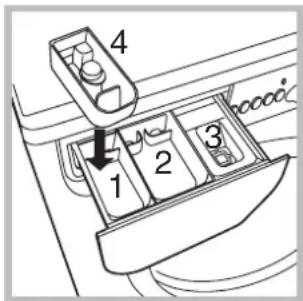

Detergent dispenser

Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment.

Open up the detergent dispenser and pour in the detergent and fabric softener, as follows.

compartment 1: Detergent for pre-wash (powder)

Before pouring in the detergent, make sure that extra compartment 4 has been removed.

compartment 2: Detergent for the wash cycle (powder or liquid)

Liquid detergent should only be poured in immediately prior to the wash cycle start.

compartment 3:Additives (fabric softeners, etc.)

The fabric softener should not overflow from the grid. extra compartment 4: Bleach

! Do not use hand wash detergent because it may form too much foam.

Bleach cycle

! Traditional bleach should be used on sturdy white fabrics, and delicate bleach for coloured fabrics, synthetics and for wool.

Place extra

compartment 4, provided, into compartment 1.

When pouring in the bleach, be careful not to exceed the "max" level indicated on the central pivot (see figure).

To run the bleach cycle alone, pour the bleach into extra compartment 4, set the Rinse programme and enable the Stain removal function (see page 7).

To bleach during a wash cycle, pour in the detergent and fabric softener, set the desired programme and enable the Stain removal function (see page 7).

The use of extra compartment 4 excludes the possibility of using the pre-wash cycle.

Preparing your laundry

• Divide your laundry according to:

• the type of fabric/the symbol on the label.

• the colours: separate coloured garments from whites.

• Empty all pockets and check for loose buttons.

• Do not exceed the weight limits stated below, which refer to the weight when dry:

Sturdy fabrics: max 7 kg

Synthetic fabrics: max 3 kg

Delicate fabrics: max 2 kg

Wool: max 1,5 kg

How much does your laundry weigh?

1 sheet 400-500 g
1 pillow case 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1200 g
1 towel 150-250 g

Special items

Curtains: fold curtains and place them in a pillow case or mesh bag. Wash them separately without exceeding half the appliance load. Use programme 6 which excludes the spin cycle automatically.

Quilted coats and windbreakers: if they are padded with goose or duck down, they can be machine-washed. Turn the garments inside out and load a maximum of 2 - 3kg repeating the rinse cycle once or twice and using the delicate spin cycle.

Wool: for best results, use a specific detergent, taking care not to exceed a load of 1,5kg

The washing machine was designed and built in compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully.

General safety

• This appliance has been designed for non-professional, household use and its functions must not be changed.
• This washing machine should only be used by adults and in accordance with the instructions provided in this manual.
• Never touch the washing machine when barefoot or with wet or damp hands or feet.
• Do not pull on the power supply cable to unplug the appliance from the electricity socket. Pull the plug out yourself.
• Do not open the detergent dispenser while the appliance is in operation.
• Do not touch the drain water as it could reach very high temperatures.
• Never force the washing machine door: this could damage the safety lock mechanism designed to prevent any accidental openings.
• In the event of a malfunction, do not under any circumstances touch internal parts in order to attempt repairs.
• Always keep children well away from the appliance while in operation.
• The appliance door tends to get quite hot during the wash cycle.
• Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
• Before loading your laundry into the washing machine, make sure the drum is empty.

Disposal

• Disposing of the packaging material: observe local regulations, so the packaging can be re-used.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Saving energy and respecting the environment

Environmentally-friendly technology

If you only see a little water through your appliance door, this is because thanks to the latest Indesit technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment.

Saving on detergent, water, energy and time

• To avoid wasting resources, the washing machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy.
• The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.
• Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60^ instead of 90^ or one at 40^ instead of 60^ will save up to 50% on energy.
• Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible.
• If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board's peak load. The Delay Timer option (see page 7) helps to organise your wash cycles accordingly.
• If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.

Cutting off the water or electricity supply

• Turn off the water tap after every wash. This will limit the wear of your appliance's water system and also prevent leaks.
• Unplug your appliance when cleaning it and during all maintenance operations.

Cleaning your appliance

The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

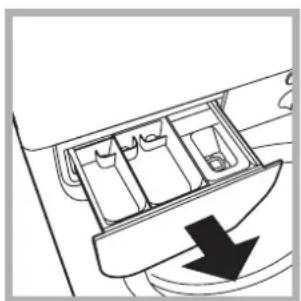

Cleaning the detergent dispenser

Remove the dispenser by pulling it out (see figure).

Wash it under running water; this operation should be repeated frequently.

Caring for your appliance door and drum

• Always leave the appliance door ajar to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump that does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same.

! Make sure the wash cycle has ended and unplug the appliance.

To access the pre-chamber:

1. using a screwdriver, remove the cover panel on the lower front of the washing machine (see figure);

1. unscrew the lid rotating it anticlockwise (see figure): a little water may trickle out. This is perfectly normal;

2. clean the interior thoroughly;

3. screw the lid back on;
4. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use hoses that have already been used.

Your washing machine could fail to work. Before calling for Assistance (see page 12), make sure the problem can't easily be solved by consulting the following list.

Problem

Possible causes/Solution:

The washing machine won't start.

• The appliance is not plugged into the socket, or not enough to make contact.
• There has been a power failure.

The wash cycle won't start.

• The appliance door is not shut properly (the word DOOR is displayed).
• The (1) button has not been pressed.
• The START/RESET button has not been pressed.
  The water tap is not turned on.
• A delayed start has been set (using the Delay Timer, see page 7).

The washing machine fails to load water (The wording H20 is displayed).

• The water inlet hose is not connected to the tap.
  The hose is bent.
• The water tap is not turned on.
• There is a water shortage.
• The water pressure is insufficient.
• The START/RESET button has not been pressed.

The washing machine continuously loads and unloads water.

• The drain hose is not fitted between 65 and 100cm from the floor (see page 3).
  The free end of the hose is underwater (see page 3).
• The wall drainage system doesn't have a breather pipe.

The washing machine does not drain or spin.

• The programme does not foresee the draining: some programmes require enabling the draining manually (see page 6).
• The "Easy iron" option is enabled: to complete the programme, press the START/RESET button (see page 7).
  The drain hose is bent (see page 3).
• The drain duct is clogged.

The washing machine vibrates too much during the spin cycle.

The drum was not unblocked correctly during installation (see page 2).
- The washing machine is not level (see page 2).
- The washing machine is closed in between furniture cabinets and the wall (see page 2).

The washing machine leaks.

• The water inlet hose is not screwed on correctly (see page 2).
• The detergent dispenser is obstructed (to clean it, see page 10).
  The drain hose is not secured properly (see page 3).

In the event of an anomaly, an error code will appear, such as: F-01.

• Switch off the machine and unplug the appliance; wait for approximately 1 minute then switch it on again. If the problem persists, contact Assistance.

There is too much foam.

• The detergent is not suitable for machine washing (it should bear the definition "for washing machines" or "hand and machine wash", or the like).
• You used too much detergent.

GB

Before calling for Assistance:

• Check whether you can solve the problem on your own (see page 11);
• Restart the programme to check whether the problem has been solved;
• If this is not the case, contact an authorised Technical Service Centre on the telephone number provided on the guarantee certificate.

!Always request the assistance of authorised servicemen.

Notify the operator of:

the type of problem;
the appliance model (Mod.);
the serial number (S/N).

This information can be found on the data plate situated on the rear of the washing machine.

ES

Espanol

Sumario

Instalación, 14-15

Regular o delay timer

Regular a temperature

Funções

Detergentes e roupa, 32

Gaveta dos detergentes

Ciclo para branquear

Preparar a roupa

Roupas especials

Regular o delay timer

Se carregar na tecla @parecerá escrito no display OFF e o respectivevo symbolo ficará intermitente.

Causes / Solutions possibles:
