Features	Details
Type of refrigerator	Combined refrigerator
Total capacity	340 liters
Cooling system	No Frost
Energy class	A++
Dimensions (HxWxD)	185 x 60 x 65 cm
Weight	70 kg
Number of drawers	3 freezer drawers
Additional features	Electronic control, LED lighting
Maintenance	Regular cleaning of internal and external surfaces
Annual energy consumption	250 kWh
Safety	Door locking system
Warranty	2 years

Frequently Asked Questions - H8BEH 183 O3 X HOTPOINT

How do I set the temperature of my HOTPOINT H8BEH 183 O3 X refrigerator?

To set the temperature, use the control panel located inside the refrigerator. Press the temperature button and set it between 2\u00b0C and 8\u00b0C for the refrigerator and between -18\u00b0C and -15\u00b0C for the freezer.

What should I do if my refrigerator is not cooling properly?

Make sure the refrigerator is plugged in and the outlet is working. Also check that the vents are not blocked and the door closes properly. If the problem persists, contact customer service.

How do I clean the inside of my refrigerator?

Unplug the refrigerator and remove all food. Use a mixture of warm water and mild soap to clean the interior surfaces. Avoid abrasive products that could scratch the interior.

Why is my refrigerator making noise?

Some noises can be normal, such as those from the compressor or fan. However, if the noise is excessive, check that the refrigerator is level and nothing is obstructing the fan. If the noise persists, contact customer service.

How do I defrost the refrigerator?

To defrost, unplug the appliance and leave the door open. Place towels to collect the water that drips. Never use sharp objects to remove the ice.

What is the normal noise level for this model?

The normal noise level for the HOTPOINT H8BEH 183 O3 X refrigerator is about 39 dB, which is considered quiet for a refrigerator.

What should I do if the control screen is off?

Check if the refrigerator is properly plugged in and if the electrical circuit is working. If the screen remains off, there may be an electrical problem, and it is recommended to contact customer service.

How do I use the vacation function?

To activate the vacation function, use the control panel and select the 'Vacation' option. This reduces energy consumption while maintaining an appropriate temperature for the remaining food.

USER MANUAL H8BEH 183 O3 X HOTPOINT

ENGLISH Instructions for use Page 4

IMPORTANT to be read and observed

Before using the appliance, read these safety instructions. Keep them nearby for future reference.

These instructions and the appliance itself provide important safety warnings, to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.

Very young children (0-3 years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

PERMITTED USE

CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system.

This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments.

This appliance is not for professional use. Do not use the appliance outdoors.

The bulb used inside the appliance is specifically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009).

The appliance is designed for operation in places where the ambient temperature comes within the following ranges, according to the climatic class given on the rating plate. The appliance may not work properly if it is left for a long time at a temperature outside the specified range.

Climatic Class Amb. T. (^)

SN: From 10 to 32^

ST: From 16 to 38^

N: From 16 to 32^ C

T: From 16 to 43^

This appliance does not contain CFCs. The refrigerant circuit contains R600a (HC). Appliances with Isobutane (R600a): isobutane is a natural gas without environmental impact, but is flammable. Therefore, make sure the refrigerant circuit pipes are not damaged, especially when emptying the refrigerant circuit.

WARNING: Do not damage the appliance refrigerant circuit pipes.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical, electric or chemical means other than those

recommended by the Manufacturer to speed up the defrost process.

WARNING: Do not use or place electrical devices inside the appliance compartments if they are not of the type expressly authorised by the Manufacturer.
WARNING: Ice makers and/or water dispensers not directly connected to the water supply must be filled with potable water only.
WARNING: Automatic ice-makers and/or water dispensers must be connected to a water supply that delivers potable water only, with mains water pressure between 0.17 and 0.81 MPa (1.7 and 8.1 bar).
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
Do not swallow the contents (nontoxic) of the ice packs (provided with some models). Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns.
For products designed to use an air filter inside an accessible fan cover, the filter must always be in position when the refrigerator is in function.
Do not store glass containers with liquids in the freezer compartment since they may break. Do not obstruct the fan (if included) with food items.
After placing the food check that the door of the compartments closes properly, especially the freezer door.
Damaged gaskets must be replaced as soon as possible.
Use the refrigerator compartment only for storing fresh food and the

freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.

Avoid storing unwrapped food in direct contact with internal surfaces of the refrigerator or freezer compartments.
Appliances could have special compartments (Fresh Food Compartment, Zero Degree Box, etc.). Unless specified in the specific booklet of product, they can be removed, maintaining equivalent performances.
C-Pentane is used as blowing agent in the insulation foam and it is a flammable gas.

INSTALLATION

The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts.
Installation, including water supply (if any) and electrical connections, and repairs must be carried out by a qualified technician. Do not repair or replace any part of the appliance unless specifically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suffocation. The appliance must be disconnected from the power supply before any installation operation - risk of electric shock. During installation, make sure the appliance does not damage the power cable - risk of fire or electric

shock. Only activate the appliance when the installation has been completed.

Be careful not to damage the floors (e.g. parquet) when moving the appliance. Install the appliance on a floor or support strong enough to take its weight and in a place suitable for its size and use. Make sure the appliance is not near a heat source and that the four feet are stable and resting on the floor, adjust as required, and check that the appliance is perfectly level using a spirit level. Wait at least two hours before switching the appliance on, to ensure that the refrigerant circuit is fully efficient.

WARNING: To avoid a hazard due to instability, positioning or fixing of the appliance must be done in accordance with the manufacturer instructions. It is forbidden to place the refrigerator in such way that the metal hose of gas stove, metal gas or water pipes, or electrical wires are in contact with the refrigerator back wall (condenser coil).

All dimensions and spacing needed for installation of the appliance are in the Installation instruction booklet.

ELECTRICAL WARNINGS

It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards.

Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped.
If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard - risk of electric shock.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.

CLEANING AND MAINTENANCE

WARNING: Ensure that the appliance is switched off and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock.

Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.

DISPOSAL OF PACKAGING MATERIALS

The packaging material is 100% recyclable and is marked with the recycle symbol

The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

DISPOSAL OF HOUSEHOLD APPLIANCES

This appliance is manufactured with recyclable or reusable materials.

Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health-negative sull'ambiente e sulla salute umana.

The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.

ENERGY SAVING TIPS

To guarantee adequate ventilation follow installation instructions. Insufficient ventilation at the back of the product increases energy consumption and decreases cooling efficiency.

Frequent door opening might cause an increase in Energy Consumption.

The internal temperature of the appliance and the Energy Consumption may be affected also by the ambient temperature, as well as location of the appliance.

Temperature setting should take into consideration these factors.

Reduce door opening to a minimum. When thawing frozen food, place in the refrigerator. The low temperature of the frozen products cools the food in the refrigerator. Allow warm food and drinks to cool down before placing in the appliance. Positioning of the shelves in the refrigerator has no impact on the efficient usage of energy. Food should be placed on the shelves in such way to ensure proper air circulation (food should not touch each other and distance between food and rear wall should be kept).

You can increase storage capacity of frozen food by removing baskets and, if present, Stop Frost shelf.

Do not worry about noises coming from the compressor which are described as normal noises in this product's Quick Guide.

THE VARIOUS FUNCTION AND POSSIBILITIES

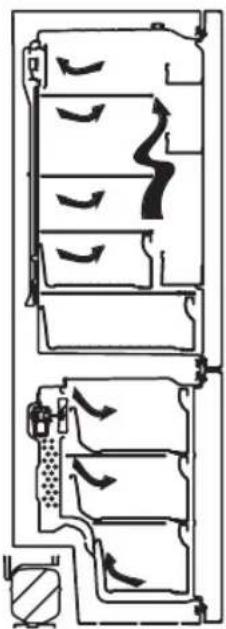

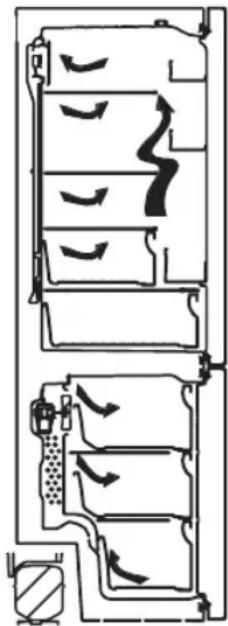

Information about New Generation Cooling Technology

Fridges with new generation cooling technology have a different working system than static fridges. Other fridges may experience ice build up in the freezer compartment due to door openings and humidity in the food. In such fridges regular defrosting is required; the fridge has to be periodically turned off, the frozen food moved to a suitable container and the ice which has formed in the freezer compartment removed.

In fridges with new generation cooling technology, dry cold air is pumped evenly into the fridge and freezer compartments using a fan. The cold air cools your food evenly and uniformly, preventing humidity and ice build up.

In the refrigerator compartment, air blown by the fan located at the top of refrigerator compartment is cooled while passing through the gap behind the air duct. At the same time, the air is blown out through the holes in the air duct evenly spreading cool air throughout the refrigerator compartment.

As there is no air passage between the freezer and refrigerator compartments, there will be no odor mixing.

As a result of this, your fridge with new generation cooling technology gives you ease of use as well as huge volume and aesthetic appearance.

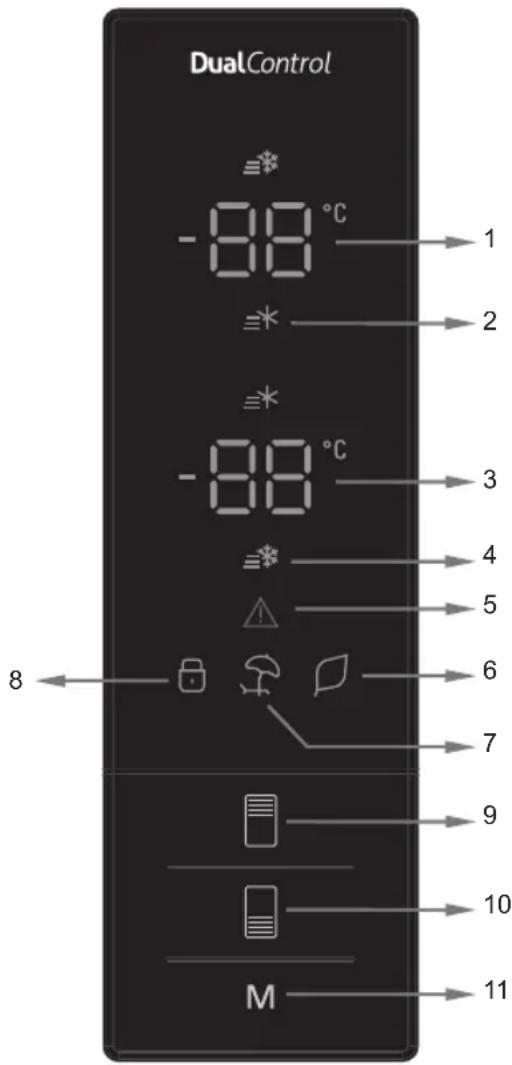

Display and control panel

Use of control panel

1. It is cooler set value screen.
2. It is super cooling indicator.
3. It is freezer set value screen.
4. It is super freeze indicator.
5. It is alarm symbol.
6. It is economy mode symbol.
7. It is holiday mode symbol.
8. It is child-lock symbol.
9. It enables the setting value of cooler to be modified and super cool mode to be activated if desired.
   Cooler maybe set to 8, 6, 5, 4, 2^ super cool.
10. It enables the setting value of freezer to be modified and super freeze mode to be activated if desired. Freezer may be set to -16, -18, -20, -22, -24°C super freeze.
11. It enables the modes (economy, holiday...) to be activated if desired.

Operating your fridge

Super freeze mode

How would it be used?

• Press freezer set button until Super freeze symbol will be seen on the screen. Buzzer will sound beep beep. Mode will be set.

During this mode:

• Temperature of cooler and super cool mode may be adjusted. In this case super freeze mode continues.
  Economy and Holiday mode can not be selected.
• Super freeze mode can be cancelled by the same operation of selecting.

Note: "Super Freeze" mode will be automatically cancelled after 24 hours or if the freezer sensor temperature is lower than -25°C

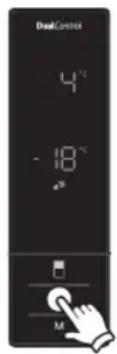

Super cool mode

How would it be used?

• Press cooler set button until Super cool symbol will be seen on the screen. Buzzer will sound beep beep. Mode will be set.

During this mode:

• Temperature of freezer and super freeze mode may be adjusted. In this case super cool mode continues.
  Economy and Holiday mode can not be selected.
• Super cool mode can be cancelled by the same operation of selecting.3

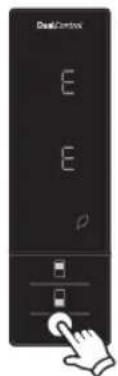

Economy mode

How would it be used?

• Push "mode button" until eco symbol appears.
• If no button is pressed for 1 second. Mode will be set. Eco symbol will blink 3 times. When mode is set, buzzer will sound beep beep.
• Freezer and refrigerator temperature segments will show "E".
  Economy symbol and E will light till mode finishes.

During this mode:

• Freezer may be adjusted. When economy mode will be cancelled, the selected setting values will proceed.
• Cooler may be adjusted. When economy mode will be cancelled, the selected setting values will proceed.
• Super cool and super freeze modes can be selected. Economy mode is automatically cancelled and the selected mode is activated.
• Holiday mode can be selected after cancelling the economy mode. Then the selected mode is activated.
• To cancel, you will just need to press on mode button.

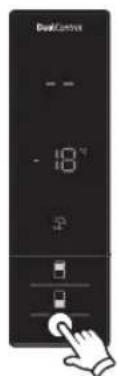

Holliday mode

How would it be used?

• Push "mode button" until holiday symbol appears
• If no button is pressed for 1 second. Mode will be set. Holiday symbol will blink 3 times. When mode is set, buzzer will sound beep beep.
• Cooler temperature segment will show "--".
• Holiday symbol and "--" will light till mode finishes.

During this mode:

• Freezer may be adjusted. When holiday mode will be cancelled, the selected setting values will proceed.
• Cooler may be adjusted. When holiday mode will be cancelled, the selected setting values will proceed.
• Super cool and super freeze modes can be selected. Holiday mode is automatically cancelled and the selected mode is activated.
• Economy mode can be selected after cancelling the holiday mode. Then the selected mode is activated.
• To cancel, you will just need to press on mode button.

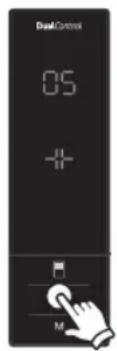

Drink cool mode

How would it be used?

• This mode is used to cool the drinks within adjustable time.

During this mode:

• Press freezer button for 5 seconds.
• Special animation will start on freezer set value screen and 05 will blink on
• cooler set value screen.
• Press cooler button to adjust the time (05 - 10 - 15 - 20 - 25 - 30 minutes).
• When you select the time the numbers will blink 3 times on screen and sound beep beep.
• If no button is pressed within 2 seconds the time will be set.
• The countdown starts from the adjusted time minute by minute.
• Remaining time will blink on the screen.
• To cancel this mode press freezer set button for 5 seconds.

Function of Child lock

How would it be used?

• To prevent children from playing with the buttons and changing the settings you have made, child lock is available in the appliance.

Activating Child Lock

• Press on Freezer and Cooler buttons simultaneously for 5 seconds.

During this mode:

• Press on Freezer and Cooler buttons simultaneously for 5 seconds.

Note: Child lock will also be deactivated if electricity is interrupted or the fridge is unplugged.

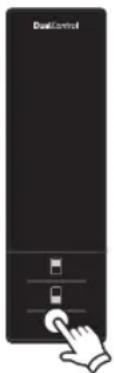

Screen saver mode

How to use?

• This mode will be activated when you press on mode button for 5 seconds.
• If no button is pressed within 5 seconds when he mode is active, lights of the control panel will go off.
• If you press any button when lights of control panel are off, the current settings will appear on the screen, and then you can maket he adjustment as you want. If you neither cancel screen saver mode nor press on any button in 5 seconds, the control panel will go off again.
• To cancel screen saver mode press on mode button for 5 seconds again.
• When screen saver mode is active you can also activate child lock.

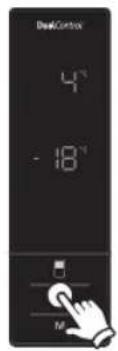

Cooler temperature settings

• Initial temperature value for Cooler Setting Indicator is +4^ .
• Press cooler button once.
• When you first push this button, the last value appears on the setting indicator of the cooler.
• Whenever you press on this button, lower temperature will be set. (+8^, +6^, +5^, +4^, +2^, supercool)
• When you push the cooler set button until supercool symbol appears, and if you do not push any button in 1 seconds Super Cool will flash.
• If you continue to press, it will restart from +8^ C .
• The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economy Mode is activated will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value.

Freezer temperature settings

• Initial temperature value for Freezer Setting Indicator is -18^ .
• Press freezer set button once.
• When you first push this button, the last set value will blink on screen.
• Whenever you press on this button, lower temperature will be set (-16°C, -18°C, -20°C, -22°C, -24°C superfreeze).
• When you push the freezer set button until superfreeze symbol appears, and if you do not push any button in 1 seconds Super Freeze will flash.
  If you continue to press, it will restart from -16^
• The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economy Mode is activated will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value.

Warnings about Temperature Adjustments

• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.
• Do not pass to another adjustment before completing an adjustment.
• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.
• This appliance is designed for use at an ambient temperature within the 10^ - 43^ range.

Climatic Class	Amb. T. (°C)
SN: From 10 to 32 °C
ST: From 16 to 38 °C;
N: From 16 to 32 °C
T: From 16 to 43 °C

Accessories

Twist Ice (In some models)

Take out the ice making tray
- Fill the water to the line.
- Place the ice making tray in its original position
- When ice cubes are formed, twist the lever to drop ice cubes into the icebox.

Note:

• Do not fill the icebox with water to make ice. This may damage it.
• The movement of the ice maker may be difficult while the refrigerator is running. In such a case it should be cleaned by removing the glass shelves.

Ice tray (In some models)

• Fill the ice tray with water and place in freezer compartment.
• After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

Chiller Shelf (In some models)

Keeping food in the Chiller compartment instead of the freezer or refrigerator compartment allows food to retain freshness and flavour longer, while preserving its fresh appearance.

When the chiller tray becomes dirty, remove it and wash it with water.

(Water freezes at 0^ , but foods containing salt or sugar freeze at temperatures lower than that) Normally the chiller compartment is used to store raw fish, lightly pickled food, rice, etc...

Do not put foods you want to freeze or ice trays onto the chiller shelf.

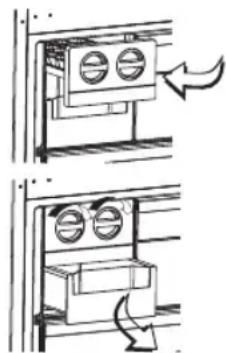

Removing the Chiller shelf

• Pull the chiller shelf towards you by sliding it on the rails.
  Pull the chiller shelf up from the rail and remove it from the fridge.

Freezer box

The freezer box allows foods are maintained more regularly.

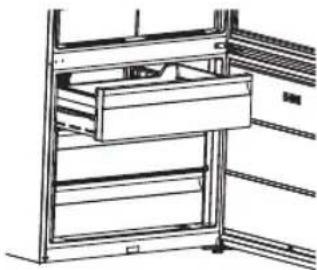

Removing The freezer box;

Pull the box out as far as possible
Pull the front of box up and out.

! Make the inverse of the same operation for the resetting the sliding compartment.

Note: Always Keep the handle of box while removing the box.

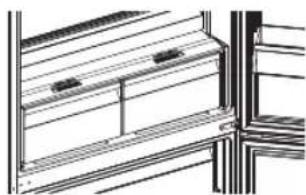

Humidity Control

When the Humidity Control is in the closed position, it allows fresh fruit and vegetables to be stored for longer.

If the crisper is completely full, open the fresh dial located in front of the crisper. This allows the air in the crisper and humidity rate to be controlled and the storage life of the food in the crisper will be increased.

If you see any condensation on the glass shelf, the Humidity Control should be set in the open position.

Adjustable door shelf (In some models)

Five different height adjustments can be made to provide storage areas that you need by adjustable door shelf.

To change the position of adjustable door shelf;

Lift up front of the shelf (1) and move up or down adjustable door shelf (2) with both hands(Fig 1)

Before releasing the door shelf make sure the door shelf is located at door positions.

Fig 1

Active Oxygen (In some models)

Active Oxygen spreads negative ions which neutralize particles of unpleasant smell and dust in the air, improving freshness of food.

By removing these particles from the air in the refrigerator, Active Oxygen improves air quality and eliminates odours.

• This feature is optional. It may not exist on your product.
• The location of your ioniser device may vary from product to product.

Active Oxygen

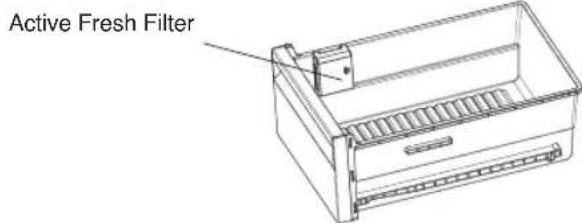

Active Fresh Filter (In some models)

Active Fresh Filter technology helps to remove ethylene gas (a bioproduct released naturally from fresh foods) and unpleasant odors from the crisper. In this way, food stays fresh for a longer time.

Active Fresh Filter must be cleaned once in a year. The filter should be waited for 2 hours at 65^ in a oven.

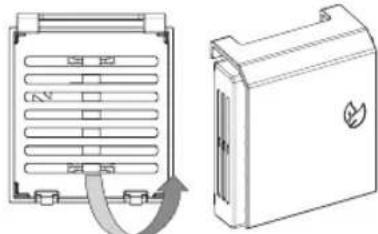

- To clean the filter, please remove the back cover of the filter box by pulling it in the direction of the arrow (A).
- The filter should not be washed with water or any detergent.

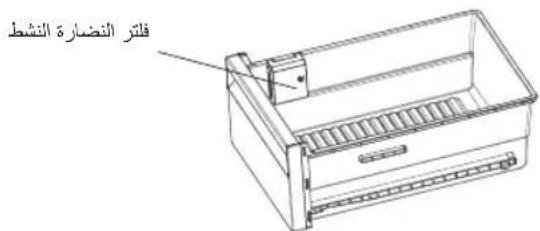

Notes: The assembly position of the filter may vary depending on the crisper design. Please see the related images. For some models, the filter cannot be attached as shown in the images. In this case it can be simply put into the drawer.

Visual and text descriptions on the accessories section may vary according to the model of your appliance.

ARRANGING FOOD IN THE APPLIANCE

Operating your fridge

• For normal operating conditions, adjusting the temperature value of the cooler partition of the fridge to 4^ will be enough.
• To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Nothing should touch on the back wall as it will cause frost and the packages can stick on the back wall. Do not open the refrigerator door too frequently.
• Arrange the meat and cleaned fish(wrapped in packages or sheets of plastic) which you will use in 1-2 days, in the bottom section of the refrigerator compartment (that is above the crispers) as this is the coldest section and will ensure the best storing conditions.
• You can put the fruits and vegetables into crisper without packing.

Some recommendations have been specified below for the placement and storage of your food in the cooling compartment.

Food Maximum Storing time		Where to place in the fridge compartment
Vegetables and fruits 1 week	Vegetable bin
Meat and fish 2 - 3 Days		Wrapped in plastic foil or bags or in a meat container (on the glass shelf)
Fresh cheese 3 - 4 Days In special door shelf
Butter and margarine 1 week	In special door shelf
Bottled products milk and yoghurt	Until the expiry date recommended by the producer	In special door shelf
Eggs 1 month In the egg shelf
Cooked food All shelves

NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.

Freezer compartment

• For normal operating conditions, a· Please use the deep freeze compartment of your refrigerator for storing the frozen food for a long time and for producing ice.
• To get maximum capacity for freezer compartment, please just use glass shelves for upper and middle section. For bottom section, please use lower basket.
• Please do not place the food you shall newly freeze nearby the already frozen food.
• You should freeze the food to be frozen (meat, minced meat, fish, etc.) by dividing them into portions in such a way that they can be consumed once.
• Please do not refreeze the frozen food once they are thawed. It may pose a danger for your health since it might cause problems such as food poisoning.
• Do not place the hot meals in your deep freeze before they become cold. You would cause the other food frozen beforehand in the deep freeze to become putrefied.
• When you buy frozen food, makes sure that they were frozen under appropriate conditions and the package is not torn.

• While storing the frozen food, the storage conditions on the package should certainly be observed. If there is not any explanation, the food must be consumed within the shortest time possible.

• If there had been humidification in the frozen food package and it has a foul smell, the food might have been stored under unsuitable conditions previously and gone rotten. Do not purchase this type of foods!

• The storage durations of frozen food change depending on the ambient temperature, the frequent opening and closing of the doors, thermostat settings, food type and the time elapsed from the purchase time of the food to the time it is placed into the freezer. Always abide by the instructions on the package and never exceed the indicated storage duration.

Not that; if you want to open again immediately after closing the freezer door, it will not be opened easily. It's quite normal! After reaching equilibrium condition, the door will be opened easily.

Important note:

• Frozen foods, when thawed, should be cooked just like fresh foods. If they are not cooked after being thawed they must NEVER be re-frozen.
• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period.

Therefore, the frozen food should be added little amount of spices or the desired spice should be added after the food has been thawed.

• The storage period of food is dependent on the oil used. The suitable oils are margarine, calf fat, olive oil and butter and the unsuitable oils are peanut oil and pig fat.
• The food in liquid form should be frozen in plastic cups and the other food should be frozen in plastic folios or bags.

Meat and fish Preparation		Maximum Storing time (month)
Steak Wrapping in a foil 6 - 8
Lamb meat Wrapping in a foil 6 - 8	8
Veal roast Wrapping in a foil 6 - 8	8
Veal cubes In small pieces 6 - 8
Minced meat In packages without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/salami	Should be packaged even if it has membrane
Chicken and turkey Wrapping in a foil 4 - 6
Goose and Duck Wrapping in a foil 4 - 6
Deer, Rabbit, Wild Boar In 2.5 kg portions and as fillets 6 - 8
Freshwater fishes (Salmon, Carp, Crane, Siluroidea)	After cleaning the bowels and scales of the fish, wash and dry it; and if necessary, cut the tail and head.	2
Lean fish; bass, turbot, flounder		4
Fatty fishes (Tunny, Mackarel, bluefish, anchovy)		2 - 4
Shellfish	Cleaned and in bags	4 - 6
Caviar	In its package, aluminium or plastic container	2 - 3
Snail	In salty water, aluminum or plastic container	3

NOTE: Frozen meat should be cooked as fresh meat after being thawed. If the meat is not cooked after being thawed, it should never be frozen again.

Vegetables and Fruits Preparation		Maximum Storing time (month)
String beans and beans	Wash and cut to small pieces and boil in water	10 - 13
Beans Hull and wash and boil in water	water 12
Cabbage Cleaned and boil in water	6 - 8
Carrot Clean and cut to slices and boil in water	12
Pepper	Cut the stem, cut into two pieces and remove the core and boil in water	8 - 10
Spinach Washed and boil in water	6 - 9
Cauliflower	Take the leaves apart, cut the heart into pieces, and leave it in water with a little lemon juice for a while	10 - 12
Eggplant Cut to pieces of 2cm after washing	10 - 12
Corn	Clean and pack with its stem or as sweet corn	12
Apple and pear Peel and slice	- 10
Apricot and Peach Cut into two pieces and remove the stone	4 - 6
Strawberry and Blackberry	Wash and hull 8 - 12
Cooked fruits	Adding 10 % of sugar in the container	12
Shellfish	Cleaned and in bags	4 - 6
Plum, cherry, sourberry	Wash and hull the stemsr	12

Dairy Products	Preparation	Maximum Storing time (month)	Storing Conditions
Packet (Homogenize) Milk	In its own packet	2 - 3	Pure Milk – In its own packet
Cheese-excluding white cheese	In slices	6 - 8	Original package may be used for short storing period. It should be wrapped in foil for longer periods.
Butter, margarine In its package		6

	Maximum Storing time (months)	Thawing time in room temperature (hours)	Thawing time in oven (minutes)
Bread	4 - 6	2 - 3	4-5 (220-225 °C)
Biscuits	3 - 6	1 - 1,5	5-8 (190-200 °C)
Pastry	1 - 3	2 - 3	5-10 (200-225 °C)
Pie	1 - 1,5	3 - 4	5-8 (190-200 °C)
Phyllo dough	2 - 3	1 - 1,5	5-8 (190-200 °C)
Pizza	2 - 3	2 - 4	15-20 (200 °C)

CLEANING AND MAINTENANCE

• Unplug the fridge before starting to clean it.
• Do not wash your fridge by pouring water into it.
• Wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.
• Remove the parts individually and clean with soapy water. Do not wash in a dishwasher.
• Never use flammable, explosive or corrosive material, such as thinner, gas or acid for cleaning. Some recommendations have been specified below for the placement and storage of your food in the cooling compartment.

Make sure that your fridge is unplugged while cleaning.

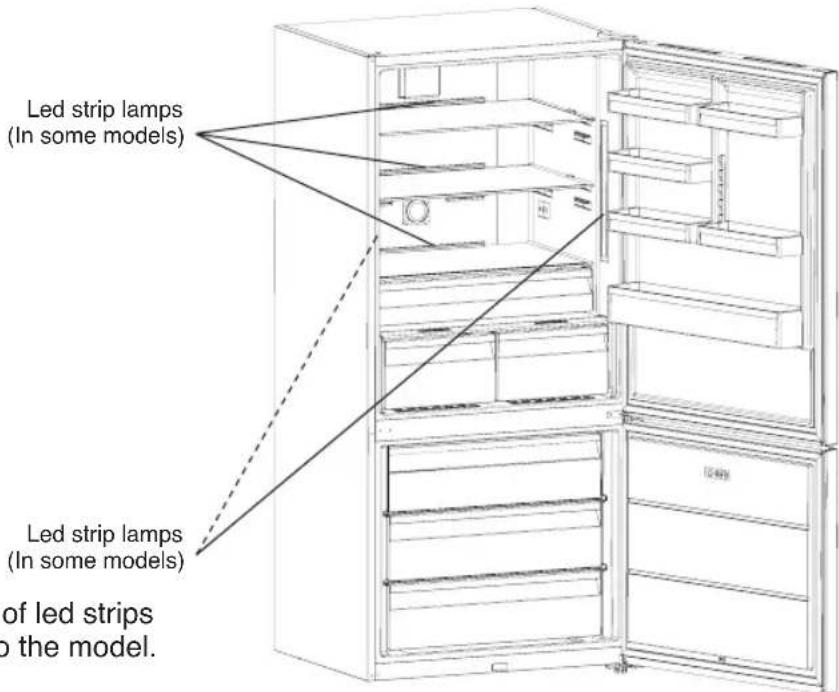

Replacing LED Lighting

If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

Note: Numbers and location of led strips may be changed according to the model.

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

• The original packaging and foam may be kept for re-transportation (optionally).
• You should fasten your fridge with thick packaging, bands or strong cords and follow the instructions for transportation on the package for re-transportation.
• Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.

Always carry your fridge in the upright position.

Repositioning the door

• It is not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your fridge can be changed, you should contact the nearest Authorised Service to have the opening direction changed.

BEFORE CALLING YOUR AFTER SALES SERVICE

CheckWarnings;

Your fridge warns you if the temperatures for cooler and freezer are in improper levels or when a problem occurs in the appliance. Warning codes are displayed in the Freezer and Cooler Indicators.

ERROR TYPE MEANING	WHY WHAT TO DO
SR “Failure Warning”		There is/are some part(s) Out of order or there is a failure in cooling process	Call Service for assistance as soon as possible.
SR – Set value blink on freezer set value screen	Freezer comp. Not Cold enough	This caution will be seen especially after long term of power failure	1. Do not freeze the foods that are thaw and use in short time period. 2. Set the freezer temperature to colder values or set the super freeze, until the compartment gets to normal temperature. 3. Do not put fresh food until this failure is off.
SR – Set value Blink on cooler set value screen	“Refrigerator comp. Not Cold enough”	Ideal temperature for Ref. Compartment is +4 oC. If you see this warning your foods have risk of spoiling.	1. Set the refrigerator temperature to colder values or set the super cooling mode until the compartment gets to normal temperature. 2. Do not open the door much until this failure is off.
SR – Set value blink on freezer and cooler set value screen	“not cold enough Warning”	It is combination of “not cool enough” error for both of the compartments.	You will see this failure when first starting the appliance. It will be off after the compartments gets normal temperature
SR – Set value blink on cooler set value screen	Refrigerator comp. too Cold	The foods starts to freeze because of the too much cold temperature	1. Check if the “Super cooling mode” is on 2. Decrease the refrigerator temperature values
“\_”	“Low voltage Warning”	When the power supply gets lower than 170 V the appliance gets to steady position.	This is not a failure. This prevents any damages on the compressor. This warning will off after the voltage gets required level

If your fridge is not operating;

Is there a power failure?
- Is the plug connected to the socket correctly?
- Is the fuse of the socket to which the plug is connected or the main fuse blown?
- Is there any failure at the socket? To check this, plug your refrigerator to a socket this is surely operating.

If your fridge is not cooling enough;

Is the temperature adjustment right?
- Is the door of your fridge opened frequently and left open for a long while?
Is the door of fridge closed properly?
- Did you put a dish or food on your fridge so that it contacts the rear wall of your fridge so as to prevent the air circulation?
Is your fridge filled excessively?
- Is there adequate distance between your fridge and the rear and side walls?
- Is the ambient temperature within the range of values specified in the operating manual?

If the food in your refrigerator compartment is over cooled

Is the temperature adjustment right?
- Are there many food recently put inside the freezer compartment? If so, your fridge may over cool the food inside the refrigerator compartment as it will operate longer to cool these food.

If your fridge is operating too loudly;

To maintain the set cooling level, compressor may be activated from time to time. Noises from your fridge at this time are normal and due to its function. When the required cooling level is reached, noises will be decreased automatically. If the noises persist;

• Is your appliance stable? Are the legs adjusted?
• Is there anything behind your fridge?
• Are the shelves or dishes on the shelves vibrating? Re-place the shelves and/or dishes if this is the case.
• Are the items placed on your fridge vibrating?.

Normal Noises;

Cracking (Ice cracking) Noise:

During automatic defrosting.
- When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking: Heard when the thermostat switches the compressor on/off.

Compressor noise (Normal motor noise): This noise means that the compressor operates normally. Compressor may cause more noise for a short time when it is activated.

Bubbling noise and splash: This noise is caused by the flow of the refrigerant in the tubes of the system.

Water flow noise: Normal flow noise of water flowing to the evaporation container during defrosting. This noise can be heard during defrosting.

Air Blowing Noise (Normal fan noise): This noise can be heard in No-Frost fridge during normal operation of the system due to the circulation of air.

If humidity builds up inside the fridge;

• Are all food packed properly? Are the containers dried before placing them in the fridge?
• Are the fridge doors opened frequently? Humidity of the room gets in the fridge when the doors are opened. Humidity build up will be faster when you open the doors more frequently, especially if the humidity of the room is high.

If the doors are not opened and closed properly;

• Do the food packages prevent closing of the door?
• Are the door compartments, shelves and drawers placed properly?
• Are door gaskets broken or torn?
• Is your fridge on a level surface?

If the edges of fridge cabinet that the door joint contact are warm;

Especially in summer (hot weather), the surfaces that the joint contact may get warmer during the operation of the compressor, this is normal.

IMPORTANT NOTES:

• Compressor protection function will be activated after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilized yet. Your fridge will start after 5 minutes, there is nothing to worry about.
• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to Part 4 and leave the door open to prevent humidity and smell.
• If the problem persists after you have followed all the instructions above, please consult to the nearest authorized service.
• The appliance you bought is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasize that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.

Tips for saving energy

1. Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near heat sources (radiator, cooker.. etc.). If you install it near heat sources, use an insulating plate.
2. Allow warm food and drinks to cool down before putting them in the refrigerator or freezer compartment.
3. When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment while it is thawing, reducing the energy required.
4. When placing liquids in the appliance, make sure they are covered. Otherwise humidity increases inside the appliance and the time taken to cool them is longer. Also covering drinks and liquids helps preserve the smell and taste.
5. When placing food and drinks in the appliance, open and close the appliance door as quickly as possible to keep the temperature inside the appliance stable.
6. Keep the covers closed of any compartments with different temperature requirements in the appliance (crisper, chiller ...etc.).
7. Make sure the door gasket is clean and pliable. Replace gaskets if they are worn or damaged.

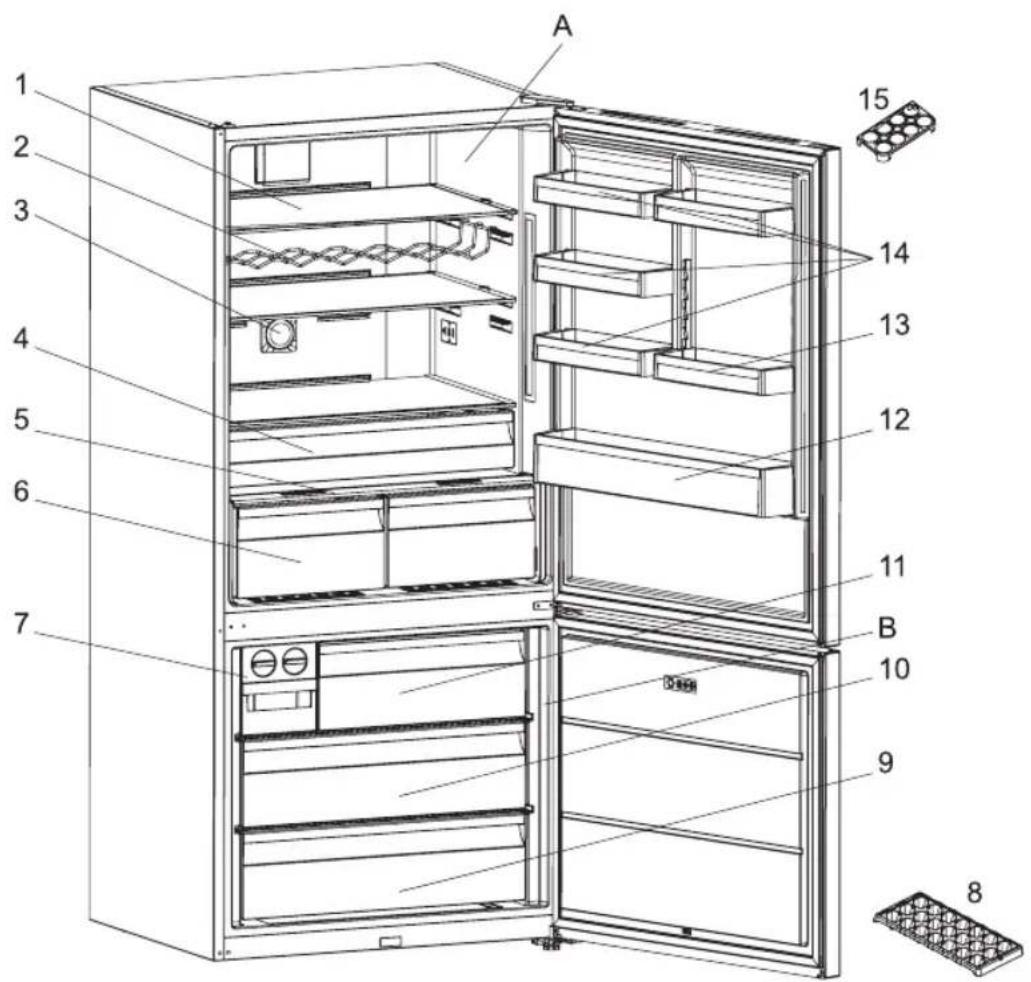

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

A. FRIDGE COMPARTMENT
B. FREEZER COMPARTMENT

1. Fridge compartment shelves
2. Bottle shelf / Wine rack *
3. Ioniser
4. Chiller shelf *
5. Crisper cover
6. Crispers
7. Icematic

8. Ice tray *

9. Freezer bottom basket

10. Freezer middle basket
11. Freezer top basket
12. Bottle shelf
13. Adjustable door shelf */ Door shelf
14. Cooling compartment door shelves

15. 1Egg holder

16. In some models

MESURES DE SECURITE

IL EST IMPORTANT DE LIRE ET OBSERVER

Mode Super congélation

Comment I'utiliser?

Compartment congélateur

aaii iiaaae aieae eae aeae aee aee

aaiy aiaaaeae aee

Jauaii 120 cui i 120 Jai y duiy jai y e jaiy aiaill

aai

.（）..gao（）jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia

jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie

2

iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie

a1 = 2,a2 = - 4, b2^2 = 4a · b1^2 + 4ab_2^2

4

Aaill aai jll gie balei jil gail gial all ayai li

5

Aa aee aee aee aee aee aee aee aee

w

aalalalalalalalalalalalalalalalalalalalalalal

.

aill 1

J

i 1

a 1

Jiaaii gao jie lai jia liu Jia

A yj 0 jai jai jie g jia jia jia jia jia jia jia jia jia jia

aal aal yaiy ay gall ylll 1 yll l 1 yll l 1 yll

j 1 j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

j jjjjj jjjjj jjjjj jjjjj

ydsaa aasaaa aae baaal jj jll gss

jy jgs

·JSS

.4j1g

j j 1

aolil lai jai all jao aol

cjiulj

y 1

2^3 + 1 = 5

g jaiil g jiali g jia 1

y

y

J 1

jglal gaii gaiia 1yai yai jai jai

jz

18°
. 60 15 60 20
Aa

(1) p - 24^ , p - 22^ , p - 20^ , p - 18^ , p - 16^ (2) p - 18^ , p - 17^ , p - 16^ , p - 15^ , p - 14^ , p - 13^ , p - 12^ , p - 11^ , p - 10^ , p - 9^ , p - 8^ , p - 7^ , p - 6^ , p - 5^ , p - 4^ , p - 3^ , p - 2^ , p - 1^ , p - 0^ ,

jao yds a jy d Jj y 1e baii p l jgaiall ayll a b, jor jy all baia jj gie

Super Freeze

-16° 0j
.

Holiday Mode Super Freeze Mode Super Cool Mode

Economy Mode

0 1

a 1

Jus

24 24

0jill oia 25 pala lalai j

·

\( {}^{ \circ }{32} \)	\( {}^{ \circ }{38} \)
\( {}^{ \circ }{32} \)	\( {}^{ \circ }{16} \)
\( {}^{ \circ }{43} \)	\( {}^{ \circ }{16} \)

glaa aagaae gaaa

aill jy 12 y. llll aod y sall aalld aill i,

yaiyaiyai yaiyai yaiyai yaiyai yaiyai yaiyai yaiyai

- 43^ - < 10^ ( L L)

：

山

(1) Twist Ice

a^2b^2( a^3b^3 + ^32) = ^68 + ^32

aall bia gao aaiyaaaiyaa

i 1

45 - 21 = 8

Aaii iie iie

aaii i 1

a jll jll jll jll jll jll jll

（）

y j 1 y

Clll CaiSscljolol jao gao laaallg kay lalal cll Jz

（）

-25° 10.000000000000000000000000000000000000000000000000000

gaiy

aai

·

aaii iia aie 4i i jai jai

:

aalll aalll aalll 00 g. gall llll g g g g

.

.
3.0jaiia jao

g

a

.
AD = AC = 1

. "E" 2
.

:

oJisall baiial
.

.
.
.

aal

Paaasimss

g 1 1

.
浴。
图

.
m = 311
1

:

J 1

"mode" j 1
bueie. cia aie albae gao jn nss sas baaa aaii dai jy iie baiai pai i
4i i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i 7i

:

C
.

.
.
.
1. 实验原理
.

e 1
aall g aai lai jy jyll bua kay
alall g aai ay lai y yll baia kay
gall ygal lgl yll e i jkay
alall g aai ay gill gial kay
gall yjlc bai ll baa cai

#

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

BIS COD

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

ai jiaai 0jg 1

g yydy y ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo ydo y

i i 100000000000000000000000000000000000000000000000000000000000

1 1
1
1
1
1
1
1
1
1
1

Igic I yog Igic j jy aagblai

.

1 1

Laaa aae aa jell jal yall aill ！

.(EC 244/2009 aol)

ailllll llll jn nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn

Jaa 2 aaii aaggl adaiaai iall iall

J 1

1

（p°）.abai 1

°32 10 :SN

°38 16 :ST

°32 16 :N

°43 16 :T

y

jia 12 jia jia jia jia jia jia jia

8 8

aai aai aiiaai iiaii 1

aeg aeg

4.15 S 100000000000000000000000000000

jbsu

1

aJg jglj 1jbjj.

4.2 gannai

jie jie 1

pbi j jiaall jj j j j j j j j j

Jiuee 2

1

aaii i 1 aiee

1 1 jill g d jgall g lll 2 j j

1

.
