USER MANUAL HAFC9 TA44SX H HOTPOINT

THANK YOU FOR BUYING A HOTPOINT-ARISTON PRODUCT

In order to receive a more complete assistance, please register your product on www.hotpoint.eu/register

Before using the appliance carefully read the Safety Instruction.

FIRST TIME USE

After installation, wait at least two hours before connecting the appliance to the power supply. Once connected, it will start working automatically. The ideal temperature settings are preset from the factory.

After turning the appliance on, wait 4-6 hours for it to reach the correct food storage temperature.

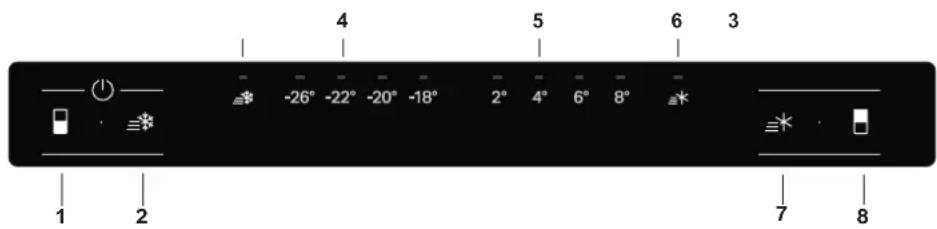

CONTROL PANEL

1. Freezer operation button
2. Super freeze button
3. Super freeze indicator light
4. Freezer temperature indicator light
5. Fridge temperature indicator light
6. Super cool indicator light
7. Super cool button
8. Refrigerator operation button

ON/OFF

To switch on/switch off the product press both Freezer operation button and Super Freeze button by 3 seconds.

FREEZER TEMPERATURE SETTING

To regulate the temperature in the freezer compartment use Freezer operation button. The temperature of the freezer is consisted with 4 levels as indicated on serigraphy (signaled by led light). Recommended setting for the freezer is -18°C.

This function is recommended for freezing fresh food. Fresh food should be frozen as quickly as possible, for the best possible preservation and for keeping its nutritional value. Press the Super Freeze button when you need to freeze fresh food; the Super Freeze indicator will come on.

We recommend you press the Super Freeze button 24 hours before putting the food in, in order to prepare the freezer compartment for the best possible freezing conditions. We recommend you use the bottom drawer to maximize the freezing capacity.

The Super Freeze function is automatically deactivated after 48 hours, or you can disable it manually by pressing the Fast Freeze button.

FRIDGE TEMPERATURE SETTING

The temperature of the fridge is consisted with 4 levels as indicated on serigraphy (signaled by led light). To regulate the temperature of the refrigerator compartment use Refrigerator operation button. Recommended setting for the refrigerator compartment is +4°C.

SUPER COOL FUNCTION

You can enable or disable the Super Cool feature (quick cooling of both fresh and just cooked food) by pressing the Super Cool key on the display. The Super Cool led turns on when activated. The function is automatically disabled after 12 hours, or can be manually disabled by pressing the Super Cool button.

LED LIGHT

This product contains a light source of energy efficiency class F. If the LED light system does not work, please contact the Service to replace it.

Important: The refrigerator compartment light switches on when the refrigerator door is opened. If the door is kept open for more than 8 minutes the light will be automatically switched off.

HOW TO STORE FRESH FOOD AND BEVERAGES

* The number and type of door balconies depends on the model

Refrigerator compartment defrosting is completely automatic. Droplets of water on the rear wall inside the refrigerator compartment indicate that the automatic defrost phase is in progress. The defrost water is automatically run into a drain hole and collected in a container, where it evaporates.

Multi-fresh Zone (drawer)\*

You can customize the temperature in the Multi-fresh Zone (b) to preserve the type of food you place inside as best possible. Turn the knob on the drawer to set the food type:

• Fish and meat*
• Cheese and dairy products
• Fruit and vegetables

Note: we recommend you do not put fish and meat inside the drawer at the same time unless they are properly packed, to avoid cross contamination.

Simple line drawing of a circular mechanical component with no text or symbols

Humidity Control\*

Turn the knob to the left if you are storing vegetables (for which a more humid environment is recommended), rotate the knob to the right if you are storing fruit (for which a less humid environment is recommended), turn the knob to the middle if you are storing a mixture of fruit and vegetables.

Simple line drawing of a circular object with two small icons above it, placed on a horizontal line (no text or symbols)

* Available only on certain models

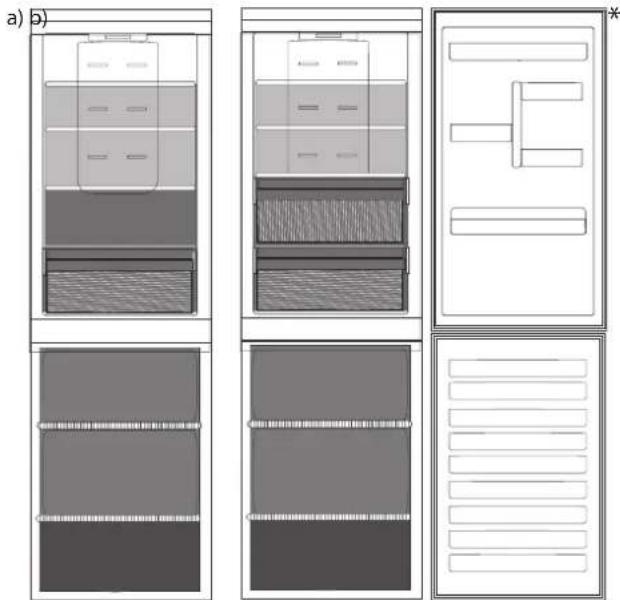

Legend

TEMPERATE ZONE

Suggested for storage of tropical fruit, cans, drinks, eggs, sauces, pickles, butter, jam

COOL ZONE

Suggested for the storage of cheese, milk, daily food, delicatessen, yogurt

COOLEST AREA

a) Suggested for storage of cold cuts, desserts, meat and fish

b) Suggested for storage of fish, meat, cheese, dairy products, fruits, vegetables. The drawer available only on certain models

FRUIT & VEGETABLE DRAWER

FREEZER DRAWERS

(One drawer in models lower than 1,7m)

FREEZING ZONE DRAWER

(Max cool zone)

Suggested to freeze fresh / cooked food

Foldable shelf\*

This shelf can be used in three different ways:

1. Full-depth, to use the entire surface.

Simple line drawing of a three-tiered shelving unit (no text or symbols)

1. Half-depth, to use the rear part and at the same time create space for taller items (like bottles and jugs) on the shelf below. To adjust the shelf to half-depth, slightly raise the front part then pull it in.

Technical line drawing of a mechanical assembly with labeled components (no text or symbols)

1. Flipped up if you need to make space for tall or bulky items on

the shelf below. To flip the shelf up, first adjust it to the halfway position from half-depth. Flip the shelf down to go back to using it in half-depth and full-depth.

Simple line drawing of a mechanical assembly with a curved arrow indicating direction (no text or symbols)

FREEZER COMPARTMENT

Total No Frost freezers provide chilled air circulation around the storage areas, and prevent the formation of ice, thereby completely eliminating the need for defrosting.

Frozen items don't stick to the walls, labeling stays legible and storage space remains neat and clear.

The freezer compartment allows for the storage of frozen food and the freezing of fresh food. The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate. Arrange the fresh food in the freezing area inside the freezer compartment, leaving enough space around it to allow air to circulate freely. Avoid allowing fresh food to come into direct contact with frozen food. Load limits are determined by baskets, flaps, drawers, shelves etc..

Make sure that these components can still close easily after loading. The freezing zone's drawer/compartment is shown in the picture above. To optimize freezing speed and get more storage space, the freezer compartment can be used without the freezer drawers and the food can be placed directly on the bottom of the compartment. To avoid food waste, please refer to the recommended setting and storage found in the online user manual.

Ice cubes

Fill 2/3 of the ice tray with water and place it back in the freezer compartment. Do not use sharp or pointed objects to remove the ice.

ACCESSORIES\*

EGG TRAY ICE TRAY BOTTLE RACK FOLDABLE SHELF

GENERAL INFORMATION

The drawers, baskets, and shelves should be kept in their current position unless otherwise specified in this quick guide. The light system inside the refrigerator compartment uses LED lights, which provide better lighting and use less energy than traditional bulbs.

Doors and lids of the refrigerator should be removed before disposal, to avoid children or animals getting trapped inside.

TROUBLESHOOTING

What to do if... Possible reasons Solutions

The appliance is not working.	There may be an appliance power supply problem.	·Check if power cable plugged into a live socket with the proper voltage.·Check if the protection devices and fuses of the electrical system in your home
There is water in the defrost pan.	This is normal in hot, damp weather. The pan can even be half full.	·Make sure the appliance is level so that the water does not overflow.
The edges of the appliance cabinet, which come in contact with the door seal, are warm to the touch.	This is not a defect. This is normal in hot weather and when the compressor is running.
The light does not work. The light may need replacing. The appliance may be in On/ Stand-by model.		·Make sure if the protection devices and fuses of the electrical system in your home work well.·Check if the power cable is plugged into a live socket with the proper voltage·In case the LEDs are broken the user must call the Service for exchange of the same type available only at our Aftersales Service Centers or authorized dealers.
The motor seems to run too much.	Motor running time depends on different things: number of door openings, amount of food stored, temperature of the room, setting of the temperature controls.	·Make sure that the appliance controls are correctly set.·Check if there is not a large amount of food been added to the appliance.·Check that the door is not opened too often.·Check that the door close properly.

What to do if... Possible reasons Solutions

The appliance temperature is too high.	There could be various causes (see “Solutions”).	Make sure that the condenser (back the appliance) is free of dust and fluff.Make sure that the door properly closed.Make sure that the door seals properly fitted.On hot days or if the room is warm, the motor naturally runs longer.If the appliance door has been left open for a while or if large amounts of food have been stored, the motor will run longer in order to cool down the interior of the appliance.
The doors do not open and close properly.	There could be various causes (see “Solutions”).	Check that food packages are not blocking the door.Check that the internal parts or automatic ice maker are not out of position.Check that the door seals are not dirty or sticky.Ensure the appliance is level.

ALARM TABLE

Alarm type Signal Cause Cure

Door open alarm. The alarm sounds and the light blinks.		The door has remained open for more than 3 minutes.	Close the door.
Temperature alarm.	The alarm sounds and the two indicator lights flash.	The doors do not close properly or the seals are damaged. The doors are opened too frequently. The refrigerator or the freezer have been over-filled. The temperature in the freezer is too high. Check the quality of the food products and dispose if necessary.	To turn off the acoustic signal, open and close the refrigeration door and restore normal operation product.
	The alarm sounds and the four indicator lights flash.	The doors do not close properly or the seals are damaged. The doors are opened too frequently. The refrigerator or the freezer have been over-filled. The temperature of the freezer is dangerously high: the food inside must not be eaten.	To turn off the acoustic signal, open and close the refrigeration door and restore normal operation product.

* Available only on certain models

Policies, standard documentation, ordering of spare parts and additional product information can be found by:

• Visiting our website docs.hotpoint.eu and parts-selfservice.whirlpool.com
• Using QR Code
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate. The model information can be retrieved using the QR-Code indicated on the energy label. The label also includes the model identifier that can be used to consult the https://eprel.ec.europa.eu database portal.

DANKE, DASS SIE SICH FÜR EIN HOTPOINT-ARISTON PRODUKT ENTSCHIEDEN HABEN

Architectural floor plan diagrams showing room layouts and door placements (no text or labels)

Simple line drawing of a circular object with textured edges and a small protrusion, resting on a horizontal line (no text or symbols)

Humidity Control (Feuchteregelung)\*

Simple line drawing of a circular object with two small icons above it, placed on a horizontal line (no text or symbols)

Simple line drawing of a two-tiered shelf or rack unit (no text or symbols)

Technical line drawing of a cabinet or shelf with labeled components (no text or symbols present)

Simple line drawing of a mechanical assembly with a curved arrow indicating motion (no text or symbols)

GEFRIERRAUM

PRODUIT HOTPOINT-ARISTON

www.hotpoint.eu/register

Diagram showing four different storage or storage compartments with labeled sections (a), b), c), d) and e) without any readable text or symbols.

Multi-fresh Zone (bac)\*

Line drawing of a ring with textured outer surface and horizontal lines below (no text or symbols)

Simple line drawing of a circular object with two small icons above it, no text or symbols present.

Clayette repliable\*

Line drawing of a three-tiered shelf or rack system with no text or symbols

Technical line drawing of a cabinet or shelving unit with labeled components (no text or symbols present)

Simple line drawing of a cabinet or shelf with a curved arrow indicating rotation (no text or symbols)

COMPARTIMENT CONGÉLATEUR

Pure architectural floor plan lines without any text, numbers, or symbols

KOELKASTCOMPARTIMENT

Multi-fresh Zone (lade)\*

Simple line drawing of a circular object with textured surface and small protrusions, no text or symbols present.

Humidity Control (Vochtregelaar)\*

Simple line drawing of a circular object with two apples and a plus sign, placed on a horizontal line (no text or symbols)

Line drawing of a cabinet or shelf with shelves and compartments (no text or symbols)

Technical line drawing of a mechanical assembly with a curved arrow indicating motion (no text or symbols)

DIEPVRIESCOMPARTIMENT

Diagram showing four layout panels (a, b) of a refrigerator with different compartments and storage areas, no text or symbols present.

Multi-fresh Zone (cassetto)\*

Technical line drawing of a mechanical ring component (no text or symbols)

Simple line drawing of a ring with two small icons above it, no text or symbols present.

Line drawing of a cabinet or shelving unit with shelves and drawers (no text or symbols)

Simple line drawing of a mechanical or architectural component with no visible text, numbers, or symbols.

COMPARTO CONGELATORE

PRODUCTO HOTPOINT - ARISTON

Diagram showing four layout panels (a, b) of a refrigerator with different compartments and storage areas, no text or symbols present.

Technical line drawing of a mechanical ring component (no text or symbols)

Humidity Control (Control de humedad)\*

Simple line drawing of a ring with two small icons above it, no text or symbols present.

PRODUTO HOTPOINT - ARISTON

Diagram showing four layout panels (a, b) of a storage or storage unit with different internal compartments and storage areas, no text or symbols present.

Multi-fresh Zone (gaveta)\*

Simple line drawing of a ring with no text or symbols

Simple line drawing of a circular object with two small icons above it, placed on a horizontal line (no text or symbols)

Simple line drawing of a cabinet or shelf with a curved arrow indicating rotation (no text or symbols)

COMPARTIMENTO DO CONGELADOR

Architectural floor plan diagrams showing room layouts and storage compartments (no text or labels)

Technical line drawing of a ring with mounting holes and a central hole (no text or symbols)

Humidity Control (Kontrola wilgotności)\*

Simple line drawing of a circular ring with two small icons above it, no text or symbols present.

Technical line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

Technical line drawing of a cabinet or shelf with labeled components (no text or symbols present)

Simple line drawing of a mechanical assembly with a curved arrow indicating motion (no text or symbols)

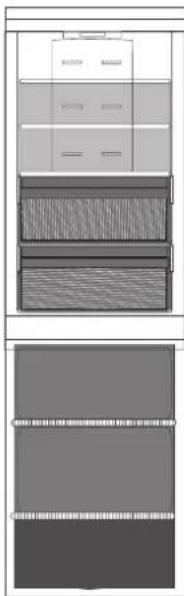

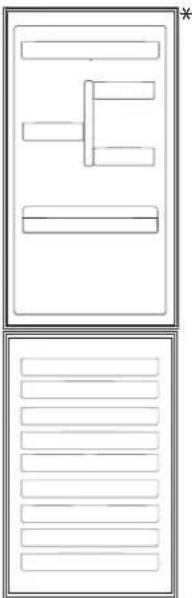

KOMORA ZAMRAŻARKI
