Technical Features	Details
Type of Cooker	Electric cooker
Number of Hotplates	4 hotplates
Type of Hotplates	Vitroceramic hotplates
Total Power	Approximately 6000 W
Oven	Electric oven with fan-assisted heating function
Oven Capacity	Approximately 60 liters
Maximum Oven Temperature	250 °C
Energy	230 V electric power supply
Dimensions (W x D x H)	Approximately 60 x 60 x 85 cm
Weight	Approximately 50 kg
Usage	Ease of use with intuitive controls
Maintenance	Easy cleaning thanks to the vitroceramic surface
Safety	Safety system to prevent overheating
General Information	Ideal for family kitchens and small spaces

Frequently Asked Questions - EKP 5027 CB BOMANN

How do I turn on the BOMANN EKP 5027 CB cooker?

To turn on the cooker, turn the temperature selection knob to the desired position. Make sure the appliance is plugged into a working electrical outlet.

What should I do if the cooker does not heat up?

Check that the cooker is properly plugged in and that the electrical circuit is working. Also ensure that the temperature knob is set correctly.

How do I clean the vitroceramic cooking surface?

Use a mild cleaner and a non-abrasive cloth. Avoid rough sponges that could scratch the surface.

The cooker makes strange noises, what should I do?

Noises may indicate a problem with the heating elements or the fan. Unplug the cooker and contact an authorized repair service.

How do I adjust the cooker thermostat?

Simply turn the thermostat knob to the desired temperature. Indicator lights will show you when the appliance reaches the selected temperature.

Does the cooker have a safety mode?

Yes, the BOMANN EKP 5027 CB is equipped with an automatic safety system that turns off the appliance after a period of inactivity.

How can I prevent pots from sticking?

Make sure to preheat the cooking surface and use a little oil or butter before placing your pots.

Where can I find the user manual for the cooker?

The user manual is usually included in the packaging. Otherwise, you can download it from the official BOMANN website.

What should I do if the cooker does not respond to controls?

Unplug it for a few minutes, then plug it back in. If the problem persists, contact customer service.

The cooker light does not turn on, is this normal?

This may be normal if the cooker is in standby mode. Make sure the cooker is turned on and check the electrical connections.

USER MANUAL EKP 5027 CB BOMANN

White BOMANN® electric stove with black top and control knob (no visible text or symbols on body)

Diagram showing three cooking pots with upward arrows and prohibition signs, one marked with a checkmark.

Diagram showing three cooking pots with upward arrows and prohibition signs, one marked with a checkmark.

Diagram showing three cooking pots with upward arrows and prohibition signs, one marked with a checkmark.

Diagram showing three cooking pots with upward arrows and prohibition signs, one marked with a checkmark.

Diagram showing three cooking pots with upward arrows and prohibition signs, one marked with a checkmark.

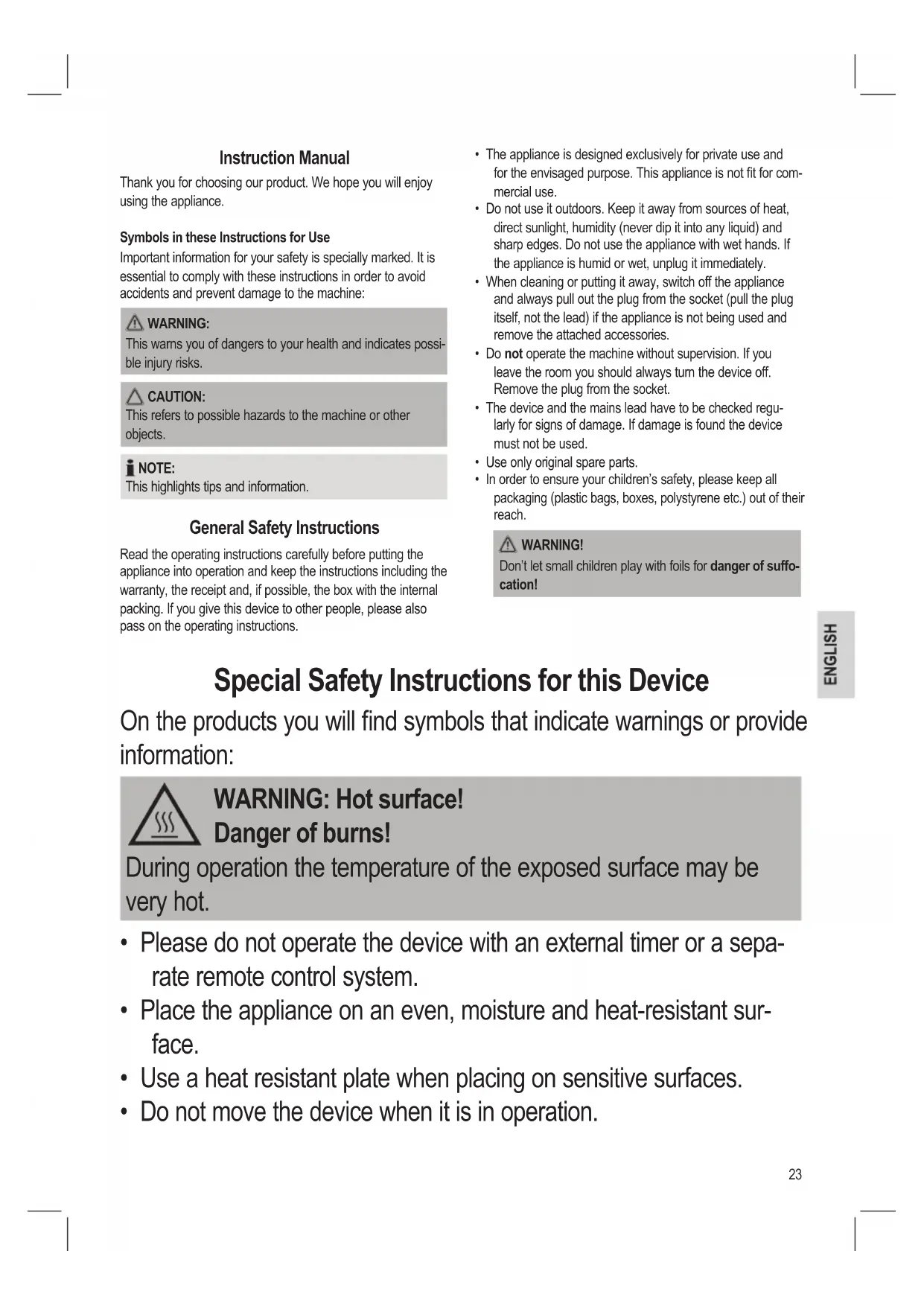

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE:

This highlights tips and information.

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Don't let small children play with foils for danger of suffocation!

Special Safety Instructions for this Device

On the products you will find symbols that indicate warnings or provide information:

WARNING: Hot surface!

Danger of burns!

During operation the temperature of the exposed surface may be very hot.

• Please do not operate the device with an external timer or a separate remote control system.
• Place the appliance on an even, moisture and heat-resistant surface.
• Use a heat resistant plate when placing on sensitive surfaces.

• Do not move the device when it is in operation.

• Due to the rising heat and vapours the device should not be operated under wall cupboards.

• Keep the unit at a safe distance from easily inflammable objects such as furniture, curtains, etc. (30 cm). Under no circumstances should the device be installed in cupboards.
• Do not heat empty pots on the cooking zone as this may lead to dangerous overheating.
• During and after use, ensure that the power cord does not come into contact with the hot surface of the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
• This appliance is not designed to be immersed in water during cleaning. Please follow the instructions provided in the chapter "Cleaning".

Unpacking the appliance

1. Remove the appliance from its packaging.
2. Remove all packaging materials such as films, filler material, cable clips and carton.
3. To prevent hazards, check the appliance for any transport damage.

NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning".

Attaching the handles

The handles can be attached to the left and right side respectively.

The handles feature clamps that fit into the openings of the housing.

- Push the clamps into the housing and secure by using the screws provided.

Electrical Connection

Connected load/wattage

The hob can take up an overall load of 1500 W. Because of this high connected load it is recommended to use a separate connection protected over a 16 A safety switch.

CAUTION: Overload!

Do not use extension cables or multiple sockets as the power consumption of this device is too high for these.

Connection

• Before inserting the mains plug into the socket check whether the voltage which you intend to use corresponds to that of the machine. Please see the label on the machine for details.
• Only connect the machine to a correctly installed safety socket.

Initial Operation of the Unit

Before first use, operate the unit for 5 minutes to remove the protective coating of the hotplate. Set the thermostatic controller to MAX.

NOTE:

Occurrence of light smoke and odours is normal with this procedure. Take care of suitable ventilation.

Using the Hotplate

Switching on/off

The unit is switched on with the thermostatic controller. The unit is switched off when the thermostatic controller is set to MIN.

Notes for cooking utensils

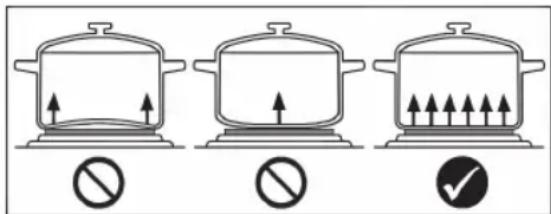

- For optimum use of energy, use only pots/pans with a flat bottom (see Fig.).

Diagram showing three cooking pots with upward arrows and prohibition signs, one marked with a checkmark.

- The cooking utensil never should be smaller than the hot-plate. This wastes energy. In extreme cases, the hotplate can become distorted.

Operation

Use the thermostatic controller to select the temperature of the hotplate according to the purpose:

Notch 1: Warming up
Notch 2: Warming up/simmering
Notch 3: Simmering
Notch 4: Frying
Notch 5: Parboiling, browning
Notch MAX: Browning, quick heating

NOTE:

The pilot lamp indicates the heating up of the hotplate. It is switched on and off during operation. This is normal and indicates that the temperature is controlled and maintained by the thermostatic controller.

Switching Off

• Set the thermostatic controller to MIN.
• Remove the mains plug from the socket.
• Let the unit cool down before storing it.

WARNING: Hazard of burns!

Because of the heat radiated during cooking, dangerously high temperatures may occur at the cooking zone after the cooking cycle.

Cleaning

WARNING:

• Always remove the mains lead before cleaning!
- Wait until the machine has cooled down completely!
- Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.

Hotplate

• Remove food residues with a moist cloth or a paper towel while still warm.
• Clean the hotplate with a soft sponge and a small amount of water, and dry it thoroughly with a soft cloth.

Housing

• Clean the housing after use using a slightly moist cloth.
• Make sure that no fluid matter gets into any of the openings of the housing. This might damage the device or result in an electric shock.

Storage

• Only store the appliance clean and after it has cooled down.
• During longer periods of non-use we recommend storing the appliance in its original packaging.
  • Always store the appliance in a well-ventilated and dry place out of reach of children.

Technical Data

Model: EKP 5027 CB
Power supply: 230 V\~, 50 Hz
Power consumption: 1500 W
Protection class:....I
Net weight: ....approx. 1.2 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Wheelie Bin" Symbol

Take care of our environment, do not dispose of electrical appliances via the household waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste disposal.

You contribute to recycling and other forms of utilization of old electric and electronic appliances.

Your municipality provides you with information about collecting points.
