Product type	Watch
Brand	Jaguar
Model	J810 Special Edition
Battery	395 (SR 927 SW) – Ø 9.5 mm x 2.6 mm
Accuracy	+20 / -10 seconds per month
Time display	Hour, minute, small second hands (3 o'clock)
Date display	Aperture at 12 o'clock
Chronograph	1/10s counter (6 o'clock), minute counter (9 o'clock), central seconds counter
Chronograph functions	Start/Stop, totalization, split times, reset
Time setting	Crown position III (second stop), rotation for time setting
Quick date correction	Crown position II, forward rotation
Chronograph hand adjustment	Correction mode via pushers A and B (hold 2 s in position III)
Maintenance	Battery replacement by a professional; avoid shocks and magnets
Cleaning	Soft dry cloth; do not use chemicals
Repairability	Servicing by a qualified watchmaker; spare parts available

Frequently Asked Questions - J810 Special Edition JAGUAR

How to set the time on my Jaguar J810 Special Edition?

Pull the crown to position III (the second hand stops). Turn the crown until the desired time, then push it back to position I. To set the exact second, pull the crown when the second hand is at 60.

How to quickly correct the date?

Pull the crown to position II (the watch continues running). Turn the crown until the current date appears. Then push the crown back to position I. Avoid correcting the date between 9 pm and midnight to avoid disturbing the calendar.

How to use the chronograph (start, stop, reset)?

Ensure the crown is in position I. Press pusher A to start, again to stop. Press pusher B to reset all three counters.

How to perform timing with addition?

Start with A, stop with A (first time), restart with A, stop again with A (cumulative total). The sum of times is displayed. Reset with B.

How to measure a split time?

Start with A. Press B to display the split time (timing continues in the background). Release B to catch up with the elapsed time. Stop with A for the final time.

What to do if the chronograph hands do not return to zero?

Pull the crown to position III. Press A and B simultaneously for at least 2 seconds to activate correction mode. Use A (step by step) or A (continuous) to adjust each hand, then B to move to the next hand. Finish by pushing the crown back to position I.

Which battery to use for the J810 Special Edition?

The recommended battery is the 395 (SR 927 SW) with a diameter of 9.5 mm and height of 2.6 mm. Have the battery replaced by a professional watchmaker.

How to set the time and date after a battery change?

Pull the crown to position II to set the date to the day before the current date (e.g., 03). Push back to I. Pull to position III to set the time by turning until the current date (04) appears, then continue to the exact time (e.g., 8:30 pm). Respect the 24-hour cycle.

Is my watch waterproof?

The manual does not mention water resistance. As a precaution, avoid any contact with water and consult a watchmaker for a waterproof test if necessary.

How to clean my Jaguar J810 Special Edition watch?

Use a soft dry cloth to wipe the case and crystal. Never use chemicals, solvents, or abrasive cleaners that could damage the finishes.

USER MANUAL J810 Special Edition JAGUAR

-Brief specifications 18
- Description of the display and control buttons 19
- Setting the time / date. 20-23
-Operation of the chronograph. 24-29

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

Brief specifications

Timc/Date

• Hour hand
• Minute hand
• Small second hand (position 3h)
• Date (position 12h)

Chronograph

1/10 second counter / hour counter after 30 minutes (position 6h)
- Minute counter up to 30 minutes (position 9h)
- Centre stop-second

General

Battery type: 395 (diameter 9.5mm x 2.6mm / SR 927 SW)
Accuracy: +20 / -10 seconds per month

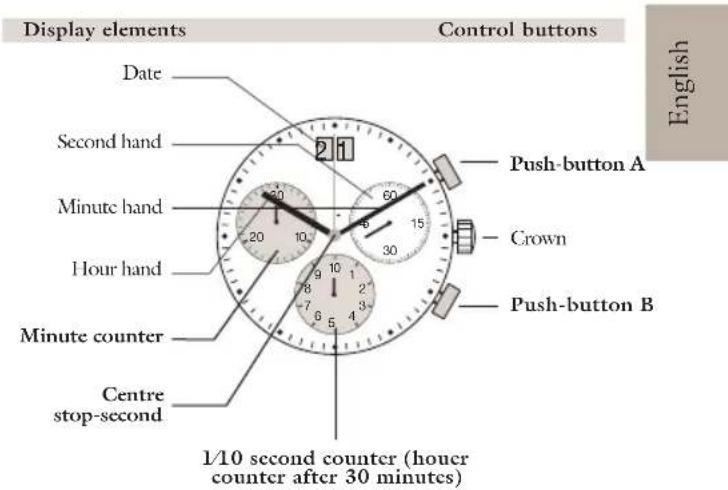

Description of the display and control buttons

Setting the time

Setting the date (quick mode)

^1 *Pull out the crown to position III (the watch stops).
Turn the crown until you reach the correct time 8.45.
*Push the crown back into position I.

Please note:

*In order to set the time to the exact second, must be pulled out when the second hand is in position 60 (1).

Once the hour and minute hands have been set, 3 must be pushed back into position I at the exact second.

Pull out the crown to position II (the watch continues to run).
Turn the crown until the correct date appears.
Push the crown back into position I.

Please note:

The date can be changed during the date changing phase between 9.00 PM and 12.00 PM; please note that the date must be set to the date of the following day as in this case the automatic date changing does not occur at midnight.

Setting the date/time following a battery change

Example:

-Date/time on the watch: 17/1:25 AM
Present date/time: 8.30PM

Pull out the crown to position II (the watch continues to run).
Turn the crown until yesterday's date appears 03.

↓

*Pull out the crown to position III (the watch stops).
4 Turn the crown until the correct date appears.
5 **Continue to turn the crown until the correct time 8.30 PM appears.

Push the crown back into position I.

Please note:

*To set your watch to the exact second, please refer to the chapter entitled ‘setting the time’.
**Please observe the AM/PM clock rhythm.

Chronograph:

The minute counter measures 30 minutes per rotation.
The center stop-second measures 60 seconds per rotation.
- The 1/10 second counter measures 1 second per rotation. After 30 minutes this counter works as hour counter. The how counter measures 10 hours per rotation.

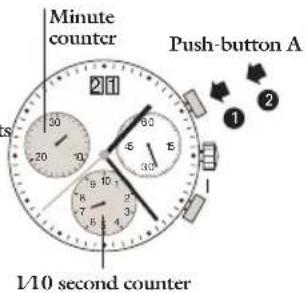

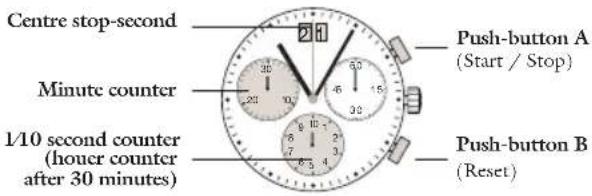

Chronograph: basic function

(start / stop / rcst)

Control buttonsDisplay elements

Example:

Please note:

Before using the chronograph functions, please ensure that: the crown is in position I (= normal position). the 3 chronograph hands are precisely at zero position following activation of pushbutton B. Should this not be the case, the positions of the hands must be adjusted (see the chapter entitled «adjusting the chronograph hands to zero position»).

1 Start: Press push-button A.
Stop: to stop the timing, press push-button A. once more and read the three chronograph hands: 4min/38sec/7/10 sec

Zero positioning: Prcess push-button B.

(The three chronograph hands will be reset to their zero positions).

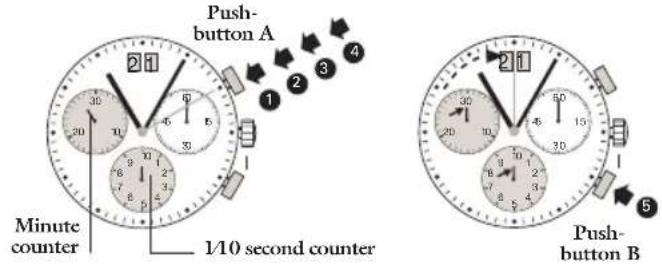

Chronograph: accumulated timing

Example:

1 Start: (start timing)
Stop: (c.g. 15 min 5 sec following 1)
Restart: (timing is resumed)
*Stop: (c.g. 13 min 5 sec following) = 28 min 10 sec (The accumulated measured time is show

The three chronograph hands are returned to their zero positions.

Please note:

• Following 4, the accumulation of the timing can be continued by pressing push button A (Restart/Stop, Restart/Stop,...)

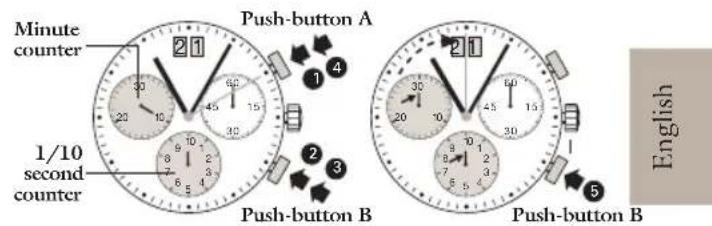

Chronograph: intermediate or interval timing

Example:

1 Start: (start timing)
Display interval: c.g. 10 minutes 10 seconds (timing continues in the background)
3 Making up the measured time: (the 3 chronograph hands are quickly advanced to the ongoing measured time).
4 Stop: (Final time is displayed)

5 Reset:

The 3 chronograph displays are returned to their zero position

Please note:

• Following 3 further intervals or intermediates can be displayed by pressing push-button B (display interval / make up measured time, ...)

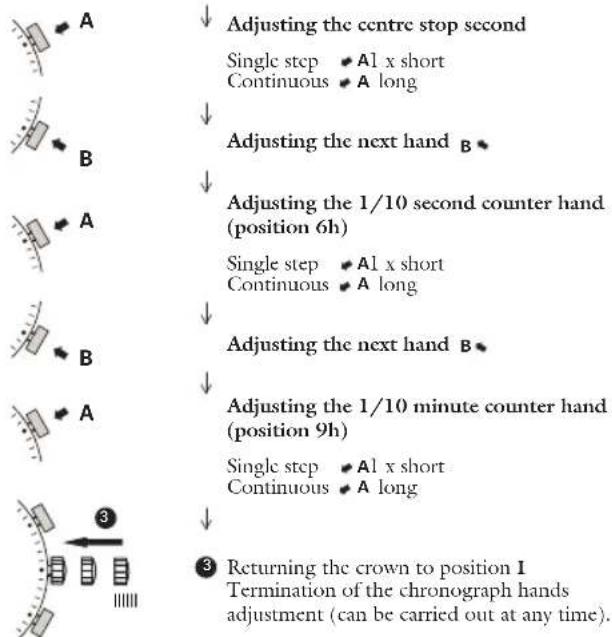

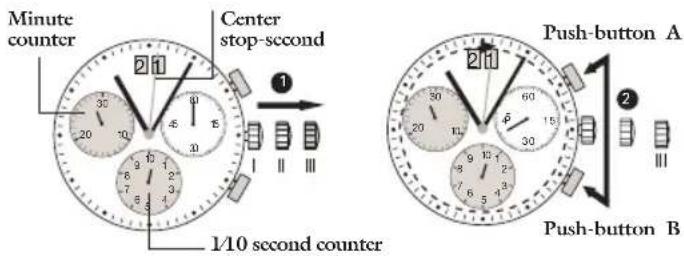

Adjusting the chronograph hands to zero position

Example:

One or several chronograph hands are not in their correct zero positions and have to be adjusted (e.g. following a battery change).

Pull out the crown to position III (all 3 chronograph hands are in their correct or incorrect zero position).

2 Kcp push Buttons A and B deprocessed simultaneously for at least 2 seconds (the centre stopsecond rotates by 360^ corrective mode is activated).
